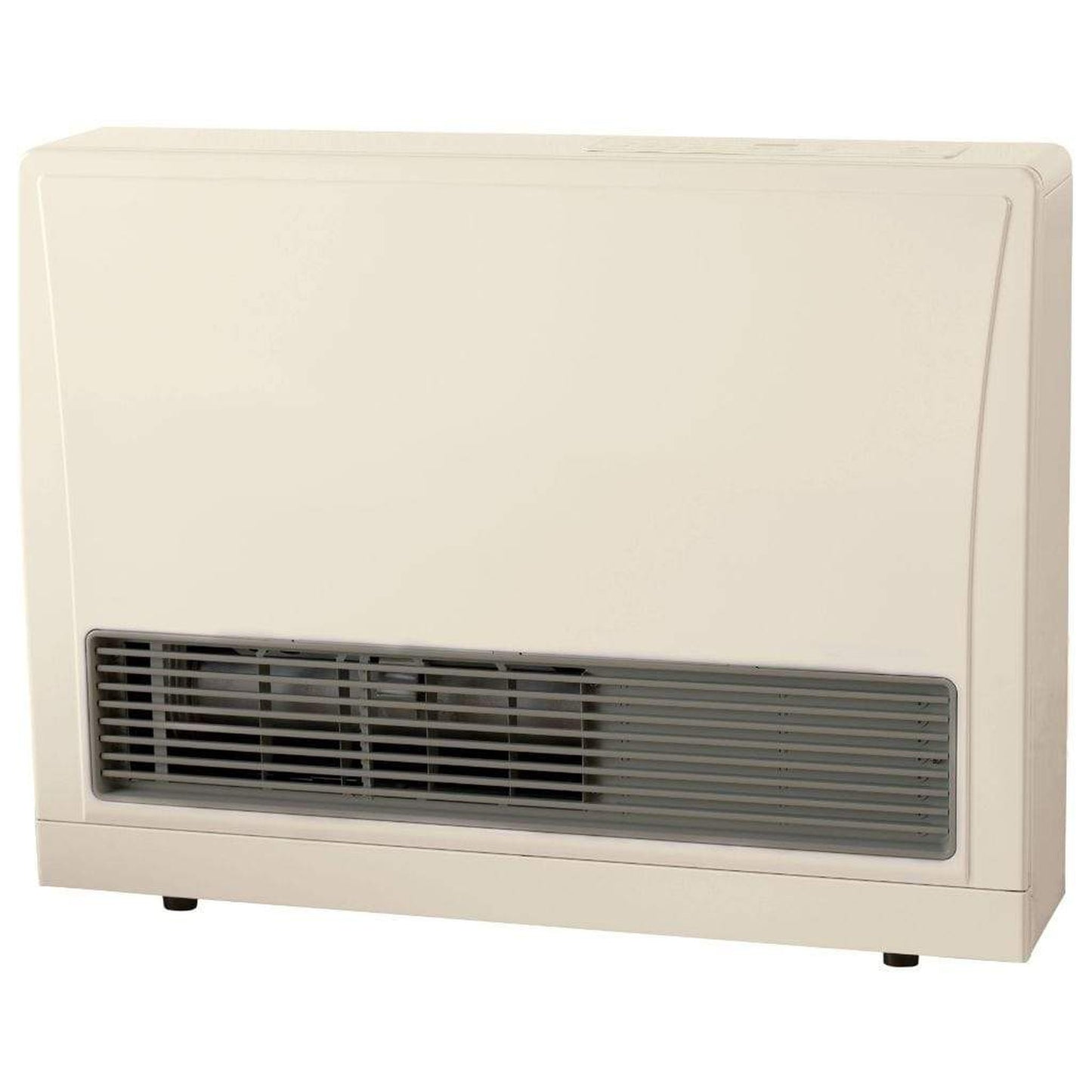

This direct-vent wall furnace is 16,700 BTUs and is a great source of heat for large rooms in most of the country. Direct Vent furnaces can be installed almost anywhere along and outside wall. The EX17CT offers several venting installation options. A built-in, programmable thermostat is located on top of the unit of the EX17CT. It has 2 timer settings and can be connected to a WiFi-enabled thermostat giving you more flexibility in your comfort control when you are away from home or just in a different room! And, don't worry if there is a power failure while your system is on, the appliance will shut off the gas and once power is restored, this unit will re-start automatically.

The Energy Saver Direct Vent Wall Furnaces feature modulating technology to optimize the efficiency of the unit. It offers just the right amount of heat at any given moment by constantly monitoring the room temperature and detecting temperature fluctuations. Room temperature is monitored 2" from the floor and detects temperature changes of less than 1°F. If a door opens and a sudden gush of cold air rushes into the room, the furnace automatically adjusts the fan speed and BTUs to restore the room back to its set temperature quickly.

The 2.1 pint, enamel-coated, built-in humidifier tray is located on the bottom front of the unit for easy access. As warm air passes over the water in the tray it is humidified. This helps make the warm air you are breathing a little less dry!

It is recommended that you allow for 40 inches of clearance in front of the unit and 10 inches from the top and sides to allow for easy maintenance and service access.

Certified for installation in Manufactured (Mobile) Homes. The EX17CT includes the FOT-151 Termination Kit. This kit is for use with walls that is between 4-1/2" - 9-1/2" thick. If you have thicker walls, extensions are available (typically field provided by the installer) for this unit.

What's Included

• EX22CTP (Propane Model) or EX17CTN (Natural Gas)

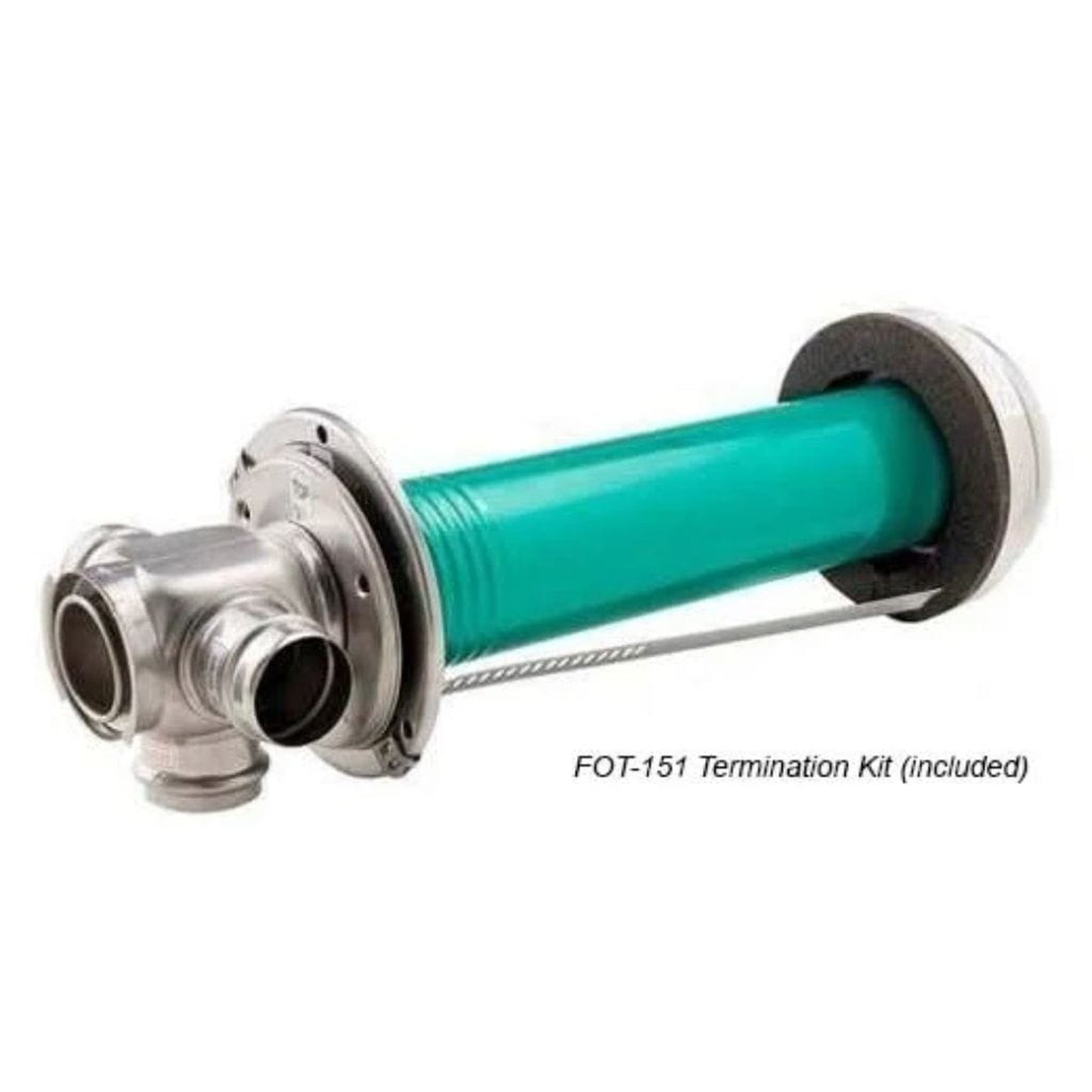

• Vent Kit FOT-151 (4-1/2" - 9-1/2" Walls)

Features

• Restarts automatically when ignition or combustion fails.
• Starts and turns off the heater at 2 timer settings.
• Provides precise gas flow by operating from one to seven stages.
• Detects temperature change in 1/2 of a degree.
• Monitors and controls combustion fan and allows the appliance to overcome winds of up to 40 mph.
• Continually monitors functions; provides auto shutdown codes; indicates
• Reduces noise through use of swept blades in convection fan; quiet expansion / contraction of parts due to temperature changes.
• Ability to connect to a field supplied wall thermostat.

 Specifications

Installation

To connect with a Rinnai-trained installer, you can utilize the Rinnai Dealer Locator by visiting the link: https://www.rinnai.us/find-pro. Alternatively, you can directly reach out to Rinnai's dedicated customer support team via the Toll-Free Number: 1 (800) 621-9419.

Documents & Files

• Download Specification Manual
• Download Installation Instructions
• Download Rinnai Heating Solution Brochure

Warranty

	10 yrs on Heat Exchanger
	5 Year Warranty on Parts
	2 Year Labor Warranty
