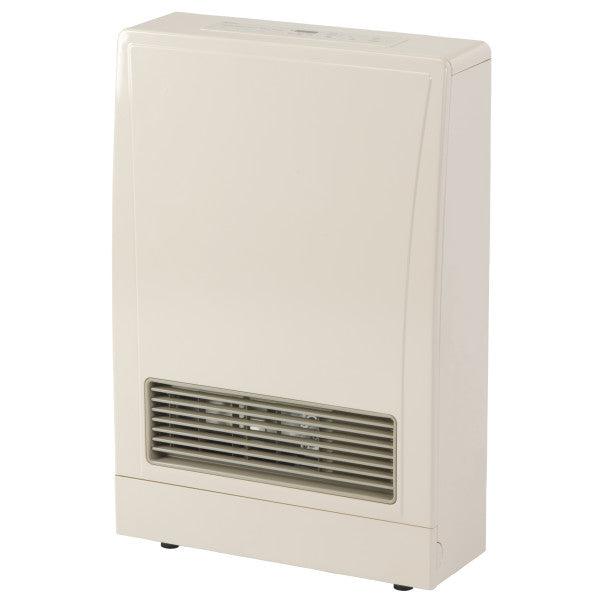

Rinnai DT Series 18" 8K BTU Energy Saver Direct Vent Natural Gas Wall Furnace
Rinnai DT Series 18" 8K BTU Energy Saver Direct Vent Natural Gas Wall Furnace
Couldn't load pickup availability
- Free Shipping on Orders Over $200
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
EX08DTN is a quick, flexible installed, ductless, natural gas, direct vent wall furnace from Rinnai; the perfect supplemental or specific zone heating solution that seeks out cold spots and within seconds begins to gently heat the room or space for maximum comfort. WiFi enabled thermostat connection ready.
The EnergySaver Direct Vent Wall Furnaces feature modulating technology to optimize the efficiency of the unit. It offers just the right amount of heat at any given moment by constantly monitoring the room temperature and detecting temperature fluctuations. Room temperature is monitored 2" from the floor and detects temperature changes of less than 1°F. If a door opens and a sudden gush of cold air rushes into the room, the furnace automatically adjusts the fan speed and BTUs to restore the room back to its set temperature quickly.
The EX08DT features a built-in humidifier tray. The 1.5 pint, the enamel-coated tray is located on the bottom front of the unit for easy access. As warm air passes over the water in the tray it is humidified.
It is recommended that you allow for 40 inches of clearance in front of the unit and 10 inches from the top and sides to allow for easy maintenance and service access.
Features
- Restarts automatically when ignition or combustion fails.
- Starts and turns off the heater at 2 timer settings.
- Provides precise gas flow by operating from one to seven stages.
- Detects temperature change in 1/2 of a degree.
- Monitors and controls combustion fan and allows the appliance to overcome winds of up to 40 mph.
- Continually monitors functions; provides auto shutdown codes; indicates
- Reduces noise through use of swept blades in convection fan; quiet expansion / contraction of parts due to temperature changes.
- Ability to connect to a field supplied wall thermostat.
Specifications
| Manufacturer Trade Model Number | EX08DTN |
| Product Depth | 10.1 in / (257 mm) |
| Product Height | 27.4 in / (695 mm) |
| Product Width | 18.1 in / (465 mm) |
| Product Weight | 42 lb / (19 kg) |
| Gas Type | Natural Gas |
| AFUE Rating | 82% |
| Color | Beige |
| Max BTU Input | 8,000 BTU / (2.3 kW) |
| Maximum Electrical Consumption | 41W |
| Fan CFM Output (High) | 78.6 |
| Fan CFM Output (Low) | 48.3 |
| Venting Material | Stainless Steel |
Documents & Files
- Download Specification Manual
- Download Installation Instructions
- Download Warranty
- Download Rinnai Heating Solution Brochure
Warranty
 |
10 yrs on Heat Exchanger |
 |
5 Year Warranty on Parts |
 |
2 Year Labor Warranty |
