SKU:ESF.G.GRA.30.GH

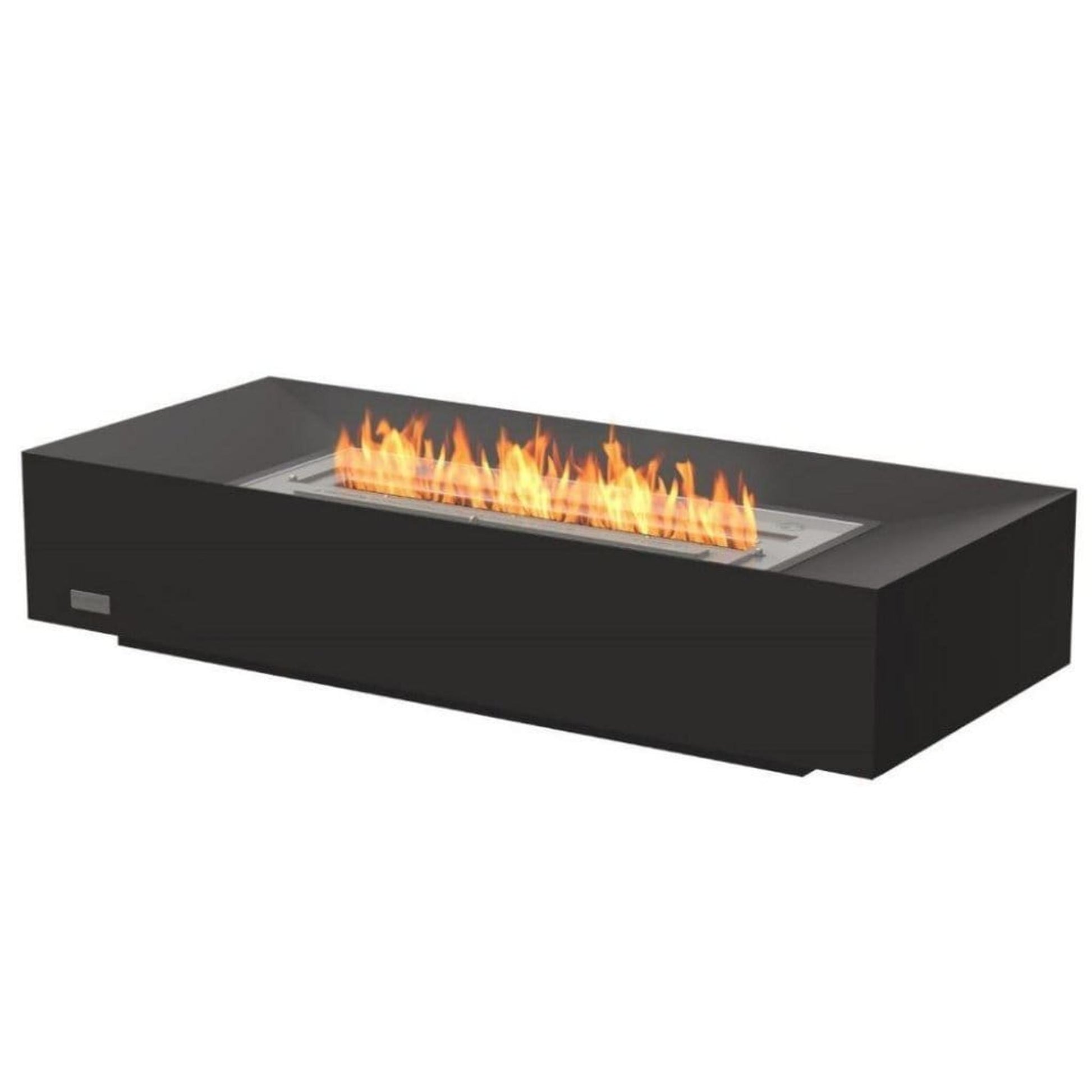

EcoSmart Fire Grate 30" Ethanol Fireplace Insert with Stainless Steel Burner by Mad Design Group

$2,595.00

~~$2,595.00~~ $2,595.00

Sale Sold out

Product variants

e-NRG Bioethanol Fuel

Plasma Fire Screen

Twin Feet Fixings

Estimated Delivery Date: Between December 25th and December 31st to all states excl. Alaska & Hawaii if ordered in the next 24 hours 00 minutes 00 seconds.

Free Shipping on Orders Over $400
Same-Day Order Processing
Easy Monthly Installments Starting at 0% APR*

Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Fireplace Grate 30, a modern take on the traditional.

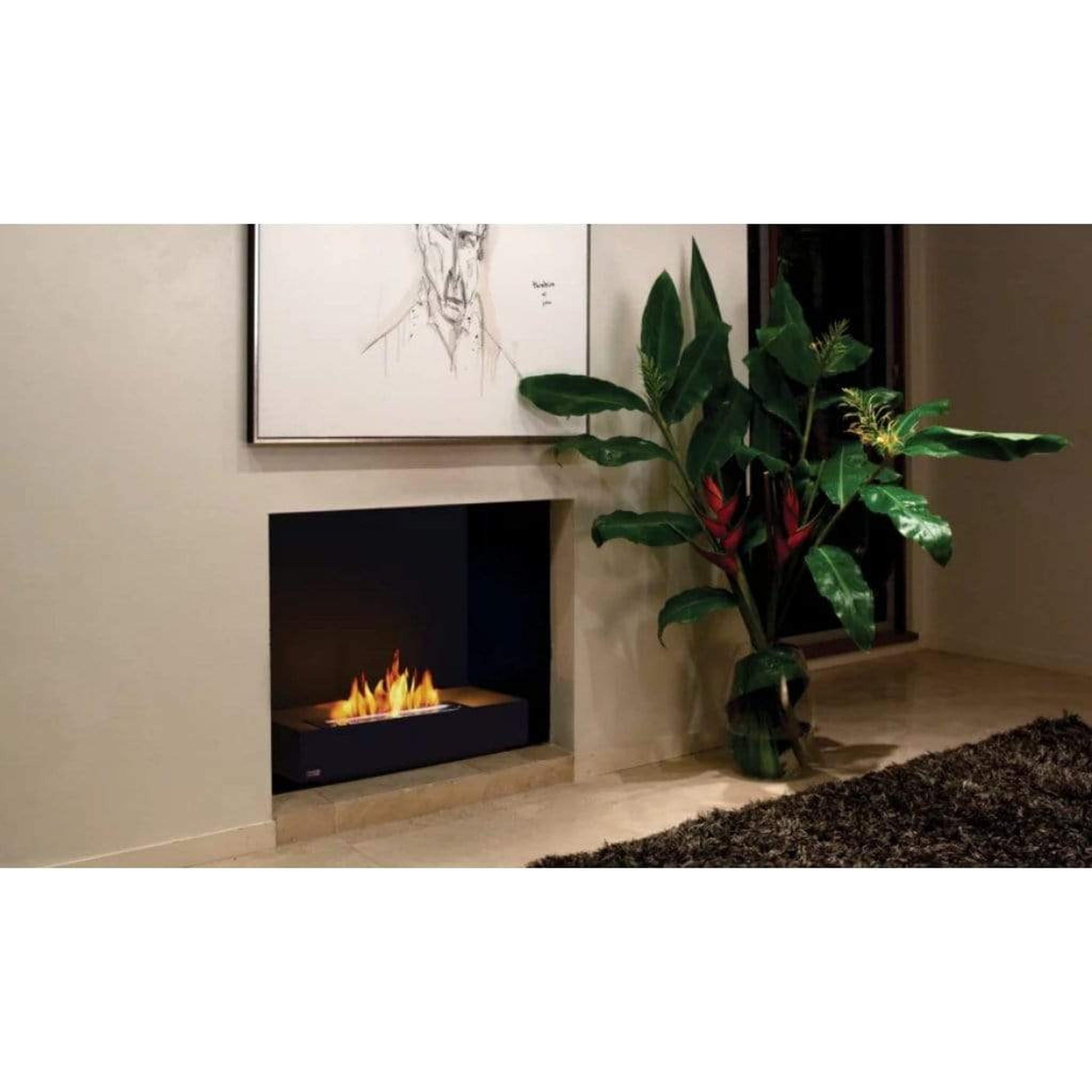

Designed to complement conventional hearths and custom spaces - its bold appearance and elegant flame make it ideal for reinvigorating an old, disused fireplace. And it’s equally at home in both modern and traditional settings.

Slightly shorter in length to Grate 36, Grate 30 is available for narrower fireplace setting. It accommodates the EcoSmart Fire XL500 Burner which is perfect for those looking to incorporate a long flame style into a compact setting.

O-TL Listed in accordance with UL 1370.

What's Included

Fire Lighter
Lighting Rod
Jerry Can 1.25 Gal
Bottle Adapter
Butane

Not Included (Sold Separately)

Black Glass Charcoal
e-NRG Bioethanol Fuel
Twin Feet Fixing

Features

Minimum Fuss

Delivering the ambience of an open fire – but minus the mess, odour, sparks and soot due to the clean-burning, eco-friendly e-NRG bioethanol.

Fluid™ Concrete Technology

EcoSmart Fire proprietary technology offers a streamlined yet sophisticated system that delivers exceptionally robust, handcrafted products.

Convert an existing fireplace in minutes

Transforming an existing wood burning fire into a clean burning ethanol fireplace is easy. Simply attach the grate to a level platform with our easy fitting system and fill it with liquid bioethanol. Then sit back and relax.

Optional Sizes

The Grate Series is available in three sizes – the smallest, Grate 18 (with AB8 Burner), the Grate 30 (with XL500 Burner) and largest Grate 36 (XL700 Burner).

No Gas or Electricity

All the fuel is housed within the self-contained burner so you don’t have to run pipes or cables though your walls

Tested World Wide

EcoSmart Fire collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Specifications

Weight	41.23lb [18.70kg]
Application	Indoor
Material	Concrete Composite, Stainless Steel Grade 304
Color	Graphite

Fuel Efficiency

Volume Capacity	1.3 Gal [5 L]
Heats on Average	431ft² [40m²]
Minimal Room	2825ft³ [80m³]
Thermal Output	11430 BTU/h [3.4 kW 12 MJ/h]
Burn Time	10 - 13 h [1.3 Gallon]

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions

Width	13in [330mm]
Height	6.1in [156mm]
Depth	30in [762mm]

Technical Drawings

Front View
Side View
Top View

Warranty

	Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
	Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files

Videos

Frequently Asked Questions

How does an ethanol fireplace work?

EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.

Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.

How large of an area will my ethanol fireplace heat?

The heat output of our indoor and outdoor ethanol fireplaces vary based on the model selected. When used indoors, EcoSmart Fire’s ethanol fireplaces comfortably heat between 215 sq feet and 700 sq feet.

How long will my ethanol fireplace burn?

Burn times for our ethanol fireplaces vay based on flame size and fuel capacity of the burner. EcoSmart Fire’s ethanol fireplaces will burn between 8-13 hours when full.

Do ethanol fireplaces give off heat?

EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU - 20,000 BTU’s.

Do bioethanol fireplaces produce heat?

Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.
