Grand Canyon

JUMBOSLIMBRNR-24-SS

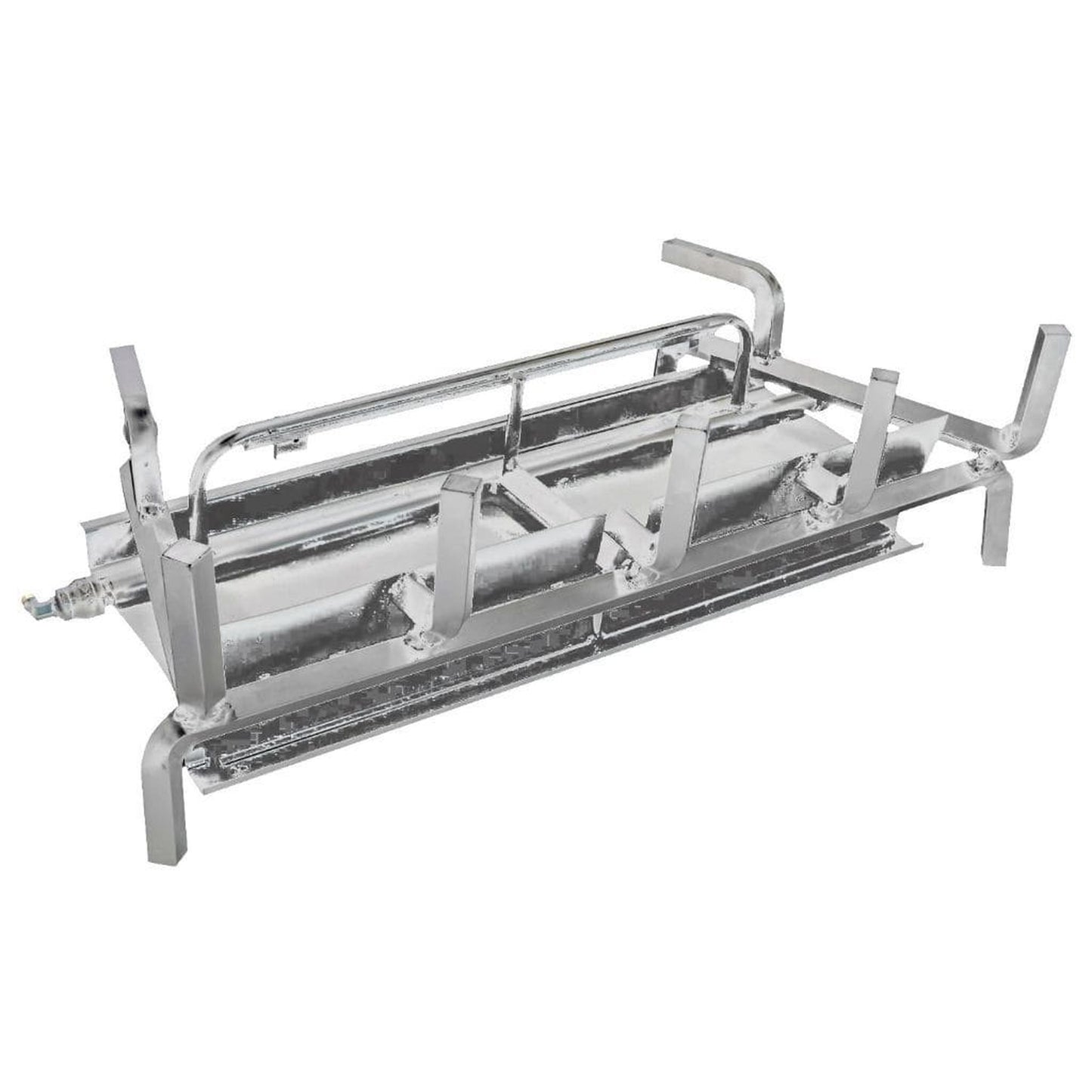

Grand Canyon 24" to 60" Jumbo Slimline Stainless Steel Vented Burner System

Fuel Type: Natural Gas
Size: 24-Inch


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Grand Canyon Stainless Steel Jumbo Slimline Burner System provides a high quality burner component to help complete your ideal gas fireplace. Grand Canyon's Jumbo Slimline Burner system features 100%, 304 stainless steel construction for ultimate durability and performance indoors or outdoors while allowing for gas to flow in from either side of the burner. The large profile is what sets this burner apart as it boasts a thick 1-Inch bar stock that surrounds Grand Canyon's Jumbo logs, and features an elevated back burner for unmatched flame height.

This burner package comes complete with metal bar stock and burner pipes, lava rock, necessary fittings, a flex line and the ember damper clamp. With (6) different jumbo burner size options and a propane or natural gas option, Grand Canyon has ensured an outdoor rated burner that will fit any style of living space, allowing you to achieve an area that your friends and family will love for years to come.

Jumbo Burners - Indoor Use ONLY, Stainless Steel pan construction w/Metal bar Stock & Burner pipes.

Use with logs:  Available with Arizona Weathered Oak Jumbo Slim Logs ONLY.

Please Note: Logs Not Included.

 Features:

  • Sizing: 24" – 60"
  • Style: Even distribution rear burner w/dual action middle burner & dedicated ember glow burner
  • Standards: ANSI Certified with Control Systems
  • Usage: Indoor
  • Materials: Stainless Steel Chassis
  • Warranty: Lifetime Warranty – When Installed Indoors
  • Piping: 3/4” Piping & 1” Bar Stock
  • Fittings: Gas Inlet Left or Right
  • Convertible to LP: NG Burner convertible to LP
  • Media: Includes Lava Rock, Embers, & Connection Fittings
  • Pilot: Concealed Pilot Mounting Brackets
  • Design: Fully Welded System with Sandless Design

Specifications:

24-Inch
  • Front Width: 24"
  • Depth: 18"
  • Back Width: 16"
  • Height: 10"
  • BTU Rating NG: 103K
  • BTU Rating LP: 95K
30-Inch
  • Front Width: 30"
  • Depth: 18"
  • Back Width: 22"
  • Height: 10"
  • BTU Rating NG: 112K
  • BTU Rating LP: 110K
36-Inch
  • Front Width: 36"
  • Depth: 18"
  • Back Width: 28"
  • Height: 10"
  • BTU Rating NG: 150K
  • BTU Rating LP: 145K
42-Inch
  • Front Width: 42"
  • Depth: 18"
  • Back Width: 34"
  • Height: 10"
  • BTU Rating NG: 165K
  • BTU Rating LP: 160K
48-Inch
  • Front Width: 48"
  • Depth: 18"
  • Back Width: 40"
  • Height: 10"
  • BTU Rating NG: 195K
  • BTU Rating LP: 190K
60-Inch
  • Front Width: 60"
  • Depth: 18"
  • Back Width: 52"
  • Height: 10"
  • BTU Rating NG: 230K
  • BTU Rating LP: 225K


Options & Accessories

Click to see Control Valve Options




Manual Valve Kit (MAHC-GC)

  • Manual On/Off w/ Knob or Wrench Operations ONLY
  • Low Profile Design
  • Max Inlet 14” W.C.
  • Valve Temp Rating 300°
  • 240,000 BTU’s (NG/LP)
  • For use with:
    • Jumbo / Jumbo Slimline
      24" to 84" (NG/LP)












High Capacity Safety Pilot Kit (HCSPK-N / HCSPK-LP)

  • Standing Pilot System
  • Manual On/Off Operations ONLY
  • Max Inlet 14” W.C.
  • Valve Temp Rating 250°
  • (NG) 124,000 BTU’s
  • (LP) 200,000 BTU’s
  • GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
  • For use with:
    • 2-Burner / Glass / Kiva
      18" - 42" (NG)
      18" - 60" (LP)
    • 3-Burner
      8" - 42" (NG)
      18" - 42" (LP)
    • Jumbo / Jumbo Slimline
      24" - 30" (NG)
      24" - 48" (LP)








Millivolt Quick Mount Kit (MVQMKLP)

  • Standing Pilot System
  • On/Off Operations ONLY
  • Low Profile Design
  • Max Inlet 14” W.C.
  • Valve Temp Rating 175°
  • (LP) 8”-12” W.C. 110,000 BTU’s
  • GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
  • For use with:
    • 2-Burner / Glass / Kiva
      18" - 42" (LP)
    • 3-Burner
      18" - 36" (LP)
    • Jumbo / Jumbo Slimline
      24" - 30" (LP)






Modulating Millivolt Valve Kit with Remote (MMVKR-NG  / MMVKR-LP)

  • Standing Pilot System
  • Variable Flame Height
  • Low Profile Design
  • Max Inlet 14” W.C.
  • Valve Temp Rating 225°
  • (NG) 7” W.C. 120,000 BTU’s
  • (LP) 7”-14” W.C. 120,000 BTU’s
  • For use with:
    • 2-Burner / Glass / Kiva
      18" - 42" (NG)
      18" - 42" (LP)
    • 3-Burner
      18" - 42" (NG)
      18" - 42" (LP)
    • Jumbo / Jumbo Slimline
      24" - 30" (NG)
      24" - 30" (LP)












High Capacity Millivolt Valve Kit (HCMVQMKN / HCMVQMKLP)

  • Standing Pilot System
  • High Volume Output Millivolt System
  • On/Off Operations ONLY
  • Max Inlet 14” W.C.
  • Valve Temp Rating 175°
  • (NG) 3”-5” W.C. 370,000 BTU’s
  • (LP) 8”-12” W.C. 560,000 BTU’s
  • For use with:
    • 2-Burner / Glass / Kiva
      18" - 60" (NG)
      18" - 42" (LP)
    • 3-Burner
      18" - 42" (NG)
      18" - 42" (LP)
    • Jumbo / Jumbo Slimline
      24" - 108" (NG)
      24" - 120" (LP)











Battery Powered Electronic Ignition System (MVKEIKLP)

  • Non-Standing Pilot
  • 2-D Cell Battery Electronic Ignition
  • Pilot on Demand System
  • On/Off Operations ONLY
  • Max Inlet 14” W.C.
  • Valve Temp Rating 175°
  • (LP) 8”-14” W.C. 110,000 BTU’s
  • GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
  • For use with:
    • 2-Burner / Glass / Kiva
      18" - 42" (LP)
    • 3-Burner
      18" - 36" (LP)
    • Jumbo / Jumbo Slimline
      24" - 30" (LP)



















Electronic Ignition System (EIS & EIS-LP)

  • Non-Standing Pilot
  • Pilot on Demand System
  • 24V Electronic Ignition
  • On/Off Operations ONLY
  • In-Wall Design
  • 6’-10’ Pilot Assembly
  • Max Inlet 14” W.C.
  • Valve Temp Rating 175°
  • (NG) 3”-7” W.C. 200,000 BTU’s
  • (LP) 8”-14” W.C. 320,000 BTU’s
  • GCRK (On/Off) remote / GCWS (On/Off) Wall Switch and WBPB-12/24 (Wifi / Blutooth Power Box) can be use with this kit (Not included - Sold separately)
  • For use with:
    • 2-Burner / Glass / Kiva
      18" - 60" (NG)
      18" - 42" (LP)
    • 3-Burner
      18" - 42" (NG)
      18" - 42" (LP)
    • Jumbo / Jumbo Slimline
      24" - 60" (NG)
      24" - 96" (LP)


Click to see Wall Switch / Remote Control & Power Box





Wall Switch (GCWS)

  • Basic wall switch kit
  • Basic on/off operations
  • For indoor or outdoor use
  • 15 foot 10-2 low voltage wire
  • Rocker switch and cover included
  • For Use With:
    • HCSPK-N & HCSPK-LP
    • MVQMKN & MVQMKLP
    • HCMVQMKN & HCMVQMKLP
    • MVKEIKN & MVKEIKLP
    • ALL EIS Configurations




Remote Control Kit (GCRK)


  • Basic On/Off Operations
  • RF Transmitter & Receiver
  • LCD Temp Display
  • Includes Batteries & Wall Plate
  • For Use With:
    • HCSPK-N & HCSPK-LP
    • MVQMKN & MVQMKLP
    • HCMVQMKN & HCMVQMKLP
    • MVKEIKN & MVKEIKLP
    • ALL EIS Configurations








      Weather Beater Wifi/Bluetooth Power Box (WBPB-12/24)


      • Installs in-wall
      • 12V/24V system
      • Optional accessory
      • Connect with your home
      • Automation or weather smart app
      • Designed for all EIS configurations
      • Weather beater Wi-Fi and Bluetooth power box
