SKU:SIR2515N5

SunStar 15' SIR Series Tough Guy Infrared Straight U Tube Single Stage Heater

Name: SunStar 15' SIR Series Tough Guy Infrared Straight U Tube Single Stage Heater
Brand: SunStar
SKU: SIR2515N5
Price: 1270.0 USD
Availability: InStock

$1,270.00

Sale Sold out

Fuel Type Natural Gas Propane Gas

BTUs 25k BTU 35k BTU 45k BTU

Product variants

6" Vent Cap For Sidewall Or Roof Vent

4" Combustion Air Termination Cap

Exhaust Hood

Gas Supply Accessories

Thermostat Options

12" Chain Kit

Manual Cutoff Valve

8" Deflector Kit

Manual (On/Off) Toggle Switch

60 Minute Auto Shut-Off Timer

Estimated Delivery Date: Between December 25th and December 31st to all states excl. Alaska & Hawaii if ordered in the next 24 hours 00 minutes 00 seconds.

Free Shipping on Orders Over $300
Same-Day Order Processing
Easy Monthly Installments Starting at 0% APR*

Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

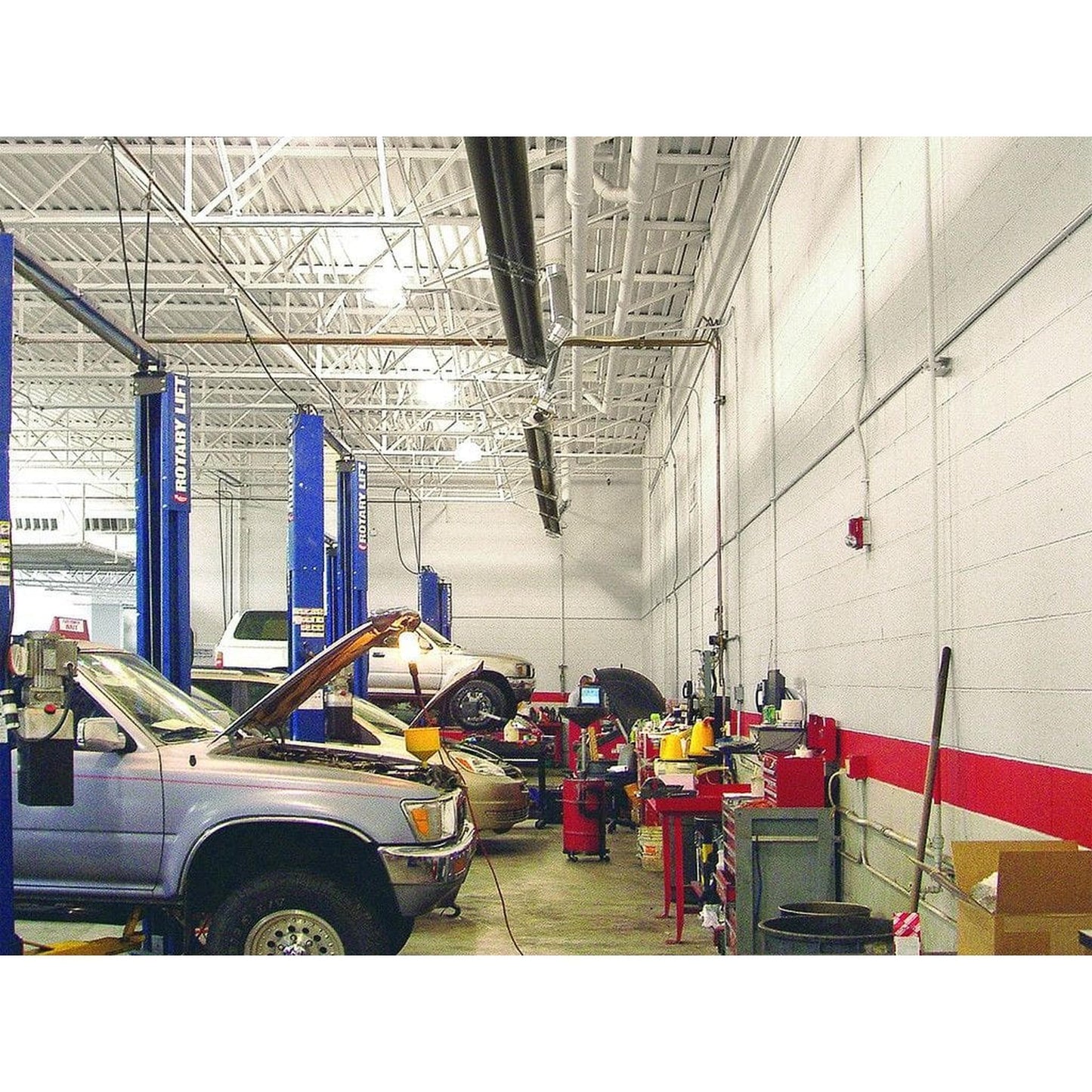

Whether you need to heat your warehouse, garage, or other hard-to-heat spaces, the SunStar Eclipse infrared heater provides both the fuel efficiency of radiant heat and the installation flexibility you need.

The SunStar Eclipse compact tube heaters offers fuel savings of up to 50% and provides an efficient source of radiant heat for a wide variety of hard to heat spaces, the SunStar 25,000/35,000/45,000 BTU SIR Series Infrared Tube Heater with a 15' long tube provides both the fuel efficiency of radiant heat and the installation flexibility you need.

The U-tube configuration provides uniform energy distribution and the emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety.

Highly efficient aluminum reflectors. Diagnostic monitoring light system. 120V supply required. CSA certified. This product has 5 year limited warranty on tubes and 1 year limited warranty on unit. This product is made in USA.

What's Included: (Burner Package: Main Burner and hardware Emitter Tubes and Reflectors).

Features:

Available in Btu sizes from 25,000 to 45,000
Compact size – overall length is 9’2″ for ease of installation
Efficiencies range up to 84.5%
Models for both natural and propane gas
Installation as low as 8′ above floor
CSA Design Certified for Residential & Commercial Installations
Made in USA
Includes 36″ stainless steel gas connector.

Vacuum System

Products of combustion are pulled through the combustion chamber for greater safety.
Virtually eliminates the possibility of combustion gases leaking into the heated space.

Solid State Ignition System

Reliable electronic direct spark ignition system with 100% gas safety
shut-off control and 30-second prepurge.
Safety and efficiency assurance.

U-Tube Design

Provides uniform emitter tube temperatures and energy distribution on the floor
Unlike straight tube heaters which are always hotter at the burner end than at the exhaust end.

Applications:

Residential Garages
Vestibules
Entryways
Greenhouses
Enclosed Patios
Solariums
Workshops
Swimming Pools
Farm Buildings
Clubhouses
Small Businesses
Auto Garages
Warehouses
Print Shops
Machine Shops
Small Manufacturing Facilities

Specifications:

Fuel Type	Natural Gas / Propane Gas
Material	Cast Iron/Aluminum
Color	Stainless Steel
Dimensions	110" W x 8" H x 18" D
Weight	70.4 lbs
BTU Ratings (BTU/hr)	25,000 (LP/NG) 35,000 (LP/NG) 45,000 (LP/NG)
Ignition Type	Direct Spark Ignition
Volts	120 AC 60Hz
Supply Pressure	NG - 5"/14" WC LP - 11"/14" WC
Burner Pressure	NG - 3.5" WC LP - 10" WC
Warranty	5-year limited manufacturer warranty on the burner assembly 1-year limited manufacturer warranty on controls

SIR Clearances to Combustibles:

Model	Mounting Angle	Side Front	Side Rear	Ceiling	Below	End
SIR 25	0°	8"	8"	4"	41" *	12"
SIR 25	45°	30"	4"	4"	41" *	12"
SIR 35 or 45	0°	12"	12"	4"	57" **	12"
SIR 35 or 45	45°	40"	4"	4"	57" **	12"

Please check Product Manual for more Information...

Dimensions:

Bottom View

Downloads:

CA Residents: See Prop 65 WARNING.

Options & Accessories

Click to see 6" Vent Cap For Sidewall Or Roof Vent

This 6" vent cap is used for sidewall venting or through-the-roof venting. It can be used with all infrared tube heaters. This product has a limited warranty of 1 Year. This product is made in USA.

Click to see 4" Combustion Air Termination Cap

This 4" cap. is used for combustion air or fresh air duct termination. It can be used with all infrared tube heaters. This product has limited warranty of 1 year. This product is made in USA.

Click to see Exhaust Hood

This Exhaust Hood is for use with all straight and U-Shaped infrared tube heaters. Intended for inside indirect vented use. This product has a limited warranty of 1 Year. This product is made in USA.

Click to see Gas Supply Accessories

Gas Line Pressure Regulator Up To 2 PSIG

This Regulator is for use with all Tube Heaters between 1/2 and 2 psig. The maximum supply pressure to the infrared heaters is 14" WC or 1/2 psig. If your supply pressure is between 1/2 psig and 2 psig then you will need this second stage regulator. The regulator is equipped with vent limiting device and complies with ANSI standards. The regulator does not need any venting. This product has limited warranty of 1 year. This product is made in USA.

Gas Line Pressure Regulator Above 2 PSIG

This Regulator is for use with all Tube Heaters between 2 and 10 psig. The maximum supply pressure to the infrared heaters is 14 " WC or 1/2 psig. If your supply pressure is above 2 psig and less than 10 psig then you will need this second stage regulator. The regulator requires venting outside the building to comply with local codes. This product has limited warranty of 1 year. This product is made in USA.

36" Flexible Gas Connector

This 36" flexible gas connector is For use with all ceramic heaters. Features long-lasting stainless steel construction. This product has limited warranty of 1 year. This product is made in USA.

Click to see Thermostat Options

	Economy Line Voltage Thermostat Economical, easy-to-mount Line Voltage Thermostat fits flat on a wall with 1in. recess in wiring box. Durable, bit-metallic heat-sensing element for use with SIR Series Garage Heaters and SGM Series Infrared Ceramic Heaters.
	Deluxe Line Voltage Thermostat This Deluxe Line Voltage Thermostat can be used to control up to 6 heaters at once. Maintains consistent temperatures within a range of 35° to 95°F. Thermostat is extremely accurate, with a ±2°F differential. 16 amp full load. Includes NEMA 1 enclosure and SPST switch.
	Corrosive Environment Voltage Thermostat This Corrosive Environment Line voltage Thermostat is capable of controlling up to 6 heaters. Features a durable stainless steel sensing element and water-tight UL recognized ABS plastic enclosure. Maintains consistent temperatures within a range of 40° to 104°F.
	24v Thermostat Economical, easy-to-mount 24V Thermostat fits flat on a wall with 1in. recess in wiring box. Durable, bit-metallic heat-sensing element for use with SIR Series Garage Heaters and SGM Series Infrared Ceramic Heaters. U.S.A.
	Night Setback Thermostat This Night Setback Thermostat is digital and easily programmable. Can be used to control up to 6 heaters at once. Maintains consistent temperatures within a range of 45° to 90°F. Thermostat is extremely accurate, with a ±1°F differential. Features four different programmable periods per day and 5/2 day programming. Includes self-contained painted locked cabinet with hinged door. 16 amp full load. This product is made in USA.
	24V Thermostat Relay Kit This 24 Volt relay kit is to be used with a 24 Volt thermostat in conjunction with one straight or u-shaped infrared tube heater.
	Thermostat Enclosure This Thermostat enclosure with heavy duty metal enclosure. Heavy Duty metal thermostat enclosure - tamperproof Hinged access door with locking cover Can be used with any thermostat Prevents direct radiant energy affecting the thermostat sensor.

Click to see 12' Chain Kit

This chain kit is used to hang heaters from the ceiling. Includes 12' of chain and 8 S-hooks. For use with all ceramic heaters.

Click to see Manual Cutoff Valve

This Manual Cutoff Valve is for use with All Infrared Tube Heaters. Ball valve with 1/2" NPT female thread.

Click to see 8' Deflector Kit

This Deflector Kit diffuses the radiation on the first 10' of the tube heater and reduces the clearance to combustibles below. The deflector is 8' long.

Click to see Manual (On/Off) Toggle Switch

The SunStar Manual (On/Off) Toggle Switch is designed for manual heater control of single stage heaters.

Click to see 60 Minute Auto Shut-Off Timer

The 60 minute Auto Shut-off timer is specifically designed for SunStar heaters. it's Safety feature shuts off your heater after an hour.
