SKU:3BVF

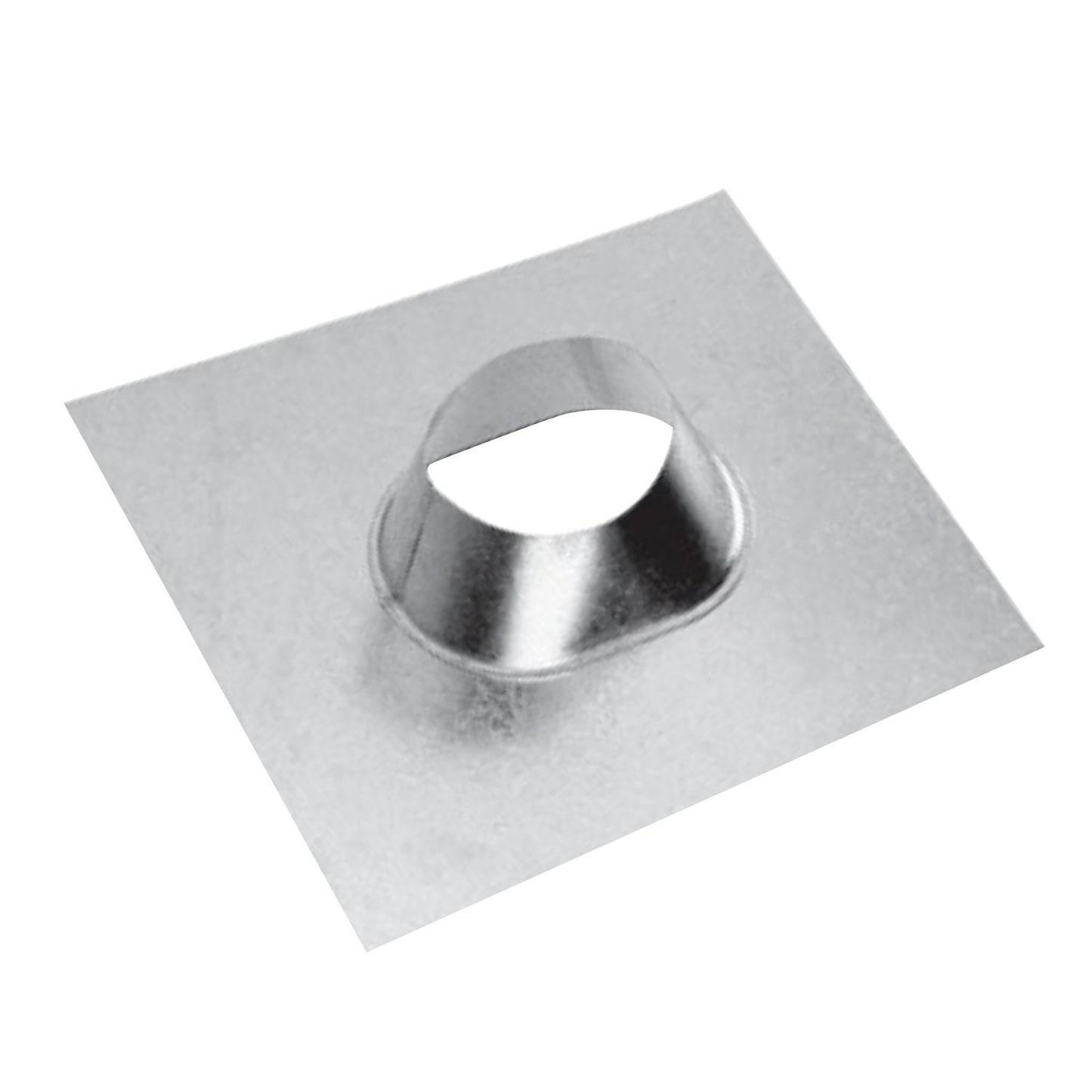

DuraVent Round Type B Gas Vent Model BV 3" - 8" Flat to 6/12 Adjustable Roof Flashing
DuraVent Round Type B Gas Vent Model BV 3" - 8" Flat to 6/12 Adjustable Roof Flashing
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Our non-positional lock system on the DuraVent® BV Gas Vent is the best lock system on the market today. The incorporation of the DuraTab® feature simply improves our lock system by adding flexibility and meeting market needs.
The BV line of DuraVent round vent pipe and fittings is designed for use on approved gas appliances in residential and light commercial and industrial applications.
What's Included
- Adjustable Roof Flashing
Features
- Fits flat to 6/12 pitch roof.
- Used where the vent passes through a roof.
- Replacement of Type B Gas Vent Model GV (3/4/5/6/7/8)GVF
Specifications
Brand | DuraVent |
Model | (3-8)BVF |
Series | Round Type B Gas Vent Model BV |
Product Type |
Roof Flashing |
Size (Diameter) | 3"-8" |
Technical Dimensions
Size | Model | A | B | C | D |
3" | 3BVF | 3 1/2" | 14 7/8" | 12 1/4" | 6 11/16" |
4" | 4BVF | 4 1/2" | 16" | 13 1/4" | 7 3/4" |
5" | 5BVF | 5 1/2" | 16 15/16" | 14 1/4" | 8 7/8" |
6" | 6BVF | 6 1/2" | 18" | 15 1/4" | 10" |
7" | 7BVF | 7 1/2" | 19 1/8" | 16" | 11 1/8" |
8" | 8BVF | 8 1/2" | 2 1/4" | 16 15/16" | 12 1/4" |
Warranty
DuraVent, Inc. (“DuraVent”) provides this limited lifetime warranty for all of its products with the exception of Ventinox® (lifetime), and PolyPro® (ten years). Subject to the limitations set forth below, DuraVent warrants that its products will be free from defects in material or manufacturing, if properly installed, maintained, and used. |
Click to See Warranty Coverage and LimitationsDuraVent, Inc. (“DuraVent”) provides this limited lifetime warranty for all of its products with the exception of Ventinox® (lifetime), and PolyPro® (ten years). Subject to the limitations set forth below, DuraVent warrants that its products will be free from defects in material or manufacturing, if properly installed, maintained and used. DuraVent products are fully warranted if installed only by a professional installer. This Warranty is transferable from the original homeowner to the buyer of the home. This warranty does not cover normal wear and tear, smoke damage or damage caused by chimney fires, acts of God, or any product that was: (1) purchased other than from an authorized DuraVent dealer, retailer or distributor; (2) modified or altered; (3) improperly serviced, inspected or cleaned; or (4) subject to negligence or any use not in accordance with the installation instructions included with the product as determined by DuraVent.
DuraVent provides the following warranties for its products: One Hundred Percent (100%) MSRP 15 years from the date of purchase, and Fifty Percent (50%) thereafter, except for the following limitations on: all Termination Caps and DuraBlack® are warranted at One Hundred Percent (100%) for five years. All warranty obligations of DuraVent shall be limited to repair or replacement of the defective product pursuant to the terms and conditions applicable to each product line. These remedies shall constitute DuraVent’s sole obligation and sole remedy under this warranty. This warranty provides no cash surrender value. The terms and conditions of this warranty may not be modified, altered or waived by any action, inaction or representation, whether oral or in writing, except upon the express, written authority of an executive officer of DuraVent.
Corn, bio-fuels, driftwood or other wood containing salt, preservative-treated lumber, plastic and household trash or garbage, or wood pellets containing such materials must not be burned in the appliance or fireplace. In case of a chimney fire, the chimney must be inspected and approved by a certified Chimney Sweep before reuse. After each annual inspection, maintenance, and cleaning, the certified Chimney Sweep must fill out and date the appropriate section of the warranty card provided with the chimney liner.
LIMITATIONS ON INTERNET SALES: Notwithstanding any other terms or conditions of this Limited Lifetime Warranty, DuraVent provides no warranty for the following specific products if such products are not installed by a qualified professional installer: DuraTech®, DuraTech® DTC, DuraTech® Premium, DuraPlus HTC®, DDW®, DuraChimney® II, PelletVent Pro®, DirectVent Pro®, FasNSeal®, FasNSeal® W2, FasNSeal® Flex, and PolyPro®, and DuraVent’s relining products including DuraLiner®, DuraFlex® (SW, Pro, 316, 304), and Ventinox®. For purposes of this warranty, a trained professional installer is defined as one of the following: licensed contractors with prior chimney installation experience, CSIA Certified Chimney Sweeps, NFI Certified Specialists, or WETT Certified Professionals.
DuraVent must be notified and given the opportunity to inspect defective product prior to replacement under the terms of this limited lifetime warranty. All warranty claims must be submitted with proof of purchase. Labor and installation costs are not covered under this warranty. To obtain warranty service contact: DuraVent Warranty Service, 877 Cotting Ct., Vacaville CA 95688, or call 800-835-4429.
WHERE LAWFUL, DURAVENT DISCLAIMS ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL DURAVENT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR SPECIAL DAMAGES OR DIRECT OR INDIRECT LOSS OF ANY KIND, INCLUDING BUT NOT LIMITED TO PROPERTY DAMAGE AND PERSONAL INJURY. DURAVENT’S ENTIRE LIABILITY IS LIMITED TO THE PURCHASE PRICE OF THIS PRODUCT. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
|
Documents & Files
-
Model BV Type B Gas Vent Product Catalog
-
Model BV Type B Gas Vent Installation Instructions (Round and Oval)
-
Model BV Type B Gas Vent Specification Sheet
-
Model BV Unit Heater Kits Sheet
-
DuraConnect I Expandable Flex Connector Sheet
-
DuraConnect II Double Wall Flex Connector Sheet
-
Adapting Model GV Lengths to Model BV & BV to GV Guide
- Connecting Model GV Rain Caps to Model BV Pipe Guide
Frequently Asked Questions
What are Type B (Model BV) Gas Vent Systems' Features?Rugged Construction Strong, durable galvanized steel outer pipe has internal spacing beads to assure a uniform insulating air space between pipe walls. Each end is die formed to assure uniform sizing for strong, easy to connect joints. In Canada, some lengths are available in galvalume steel outer pipe. Assured Safety The double wall (pipe within a pipe) construction with its built-in air space, provides permanent insulation and keeps the inner pipe hot and the outer pipe relatively cool. This construction creates quick, strong vent action reducing condensation in the pipe and overheating of nearby enclosure surfaces. Fully Tested and Listed DuraVent Model BV and BVO Type B Gas Vent has been tested and listed per UL 441 for installation as Type B and BW gas vents. These can be installed in single and multi-story buildings in accordance with the standards of NFPA 54 and NFPA 211. In Canada, DuraVent Model BV Type B Gas Vent has been tested and listed per CAN/ULC-S605 for installation as Type B and BW gas vents. It can be installed in single and multi-story buildings in accordance with CAN/CSA-B149.1.00. Kits
Lengths
Reducing Tees
Low Profile Increasers
Universal Male and Female Adapters
Quick Grip Firestops / Supports
DuraConnect I – Expandable Flexible Connectors
*In Canada, the outer tube material is galvalume for 3″ to 8″ pipe length. All other 3″ to 8″ fittings have a galvanized outer tube.
Notes: Gas Vent Specification Chart
|
What are Type B (Model BV) Gas Vent Systems' Specifications?Applications DuraVent’s Type B Gas Vent system. Use with natural gas or liquid propane Category I and draft hood equipped appliances, and appliances tested and listed to use Type B Gas Vent. Applications include: natural gas fireplaces, gas-fired furnaces, boilers, water heaters, and wall or space heating applications.
Materials and Construction Round Type B Gas Vent 3″ – 8″ and Oval 4″ – 6″: Aluminum .012″ inner wall, galvanized .018″ outer wall, in Canada, the lengths have a galvalume .018″ outer wall. The 3″ – 8″ Round gas vent features DuraLock® and DuraTab® . The Oval gas vent features the button lock. Round Type B Gas Vent 10″ – 18″: Aluminum .014″ inner wall, galvanized .018″ outer wall. DuraLock® feature for 10″ and larger diameters. Round Type B Gas Vent 20″ – 30″: aluminum .023″ inner wall, galvanized .018″ outer wall. DuraLock® feature for 10″ and larger diameters.
Clearances Clearances to combustible materials in single and multi-family dwellings:
Annular insulating air space
Diameters 3″- 30″ Round Diameter.
Listings UL Listed to UL 441 and CAN/ULC-S605 (MH2848 and MH17667). |
What is the Type B (Model BV) Gas Vent Systems' Termination Guide?
How Size and Height Affect Stove Performance
Vent Termination Chart Listed Type B Gas Vent caps may terminate in accordance with this table.
|
What is the Type B (Model BV) Gas Vent Systems' Large Diameter Installations?
Large Diameter – Vertical Installations |
What is the Type B (Model BV) Gas Vent Systems' Small Diameter Installations?
Small Diameter – Vertical Installations
|
What are B Vent Frequently Asked Questions?
1. What is the clearance for BW Oval? |
What are the DuraVent product lines?
DuraVent offers the following product lines: DuraTech 5″-8″: All-fuel, double-wall chimney system. UL 103 HT and ULC S604. |
