SKU:3BV18A

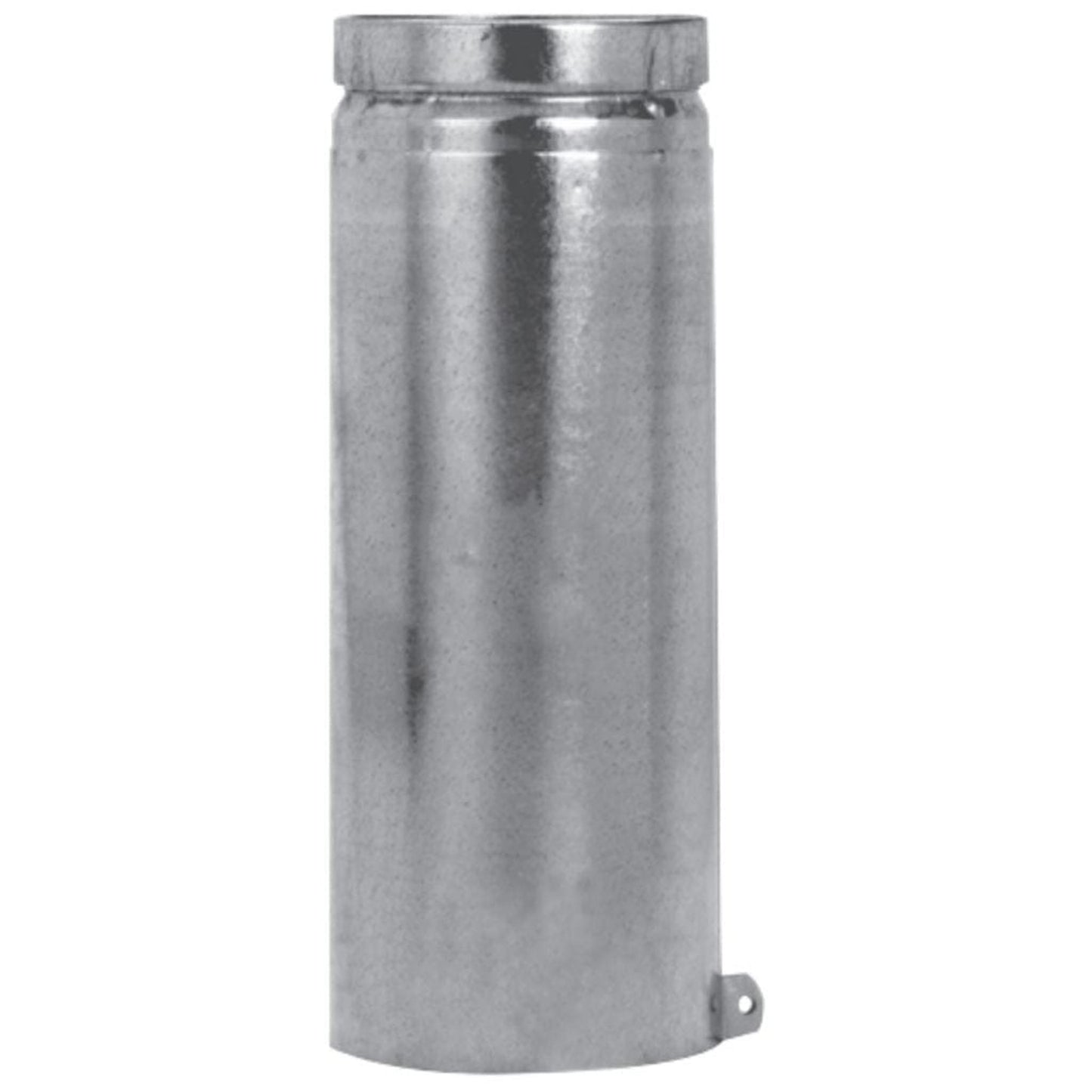

DuraVent 3"-6" Inner Diameter Round Adjustable Pipe Type B Gas Vent
DuraVent 3"-6" Inner Diameter Round Adjustable Pipe Type B Gas Vent
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Overview
DuraVent is the premier company in the venting industry. With a broad range of engineered venting products, DuraVent has earned its reputation as the industry leader by offering innovative, safe, and professional products for the HVAC and Hearth markets.
Type B Gas Vent DuraVent's innovative system for a lock-tight connection for Type B Gas Vent is called DuraLock. See the alignment indicators meet; feel the ends grasp together; hear the snap as the connection firmly locks into place.
Rugged Construction
Strong, durable galvanized steel outer pipe has internal spacing beads to assure a uniform insulating air space between pipe walls. Each end is die-formed to assure uniform sizing for strong, easy-to-connect joints. In Canada, some lengths are available in galvalume steel outer pipe.
Assured Safety
The double wall (pipe within a pipe) construction with its built-in air space, provides permanent insulation and keeps the inner pipe hot and the outer pipe relatively cool. This construction creates quick, strong vent action reducing condensation in the pipe and overheating of nearby enclosure surfaces.
Fully Tested and Listed
DuraVent Model BV and BVO Type B Gas Vent have been tested and listed per UL 441 for installation as Type B and BW gas vents. These can be installed in single and multi-story buildings in accordance with the standards of NFPA 54 and NFPA 211.
Features
- Used in combination with a straight length, this component assures that an exact required vent length can be achieved.
- Allows for easy disassembly and can absorb the linear expansion of longer pipe lengths.
- 12” Length adjusts from 3 1/2” to 10 1/2”.
- 18” Length adjusts from 6” to 16”.
Applications
- DuraVent’s Type B Gas Vent system. Use with natural gas or liquid propane Category I and draft hood equipped appliances, and appliances tested and listed to use Type B Gas Vent.
- Applications include natural gas fireplaces, gas-fired furnaces, boilers, water heaters, and wall or space heating applications.
Materials and Construction
-
Round Type B Gas Vent 3″ – 8″ and Oval 4″ – 6″: Aluminum .012″ inner wall, galvanized .018″ outer wall.
-
Round Type B Gas Vent 10″ – 18″: Aluminum .014″ inner wall, galvanized .018″ outer wall. DuraLock® feature 10″ and larger diameters.
-
Round Type B Gas Vent 20″ – 30″: aluminum .023″ inner wall, galvanized .018″ outer wall. DuraLock® feature 10″ and larger diameters.
Specifications
Model | Size |
3BV18A | 3" I.D x 6"-16" Length |
4BV18A | 4" I.D x 6"-16" Length |
5BV18A | 5" I.D x 6"-16" Length |
6BV18A | 6" I.D x 6"-16" Length |
Clearances | 1" to combustibles in single and multi-family dwellings |
Listings | UL Listed to UL 441 |
Warranty | Limited lifetime warranty |
Typical Installations
Refer to our Typical Venting Installation drawings to select the appropriate component parts for your installation.
Downloads
Safety Information: CA Prop 65 Warning
