DuraVent 45 Degree Oval Elbow Flat (USA ONLY)
DuraVent 45 Degree Oval Elbow Flat (USA ONLY)
- Free Shipping on Orders Over $200
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email email@example.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
DuraVent is the premier company in the venting industry. With a broad range of engineered venting products, DuraVent has earned its reputation as the industry leader by offering innovative, safe, and professional products for the HVAC and Hearth markets.
Type B Gas Vent DuraVent's innovative system for a lock-tight connection for Type B Gas Vent is called DuraLock. See the alignment indicators meet; feel the ends grasp together; hear the snap as the connection firmly locks into place.
Strong, durable galvanized steel outer pipe has internal spacing beads to assure a uniform insulating air space between pipe walls. Each end is die-formed to assure uniform sizing for strong, easy-to-connect joints. In Canada, some lengths are available in galvalume steel outer pipe.
The double wall (pipe within a pipe) construction with built-in air space, provides permanent insulation and keeps the inner pipe hot and the outer pipe relatively cool. This construction creates quick, strong vent action, reducing pipe condensation and overheating nearby enclosure surfaces.
Fully Tested and Listed
DuraVent Model BV and BVO Type B Gas Vent have been tested and listed per UL 441 for installation as Type B and BW gas vents. These can be installed in single and multi-story buildings in accordance with the standards of NFPA 54 and NFPA 211.

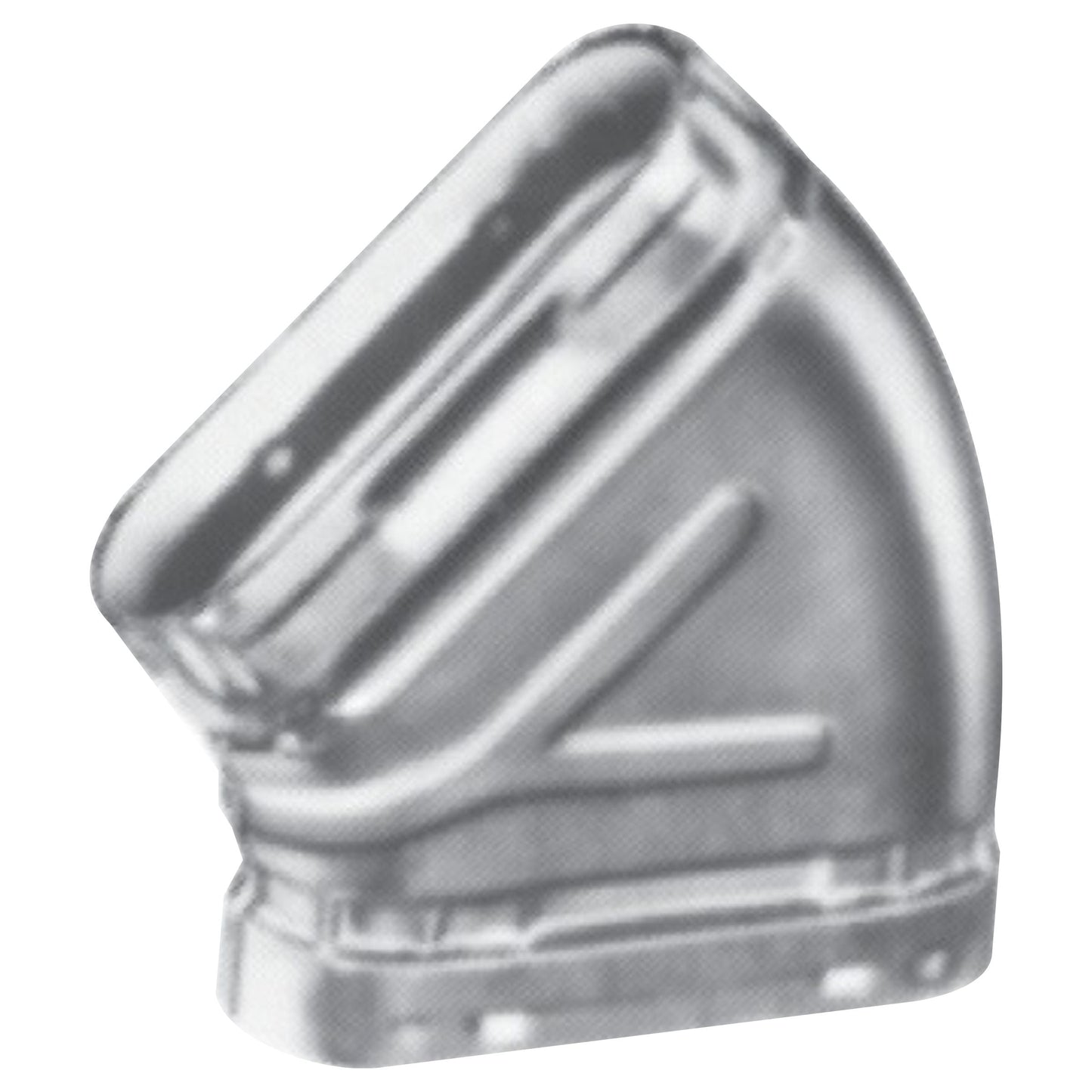

- The flat 45° elbow is used in pairs where offsets are desired in 1” minimum clearance enclosures or open spaces, such as attics or basements.
- Add pipe sections between pairs to produce additional offset.
- DuraVent’s Type B Gas Vent system. Use with natural gas or liquid propane Category I and draft hood equipped appliances, and appliances tested and listed to use Type B Gas Vent.
- Applications include natural gas fireplaces, gas-fired furnaces, boilers, water heaters, and wall or space heating applications.
Materials and Construction
Round Type B Gas Vent 3″ – 8″ and Oval 4″ – 6″: Aluminum .012″ inner wall, galvanized .018″ outer wall.
Round Type B Gas Vent 10″ – 18″: Aluminum .014″ inner wall, galvanized .018″ outer wall. DuraLock® features 10″ and larger diameters.
Round Type B Gas Vent 20″ – 30″: aluminum .023″ inner wall, galvanized .018″ outer wall. DuraLock® features 10″ and larger diameters.

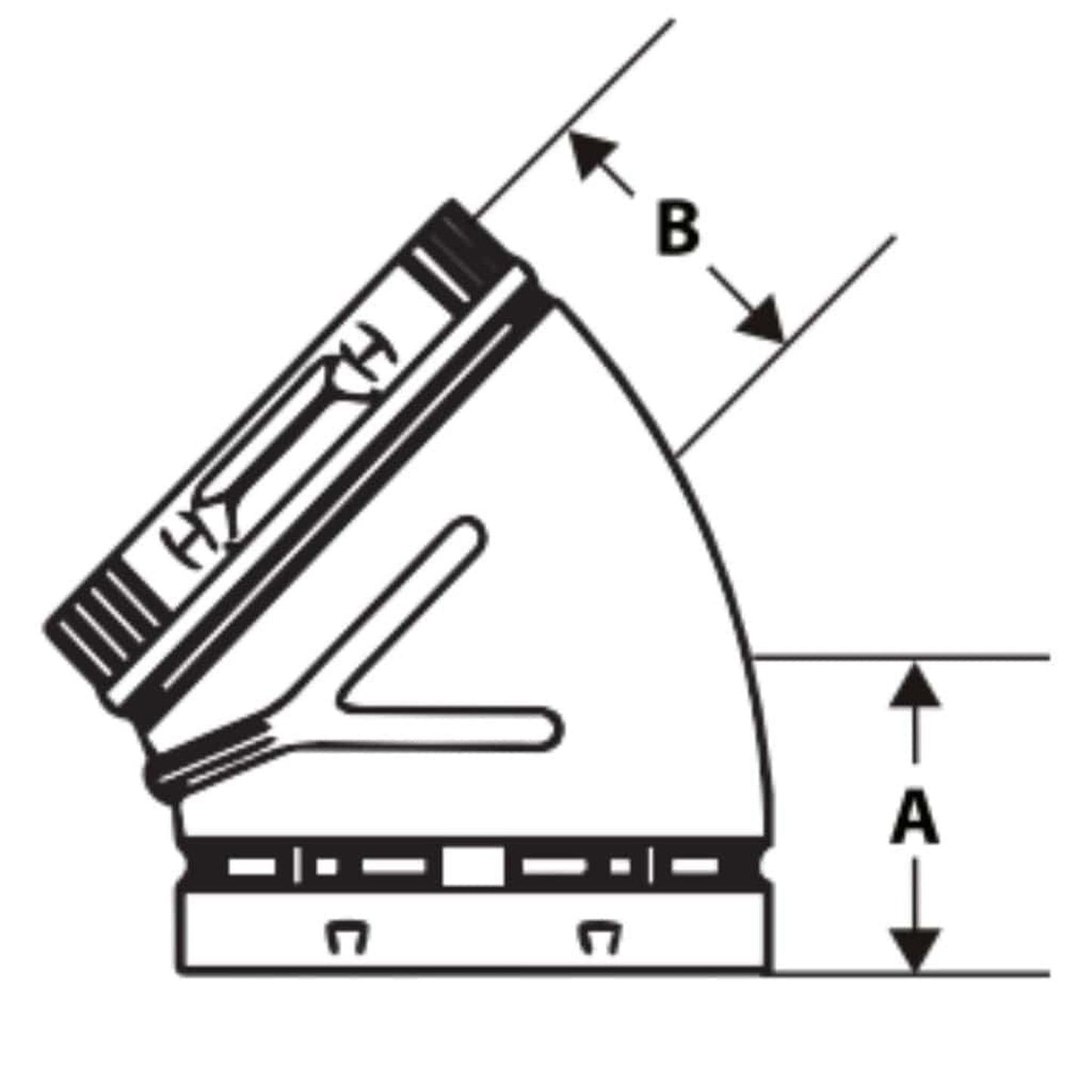

|4BVOL45F||4" I.D x 3.75" (A) x 3.75" (B)|
|5BVOL45F||5" I.D x 4.75" (A) x 4.75" (B)|
|6BVOL45F||6" I.D x 5" (A) x 5" (B)|
|Clearances||1" to combustibles in single and multi-family dwellings|
|Listings||UL Listed to UL 441|
|Warranty||Limited lifetime warranty|
Refer to our Typical Venting Installation drawings to select the appropriate component parts for your installation.
Safety Information: CA Prop 65 Warning
