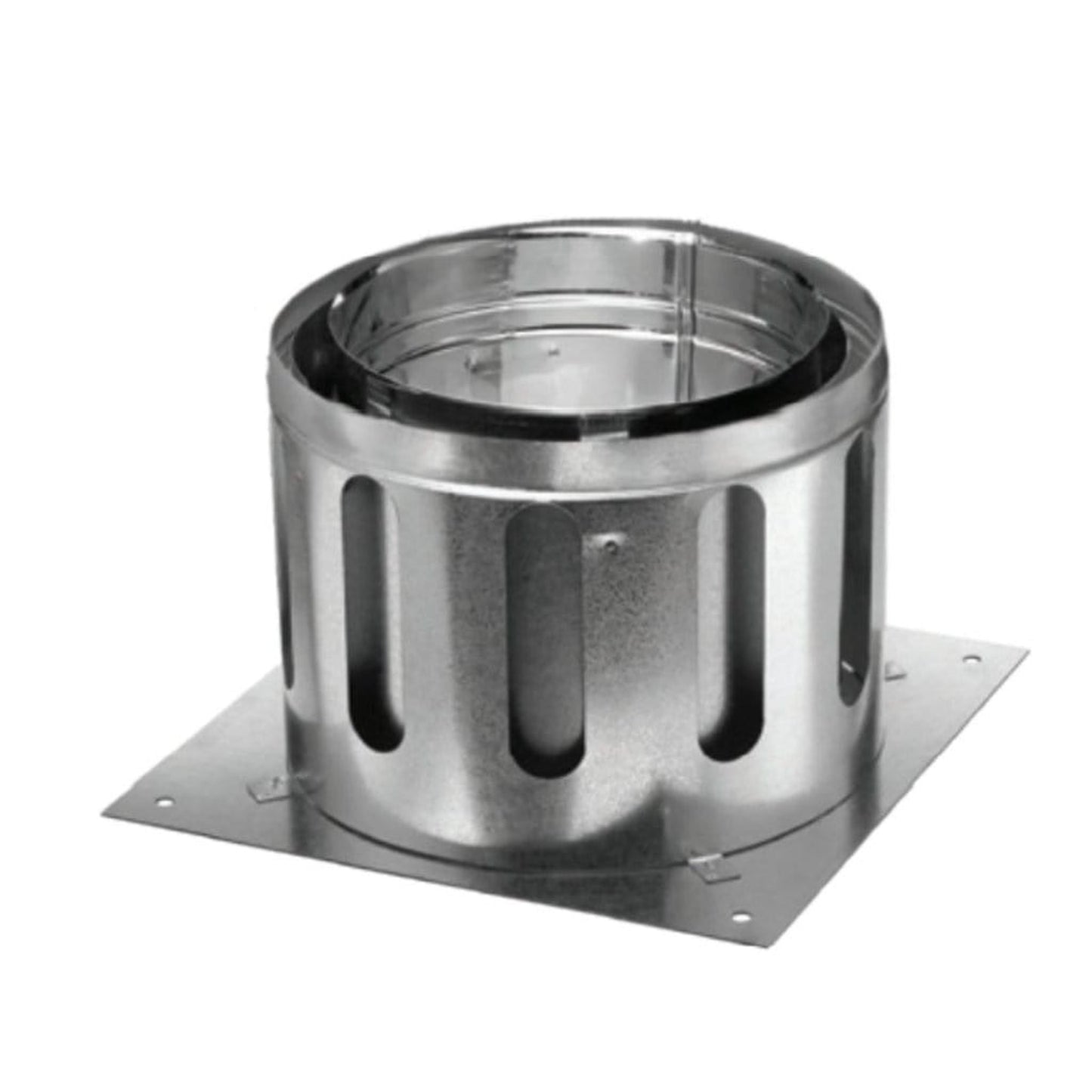

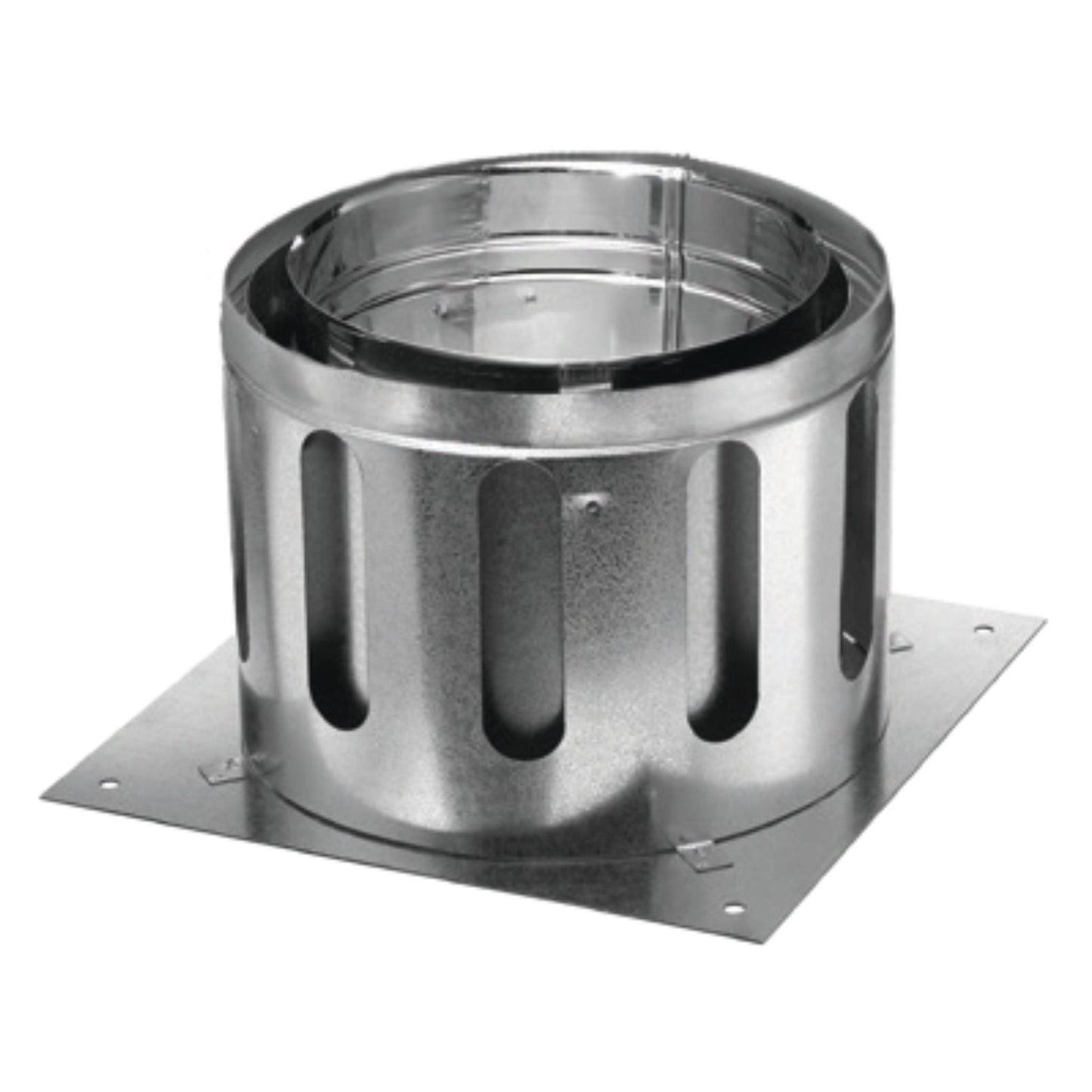

DuraVent DuraChimney ll Anchor Plate

Size ID: 8"

Estimated Arrival: Between and . (To All Contiguous States)

✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.


DuraVent is the premier company in the venting industry. With a broad range of engineered venting products, DuraVent has earned its reputation as the industry leader by offering innovative, safe, and professional products for the HVAC and Hearth markets.

DuraChimney II is an exceptional factory-built alternative to pre-fabricated masonry chimneys. DuraChimney II is a unitized, lightweight design that eliminates the need for field assembly of pipe sections, allowing for faster installation.

DuraChimney II is designed to stay cool on the outside, to provide a hot draft on the inside, and to provide a fire-safe design that protects both the chimney and the building. The double-wall, air-cooled design allows the chimney to expand both radially and lengthwise under high temperatures.

DuraChimney II is tested and listed for continuous operation at 1000°F flue gas temperatures, one hour at 1400°F, and ten minutes at 1700°F, in accordance with the UL 103 test standard.


  • Use as a starter section for DuraChimney II.
  • Bolts directly to the fireplace outlet.


List of Required Components for Chimney System
Click Here to see other components

Chimney Pipe

Anchor Plate

Anchor Plate with Damper

Chase Top Flashing


Elbow Strap


Attic Insulation Shield

Roof Radiation Shield

Storm Collar

Supplementary Support


Chimney Cap

Wall Strap

Refer to our Typical Installation drawings to select the appropriate component parts for your installation.



Model Height Dimensions
8DCA-AP 10" 8" (A) x 12" (B) x 14" (C)
10DCA-AP 10" 10" (A) x 13" (B) x 15" (C)
12DCA-AP 10" 12" (A) x 15" (B) x 28" (C)
14DCA-AP 10"
14" (A) x 17" (B) x 19" (C)
16DCA-AP 10"
16" (A) x 19" (B) x 21" (C)
Application Masonry Fireplaces
Fuel Type Wood burn, oil, coal, or gas
Listings UL 103 / ULC S604 standards(MH7399)
Warranty Limited-lifetime warranty




California PROP 65: This product can expose you to Lead & Chromium, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. See WARNING
