SKU:ESF.2.B.BK5

EcoSmart Fire BK5 16" Stainless Steel Ethanol Fireplace Burner by Mad Design Group

EcoSmart Fire BK5 16" Stainless Steel Ethanol Fireplace Burner by Mad Design Group

Regular price $1,495.00
Regular price $1,495.00 Sale price $1,495.00
Sale Sold out

e-NRG Bioethanol Fuel

-- Please Select --

e-NRG Bioethanol Fuel-4 Gallons

e-NRG Bioethanol Fuel-8 Gallons

e-NRG Bioethanol Fuel-16 Gallons

e-NRG Bioethanol Fuel-20 Gallons

e-NRG Bioethanol Fuel-40 Gallons

e-NRG Bioethanol Fuel-80 Gallons

e-NRG Bioethanol Fuel-180 Gallons

No, Thank You

Plasma Fire Screen

-- Please Select --

Plasma Fire Screen

No, Thank You

Twin Feet Fixings

-- Please Select --

Twin Feet Fixings

No, Thank You

Black Glass Charcoal

-- Please Select --

Black Glass Charcoal

No, Thank You

  • Free Shipping on Orders Over $400
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

BK5 features flame regulation and superior fuel efficiency.

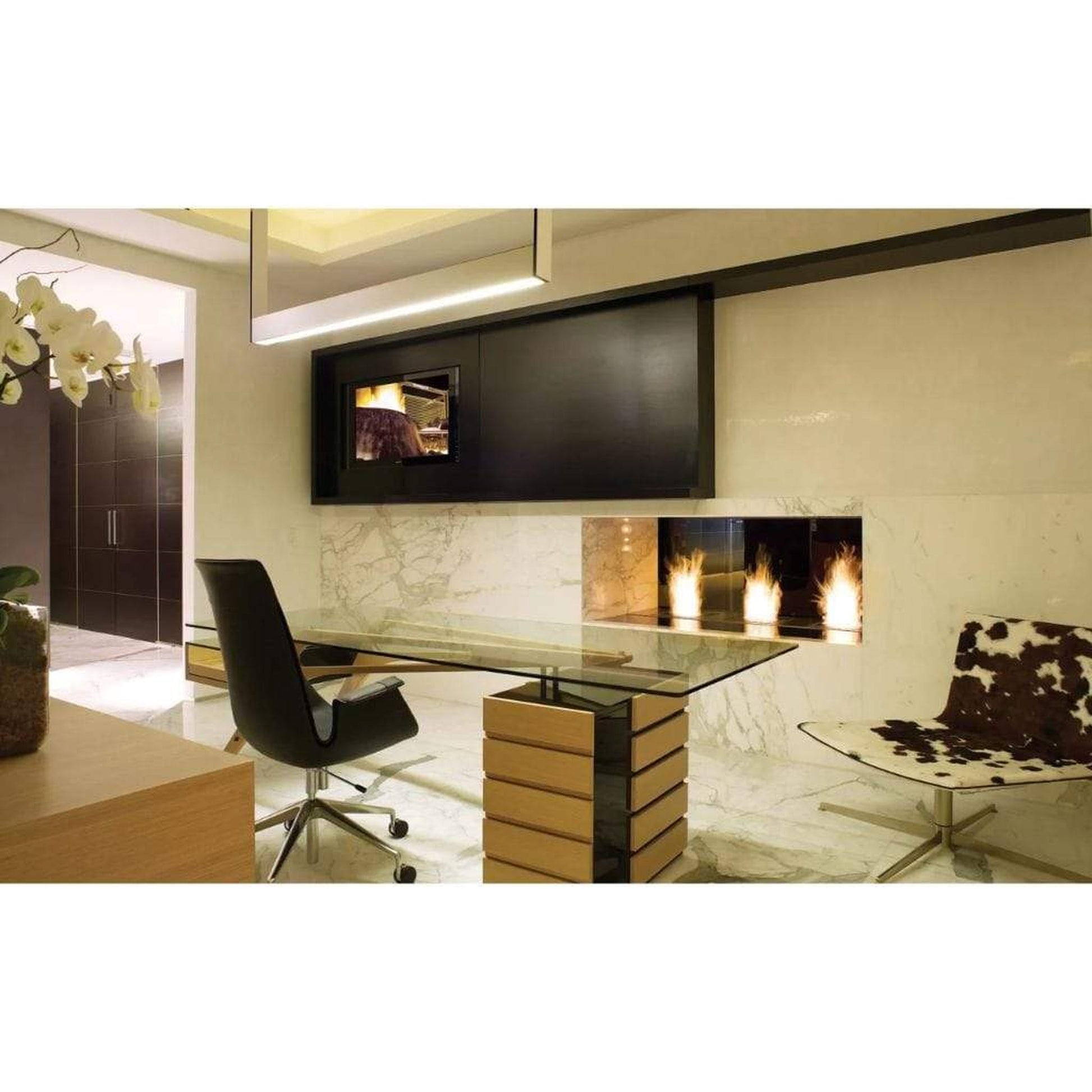

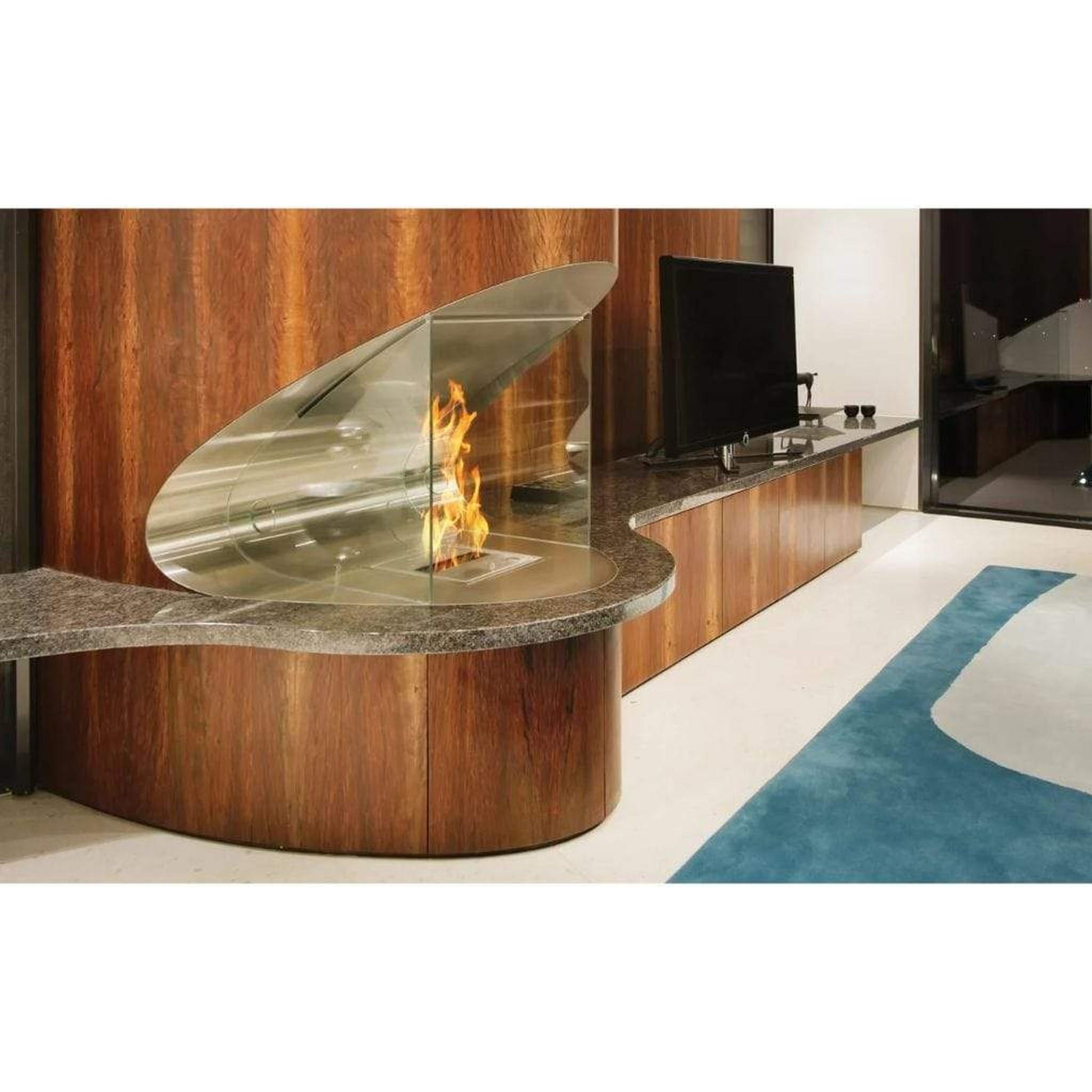

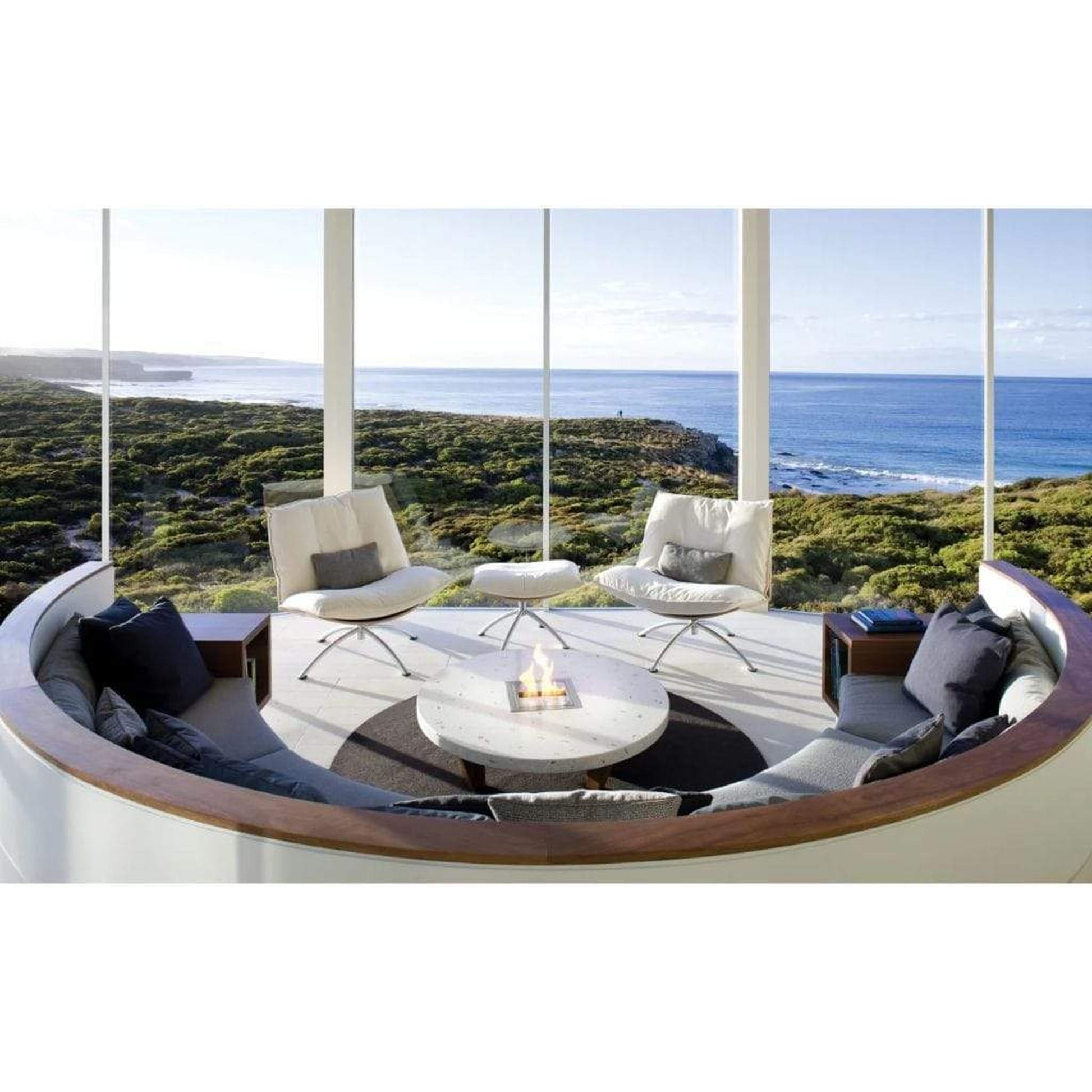

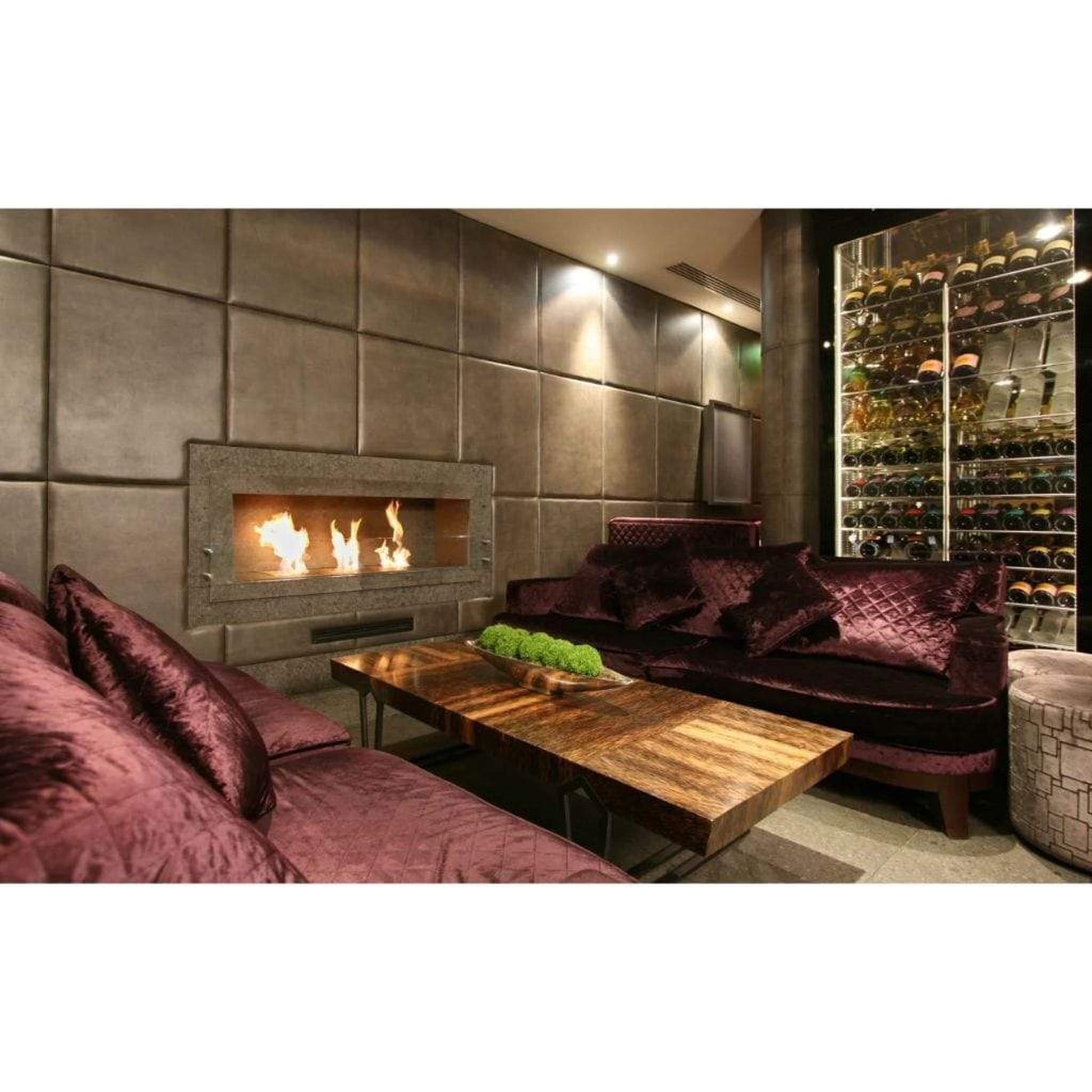

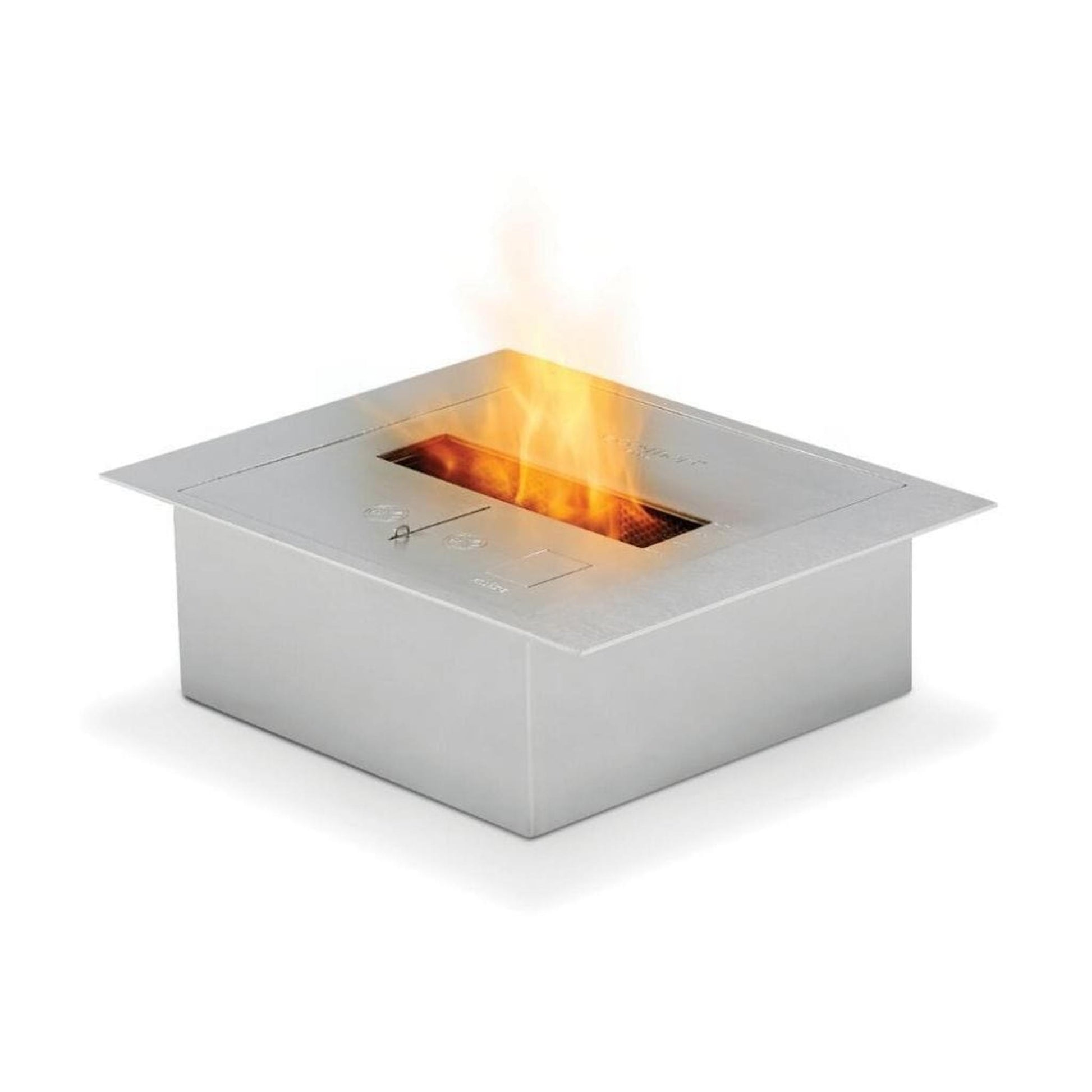

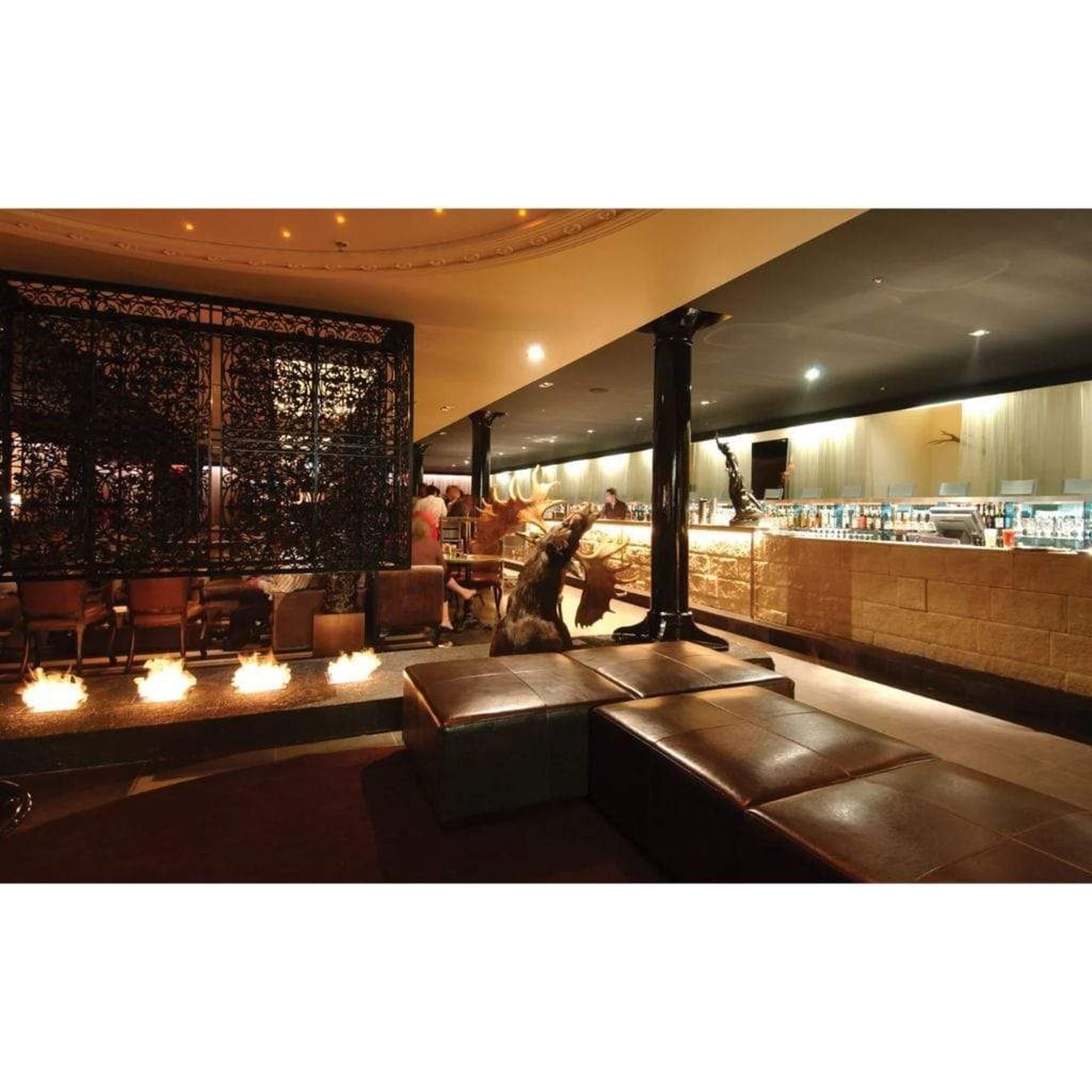

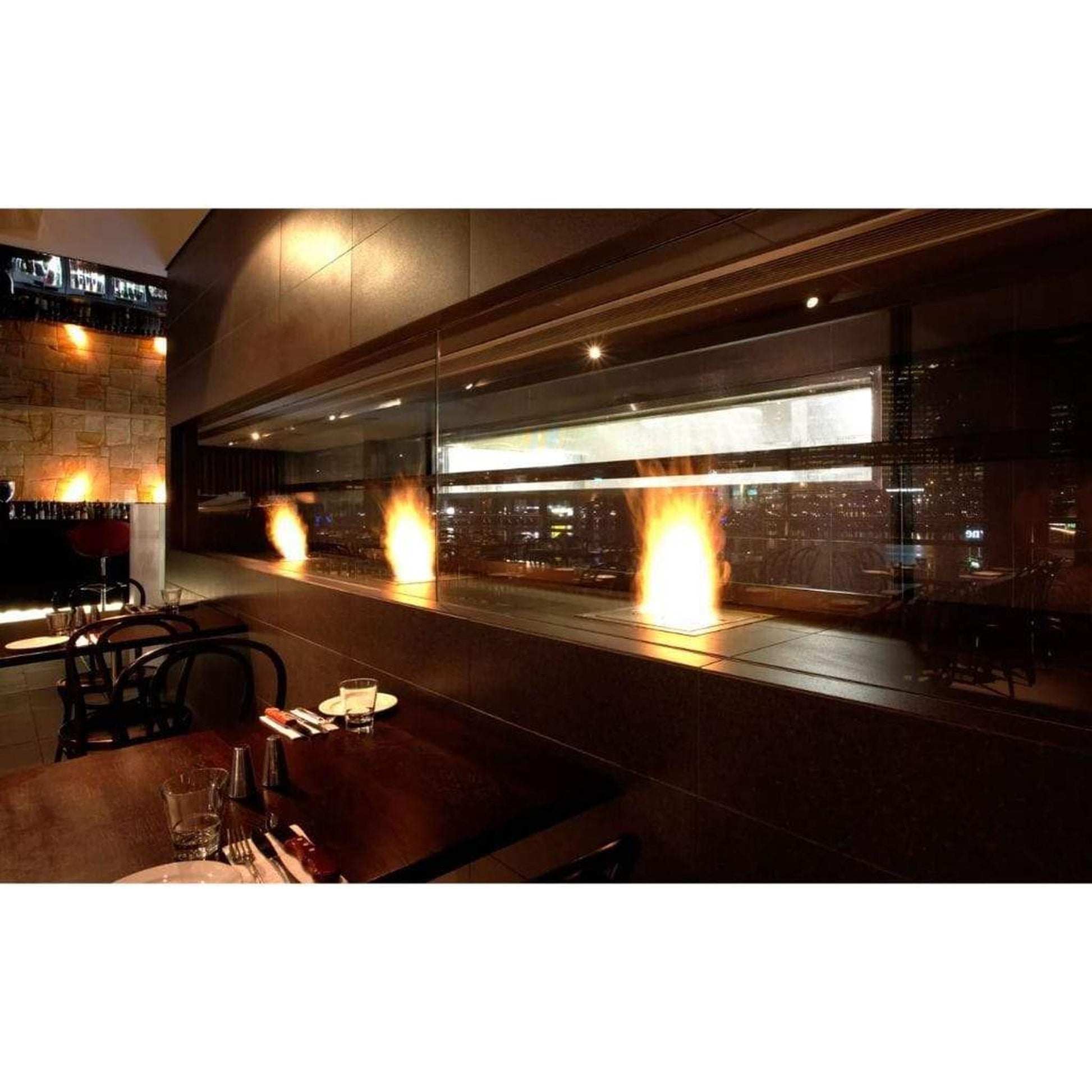

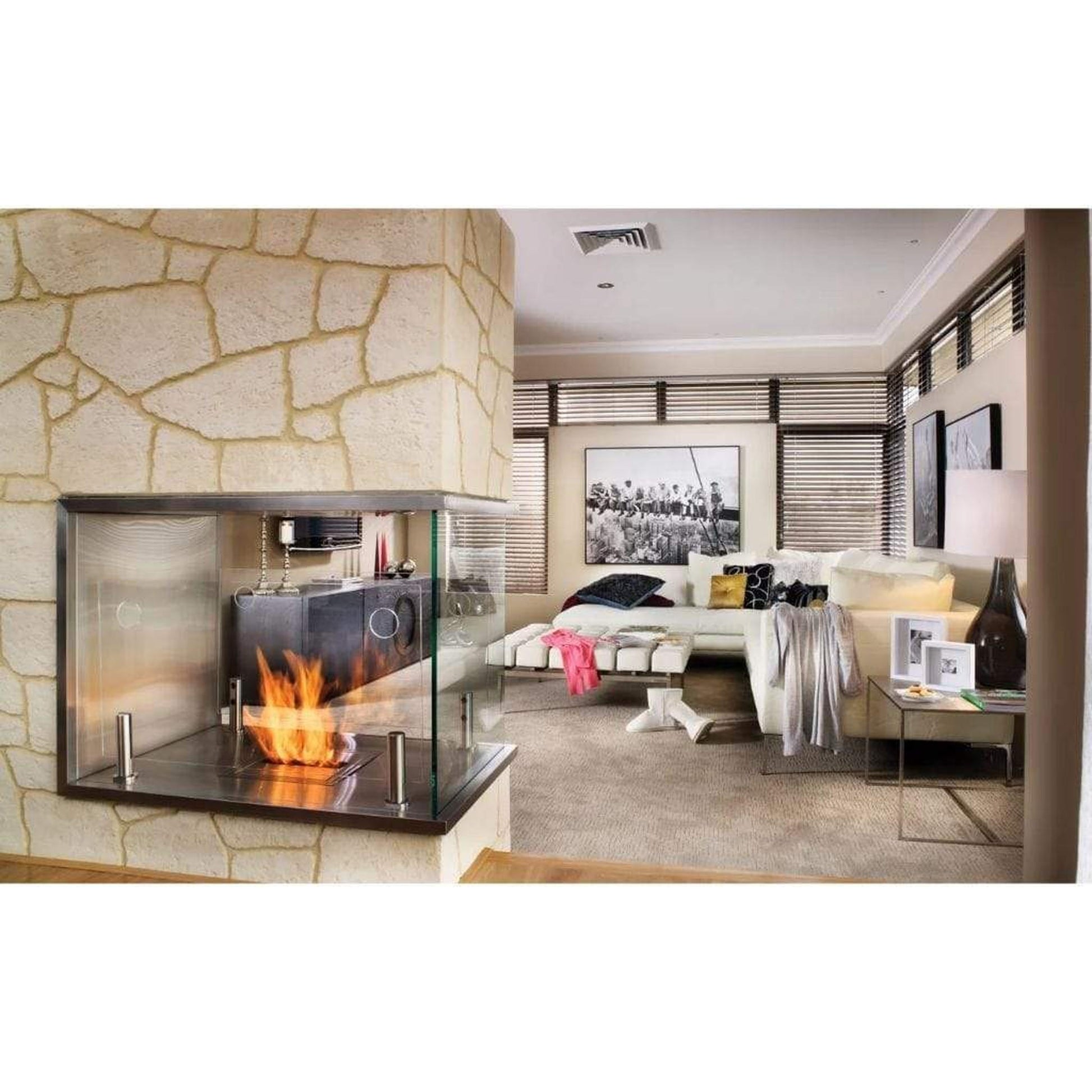

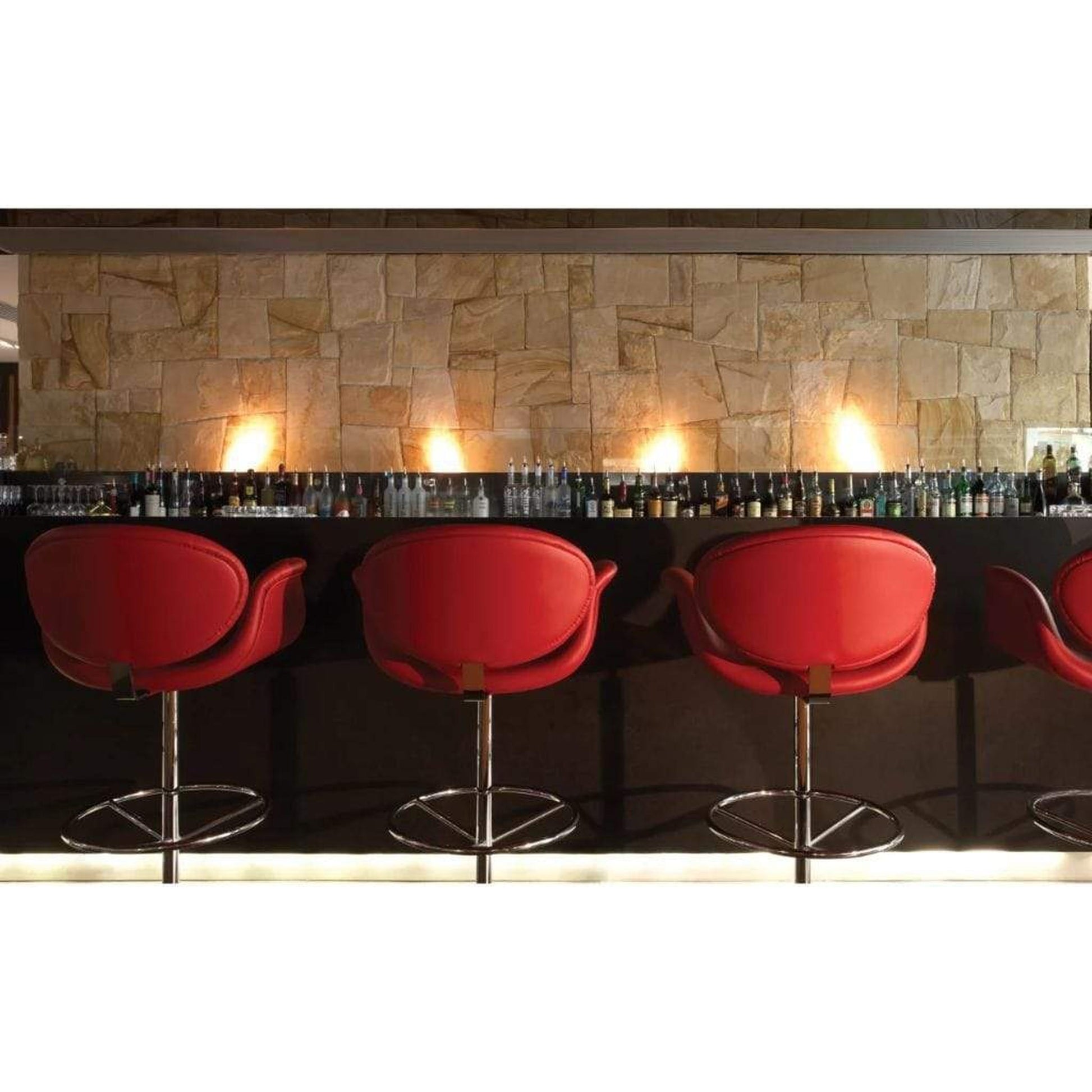

A sophisticated stainless steel burner that’s at the heart of a diverse range of EcoSmart Firebox Inserts and Freestanding Fireplaces. And the BK5’s compact, lightweight design enables it to equally be integrated into individual fire designs for indoor and outdoor spaces, both residential and commercial.

BK5’s versatility is underscored by its popularity among designers, builders, developers and specifiers – not to mention EcoSmart Fire’s design team.

O-TL Listed in accordance with UL 1370.

What's Included

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Lighting Rod
  • Butane
  • BK Top Tray
  • Jerry Can Spout Extension and Refillable Butane Lighter

Not Included (Sold Separately)

  • Mini T Cover
  • e-NRG Bioethanol Fuel

Features

Independently Tested

The BK Burner Series design is the most independently tested of the range, with a range of special safety features.

Safe Filling

Perfectly aligned slider mechanism, filling point and fuelling system that allows an unobstructed view of the burner tank ensuring the burner isn’t over-filled.

Seamless Construction

Deep-draw fabrication process eliminates the potential for dangerous leaks. Standard provision of a twin skin to hold the burner adds further peace of mind.

Flame Regulation

Easy flame control that enables you to regulate the amount of heat being generated and, therefore, the amount of fuel consumed. Provides a highly economical, efficient burner.

Clean Burning

The BK5 holds 5 Litres of environmentally-friendly e-NRG bioethanol fuel, providing a flame that burns for up to 11 hours.

No Flue, No Chimney

The BK5 is fuelled by bioethanol, so you don’t need to flue out any harmful emissions or install costly ventilation systems.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Specifications

Weight

16.76lb [7.6kg]

Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Stainless Steel

Fuel Efficiency

Volume Capacity

1.3 Gal [5 L]

Heats on Average

377ft2 [35m2]

Minimal Room

2472ft3 [70m3]

Thermal Output

14 MJ/h - 13000 BTU/h - 3.5 kW

Burn Time

7-11h


*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions

Width 12.5in [317mm]
Height 15.7in [400mm]
Depth 4.8in [123mm]

Technical Drawings

Top View
Front View
Side View

CA Residents: See Prop 65 WARNING.

Warranty

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

Videos

Frequently Asked Questions

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you! The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.
Where is the best place to install an ethanol fireplace?

Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.

What are some key benefits – compared to other heating options?

When you choose ethanol as your fuel source over gas or wood, you are totally simplifying your installation requirements and costs. There's no flue or chimney required when burning ethanol, which means that you have the ultimate in design flexibility to achieve an open fire in so many more areas of your home - both indoors and out.

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.

Do ethanol fireplaces give off heat?

EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU - 20,000 BTU’s.

Do ethanol fireplaces smell?

All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.

What is an ethanol fireplace burner?

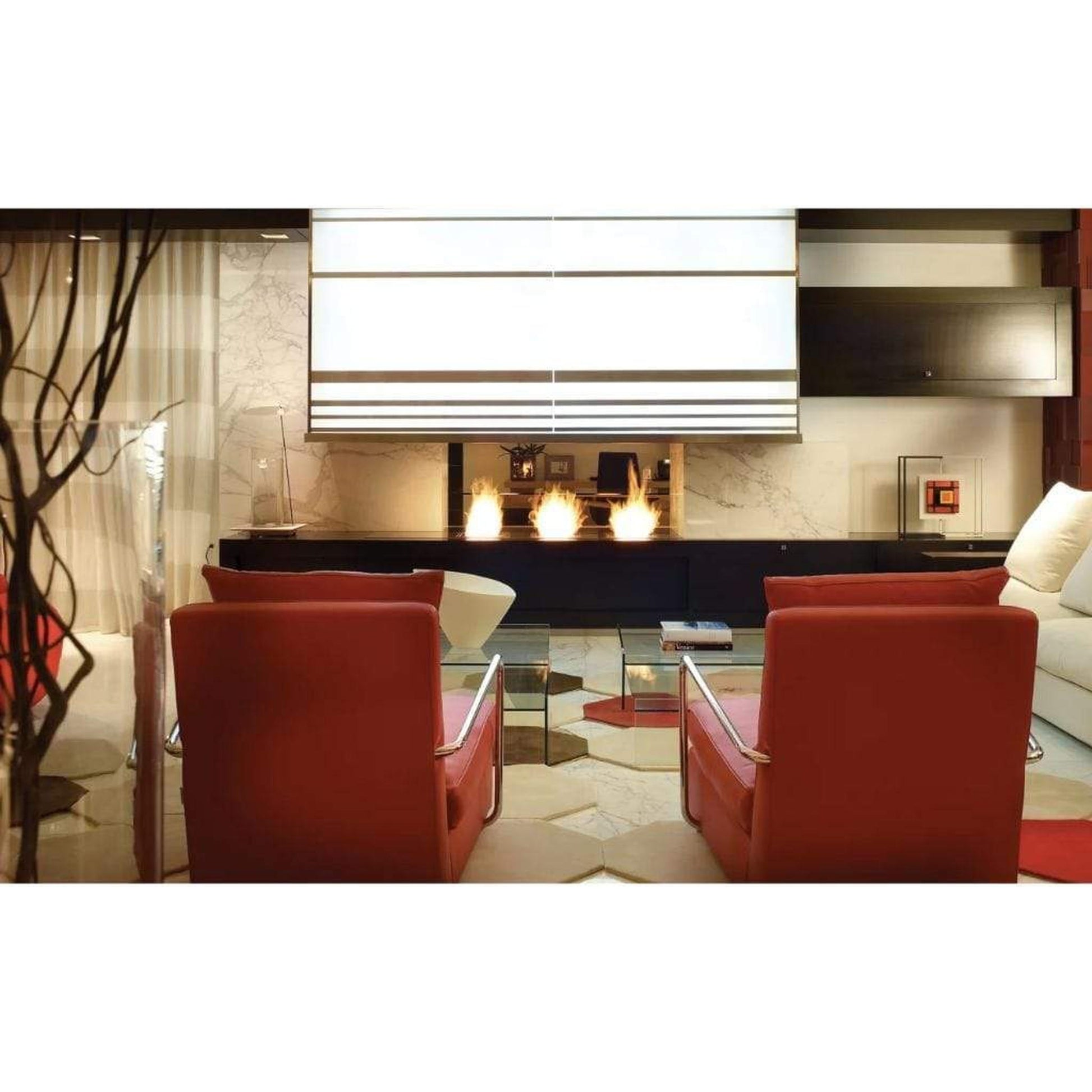

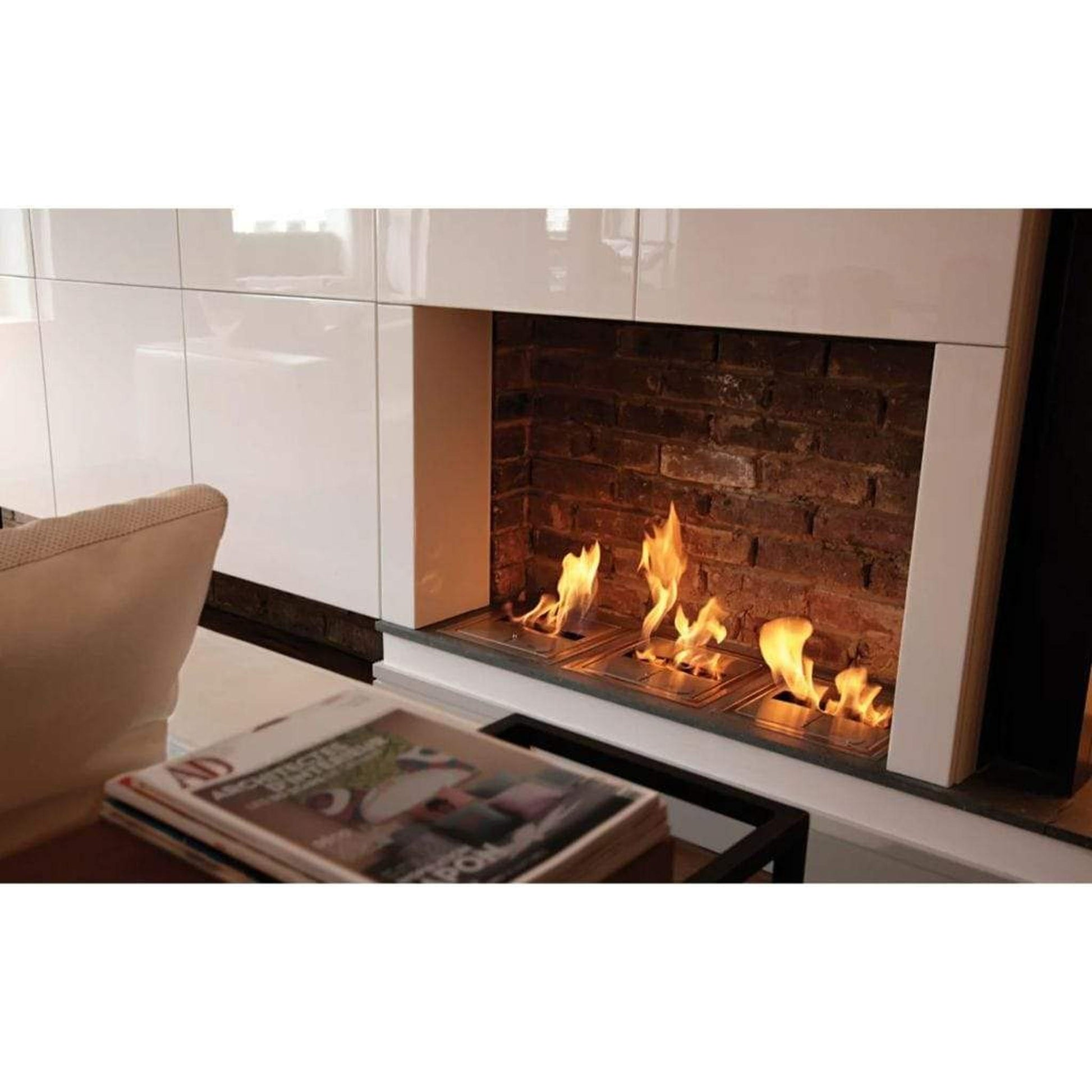

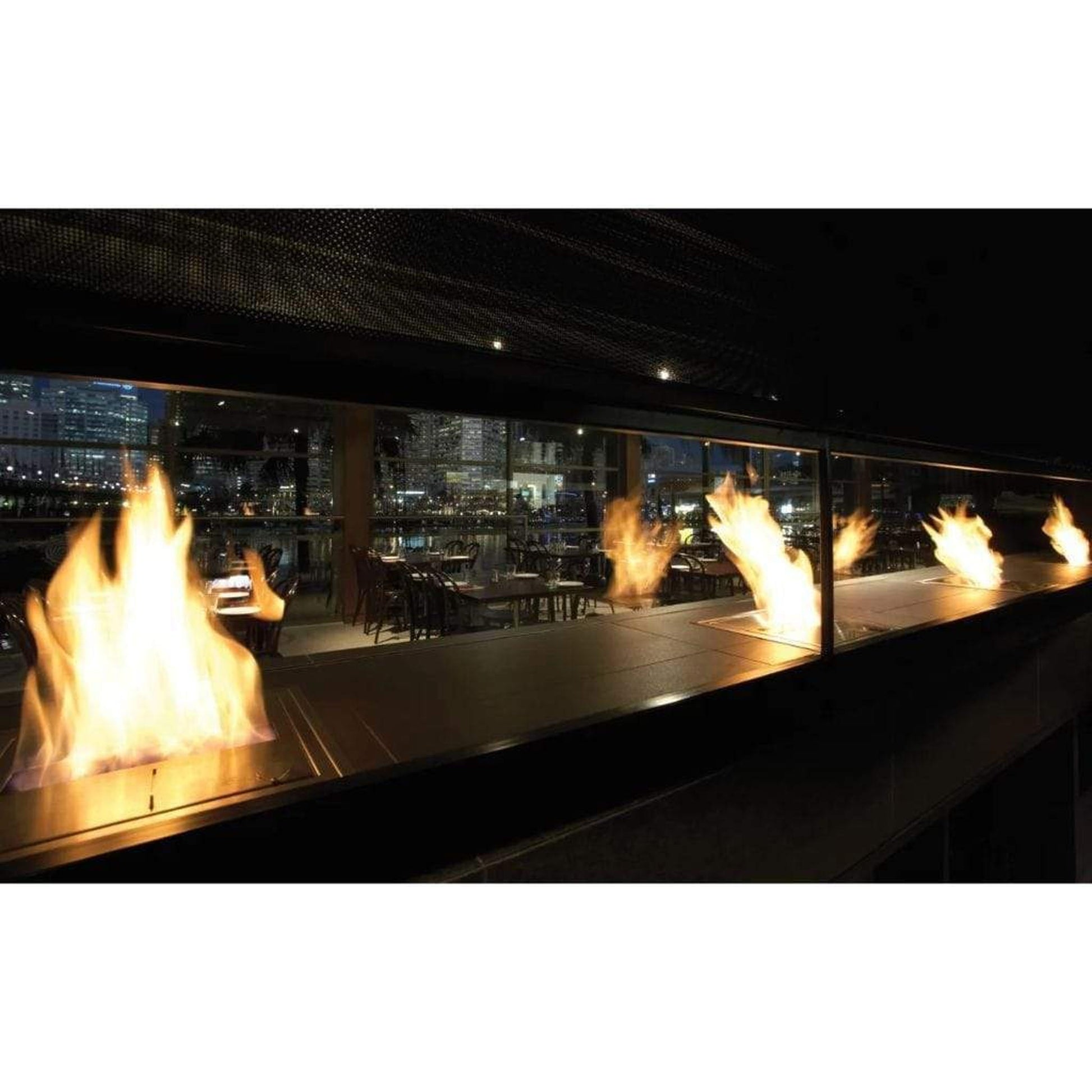

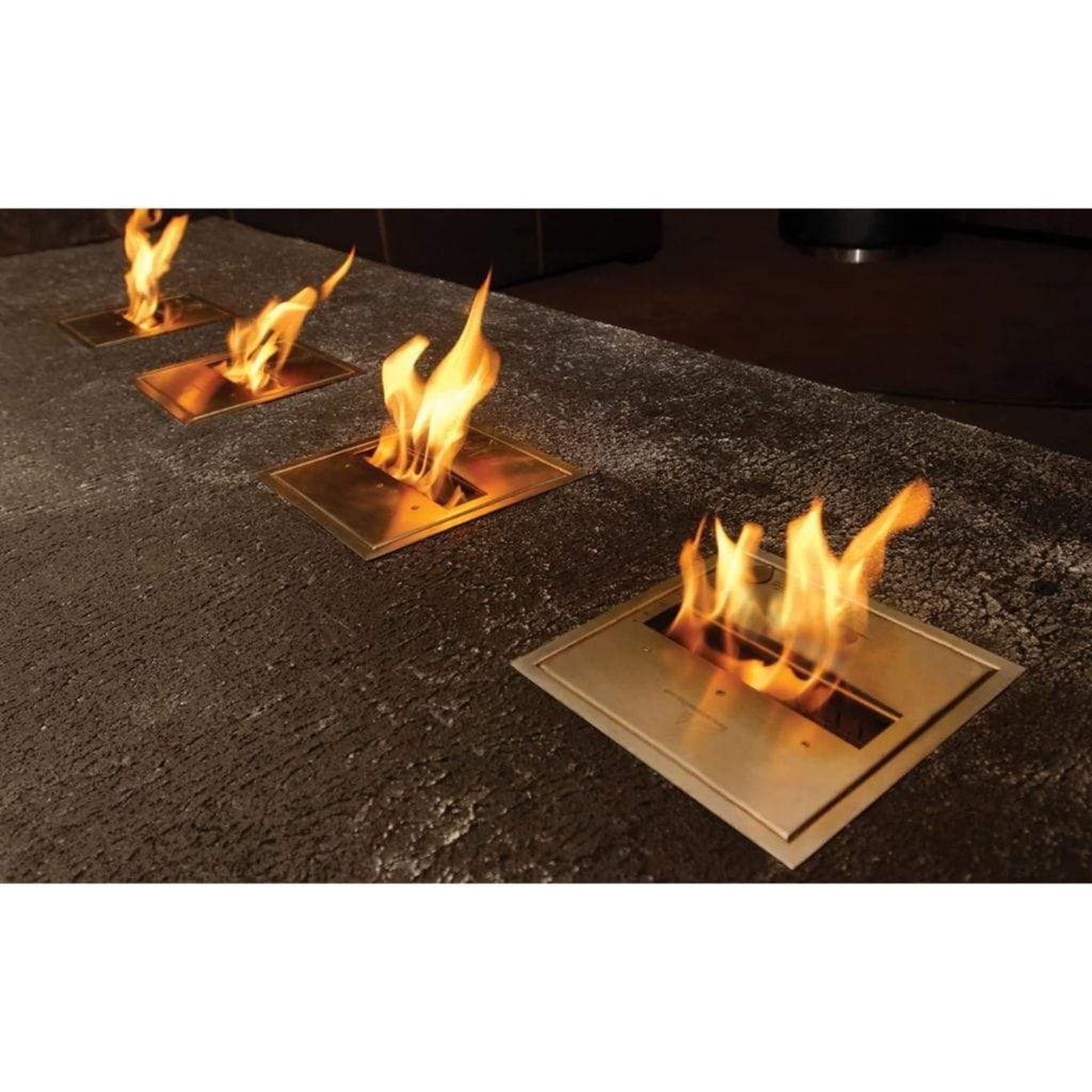

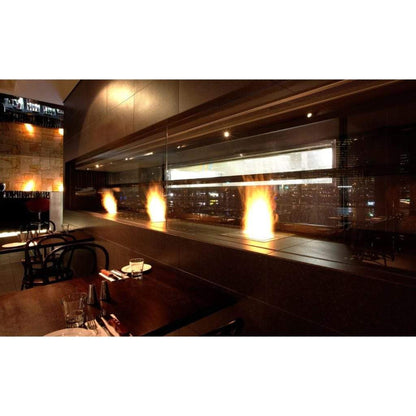

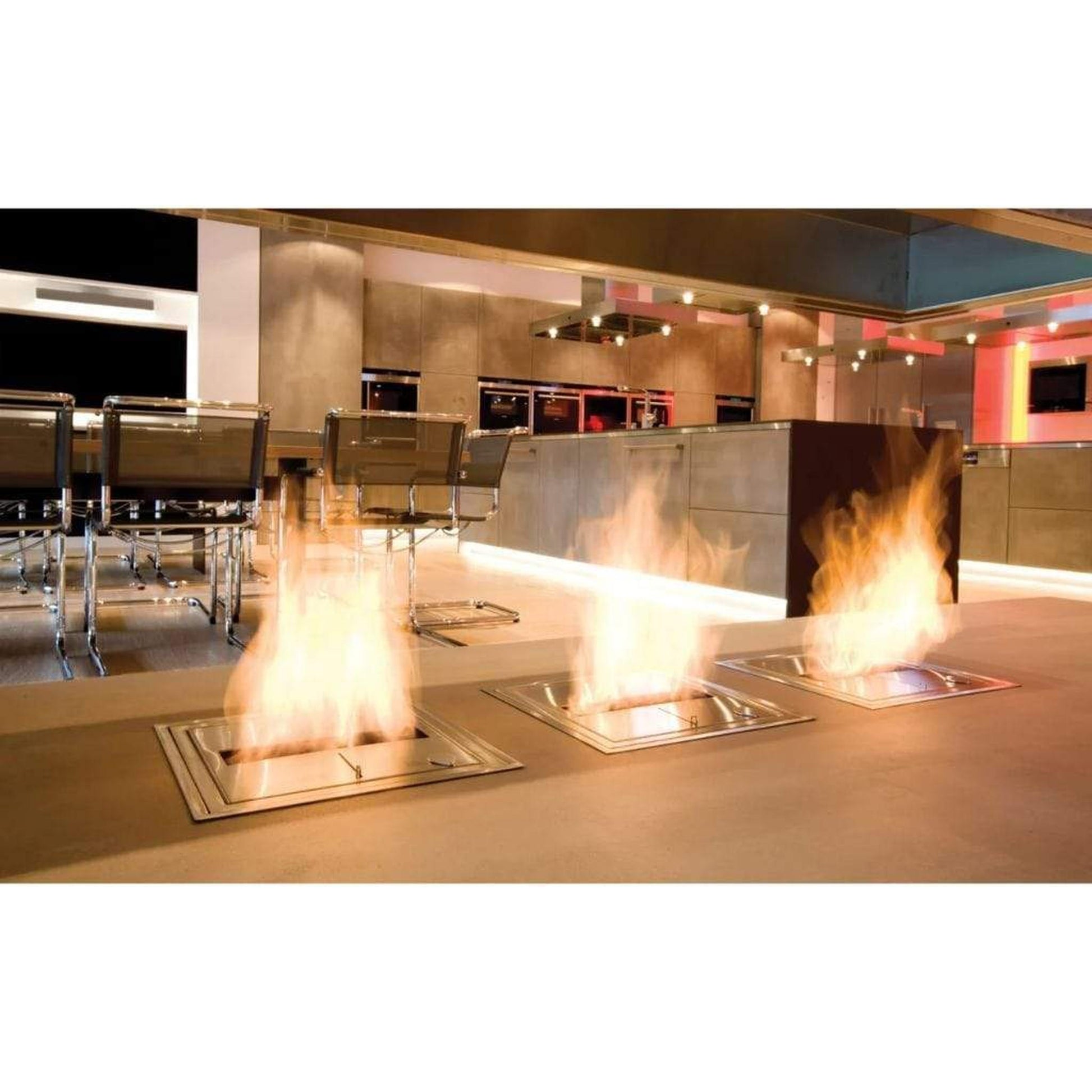

EcoSmart Fire’s ethanol fireplace burners allow you to bring your vision to life and create a truly unique and custom fireplace. Completely self-contained, our ethanol burners have no need for exterior tanks or utility lines and their stainless steel bodies make them suitable for both interior and exterior use. Easily integrate a round, square, or linear ethanol burner into media units, cabinetry, walls, pillars, stone benches and more to create your custom ethanol fireplace design. EcoSmart Fire’s ethanol fireplace burners are available in a range of sizes and can be placed side by side for a longer flame.
