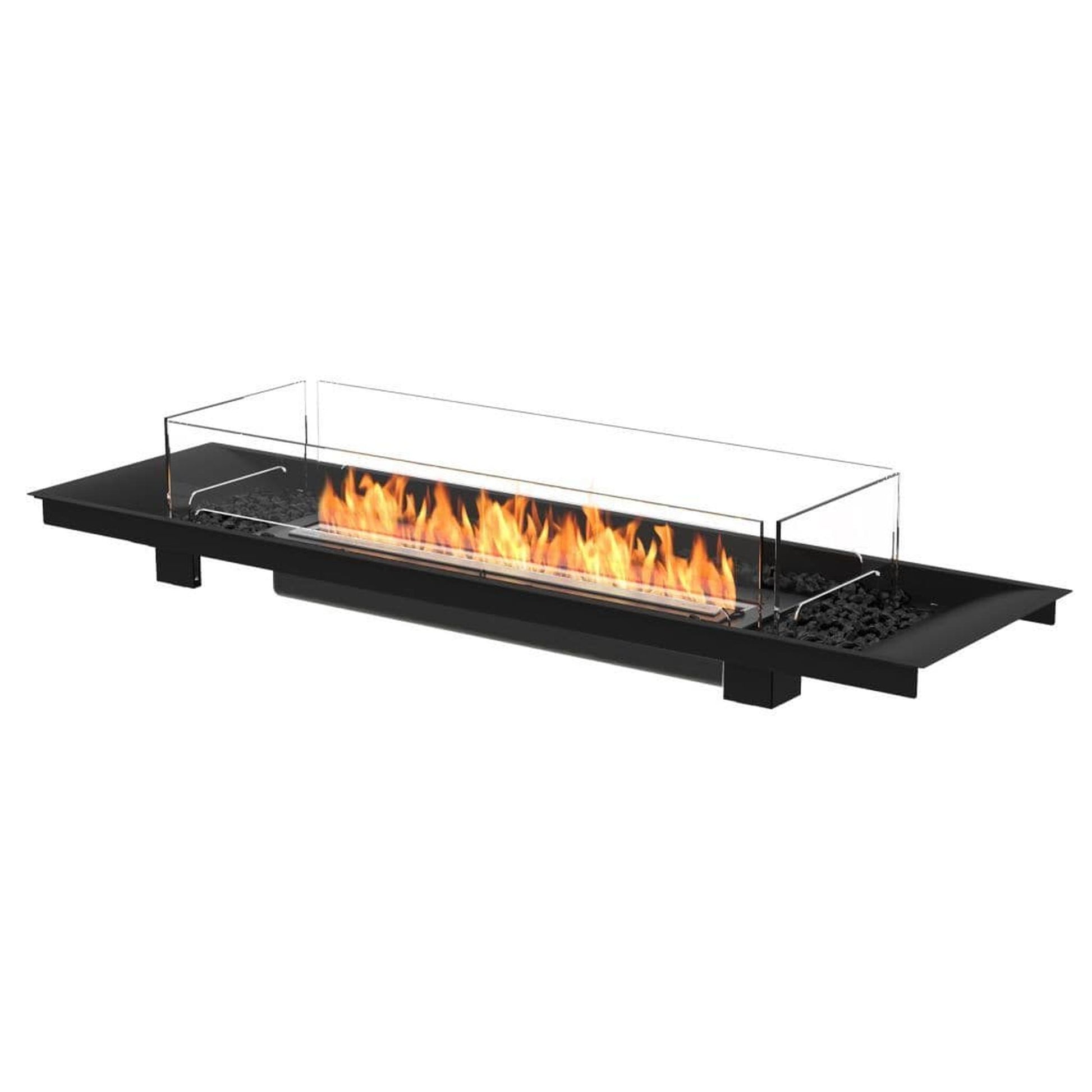

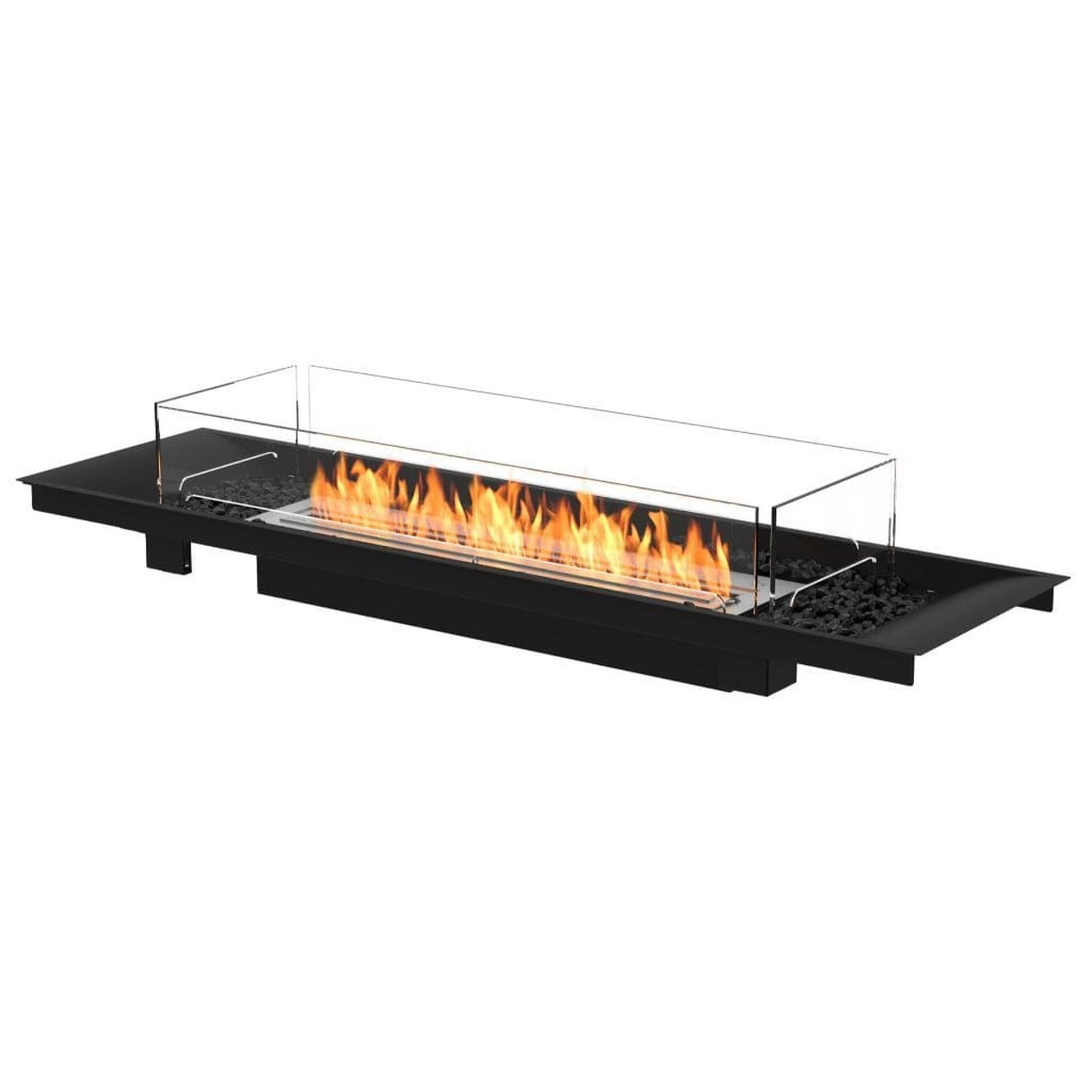

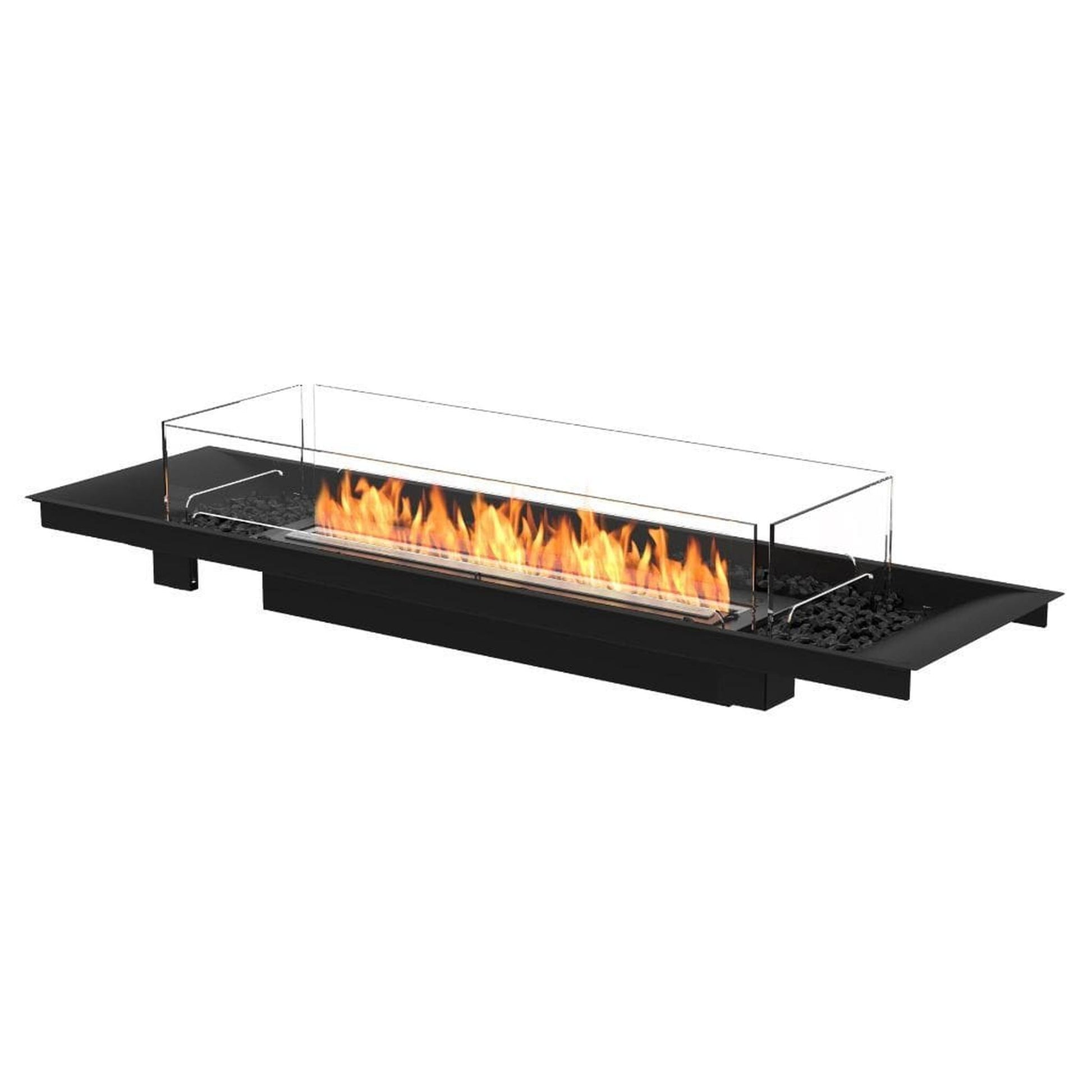

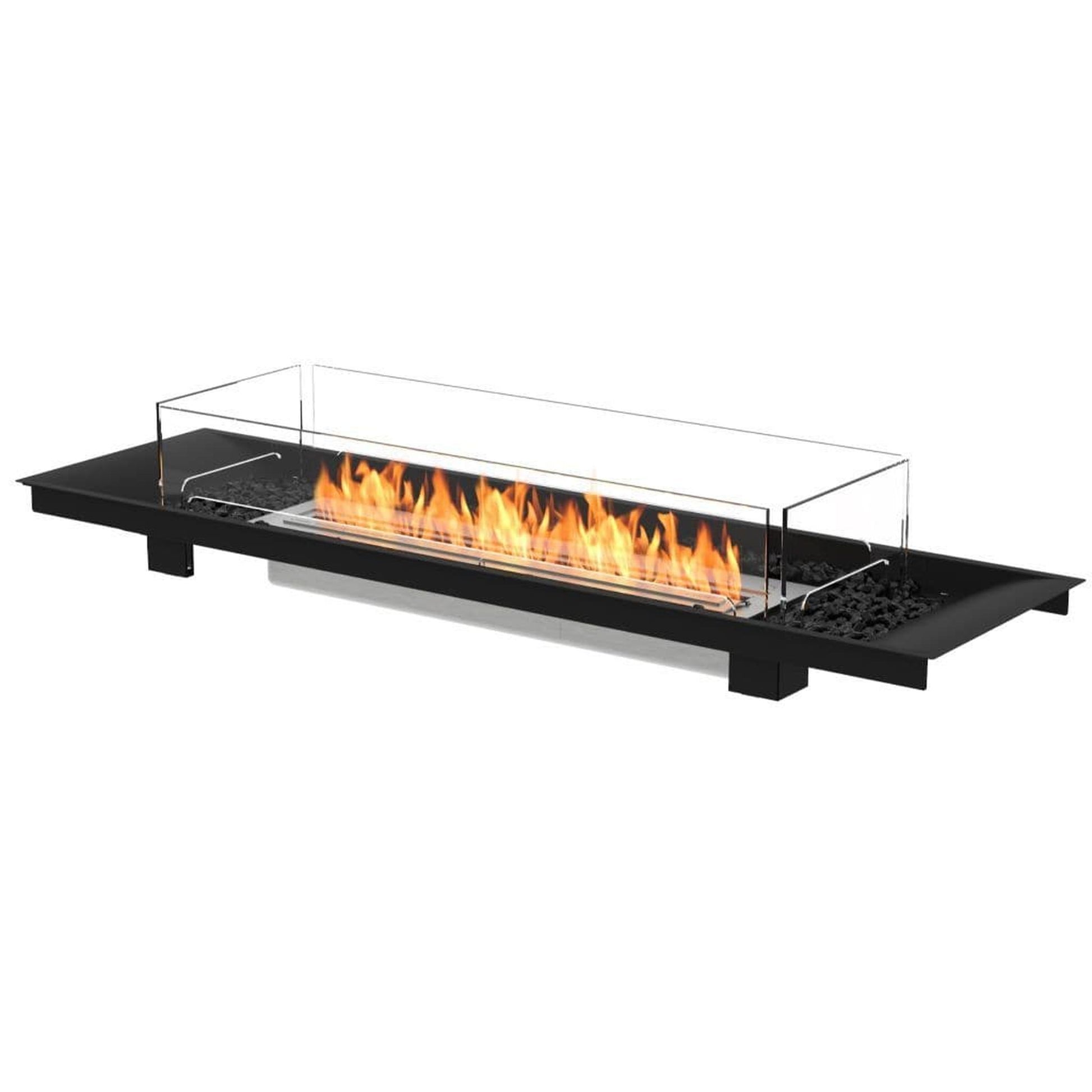

EcoSmart Fire Linear 65 64" Black Outdoor Fire Pit Kit with Stainless Steel Ethanol Burner by Mad Design Group
EcoSmart Fire Linear 65 64" Black Outdoor Fire Pit Kit with Stainless Steel Ethanol Burner by Mad Design Group
e-NRG Bioethanol Fuel
-- Please Select --
e-NRG Bioethanol Fuel-4 Gallons
e-NRG Bioethanol Fuel-8 Gallons
e-NRG Bioethanol Fuel-16 Gallons
e-NRG Bioethanol Fuel-20 Gallons
e-NRG Bioethanol Fuel-40 Gallons
e-NRG Bioethanol Fuel-80 Gallons
e-NRG Bioethanol Fuel-180 Gallons
No, Thank You
XL900 Burner Cover (*Outdoor Only)
-- Please Select --
XL900 Burner Cover
No, Thank You
L65 Glass Cover Plate
-- Please Select --
L65 Glass Cover Plate
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Contemporary elegance Fire Pit Kit.
With an elegant curved metal tray that creates a softer, organic look, the Linear Curved 65’s single flame is powered by an award-winning XL900 ethanol burner or UTL listed gas burner. A clean linear design and black glass charcoal softened by the curve of the metal tray at each end, combined with golden flickering flames create a stylish yet warm and organic look.
O-TL Listed in accordance with UL 1370.
What's Included
- Bioethanol Burner
- 1.25 Gallon Jerry Can
- Bottle Adapter
- Fire Lighter
- Lighting Rod
-
Butane
- Black Glass Charcoal
Not Included (Sold Separately)
- e-NRG Bioethanol Fuel
- XL900 Burner Cover
- L65 Cover Plate
- L1080 Fire Screen
Features
Visual appeal
A clean linear design and black glass charcoal softened by the curve of the metal tray at each end, combined with golden flickering flames create a stylish yet warm and organic look.
Flexible Heat Output
Ranging from 20,000 BTUs (ethanol) up to 65,000 BTUs (gas), our fire pit kits are versatile in warm or cold environments.
Easily integrated
Outdoor Fire Pit Kits easily integrate with non-combustible surfaces including stone countertops, concrete surfaces, brick and tiled tops.
Three Fuel Options
Eco-friendly ethanol is a sustainable and responsible fuel source suitable for indoor or outdoor installation. Powered by natural gas or propane, our outdoor fire pits operate with a convenient push button ignition.
Year-round beauty
The design simplicity of our outdoor fire pits enhance the look and feel of any style of space at any time of the year.
Created to last
Quality long-lasting materials including stainless steel and toughened glass ensure exceptional durability for indoor or outdoor installation.
Tested World Wide
Our collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications
| Weight | 79.15lb [35.90kg] |
|---|---|
| Application | Indoor & Outdoor |
| Material | Stainless Steel Grade 304, Toughened Glass |
| Color | Black |
Fuel Efficiency
|
|
2.4 Gal [9 L] |
|
Heats on Average |
646ft2 [60m2] |
|
Minimal Room |
3885ft3 [110m3] |
|
Thermal Output |
16 MJ/h - 15000 BTU/h - 4.4 kW |
|
Burn Time |
8 - 13h |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions
| Width | 17.8in [451mm] |
| Height | 12.2in [310mm] |
| Depth | 64.2in [1630mm] |
Technical Drawings
|
Front View |
![]() |
|---|---|
| Top View |
|
| Side View | ![]() |
Warranty
![]() |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
![]() |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files
- Download Installation and Operation Manual
- Download Burner Manual
- Download Specs Sheet
- Download Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
Videos
Frequently Asked Questions
What is bioethanol fuel?
Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops. |
How does an ethanol fireplace work?EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. |
Do ethanol fireplaces give off heat?EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU - 20,000 BTU’s. |
How do I clean my EcoSmart Fire ethanol burner?Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model. |
Is Bioethanol easily obtainable?Yes, you can have fuel delivered to public and private premises in many countries. |
Where is the best place to install an ethanol fireplace?Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information. |
How long does it take to assemble?There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you! The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth. |
Do I need to service my ethanol fireplace in any way?Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product. |
