Firegear

FPB-25SFPSSF18TPSI-N

Firegear 25" Pro Series Snowflake Square Flat Pan Gas Fire Pit Burner Kit w/ TPSI Ignition System

Fuel Type: Natural Gas


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Firegear Outdoors is the premier provider of outdoor fire products. We specialize in burner systems, outdoor fire features & accessories for the outdoor fire industry.

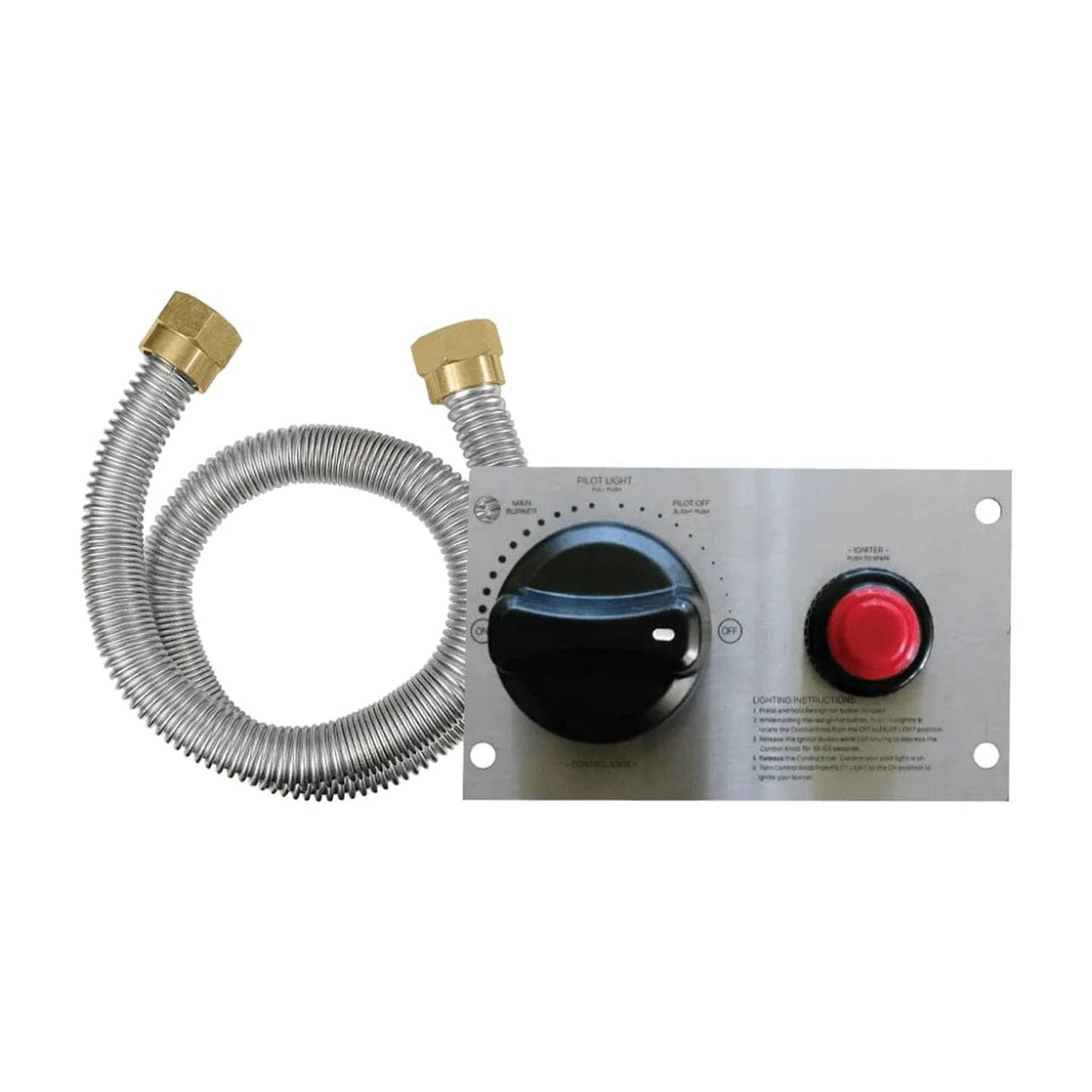

Overview - TPSI Ignition

Thermocouple Piloted System with Safety Valve turns gas off when loss of flame. Easy ignition with Battery Spark Igniter included.

Click to see more information

TPSI | Thermocouple Piloted Safety Ignition

Overview

  • Thermocouple Piloted System with Safety Valve turns gas off when loss of flame
  • Easy ignition with Battery Spark Igniter (included)
  • TPSI system with Safety Valve turn gas off when pilot flame goes out
  • Robust ignition system with full BTU throughput


How it Lights

  1. Press and hold Red Ignitor button to spark
  2. While holding the red ignitor button, Push in slightly & rotate the Control Knob from the OFF to PILOT LIGHT position
  3. Release the Ignitor Button while Continuing to depress the Control Knob for 30-60 seconds.
  4. Release the Control Knob Confirm your pilot light is on.
  5. Turn Control Knob from PILOT LIGHT to the ON position to ignite your burner.


Features


Specifications

Model FPB-25SFPSSF18TPSI-N(P)
Product Type Fire Pit Burner System
Fuel Type Natural Gas, Propane
BTU 145,000 (NG)
124,000 (LP)
Pan Size
25"
Burner Size
18"
Ignition System Thermocouple Piloted Safety Ignition System


Options & Accessories

Flexframe Installation Collar
  • Allows you the flexibility to fill the gap between the fire pit structure and the pan.
  • Larger size allows the use of any round, square, or linear drop-in pan or flat in fire pits up to 5” larger than their OD size.
  • Size: 44” per piece.
Paver Control Panel Kit
  • For use when building fire pit enclosures with SRW block or pavers and a TPSI burner system.
  • Includes stainless steel paver kit bracket and extender, lintel 12"x3" (20 gauge galvanized steel), screws and fittings, and Tapcon® concrete anchors.
Paver Vent Kit
  • Intended for gas fire pit enclosures made from paver stones
  • Kit includes two 3.625" x 8" or 5.625" x 8" vents with mounting plate and extension plate that extend up to 10” wide, two Tapcon® concrete anchors, and two 12”x3” Lintels (20 gauge galvanized steel).
  • Each vent provides 18 square inches of ventilation


Media

Click to see media options

Media Options

Broken Glass Media

  • Broken glass, approximately 1/2" to 3/4" in size.

Black

Copper

Crystal

Light Blue

Seabreeze




Reflective Glass Media

  • Mirror finish broken reflective, approximately 1/2" to 3/4" in size.

Black

Bronze

Cobalt

Copper

Silver




Lava Rock

  • Mined from the earth, these dark rocks contrast beautifully against a bright flame. Each rock is approximately 1" to 2" in diameter.
  • Available in 10-pound bag and 1 cubic foot bag (Approx weight 30-40lbs.).


Lava Stone

  • Made from tumbled lava rock, these stones lend a casual elegance. Each stone is approximately 1" to 2" in diameter.


Warranty

Residential Application: Lifetime Warranty on construction and manufacturer defects, brass burners, and stainless steel pans; Five (5) years on gas valve, spark igniter, pilot assemblies, and AWS electronic ignition systems (24VAC, 30 VDC).

Commercial Application: Two (2) years Warranty on construction and manufacturer defects, brass burners, pans, gas valve, spark igniter, pilot assemblies, and AWS electronic ignition systems (24VAC, 30 VDC).


Downloads

Safety Information: Check CA Prop 65 Warning for more information.
