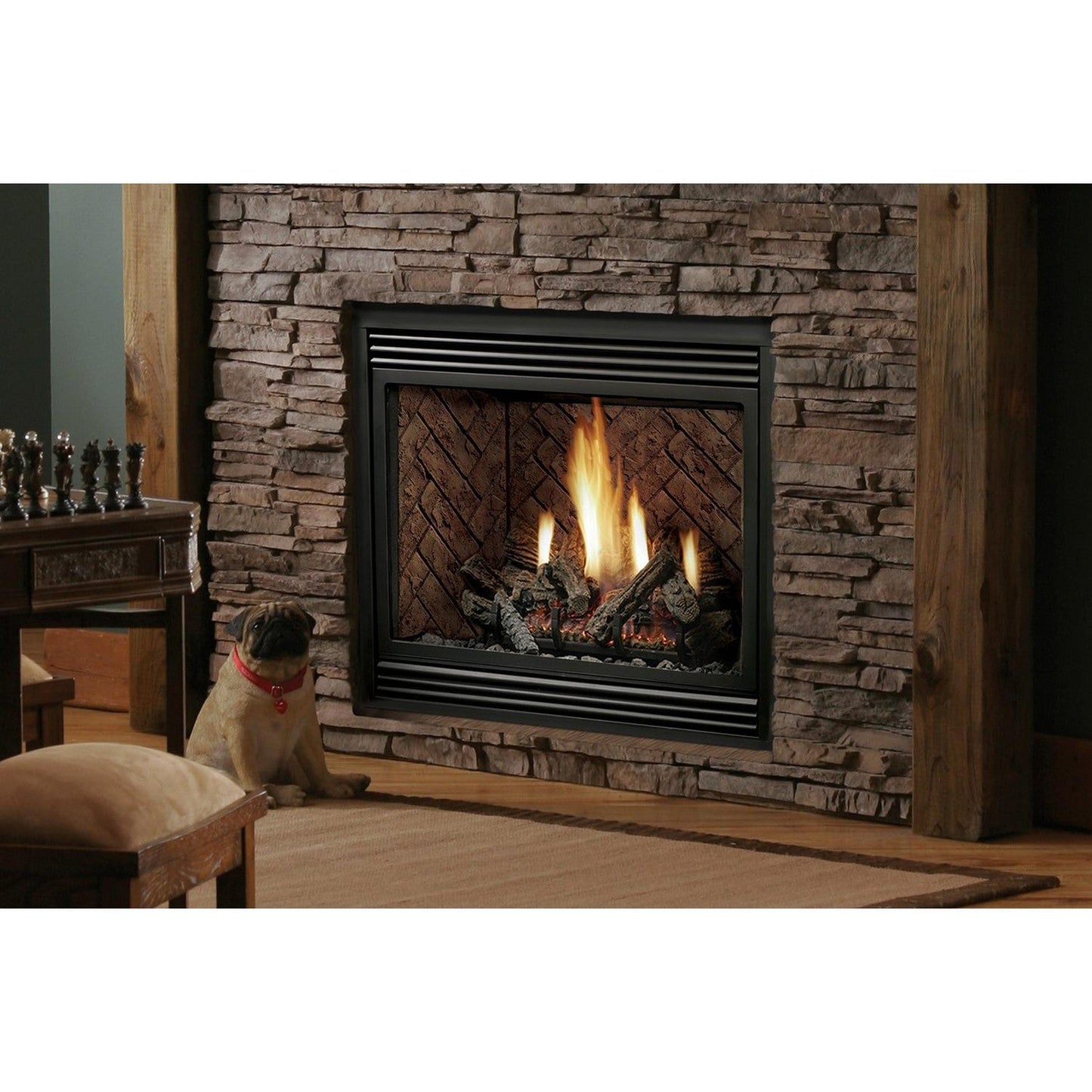

Kingsman 36" HBZDV3628 Zero Clearance Direct Vent Gas Fireplace

Kingsman 36" HBZDV3628 Zero Clearance Direct Vent Gas Fireplace

Regular price $3,213.00
Regular price $3,856.00 Sale price $3,213.00
Sale Sold out
Fuel Type
Ignition Type

Conversion Kit

-- Please Select --

No, Thank You

Black Surround (For Louvered Unit Only)

-- Please Select --

No, Thank You

Liner Kit

-- Please Select --

No, Thank You

Grill Kit (Required to Complete)

-- Please Select --

No, Thank You

Clean View Kit (Required to Complete)

-- Please Select --

No, Thank You

Log Set (Required to Complete)

-- Please Select --

No, Thank You

Fan Kit

-- Please Select --

No, Thank You

Log Bits Kit

-- Please Select --

No, Thank You

Controllers

-- Please Select --

Millivot Remote Control - Thermostat/Modulating

IPI PF1 Remote Control - Thermostat/Modulating

Millivot Remote Control - Thermostat/Modulating/Fan

IPI PF1 Remote Control - Thermostat/Modulating/Fan

On/Off Remote Control for Millivolt/IPI Units

Wall Mount Thermostat for Millivolt Unit

Thermostat Remote Control for Millivolt Unit

Thermostat Remote Control for IPI Unit

No, Thank You

Venting Options

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

The ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home.

Kingsman fireplaces are among the safest and best designed on the market. This 36-inch gas-burning fireplace is made from top-of-the-line materials and comes complete with a dual burner, wall switch, 4/7" sloped top flute, tempered glass and louvered framing. It also comes standard with a completely sealed combustion unit and painted stove with the very best quality silicone paint.

Available in natural gas and liquid propane, Kingsman quality fireplaces let you enjoy the wonder of glowing embers and dancing flames and up to 85% maximum efficiency. Create an elegant and warm focal point in your home. Kingsman fireplaces have fully sealed combustion chambers with no pollution spillage to depreciate the indoor air quality of your home.

Kingsman Zero Clearance Direct Vent Fireplaces are available in 36" HBZDV3624, 36" HBZDV3628, 42" HBZDV4224, 42" HBZDV4228, 47" HBZDV4736 models.

Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long-lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.

STANDARD FEATURES

  • Size: 36 inches
  • Vent type: direct vent
  • Safety Screen Barrier
  • Fully sealed combustion chamber
  • Fuel Type: Natural Gas, Propane Gas
  • Efficiency Rating: 58.7% NG / 62.4% LP
  • Dual burner with Realistic Flame Pattern
  • Tempered glass-front radiates heat to the room
  • Able to be configured as a clean face or louvered model
  • Standing pilot valve system ensures ready operation during power outages
  • Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
  • A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed

*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

    PRODUCT SPECIFICATION

    Model HBZDV3628N/NE
    HBZDV3628LP/LPE
    Fuel Natural Propane
    Flue Top
    Top
    Gas Control Millivolt / IPI Millivolt / IPI
    Input Max. 28,000 BTU
    26,000 BTU
    Input Min. 20,000 BTU
    19,000 BTU
    FE (p.4.1-02)% 60.61% / 62.69%
    62.48% / 64.16%
    Flue Sizes
    4/7"
    4/7"
    Glass Type Ceramic Ceramic
    Viewing Area
    29 3/4" W x 18 5/8" H
    29 3/4" W x 18 5/8" H
    Venting 4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent
    4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent
    Electronic Ignition
    Yes Yes
    Certification Heater Heater
    Actual Width (CVCK)
    38 1/16"
    38 1/16"
    Actual Height (CVCK)
    34 11/16"
    34 11/16"
    Actual Depth (CVCK)
    18 7/8"
    18 7/8"
    Actual Width (Louvers)
    36"
    36"
    Actual Height (Louvers)
    34 13/16"
    34 13/16"
    Actual Depth (Louvers)
    16 7/16"
    16 7/16"
    Bedroom Approved
    Yes Yes

    DIMENSIONS

    CA Residents: See Prop 65 WARNING

    OPTIONS & ACCESSORIES

    Click to see Log Set (Required to Complete)


    Log Set

    Four Piece Classic Oak Log Set (LOGC42)

    • Beautiful four piece classic oak style log set
    • Manufactured from high quality refractory cement
    • Required for a complete fireplace installation
    • Fits HB3624 / 3628 / 4224 / 4228 and ZV3600 series fireplaces

    Four Piece Traditional Oak Log Set (LOGC43)

    • Highly detailed four piece traditional oak style log set
    • Manufactured from high quality refractory cement
    • Required for a complete fireplace installation
    • Fits HB3624/3628/4224/4228 and ZV3600 series fireplaces

    Eight Piece Burnt Oak Log Set (LOGC44)

    • Intricate eight piece burnt oak style log set
    • Manufactured from high quality refractory cement
    • Required for a complete fireplace installation
    • Fits HB3624 / 3628 / 4224 / 4228 and ZV3600 series fireplaces
    Click to see Conversion Kit


    Conversion Kit

    Conversion Kit to Propane Millivolt (3628HB-CKLP)

    • For Millivolt Units only
    • Natural gas to propane
    • Complete with conversion instructions
    • For use with HBZDV3628 Direct Vent Zero Clearance Gas Fireplace
    • Includes all necessary gas valve and pilot assembly conversion components

    Conversion Kit to Natural Gas Millivolt (3628HB-CKNG)

    • For Millivolt Units only
    • Propane to natural gas
    • Complete with conversion instructions
    • For use with HBZDV3628 Direct Vent Zero Clearance Gas Fireplace
    • Includes all necessary gas valve and pilot assembly conversion components

    Conversion Kit to Propane IPI (3628HB-CKLPI)

    • For IPI Units only
    • Natural gas to propane
    • Complete with conversion instructions
    • For use with HBZDV3628 Direct Vent Zero Clearance Gas Fireplace
    • Includes all necessary gas valve and pilot assembly conversion components

    Conversion Kit to Natural Gas IPI (3628HB-CKNGI)

    • For IPI Units only
    • Propane to natural gas
    • Complete with conversion instructions
    • For use with HBZDV3628 Direct Vent Zero Clearance Gas Fireplace
    • Includes all necessary gas valve and pilot assembly conversion components
            Click to see Grill Kit or Designer Clean View Kit (Required to Complete)


            Grill Kit or Designer Clean View Kit

            Designer Clean View Circulating Kit (HB36CVCK)

            • Color: Black
            • Clean view kit provides a modern appearance with no louvers
            • Built in circulating feature allows heat to transfer into the room
            • Required to complete the fireplace
            • Designed for the HB3624/HB3628 series fireplaces

                   Grill Kit (HB36GBL)

                  • Color:  Black
                  • Louver kit for HBZDV3624/3628 series fireplaces
                  • Allows heat to radiate readily into the room
                  • Available in multiple finishes for different decors
                  • Required to complete the installation of the unit
                  Click to see Liner Kit


                  Liner Kit

                  Traditional Refractory Fiber Brick Liner (HB36RLT)

                  • Color: Brown
                  • 3 Piece Item
                  • Designed to add a realistic appearance to the firebox interior
                  • Durable cast refractory construction
                  • Installation hardware included
                  • Mimics the look of traditional running courses of brick
                  • Designed specifically for HB3624/HB3628 series fireplaces

                        Herringbone Refractory Fiber Brick Liner (HB36RLH)

                        • Color: Brown
                        • 3 Piece Item
                        • Designed to add a realistic appearance to the firebox interior
                        • Durable cast refractory construction
                        • Installation hardware included
                        • Provides the look of a herringbone style brick pattern
                        • Designed specifically for HB3624/HB3628 series fireplaces

                          Porcelain Reflective Panel Liner (HB36PL)

                          • 3 Piece Item
                          • Color: Reflective Black
                          • Amplifies the flame presentation via reflective qualities
                          • Durable porcelain coated steel finish
                          • Installation hardware included
                          • Sleek modern appearance compliments fire glass installations
                          • Designed specifically for HB3624/3628 series fireplaces
                          Click to see Fan Kit


                          Fan Kit

                          Speed Temperature Sensing Fan Kit (Z36FK)

                          • Squirrel cage blower design for quiet and powerful operation
                          • Thermal switch for automatic on/off operation
                          • Variable speed control with built in all off setting
                          • Designed to fit Kingsman fireplaces
                                Click to see Black Surround (For Louvered Units only)


                                Black Surround

                                Black Surround (HB36SBL)

                                • Color Options: Black
                                • Wide perimeter black surround with grill kit
                                • Louvers available in multiple finishes
                                • Designed to be used with the HBZDV3624/3628
                                • Surround measures 41 1/8" Wide by 35 1/2" High
                                • Louvers allow heat to radiate readily into the room
                                • Surround and louvers packaged together for a no hassle installation
                                    Click to see Log Bits Kit


                                    Log Bits Kit

                                    Four Piece Log Bits Kit (VLBIT4)

                                    • Designed to bolster the look of existing Kingsman log sets
                                    • Includes four large log chunks
                                    • Easy to install and arrange as desired

                                        Six Piece Log Bits Kit (VLBIT6)

                                        • Designed to bolster the look of existing Kingsman log sets
                                        • Includes six large log chunks
                                        • Easy to install and arrange as desired
                                        Click to see Thermostat


                                        Thermostat



                                        Wall Mount Thermostat- For Millivolt Units (Z2MT)

                                        • Simple on/off millivolt thermostat design
                                        • Easy to use digital control
                                        • Allows convenient operation of gas appliances
                                        • Simple to wire to existing millivolt systems

                                        Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)

                                        • Schedule programmable for desired operation
                                        • Works with Kingsman millivolt appliances
                                        • Easy to read digital LCD display
                                        Click to see Remote Control

                                        Remote Control

                                        On/Off Remote Control for Millivolt/IPI Units (GFRC)

                                        • Simple on/off operation for millivolt appliances
                                        • Allows for the operation of the appliance without manual control
                                        • Included receiver easily mounts within the appliance chassis
                                        • Reliable RF transmitter operation

                                          Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC)

                                          • On/off operation with modulating thermostat control
                                          • Allows for the operation of the appliance without manual control
                                          • Included receiver easily mounts within the appliance chassis
                                          • Reliable RF transmitter operation

                                          Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units
                                          (GTMRCN, GTMRCP, EGTMRCN, EGTMRCP)

                                          • On/off operation with modulating thermostat control
                                          • Allows for the operation of the appliance without manual control
                                          • Included receiver easily mounts within the appliance chassis
                                          • Reliable RF transmitter operation
                                          • Includes high/low modulating motor for natural gas and propane gas fireplaces

                                            Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units (GTFRCN, GTFRCP, EGTFRCN, EGTFRCP)

                                            • On/off operation with modulating thermostat control
                                            • Allows for the operation of the appliance without manual control
                                            • Included receiver easily mounts within the appliance chassis
                                            • Reliable RF transmitter operation
                                            • Includes high/low modulating motor for natural and propane gas fireplaces
                                            • Allows for control of optional fan operation
                                            Click to see venting products


                                            venting

                                            DuraVent Sloped Flue Stove Pipe Adapter - ZDVDFA
                                            The Dura-vent fireplace adapter is just the thing you would like to keep the fireplace residue from infiltrating your house. With this vent, fresher air is produced throughout the house.
                                            Horizontal Chimney Vent Termination Starter Kit

                                            Round and Square Horizontal Chimney Vent Termination Starter Kit will provide you with the secure and efficient ventilation you need to stay your fireplace functioning well. This vent termination starter kit is 36/60 inches long, and it comes with a wall thimble, all the screws, and a mill pac.
                                            Flex Chimney Vent Kit - 4" Inner Diameter
                                            Flex ventilation material adapts to tight spaces and corners and allows you more freedom with the placement of your stove. 5 / 8 / 20 Foot Length. Spring, Screws, Mill Pac Included. Primarily used as an extension for venting systems.
                                            4/7 Horizontal Vent Termination - FDVHT, FDVHSQ

                                            Round/Square Vent Horizontal Termination for 4x7-Inch Venting provides a premium installation component for use with your fireplace.
                                            Universal Safety Cage for Horizontal Termination - FDVHSCU
                                            Universal Safety Cage. Designed for Horizontal Termination. Use with Horizontal Vent Starter Kit.
                                            Horizontal Stucco Shield - FDVHSS
                                            It's designed to protect the stucco siding from heat. Its product adding a direct vent stove to your home, consider the protection necessary for using it safely.
                                            Chimney Vent Snorkel Termination - Z47ST24, Z47ST36
                                            Chimney Vent Snorkel Termination for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. With a variety of styles and high-quality materials. If a vertical rise is necessary on the exterior side of the building.
                                            Convertible Between 15' & 40' Vertical Vent Termination - FDVVT40
                                            It's convertible between 15' and 40' vertical. The convertible function allows for better flexibility and use. Must watch out to follow the proper steps and double-check that the proper parts and accessories are being used.
                                            Vertical Chimney Vent Termination - Z47VT
                                            Direction: Vertical
                                            Type: Vent Termination
                                            Fireplace type: Zero Clearance direct vent gas
                                            Attic Insulation Shield - ZDVAIS
                                            This shield will protect your attic and roof from the heat that escapes through the chimney. The shield offers 12" and 24" of insulation designed to surround your chimney.
                                            Vertical Chimney Vent Offset Support - ZDVVOS
                                            It'll support your chimney through inclement weather, including heavy rain, snow accumulation, and wind, also as natural wear from gravity over time. The support has been tested for durability and function.
                                            Vertical Chimney Vent Firestop Spacer - ZDVFS
                                            Chimney Vent Firestop Spacer is created out of rugged metal that will not deteriorate within the short term, and it'll make sure that your chimney vent is held at a correct length from any flammable surface nearby, such as the wall.
                                            Chimney Vent Roof Support - ZDVRS
                                            Chimney Vent Roof Support will help your chimney function well through various circumstances: heavy wind, storms with heavy rain, hail, and snow accumulation just to call some.
                                            Wall Thimble for Horizontal Venting - ZDVWT
                                            Horizontal Chimney Vent Wall Thimble for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. This Vent Wall Thimble is durably constructed and tested rigorously to protect your wall and inner material from the hot surface of the ventilation piping.
                                            Heat Deflector Siding Shield - ZDVSS
                                            Siding Heat-Shield for Horizontal Round Chimney Termination will protect your siding from the chance of combustion to the heat. Protect combustible siding from combustion and charring. Made with careful metallic composition for heat tolerance.
                                            Large Return Siding Shield - ZDVSSLR
                                            Siding Heat-Shield for Horizontal Round/Square Chimney Termination will protect your siding from the chance of combustion to the heat.
                                            Roof Flashing with Storm Collar - ZDVAAF, ZDVAF2, ZDVAF3

                                            This storm collar measures 7" in inner diameter. This product has the capability of sealing the vent lengths that protrude from a sloped roof. And also, vertical installations are needed with this product and can be purchased separately.
                                            7" Storm Collar - ZDV7SC
                                            7-Inch Vertical Venting Storm Collar for 4x7-Inch Vertical Venting provides a premium installation component to be used together with your fireplace. This storm collar measures 7 inches in diameter.
                                            3-Feet Insulation Sleeve for Low Enclosures - MDV38IS
                                            If you have a multi-sided direct vent fireplace, you'll need an MDV38IS Insulation Sleeve. This insulation sleeve measures 3 feet and is for low enclosures.
                                            Flex Connector - 4" & 7" Diameter - ZDV4FC, ZDV7FC
                                            The chimney vent is just the thing to stay your belongings free of dirt. This chimney vent is provided with a flex connector that measures 4 or 7 inches in diameter.
                                            Flex Clamp - 4" & 7" Diameter - ZDV4FCL, ZDV7FCL
                                            Flex Clamp provides a premium installation component to be used with your fireplace. This clamp is 4 or 7 inches in diameter.
                                            4" Standoff Spring Spacer - ZDV4SS
                                            Spring standoff spacer is simply the part needed for your chimney vent. This spring spacer measures 4 inches in diameter and has the potential of withstanding years of use. This spacer also will keep its polishing color.
                                            Safety Cage for Snorkel Termination - Z57STSC
                                            Safety Cage for Snorkel Termination for 4"/7" Venting Systems is a wonderful choice. Prevents contact with hot snorkel terminations.

                                            Galvanized Chimney Vent Pipe for Vertical Installations - Z47GP36
                                            This particular model is used for vertical installations. The galvanization of this model makes it not only easy to keep clean, but also sturdy enough to withstand years of use.
                                            Dura-Vent Stove Adapter - ZDVDKA
                                            Dura-vent stove adapter is used specifically with direct vent stoves and allows the ventilation to exceed expectations when comparing them to other vents.
                                            Dura-Vent Hard Pipe Adapter - ZDVDIA
                                            Pipe adapter for connecting 4 x 6 5/8" Duravent to 5"/8" Kingsman pipe. Can be used to convert Kingsman appliances
                                            Flex Pipe Adapter Kit for Power Vent Applications - Z47PVA
                                            Designed to adapt hard pipe to flex in power vent applications. Compatible with 4"/7" venting and power vents. Requires a one-foot section of 5"/8" venting to complete transition
                                            Wall Thimble for Power Vent - PVH58WT
                                            Compatible with 5"/8" venting and power vents. Product Type Options: Transition. Components, Adaptors, Termination Components. Designed to facilitate safe passage of vent pipes through combustible walls.
                                            Horizontal Power Vent Starter Kit - PVH58
                                            Complete with termination and wall thimble, it completes the installation of your fireplace so that you'll enjoy the time. Includes power vent termination, wall thimble, 20 ft. harness, and mill pack
                                            Power Vent Control Module for Millivolt Models - PVC58MV
                                            Designed specifically for these linear gas fireplaces, this power vent control module helps the fireplace operate smoothly. When all parts are installed correctly.
                                            Power Vent Control Module for IPI Models - PVC58IPI
                                            Required for proper power vent operation. Ensures safe operation of power vent-equipped appliances. Synchronizes the PVH58 power vent kit with Kingsman IPI fireplaces.
                                            20 Foot Harness Extension - PVH20H
                                            Main wiring harness assembly, Measures 20 feet. Part of the Zero-Clearance direct vent linear gas fireplace with Millivolt control collection. For use with PVH58 Power Vent Starter Kit

                                            DOWNLOADS

                                              View full details
                                              • Researched and ordered my fireplace from US FIreplace Store. Pricing was a fair value however, the customer service was EXCELLENT! I had an issue with the direct vent venting. I called US Fireplace and the correct items were sent out the next day AND Janessa stayed on top of my return authorization and sent me the permissions and documents I needed to return the incorrect item and no cost to me, including return shipping. Overall, I am a very satisfied customer and my fireplace looks and operates flawlessly. I am glad that I selected US FIreplace to source my direct vent fireplace. Thank you for the great service.

                                                Clay

                                                Monteagle, TN

                                              • I had placed an order, through Lowe's Home Improvement, for an Electric Firebox: Revillusion RBF42. Ordered 1st part of January. Was told I would have it in 3 weeks. When checking to see is it came in, was told it was delayed to 3/15. Was then told is was delayed until 4/25. Waited until 4/27 to check on it. Was then told it was now delayed until August. This firebox was going in a new Sun Room addition. I could not get my final inspection until the Firebox was installed. I went on line and googled for this same product. US Fireplace Store web site was given to me. This was on a Saturday. I call and reached a very nice man. Explain what I was look for. He checked and told me they had 30 of them in stock. I almost fell out of my chair. I clarified with him the product I was wanting. I ask how soon could I get it. He told me it would ship today. Again, was amazed. It arrived on the following Monday. What a pleasure and a relief working with US Fireplace Store and their employees. Exceed my expectations.

                                                Thomas W.

                                                Fort Mill, SC

                                              • Great prices, quick delivery and fast hassle free services on the issue I encountered. I had purchased an electric fireplace unit that would not fit into the existing fireplace space. With one email I was able to get the wrong fireplace refunded and picked up at my home at no extra cost and the new one I purchased and delivered free of charge. Great company.

                                                John P.

                                                Denvers, MA

                                              1 of 12
                                              • Live Chat Support

                                                No chatbots. Speak with a human. Average response time is 48 seconds.

                                              • Easy Returns

                                                Need to return the merchandise? We accept returns for 30 days from the date of delivery.

                                              • 7 Days/Week Service

                                                We're here to help on live chat, email & phone. 8:00 AM - 11:59 PM Eastern Time.

                                              • 20,000+ Products

                                                Best selection of hearth & heating products on the internet. Fireplaces, stoves, fire pits, heaters, log sets and more.

                                              • Pay Over Time

                                                0% APR is available for 3 and 12- month financing.* See if you prequalify today.

                                              • Staff Picks

                                                Check out the Staff Picks collection. See the top products selected by our team.
