SKU:10ATGA30
Metal-Fab 10" Diameter Air-Cooled Temp Guard 30 Degree Elbow
Metal-Fab 10" Diameter Air-Cooled Temp Guard 30 Degree Elbow
Couldn't load pickup availability
- Free Shipping on Orders Over $200
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Overview
Metal-Fab provides complete and comprehensive venting solutions to the HVAC, Hearth and Plumbing markets. Founded in 1958 on the premise that offering better products and services would be the key to our success.
Metal-Fab continues to operate today as a privately held entity with the same core values that lead to success while creating steady, stable growth over the past six decades.
Customer needs are the highest priority at Metal-Fab that is why every customer receives a unique experience while choosing from a full line of high-quality venting products for commercial, residential and industrial applications.
Cutting-edge manufacturing systems, innovative designs, patent products, unmatched product quality, and a focus for detail have resulted in a leadership position within the industries Metal-Fab serves. Our constant product improvement process and experience in developing and engineer products for safe, efficient appliance operation sets Metal-Fab apart from the competition.
Description
Double-Wall Factory-Built Chimney Systems for use with gas, liquid and solid-fuel fired residential type and building heating appliances in accordance with the Standards for Chimneys, Fireplaces, Vents and Solid-Fuel Burning Appliances, NFPA 211, BOCA National Mechanical Code, Standard Mechanical Code and the Uniform Mechanical Code.
Air-Cooled Temp/Guard® products are tested and listed to UL 103 for continuous operating temperatures up to 1000°F and 1700°F intermittent. Air-Cooled Temp/Guard features a rigid 430 stainless steel flue combined with a male to female slip connection secured with sheet metal screws. Our one piece flue and casing design reduces installation time and cost with no field assembly required.
Features
- Listed to UL (1000°F continuous, 1700°F intermittent temperatures).
- 2" Clearance to Combustibles.
- Double Wall Factory-Built Chimney for use with masonry fireplaces which burn wood, oil, coal or gas.
- Cost-effective alternative for pre-fabricated Masonry Chimneys.
Note: See installation instructions for offset chart
Specifications
| Application | |
| Construction | |
| Flue Material Specifications: | 430 Stainless Steel |
| Casing Material Specifications: | Galvanized Steel |

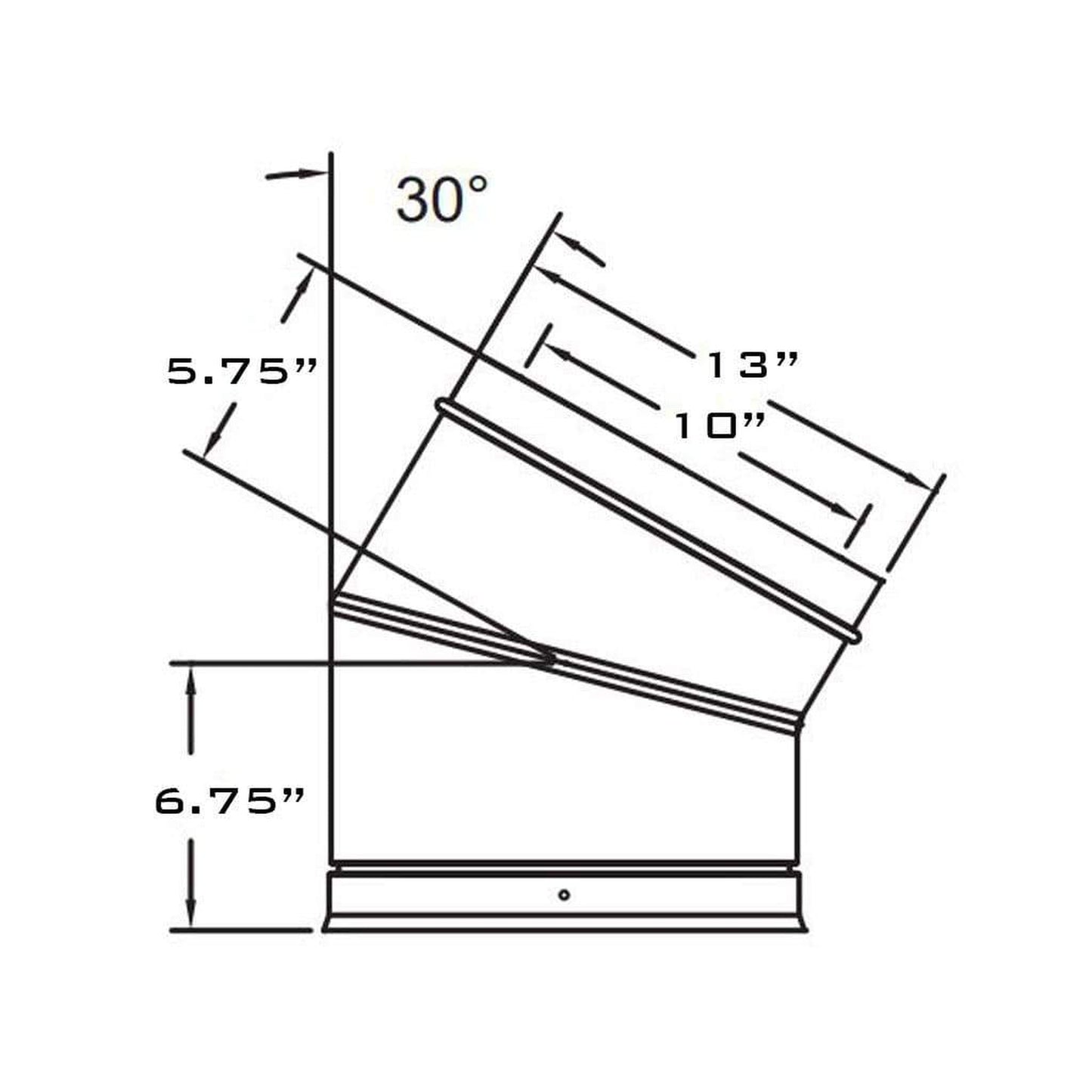

| Dimensions | |
| Inner Diameter: | 10" |
| Outer Diameter: | 13" |
| Degree Angle: |
30° |
Downloads
- Brochure
- 12" & 14" Installation Instructions
- ATG Installation Instructions
- Chimney Shrouds Installations Instructions
- Full Warranty Details
