Metal-Fab 10" Inner Diameter Temp Guard Anchor Plate


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

Metal-Fab provides complete and comprehensive venting solutions to the HVAC, Hearth and Plumbing markets.  Founded in 1958 on the premise that offering better products and services would be the key to our success.

Metal-Fab continues to operate today as a privately held entity with the same core values that lead to success while creating steady, stable growth over the past six decades.

Customer needs are the highest priority at Metal-Fab that is why every customer receives a unique experience while choosing from a full line of high-quality venting products for commercial, residential and industrial applications.

Cutting-edge manufacturing systems, innovative designs, patent products, unmatched product quality, and a focus for detail have resulted in a leadership position within the industries Metal-Fab serves.  Our constant product improvement process and experience in developing and engineer products for safe, efficient appliance operation sets Metal-Fab apart from the competition.

Description

Temp/Guard® All-fuel products, diameters 10"-12" are tested and listed to UL 103HT for continuous operating temperatures up to 1000°F and 2100°F intermittent.  Temp/Guard features a twist-lock connection that eliminates the need for sheet metal screws and aids in proper joint alignment.  Temp/Guard utilizes a ceramic fiber blanket insulation that reduces “hot spots” and prevents insulation settling during transportation and installation, increasing product safety and reliability.

Metal-Fab 10" Inner Diameter Anchor Plate

The Stainless Steel Anchor Plate provides a positive connection to the smoker chamber on top of the masonry fireplace. 6" - 12" also used with chimney tee on masonry pier.

Features

  • Ceramic fiber insulation that provides even distribution of flue gas temperature.
  • Lightweight pipe that is 1/2 the weight of packed pipe.
  • Positive twist lock for easy assembly.
  • The Stainless Steel Flue conduit is wrapped with ceramic insulating material
  • Limited Lifetime Warranty

Specifications

 Application Factory-built double wall chimney for use with listed wood, coal, oil or gas-fired appliances.
Listings/Standards NFPA 211
UL 103HT
Construction
Flue Material Specifications: 430 Stainless Steel
Casing Material Specifications: Aluminum
Clearance 1-1/2" Minimum clearance to combustibles for 6"-8"

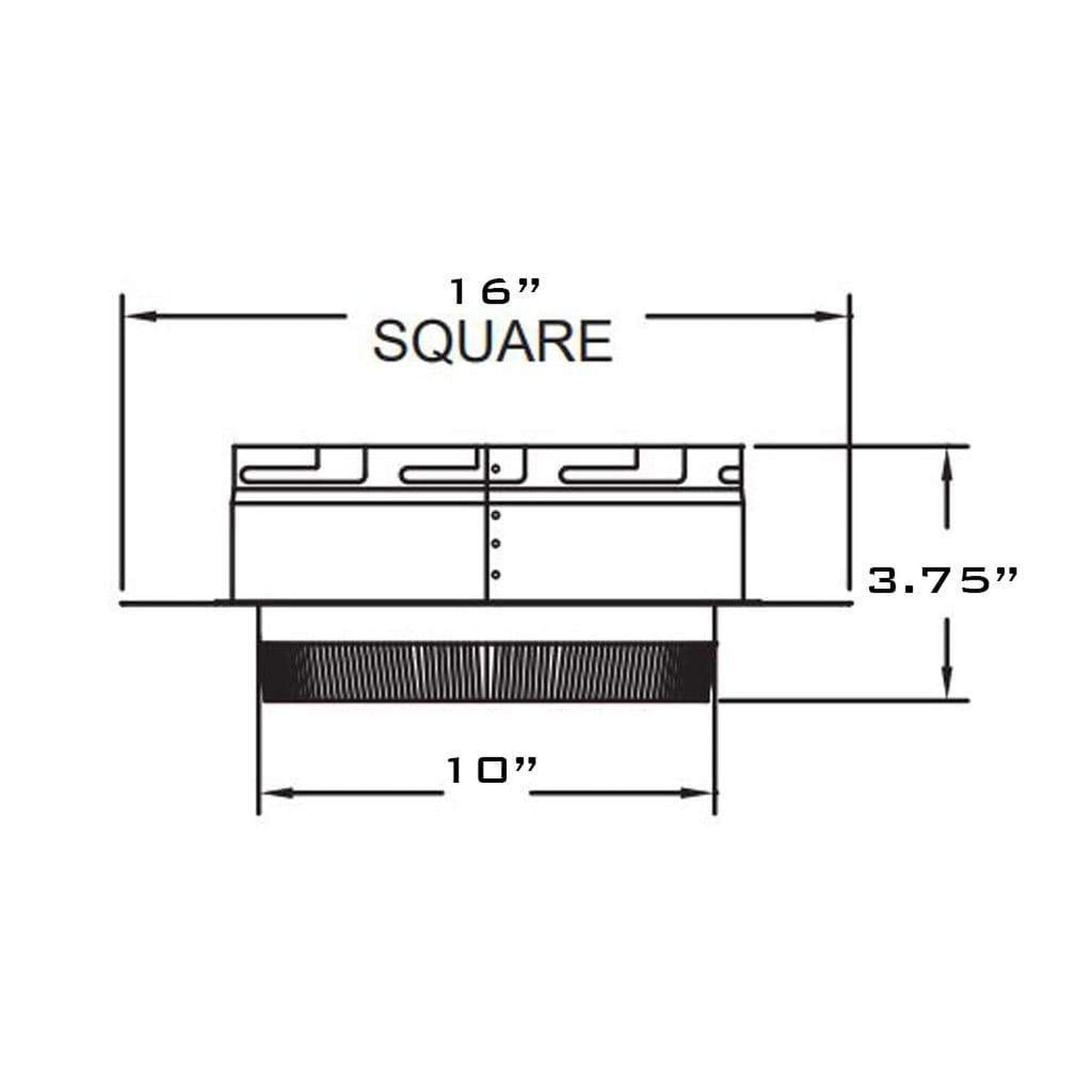

Dimension
Diameter: 10"
Height: 3.75"
Width: 16"
Limited Lifetime Warranty
Click to see Warranty Details

All-Fuel Chimney shall be warranted by the manufacturer against defects in material and workmanship for a period of ten (10) years from the date of the original installation.
