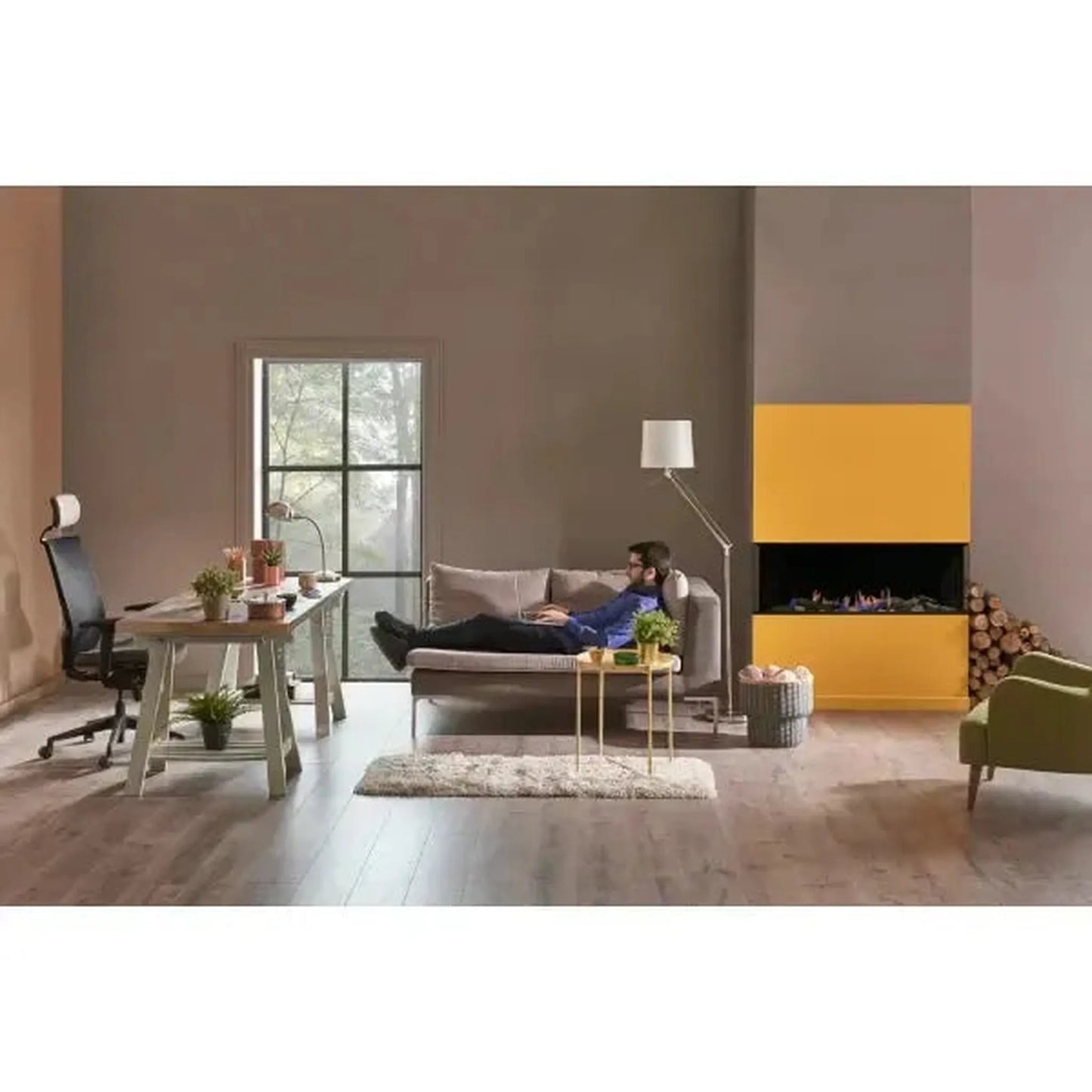

Toscana-38-NG
The Toscana Series of gas fireplaces are a three-sided see-through, screen-free, warm touch work of wonders. They are designed to function with no gaps, louvers, heat dumps or screens. They are a revolutionary new look on the contemporary gas fireplace.
No-Gap
With a lot of fireplaces, they need to create an escape for the heat to vent out. To do this they leave a gap at the top of the fireplace wall to create a crown to hide the opening. A gap is not necessary.
No Intake or Exhaust Louvres
Your wall will not have any intake or exhaust louvers to break up the look.
No Heat Dump
There are no vents required behind the wall of the fireplace to dump the built-up heat.
Combustibles Okay
Everything is contained within the firebox. Able to finish with combustibles around the fireplace. No special concrete board or metal studs
| Model | Toscana 38 NG | Toscana 38 LP |
|
Fuel |
Natural Gas | Propane |
| BTU’s | Hi 24,500 Lo 15,000 |
Hi 24,000 Lo 14,000 |
| Vent | Top 5” & 8” | Top 5” & 8” |
| Actual Height, Width, Depth | 32.71″ x 42.27″ x 18.49″ | 32.71″ x 42.27″ x 18.49″ |
| Framing Height, Width, Depth | 36.5″ x 43.25″ x 19.5″ | 36.5″ x 43.25″ x 19.5″ |
| Glass Viewing Area | 15.28” H x 41” W | 15.28” H x 41” W |
| Side View Area | 15.28” H x 13.40” W | 15.28” H x 13.40” W |
| Model | Toscana 48 NG | Toscana 48 LP |
|
Fuel |
Natural Gas | Propane |
| BTU’s | Hi 36,000 Lo 21,000 |
Hi 28,500 Lo 21,500 |
| Vent | Top 5” & 8” | Top 5” & 8” |
| Actual Height, Width, Depth | 32.64″ x 50.27″ x 18.49″ | 32.64″ x 50.27″ x 18.49″ |
| Framing Height, Width, Depth | 36.5″ x 51.25″ x 19.5″ | 36.5″ x 51.25″ x 19.5″ |
| Glass Viewing Area | 15.28” H x 49.21” W | 15.28” H x 49.21” W |
| Side View Area | 15.25” H x 13.40” W | 15.25” H x 13.40” W |
| Model | Toscana 58 NG | Toscana 58 LP |
|
Fuel |
Natural Gas | Propane |
| BTU’s | Hi 40,000 Lo 23,000 |
Hi 36,000 Lo 22,000 |
| Vent | Top 5” & 8” | Top 5” & 8” |
| Actual Height, Width, Depth | 32.64″ x 60.27″ x 18.49″ | 32.64″ x 60.27″ x 18.49″ |
| Framing Height, Width, Depth | 36.5″ x 61.25″ x 19.5″ | 36.5″ x 61.25″ x 19.5″ |
| Glass Viewing Area | 15.28” H x 59.21” W | 15.28” H x 59.21” W |
| Side View Area | 15.25” H x 13.40” W | 15.25” H x 13.40” W |
Toscana 38"
Toscana 48"
Toscana 58"
venting products
| 5" Inner Diameter Termination Kit - GEN-TERMKIT | |
 |
Designed for use with Vienna, Toscana, or Lyon fireplaces. Includes fire stop, wall thimble, and horizontal termination kit. Requires the use of a listed 5 x 8 direct vent flex (not included) |
| 5 Piece DuraVent Through The Roof Kit - 58TTRK | |
|
Designed for use with Vienna, Toscana, or Lyon fireplaces. Includes 36" rigid pipe length, storm collar, high wind cap, and DuraVent flashing/adapter |
| 5 Piece DuraVent Steep Through The Roof Kit - 58TTRK-STEEP | |
|
Designed for use with Vienna, Toscana, or Lyon fireplaces. Includes 36" rigid pipe length, storm collar, high wind cap, and DuraVent flashing/adapter for steep roofs |
| 45-Degree DirectVent Pro Elbow - 58DVA-E45 | |
 |
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°. Finish: Galvanized & Black. |
|
90-Degree DirectVent Pro Elbow - 58DVA-E90 |
|
 |
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°. Finish: Galvanized & Black. |
| 5"x8" DirectVent Pro Pipe Length | |
|
|
Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional unless specified by the appliance manufacturer. Finish: Galvanized & Black. |
| 5"x8" DirectVent Pro Adjustable Pipe | |
|
|
Use of sealant is optional unless specified by the appliance manufacturer. Available in black or galvalume exterior. |
| DirectVent Pro Wall Strap - 58DVA-WS | |
 |
Use to support vent pipe. Provides 1” clearance. Recommend installing Wall Straps at 4-foot intervals on vertical runs. |
| DirectVent Pro Ceiling Firestop - 58DVA-FS | |
 |
Required for multi-story vertical installations on the second floor and any subsequent floors. |
| DirectVent Pro Attic Insulation Shield - 58DVA-IS | |
 |
Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Provides 1” clearance to combustibles. |
