Superior Fireplaces

DRL6072TEN

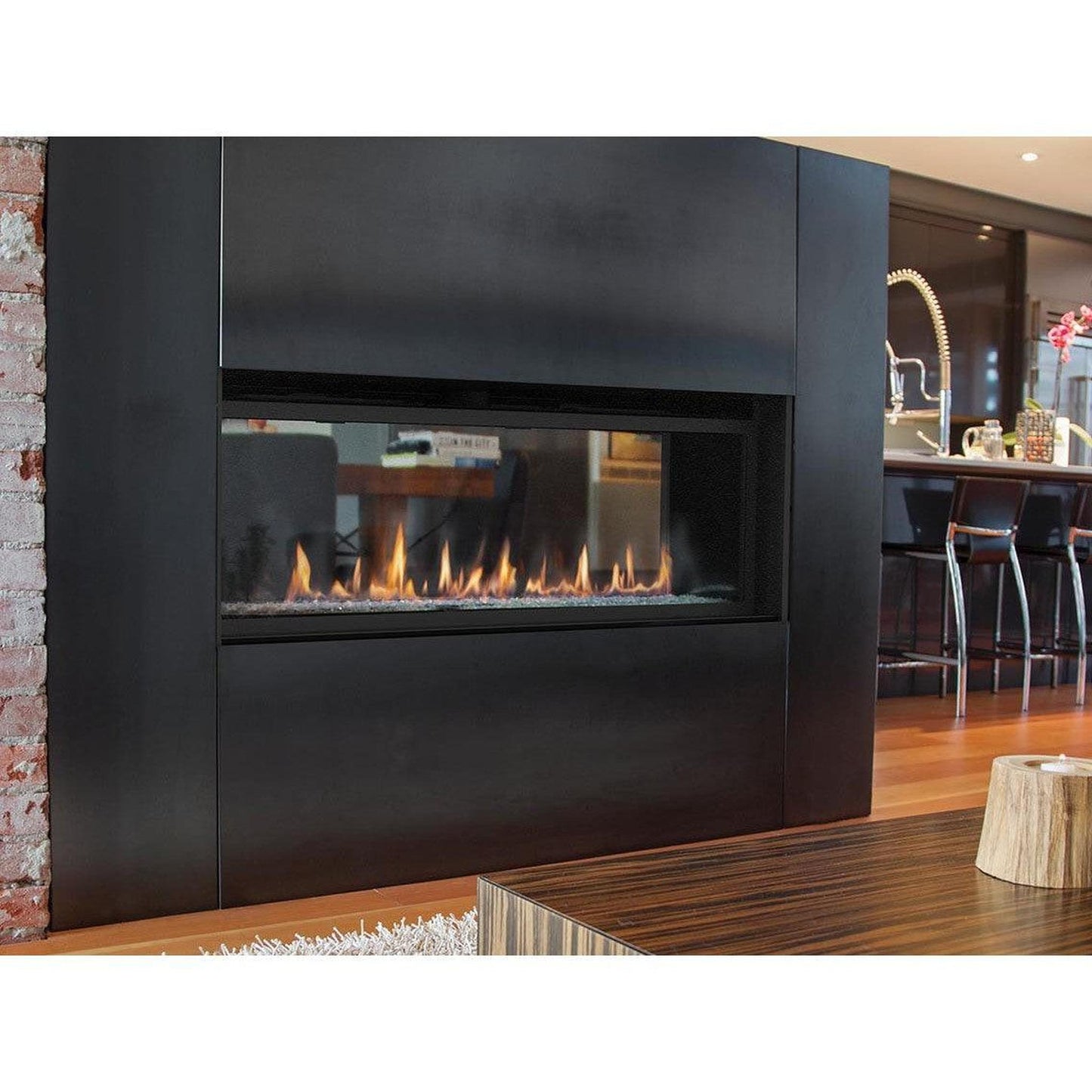

Superior 72" DRL6072 Direct Vent Contemporary Linear Gas Fireplace

Ignition Type: Electronic
Gas Type: Natural Gas


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

The DRL6000 Series linear direct vent gas fireplace is at home in both contemporary and transitional spaces. The expansive ceramic glass opening provides an exceptional view of the fire while the floor lighting allows you to enhance the mood. The DRL6000 is a fully featured fireplace that comes complete with a heat circulating blower and multi-function remote for the ultimate in comfort and control.

Standard Features

  • Available in 60”, 72" and 84" linear configured models
  • See through conversion kit available to allow viewing from two living spaces
  • HeatFlo kit option allows heat to be directed above heat sensitive wall hangings
  • Electronic ignition with battery backup provides continued operation in the event of a power outage
  • Six flame settings with up to a 30% turn down for precise heat control
  • Outstanding heating efficiency for increased comfort and lower operating costs
  • Clean-face design with integrated tile stops for easy finishing
  • Ceramic glass for optimum heat transfer and a protective screen*
  • Factory installed blower with six speed settings to fine tune your heating needs**
  • Black porcelain liner interior for a reflective view of the fire
  • Platinum crushed glass media included with several optional colors available to customize the look
  • Mood enhancing floor lighting enhances the fireplace interior with or without a fire
  • Multi-function remote included (IPI/CPI, thermostat, flame height, blower, lighting)
  • 20-year limited warranty

*All applicable models comply with ANSI Z21.88 barrier requirements.
**Blower use is not compatible with a see-through application.

Specifications

Model DRL6072
Venting Type Direct Vent
Framing Width 86-1/4"
Framing Height 48 1/2"
Framing Depth 19-1/2", 18-1/2" (See-Through)
BTU 45,000-31,500
Style Contemporary
View Style Optional See-Through
Controls Remote Control
Rating
Warranty 20 Year Limited Warranty



Options

Configuration Kits

Linear Direct Vent See-Thru Conversion Kit

The Linear Direct Vent See-Thru Conversion Kit is designed to upgrade the fireplace to a see-thru application.


Kit Components:
  • 2 ea. Nailing Flange side
  • 2 ea. Tile Stop L/R
  • 2 ea. Tile Stop Top/Bottom
  • 2 ea. Sight Obstructor
  • 1 ea. Standoff Heatshield
  • 1 ea. Door Access Cover
  • 1 ea. Fireboard Assembly
  • 1 ea. Glass Door
  • 1 ea. Rear Standoff Assembly
  • 1 ea. Barrier 22 ea. #10 Hex Head Screw
  • 15 ea. #8 Phillips Head Screw 36 ea. Bugle drywall Screws

**Blower use is not compatible with a see-through application.

 HeatFlo Convection Air Circulation Kit

Protect heat sensitive televisions, artwork and other decorative wall materials. No blower required, the HeatFlo kit works through natural convection to redirect heat from the fireplace upward through hidden ductwork and out through a sleek horizontal vent. Walls stay cooler and heat flows more evenly through the room for a comfortable fireplace experience.

  • TV & Artwork can be placed above the fireplace
  • Helps protect heat sensitive wall facing materials
  • Improves convective heat circulation in the room
  • No electricity or blower required for operation

Liner Kits

 Black Reflective Glass Porcelain

  • Color: Black
  • For use with DRL6000 Linear Gas Fireplaces
  • Adds a sleek, modern look to the unit's interior

Trim Kit

Fireplace Black Linear Trim Kit

  • Color: Black
  • Optional accessory
  • Fireplace surround trim kit
  • Designed for the DRL6000 fireplace

Floor Media Kits

Platinum Glass

 Copper Glass

 Reflective Black Glass

 Reflective Blue Glass

Goldfinger Glass

High Definition Driftwood Log Set

River Rock Assorted Set



Optional Accessories

Firebox Interior / Powder-Coat Exterior Touch-Up Paint

  • Color: Black/White
  • For use with firebox interior / powder-coated fireplaces
  • Consists of flame-resistant paint
  • Paints over a stained  firebox interior/powder-coated exterior

Natural Gas to Propane / Propane to Natural Gas Conversion Kit

  • Gas Conversion Kit
  • Converts from natural gas to propane / propane to natural gas
  • Designed for DRL6000 fireplace with electronic ignition
