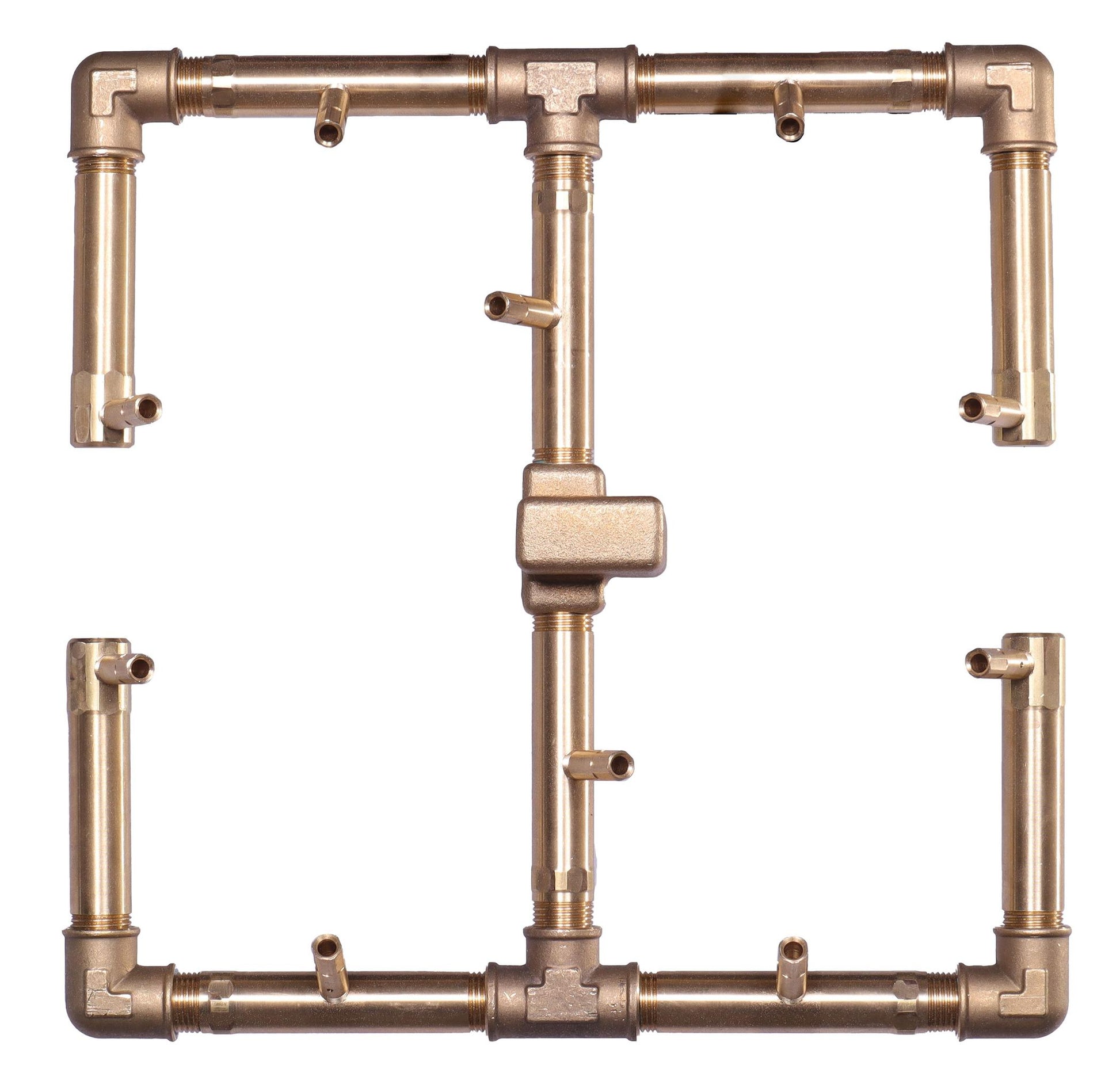

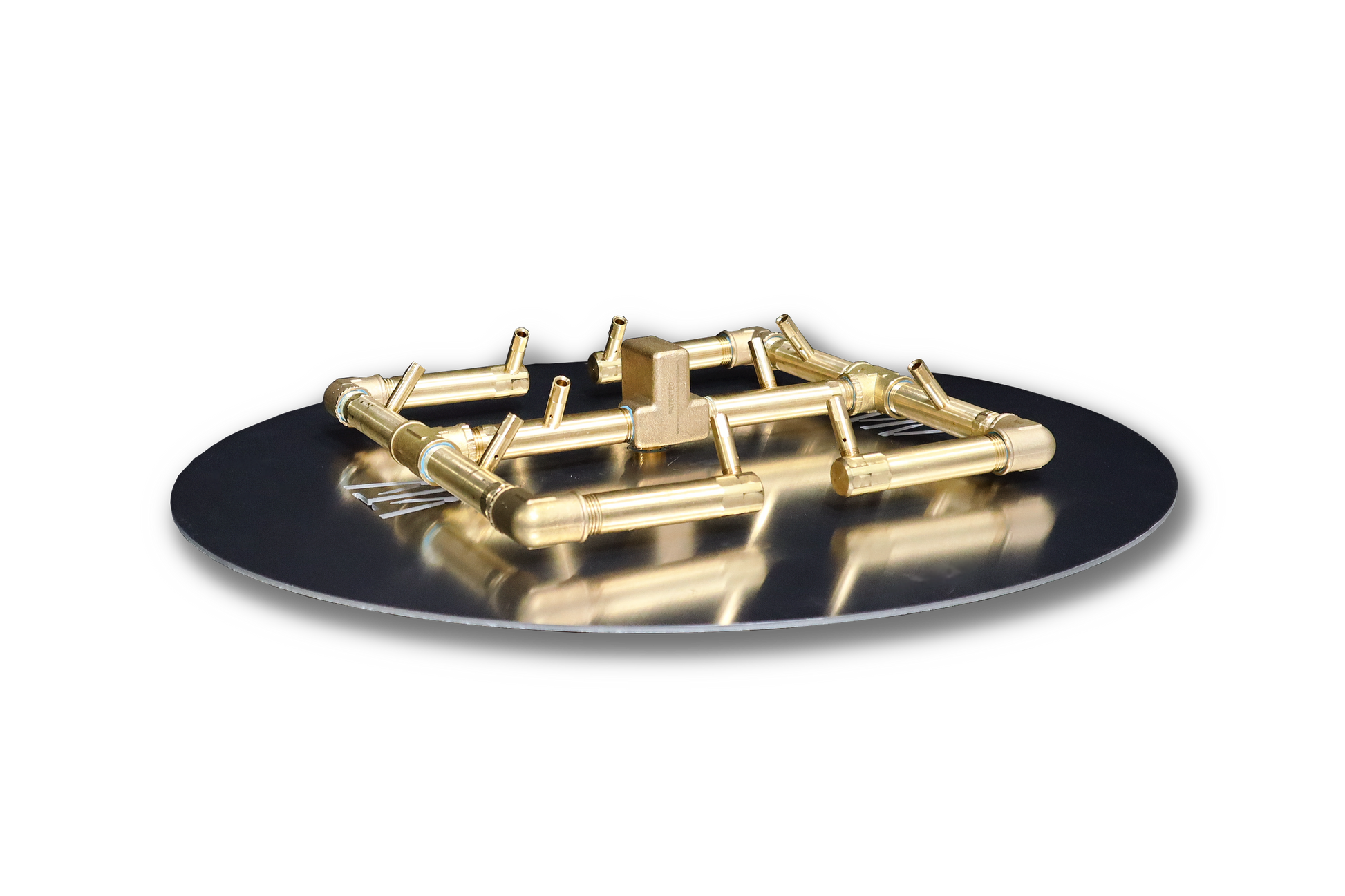

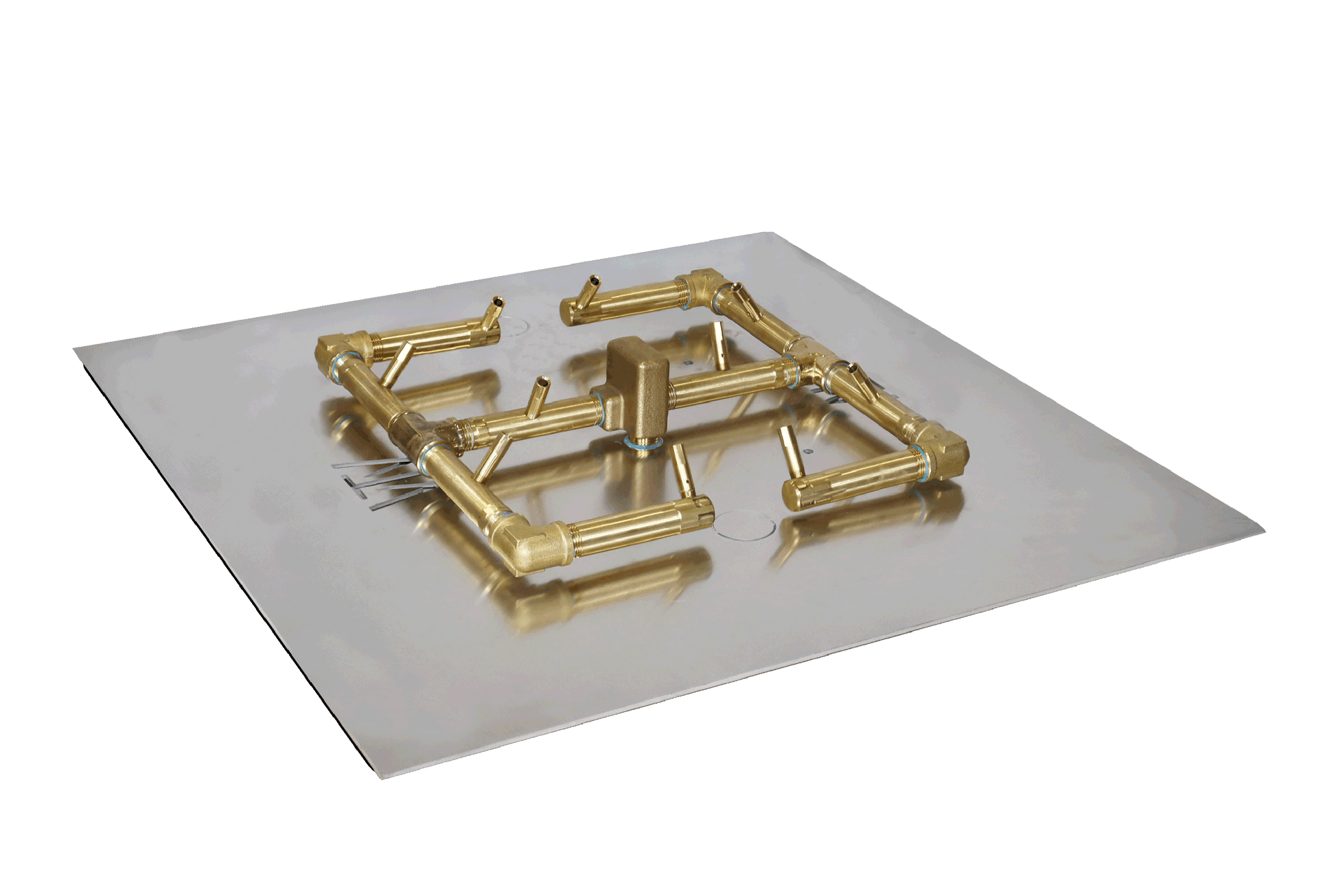

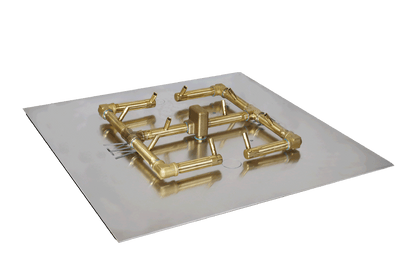

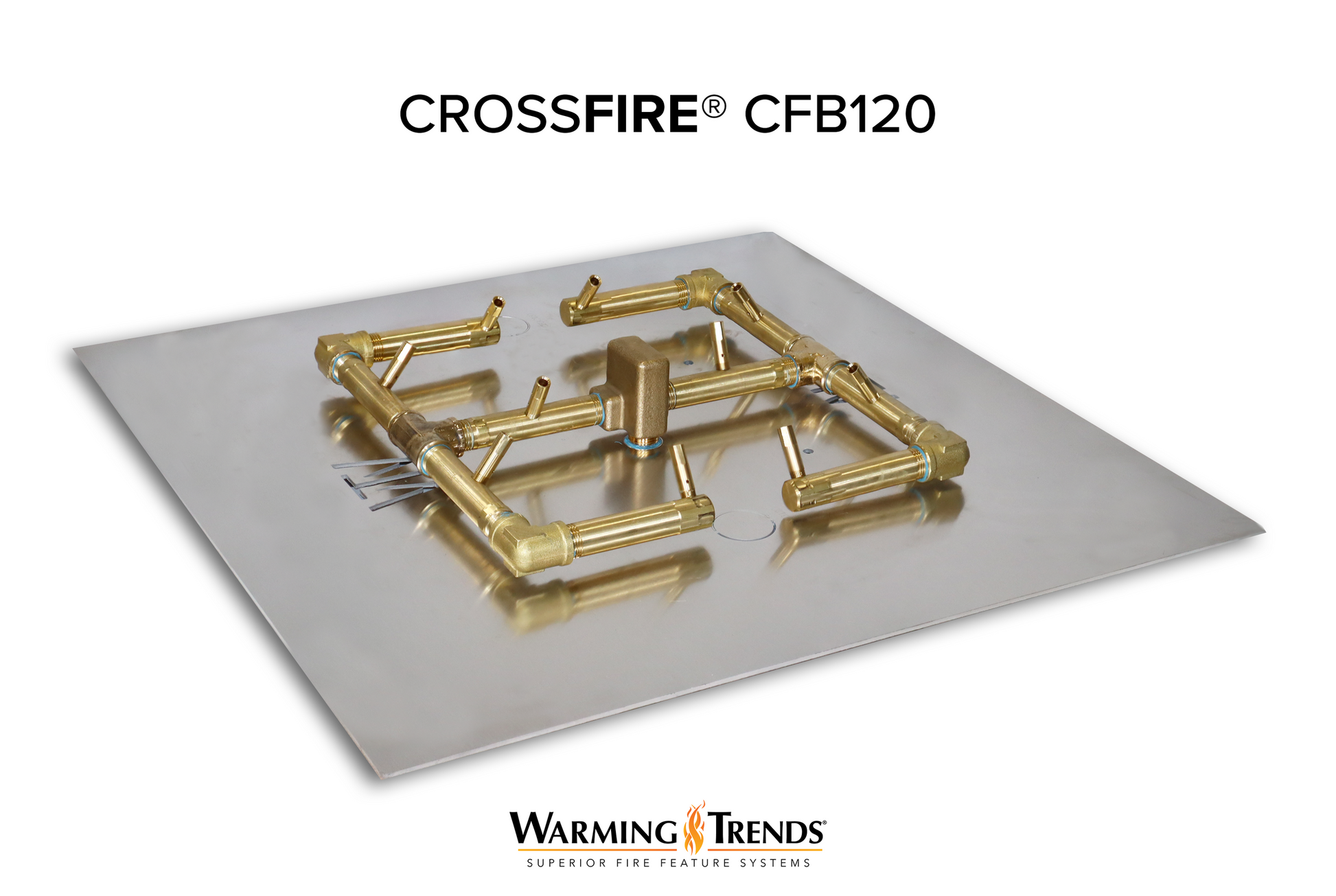

Warming Trends Original CFB120 120K BTU Natural Gas Crossfire Brass Burner With Waterstop, 24" Square Plate & Single Flex Line Kit
Warming Trends Original CFB120 120K BTU Natural Gas Crossfire Brass Burner With Waterstop, 24" Square Plate & Single Flex Line Kit
Collar
-- Please Select --
No, Thank You
Pan
-- Please Select --
No, Thank You
Fire Pit Cover
-- Please Select --
No, Thank You
Ignition System
-- Please Select --
Push Button Ignition System
3 Volt Ignition System
Mercury Ignition System
Platinum Ignition System
No, Thank You
Mercury Ignition Flex Line Kit
-- Please Select --
No, Thank You
Remote Control
-- Please Select --
No, Thank You
Dial Timer
-- Please Select --
No, Thank You
Emergency Stop
-- Please Select --
No, Thank You
Media - Lava Rock
-- Please Select --
No, Thank You
Media - Fire Glass
-- Please Select --
No, Thank You
Media - Log Set
-- Please Select --
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Warming Trends’ patented CROSSFIRE® Brass Burners are the industry-leading burner systems. Our burners deliver a taller, brighter, more natural flame with a fraction of the fuel consumed by competitors.
The Original burner system is designed to provide a beautiful, full flame over a broad footprint. The CFB120 is established with a specific air-to-gas mixture ratio which produces a taller, brighter flame while using a fraction of the fuel of conventional fire rings.
The WATERSTOP® is a patent-pending fitting that protects electronics and valve systems from water and debris while delivering outstanding flame performance. This new fitting also keeps the gas supply line dry and continues to allow the CROSSFIRE® brass burner to self-purge any water in the manifold.
What's Included
- 120K BTU Original Brass Burner With Waterstop - Natural Gas
- 24" Square Plate
- Flue Line Kit - FK1
- (1) 36" L x 3/4" Diameter Flex Line
- (2) 3/4" Flared Fittings
- 3/4" Key Valve
- 3" and 12" Key
- 1/2" x 2" Nipple
- (1) 36" L x 3/4" Diameter Flex Line
Not Included (Sold Separately)
- Optional 4x Flexible Metal Support Collars
Features
- For 24" opening or larger
- For outdoor/ exterior use only
- Modification of product will void any certification and warranty
- Follow all installation instructions and local codes
- Recommended to be installed by a certified plumbing professional
- Made from all brass, the CFB120 is non-corrosive and comes with a Full Lifetime Warranty
Specifications
| Item Number | CFB120NGALPL24SFK1 |
| Collection | ORIGINAL CFB120 |
| BTU | 120,000 |
| Fuel Type | Natural Gas |
| WATERSTOP® | Yes |
| Dimensions | 13" x 13" |
| Plate / Pan Size | 24" |
Technical Drawings & Dimensions
Warranty
 |
Limited Lifetime Warranty We stand behind our products and construction. Corrosion-resistant, Sustainable, and rust-proof, brass allows to offer the strongest lifetime warranty in the industry. |
Documents & Files
- Look Book
- Warranty Guide
- Owner's Guide and Manual
- Crossfire Burner Sell Sheet
- ICC-ES Report
- Certified Burners
- Compatibility Chart
- WATERSTOP Sell Sheet
- Commonwealth of Massachusetts
- Platinum Ignition User Guide
- Platinum Ignition Sell Sheet
- Platinum Electronics and Clearance Diagram
- Platinum CSA Certification Report
- Mercury Ignition User Guide
- Mercury Ignition Sell Sheet
- Mercury Electronics and Clearance Diagram
Videos
Frequently Asked Questions
Platinum Ignition:
Is there a standard and high capacity version of the platinum?
The Platinum Ignition is certifi ed up to 680,000 BTUs. There is no need for a Standard and a High Capacity version. |
What is the valve and inlet sizing?
The Platinum has a 3/4" valve and gas inlet. It can be easily adapted to 1/2" manifolds. |
Is there any difference between the NG and LP version of the ignition?
Yes, the Pilot Assembly on the Platinum is gas specific. |
Is this a dual pilot system?
No, the Platinum Ignition is a single pilot system. |
Will this be offered with pilot tube extensions?
Yes. The Platinum comes with a two-foot pilot tube. The Pilot can be extended up to an additional 10 feet. We offer pilot tubing in one-foot increments. |
What is the purpose of the led indicator light?
The LED Indictator light is for troubleshooting and diagnostic purposes and will pause between blinks to allow you to diagnose the issue being encountered. |
What is the voltage range of the platinum?
The Platinum operates at 24 volts. The transformer is wired for 120 volts. The transformer can be used with 240 or 480 volt outlets. This will require appropriate pig tail modifi cations to be made by the electrician on site. |
Does the platinum use a standing pilot?
Yes, the Platinum uses a standing pilot. |
Mercury Ignition:
What are the dimensions of the mercury faceplate?
8" W x 4" H |
What protection from water does the mercury offer?
The pilot hood is expertly designed to provide enhanced protection by directing water away from the pilot components. When the WATERSTOP® fitting is incorporated on the burner, there is unparalleled protection for the system from water and debris. |
Can the mercury be installed in the field?
The Mercury can easily be installed on-site, to a new or existing burner system. Our comprehensive manual provides detailed installation instructions. |
Does the mercury require a key valve?
The Mercury uses a manual controlled gas valve that uses a control knob for turning on, lighting, controlling the flame height, and turning the system off. The control knob is used rather than a key and key valve. A key valve can be added for a redundant shut-off but is not required. |
What is the mercury's warranty?
The ignition is backed by a 3 year warranty on residential installations and a 1 year warranty on commercial installations. |
