Imagine flames that flicker, dance, and cast a warm glow yet stay completely cool to the touch. No gas lines, no smoke, no burning embers. Just a breathtaking fire effect you can install virtually anywhere. That's what a water vapor fireplace delivers, and it's why they've become one of the most sought-after styles of electric fireplace. If you're thinking about adding one to your home, office, or renovation project, you've come to the right place. Let's dive in.

What Is a Water Vapor Fireplace?

A water vapor fireplace (also called a mist, steam, or 3D water vapor fireplace) is an electric fireplace that simulates a realistic flame effect using ultrasonic technology, water mist, and LED lighting. There is no combustion involved. The flames you see are entirely an optical illusion created by light interacting with a fine, cool mist.

Many people consider the result the most realistic-looking artificial flame available today. Unlike standard electric fireplaces that display a flat, backlit image, water vapor fireplaces produce a true three dimensional flame effect with depth, movement, and even the appearance of smoke curling upward. At a glance, it can be hard to tell from real fire.

They are increasingly popular in:

• Residential living rooms, bedrooms, and home offices where aesthetics matter more than heating

• Hotels and hospitality spaces for ambiance without combustion or venting

• Commercial offices and retail environments for visual impact without gas lines or venting

• Homes with children or pets because the "flames" are always cool to the touch

How Does a Water Vapor Fireplace Work?

The science behind water vapor fireplaces is elegant in its simplicity:

• Water reservoir: The unit contains a built-in water tank (or connects to a plumbed water line on premium models). You fill it with ordinary tap water, or softened or filtered water if your tap water is hard.

• Ultrasonic transducer: A high-frequency vibrating disc breaks the water into an ultra-fine mist, particles so small they float in the air rather than falling as droplets.

• LED lighting: Strategically positioned LEDs illuminate the rising mist from below, creating the appearance of glowing, flickering flames. Many units use a traditional orange flame, while some offer color-changing options.

• The illusion: As the mist rises through the firebox and the LED colors shift and pulse, your eye reads it as fire and smoke. The effect is three-dimensional because the mist actually occupies physical space, something no screen can replicate.

The process uses no combustion whatsoever. The mist is cool, the LEDs generate minimal heat, and the only byproduct is a slight increase in room humidity, similar to a small tabletop humidifier running in the background.

Types of Water Vapor Fireplaces

Water vapor technology comes in several form factors, each suited to a different installation scenario.

Built-In

Built-in fireboxes arrive finished, with a housing and front glass, and are framed into a wall or custom cabinetry for a seamless, architectural look. They are the most common format for feature walls in living rooms and primary bedrooms. Widths run from about 20" to more than 80". Most require framing, a 120V electrical connection (often hardwired), and access to fill the water reservoir or a plumbed water line.

Cassette

Cassettes are bare mist-and-light modules with no finished housing, made to sit inside a surround you build, such as a media wall, a furniture piece, or a kitchen island. Common widths are about 20" and 40". Multiple cassettes can be connected side by side, and many can be built into see-through, three-sided, and even 360° installations. Most cassettes are flame-effect only, with no built-in heater.

Insert

Inserts slide into an existing wood-burning fireplace opening, turning an unused hearth into a water vapor fireplace without construction. They usually include a log set and refill from a front drawer rather than a water line. Many include a built-in heater, and some offer multiple flame colors. Measure your firebox opening (width, height, and depth) before you buy.

Linear (also called Landscape)

Linear models are long, horizontal fireboxes with a wide, low viewing area, a shape that suits modern interiors and open floor plans. Single units come in widths up to about 86", and longer custom runs can be built by joining cassettes end to end. "Landscape" describes the same wide format, so you will see both names used for these models.

Freestanding

Freestanding units are self-contained stoves that need no wall work. They sit on the floor or a hearth pad and can be moved as needed. Most plug into a standard 120V outlet, and many include a built-in heater.

See-Through

Built-in units viewable from two rooms simultaneously. Popular in open-concept homes where a fireplace divides a living room from a dining area, or between a primary bedroom and its sitting area. Requires careful rough-in planning.

Pros and Cons

No fireplace type is perfect for every situation. Here's an honest assessment of what water vapor fireplaces do brilliantly and where they fall short.

Key Buying Considerations

Before you purchase, evaluate your situation across these six dimensions:

1. Aesthetics & Flame Realism

Water vapor fireplaces are the top choice when realism is the primary goal. If you want guests to do a double-take, this technology delivers. Look for adjustable flame intensity and brightness, and for media options (logs, driftwood, or stones) that suit your room. If you want color-changing flames, check the specs, since many models use an orange flame only.

2. Heating Expectations

Be honest with yourself here: water vapor fireplaces are primarily decorative. The mist itself produces no warmth. If you want some heating capability, look for models that include an integrated fan-forced heater. These heaters typically produce about 5,000 BTU, rated for up to about 400 sq ft of supplemental heat, but they are not a replacement for your central heating system. If heating is your top priority, consider pairing a water vapor fireplace with a separate supplemental heater, or explore ventless gas fireplace inserts instead, where local codes allow them.

3. Installation Requirements & Location

Water vapor fireplaces are easier to install than gas alternatives: there is no venting, no gas line, and no chimney. Smaller units can plug into a standard 120V outlet, while built-in models with heaters are usually hardwired. That said, built-in models still require:

• Framing or a recessed cavity to the correct dimensions

• Access for water filling (or a plumbed cold-water line on premium models)

• A 120V, 15A circuit (a dedicated circuit is often preferred for models with heaters)

Cassette units offer the most installation flexibility and are ideal when you want the option to change configurations later. Always verify rough-in dimensions against the specific model's installation guide before beginning any construction work.

4. Water Supply & Tank Capacity

Most water vapor fireplaces run about 8 to 12 hours per fill. For everyday use (a few hours of evening ambiance), you might refill once or twice a week. If that sounds inconvenient, look for models that support a direct plumbed connection. With a plumbing kit (often sold separately), the unit draws from your home's cold water supply, so you don't have to refill it.

5. Maintenance Commitment

Water vapor fireplaces require more upkeep than standard electric fireplaces. Plan for:

• Every 2 weeks (at minimum monthly): Clean the top cover, sump, and transducer with soap and water, and rinse the filter

• Monthly: Wipe down interior surfaces, inspect water supply components

• As needed: Descale the transducer if you notice reduced mist output (more frequent in hard-water areas; softened or filtered water reduces this)

If a hands-off appliance is your goal, this maintenance schedule is worth factoring into your decision.

6. Warranty & Brand Support

Given the specialized technology, warranty matters more here than with simpler electric fireplaces. Look for at least a two-year warranty and a brand with established U.S. support. Some manufacturers also include spare transducers with the unit. Before purchasing any brand, verify that replacement parts, especially transducers, are readily available in the U.S.

Sizing Guide

Matching the fireplace width to your wall and room size is critical. A unit that's too small disappears visually. One that's too large can overwhelm a space.

Rule of thumb for wall placement: the fireplace face should span 50% to 75% of the wall width it occupies. A 60" fireplace looks balanced on an 8 to 10 foot wall. The same unit on a 5 foot wall would feel overwhelming.

Rooms with ceilings above 10 feet benefit from taller fireplace surrounds to maintain visual proportion, even if the firebox itself is standard height.

Installation Overview

Note: Always consult a licensed electrician before beginning any electrical work. For built-in models, a qualified carpenter or contractor should handle framing and finish work.

Step 1: Plan Your Opening

Using the manufacturer's rough-in dimensions, frame the wall cavity or prepare the furniture opening. Leave adequate clearance on all sides as specified in the installation guide.

Step 2: Run Your Electrical

Built-in water vapor fireplaces typically need a 120V, 15A circuit. Many built-in models with heaters are hardwired, and a dedicated circuit is often preferred. Confirm the requirements for your specific model before running wire.

Step 3: Plumbing (Optional)

If your model supports direct plumbing (worth considering for built-in installations), have a plumber run a cold-water supply line to the location. Include a shutoff valve for maintenance access.

Step 4: Set the Unit

Slide or place the unit into the opening, connect the electrical supply, and (if applicable) connect the water line per the manufacturer's instructions.

Step 5: Trim & Finish

Install the surrounding trim, surround, or media wall finish materials. Maintain the clearances specified in the installation manual, especially around the heater outlet on models with built-in heat.

Step 6: Fill & Test

Fill the water reservoir (or verify the plumbed line is flowing), power on the unit, and run through all flame modes and settings before finishing the installation.

Maintenance and Care

Consistent maintenance keeps your water vapor fireplace performing at its best and prevents the most common issue: reduced mist output.

Every Two Weeks

• Clean the transducer assembly: The mist-generating disc is the heart of the system. Clean it, along with the top cover and sump, with mild soap and water, and never use abrasive materials.

• Rinse the filter: Many units have a water filter that should be rinsed regularly to remove collected particles.

• Wipe interior surfaces: Use a soft cloth to remove any mineral residue from the firebox interior.

Monthly

• Inspect water supply components (tank seals, inlet valve, overflow drain) for signs of leaks or buildup.

• Test all flame modes and sound features to catch any performance changes early.

Pro Tips

• If your tap water is hard, use softened or filtered water to reduce mineral scale on the transducer. If you use distilled water, check your manual, since some manufacturers call for adding a small amount of salt to the reservoir.

• In hard-water areas, consider a small inline water filter if your model supports direct plumbing.

• Keep the reservoir filled. Many units shut the flame effect off automatically when the tank is empty, but it's good practice to check the tank before each use if you're not plumbed in.

• Seasonal storage: If the unit will sit unused, empty and dry it rather than leaving water standing in it.

Cost Breakdown

Understanding the full cost of ownership helps avoid surprises.

Bottom line on operating cost: At the U.S. average electricity rate of about 19¢ per kWh, a 230W, 20" cassette running 4 hours per evening costs roughly $5 per month at its full rated draw, so even a large three-cassette unit stays around $16 per month for the flame effect. If you use a 1,460W fan-forced heater, add about $0.28 per hour of heat.

Our Top Picks at US Fireplace Store

All models below are available at US Fireplace Store. Our team has selected these based on build quality, flame realism, reliability, and value.

#1 Dimplex Opti-Myst Pro 1500 60" Built-In Electric Firebox

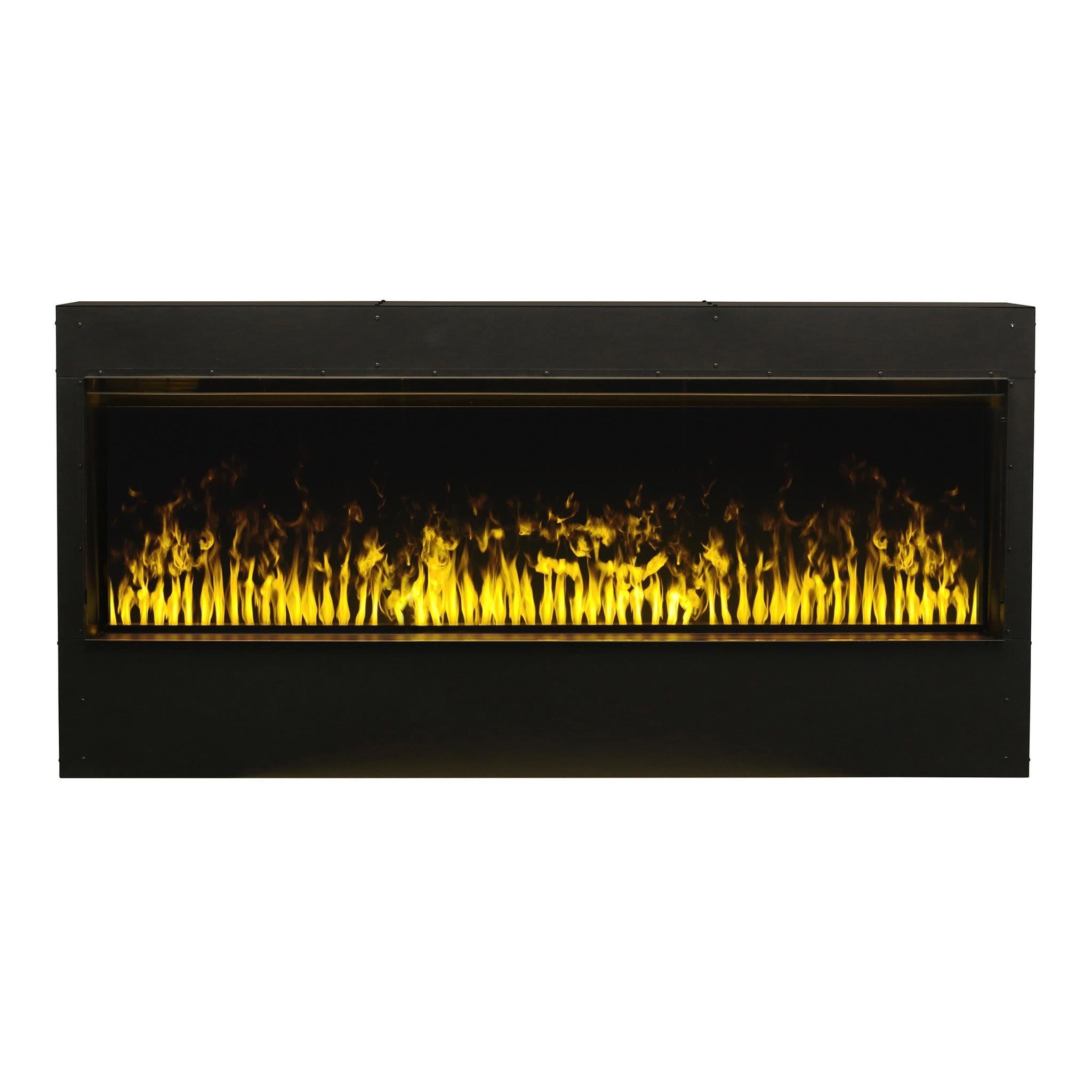

Pictured: Dimplex Opti-Myst Pro 1500 60" Built-In Electric Firebox

Best for: Large rooms and statement feature walls

If you want the largest fireplace in the Dimplex Opti-Myst Pro line, this is it. The Pro 1500's 60-inch firebox commands attention in any room, and the Opti-Myst flame effect at this scale is striking. It ships with a removable backer panel and can be converted to a see-through installation with a rear glass pane (sold separately), a useful feature that makes it ideal for open-plan homes where two rooms share a dividing wall.

The integrated 1,460W fan-forced heater means this isn't a purely decorative unit: Dimplex rates it for up to 400 sq ft of supplemental heat. Crackling sound effects complete the experience, and the box comes with three Opti-Myst Pro 500 cassettes.

Width: 65" | Height: 31¾" | Depth: 16¼" | Voltage: 120V | Wattage: 1,460W | BTU Output: 4,981 BTU | Warranty: 2 years | Finish: Black

Performance

Flame Realism: Best-in-class at this scale.

Heating Performance: Supplement only, not primary heat.

Ease of Installation: Requires professional framing and electrical.

Safety Features: Cool touch, no combustion, no hot glass.

Cost & Value: Premium price justified by size and build quality.

Warranty: 2-year Dimplex warranty.

#2 Dimplex Opti-Myst Pro 1000 46" Built-In Electric Firebox

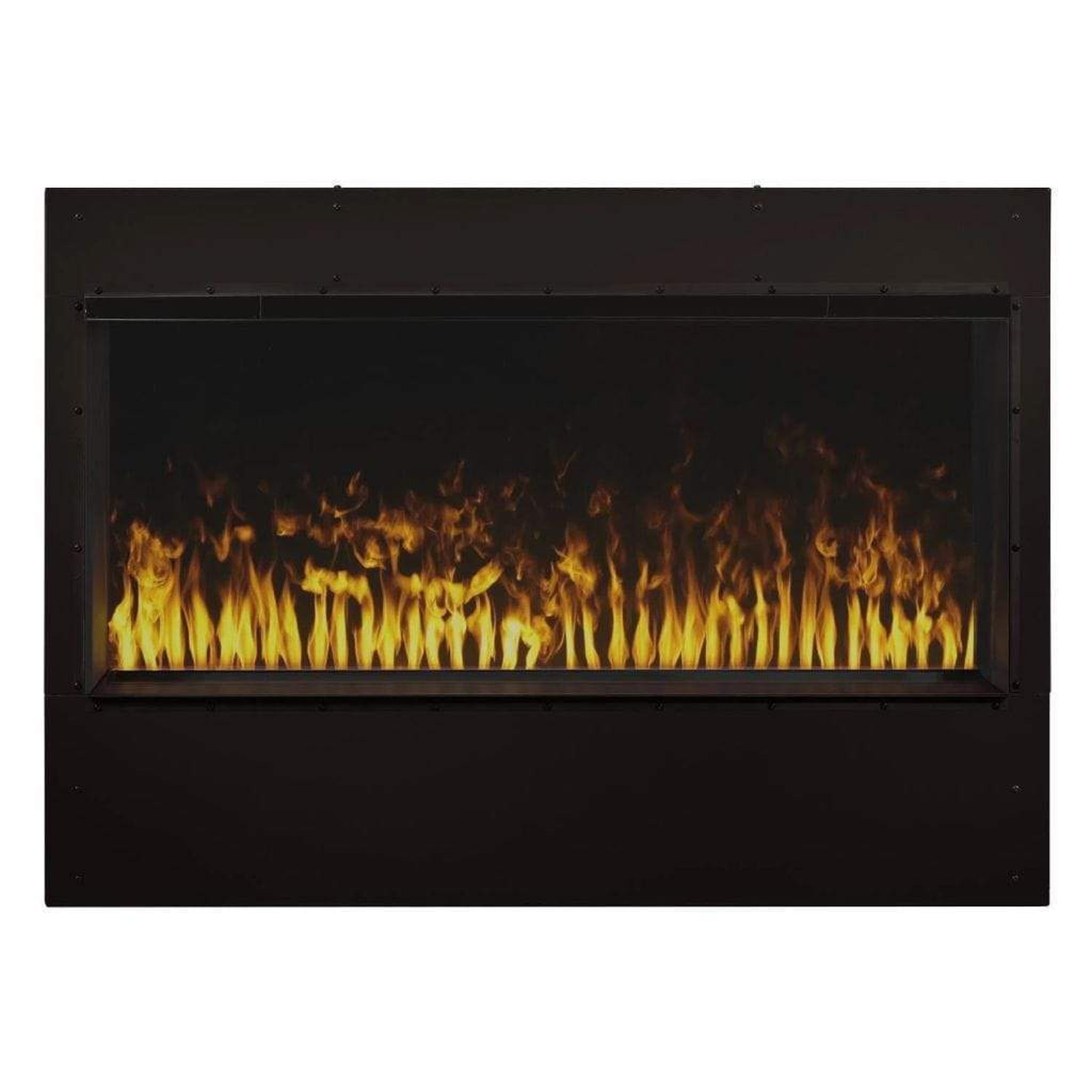

Pictured: Dimplex Opti-Myst Pro 1000 46" Built-In Electric Firebox

Best for: Living rooms and primary bedrooms in medium-to-large homes

The Pro 1000 hits the sweet spot of size, features, and value. At 46 inches wide, it commands a wall without overwhelming it — a good fit for a wall section about 6 to 7 feet wide. Like the Pro 1500, it supports both single-sided and see-through configurations and includes an integrated heater.

Its two included Opti-Myst Pro 500 cassettes each run up to about 12 hours per fill, and the optional plumbing kit removes refills altogether. If you're buying your first water vapor fireplace and want a full-featured unit, start here.

Width: 46⅝" | Height: 31¾" | Depth: 16¼" | Voltage: 120V | Wattage: 1,460W | BTU Output: 4,981 BTU | Warranty: 2 years | Finish: Black

Performance

Flame Realism: Same Opti-Myst technology as the Pro 1500.

Heating Performance: Solid supplemental heat for medium spaces.

Ease of Installation: Slightly easier than 60" due to size.

Safety Features: Cool flames, zero emissions.

Cost & Value: Strong value for a heated, see-through-capable unit.

Warranty: 2-year Dimplex.

#3 Dimplex Opti-Myst Pro 500 20" Built-In Electric Cassette

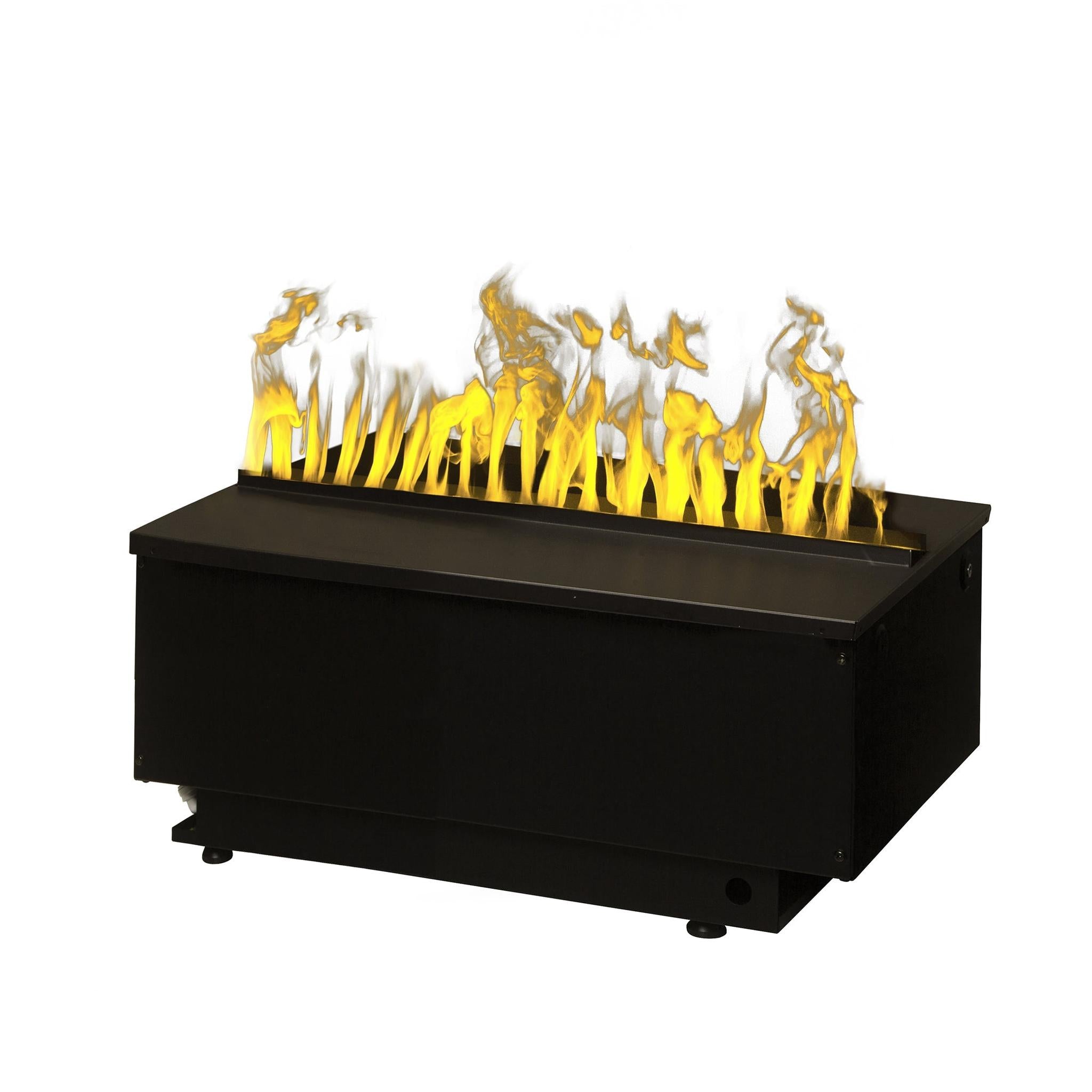

Pictured: Dimplex Opti-Myst Pro 500 20" Built-In Electric Cassette

Best for: Custom builds, bedrooms, offices, and compact spaces

Don't let the smaller size fool you — the 20" Opti-Myst Pro 500 cassette delivers the same stunning flame effect as its larger siblings in a compact package. It suits spaces where a full-sized built-in would be impractical: a home office, a bedroom accent wall, or a small apartment living area.

Multiple 500 cassettes can be connected side by side for a custom-length linear installation. That's how the Opti-Myst Pro boxes are built: the Pro 1000 holds two 500 cassettes and the Pro 1500 holds three. At US Fireplace Store, the Pro 500 cassette is sold together with an Opti-Myst Pro box, so call our team to plan a compact or custom build.

Width: 20" | Height: 9½" | Depth: 12" | Voltage: 120V | Wattage: 230W | Heat Output: None (flame effect only) | Run Time: Up to about 12 hours per fill | Warranty: 2 years

Performance

Flame Realism: Identical technology scaled down.

Value for Compact Spaces: A strong option for small rooms.

Ease of Installation: Lightweight and simple to position.

Safety Features: Cool flame effect, zero emissions.

Cost & Value: Smallest module in the Opti-Myst Pro line.

Warranty: 2-year Dimplex.

FAQ

Do water vapor fireplaces produce any real heat?

Not from the vapor mechanism itself — the mist is always cool to the touch. However, many models include an integrated fan-forced heater that produces about 5,000 BTU, typically rated for up to about 400 sq ft of supplemental heat. This takes the edge off a room but is not a replacement for your home's primary heating system. If heat output is your top priority, explore our electric fireplace inserts or gas fireplace options.

How often do I need to refill the water tank?

Most units run about 8 to 12 hours per fill. For typical evening use (3–4 hours per night), you'll refill every 2–4 days. Models that support a direct plumbed connection eliminate this completely — the unit feeds from your home's cold water supply and maintains its own level automatically.

Can I use tap water, or does it need to be distilled?

Tap water is fine as long as it isn't hard. If your home has hard water (high mineral content), it causes faster scale buildup on the transducer, which means more frequent cleaning. Softened or filtered water is recommended in that case. If you use distilled water, check your manual, since some manufacturers call for adding a small amount of salt to the reservoir. In very hard-water regions, an inline filter on the plumbed connection is worth considering.

Are water vapor fireplaces safe for bathrooms?

Generally, no. Dimplex's manuals, for example, say its units must be installed away from showers and tubs and never over a bathtub, and its heater models must not be installed in bathrooms or laundry areas. Other brands may differ, so always follow the manufacturer's installation manual and local electrical code, and consult a licensed electrician.

Can I install a water vapor fireplace in a bedroom?

Absolutely, and bedrooms are one of the most popular applications. The gentle mist actually adds a small amount of humidity to the air — a bonus in dry winter months. The LED flame effect doubles as a soft ambient nightlight, and the crackling sound system (on models that include it) is something many people find relaxing.

Will the mist make my room damp or cause condensation?

The mist is ultra-fine and designed to dissipate quickly, so you won't notice a significant humidity increase in a typical room. In very small, enclosed spaces, you may notice slight condensation on nearby surfaces during extended use; good ventilation helps. The effect is similar to a small tabletop humidifier running nearby.

How do water vapor fireplaces compare to standard electric fireplaces?

Standard electric fireplaces display a flame image on a flat panel or screen. Water vapor fireplaces produce a true 3D effect with physical depth and movement. The trade-off is higher cost, regular water maintenance, and, on many models, no heater at all. If absolute realism matters to you, water vapor wins convincingly. If heating and minimal maintenance are the priorities, a standard electric fireplace insert may serve you better.

What maintenance is actually required?

Plan for a light cleaning every two weeks: clean the transducer, sump, and top cover with soap and water, rinse the filter, and wipe down interior surfaces. Monthly, inspect water supply components. Annually, check for mineral deposits and descale if needed. It's more hands-on than a standard electric fireplace but far less than cleaning a wood-burning or gas fireplace.

Can I leave a water vapor fireplace running overnight?

Many units have a sleep timer, and many shut the flame effect off automatically when the water runs out. Even so, it's best not to leave the fireplace running unattended overnight, especially on heat mode, and hours of continuous mist can raise humidity in a closed room. Use the timer and follow the safety guidance in your owner's manual.

Do water vapor fireplaces work well in large, open rooms?

The flame effect is most impactful in rooms up to about 500 sq ft, where the mist remains visually concentrated. In very large, open spaces (great rooms, hotel lobbies with high ceilings), the mist can dissipate before reaching full visual impact unless you use a large-format unit or multiple stacked cassettes. For open spaces over 500 sq ft, contact our team at 888-992-1556 for a specific recommendation.

Conclusion

Water vapor fireplaces occupy a unique position in the fireplace world: exceptional visual realism, few installation limits, and no combustion. They're not for everyone — if primary heat output is the goal, a gas or high-BTU electric option will serve you better. But if you want a fireplace that looks like the real thing, can go in most rooms of your home or business, and has no open flame, water vapor technology is in a class by itself.

The Dimplex Opti-Myst line, available at US Fireplace Store, is one of the best-known names in this category. Whether you choose the large-format Pro 1500 for a dramatic living room statement, the versatile Pro 1000 as an all-in-one solution, or the flexible cassette units for a custom build, you're getting proven water vapor technology.

Ready to find the right model for your space? Browse the full water vapor fireplace collection or reach out to our team — we're happy to help you find your perfect fit.
