SKU:ESF.2.B.XL5
EcoSmart Fire XL500 20" Stainless Steel Ethanol Fireplace Burner by Mad Design Group
EcoSmart Fire XL500 20" Stainless Steel Ethanol Fireplace Burner by Mad Design Group
e-NRG Bioethanol Fuel
-- Please Select --
e-NRG Bioethanol Fuel-4 Gallons
e-NRG Bioethanol Fuel-8 Gallons
e-NRG Bioethanol Fuel-16 Gallons
e-NRG Bioethanol Fuel-20 Gallons
e-NRG Bioethanol Fuel-40 Gallons
e-NRG Bioethanol Fuel-80 Gallons
e-NRG Bioethanol Fuel-180 Gallons
No, Thank You
Plasma Fire Screen
-- Please Select --
Plasma Fire Screen
No, Thank You
Twin Feet Fixings
-- Please Select --
Twin Feet Fixings
No, Thank You
Black Glass Charcoal
-- Please Select --
Black Glass Charcoal
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
XL500 is the smallest of our linear ethanol burners
The baby of the XL Series, the XL500 may be compact in size, but this 5L ethanol burner effectively delivers a beautifully long, lasting flame. Like the other models within the XL Series, this fire can be easily integrated into a horizontal, tailor-made setting. Whether you just use the burner by itself or as part of a Flex firebox insert, you have an amazing design tool to achieve your vision.
O-TL Listed in accordance with UL 1370.
What's Included
- Bioethanol Burner
- 1.25 Gallon Jerry Can
- Bottle Adapter
- Fire Lighter
- Lighting Rod
- Butane
- XL Baffles
Not Included (Sold Separately)
- Plasma Fire Screen
- Twin Feet Fixings
- Black Glass Charcoal
- e-NRG Bioethanol Fuel
Features
Design Versatility

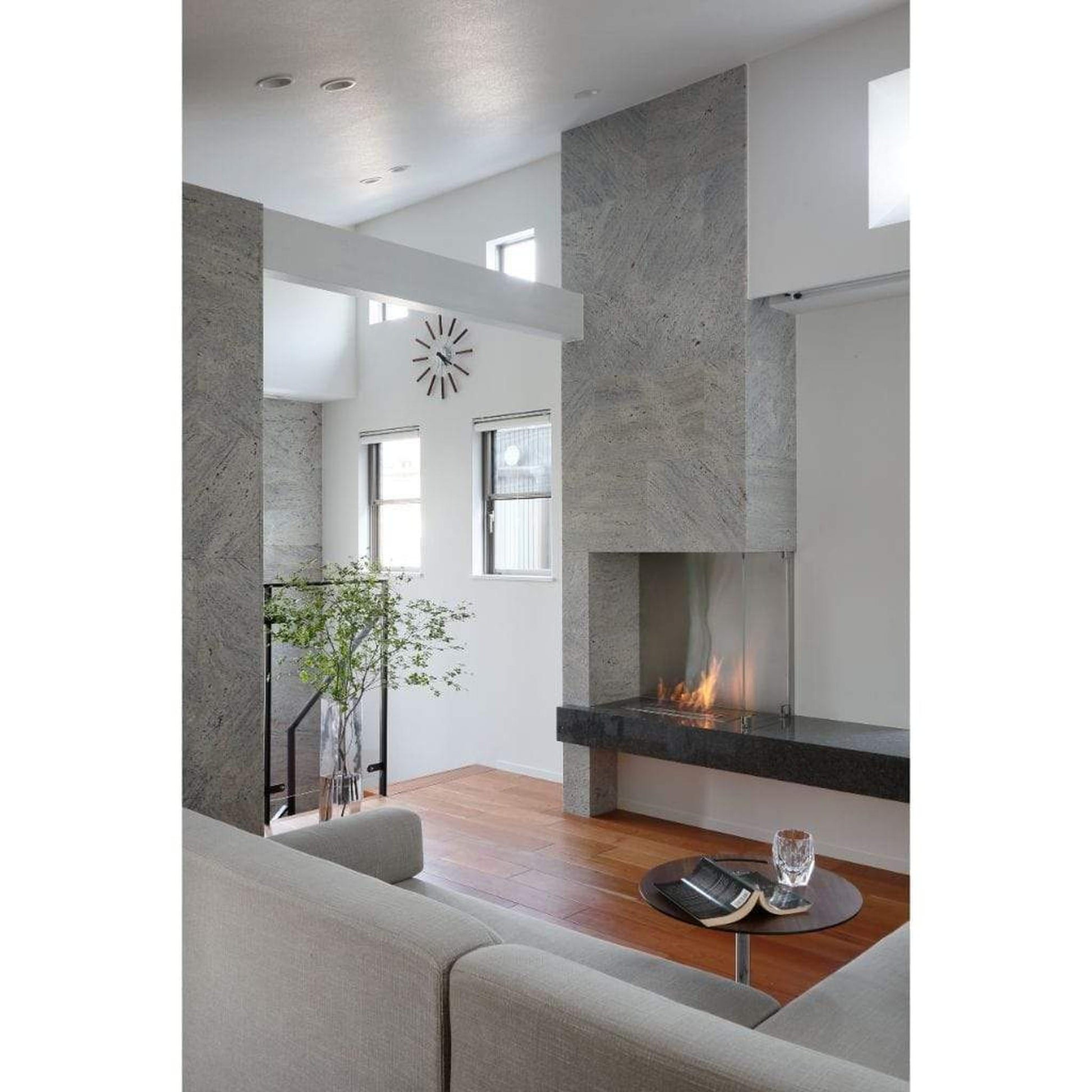

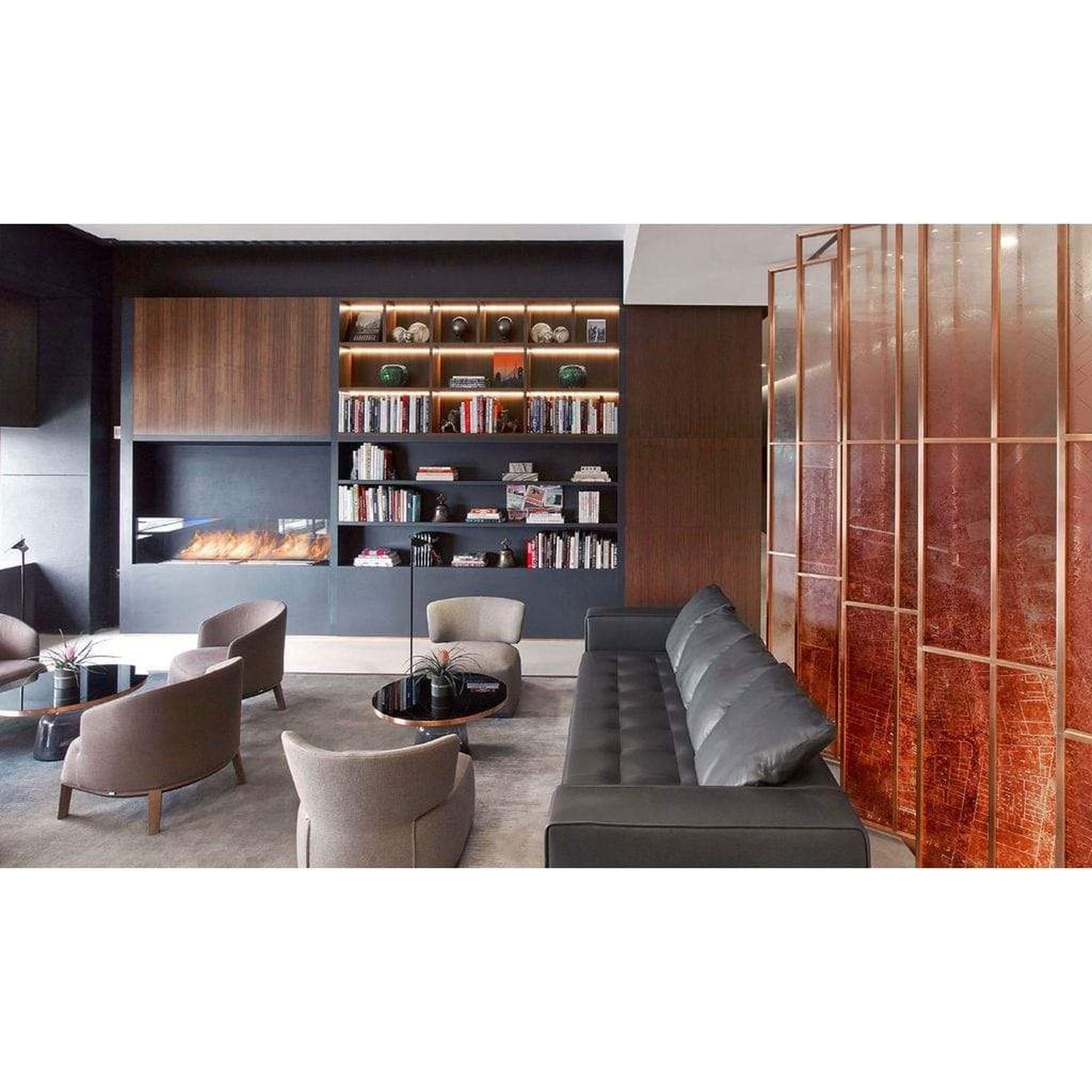

Easily integrated into bespoke settings – from specially-made cabinetry, media units, walls, floating timber to stone benches and pillars.
Myriad Materials
Diverse range of materials can be used in your bespoke fire – think concrete and hard timber benches, marble recesses, stacked stone walls, stainless steel – even metal barrels cut in half!
Flame Regulation
Purpose-designed baffle inserts allow you to regulate and further stabilise the flame.
No Harmful By-products
e-NRG bioethanol produces a beautiful orange flame from start to finish without producing by-products such as smoke, soot or ash.
Award-winning
Awarded the 2009 Hearth & Home Vesta Award (USA).
Standalone or Integrated
Easily installed as a standalone ethanol burner in tailored setting or in conjunction with a zero-clearance Flex Fireplace Insert.
Tested World Wide
EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications
| Weight |
14.33lb [6.5kg] |
|---|---|
| Application | Indoor & Outdoor |
| Material | Stainless Steel Grade 304, Toughened Glass |
| Color | Stainless Steel |
Fuel Efficiency
|
|
1.3 Gal [5 L] |
|
Heats on Average |
431ft2 [40m2] |
|
Minimal Room |
2825ft3 [80m3] |
|
Thermal Output |
12 MJ/h - 11430 BTU/h - 3.4 kW |
|
Burn Time |
10-13h |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions
| Width | 9.8in [248mm] |
| Height | 21.8in [553mm] |
| Depth | 4.9in [124mm] |
Technical Drawings
|
Front View |
![]() |
|---|---|
| Top View |
|
| Side View | ![]() |
Warranty
![]() |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
![]() |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files
- Download Installation and Operation Manual
- Download Specs Sheet
- Download Technical Specification
- Download Ethanol Burners Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
Videos
Frequently Asked Questions
Can I extinguish my ethanol fireplace before the fuel has burnt?Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use. |
What maintenance is required for ethanol fireplaces?Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel. |
Why use an ethanol fireplace?An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors. |
How safe are bioethanol fireplaces?EcoSmart Fire’s operating tools, procedures, and proprietary technologies were developed with safety as our top priority. Made from 304-grade stainless steel, EcoSmart Fire’s ethanol fireplace burners go through a deep-draw fabrication process that eliminates the potential for dangerous leaks. Additionally, our patented filling point is separated from the ignition zone and engineered so that the jerry can spout is fully supported prior to releasing the fuel supply. This eliminates the usual splash and spills that would otherwise occur when fuel is decanted into the burner while simultaneously reinforcing the maximum fill line within the burner. EcoSmart Fire’s ethanol fireplaces release heat, carbon dioxide (the same stuff we exhale) and steam. Allowing you to enjoy a clean-burning flame without the soot, smoke, ash or other harmful substances emitted by traditional wood burning fireplaces. When selecting an installation location for your ethanol fireplace it is important to consider the required minimum room sizes and clearances. Please reference our installation manual for more information. |
Do EcoSmart Fire ethanol fireplaces give off any fumes or gases?Bioethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. Clean burning and eco-friendly, ethanol fuel releases heat, carbon dioxide (the same stuff we exhale) and steam. |
Do bioethanol fireplaces produce heat?Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning. |
Why use bioethanol?Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up. |
How do I fill my ethanol fireplace?With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy. Step 1: Remove the bottle nozzle cap and carefully insert into the filling point Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full. Step 3: Replace the nozzle cap. You can view a step-by-step filling video. |
