ABBOT-30BL-DELUXE-NG
Just like that little black dress that goes with everything, the Abbott’s direct vent gas fireplace insert is understated sophistication with a no fuss contemporary design.

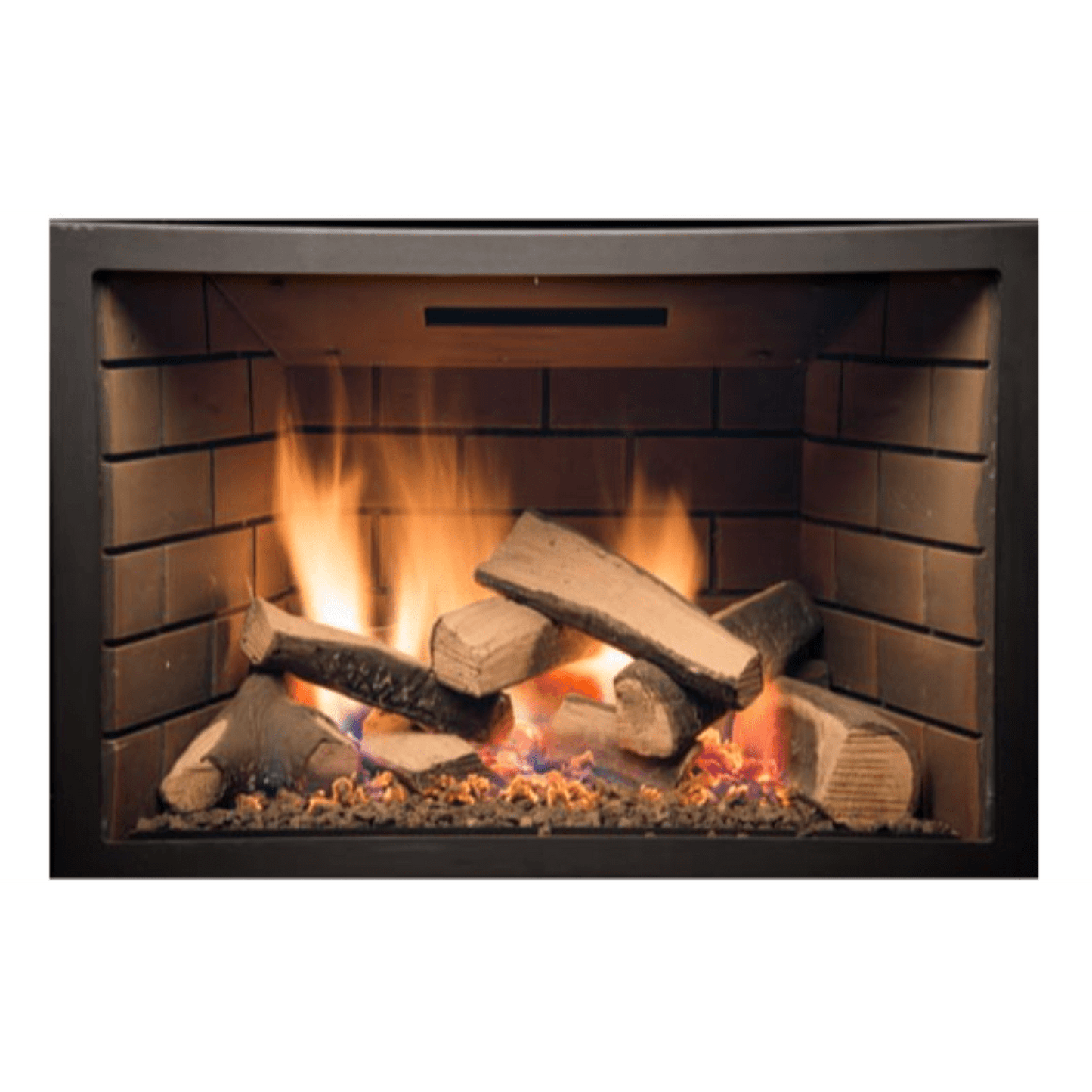

With it’s impressive glass viewing area, the Abbot is available in Deluxe and Premiere systems that offer you superior flame and heat control. Each insert comes with the standard black porcelain panels, black reflective glass and a 9 piece rock set. For a more traditional look try the optional ceramic brick panels and log set. Comes standard to run on natural gas but also available for liquid propane use.

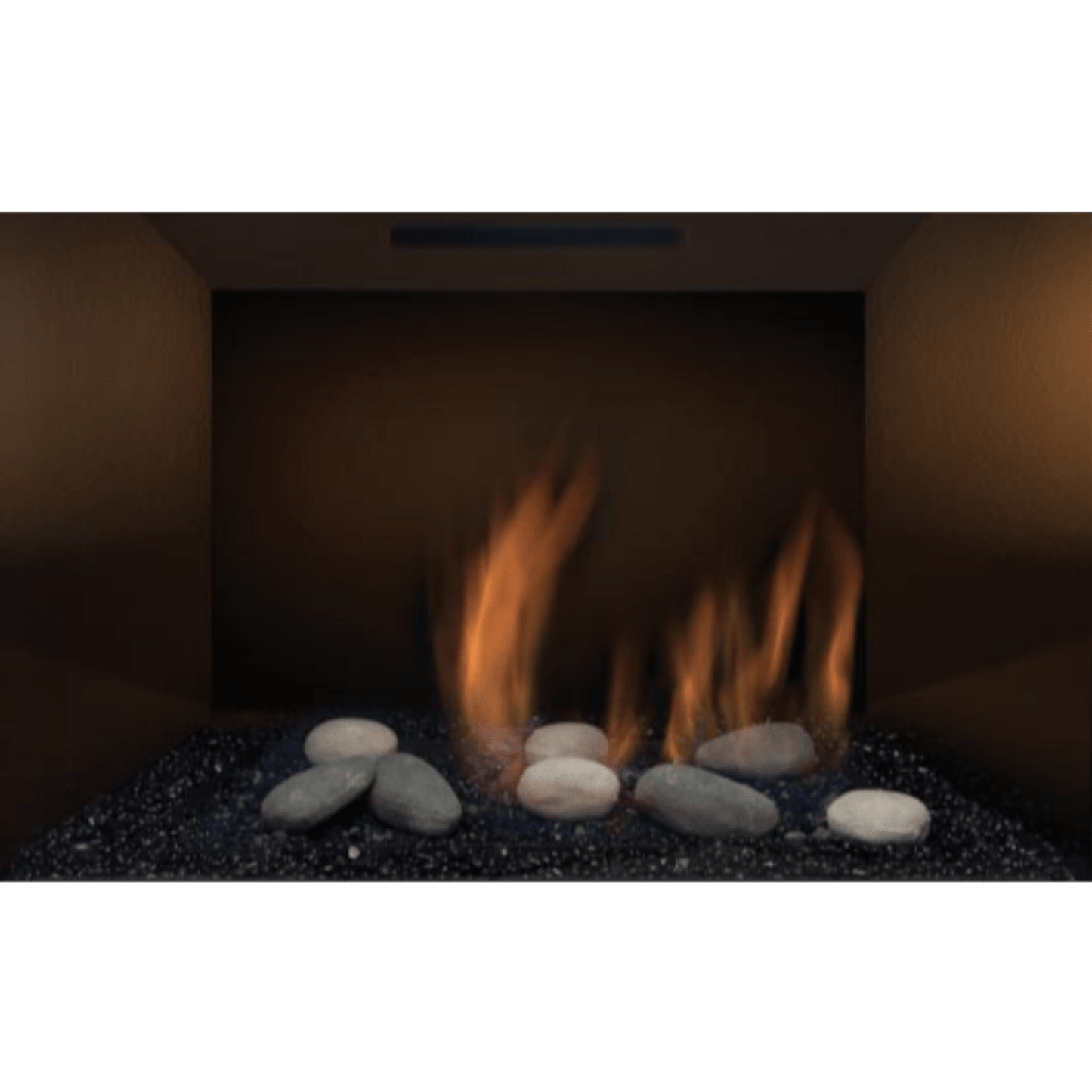

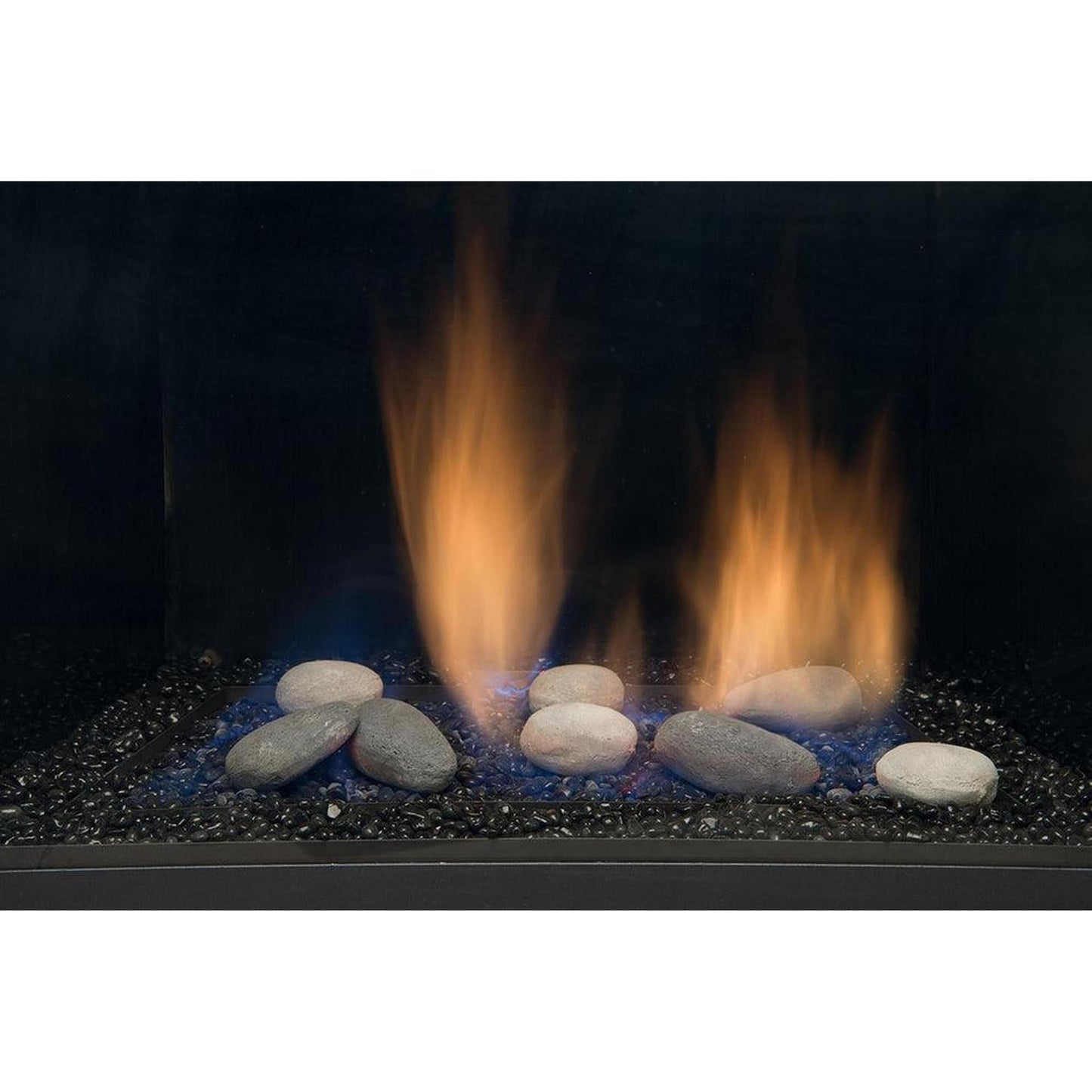

Sierra Flame’s Direct Vent Insert is a true clean face design offering an impressive glass viewing area. The Abbot is available in Deluxe and Premiere systems and comes standard with contemporary black porcelain panels, black reflective glass and a 9 piece rock set OR traditional ceramic brick panels and log set.
IDEAL APPLICATIONS
| Framing Dimensions | Viewing Area | BTUs (NG) | AFUE / P.4 (NG Efficiency) |
Weight* | |
|---|---|---|---|---|---|
| Hi | Low | ||||
|
20-1/4” H x 27” W x 15” D – Premiere
20-1/4” H x 27” W x 16-1/4” D – Deluxe |
16” H x 25” W
|
26,000
|
10,500
|
68.3 %
|
115 lbs.
|
|
Venting**
|
Ceiling /
Mantle Height |
|---|---|
|
3” flex vent on exhaust side
3” flex vent on the air intake side |
Mantle Height = minimum 33” with a 4” deep mantle
Please see manual for other mantle clearances |
**Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC
INCLUDED MEDIA & ACCESSORIES
|
9 Piece Rocks |
Stones |
Remote |
OR
|

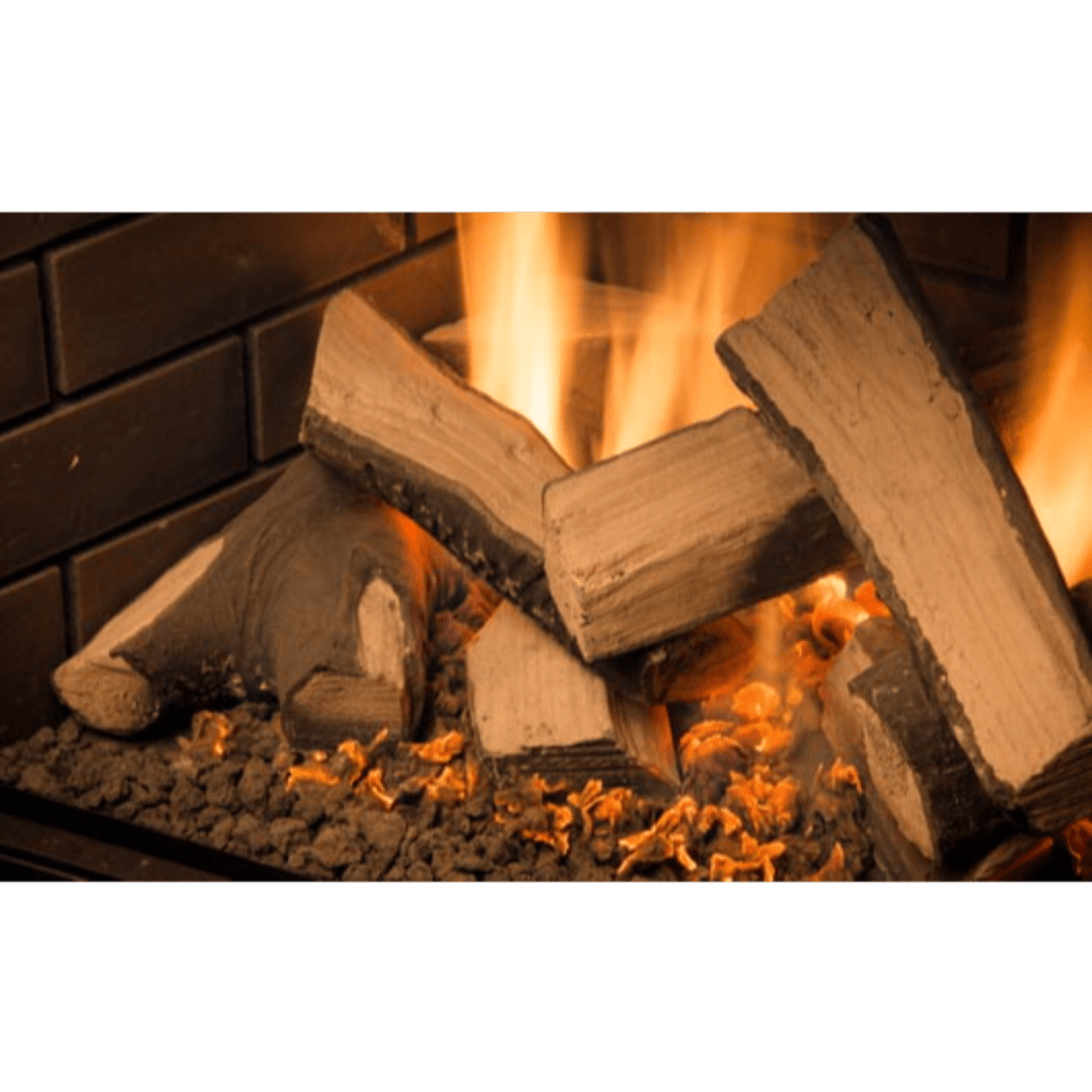

Log Set
|
Remote |
| Model number | Outside Surround Dimensions (H x W) | Description |
| ABBOT-30-BLK-28 | 28.03 x 40.12 | Standard black 3 sided surround |
| ABBOT-30-BLK-26 | 26.03 x 40.12 | Standard black 3 sided surround |
GLASS VIEWING AREA
16” H x 25” W
 |

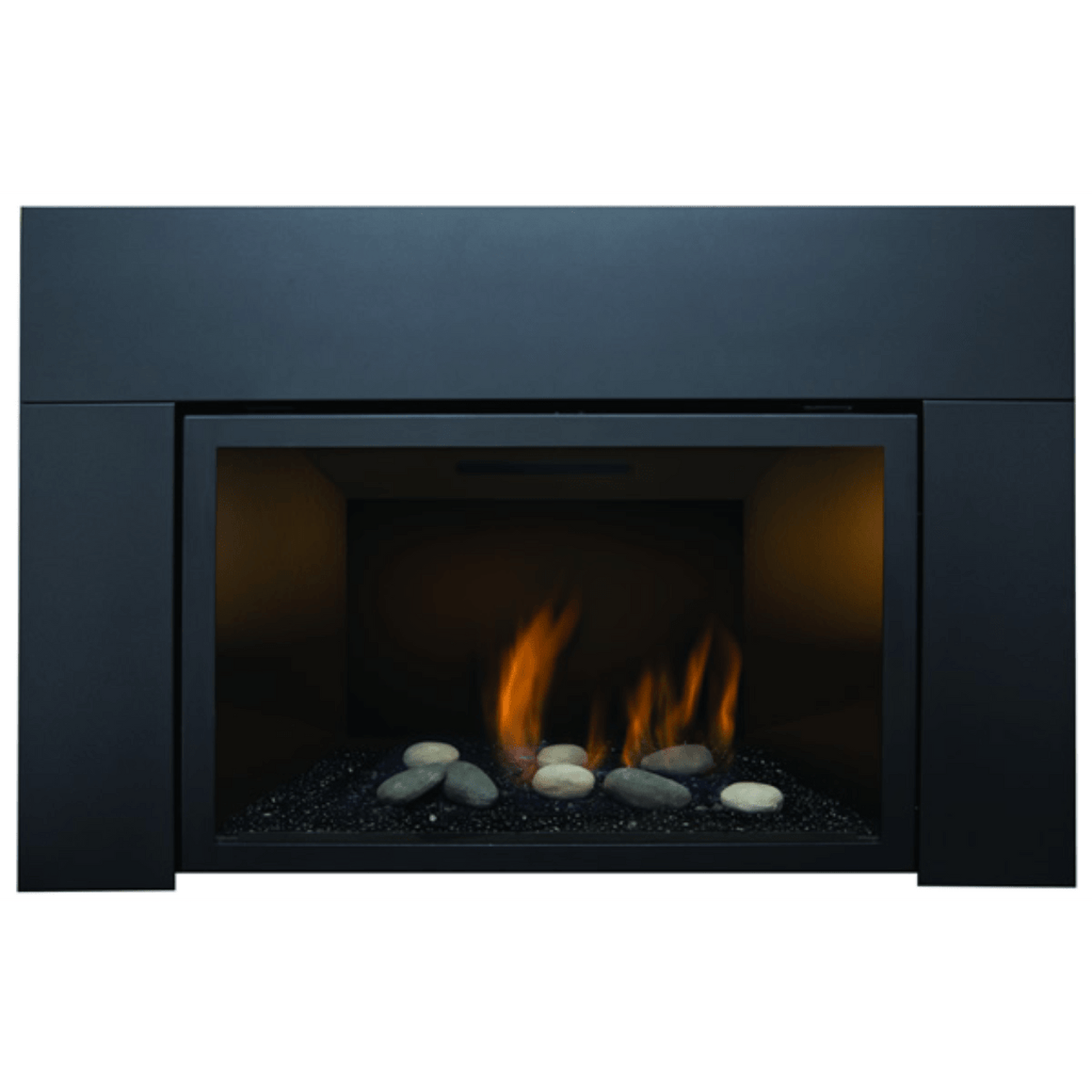

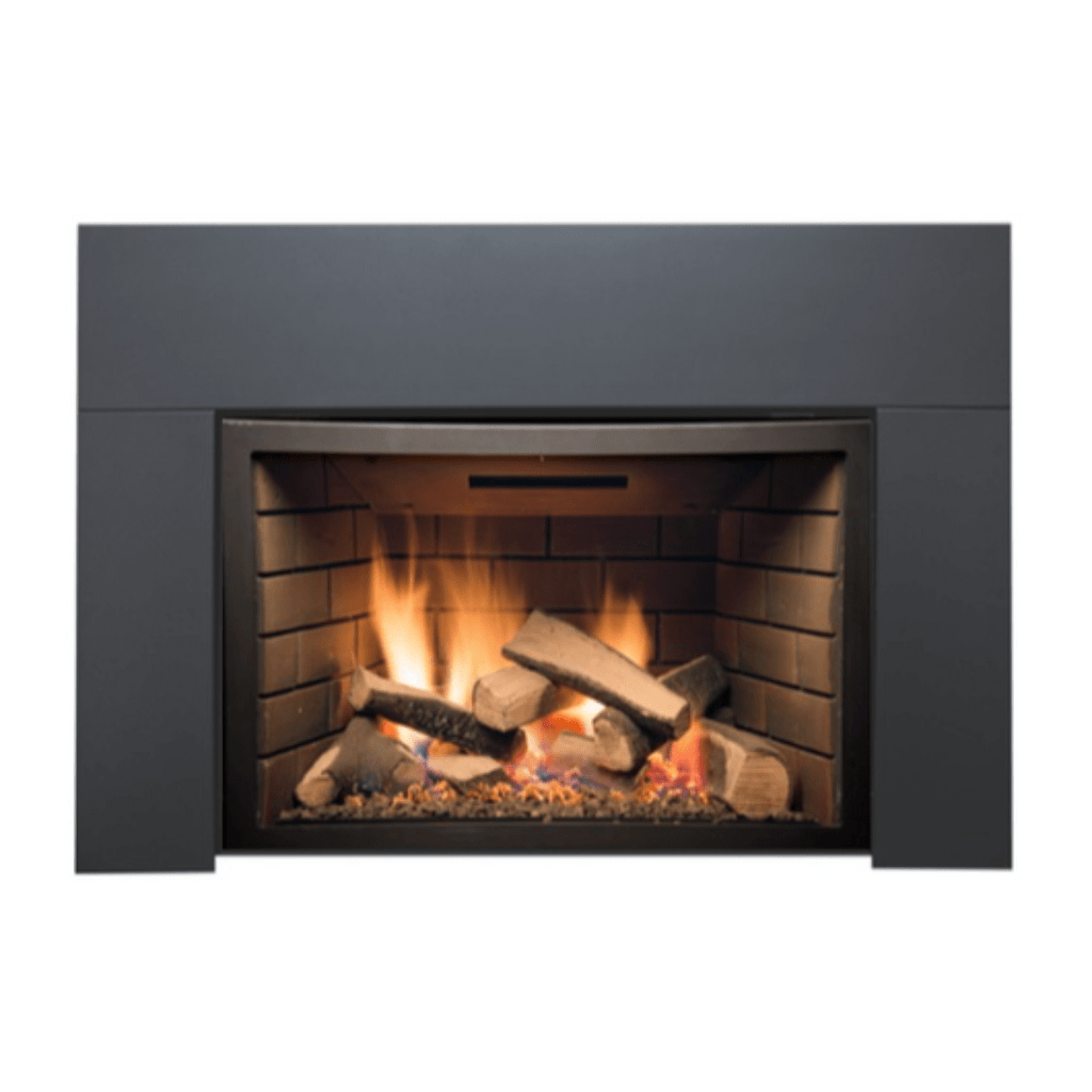

Standard 3-Sided Black Surround ABBOT-30-BLK-28
|
 |
Standard 3-Sided Black Surround ABBOT-30-BLK-26
|
 |
Standard 4-Sided Black Surround ABBOT-4PCE-BLK-32
|
 |
Safety Barrier (included with price of surround) Buy replacement: ABBOT-SB
|
Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.
|
AMSF‐GLASS‐01 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage
Color: ‘Clear’ |
 |
AMSF‐GLASS‐02 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Light Brown’ |
 |
AMSF‐GLASS‐03 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Charcoal’ |
 |
AMSF‐GLASS‐04 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Champagne’ |
 |
AMSF‐GLASS‐05 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Dark Grey’ |
 |
AMSF‐GLASS‐06 – 1 Box includes approx. 5 lbs of 1″ Clear ‘Gem’ fireglass ‐ 1 sq. ft. of media coverage ‘clear’ Color: ‘Clear’ |
 |
AMSF‐GLASS‐07 – 1 Box includes approx. 5 lbs of white frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘White’ |
 |
AMSF‐GLASS‐08 – 1 Box includes approx. 5 lbs of dusty purple frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘Dusty Purple’ |
 |
AMSF‐GLASS‐09 – 1 Box includes approx. 5 lbs of amber small bead fireglass ‐ 1 sq. ft. of media coverage ‘amber’ Color: ‘Amber’ |
 |
AMSF‐GLASS‐10 – 1 Box includes approx. 5 lbs of small bead fireglass ‐ 1 sq. ft. of media coverage ‘orange’ Color: ‘Orange’ |
 |
AMSF‐GLASS‐11 – 1 Box includes approx. 5 lbs of small “suntea’ bead fireglass ‐ 1 sq. ft. of media coverage ‘suntea’ Color: ‘Suntea’ |
 |
AMSF‐GLASS‐12 – 1 Box includes approx. 5 lbs of small “black’ bead fireglass ‐ 1 sq. ft. of media coverage ‘black’ Color: ‘Black’ |
 |
AMSF‐GLASS‐13 – 1 Box includes approx. 5 lbs of small “sable’ bead fireglass ‐ 1 sq. ft. of media coverage ‘sable’ Color: ‘Sable’ |
This conversion kit for the Sierra Flame Abbot series direct vent linear fireplace will help you convert your Abbot fireplace from one fuel source to another, just select the right one for you.
 |
Fuel Conversion Kit |
 |
94203370HWS3" X 3" VCL Pro-Form Insert kit, 2 each 35' Flex liner & round, Vertical termination.
Includes: Round Co-linear High Wind Vertical Termination & 2 Each 3" x 35' flex liners. *Venting Requirements: This unit requires venting pipe with an inner diameter of 3 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit. |
 |
CHIM-CAP
The Sierra Flame Chimney Cap for venting terminations is an optional accessory for the Abbot Series 30 inch direct vent insert fireplace. This Abbot series chimney cap will fit tightly within your termination and prevent an unwanted visit from a little critter, water damage to your chimney, and it keeps the random spark from lighting your roof on fire. |
