American Fireglass 48" x 6" Stainless Steel Linear Channel Drop-In Pan with S.I.T. System

Overview

American Fire Glass is a pioneer in the fireplace/fire pit glass and burner products industry. What sets us apart is our state-of-the-art manufacturing process, stringent quality control, great customer service, as well as our unique business model.

American Fire Glass has a vast network of resellers spread across a wide geographical area, giving our customers easy access to our top-quality fire glass and hearth products.

We take great pride in the fact that nearly all reputed hearth products dealers, both conventional and eCommerce, across Canada and the United States, sell American Fire Glass products.

At American Fire Glass, we strive to achieve excellence in everything we do, including using the best quality materials, employing state-of-the-art manufacturing processes, implementing stringent quality controls, and recruiting the best people to man all the processes. We leave no stone unturned in our quest to be the very best!.

48" x 6" Stainless Steel Linear Channel Drop-In Pan with S.I.T. System

A warm, cozy fire pit can be an ideal outdoor retreat for family and friends, especially during those cold winter months. Our 48" x 6" linear channel drop-in burner pan with electronic ignition kit is just what your customers will need to organize such an event. With just the flip of a switch, your customers and their guests will be enjoying a brilliant flame and lots of memorable conversations!

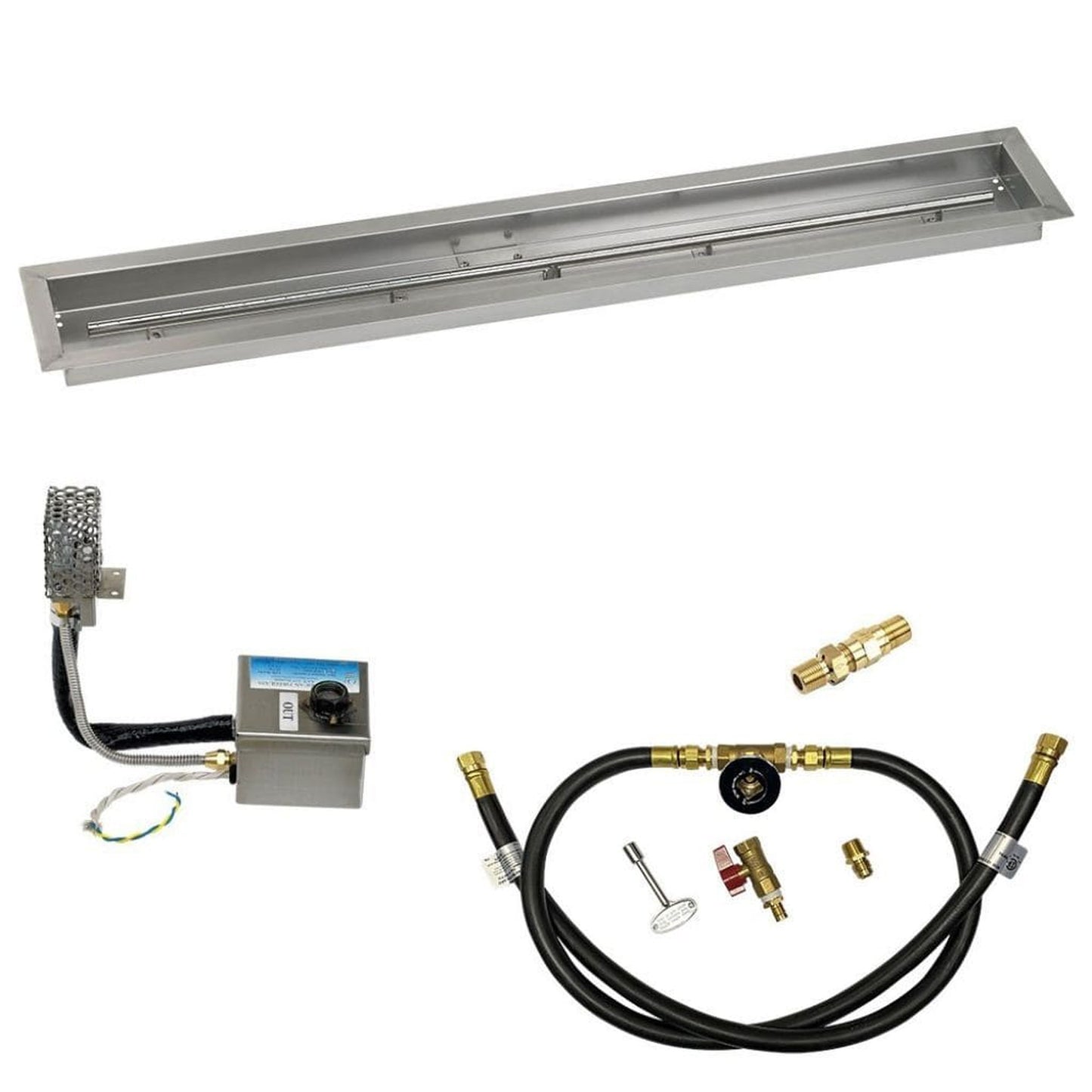

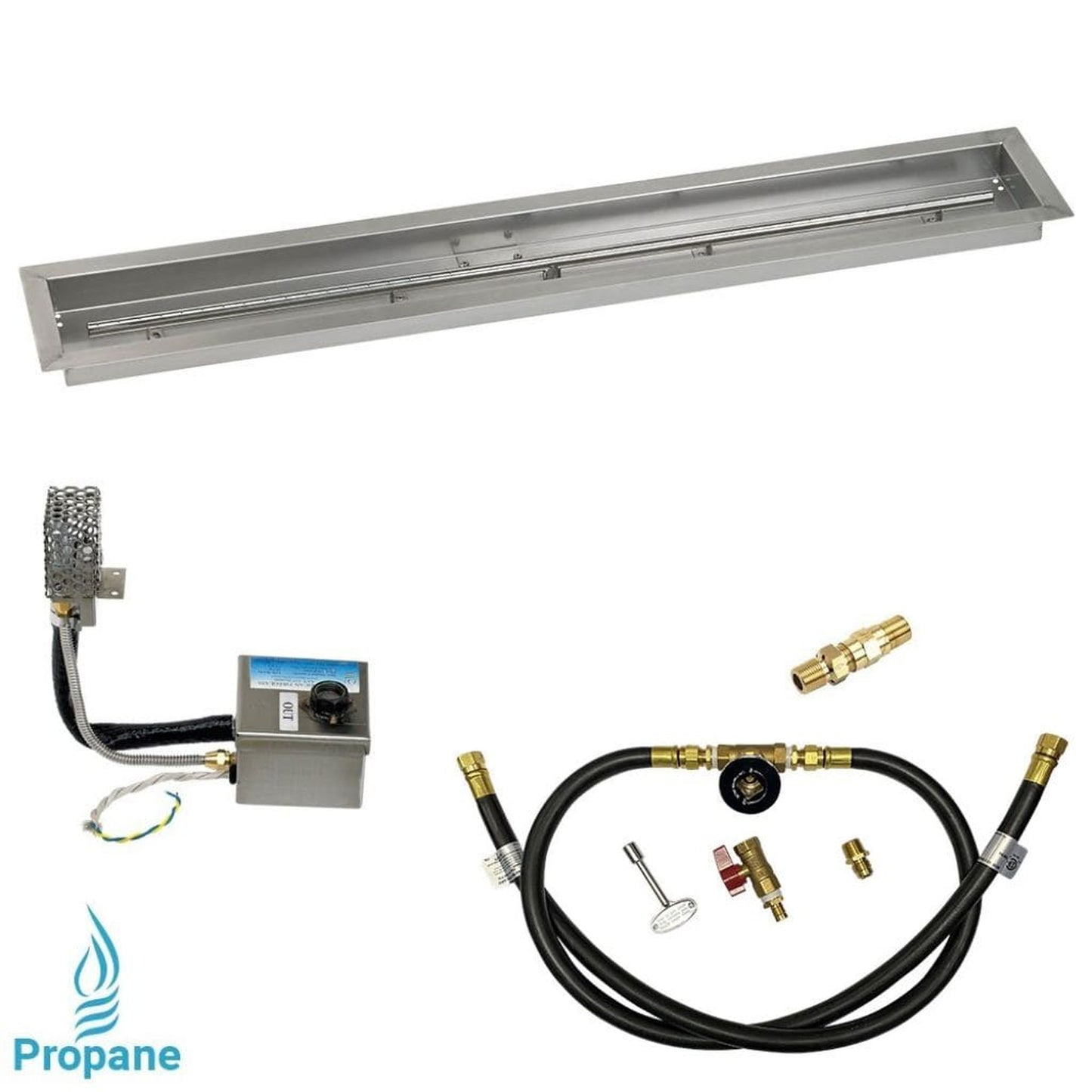

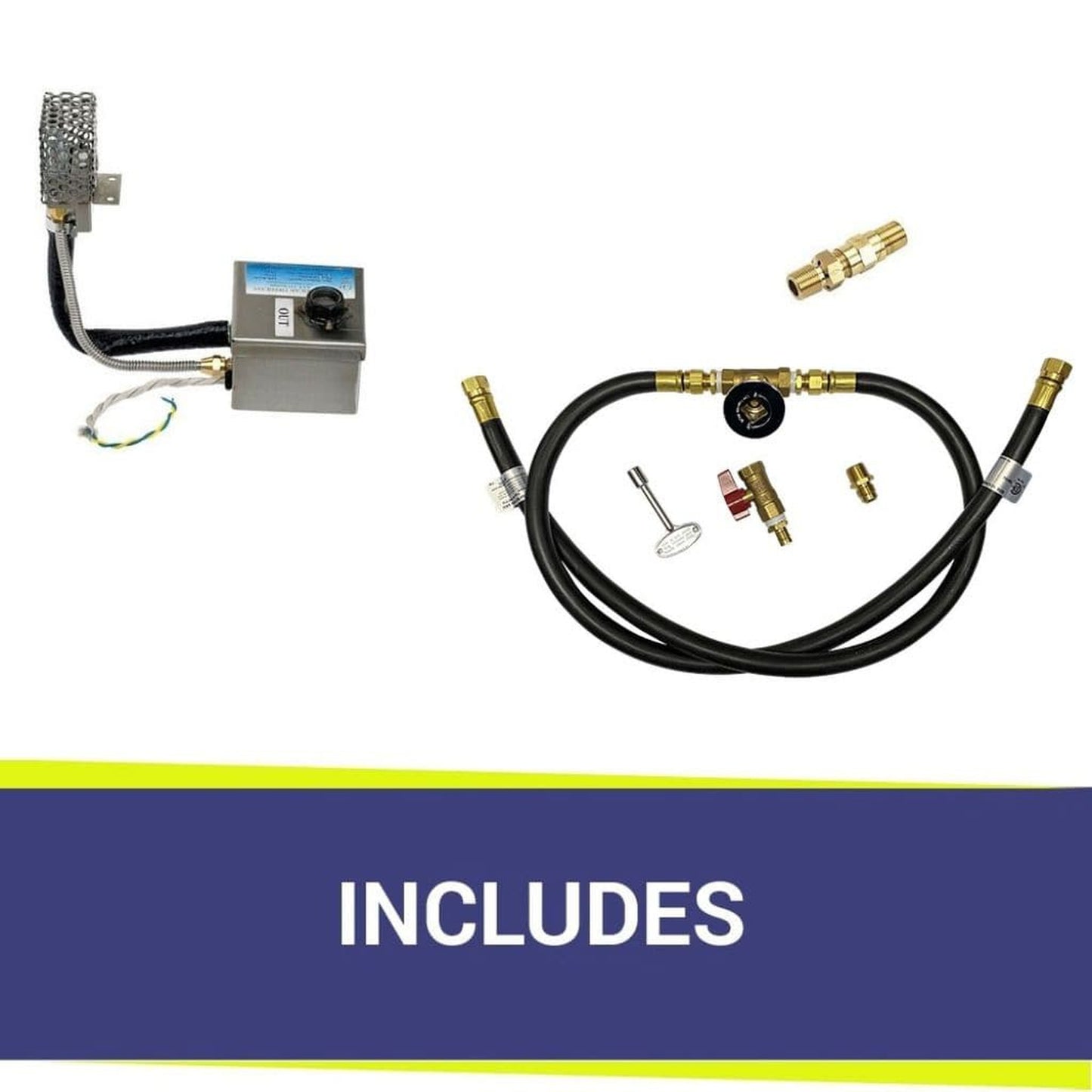

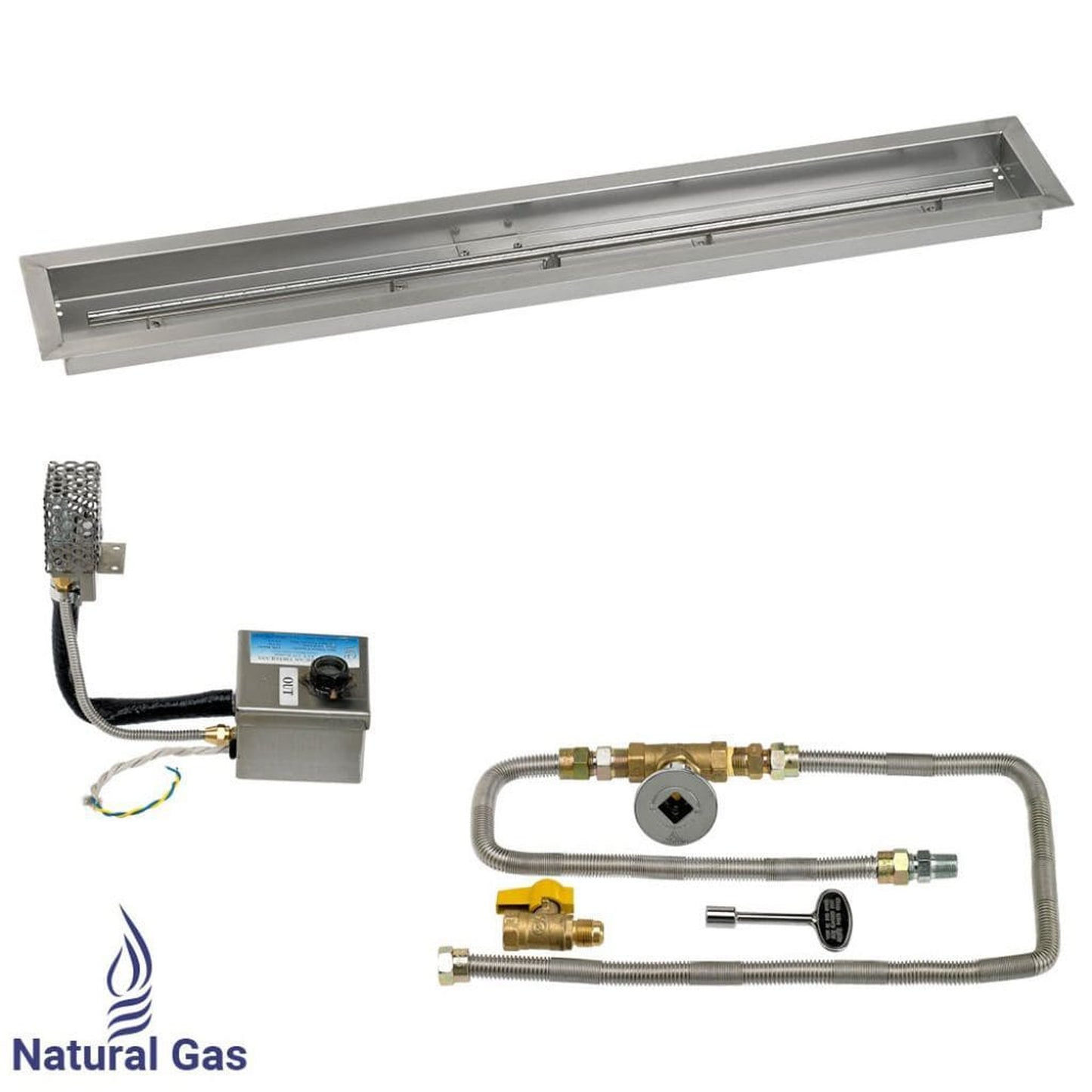

Our 48" x 6" linear drop-in pan with electronic ignition kit comes fully equipped with all the following components:

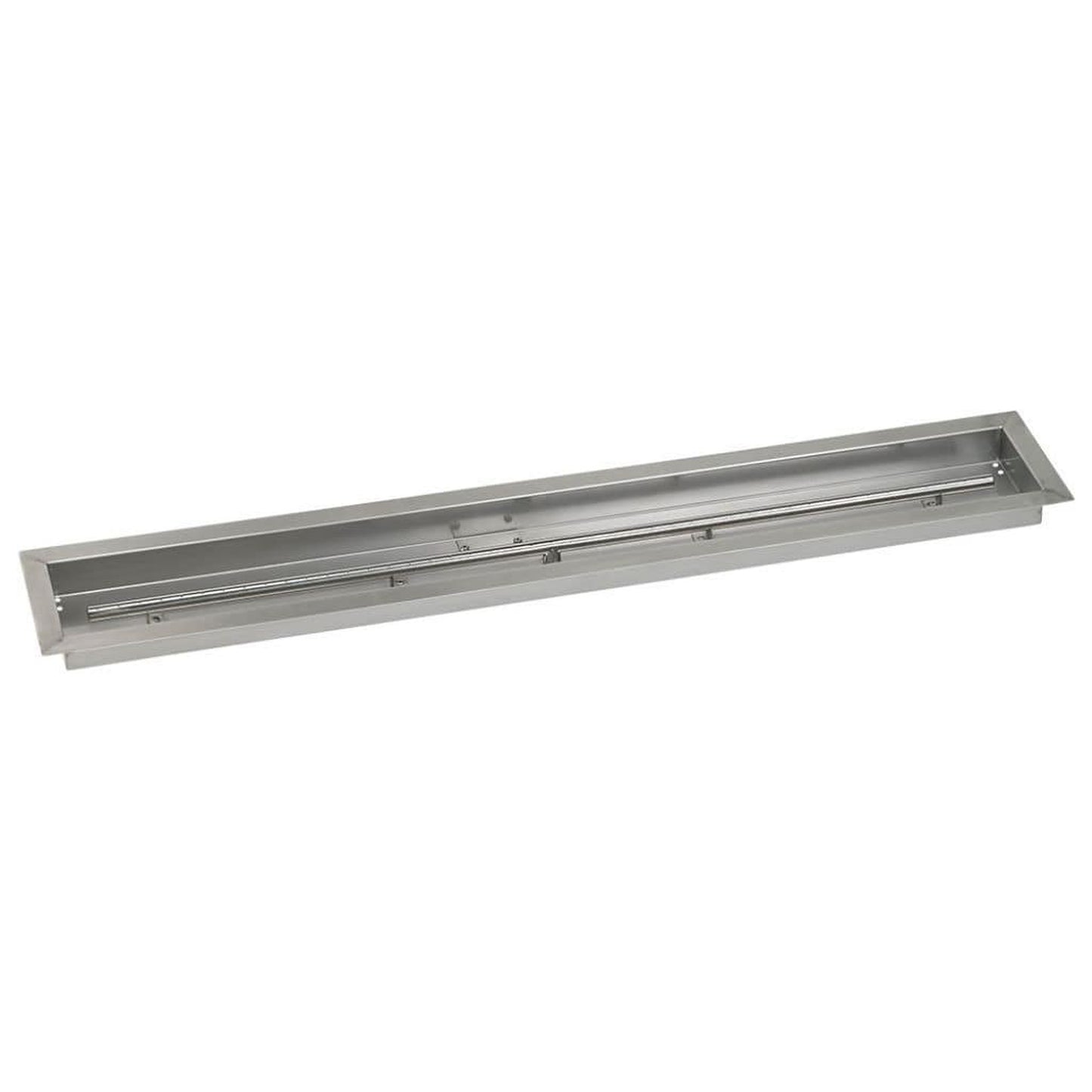

48" x 6" Linear Channel Drop-in Burner Pan w/ Built-in T-Burner - Our 48" x 6" linear drop-in burner pan comes with a convenient 'lip' so it can be installed into your DIY fire pit and easily removed after use. These burner pans greatly reduce the amount of fire glass your customers will need to fill their fire pit by creating a false bottom which gives the illusion that the fire pit is full, whereas only the top part of it is. All our linear drop-in burner pans are made of 304 stainless steel, which means they are very durable and can withstand extreme heat as well as harsh weather without sustaining any damage or rust. Each comes with a built-in T-burner, 1/2 inch gas inlet and drilled weep holes to prevent water accumulation.

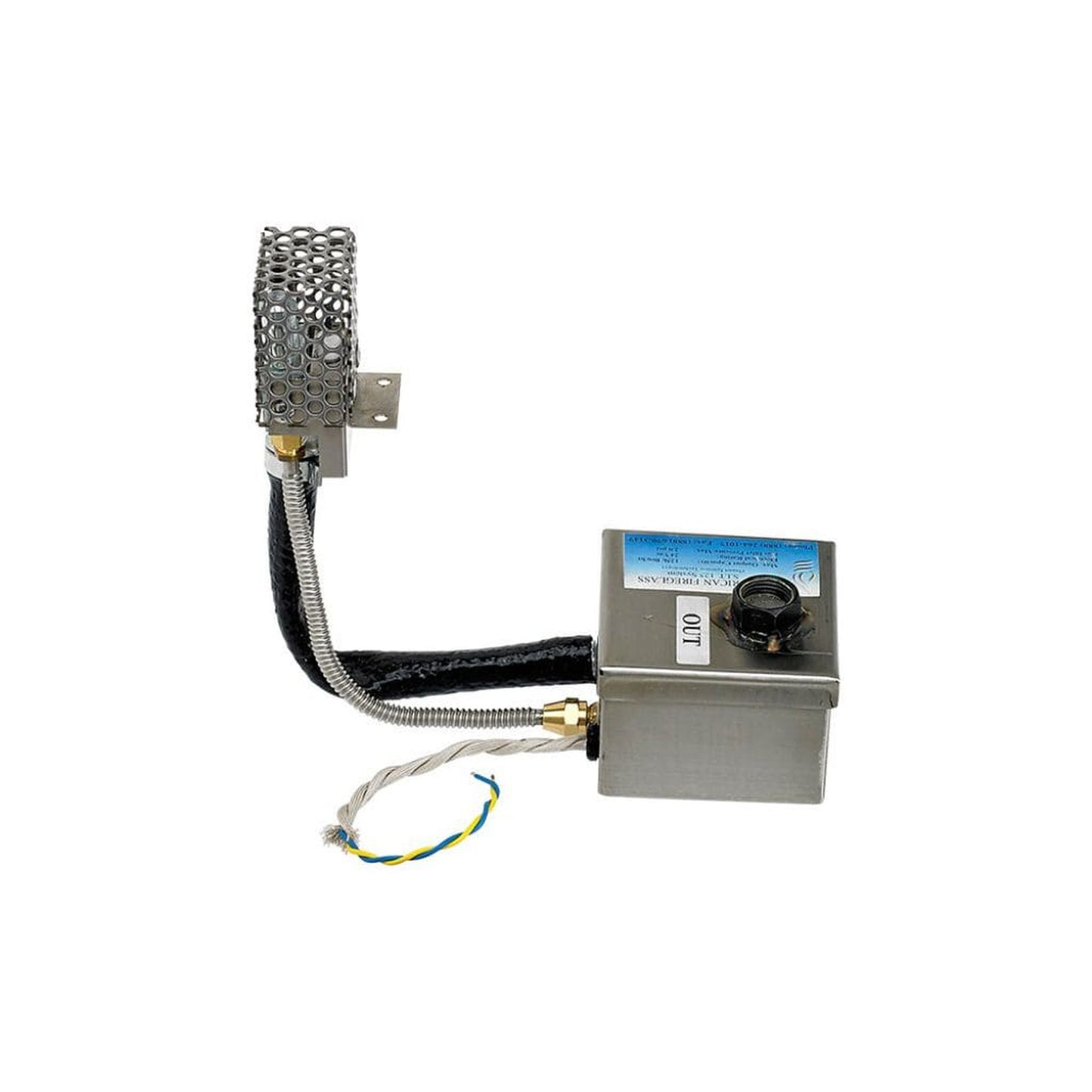

S.I.T. Electronic Ignition Kit - Our S.I.T. (Smart Ignition Technology) system is the smallest electronic ignition system available in today's market. Its size makes it ideal for use in fire features with very little vertical space. Developed exclusively to work with fire bowls or fire pit burners, the S.I.T. kit consists of a Hot Surface Ignition control that electronically opens and closes the gas valve. It also features a thermopile with automatic flame sensor for additional safety. This S.I.T. kit has a maximum gas output of 290 BTU/hr, which means it works well with most fire features.

24V Transformer

Safety Shut-Off Valve

Key Valve

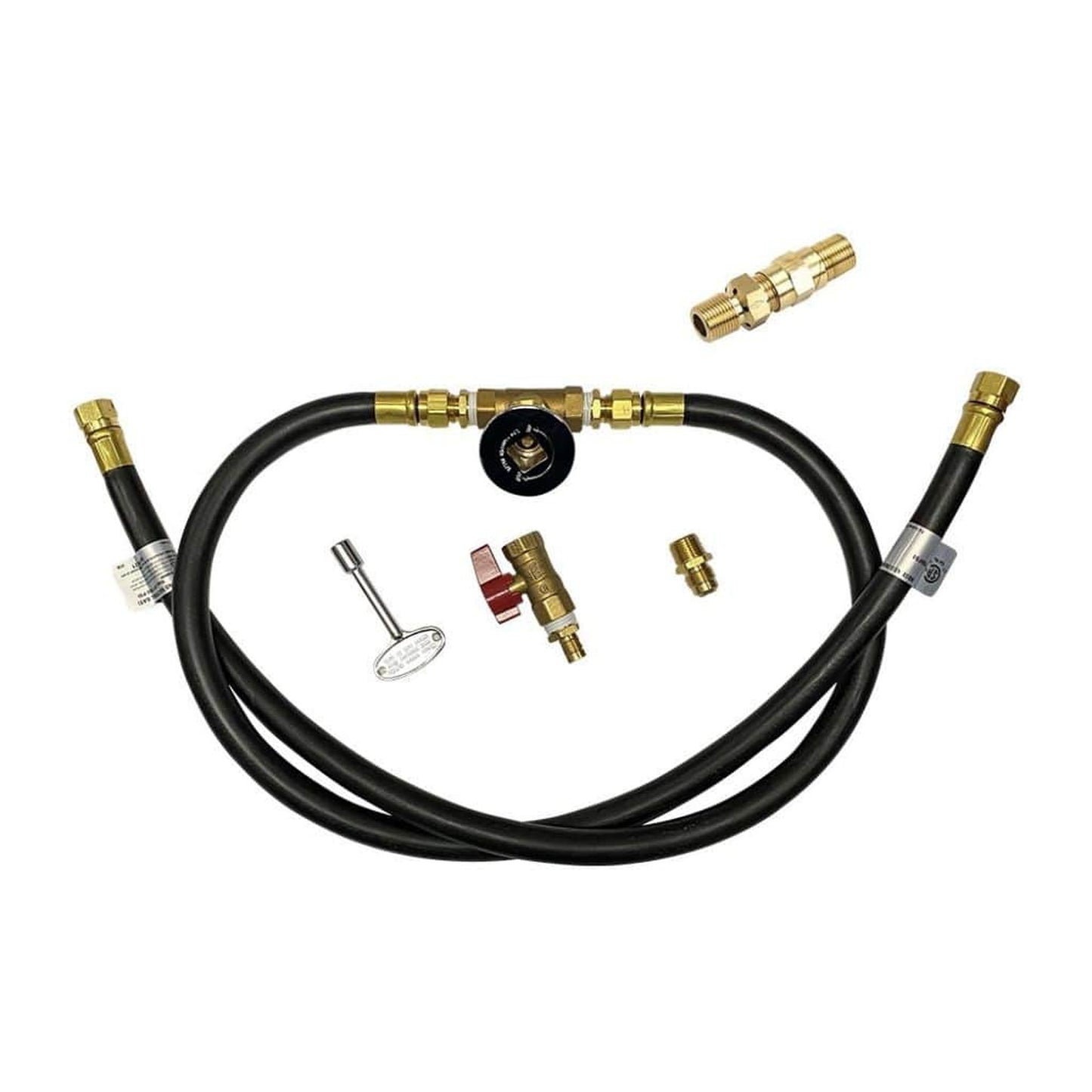

Two Gas Flex Lines

Propane Air Mixer (for propane gas only)

**************************************************************************************

Caution: Installing this electronic ignition kit can be dangerous. We do NOT recommend that you attempt to install this product yourself unless you are a certified NFI professional.
**************************************************************************************

Specifications

• Product Weight: 32.00 lbs.
• Material: 100% 304 Stainless Steel (hand crafted)
• Color: Stainless Steel

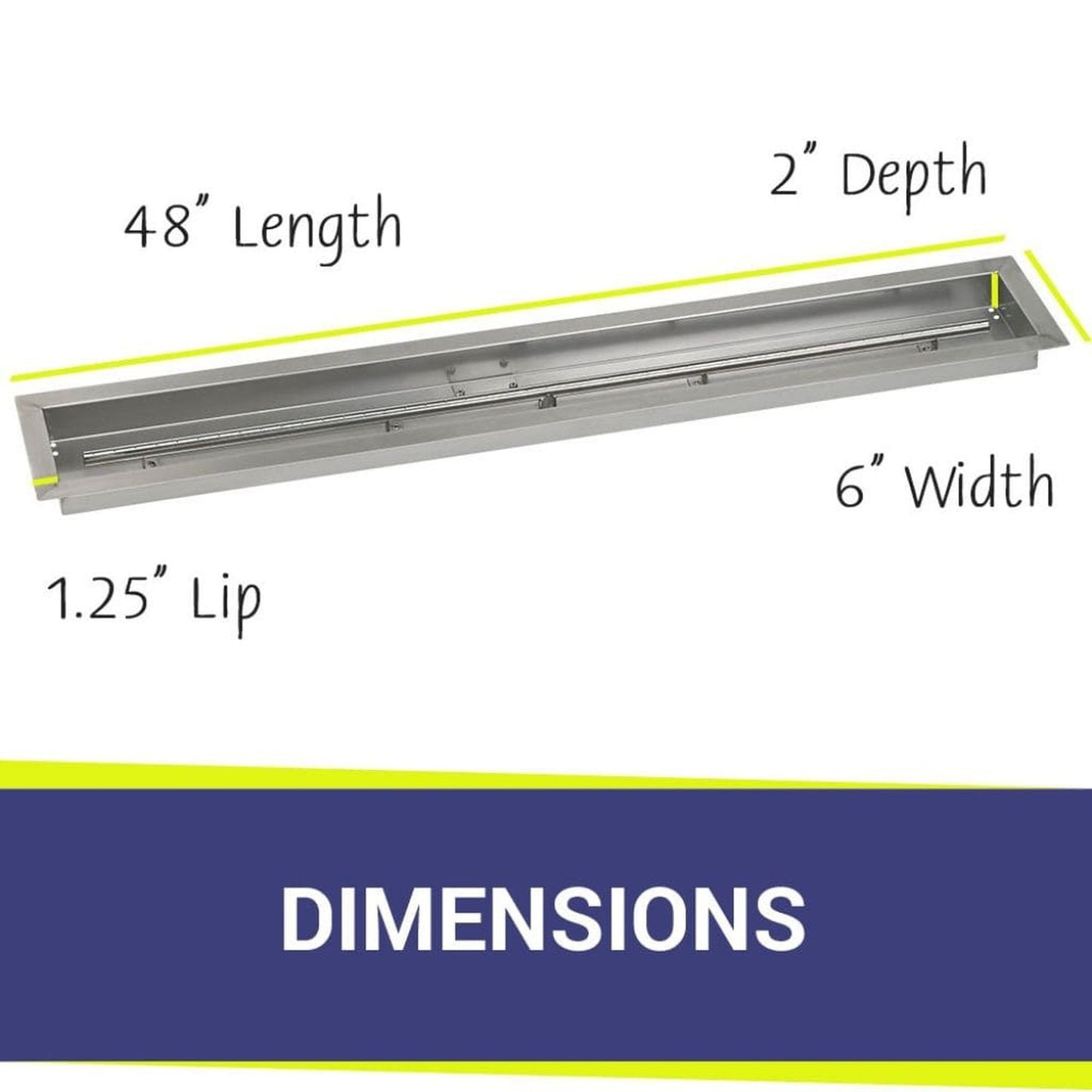

• Dimensions: 48" L x 6" W x 2" D x 1 1/4" Flange
• Fire glass capacity: 40 lbs. of fire glass required (not included)
• Special Feature: Drilled holes (not punched) in order to prevent whistling
• Includes: 1/2 bottom gas inlet for easy installation

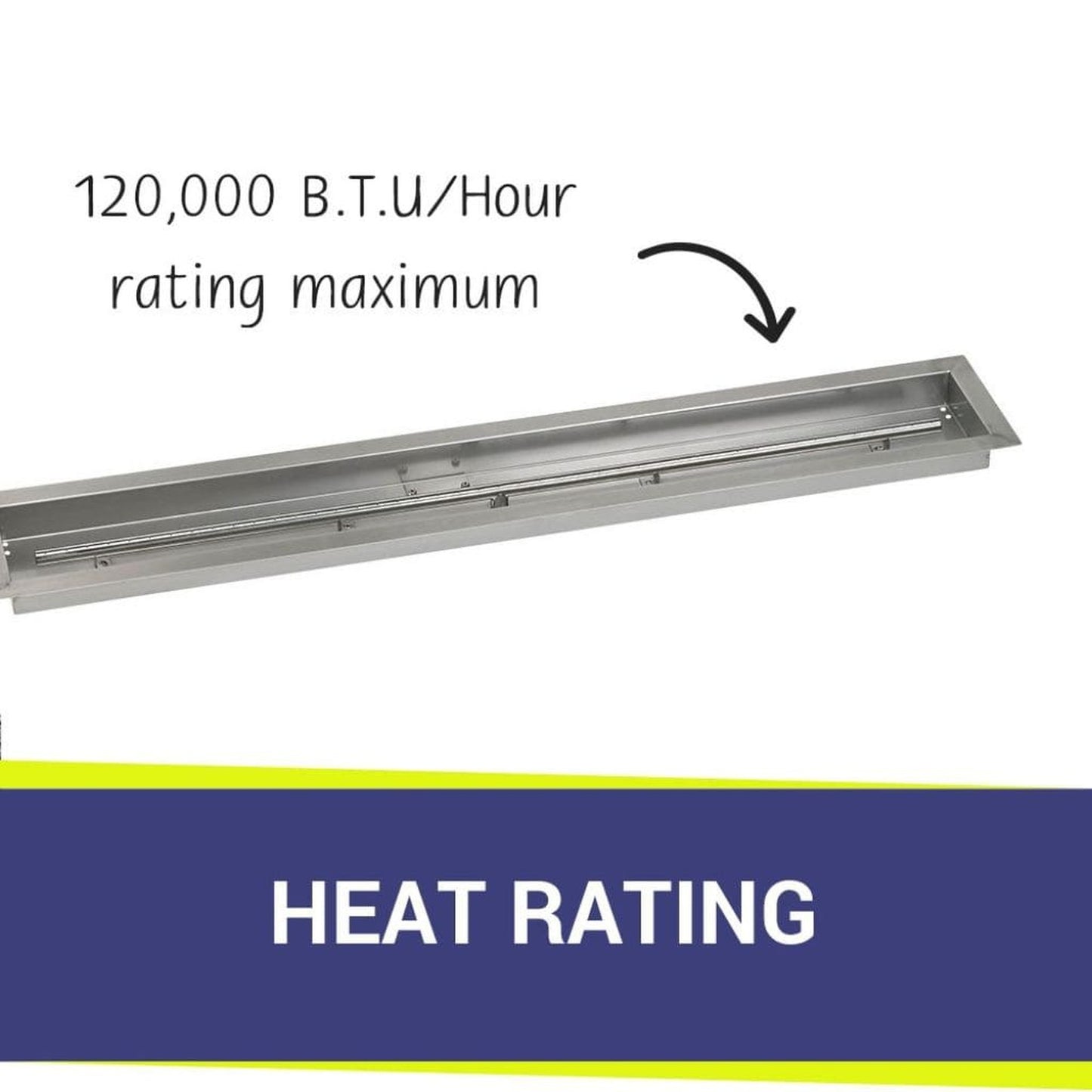

• Burner Heat rating: 120,000 B.T.U/Hour rating maximum
• For use in: To be used in outdoor, vented, whole house propane gas and natural gas fire features ONLY
• Installation: Certified NFI Professional Recommended
• Flame / Heat Sense: Thermopile
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• S.I.T. Max. Btu Output: 290K Btu/hr.
• Inlet / Outlet Size: 1/2" FPT
• Operating Voltage: 24 volts ac
• Inlet Gas Press: Limit: 2.0 PSI
• Valve Enclosure Dim.: 4 3/8" x 4 3/8" x 4 3/8" (tall)
• Warranty: Pan & Burner - 5-year limited warranty, Kit - 1-year limited warranty
• Cutout Size & Recommended Fire Ring: Download Now
• Prop. 65 Warning: This product may contain compounds known to the state of California to cause cancer, birth defects, or other reproductive harm.

Download:

• User Manual
