American Fireglass

SS-LCB-30EIPS

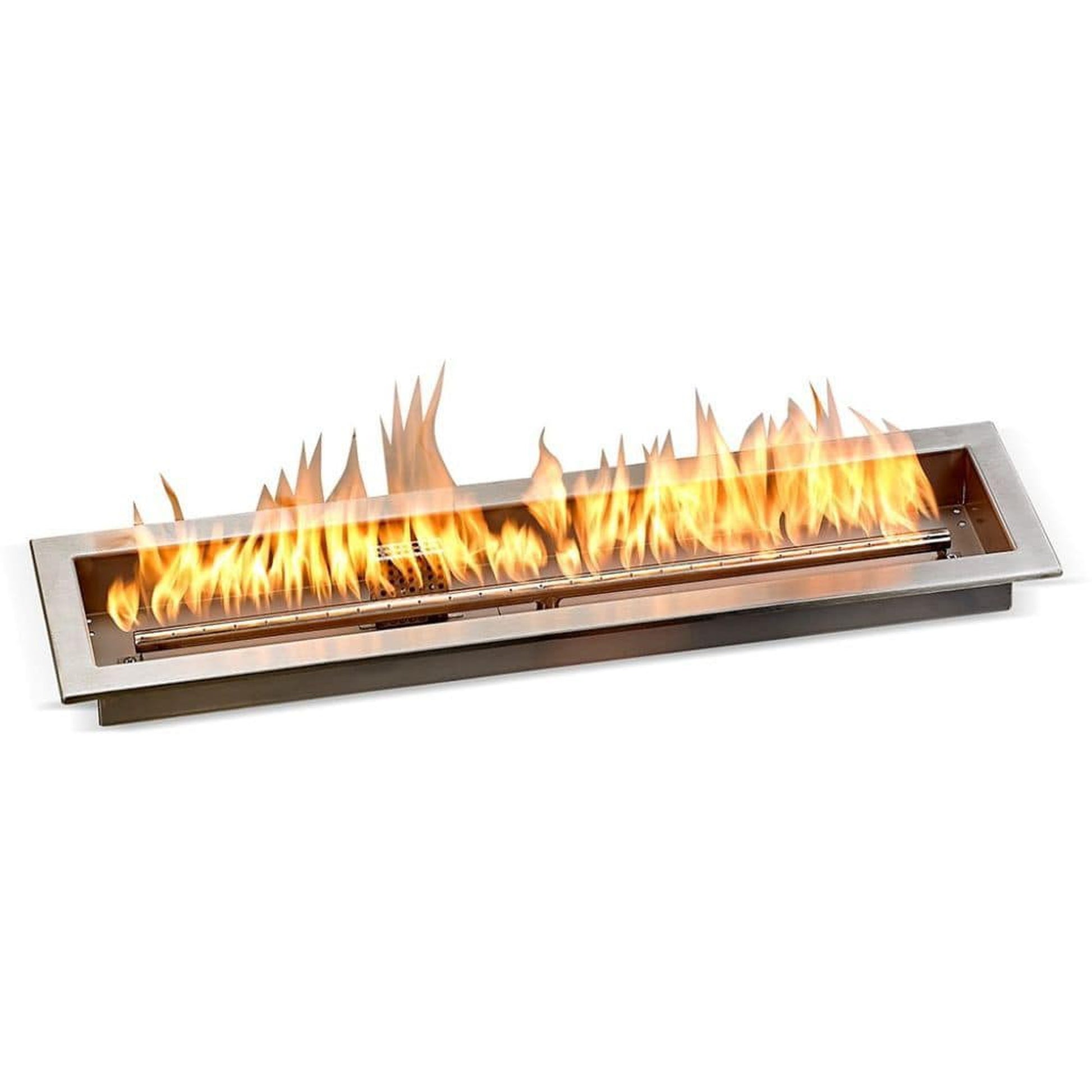

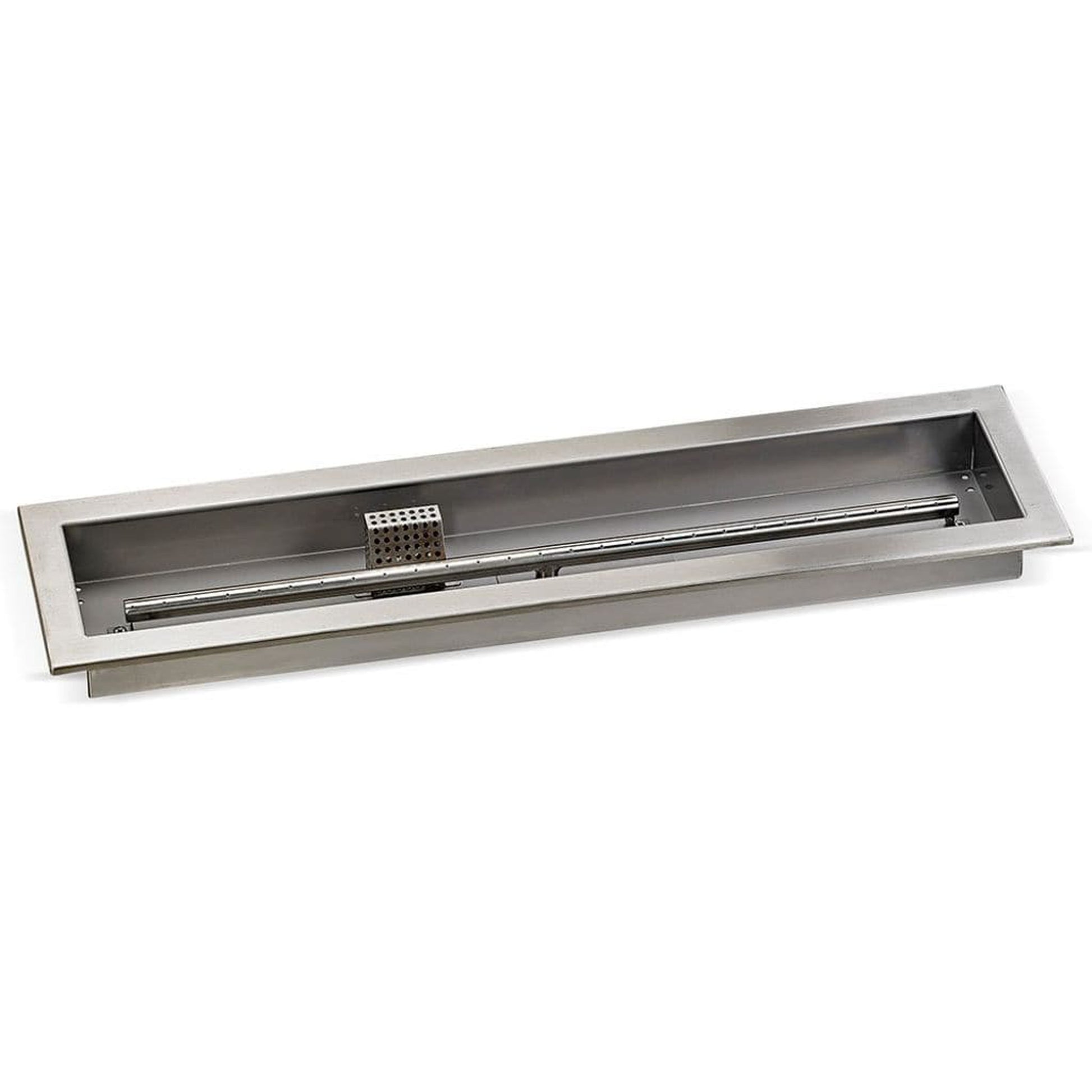

American Fireglass Stainless Steel Linear Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified

Notify me when this product is available:

Size: 30" x 6"


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

American Fire Glass is a pioneer in the fireplace/fire pit glass and burner products industry. What sets us apart is our state-of-the-art manufacturing process, stringent quality control, great customer service, as well as our unique business model.

American Fire Glass has a vast network of resellers spread across a wide geographical area, giving our customers easy access to our top-quality fire glass and hearth products.

We take great pride in the fact that nearly all reputed hearth products dealers, both conventional and e-commerce, across Canada and the United States, sell American Fire Glass products.

At American Fire Glass, we strive to achieve excellence in everything we do, including: using the best quality materials, employing state-of-the-art manufacturing processes, implementing stringent quality controls and recruiting the best people to man all the processes. We leave no stone unturned in our quest to be the very best!.

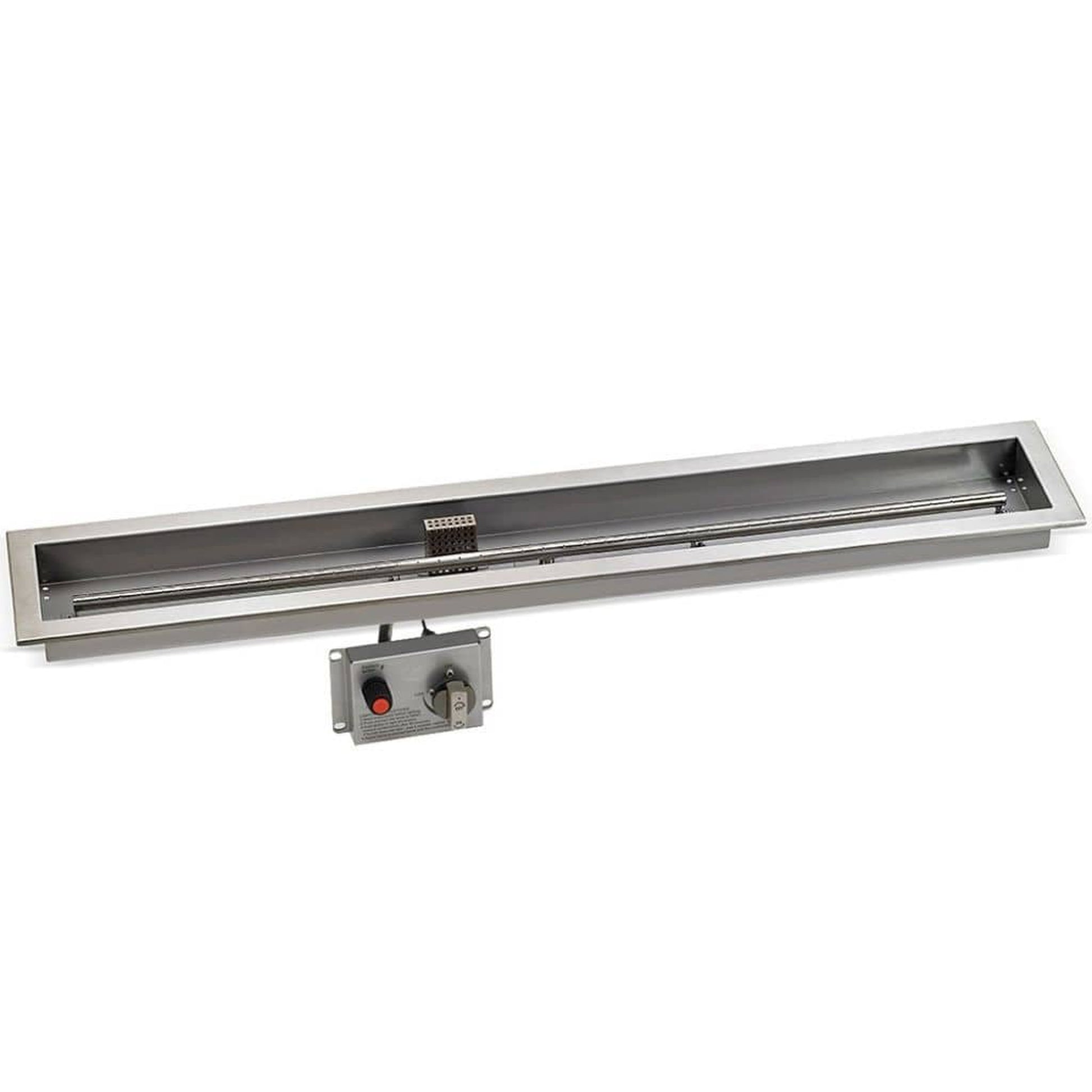

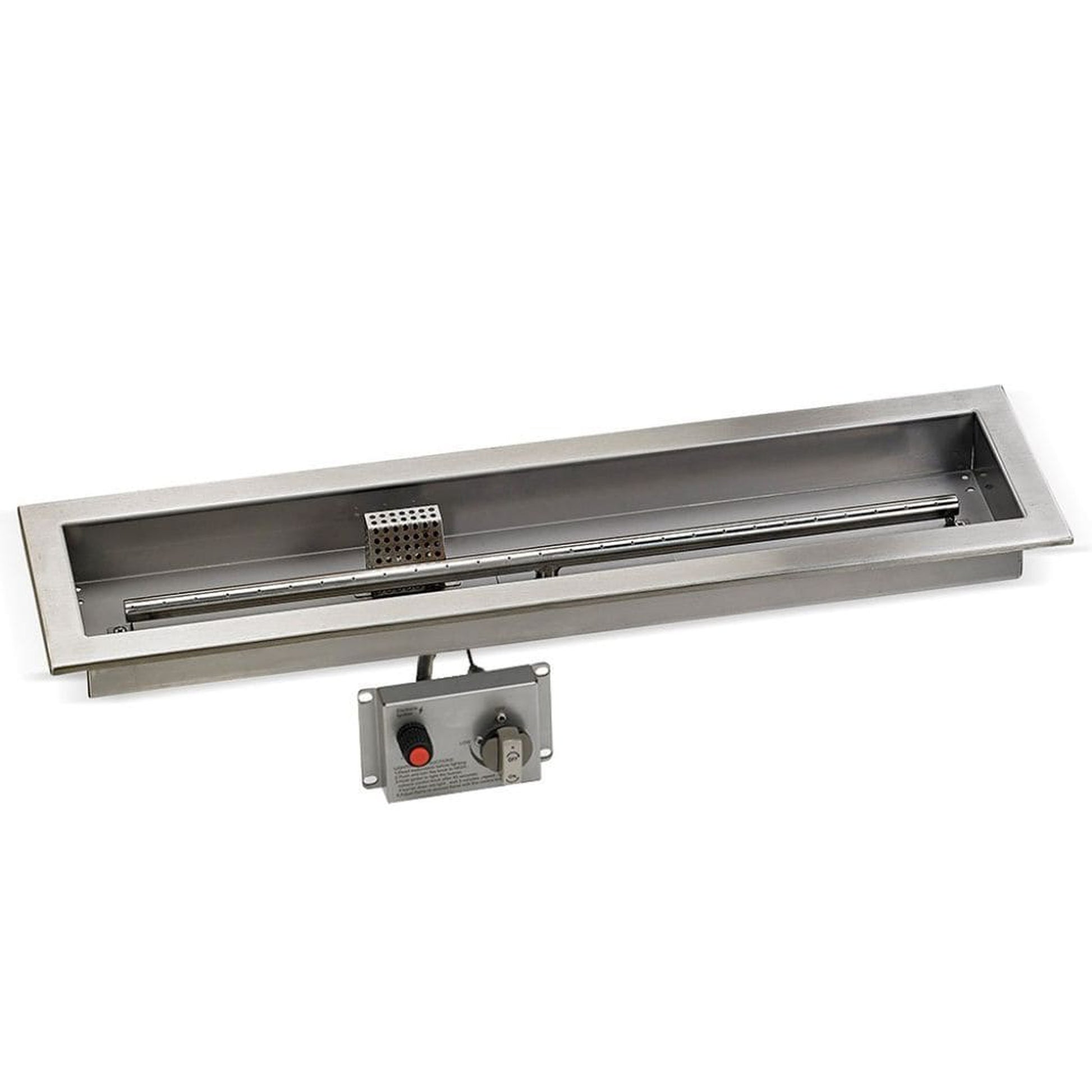

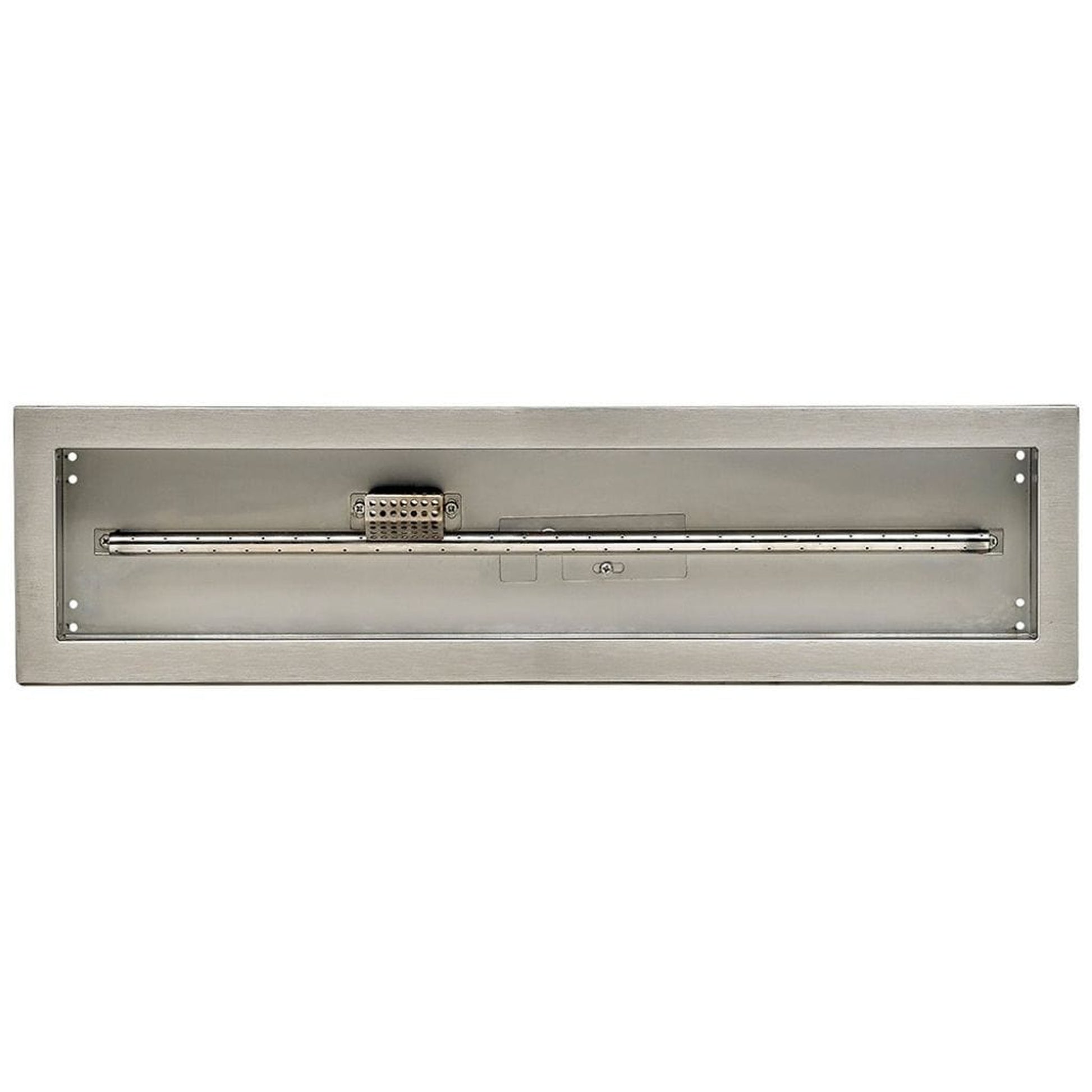

Stainless Steel Linear Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified

When designing a Fire Feature, Safety should always be your number one concern. The CSA-certified Fire Pit Pan Burner product line from American Fire Glass is designed and crafted to be compliant with international CSA certifications.

Our rectangular CSA drop-in pan with an electronic ignition kit comes fully equipped with all the following components:

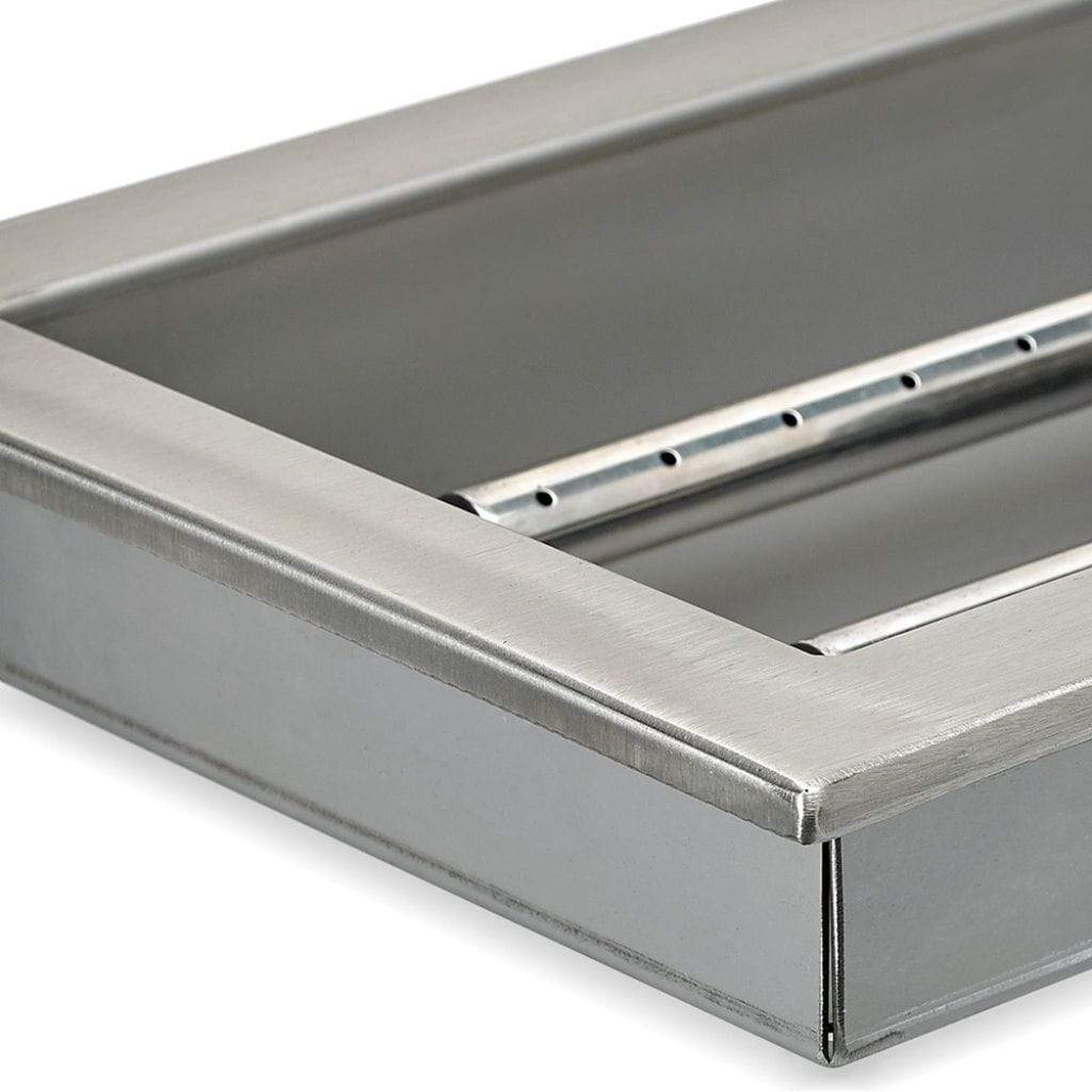

Stainless Steel: Manufactured using rust-resistant 304 stainless steel, this fire pit burner pan is built for longevity and performance.

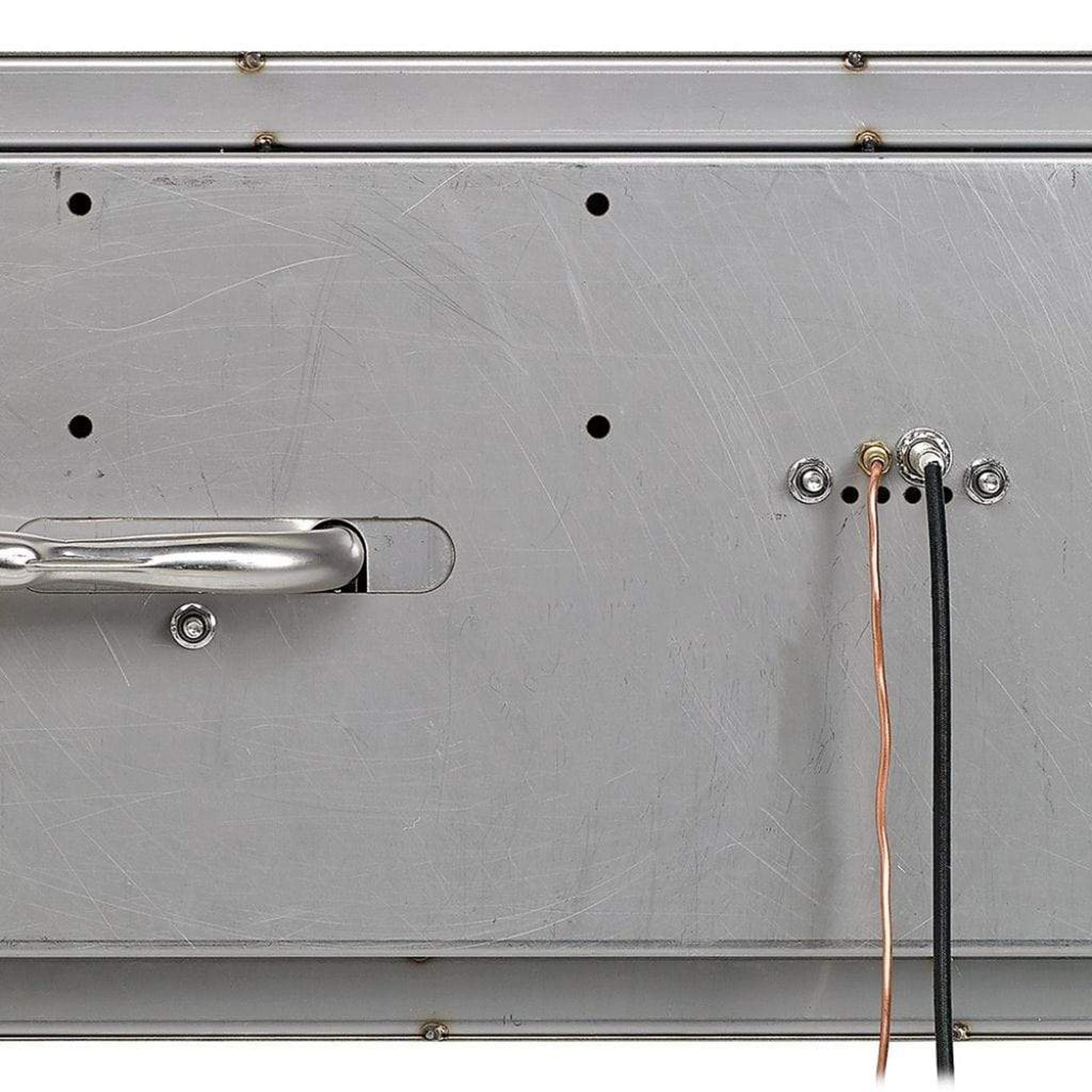

Flame Sensor: Automatic flame sensor “thermocouple” detects the presence of flames and closes the gas line if the flames are extinguished.

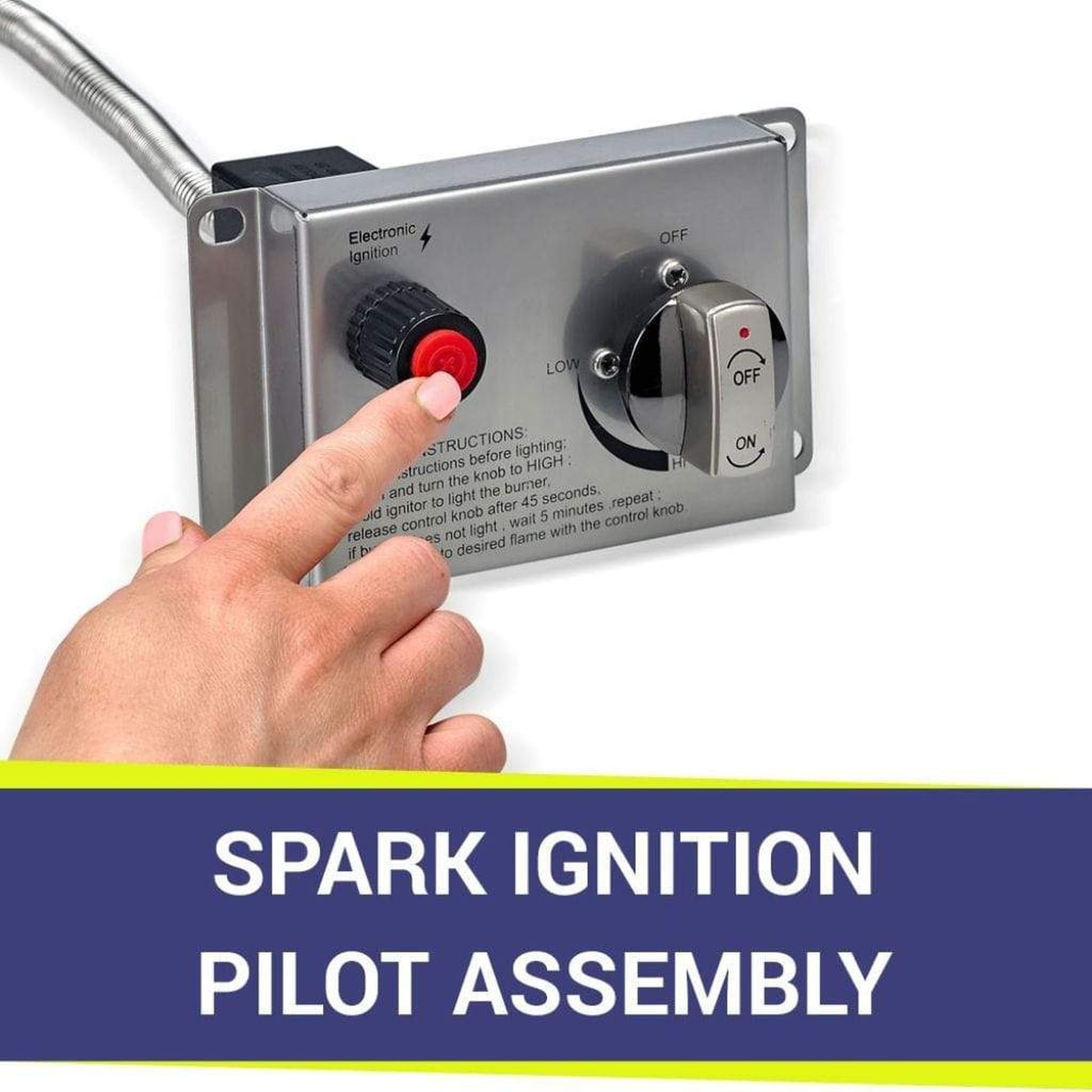

Spark Ignition Pilot Assembly: Battery-powered push button ignites the flame using a rapid ignition and thermocouple.

Natural Gas or Propane: Units are shipped ready to install using Propane Gas. Natural Gas conversion kits are available.

CSA Certified: Certified under ANS Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliance.

All CSA Certified Fire Pit Pan Kits, include the following

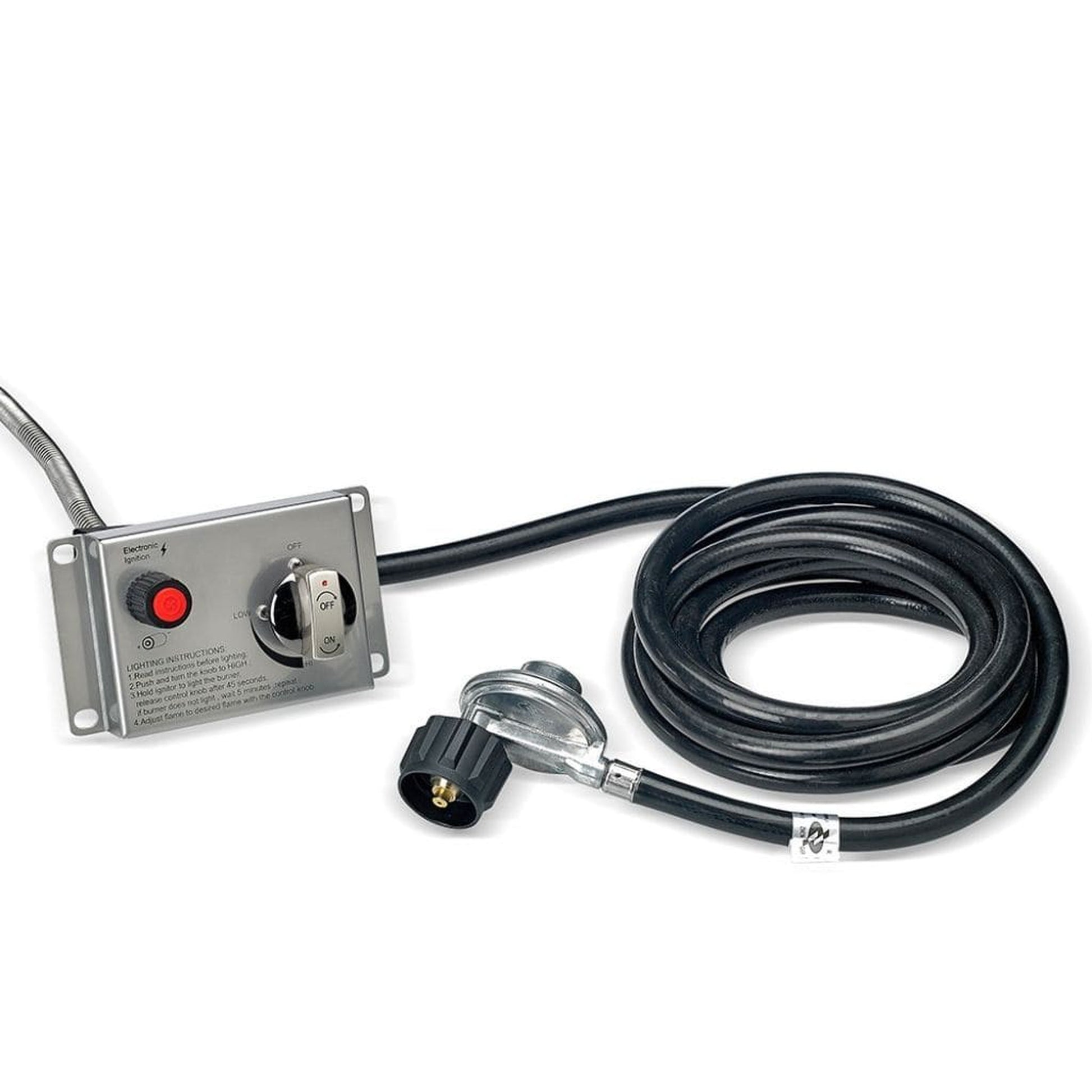

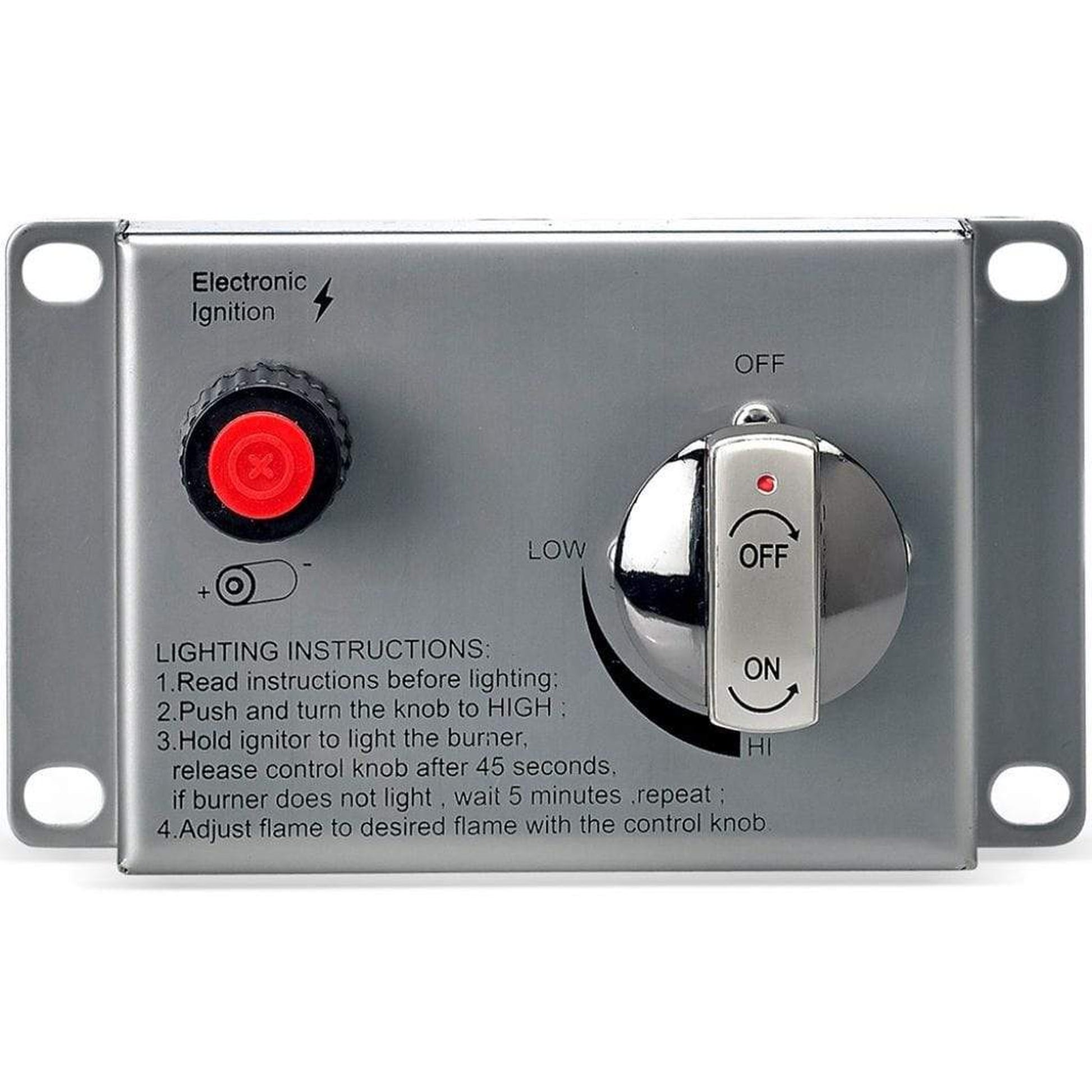

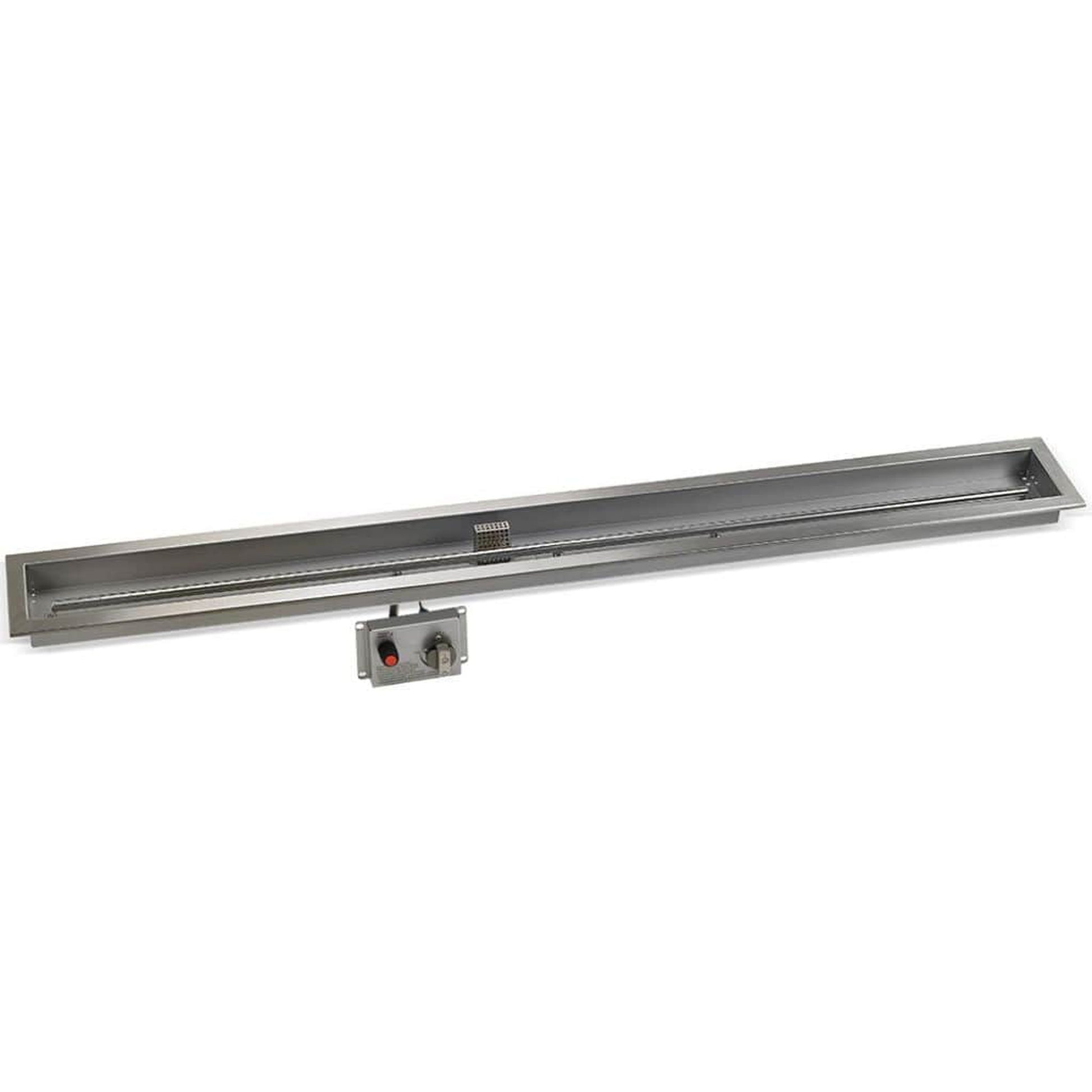

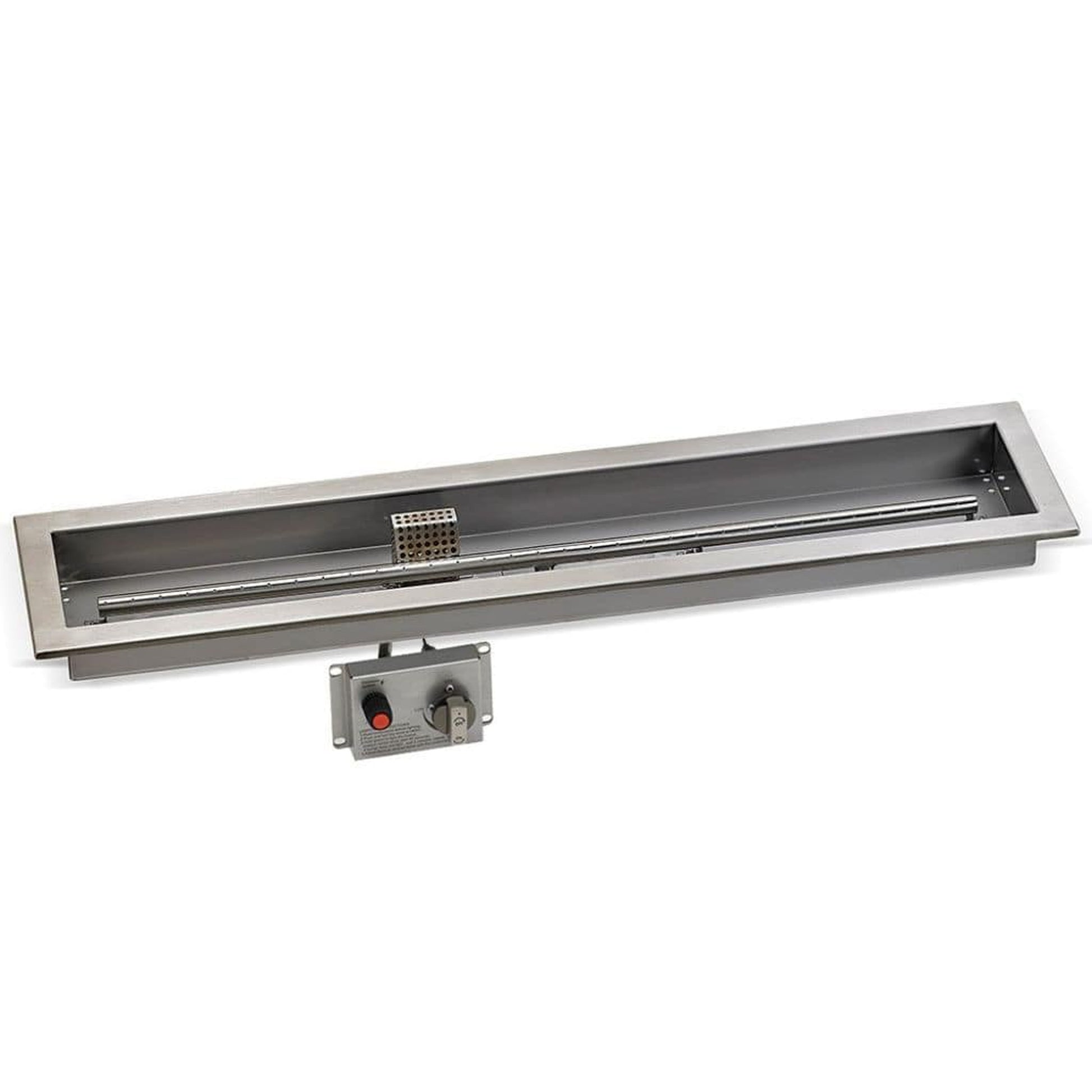

  • Flame and Ignition Control Panel
  • Flame Sensing Safety Technology
  • Push Button Rapid Spark igniter
  • Adjustable Flame Control
  • CSA Certified

Stainless Steel Linear Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified Specifications



Specifications:

  • Material: 100% 304 Stainless Steel (handcrafted)

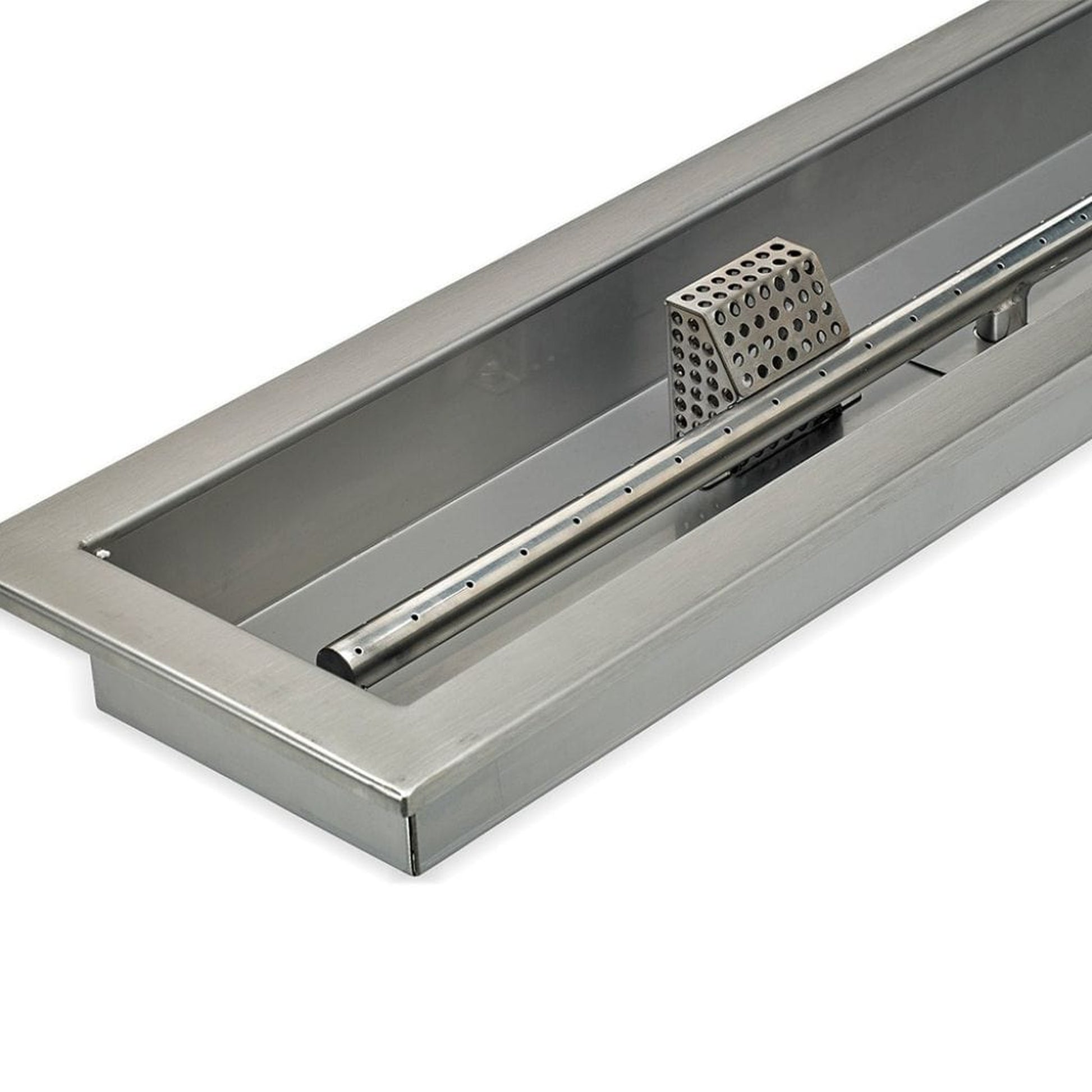

  • Ring Burner Features: Drilled holes (not punched) in order to prevent whistling
  • For use in To be used in outdoor, vented, natural gas or propane fire features ONLY
  • Installation: Certified NFI Professional Recommended
  • Flame / Heat Sense: Thermocouple Auto Gas Shut Off
  • Ignition Type: Push Button Spark Ignition
  • Ignition Sequence: Rapid-Fire Spark Ignition
  • Gas Type: Propane, convertible to natural gas
  • Battery Size: AA
  • Prop. 65 Warning: This product may contain compounds known to the state of California to cause cancer, birth defects, or other reproductive harm.
  • CSA Certified: Certified under ANS Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliance

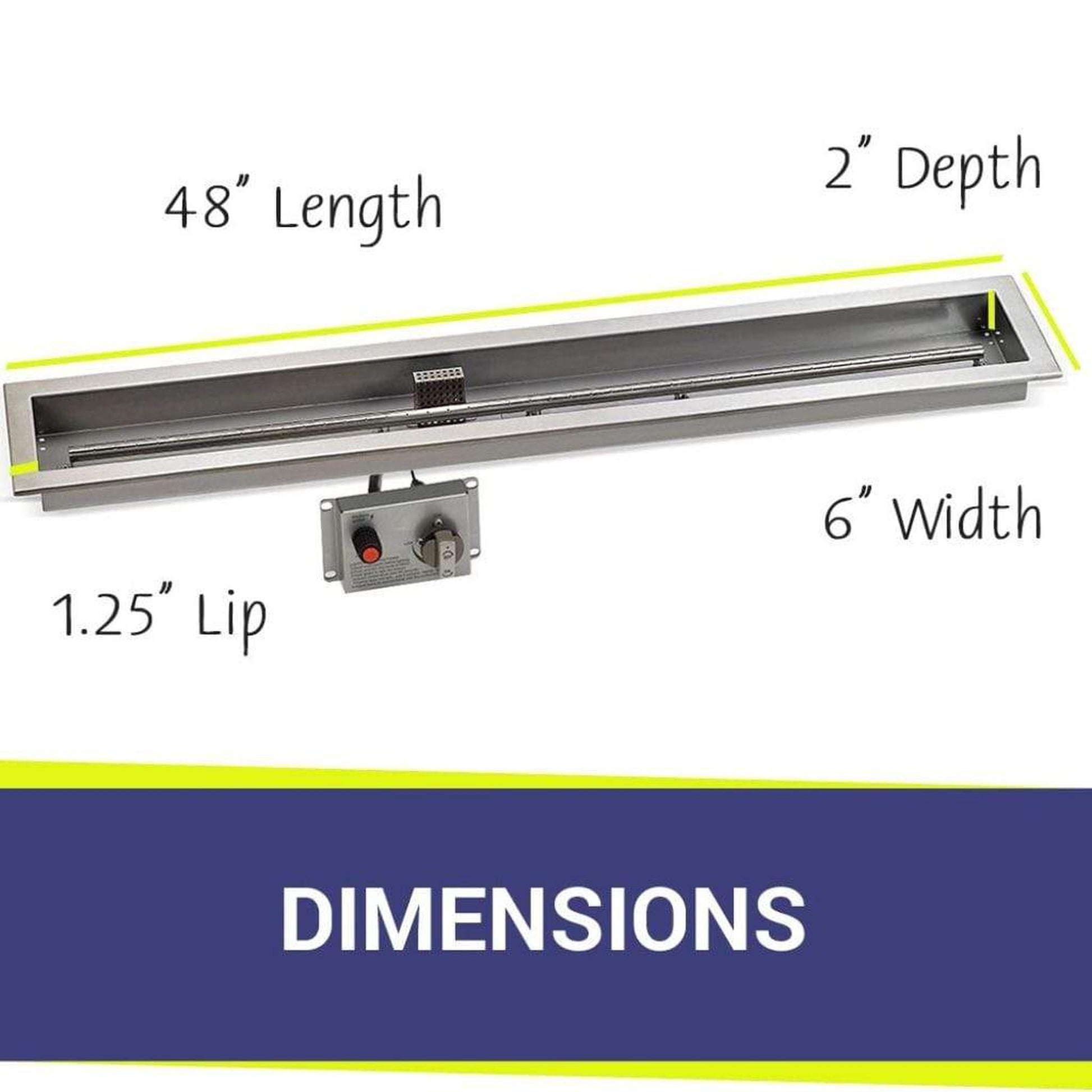

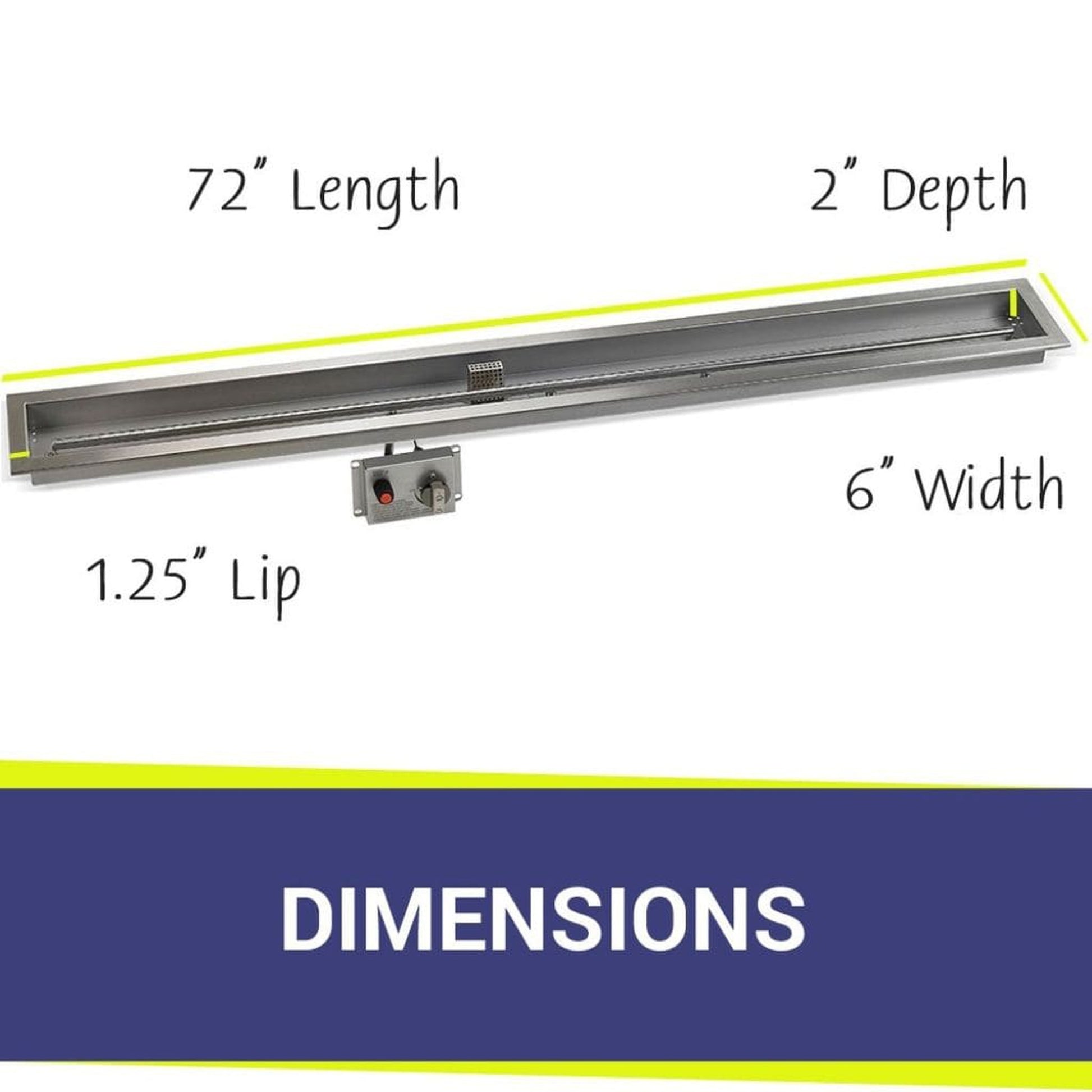

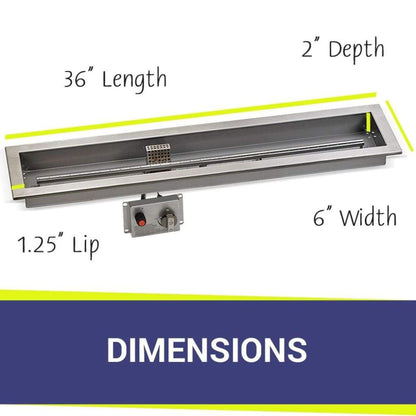

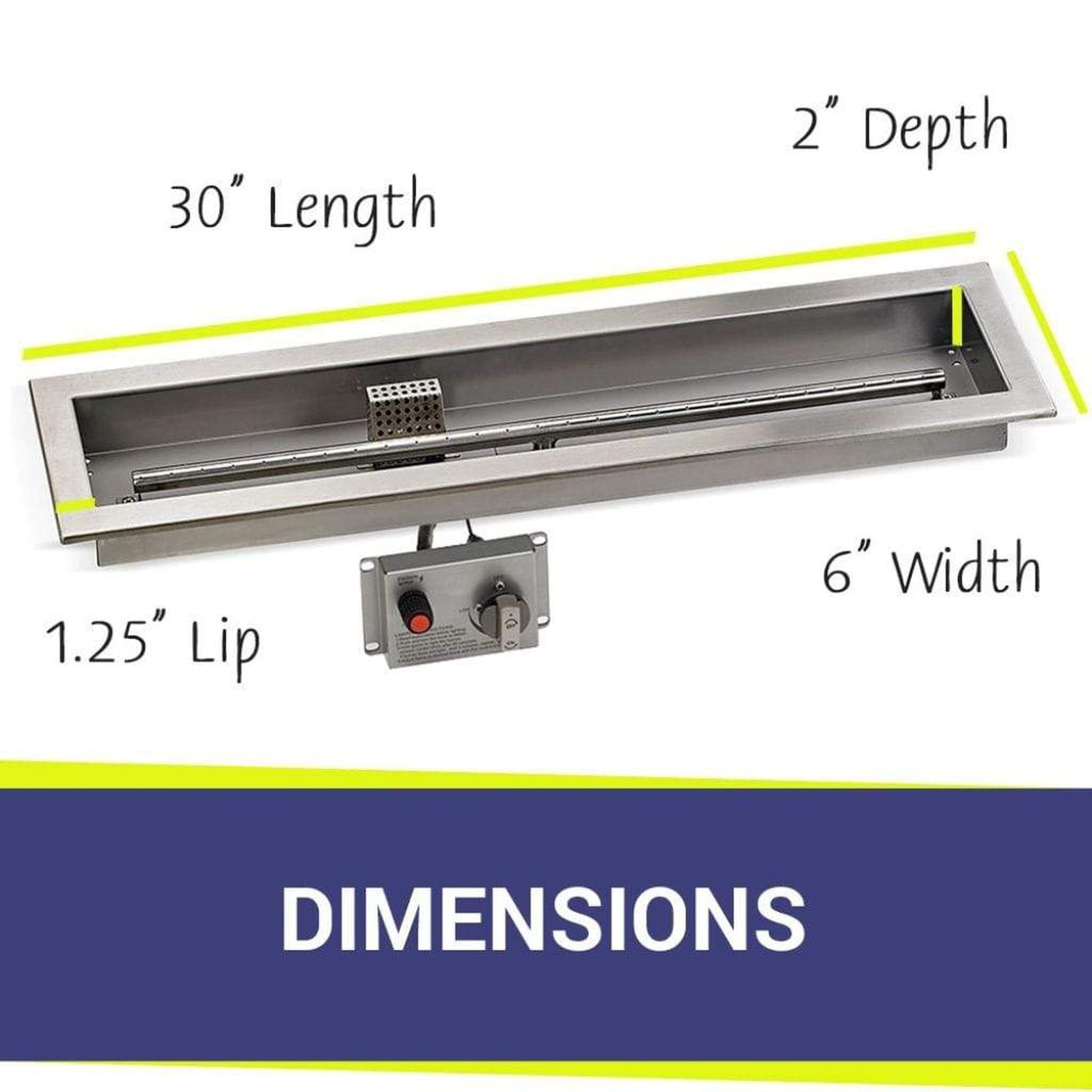

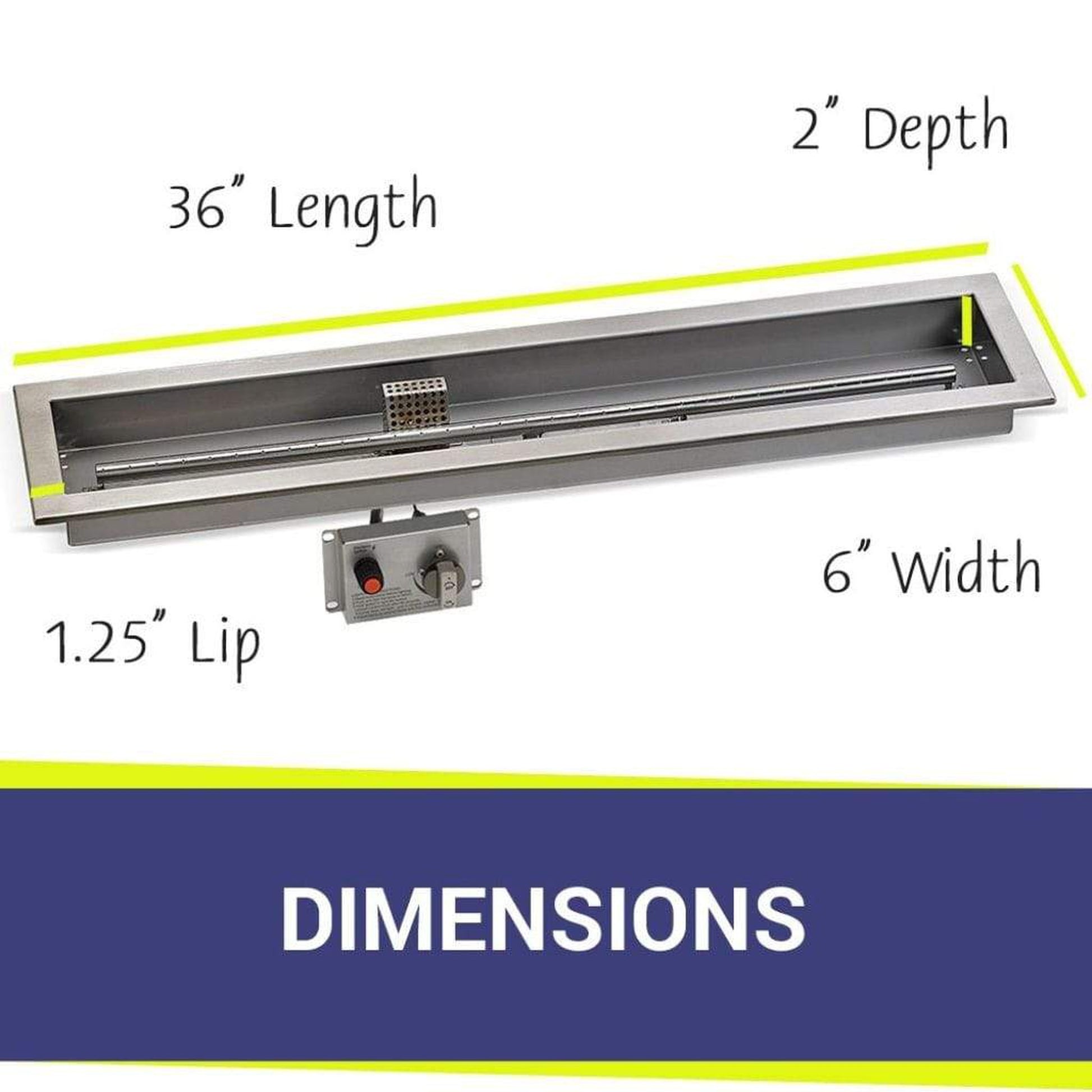

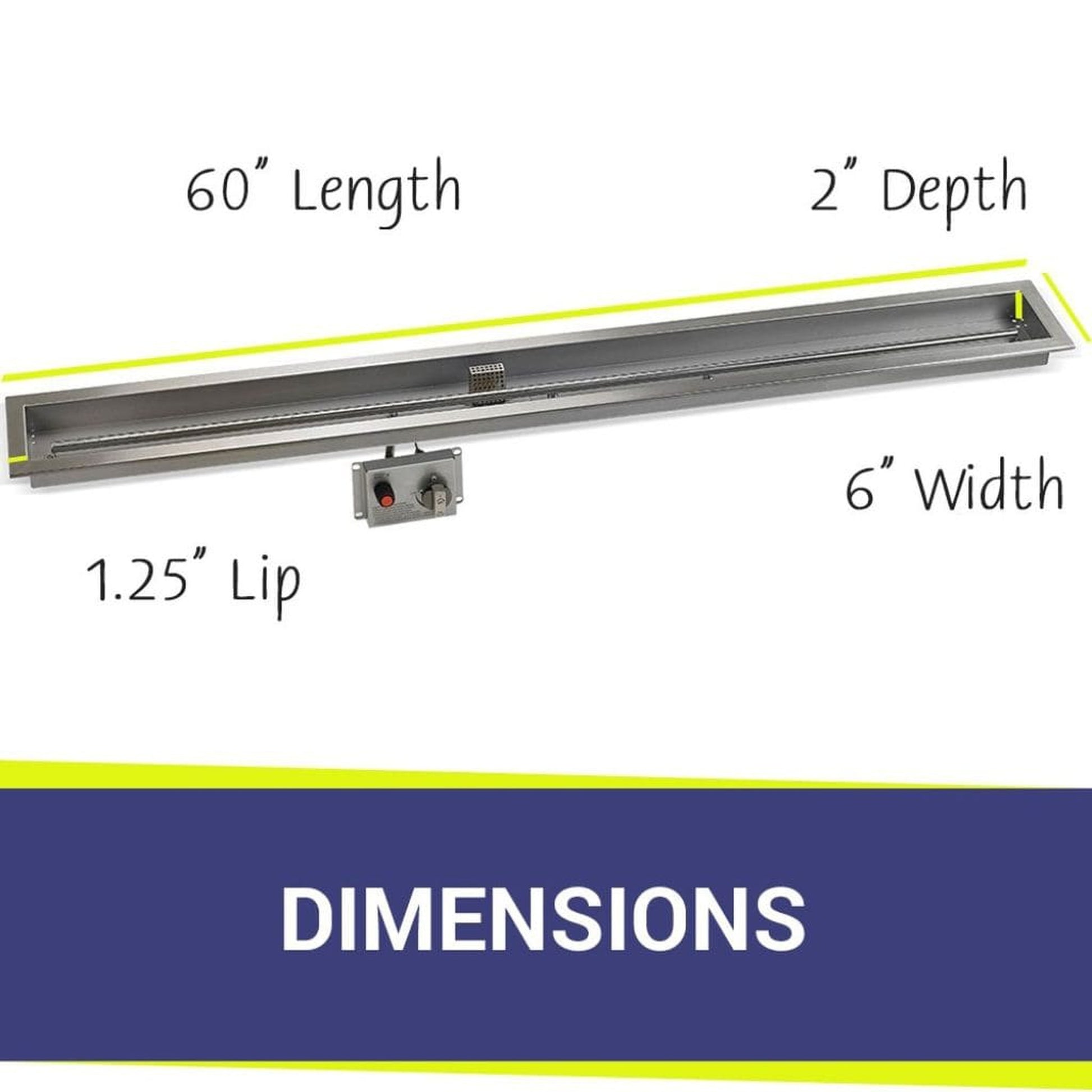

30" x 6" 36" x 6" 48" x 6" 60" x 6" 72" x 6"

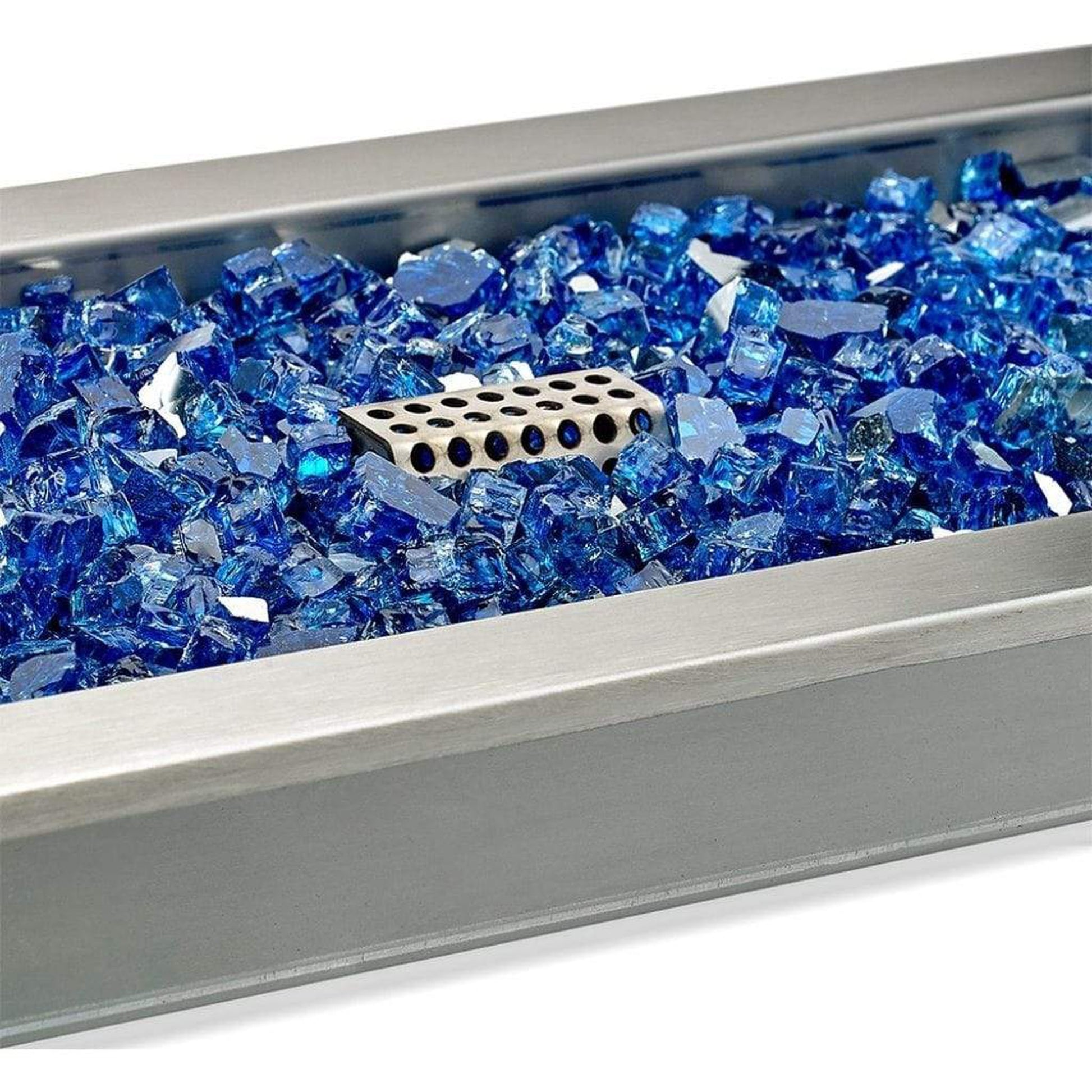

Fire Glass Capacity 25 lbs. 35 lbs. 40 lbs. 50 lbs. 60 lbs.
Burner Heat Rating 65,000  B.T.U/Hour rating maximum 65,000  B.T.U/Hour rating maximum 95,000  B.T.U/Hour rating maximum 145,000  B.T.U/Hour rating maximum  145,000  B.T.U/Hour rating maximum
Cut out Size Ring  31" x 7" 37" x 7" 49" x 7" 61" x 7" 73" x 7"

*Fire glass not included
