SKU:3701W-WM1-NG-DMI-TI

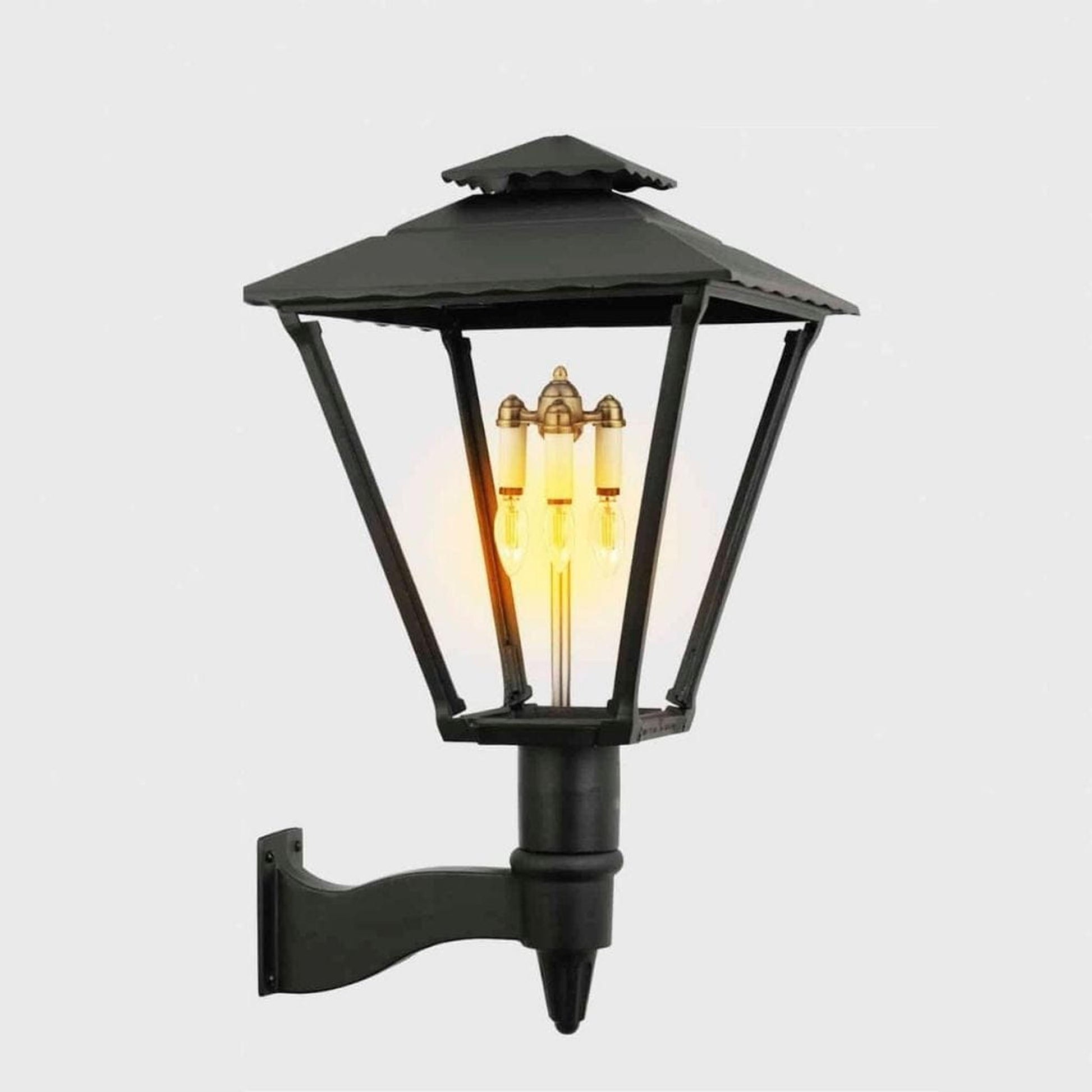

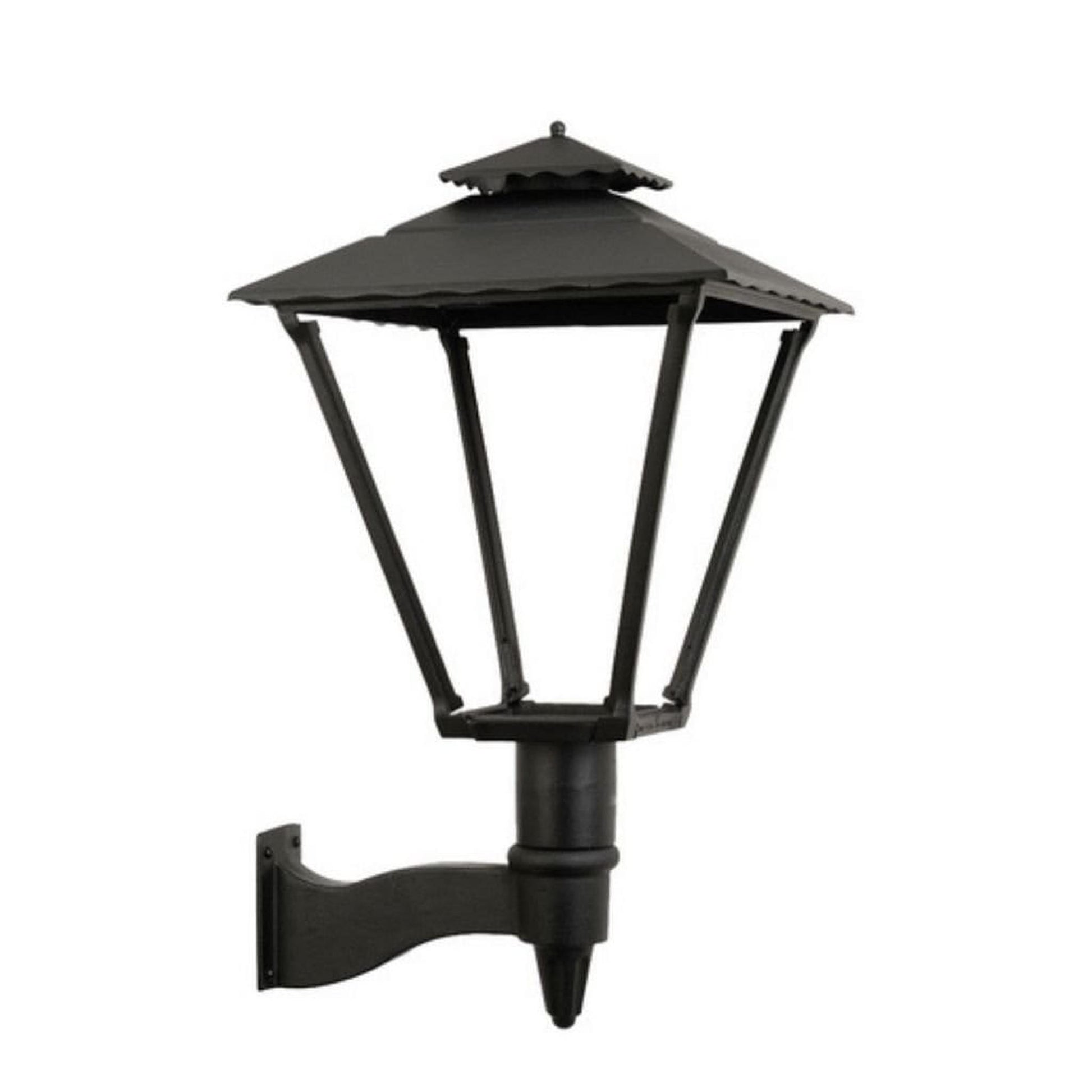

American Gas Lamp Works 18" 3701W Old Allegheny Aluminum Wall Mount Mid-Size Gas Light Head

American Gas Lamp Works 18" 3701W Old Allegheny Aluminum Wall Mount Mid-Size Gas Light Head

Regular price $1,250.00
Regular price Sale price $1,250.00
Sale Sold out
Fuel Type
Light Assembly
Finish
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Elegant yet rugged, our Old Allegheny gas lamp was a familiar fixture in early American cities and settlements. Its large, four-sided design conveys functionality while its foundry-cast construction can withstand the gales of the Eastern Seaboard. Simple lines make the Old Allegheny gas or electric lamp ideal for traditional styles, especially when enhanced by the subtle sparkle of beveled panes.

**This lamp includes glass panes and finial of your choice, please go to this link to select the accessories you like to add to the lamp for free Glass Panes and Finial Choices.** After selecting the accessories, please contact us to add them to your order customization.

Features

  • 4-sided, sand cast aluminum
  • Solid brass CSA-approved shut-off valve
  • Choice of flat or beveled tempered glass panes
  • Choice of decorative finial
  • Universal wall bracket included
  • Available in ten finishes


Specifications

Lamp Model 3701W
Lamp Type
Mid-Size
Installation Type Wall Mount
Fuel Type Natural Gas/Liquid Propane
Width 18.5"
Depth 20.75"
Height 34"
BTU/Hour Dual Inverted - NG: 2,200 LP: 2,800
Triple Inverted - NG: 3,100 LP: 3,536
Quad Inverted - NG: 4,399 - LP: 4,366
Single Upright - NG: 2,800 LP: 2,800
Single Open Flame - NG: 3,100
Gas Use/Month Dual Inverted - NG: 1,584 cu.ft. LP: 2,016 cu.ft.
Triple Inverted - NG: 2,232 cu.ft. LP: 2,546 cu.ft.
Quad Inverted - NG: 3,167 cu.ft. LP: 3,144 cu.ft.
Single Upright - NG: 2,016 cu.ft. LP: 2,016 cu.ft.
Single Open Flame - NG: 2,232 cu.ft.


Included Items

Included Wall Mount

Universal Wall Bracket (WM1)
  • Simple yet sophisticated design can be used with any style of architecture.
  • Sand cast aluminum. Available in all finishes.
  • Bracket measures 14" (W) x 7.25" (H)
  • Footprint measures 4" (W) x 6" (H)

Glass Panes - Select One

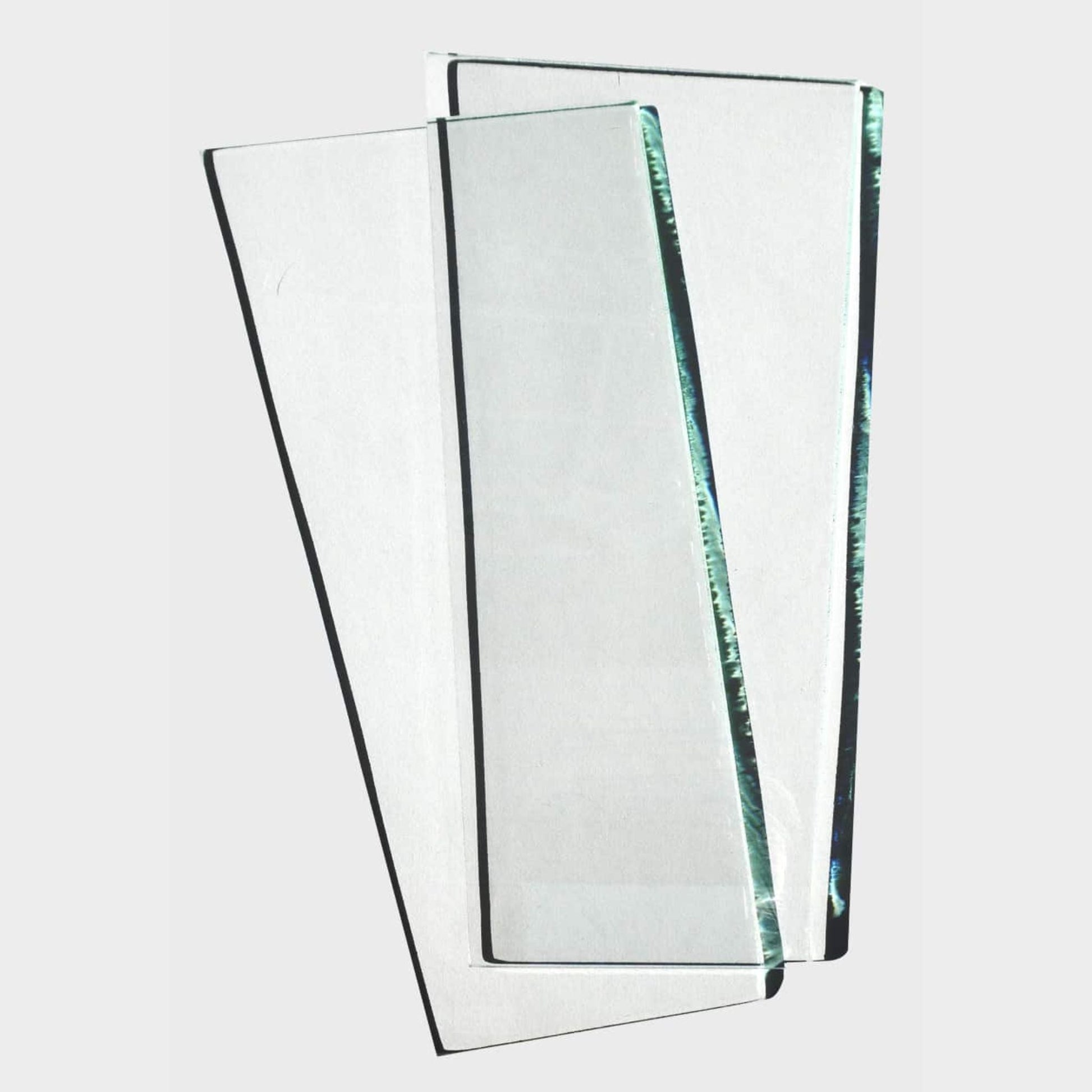

Flat Tempered Glass Panes (G2T)
  • Complete set included with the lamp.
  • Size: 14 1/8" (Top W.), 6 1/8" (Base W.), 15 5/8" (H)
Beveled Tempered Glass Panes (G2B)
  • Choose beveled, tempered glass to add a dash of sparkle to any of our Classic or European series lamps.
  • Size: 14 1/8" (Top W.), 6 1/8" (Base W.), 15 5/8" (H)


Light Assembly - Select One

Click to see available options

Inverted Gas Mantle

Invented by Carl Auer von Welsbach in the 1880s, gas mantle lighting lined the streets of North America & Europe for most of the late 19th & early 20th centuries. Gas mantles provide a solid, bright white light when fueled by gas and stay on even when your electric power goes out.

  • Available in dual (DMI), triple (TMI) and quad (QMI) inverted configurations.
  • For use with natural gas or liquid propane.
  • Burners include venturi tube with air shutter ring, burner head, and ceramic tips.

Dual Inverted Gas Mantle (DMI)

Triple Inverted Gas Mantle (TMI)

Quad Inverted Gas Mantle (QMI)

Single Upright Gas Mantle

Our Upright Gas Mantle Burner with Glass Chimney creates a solid, bright white light when fueled by gas and stays on even when your electric power goes out.

  • Available for use with natural gas or liquid propane.
  • Glass chimney and brass chimney holder (pictured) included with lamp purchase.
  • Upright mantle (UM3) required; included with lamp purchase.

Single Upright Gas Mantle with Chimney (UPB)

Maple Leaf Open Flame Gas Burners

Create a warm ambiance with an Open Flame burner. Designed specifically for use with American Gas Lamp Works lamp models, our open flame burners provide an impressive flame inside your natural gas lamp.

  • Available for use with natural gas only.
  • Single open flame burner includes an aluminum wind guard to provide extra protection from the wind around the burner.
  • Compatible with all American Gas Lamp Works lamp models.

Single Open Flame Burner (OW3)

Dual Open Flame Burner (OFD)

Single Open Flame Burner w/ Automatic Electric Ignition (Upgrade)

Our proprietary automatic electronic ignition system will automatically sense and relight your gas lamp upon blowout any time of day. It also senses sunlight and can turn your lanterns on right at dusk for evening enjoyment.

  • Requires both Natural Gas and 120V electric be run to each fixture
  • Allows you to control the flame with a light switch or a timer.
  • Compatible with all American Gas Lamp Works lamp models

The LampLighter Electric Igniter (IG1)


Finial - Select One

Click to see available options
Universal (F01)
  • Our Universal finial provides a simple finishing touch to any of our gas or electric lamps.
  • Sand cast aluminum. Available in any of our powder finishes.
  • Size: .5" (W) x .65" (H)
Ball – Small (F03; F3P)
  • This brass finial is a classic design that goes well with any lamp style.
  • Available in brass or any of our powder finishes.
  • Size: 1" (W) x 1.5" (H)
Urn (F05; F5P)
  • Our Urn finial adds graceful detail to any gas or electric lamp.
  • Available in brass or in any of our powder finishes.
  • Size: 1.25" (W) x 2.75" (H)
Eagle (F06)
  • Add a touch of patriotism to your gas or electric lamp with our small Eagle finial.
  • Available brass plated only.
  • Size: 4" (W) x 2.5" (H)
Loop (F07; F7P)
  • Add historic charm to your gas or electric lamp with our traditional Loop finial.
  • Available in brass or in any of our powder finishes.
  • Size: 2" (W) x 2.25" (H)
Acorn (F08; F8P)
  • This detailed acorn finial, symbolizing luck and prosperity, is a classic addition to any of our gas or electric lamps.
  • Available brass plated or in any of our powder finishes.
  • Size: .75" (W) x 1.5" (H)

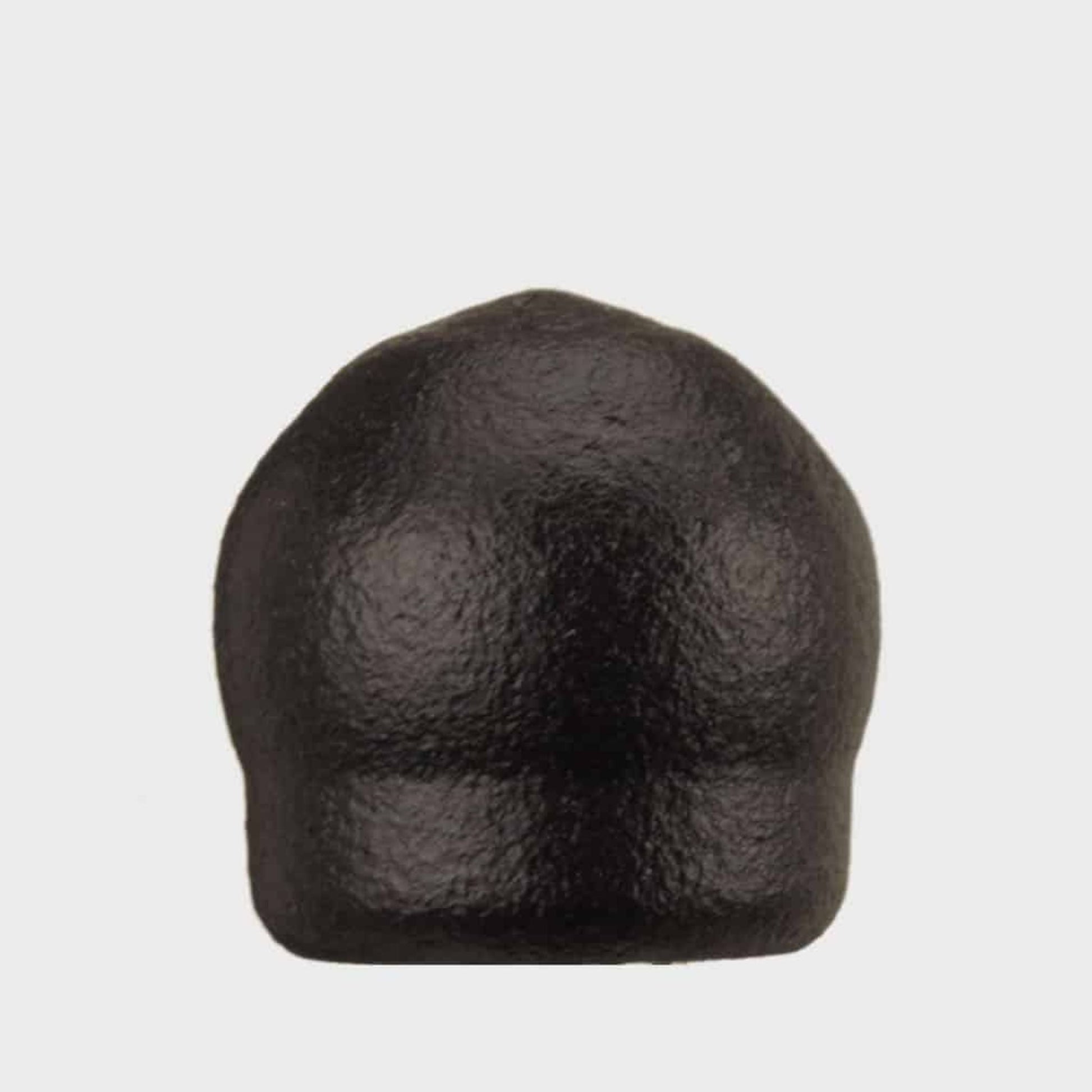

Small Cast Acorn (F09)
  • Our Cast Acorn finial provides an elegant finishing touch to any gas or electric lamp.
  • Sand cast aluminum. Available in all powder finishes.
  • Size: 2" (W) x 4" (H)
Large Cast Acorn w/ Guard (RS10)
  • Our Cast Acorn with Guard finial provides an elegant finishing touch to any gas or electric lamp.
  • Guard prevents rain from entering lamp on certain lamp models.
  • Sand cast aluminum. Available in all powder finishes.
  • Size: 4.5" (W) x 5" (H)
Bishop (F10)
  • Add interest to your gas or electric lamp by choosing a Bishop finial.
  • Sand cast aluminum. Available in all powder finishes.
  • Size: 1.5" (W) x 2.25" (H)
Fleur De Lis (F11)
  • Add a touch of Europe to your gas or electric lamp with our sophisticated Fleur de Lis finial.
  • Sand cast aluminum. Available in all powder finishes.
  • Size: 2.5" (W) x 4" (H)
Spike (F12)
  • Add dramatic flair to your gas or electric lamp with our Spike finial.
  • Sand cast aluminum. Available in any of our powder finishes.
  • Size: 1.5" (W) x 4" (H)
Cast Eagle (F13)
  • This larger version of our Eagle finial adds a patriotic touch and pairs well with any of our gas or electric lamps.
  • Sand cast aluminum. Available in any of our powder finishes.
  • Size: 4" (W) x 3" (H)


Finish - Select One

Click to see available options

Timeless Black (TI)

Architectural Bronze (AB)

Bronze (BR)

Bronze Age (BA)*

Charcoal (CH)

Noble Bronze (NB)

Nouveu Silver (NS)

Penny Vein (PV)*

Weather Green (WG)*

White (WH)

*These finishes are specially textured and non-returnable.


NOTE: Selected finish will be applied to the selected aluminum finial and included wall mount as well.


Optional Upgrades & Accessories

Upgrade Glass Panes

Click to see glass panes options
Frosted Tempered Glass Panes (G2F)
  • Size: 14 1/8" (Top W.), 6 1/8" (Base W.), 15 5/8" (H)
  • - (Product image available soon.)


Warranty

American Gas Lamp Works warrants that its gas lighting fixtures will be free from defects in material and workmanship from the date of manufacture by AGLW for the following periods:

Aluminum Housing Lifetime
Natural Gas Burner Assembly Five Years
Powder Coated Finish One Year against peeling/cracking
Glass/Mantle None


Documents & Files


Safety Notice

  • Depending on the type of illumination you choose, we recommend that you coordinate installation with trained and/or certified professionals. For outdoor gas lamps, please contact an experienced local plumber or professional gas lighting specialist. To locate a specialist, please refer to a local directory. For electric GasGlow® LED and Incandescent Candelabra Base lamps, we recommend that you coordinate installation with an experienced electrician for dependable service.
  • When renovating or building a new home, we recommend that you order your lamps early in the construction process so both the plumber and/or electrician are familiar with the lamps and their requirements at rough in.
