SKU:F5030

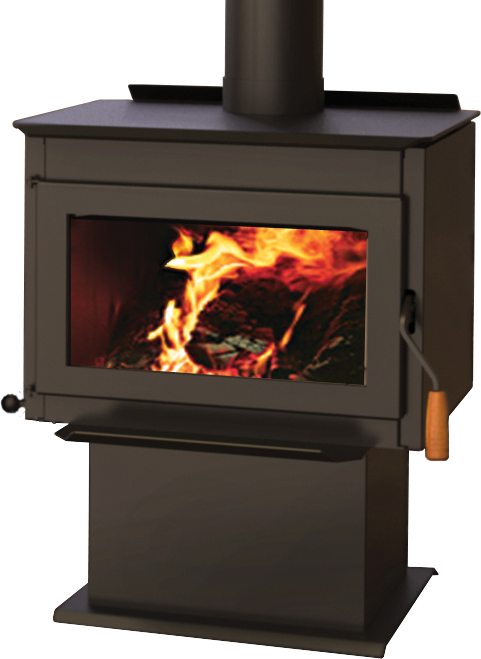

Country Stoves Sumter 1600 GL 24" Steel Door Wood Stove
Country Stoves Sumter 1600 GL 24" Steel Door Wood Stove
Blowers
Optional Accessories
-- Please Select --
No, Thank You
Outside Air Kits
Optional Accessories
Common Accessories
Optional Accessories
-- Please Select --
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
The Sumter 1600 GL freestanding wood stove offers a clean design with black painted finish.
What's Included
- 24" Steel Door Wood Stove
- Ceramic Glass
- Air Wash System
- Pedestal Base
Not Included (Sold Separately)
- Blower
- Outside Air Kits
- Spray Paint
Features
- Large rectangular door provides an expansive view of the burning fire.
- Ceramic glass for extra strength and optimum heat transfer.
- Unique, integral air wash system keeps the glass clean and clear for
a wide-open view of the fire. - Precision-cut, heavy-gauge steel provides dependable, long-lasting
operation. - High-density firebrick retains heat longer, resulting in increased
efficiency. - One-touch control ensures easy operation and comfort.
- Standard black pedestal base included.
- Optional 150-CFM blower with Dial-A-Temp speed control.
- EPA-certified and Washington State-approved for clean and
efficient operation.
Specifications
| Material Number | F5030 |
| Model Number | 160AL |
| Collection | Cabin |
| Firebox | 1.6 cu. ft. |
| Emission Rate |
1.7 GPH |
| Efficiency | 75 |
| Heating Capacity | 700-1400 sq. ft. |
| Maximum BTU | 55,600 per hour |
| Log Length | 16" Log |
| Stove Type | Wood Burning |
| Vent Type | Vented |
| Vent Size | 6" |
| Top/Rear Vent | Top |
| Front/Top Load | Front |
| Color | Black |
| Weight | 320 lbs |
Product Dimensions
| Width | 24-3/8" |
| Height | 30-1/4" |
| Depth | 19-3/8" |
Technical Drawings & Dimensions
|
| US Single-Wall Connector |
US Double-Wall Connector |
Canada Single-Wall Connector |
Canada Double-Wall Connector |
|
| A=Flue to back wall | 14-1/4" | 12" | 14-1/4" | 12" |
| B=Stove back to wall | 22-1/2" | 9-3/8" | 11-5/8" | 9-3/8" |
| C=Flue to side wall | 11-5/8" | 19" | 22-1/2" | 19" |
| D=Stove side to wall | 13-3/16" | 9-5/8" | 13-3/16" | 9-5/8" |
| E†=Door opening/hearth pad | 8" | 8" | 8" | 8" |
| F=Stove back corner to wall | 9" | 6" | 9" | 6" |
| G=Corner, flue to wall | 18" | 15" | 18" | 15" |
| H=Hearth pad depth | 37-7/16" | 37-7/16" | 47-7/16" | 47-7/16" |
| I=Hearth front to back wall | 49" | 46-3/4" | 51" | 48-3/4" |
| J=Hearth pad width | 34-3/4" | 34-3/4" | 40-7/8" | 40-7/8" |
| K=Stove door to hearth front | 16" | 16" | 18" | 18" |
| L=Stove back to hearth back | 0" | 0" | 8" | 8" |
| M=Ceiling height | 96" | 96" | 96" | 96" |
| N=Corner, hearth pad depth | 61-1/2" | 57-5/16" | 63-1/2" | 59-5/16" |
† USA = 8” (200mm) from door opening
Canada = 8” (200mm) from sides and back of unit
IMPORTANT NOTES:
As with any heating appliance, fireplace or stove, this appliance is extremely hot during operation. Read and understand all operating instructions before using this appliance. For further information, consult your
dealer. Actual performance may vary depending upon home design and insulation, ceiling heights, climate, condition and type of wood used, appliance location, burn rate, accessories chosen, chimney
installation and how the appliance is operated. Diagrams, illustrations and photographs are not to scale—consult installation instructions. Product designs, materials, dimensions, specifications, colors and prices
are subject to change or discontinuance without notice.
Warranty
 |
Limited Lifetime Warranty |
