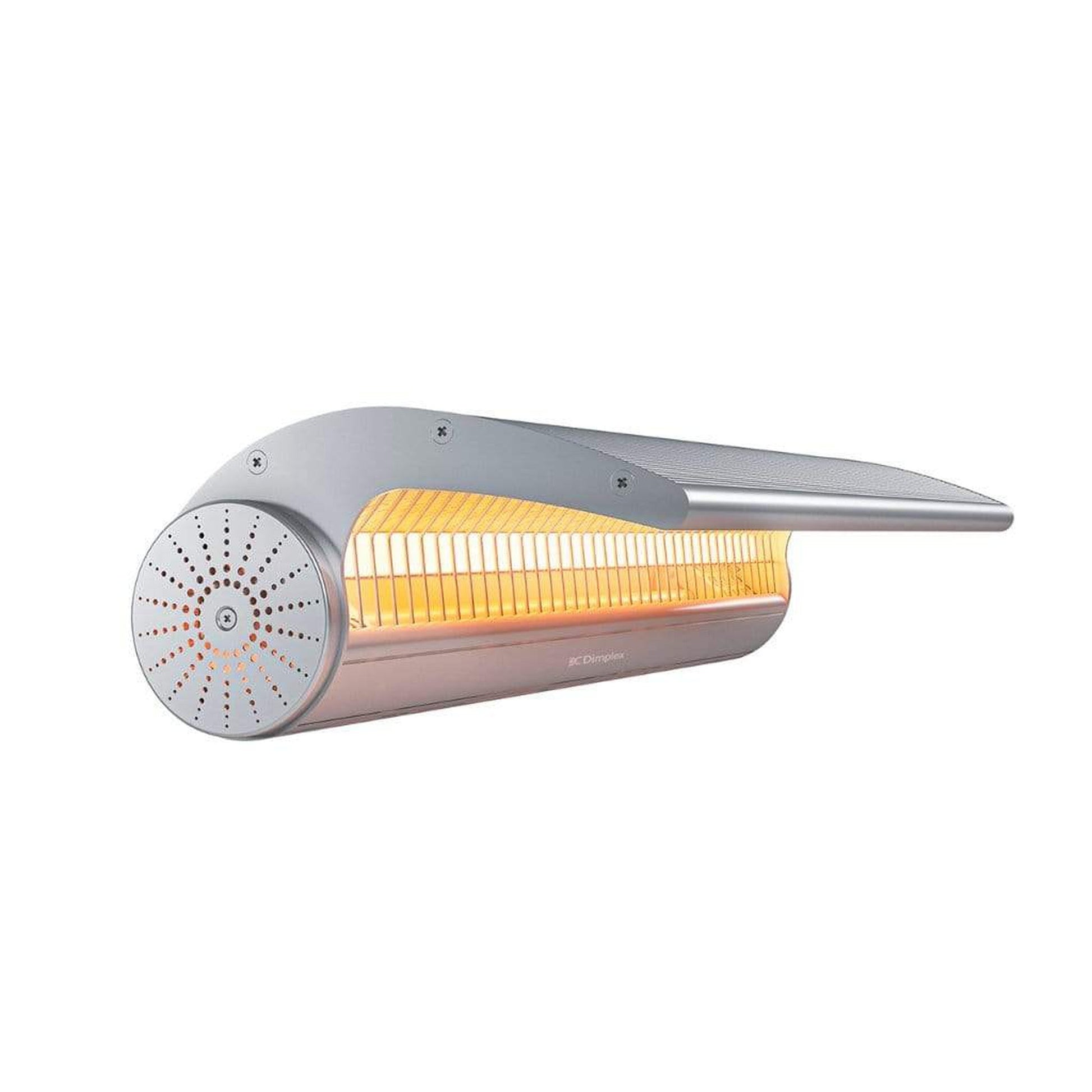

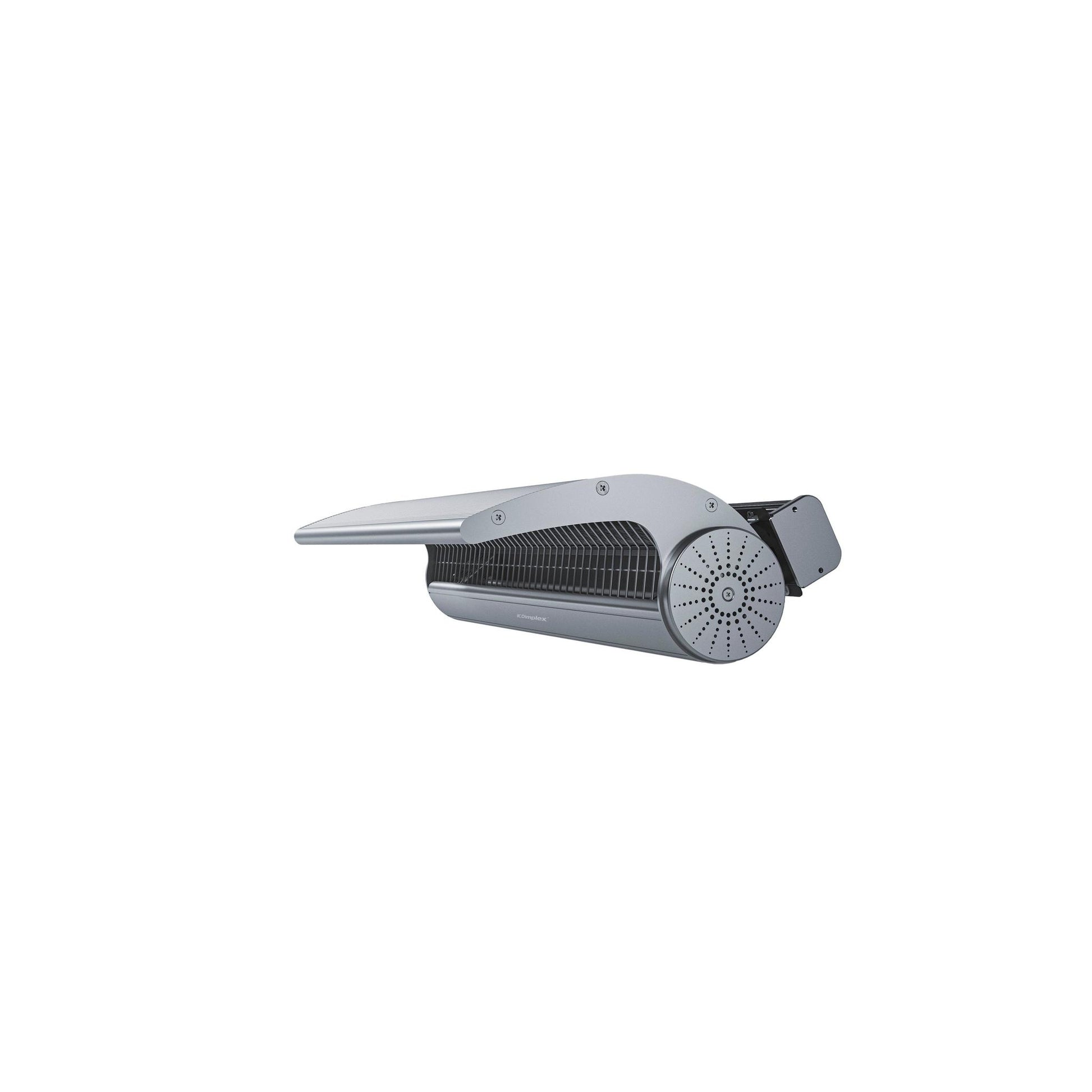

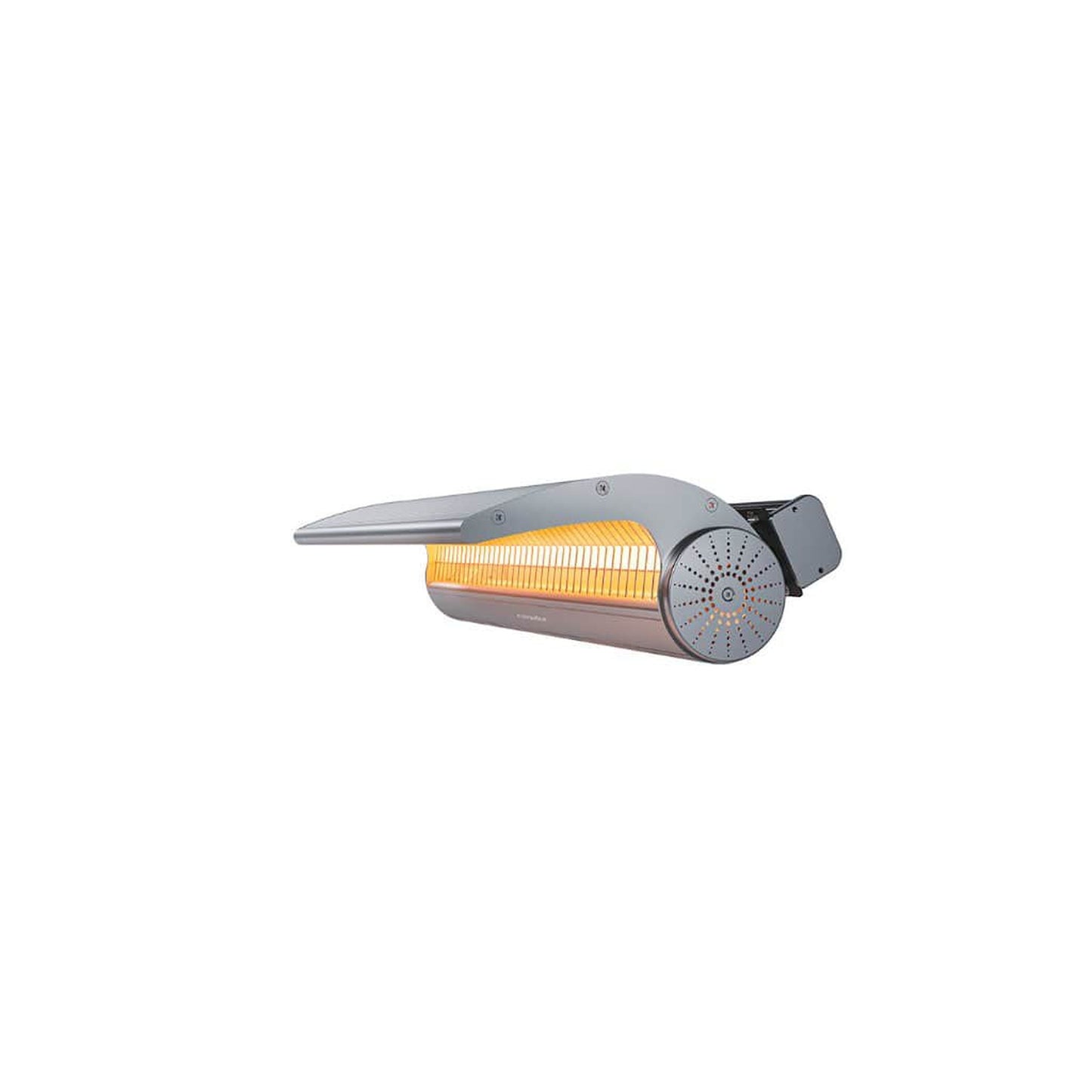

Dimplex DSH Series 24" Indoor/Outdoor Wall-Mounted Electric Infrared Heater
Dimplex DSH Series 24" Indoor/Outdoor Wall-Mounted Electric Infrared Heater
Floor Stand
Ceiling Mounted Bracket
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

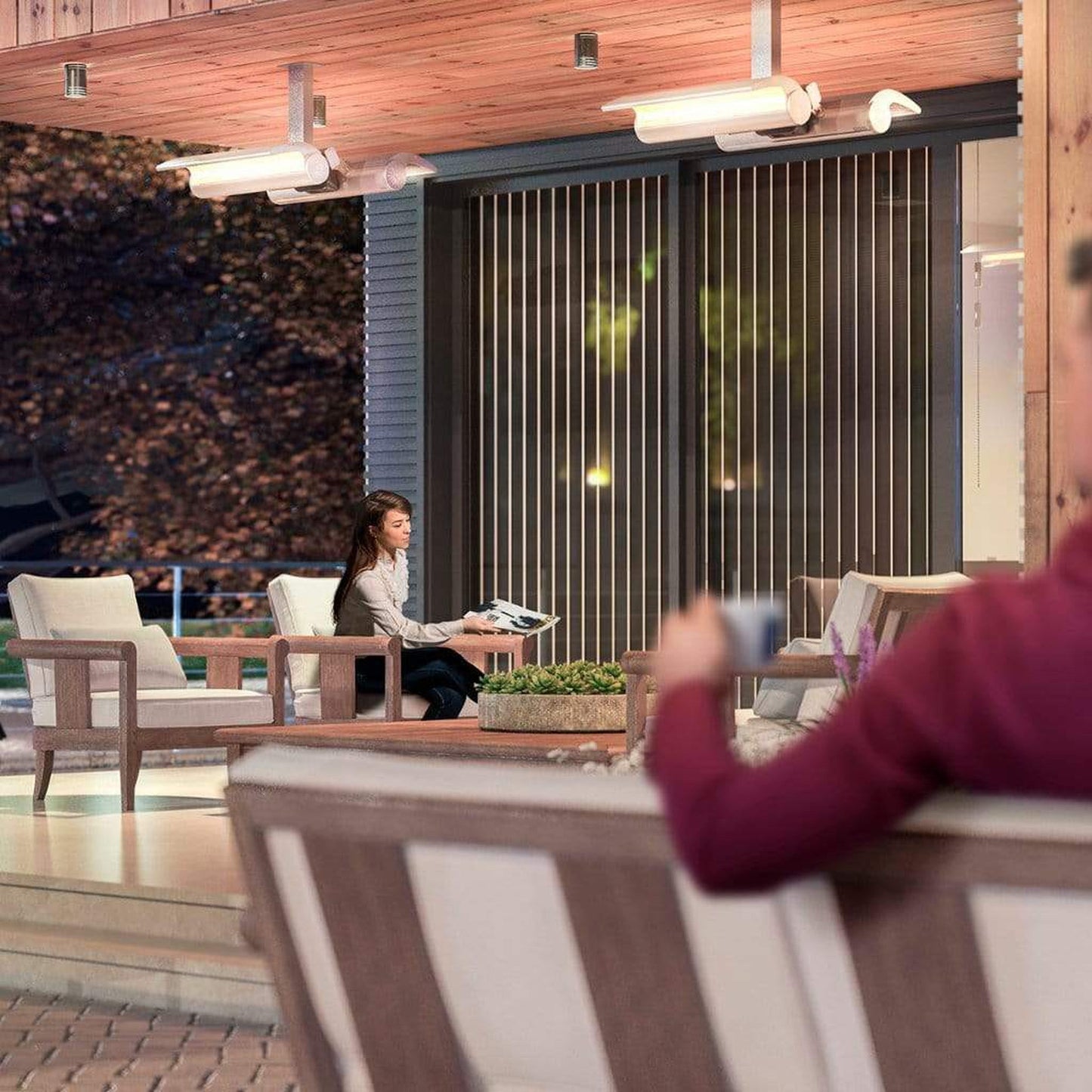

The Dimplex DSH series heaters are ideal for use in low lighting environments like restaurants and outdoor entertaining spaces. Reaching maximum heat in less than 3 seconds, this product provides premium comfort, while mirroring the quality of interior décor, outdoors. This infrared heater is compatible with wall, ceiling, and stand mounts - ceiling bracket and mounting stand sold separately.
What's Included
- DSH Series Heater
- Wall-Mount Bracket
- Remote Control
Not Included (Sold Separately)

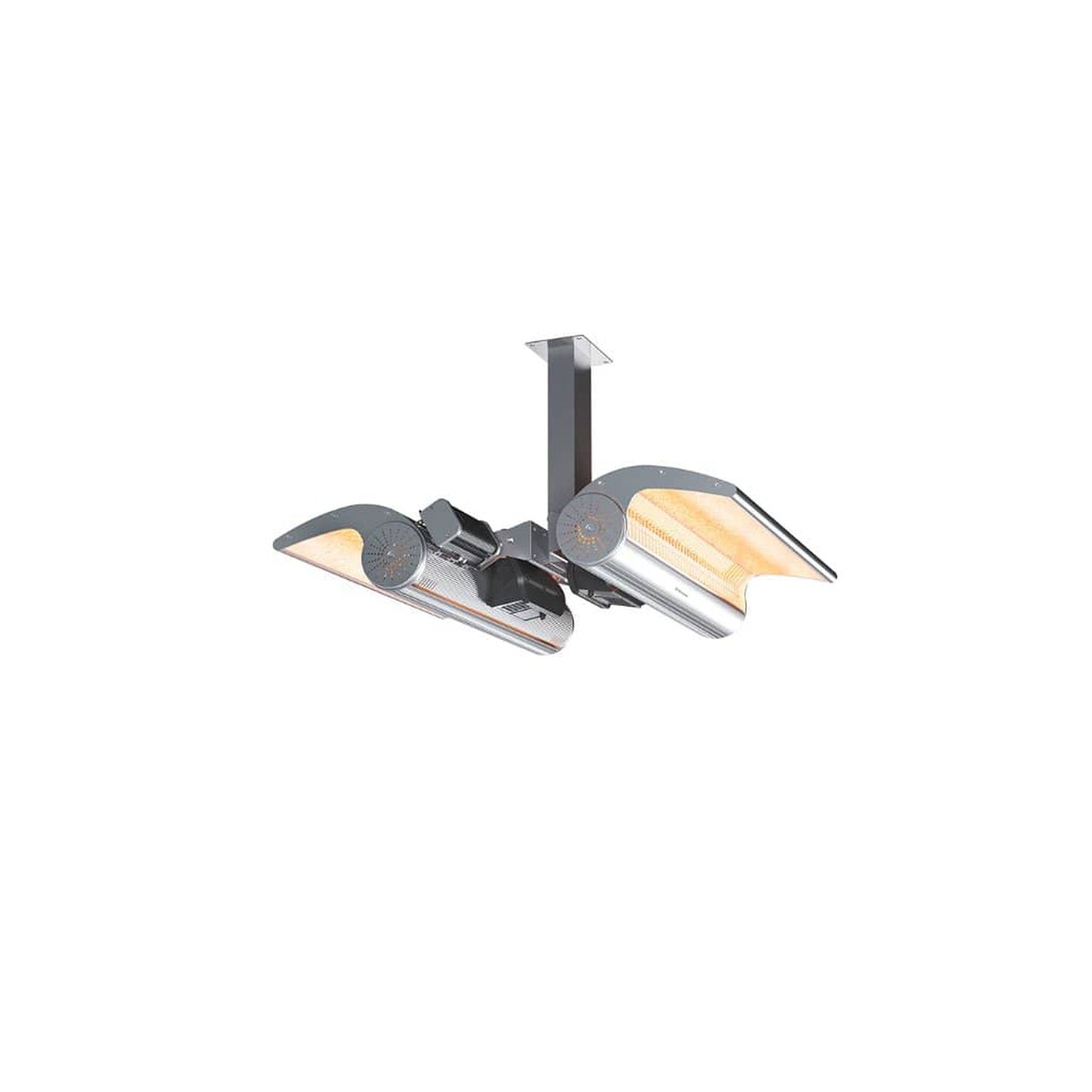

- Ceiling Mount Bracket

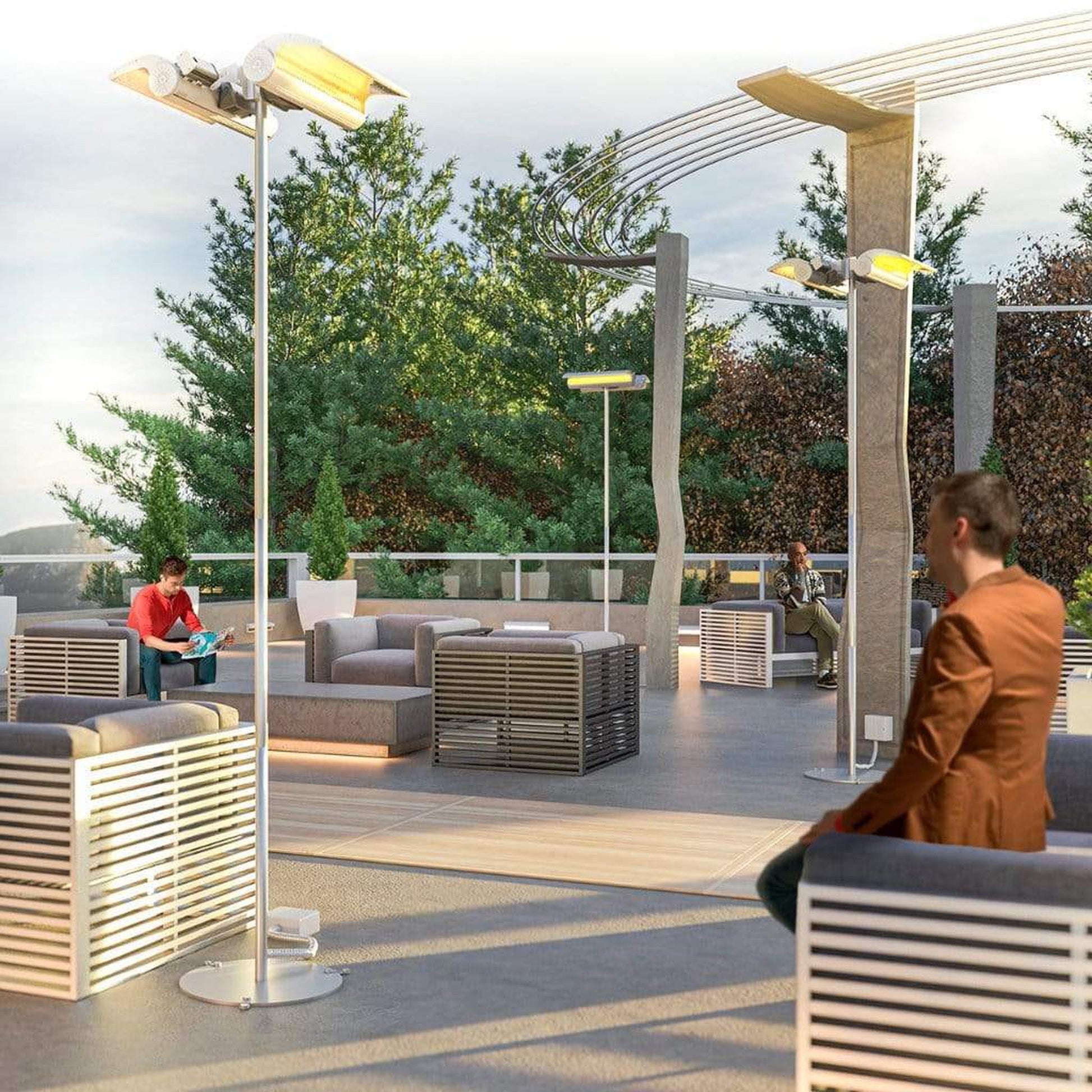

- Floor Mounted Tower Kit (Stand)
Features
- Instant Heat: Provides heat on demand with a gold-tube quartz element delivering full power in under 3 seconds.
- Timer: Features a 1, 2, and 3-hour delay timer for pre-scheduled operation.
- Waterproof: Designed for all climates with an IP65 rating for indoor or outdoor use.
- Corrosion Resistant: Anodized aluminum casing ensures long-lasting durability.
- Durable: Built for up to 5,000 hours of running life.
- Installation Options: Includes pivoting wall-mount bracket; ceiling mounts and floor stands sold separately.
- Hardware Connection: Suitable for permanent installations on a direct-wired circuit.
- Adjustable Angle: Direct heat toward your desired area with an adjustable angle.
- Remote Control: Regulate multiple heaters with the included remote.
- Automatic Standby: Safety mechanism activates standby mode after 8 hours of continuous operation.
- Ease of Installation: Pre-installed heating element simplifies installation and minimizes delivery issues.
- IP65 rating for indoor and outdoor applications
- 8 hour auto shutoff safety mechanism
- 3 seconds maximum heat up time
- 3 temperature settings - 1000W [low], 1500W [med], 2000W [high]
- Corrosion resistant anodized aluminum and 304 stainless steel makes this product suitable for all climates
- Multiple heaters can be controlled with a single remote.
APPLICATIONS

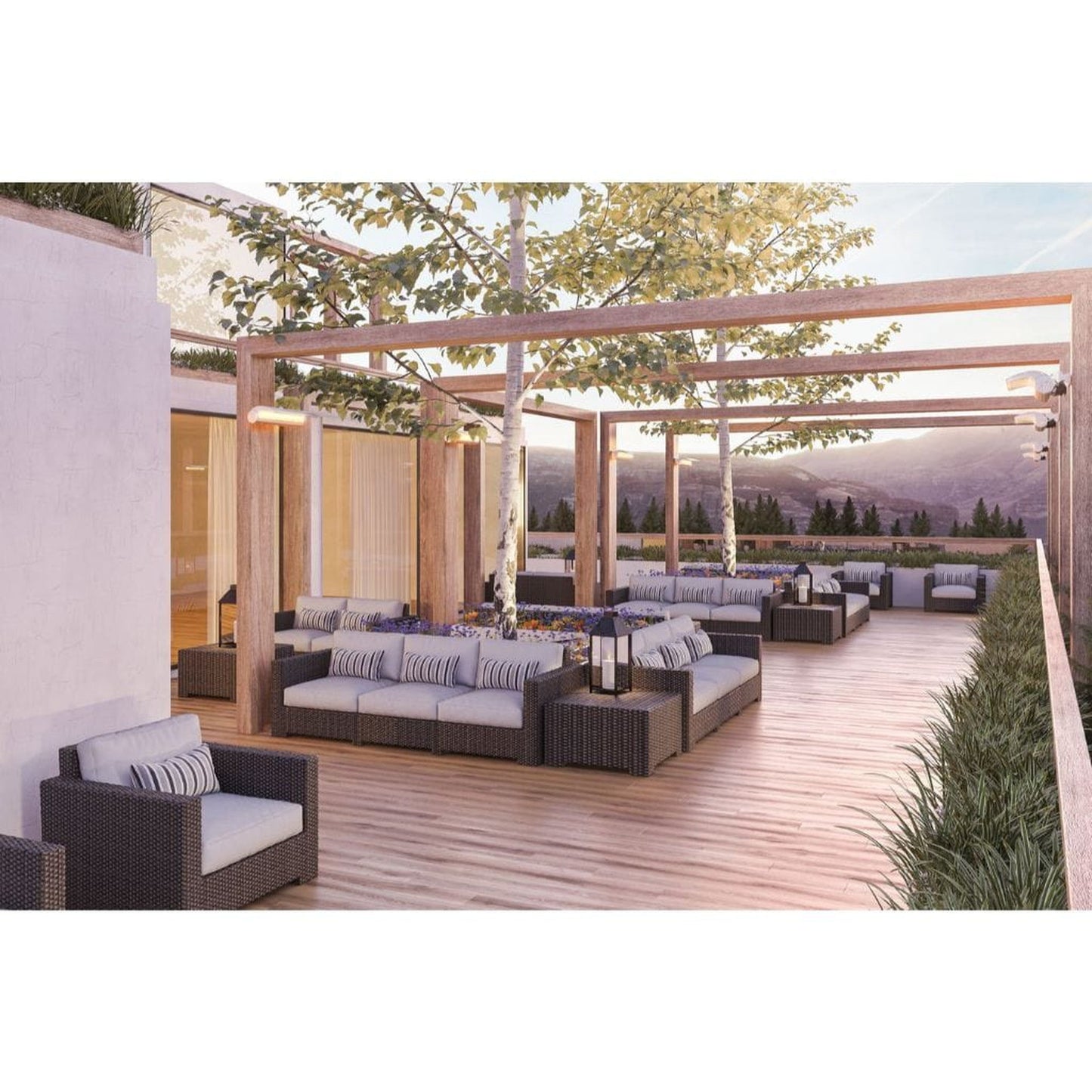

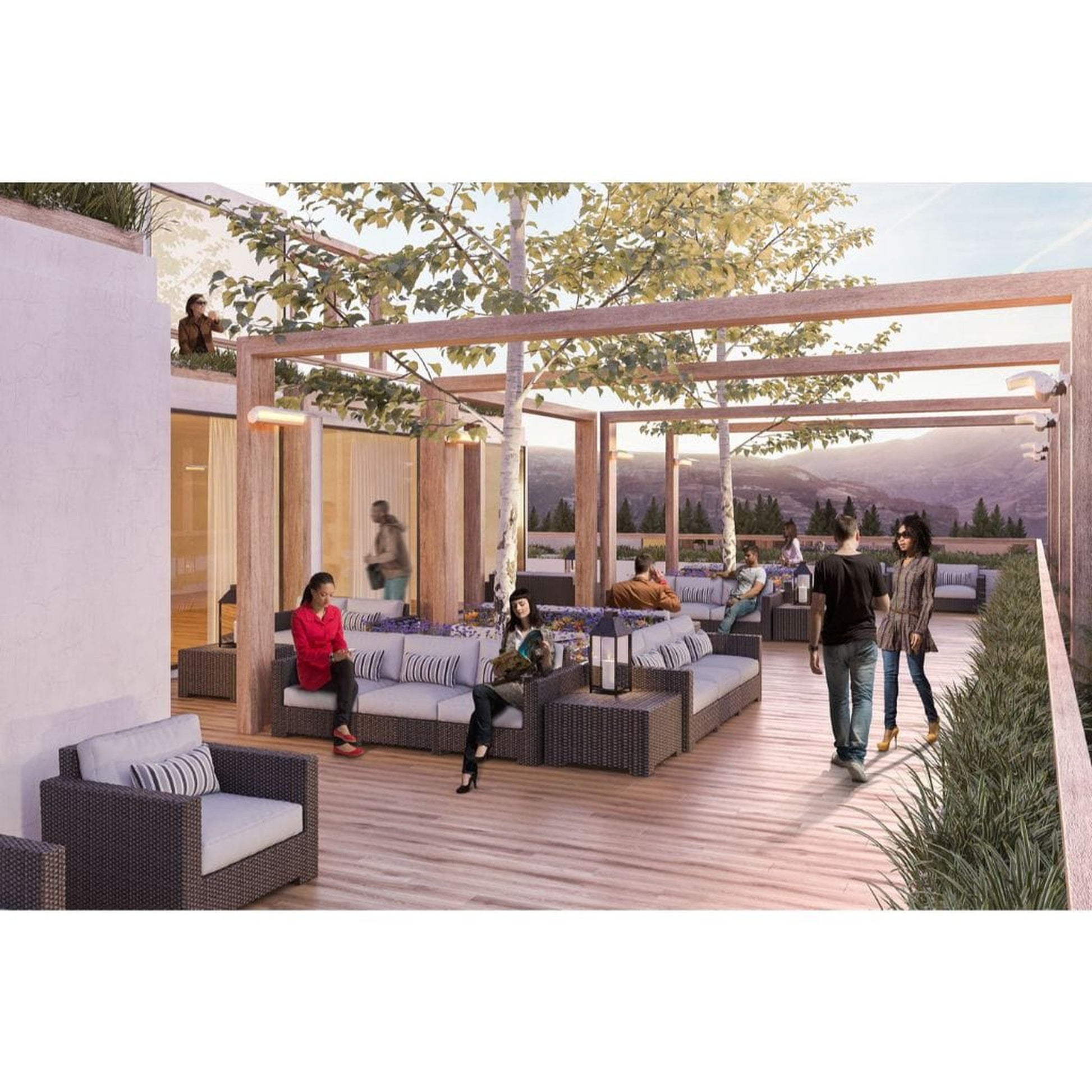

- Patios | Balconies | Outdoor Living Spaces | Sunroom | Gazebos | Common Areas
Specifications
Model Name/Series | DSH Series |
Model # | DSH20W |
Dimensions |

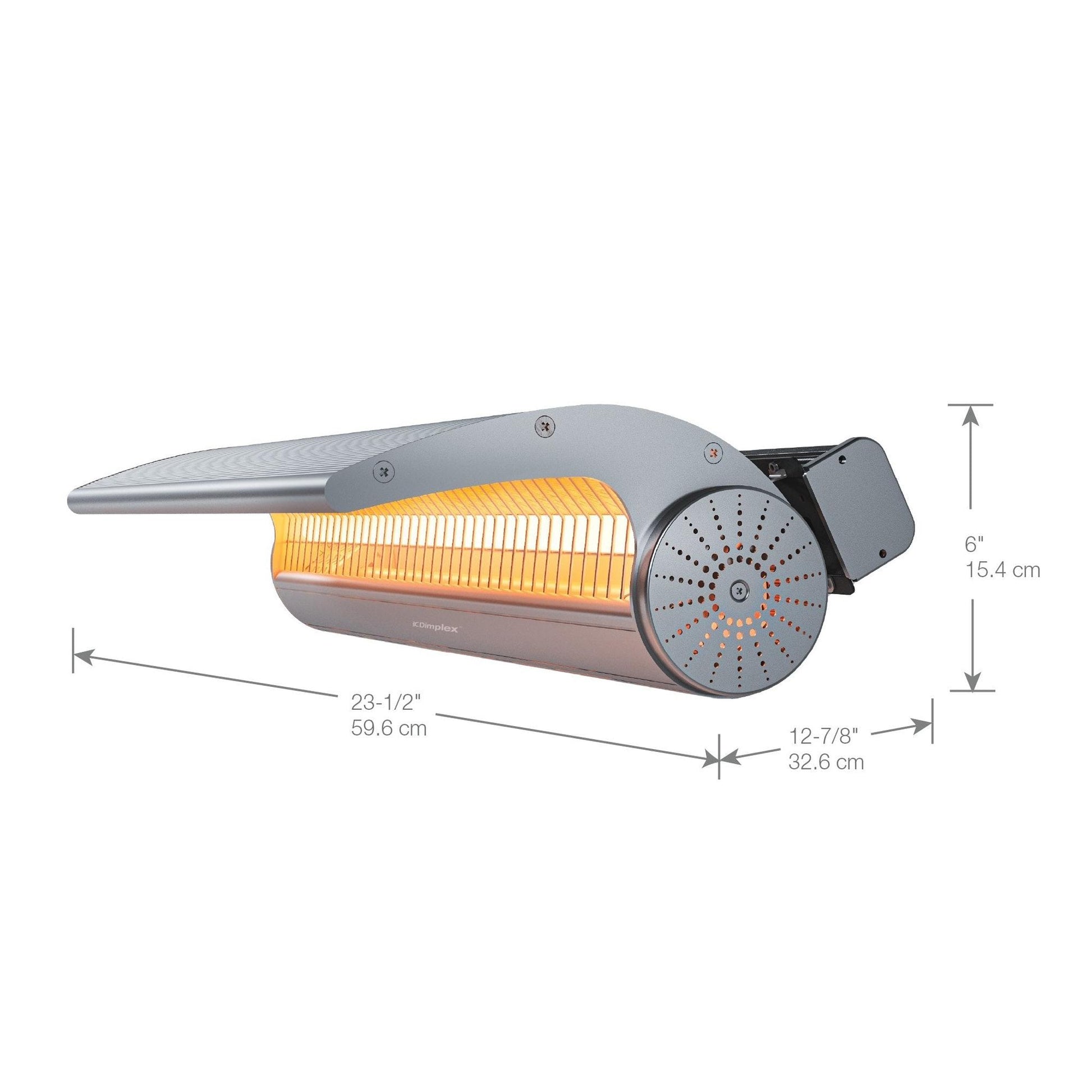

23.5" W x 6" H x 12.8" D |
Product Type | Quartz |
Element Type | IR-Quartz |
Front Dimensions - Height | 6.1 |
Wattage | 2000 |
Voltage | 240 |
Power Source | Electric |
Finish | Aluminium |
BTUs | 6824 |
Heating Area | 125 sq. ft. |
Heating Element |
Golden tube heating element |
Construction | Stainless Steel (304) |
Controls & Wiring | Hardwire installation only. Unit has an auto shut off feature after 8 hours of operation |
Color | Stainless Steel |
Dimensions
Warranty
![]() |
ONE YEAR WARRANTY |
