Revillusion 36" Built-in Electric Firebox - RBF36WC-FG

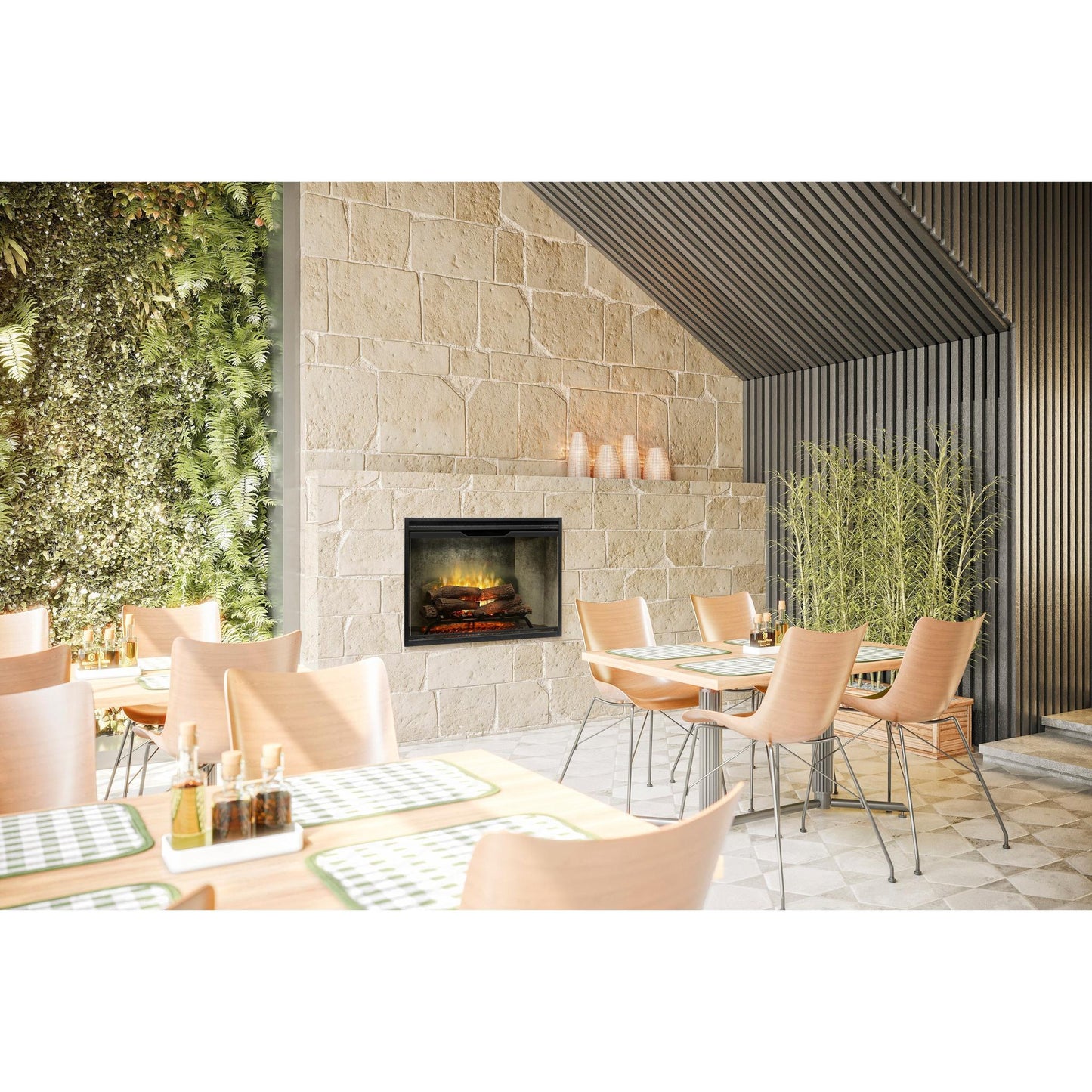

Enjoy classic, elegant features with Revillusion— the electric fireplace inspired by traditional design. You’ll be entranced by the flickering flames as they dance between glowing logs, surrounded by a weathered concrete interior with natural soot markings. The timeless appeal of Revillusion creates an authentic, everlasting impression.
What's Included
- Revillusion Built-in Electric Firebox
- Weathered Concrete Interior
- Tempered Front Glass
- Plug Kit
- Realogs
- Remote Control
- Owner's Guide
Features
- Timeless Aesthetic: The ageless appeal of the fireplace creates an authentic, ever-lasting impression.
- Design with Style: Tailor your fireplace to your desired look and feel by selecting between a more traditional or modern aesthetic.
- Complete Perspective: Enjoy a full-depth view of the fireplace with the ability to see clearly through the flames.
- Revillusion® Flame Effect: Patented Dimplex flame effect producing ultra-realistic flames that mimic natural fire.
- Powerful Heating: Powerful fan-forced heater provides on-demand heat up to 1,000 sq. ft.
- Authentic Realogs®: Handcrafted from real wood, these logs feature inner LED lights that emit a lifelike, pulsating glow, simulating burning logs.
- Reflective Flame Panel: The translucent acrylic panel allows you to enjoy the look of flames appearing from within the logs.
- Mood-maker Remote: Customize the light color and intensity for a fireplace that reflects your personality.
- Flame base colors include red and orange
- Includes a translucent acrylic panel that reflects the flames to make them appear from within the logs
- Adjust brightness of interior lighting from high to low to suit the room, including midnight mode which turns off lighting to reduce TV glare
- Also available with herringbone brick interior (RBF30, RBF36, RBF42, RBF36P, RBF24DLX)
- Dimplex’s exclusive Comfort$aver heater provides on-demand, supplemental heating that warms up to 1,000 sq. Ft.
- Fireplace heater can be permanently disabled by removing the electronic jumper on the main control board
- No venting, gas lines, or piping required; simply frame, wire and finish for quick and easy installation
- Revillusion Flame Technology produces ultrarealistic flames that mimic natural fire
- Ability to dim the flames which simultaneously lowers flame height
- Enjoy a full view of the fireplace interior with the ability to see clearly through the flames—no obtrusion
- Includes mood lighting on the side, back, and top of the firebox interior. Colors include white, yellow, and red
- The ambient light sensor automatically adjusts the firebox light to suit the room day or night
- Includes tempered front glass, plug kit, and mood-maker remote control
- Enjoy the ambiance of a fire during the warmer months by deactivating the heater via the controls
- As the flames do not emit heat, the front glass remains cool to touch, ensuring safety for children and pets
-
Hardwire to 120V/240V power supply or use the included 120V plug-in cord kit
Specifications
Product Height (in) |
26.54
|
Product Depth/Length (in) | 12.09 |
Product Width (in) | 37.17 |
Product Width (cm) | 94.41 |
Product Weight (lb) |
92.95
|
Product Height (cm) | 67 |
Wattage |
1300/1975/2575
|
AMPs |
10.8/9.5/10.7
|
Voltage |
120/208/240
|
BTU | 4400 / 6745 / 8794 |
Heating Range | Up to 1,000 sq. ft. |
Adjustable Brightness | Yes |
Adjustable Flame | Yes |
Built-in Thermostat | Yes |
Automatic Shut-Off | Yes |
Front Glass Type | Tempered |
Heat Vent Location | Front |
Decibels | 47 |
Power Connections | Plug In/Hard Wired |
Timer | Yes |
Heat/ Sq ft *Primary Heat Source | 321 |
Element Type | Sheath |
Assembly Time |
10.8/9.5/10.7 |
Battery Technology in Remote Control | Lithium Ion |
Battery Size in Remote Control | CR2032 |
Safety Agency Certification File | E71416 v1 s55 |
Safety Agency Approval Country/Countries | Canada; USA |
