DuraVent Cathedral Ceiling With Black Double Wall Pipe Wood Stove Chimney Kit

Overview

Duravent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems with best in class design capabilities

Features

• DuraTech offers optimum safety and performance.
• DuraTech keeps the outer wall of the chimney cool while ensuring high flue gas temperatures for optimum draft performance.
• DuraTech inner wall is 25% thicker than competitive chimneys for an extra margin of safety. No locking bands or mechanical fasteners are required.
• DVL’s double-wall, the air-insulated design reduces clearances to combustibles from 18” to 6”, the closest clearance to a wall of any connector pipe.
• DVL improves stove performance by maintaining high flue gas temperatures for a strong, steady draft
• DVL's inner wall is stainless steel the flue heats up faster, stays hot longer, minimizes the formation of creosote, and has the same life expectancy as the chimney.
• DVL adjustable lengths to eliminate the need for cutting or crimping.

Included Items

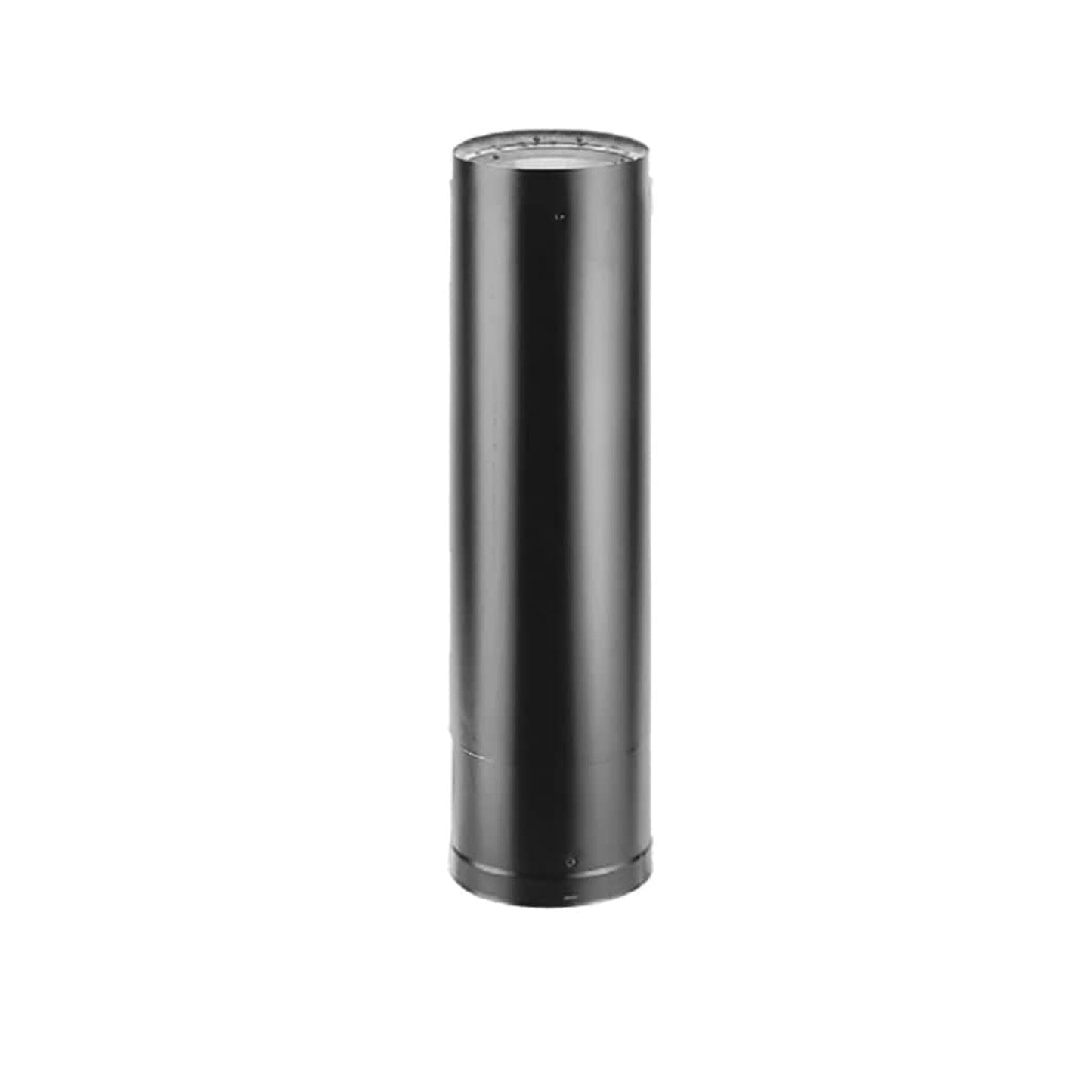

DVL Pipe Telescoping Length - 6DVL-68TA
	Use for a two-piece installation from stove to ceiling support box or finishing collar.

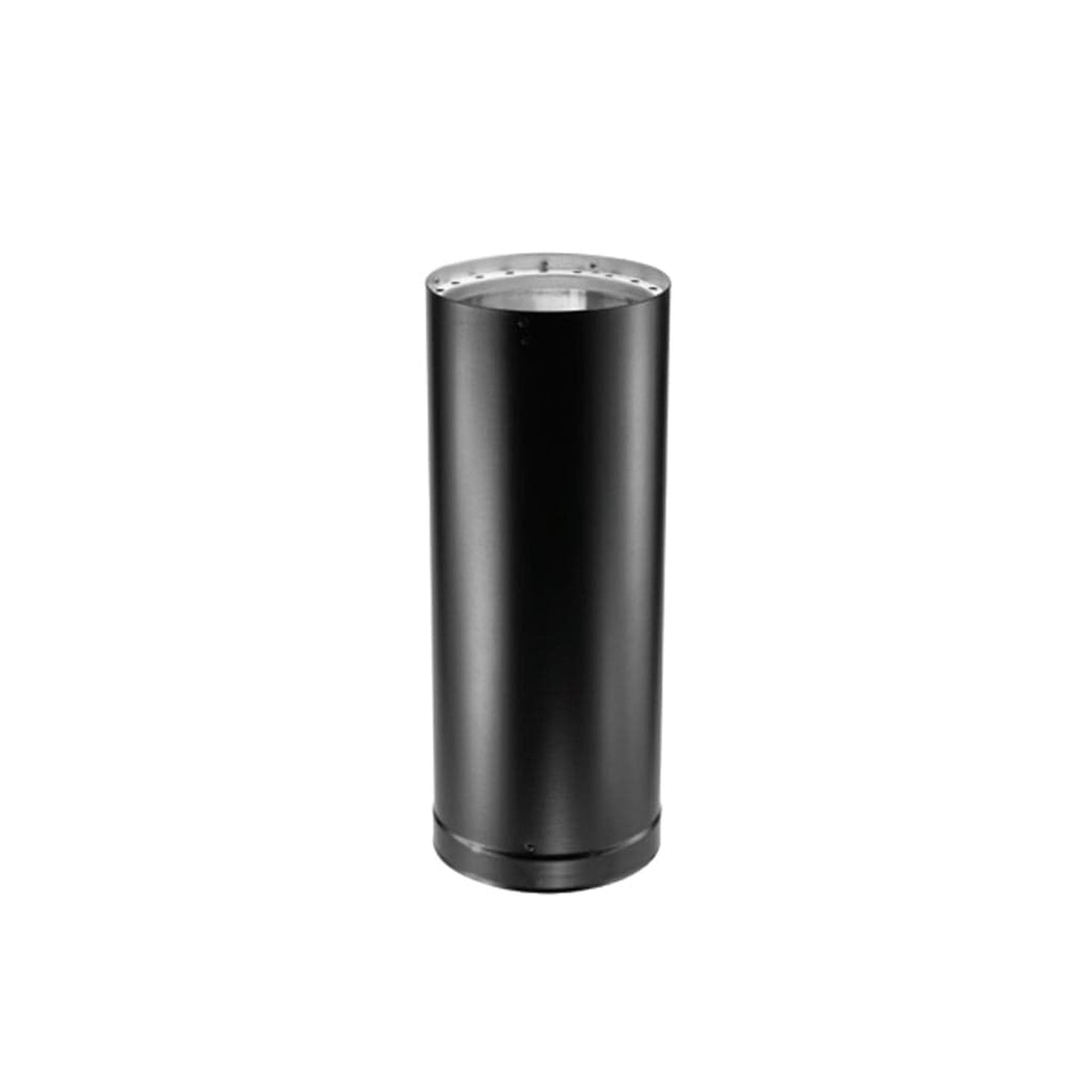

DVL Double-Wall Black Pipe - 6DVL-12
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling).

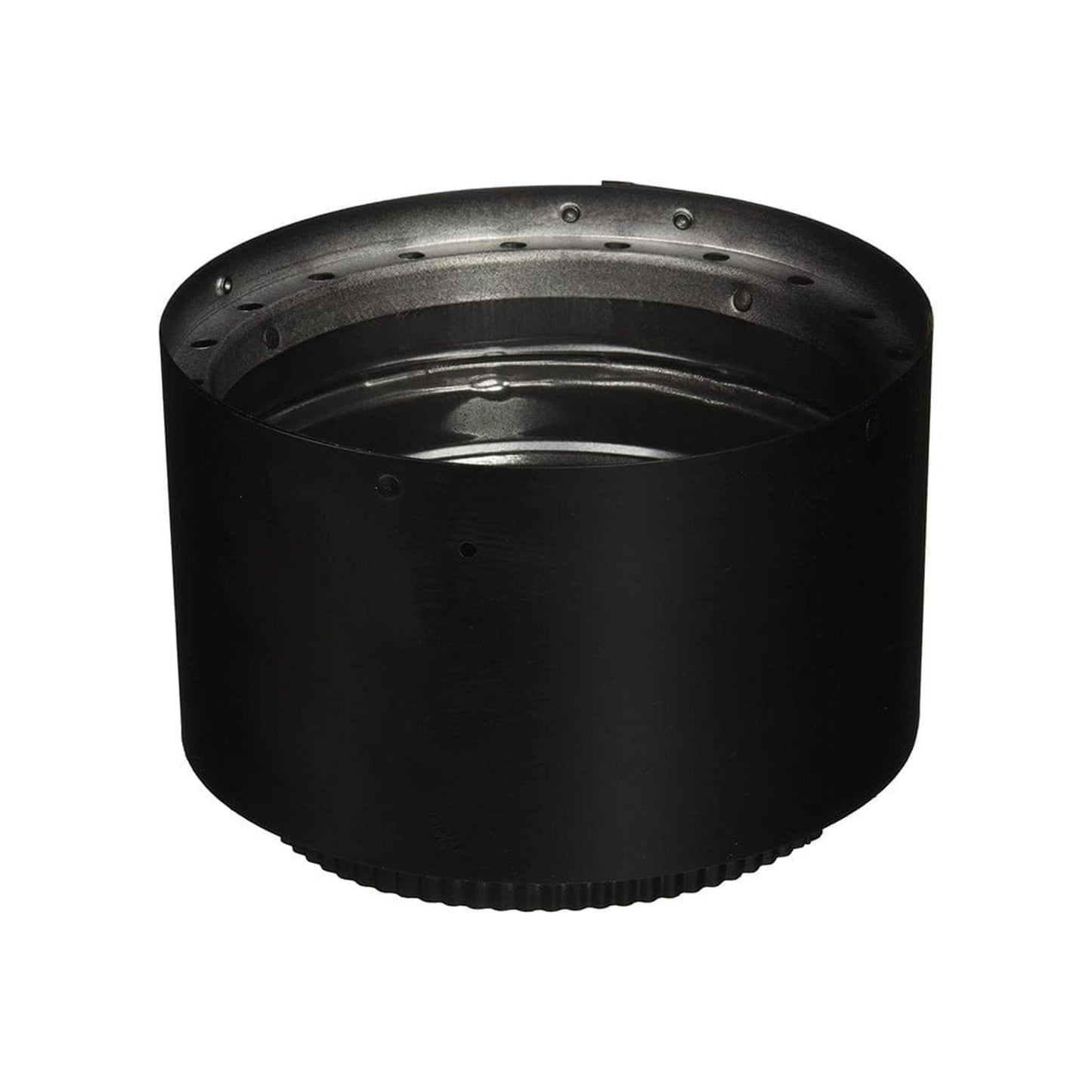

DVL Adapter Section No Damper - 6DVL-AD
	Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
DuraTech Chimney Pipe - 6DT-48 and 6DT-24
	for use with a 2100°F HT chimney system, such as wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.

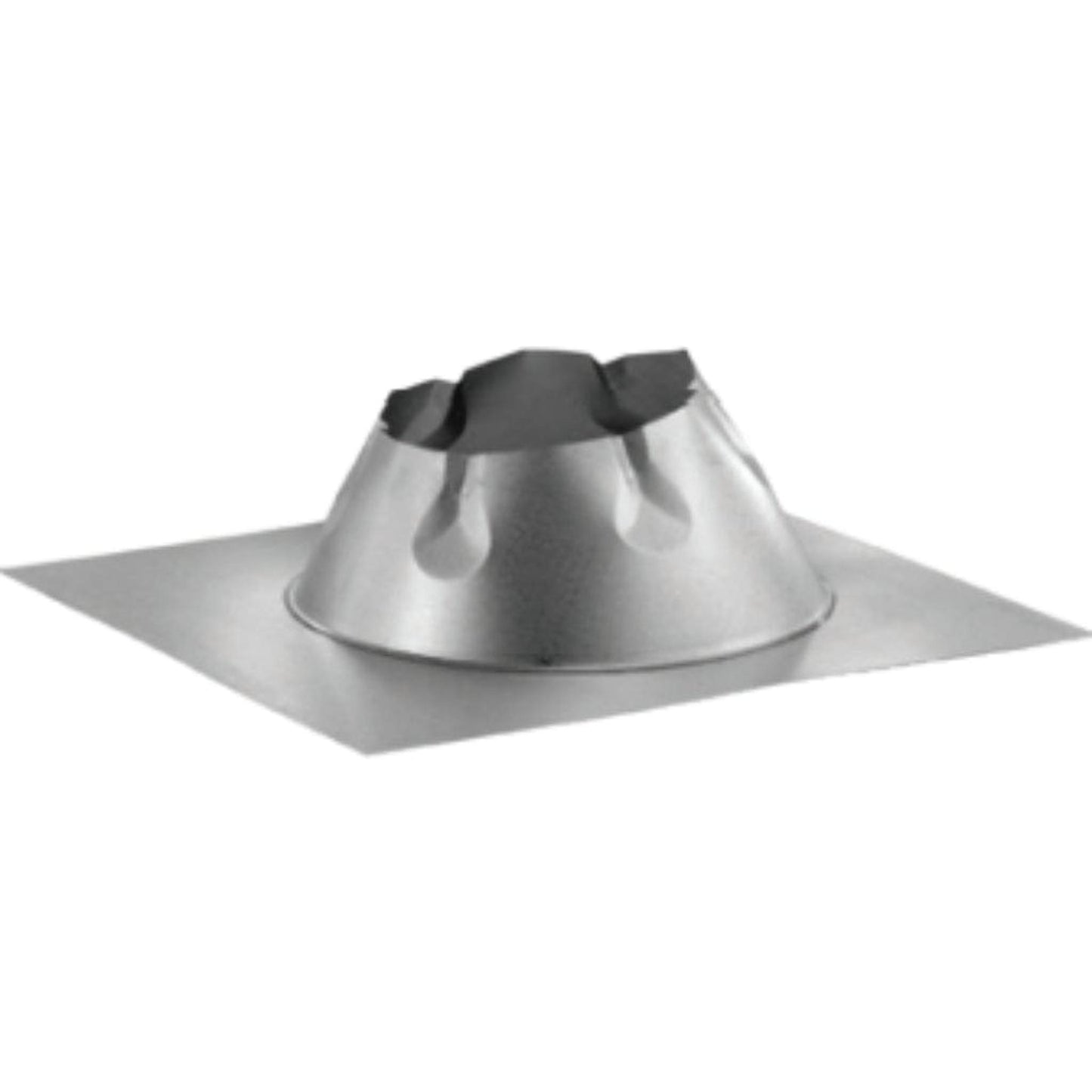

DuraTech Roof Flashing - 6DT-F6
	Use to weatherproof the penetration of chimney pipe through the roof.

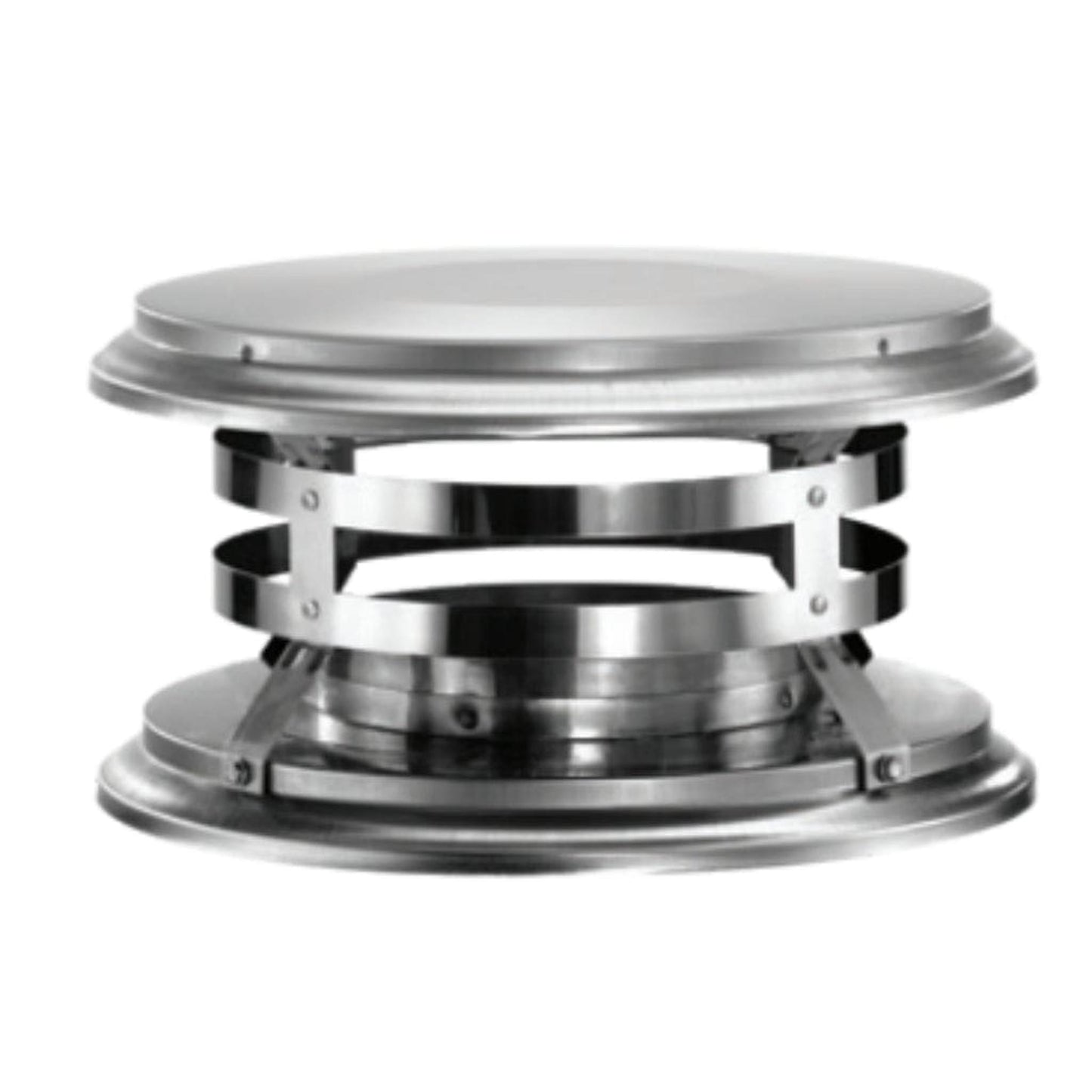

DuraTech Chimney Cap - 6DT-VC
	Required where pipe terminates above the roofline.

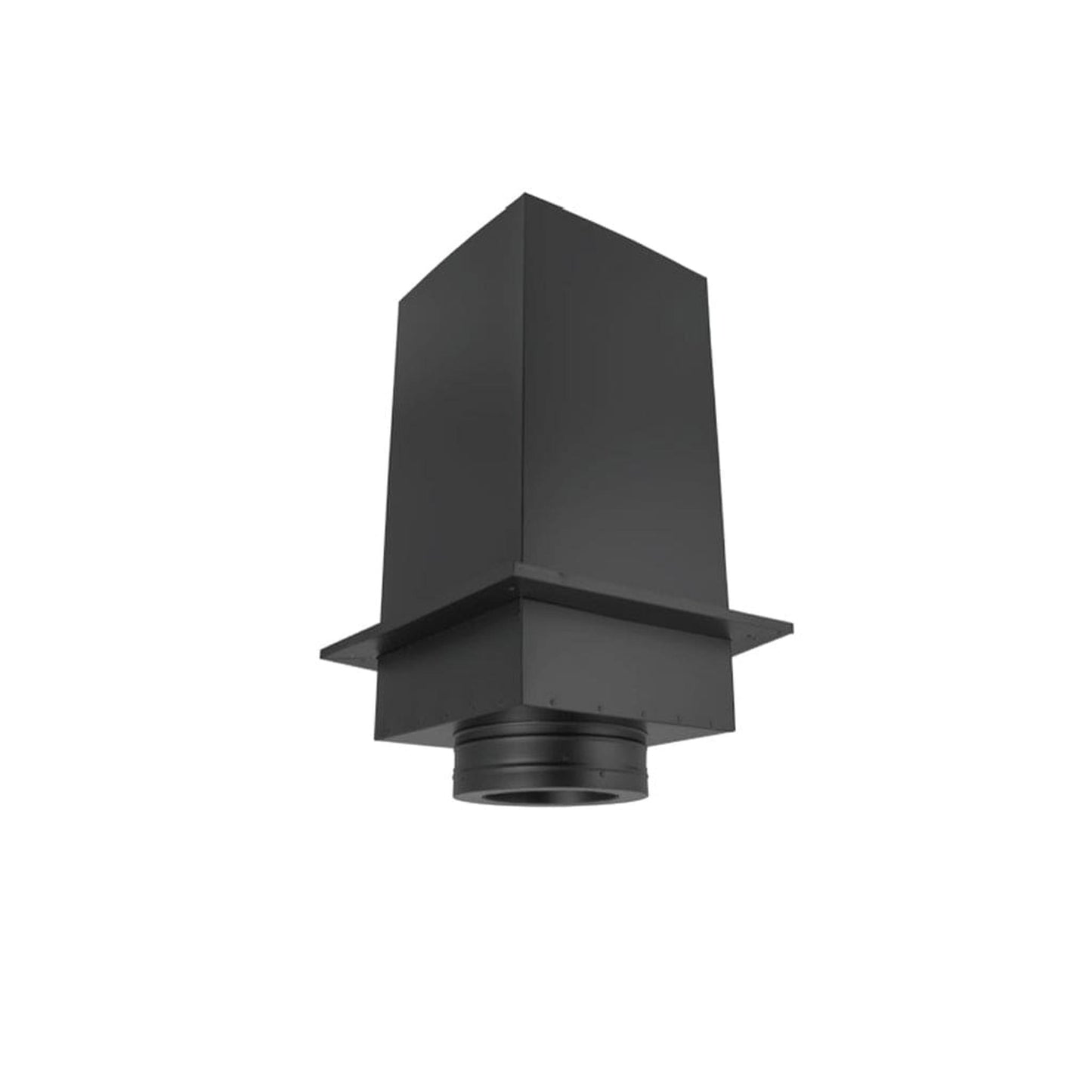

DuraTech 24" Square Ceiling Support Box - 6DT-CS24
	Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist lock. Suitable for both flat and cathedral (A-Frame) ceiling applications.

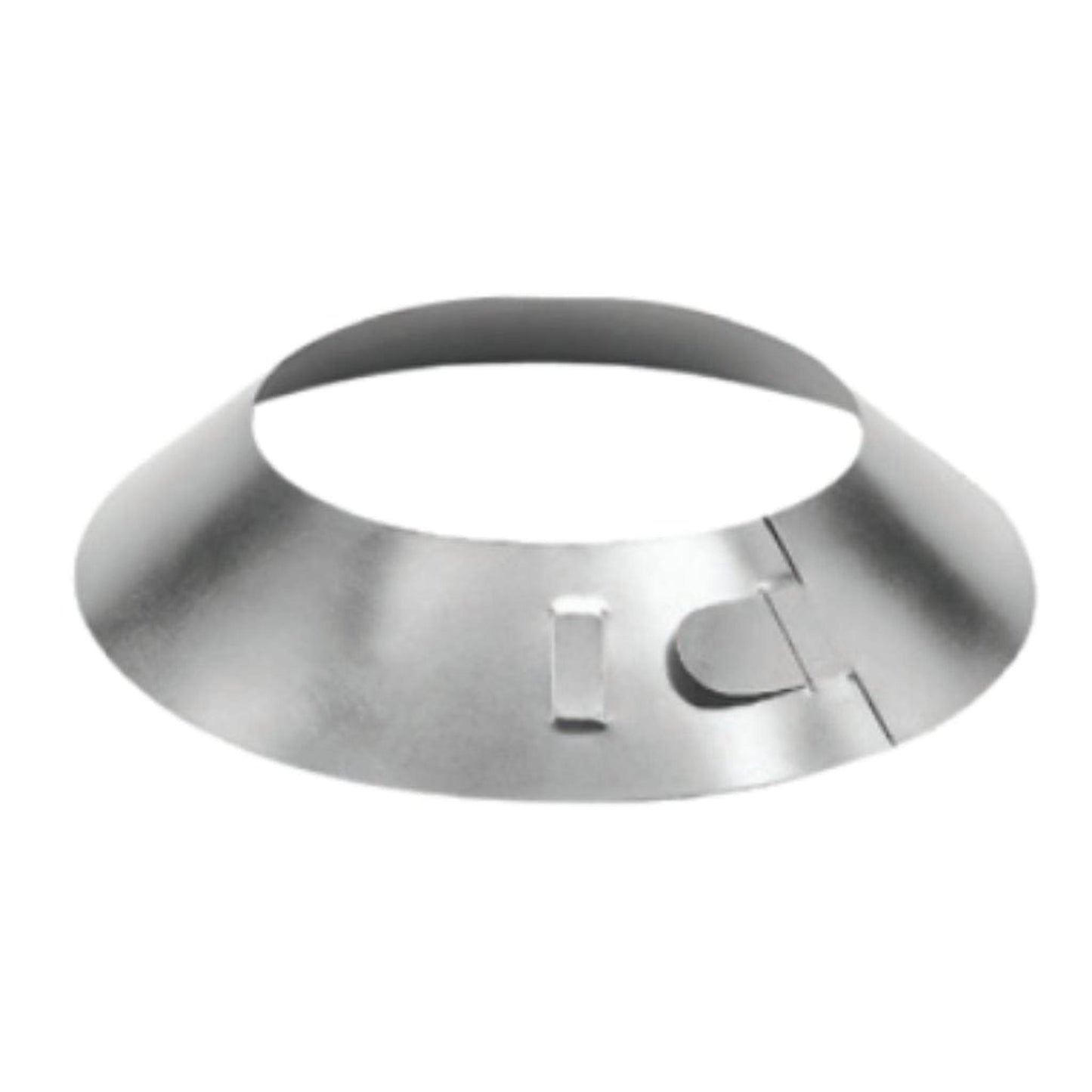

DuraTech Storm Collar - 5DT-SC
	Seal the inner edge of the collar to the chimney pipe with non-hardening 500° F high-temperature sealant.

Specifications

Typical Installation

Note: For more details regarding our Typical Installations Please refer to our download link below.

Downloads

• DVL Catalog

• DVL Installation Manual
• DuraTech Catalog
• DuraTech Installation Manual
• Typical Installation
