SKU:6DP-TSBSS

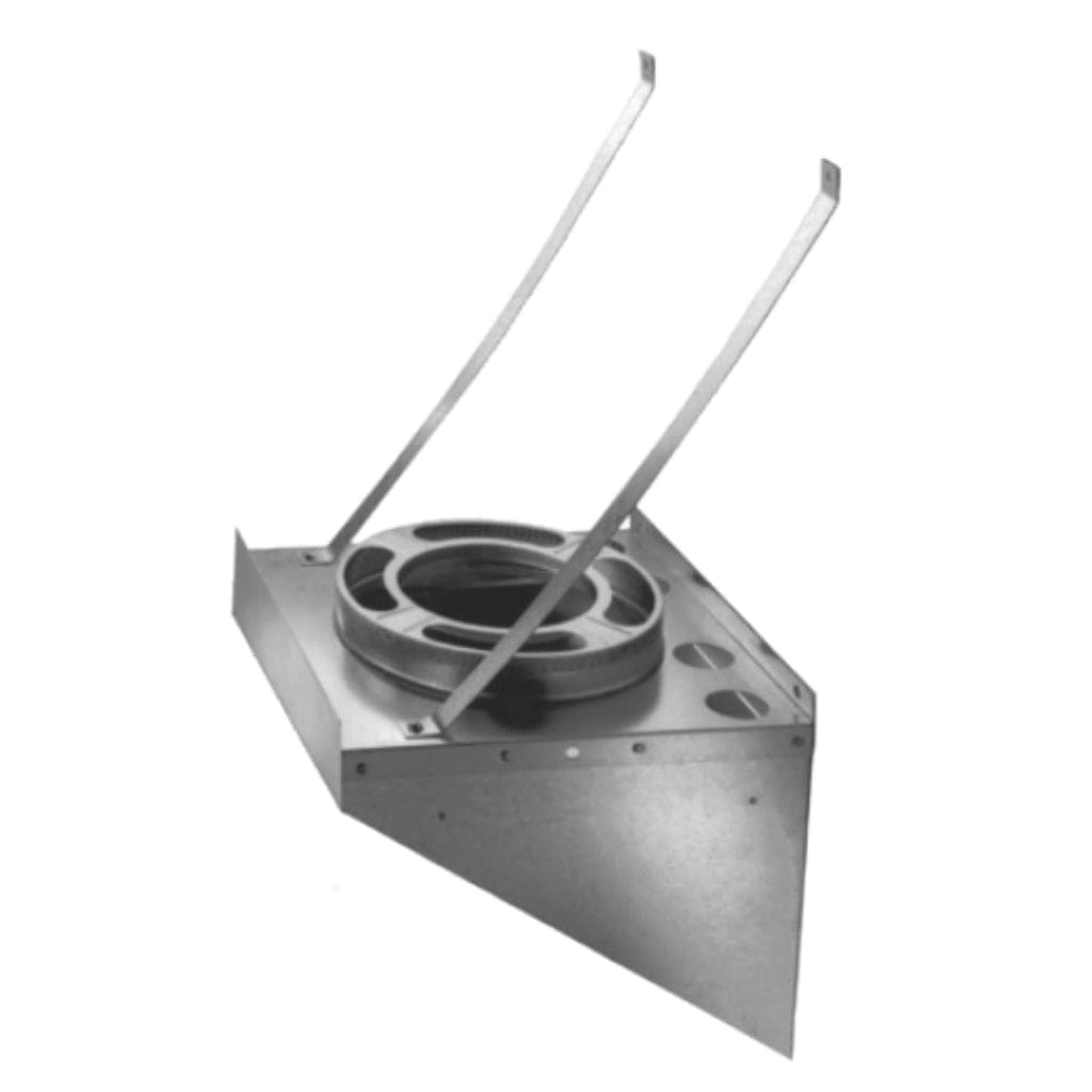

DuraVent DuraPlus 6"-8" Diameter Stainless Steel Tee Support Bracket
DuraVent DuraPlus 6"-8" Diameter Stainless Steel Tee Support Bracket
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Overview
DuraPlus is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency, and provide a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers (refractory blanket, plus air space). The refractory insulation is held securely in position, eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation permits the chimney liner to expand outwardly in a radial direction
Designed for normal, continuous operation at 1000° F flue gas temperatures, DuraPlus is subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400° F, plus three ten-minute chimney fire tests at 2100° F.
Features
- Use to support the Tee; suspended from a wall.
- Supports up to 35' of DuraPlus Chimney.
- Starter Section built-in.
Materials and Construction
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications
Model | Diameter Size | Dimension |
6DP-TSBSS | 6" (inner) | 10" (A) x 14" (B) x 12" (C) |
7DP-TSBSS | 7" (inner) | 11" (A) x 15" (B) x 13" (C) |
8DP-TSBSS | 8" (inner) | 12" (A) x 16" (B) x 14" (C) |
Finish | Stainless Steel | |
Clearances | 2" clearance to combustible. | |
Listings | UL Listed to UL 103HT (MH7399). | |
Warranty | Limited-lifetime warranty |
Downloads
- Download Product Brochure
- Download Product Catalog
- Download Installation Manual
- Download Installation Guide
- Download Typical Installation
California PROP 65: This product can expose you to Lead & Chromium, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. See WARNING
