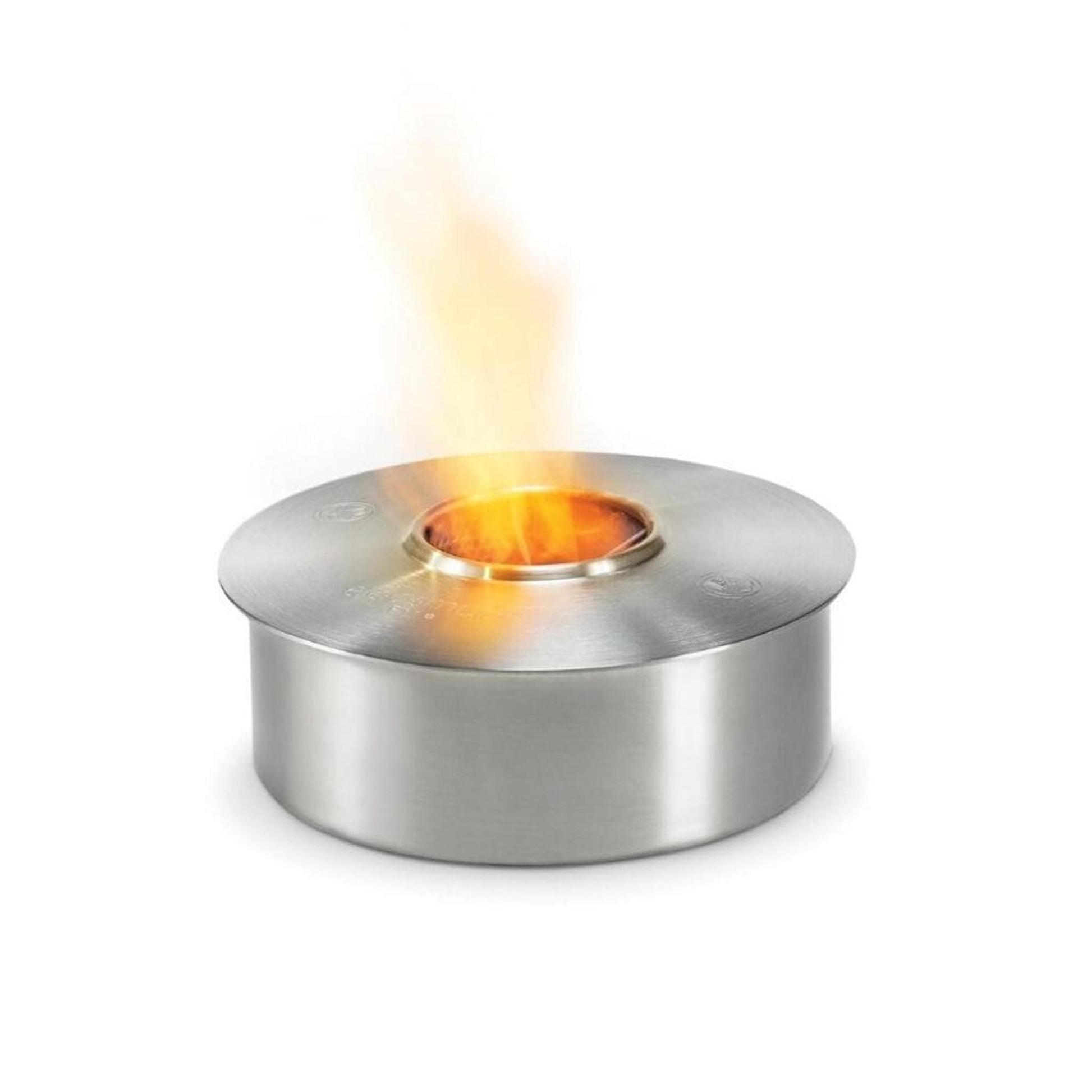

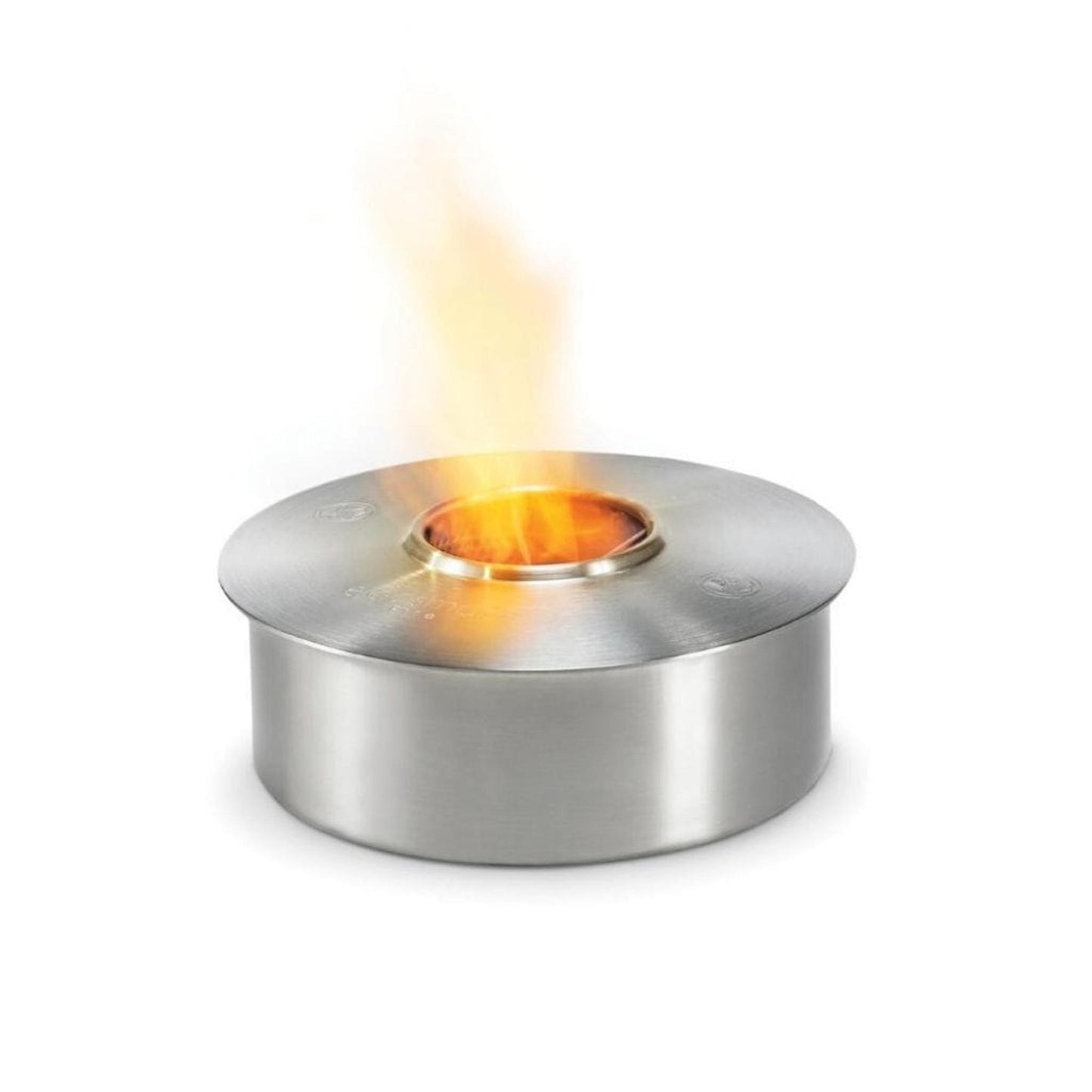

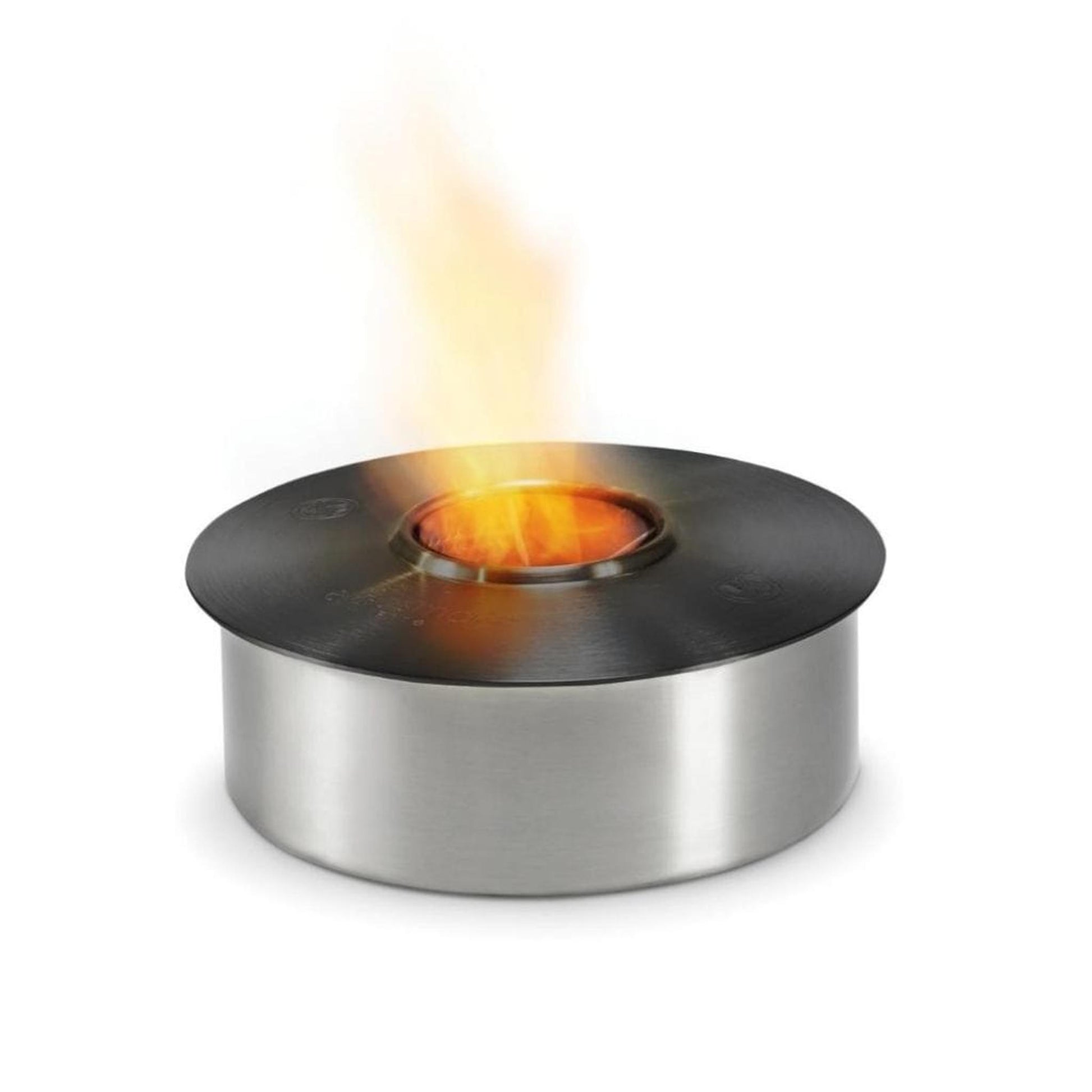

EcoSmart Fire AB3 10" Stainless Steel Ethanol Fireplace Burner by Mad Design Group

EcoSmart Fire AB3 10" Stainless Steel Ethanol Fireplace Burner by Mad Design Group

Regular price $1,195.00
Regular price $1,195.00 Sale price $1,195.00
Sale Sold out
Color

e-NRG Bioethanol Fuel

-- Please Select --

e-NRG Bioethanol Fuel-4 Gallons

e-NRG Bioethanol Fuel-8 Gallons

e-NRG Bioethanol Fuel-16 Gallons

e-NRG Bioethanol Fuel-20 Gallons

e-NRG Bioethanol Fuel-40 Gallons

e-NRG Bioethanol Fuel-80 Gallons

e-NRG Bioethanol Fuel-180 Gallons

No, Thank You

Black Glass Charcoal

-- Please Select --

Black Glass Charcoal

No, Thank You

  • Free Shipping on Orders Over $400
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Small but effective round bioethanol burner

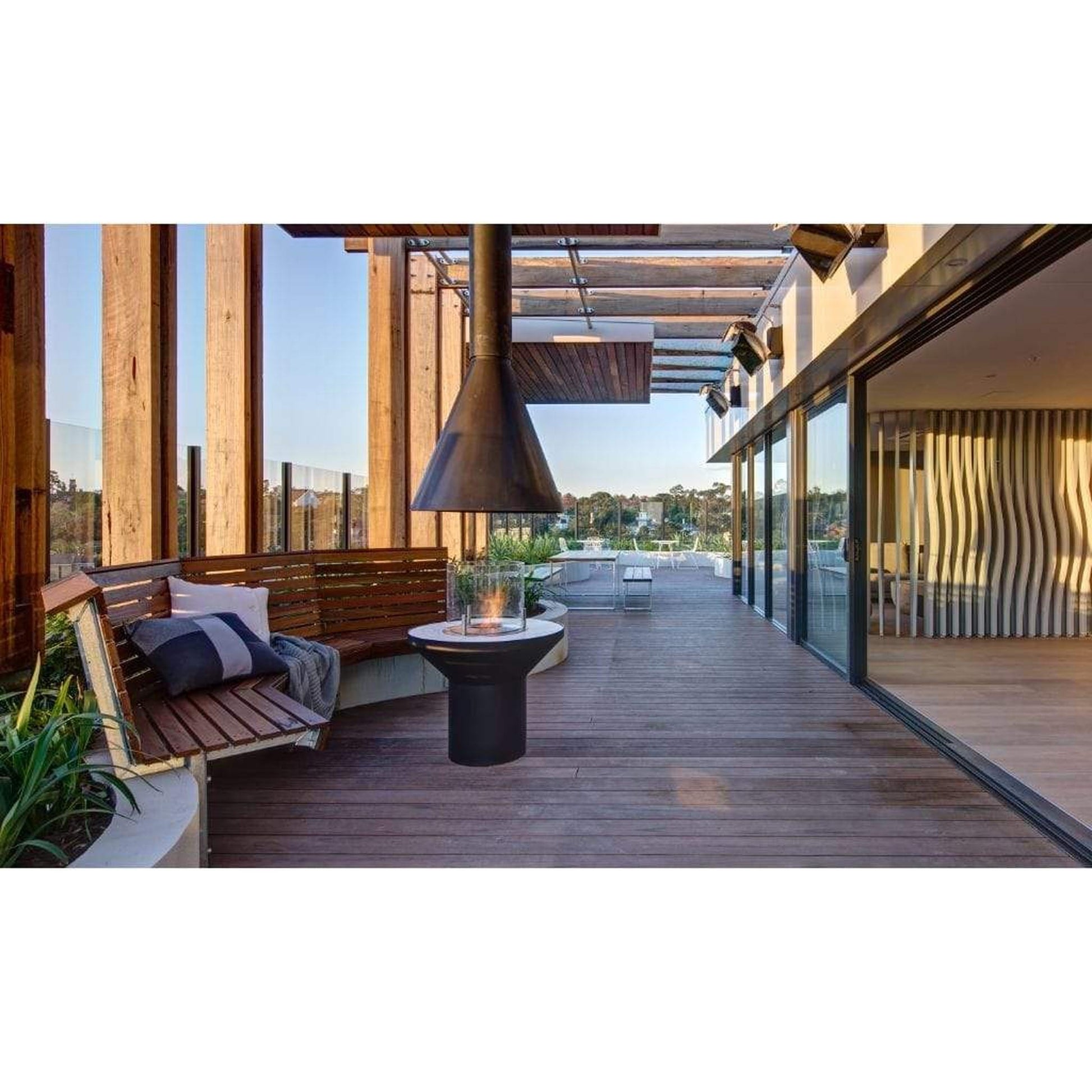

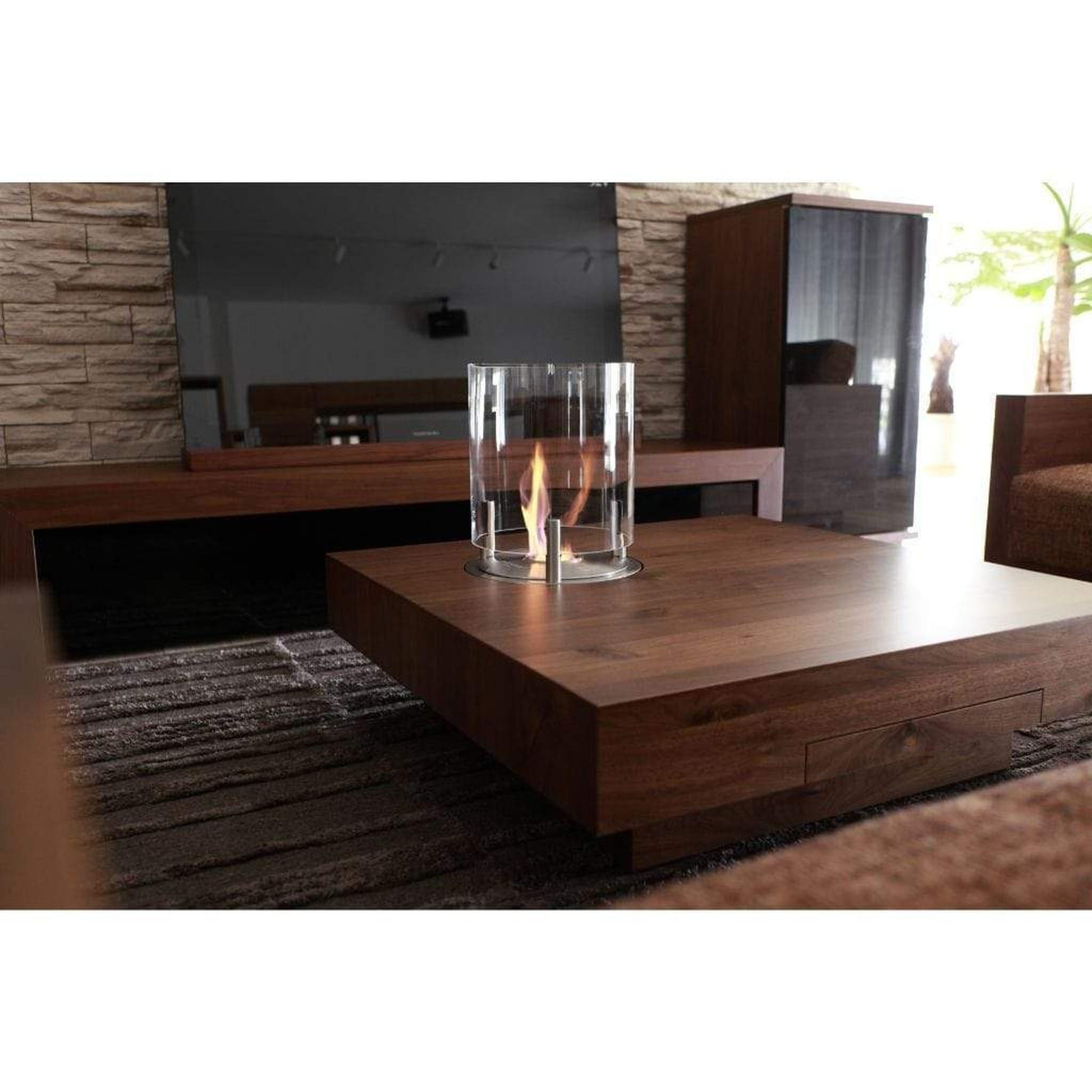

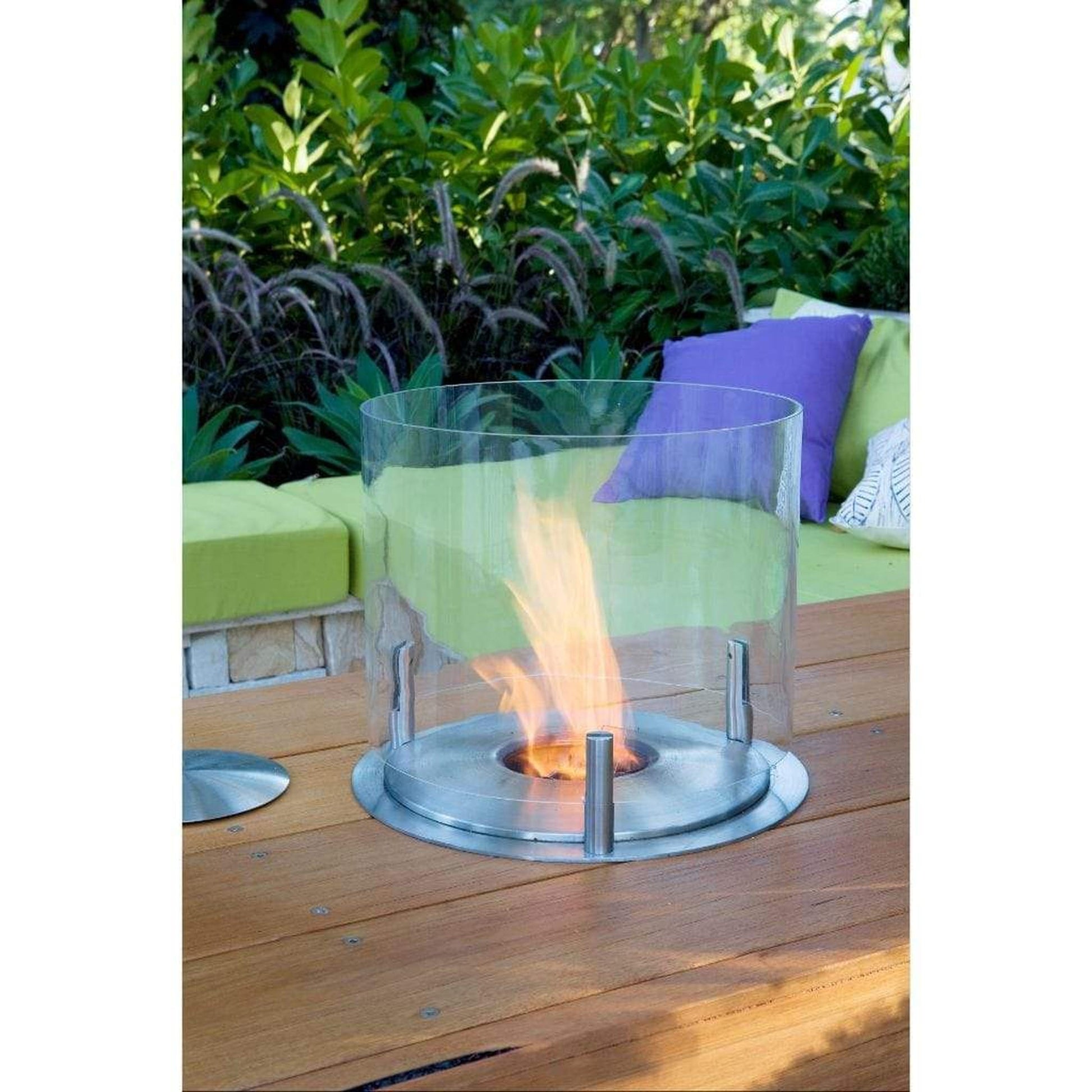

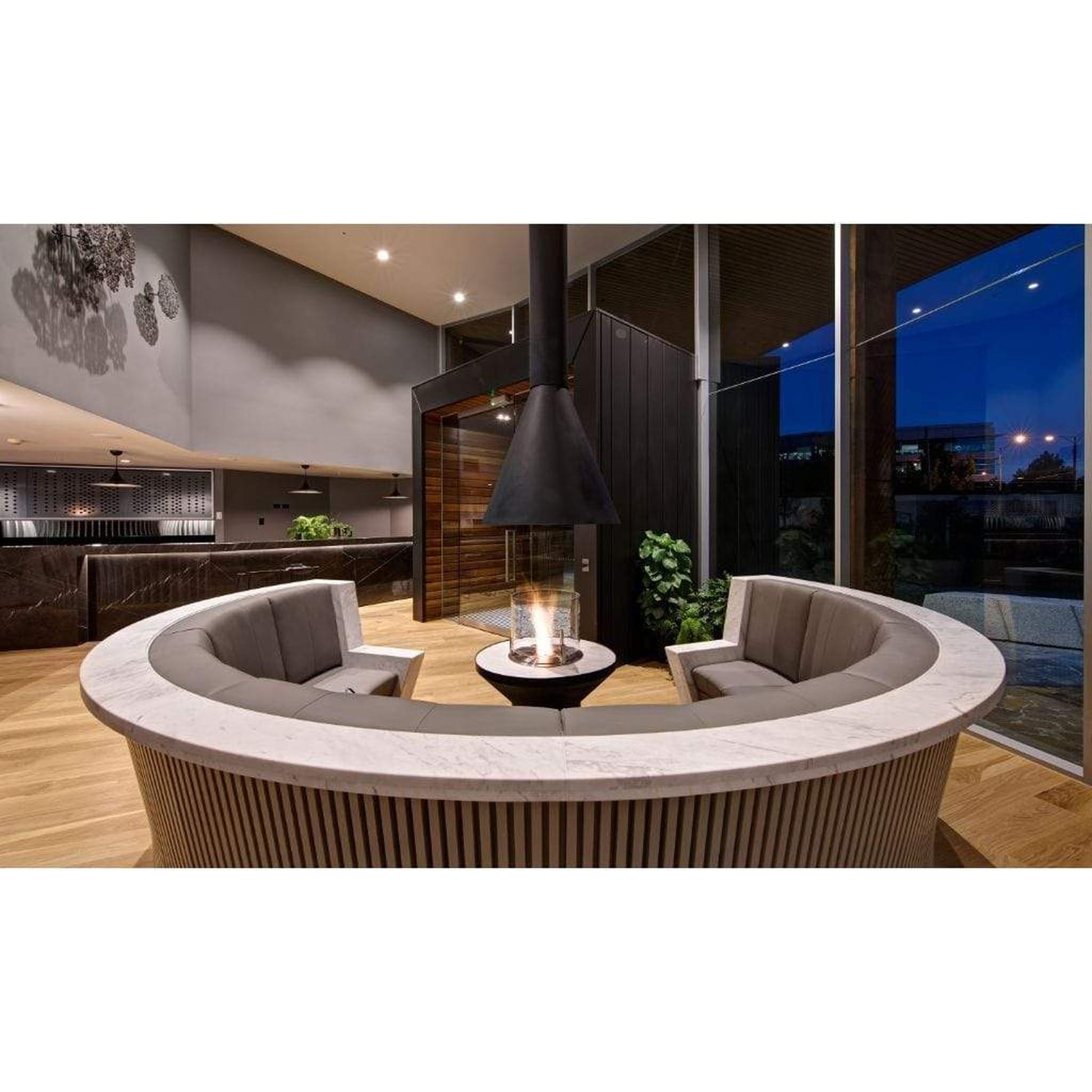

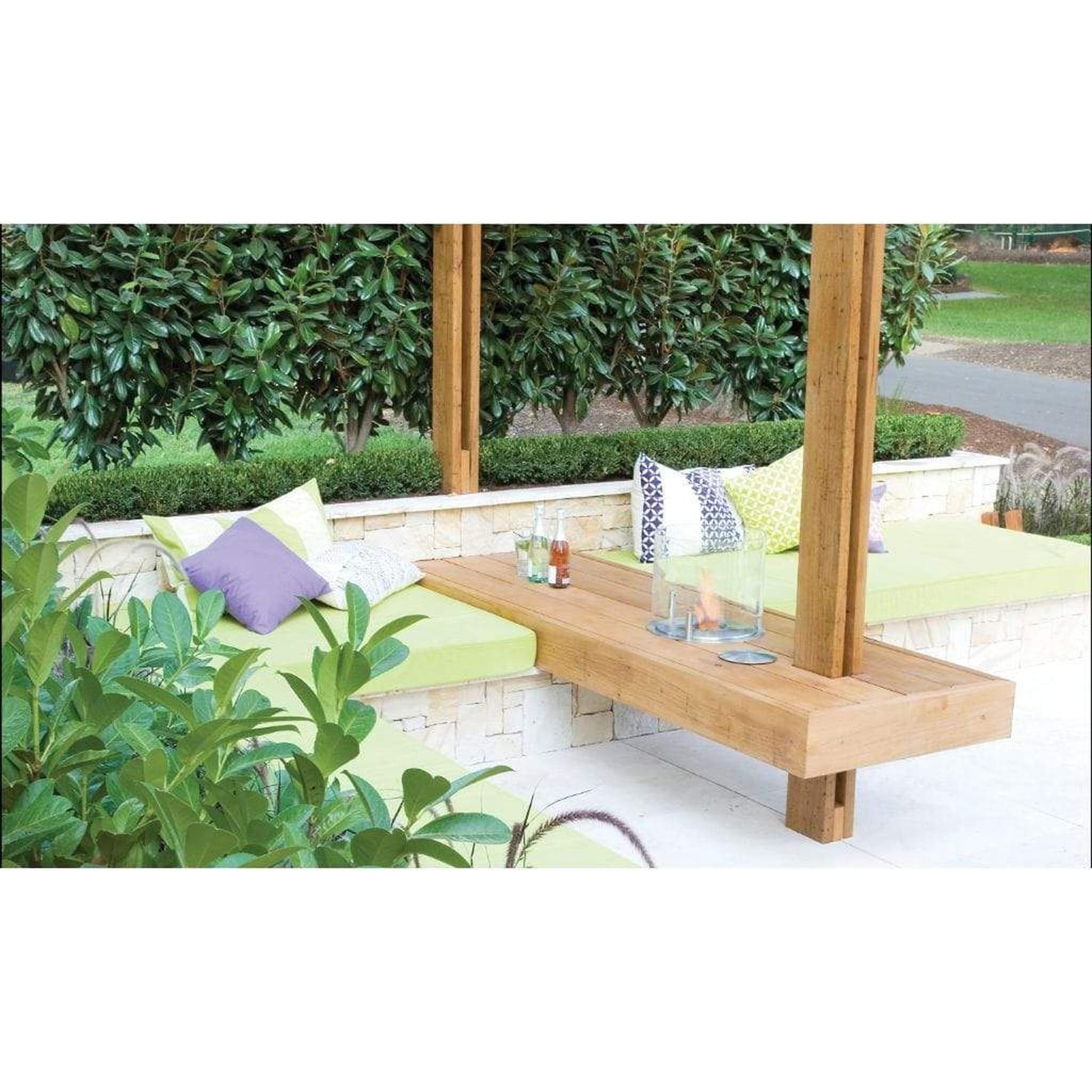

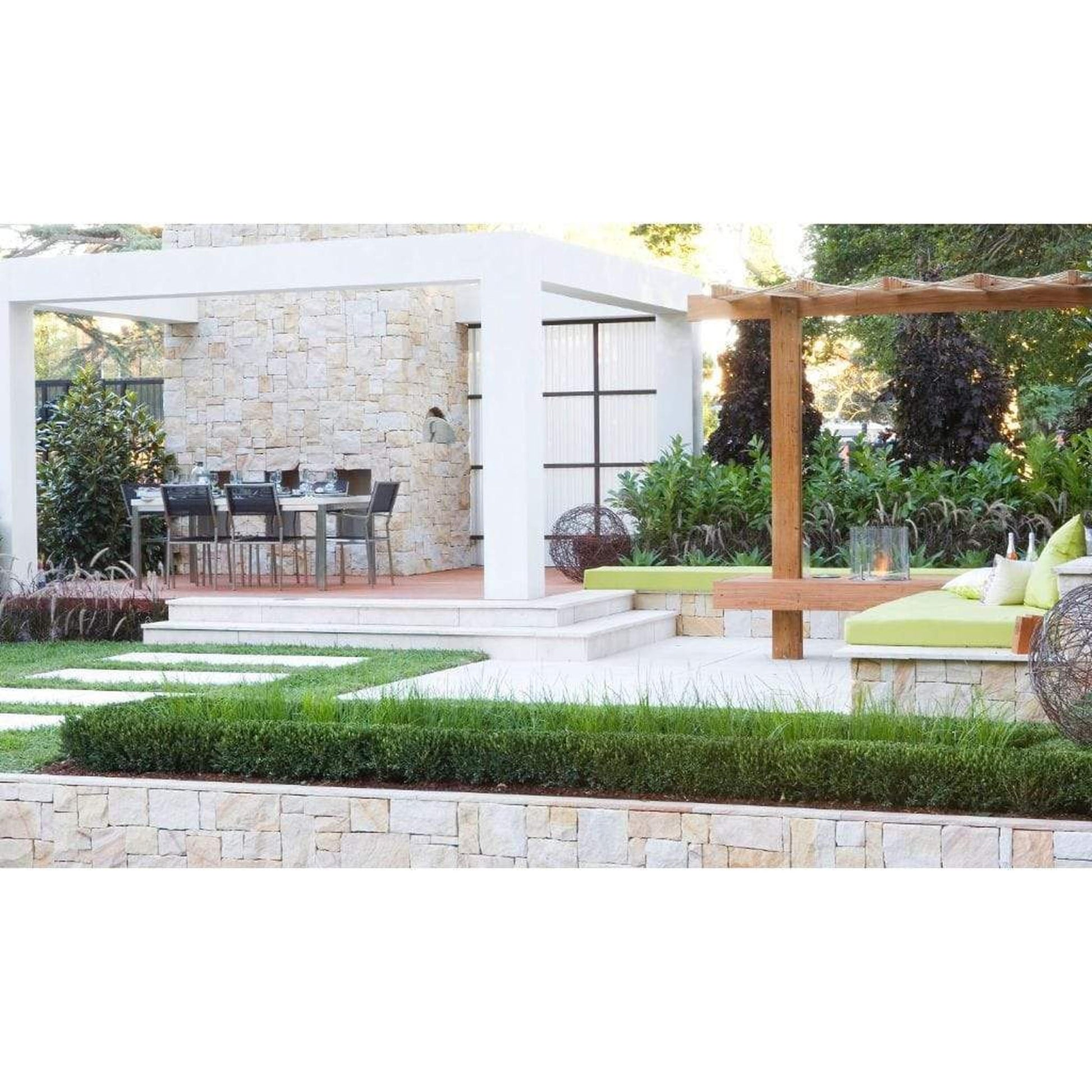

The smallest of EcoSmart’s round ethanol burners, but no less effective. It’s the core of many freestanding, portable designer indoor and outdoor fires, but also provides the versatility to create your own – and the creative designs around the world are testament to this.

O-TL Listed in accordance with UL 1370.

What's Included

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • Butane

Not Included (Sold Separately)

  • Black Glass Charcoal
  • e-NRG Bioethanol Fuel

Features

Minimal Clearance

AB3’s minimal clearance requirement gives you the freedom to create the installation you’ve always envisioned.

Enduring Flame

AB3’s 2.5L capacity gives up to 11 hours of burn time.

Environmentally-friendly

The AB3 is fuelled by eco-friendly, renewable energy – e-NRG bioethanol.

No Flue, No Chimney, No Connection

There’s no need for a chimney to vent harmful gases, as burning liquid e-NRG bioethanol does not produce any smoke. No utility connections required!

Quality and Durability

Crafted from high quality, 304 grade stainless steel, designed to deliver robust performance time after time.

Stability Assured

The AB3 is filled with steel wool to not only enhance the stability of the flame but to regulate its ethanol fuel efficiency.

Tested World Wide

Our collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Specifications

Weight

5.3lb [2.4kg]

Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Stainless Steel

Fuel Efficiency

Volume Capacity

0.7 Gal [2.5 L]

Heats on Average

215ft2 [20m2]

Minimal Room

1413ft3 [40m3]

Thermal Output

6.1 MJ/h - 5800 BTU/h - 1.7 kW

Burn Time

8 - 11h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions

Width 10.2in [260mm]
Height 10.2in [260mm]
Depth 3.7in [94mm]

Technical Drawings

Front View

Side View

Warranty

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

Videos

Frequently Asked Questions

Are EcoSmart Fires easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

Where is the best place to install an ethanol fireplace?

Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.

How does an ethanol fireplace work?

EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.

How do I clean my EcoSmart Fire ethanol burner?

Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing.

Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.

Do I need to service my ethanol fireplace in any way?

Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product.

How much does it cost to maintain an ethanol fireplace?

EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed.

Are ethanol fireplaces good for the environment?

EcoSmart Fire’s ethanol fireplace burners and fireplace inserts, when paired with our e-NRG bioethanol fuel are clean burning with the only byproduct being heat, steam and carbon dioxide (the same stuff we exhale). Unlike gas fireplace inserts and wood burning fireplace inserts, EcoSmart Fire’s ethanol fireplaces do not produce messy pollutants like soot, smoke, and ash.
