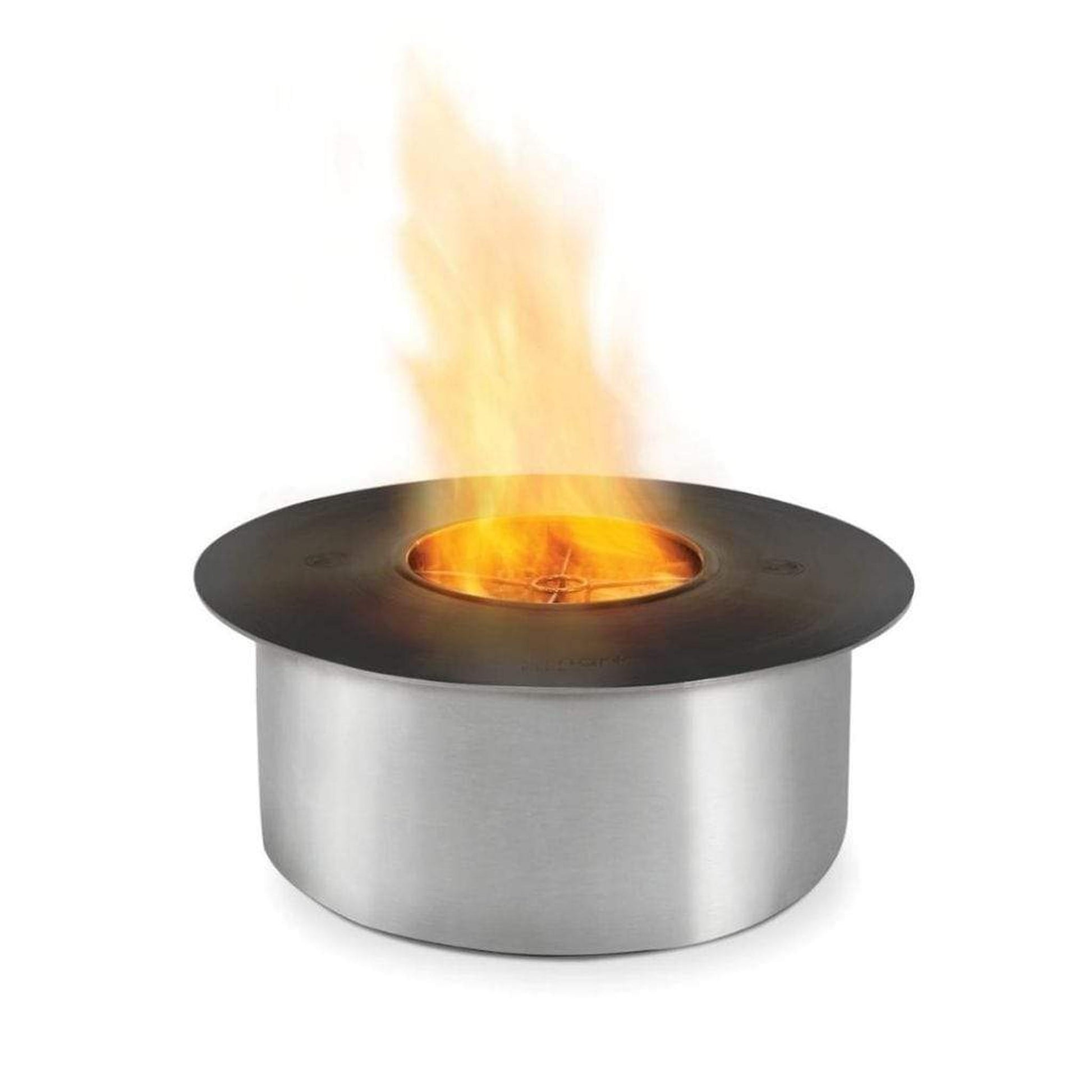

EcoSmart Fire AB8 14" Stainless Steel Ethanol Fireplace Burner by Mad Design Group

EcoSmart Fire AB8 14" Stainless Steel Ethanol Fireplace Burner by Mad Design Group

Regular price $1,495.00
Regular price $1,495.00 Sale price $1,495.00
Sale Sold out
Color

e-NRG Bioethanol Fuel

-- Please Select --

e-NRG Bioethanol Fuel-4 Gallons

e-NRG Bioethanol Fuel-8 Gallons

e-NRG Bioethanol Fuel-16 Gallons

e-NRG Bioethanol Fuel-20 Gallons

e-NRG Bioethanol Fuel-40 Gallons

e-NRG Bioethanol Fuel-80 Gallons

e-NRG Bioethanol Fuel-180 Gallons

No, Thank You

Black Glass Charcoal

-- Please Select --

Black Glass Charcoal

No, Thank You

  • Free Shipping on Orders Over $400
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

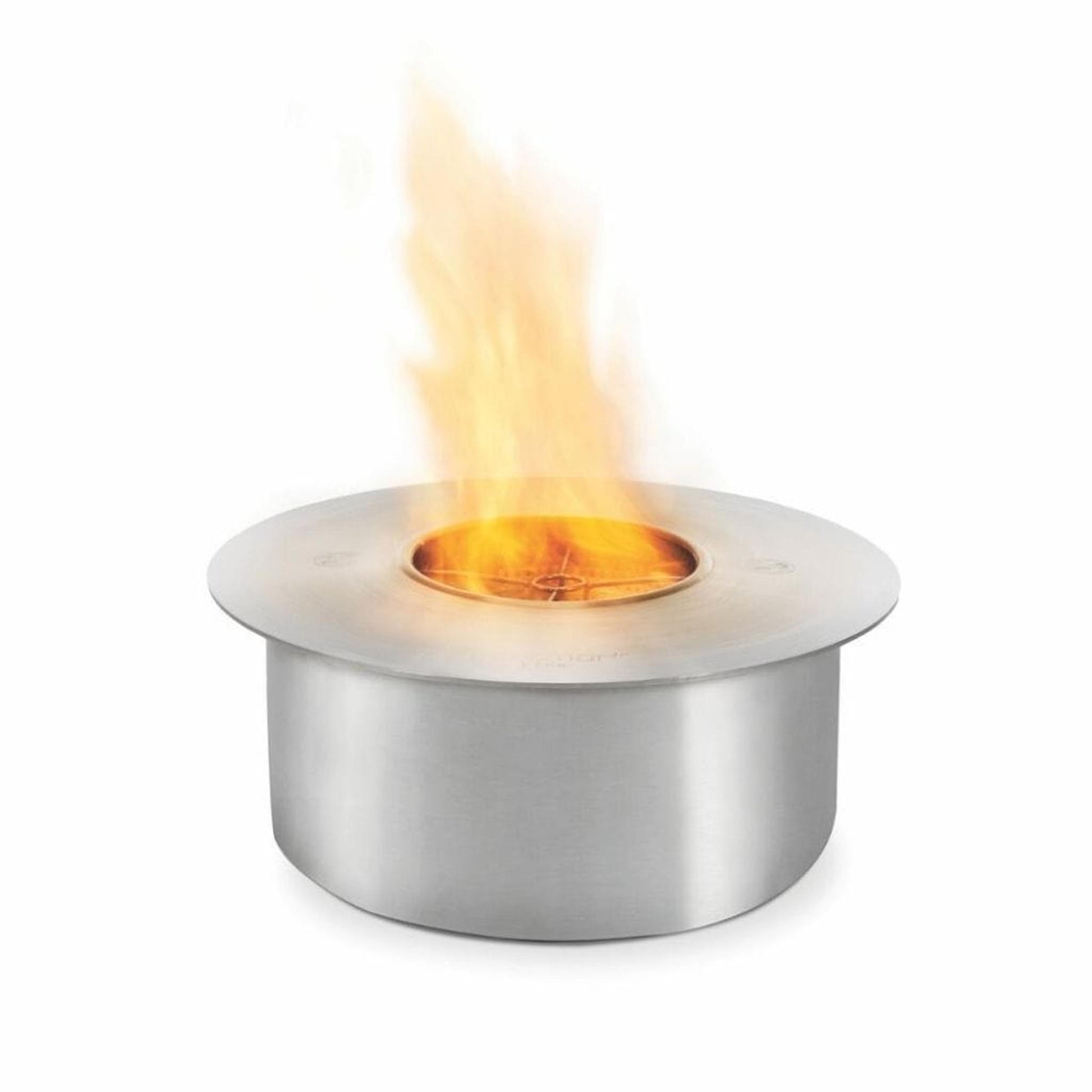

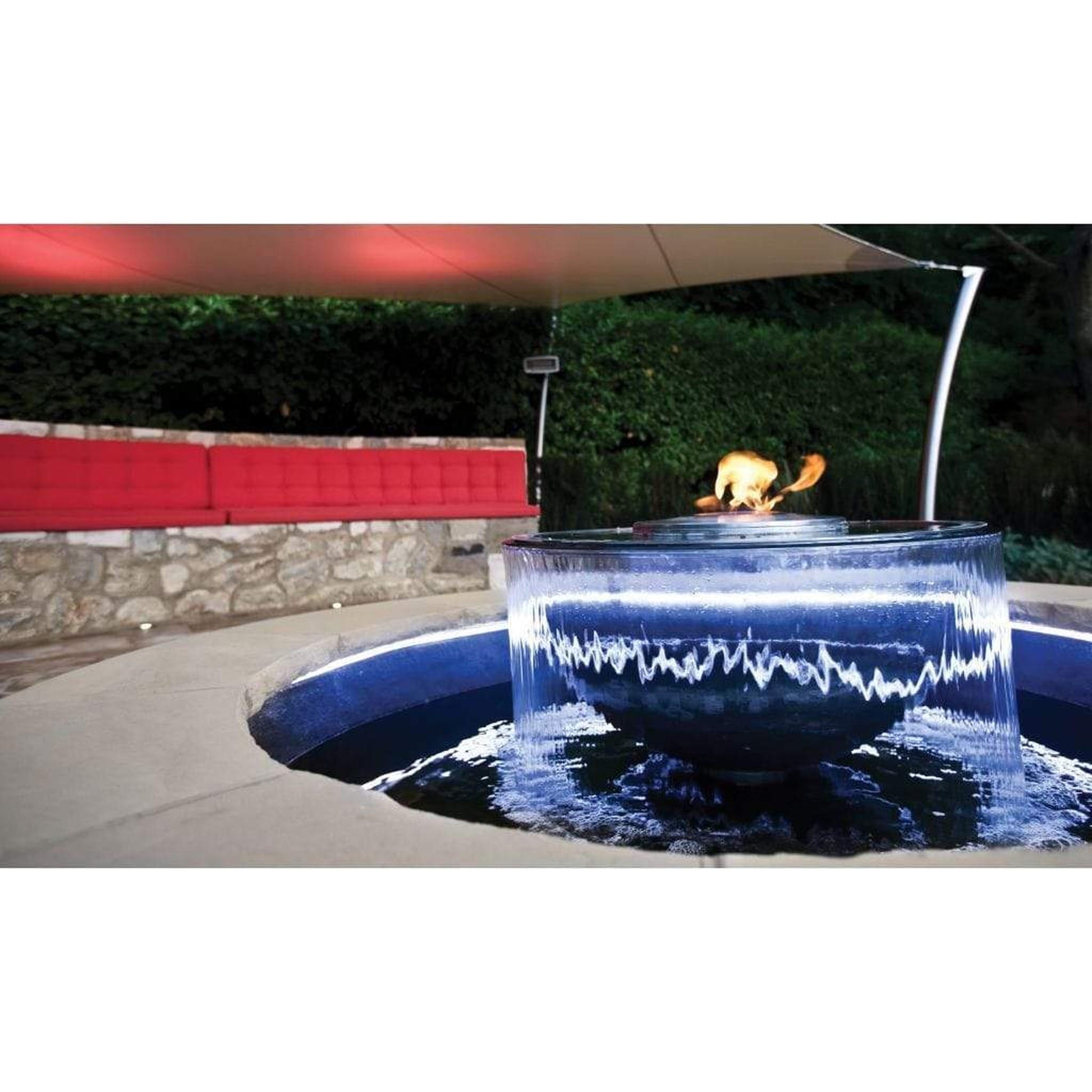

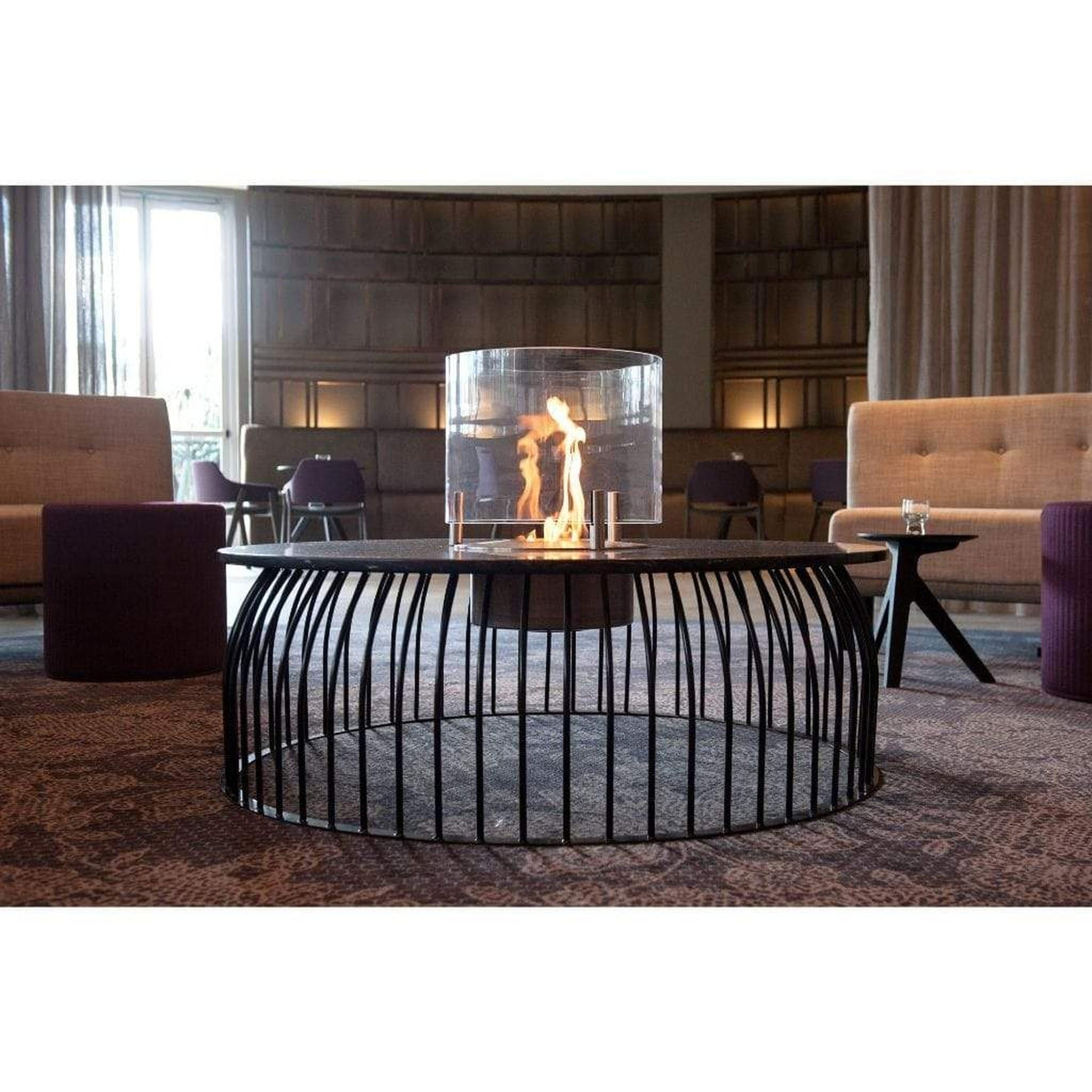

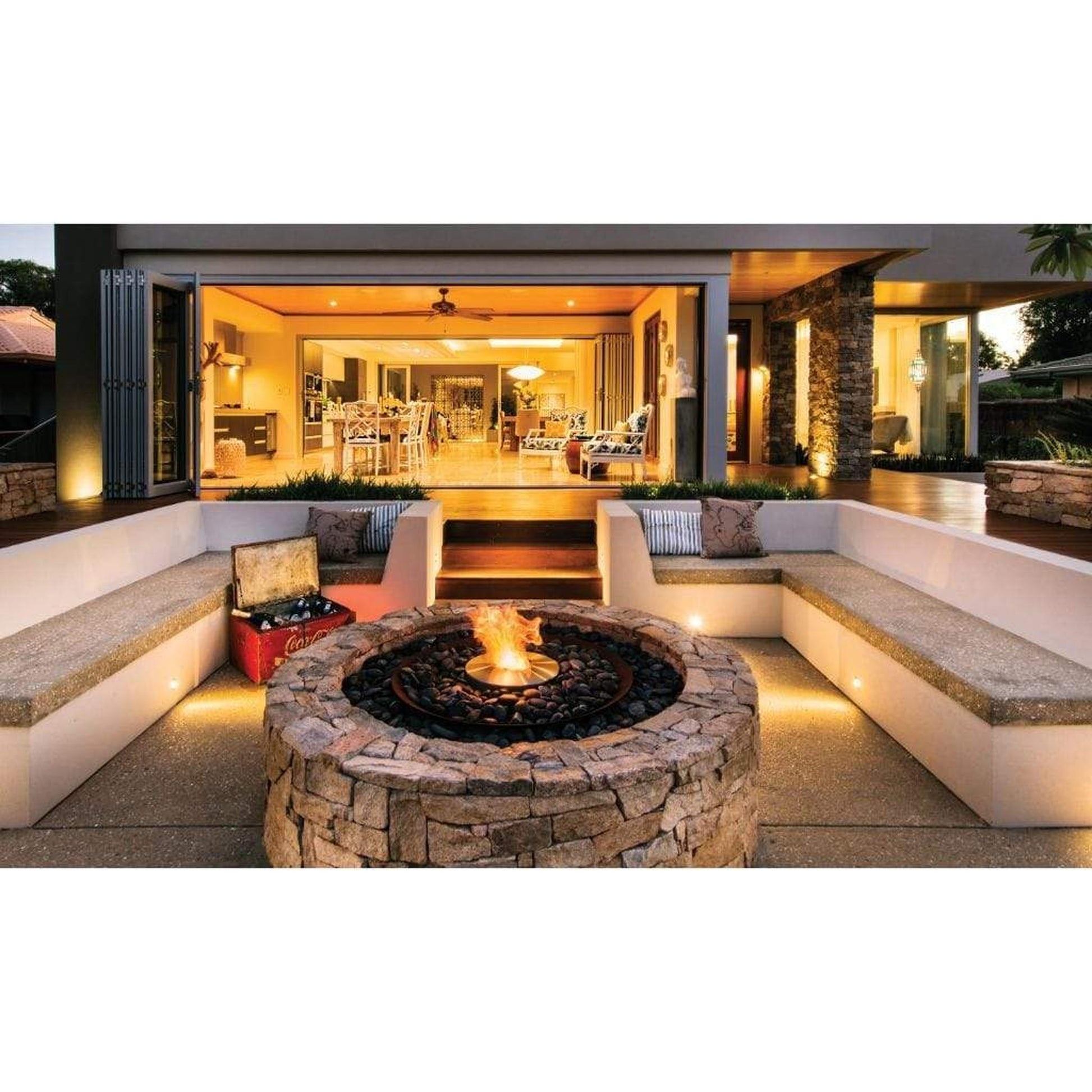

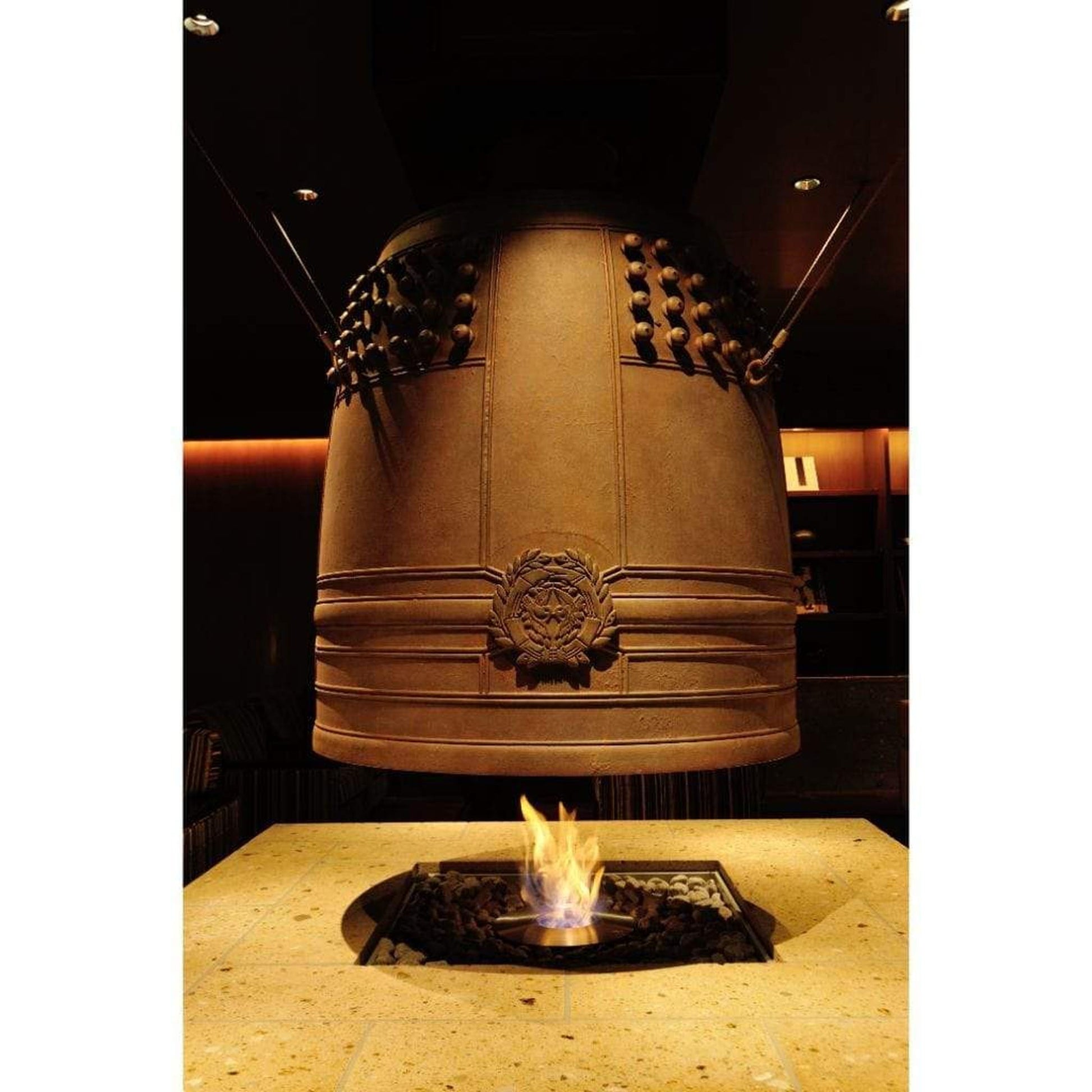

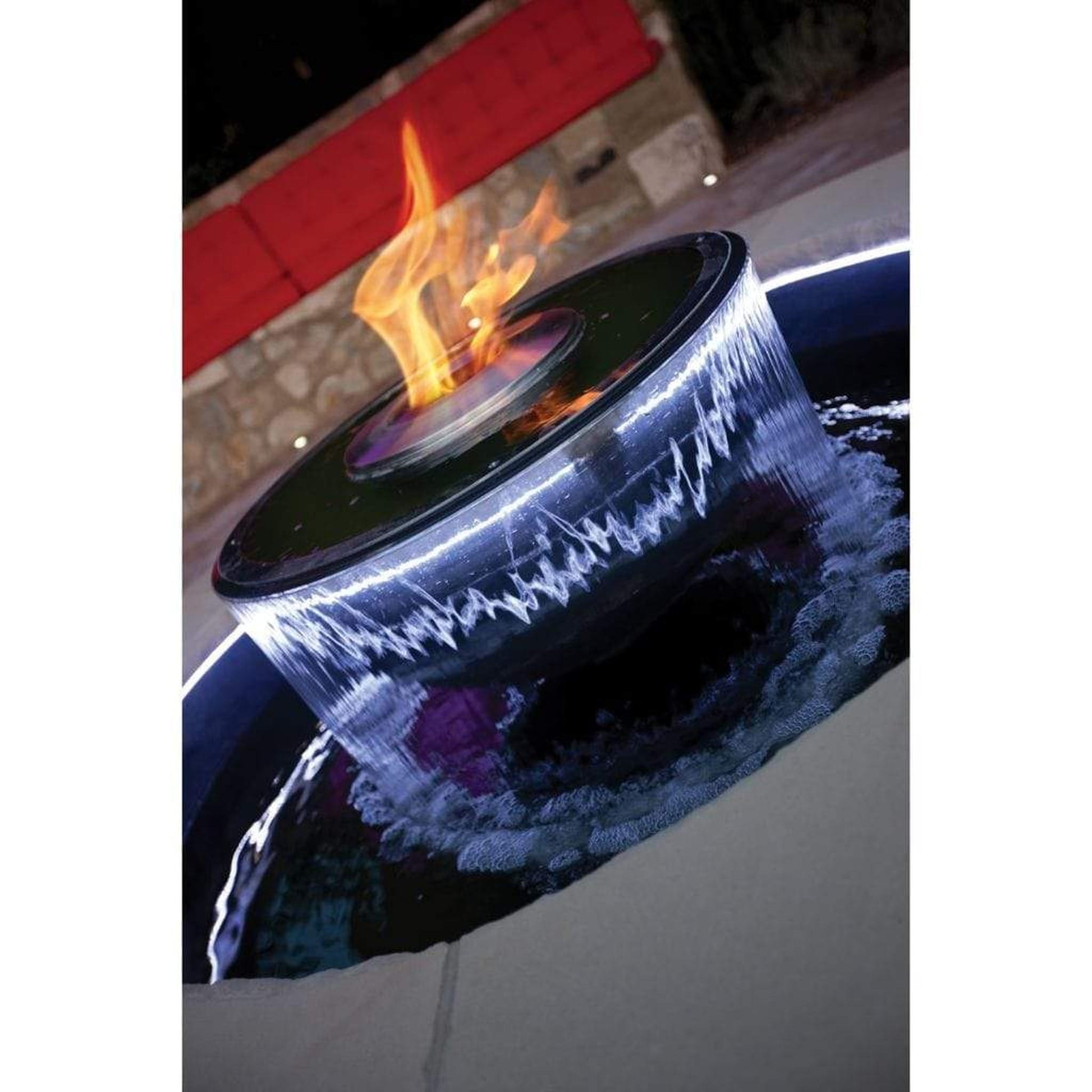

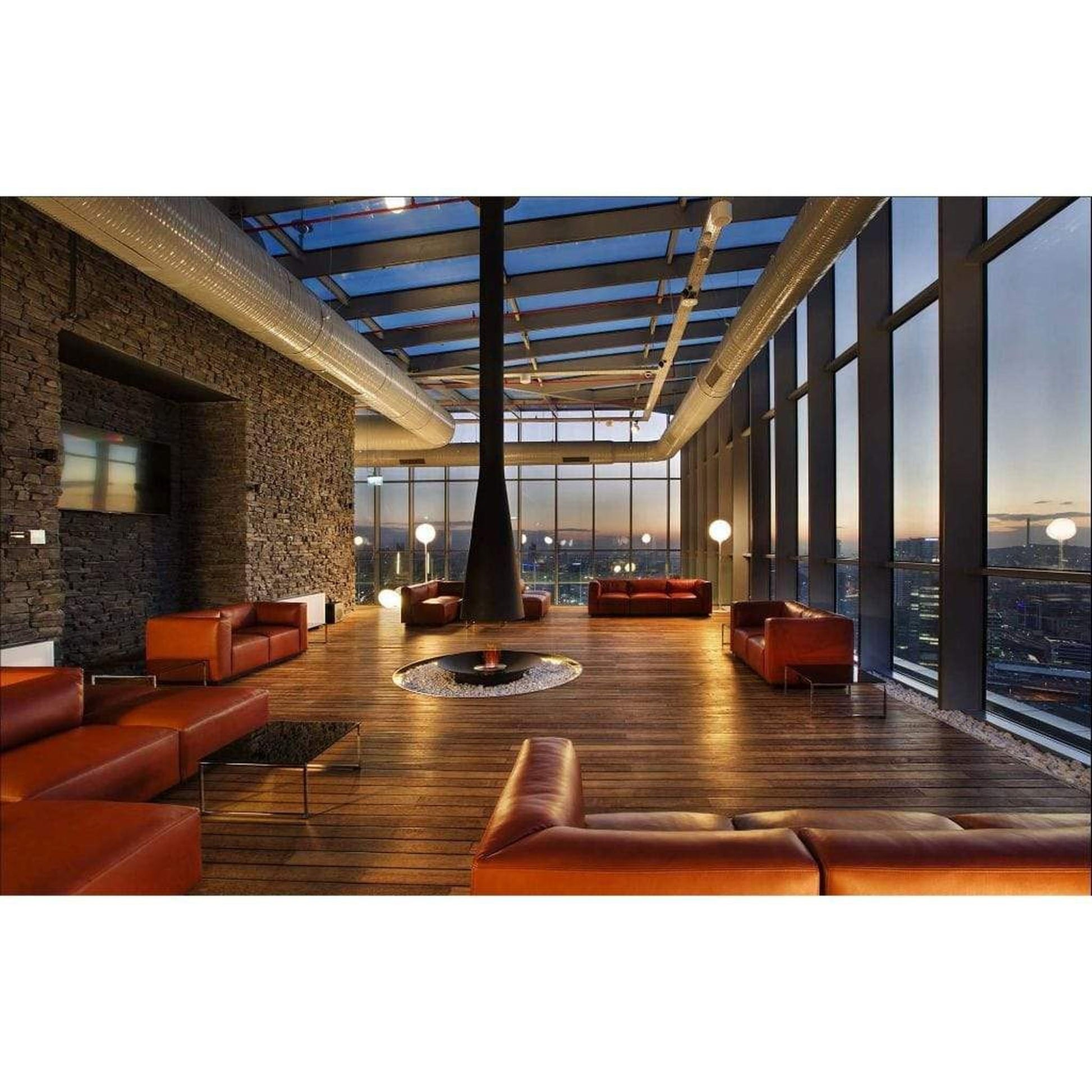

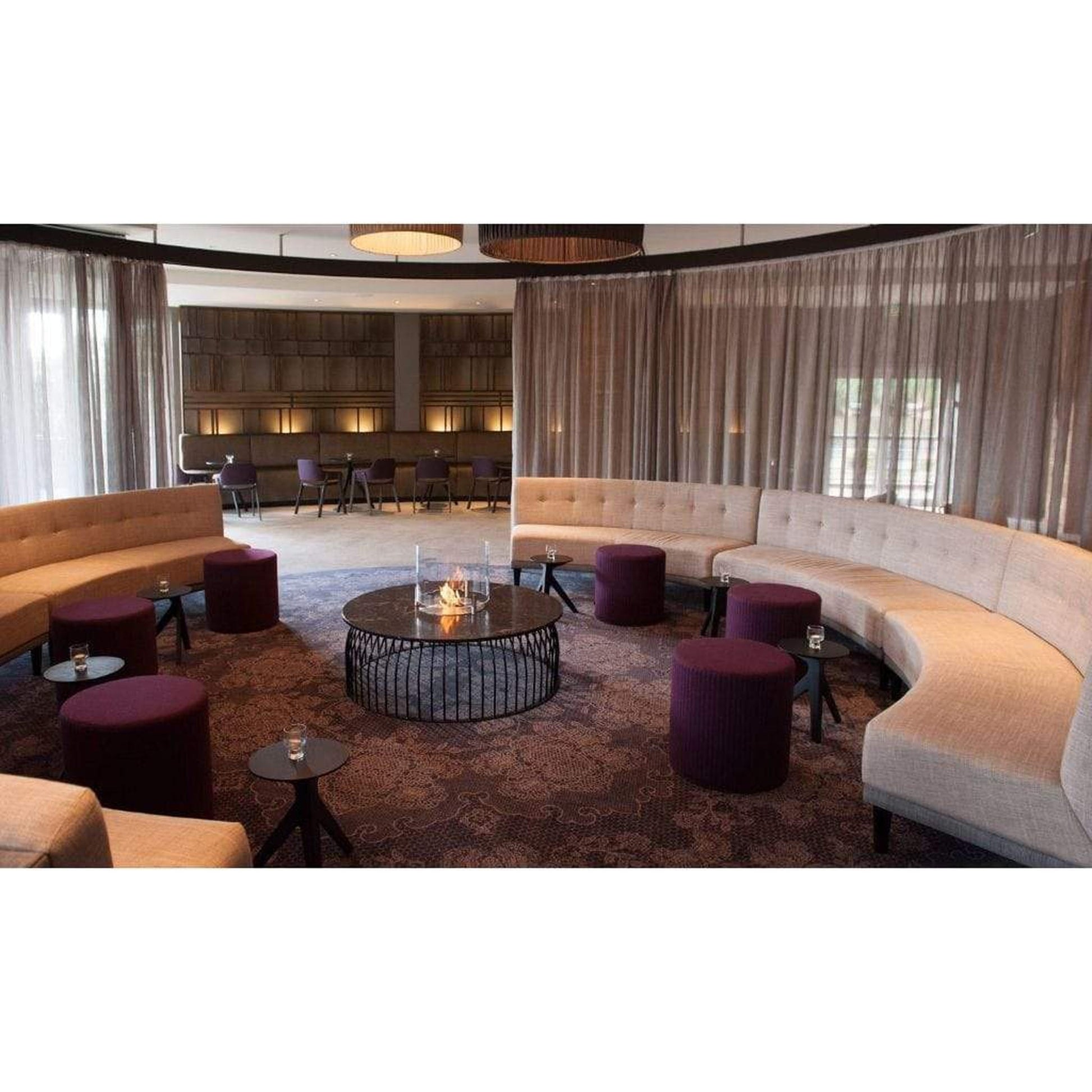

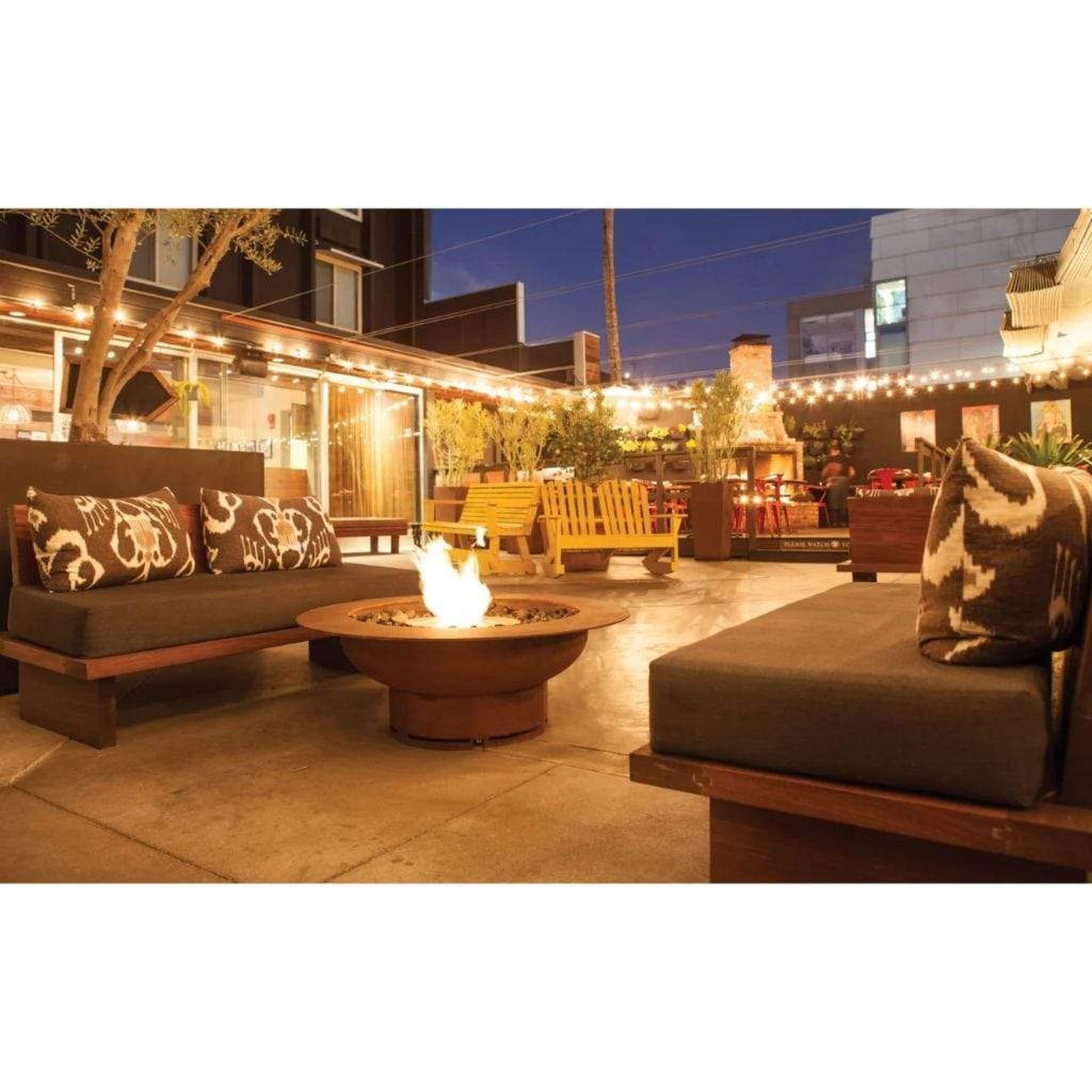

Compact round-shaped ethanol burner with a large-scale flame

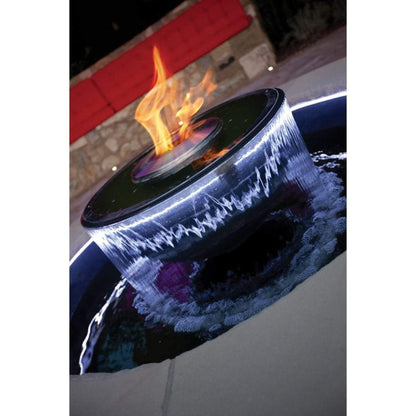

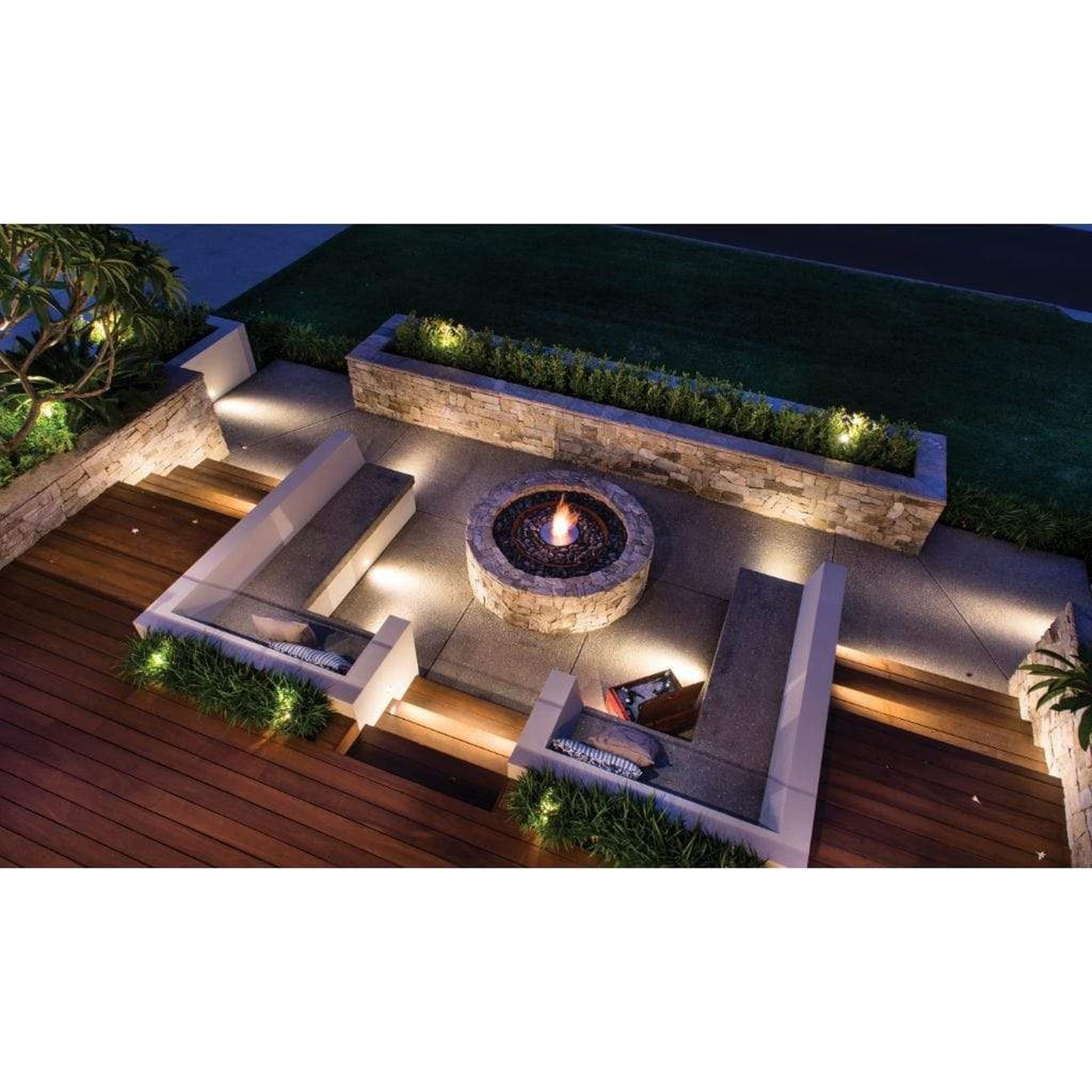

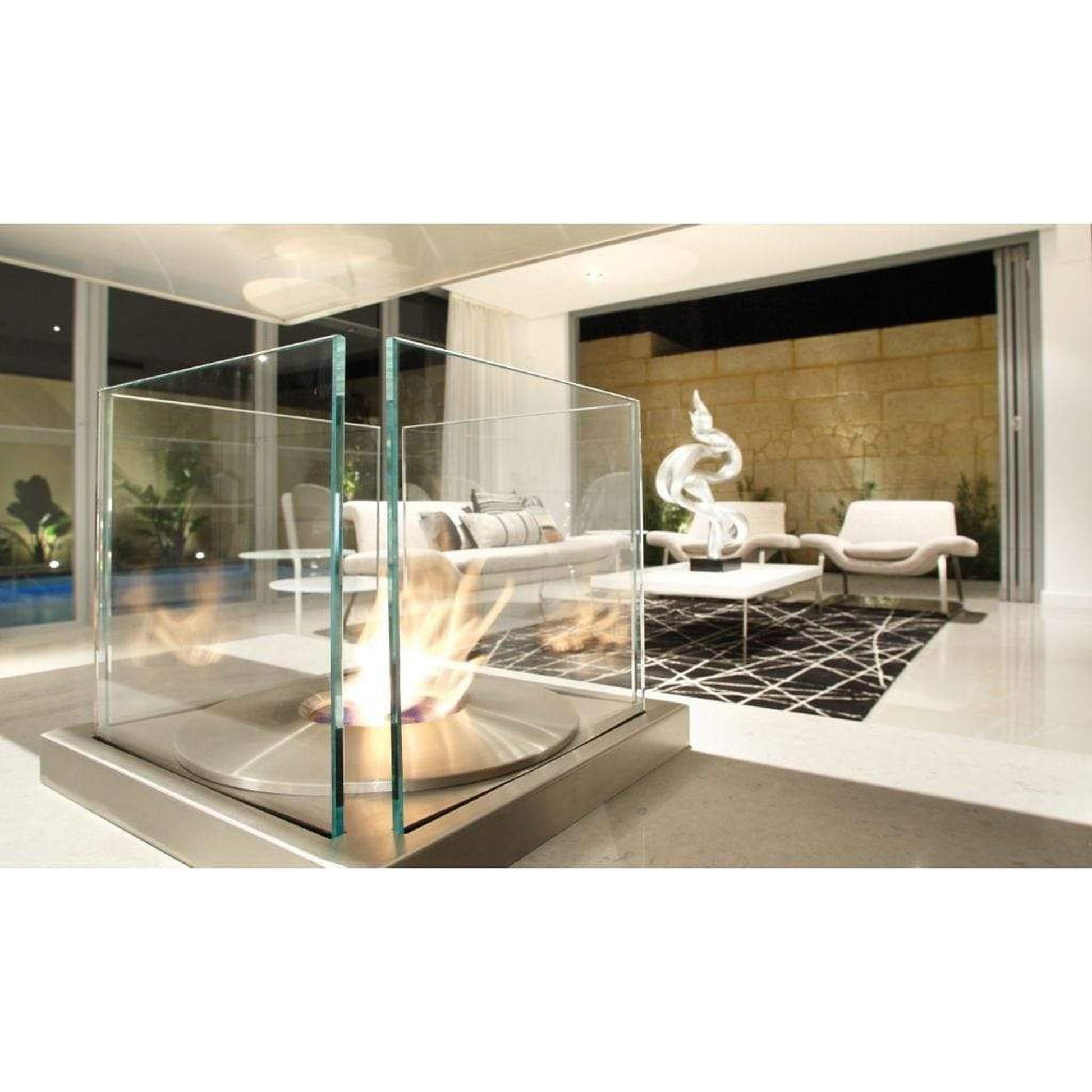

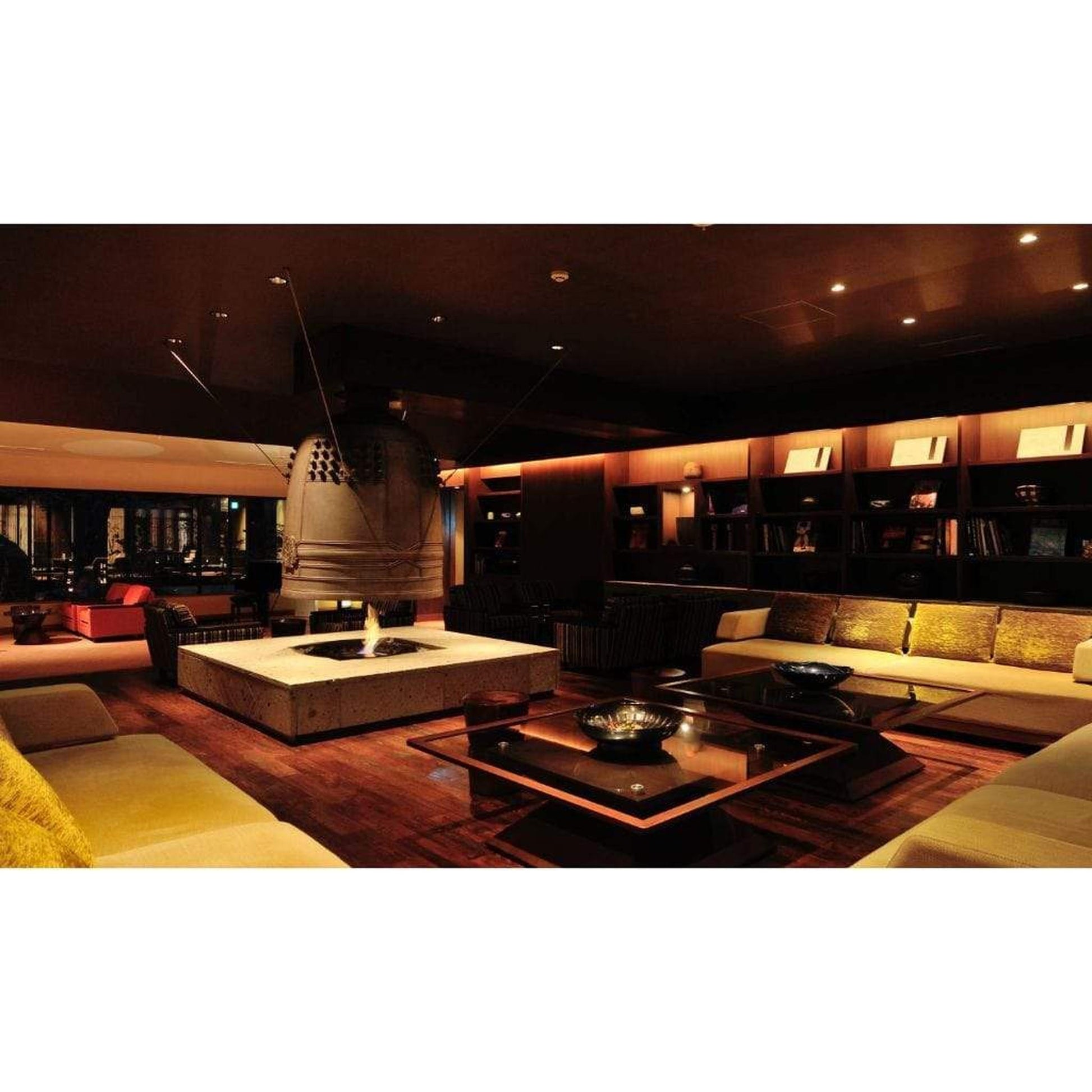

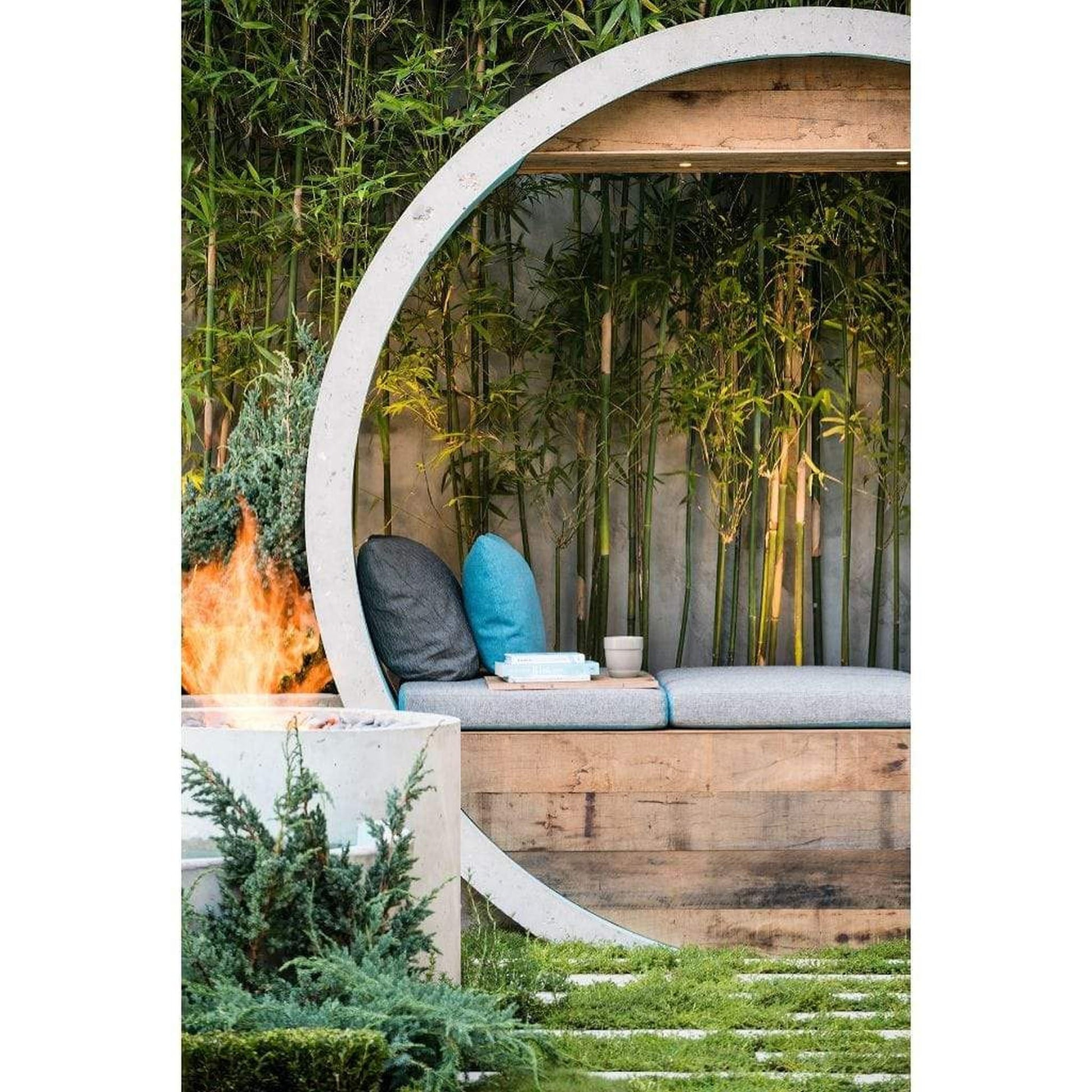

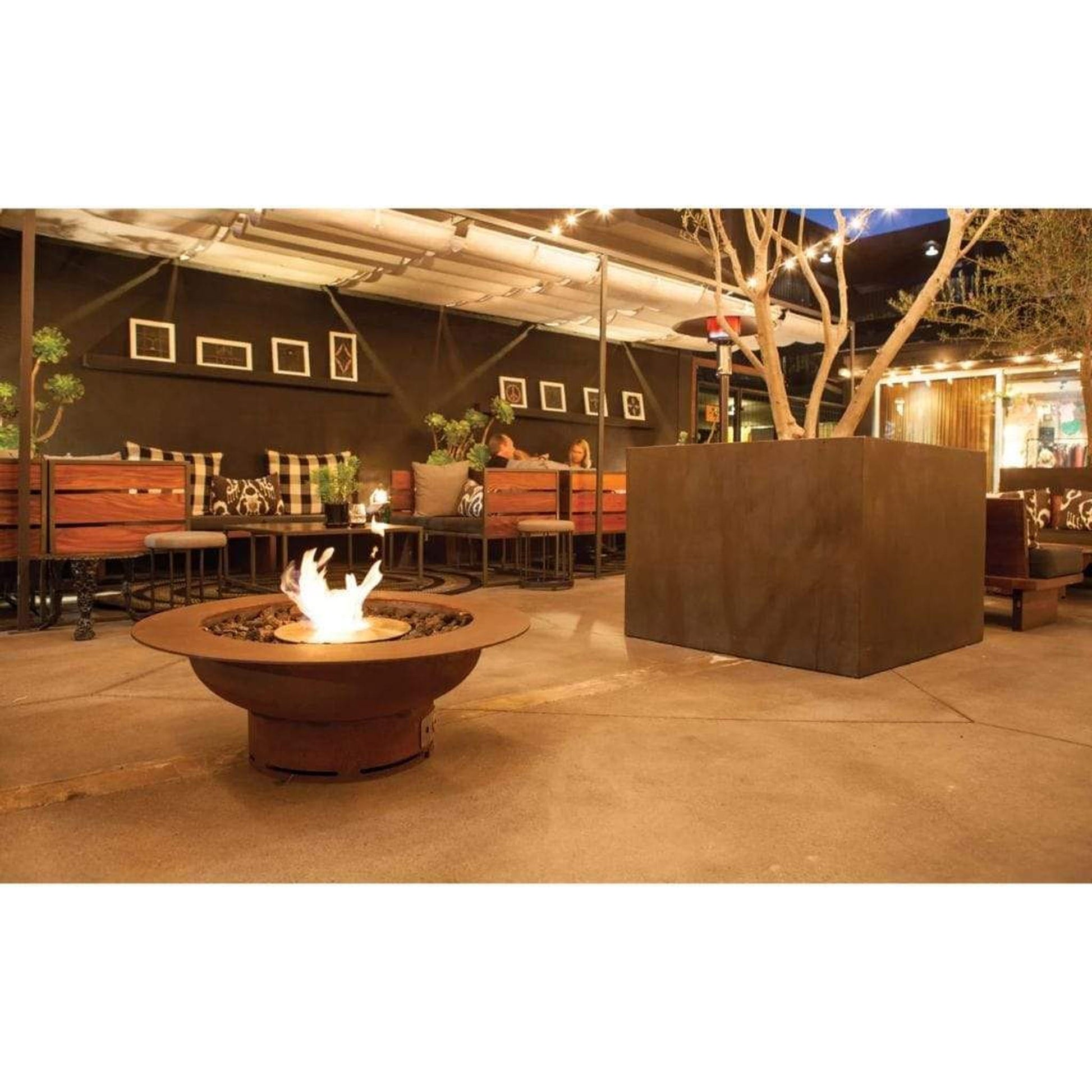

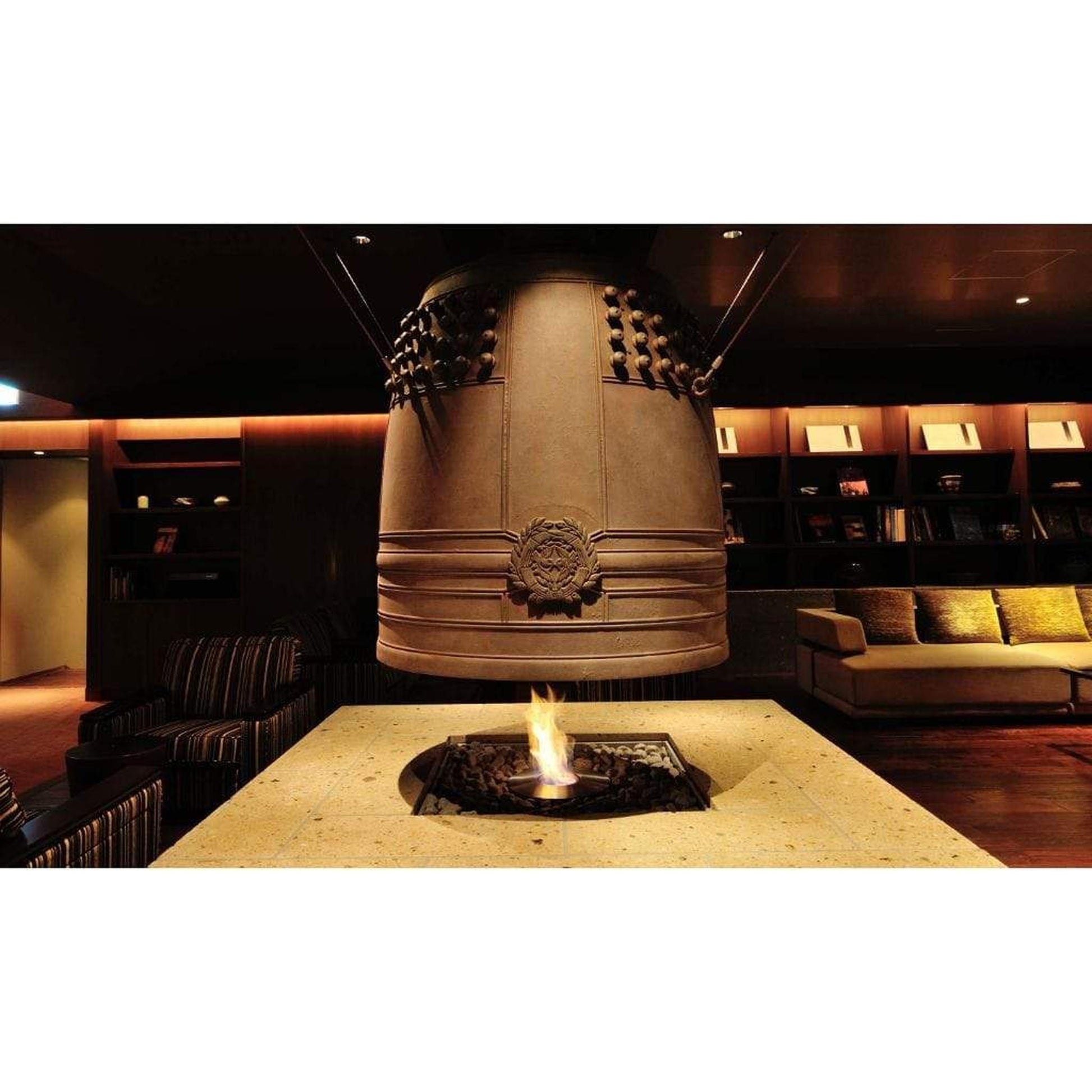

Used in multiple personalised installations, the AB8’s compact design and absolute versatility enable it to be readily integrated into outdoor – and indoor – fire designs. Whether residential or commercial applications, the clean, modern shape ensures absolute design flexibility.

Generates a beautiful larger scale flame.

O-TL Listed in accordance with UL 1370.

What's Included

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • Butane

Not Included (Sold Separately)

  • Black Glass Charcoal
  • e-NRG Bioethanol Fuel

Features

Minimal Clearance

AB3’s minimal clearance requirement gives you the freedom to create the installation you’ve always envisioned.

Enduring Flame

AB3’s 2.5L capacity gives up to 11 hours of burn time.

Environmentally-friendly

The AB3 is fuelled by eco-friendly, renewable energy – e-NRG bioethanol.

No Flue, No Chimney, No Connection

There’s no need for a chimney to vent harmful gases, as burning liquid e-NRG bioethanol does not produce any smoke. No utility connections required!

Quality and Durability

Crafted from high quality, 304 grade stainless steel, designed to deliver robust performance time after time.

Stability Assured

The AB3 is filled with steel wool to not only enhance the stability of the flame but to regulate its ethanol fuel efficiency.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Specifications

Weight

13.01lb [5.9kg]

Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Stainless Steel

Fuel Efficiency

Volume Capacity

2.1 Gal [8 L]

Heats on Average

646ft2 [60m2]

Minimal Room

4097ft3 [116m3]

Thermal Output

21.56 MJ/h - 20433 BTU/h - 6 kW

Burn Time

7 - 11h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions

Width 14.2in [360mm]
Height 14.2in [360mm]
Depth 6in [152mm]

Technical Drawings

Front View

Top View

Warranty

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

Videos

Frequently Asked Questions

How long will my ethanol fireplace burn?

Burn times for our ethanol fireplaces vay based on flame size and fuel capacity of the burner. EcoSmart Fire’s ethanol fireplaces will burn between 8-13 hours when full.
What is an ethanol fireplace burner?

EcoSmart Fire’s ethanol fireplace burners allow you to bring your vision to life and create a truly unique and custom fireplace. Completely self-contained, our ethanol burners have no need for exterior tanks or utility lines and their stainless steel bodies make them suitable for both interior and exterior use. Easily integrate a round, square, or linear ethanol burner into media units, cabinetry, walls, pillars, stone benches and more to create your custom ethanol fireplace design. EcoSmart Fire’s ethanol fireplace burners are available in a range of sizes and can be placed side by side for a longer flame.

What are the benefits of using a bioethanol heater compared to heating your house with a reverse cycle air conditioner?

It’s important to understand the difference between “foundation” heating and occasional heating. Quite often these are two completely different yet complementary systems that work hand in hand. Reverse cycle air conditioning doesn't give you a beautiful flame and lifestyle benefits of an EcoSmart Fire. However, By combining reverse-cycle air conditioning and an EcoSmart Fire within your home you can have the ‘best of both worlds’ - effective heat and ambiance.

Do ethanol fireplaces smell?

All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.

Do EcoSmart Fire ethanol fireplaces give off any fumes or gases?

Bioethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. Clean burning and eco-friendly, ethanol fuel releases heat, carbon dioxide (the same stuff we exhale) and steam.

What maintenance is required for ethanol fireplaces?

Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.

Can I extinguish my ethanol fireplace before the fuel has burnt?

Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.

Where is the best place to install an ethanol fireplace?

Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.
