SKU:ESF.B.FPK.S.22.I
EcoSmart Fire Square 22 24" Indoor Black Fire Pit Kit with Stainless Steel Ethanol Burner by Mad Design Group
EcoSmart Fire Square 22 24" Indoor Black Fire Pit Kit with Stainless Steel Ethanol Burner by Mad Design Group
e-NRG Bioethanol Fuel
-- Please Select --
e-NRG Bioethanol Fuel-4 Gallons
e-NRG Bioethanol Fuel-8 Gallons
e-NRG Bioethanol Fuel-16 Gallons
e-NRG Bioethanol Fuel-20 Gallons
e-NRG Bioethanol Fuel-40 Gallons
e-NRG Bioethanol Fuel-80 Gallons
e-NRG Bioethanol Fuel-180 Gallons
No, Thank You
S500 Fire Screen (*Optional for Concrete Models)
-- Please Select --
S500 Fire Screen
No, Thank You
AB8 Burner Cover (*Outdoor Only)
-- Please Select --
AB8 Burner Cover
No, Thank You
S22 Glass Cover Plate
-- Please Select --
S22 Glass Cover Plate
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

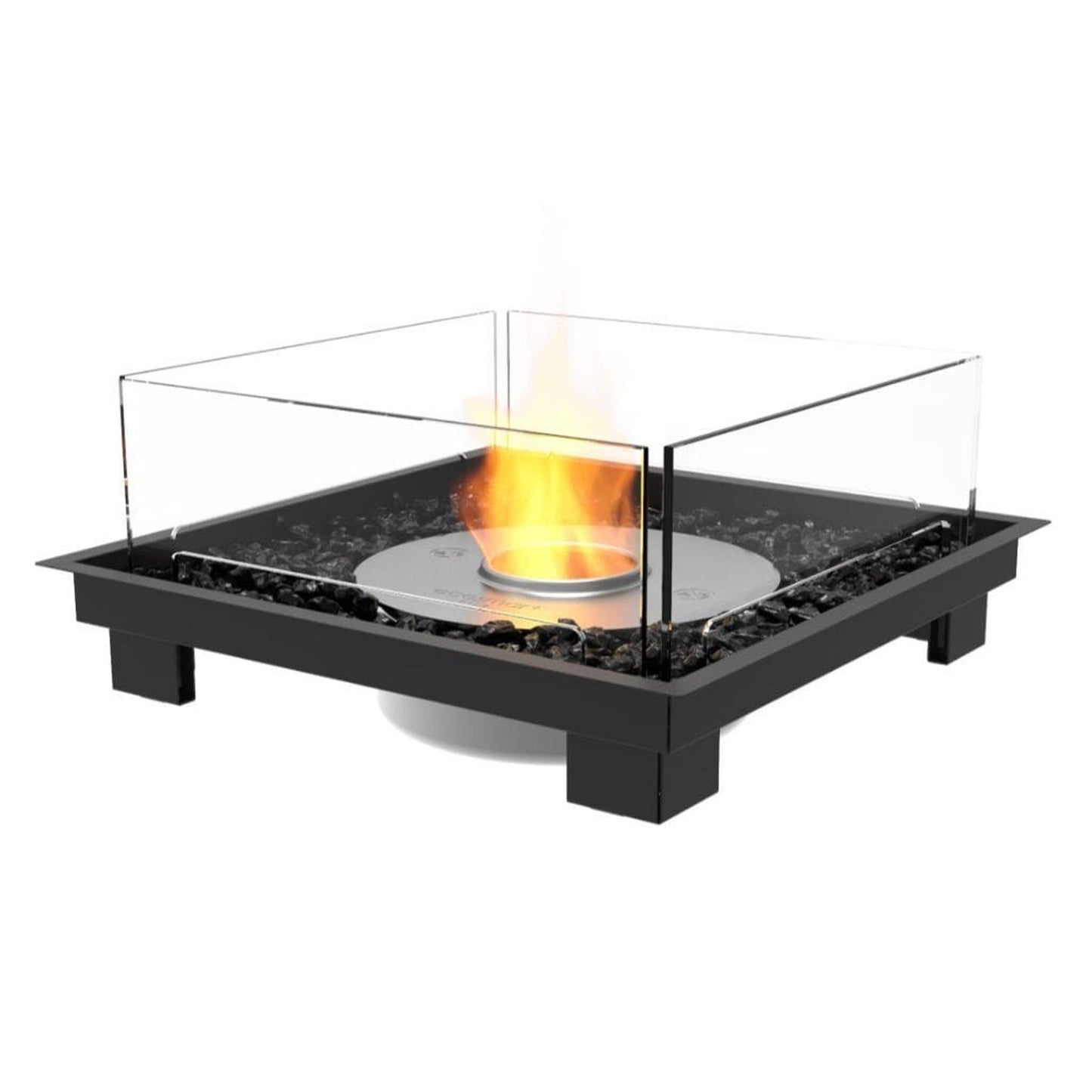

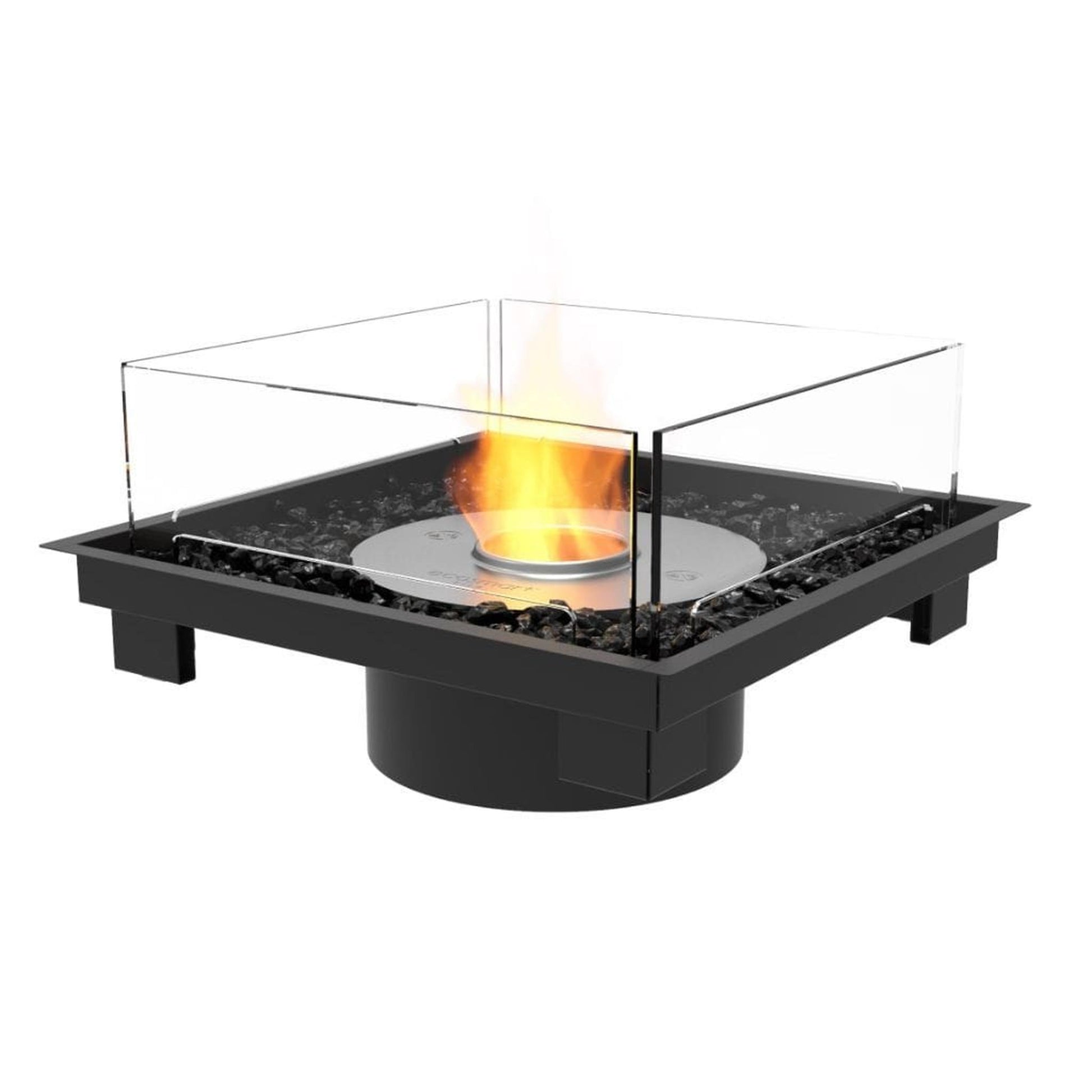

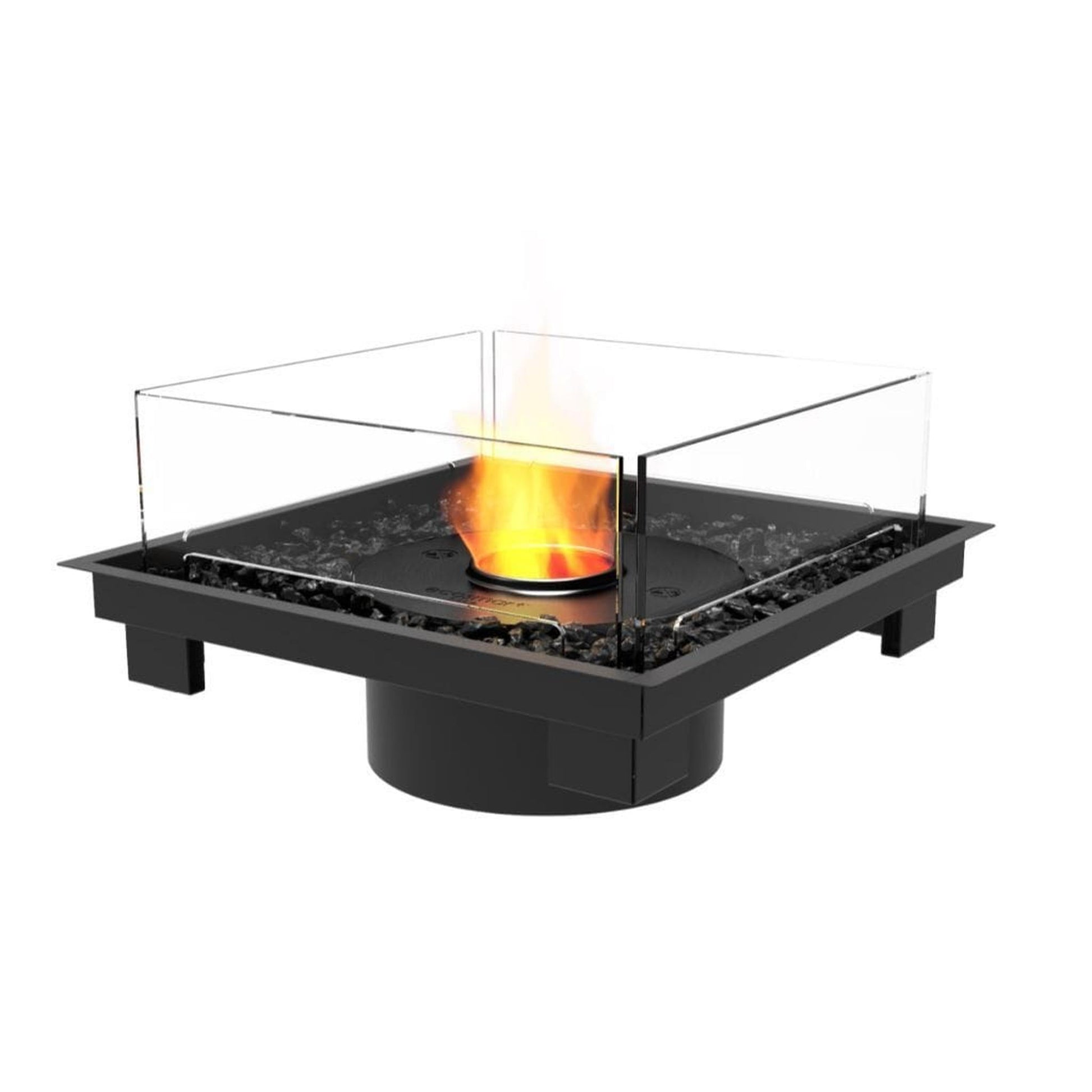

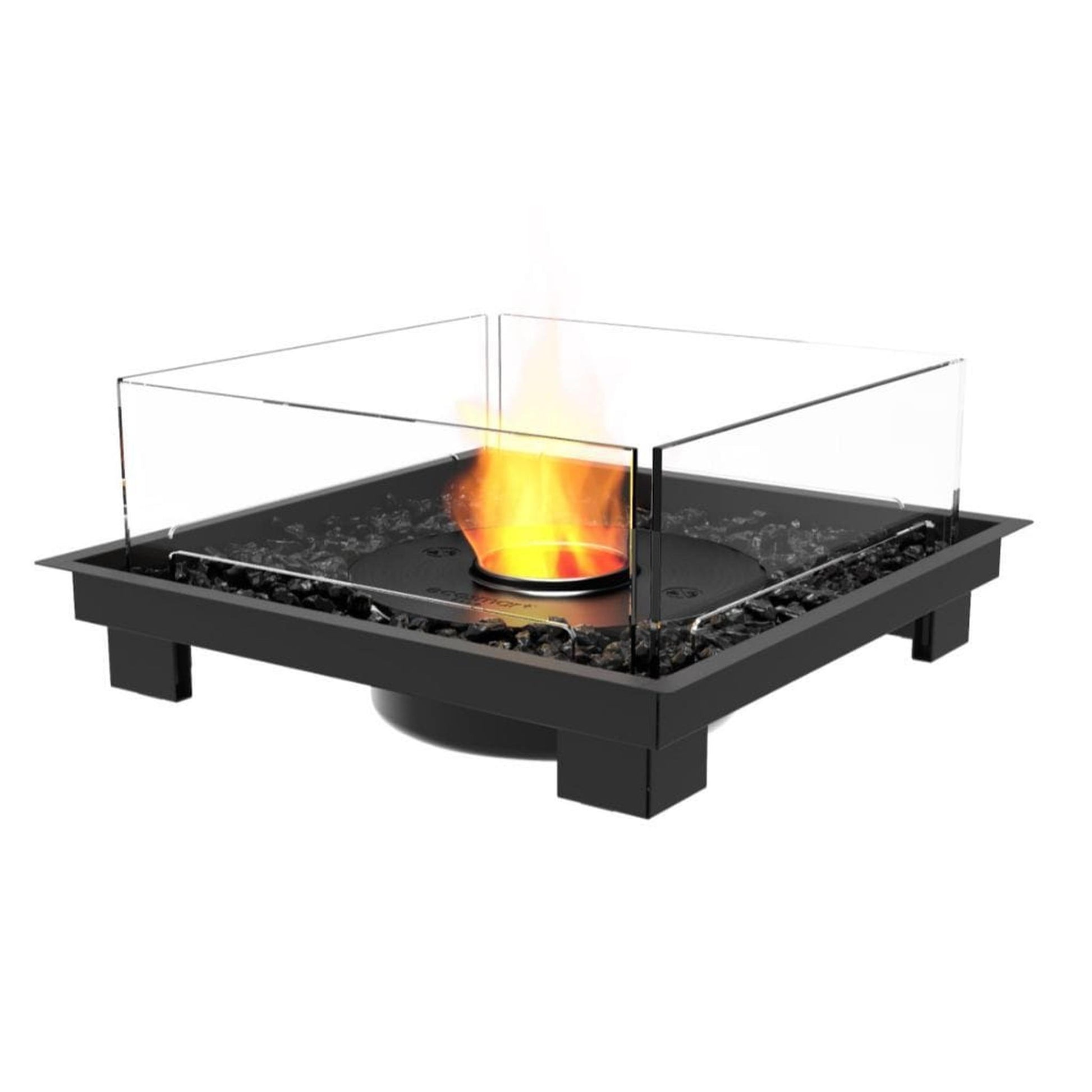

Compact yet captivating Fire Pit Kit.
The Square 22’s compact design features a round stainless steel ethanol or gas burner set within a square tray, enabling the Fire Pit Kit to be easily integrated into a square or rectangular layout, such as a coffee table. Perfect for creating an inviting, intimate setting.
O-TL Listed in accordance with UL 1370.
What's Included
- Bioethanol Burner
- 1.25 Gallon Jerry Can
- Bottle Adapter
- Fire Lighter
- Lighting Rod
-
Butane
- Black Glass Charcoal
- AB8 Efficiency Ring
Not Included (Sold Separately)
- e-NRG Bioethanol Fuel
- R400 Fire Screen
- AB8 Burner Cover
- S22 Cover Plate
- S500 Fire Screen
Features
Design flexibility
The freedom to install within a square or rectangular setting plus the square lines provide a softer look while still giving any space a clean-lined, stylish looking fire pit.
Trans-seasonal
Our patio fire pits are designed for year-round enjoyment, across the seasons, indoors and outside.
Three Fuel Options
Eco-friendly and sustainable, ethanol fuel produces a vibrant orange flame and comfortable warmth indoors or outdoors. Our outdoor gas fire pits operate with a push button ignition and produce a higher heat for colder settings.
Clean Burning Flame
Enjoy the experience of a warm fire without the mess. Our ethanol and gas fire pits produce no smoke, no soot, and no ash.
Tailored solutions
Our Fire Pit Kits are created to fit with an individual design brief, floor plan or available space; made for easy integration with non-combustible surfaces including stone countertops, concrete surfaces, brick and tiled tops.
Enhancing accessories
Features decorative black glass charcoal and surrounding glass fire screen, creating a stunning focal point.
Tested World Wide
Our collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications
| Weight | 54.67lb [24.80kg] |
|---|---|
| Application | Indoor & Outdoor |
| Material | Stainless Steel Grade 304, Toughened Glass |
| Color | Black |
Fuel Efficiency
|
|
2.1 Gal [8 L] |
|
Heats on Average |
646ft2 [60m2] |
|
Minimal Room |
4097ft3 [116m3] |
|
Thermal Output |
21.56 MJ/h - 20433 BTU/h - 6 kW |
|
Burn Time |
7 - 11h |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions
| Width | 24.5in [623mm] |
| Height | 13.7in [349mm] |
| Depth | 24.5in [623mm] |
Technical Drawings
|
Front View |
![]() |
|---|---|
| Top View |
|
Warranty
![]() |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
![]() |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files
- Download Installation and Operation Manual
- Download Burner Manual
- Download Specs Sheet
- Download Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
Videos
Frequently Asked Questions
Is Bioethanol easily obtainable?
Yes, you can have fuel delivered to public and private premises in many countries. |
What maintenance is required for ethanol fireplaces?Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel. |
How safe are bioethanol fireplaces?EcoSmart Fire’s operating tools, procedures, and proprietary technologies were developed with safety as our top priority. Made from 304-grade stainless steel, EcoSmart Fire’s ethanol fireplace burners go through a deep-draw fabrication process that eliminates the potential for dangerous leaks. Additionally, our patented filling point is separated from the ignition zone and engineered so that the jerry can spout is fully supported prior to releasing the fuel supply. This eliminates the usual splash and spills that would otherwise occur when fuel is decanted into the burner while simultaneously reinforcing the maximum fill line within the burner. EcoSmart Fire’s ethanol fireplaces release heat, carbon dioxide (the same stuff we exhale) and steam. Allowing you to enjoy a clean-burning flame without the soot, smoke, ash or other harmful substances emitted by traditional wood burning fireplaces. When selecting an installation location for your ethanol fireplace it is important to consider the required minimum room sizes and clearances. Please reference our installation manual for more information. |
Are EcoSmart Fires easy to install?EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor. |
Can EcoSmart Fires be installed everywhere?Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire. |
Where is the best place to install an ethanol fireplace?Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information. |
What are the benefits of using a bioethanol heater compared to heating your house with a reverse cycle air conditioner?It’s important to understand the difference between “foundation” heating and occasional heating. Quite often these are two completely different yet complementary systems that work hand in hand. Reverse cycle air conditioning doesn't give you a beautiful flame and lifestyle benefits of an EcoSmart Fire. However, By combining reverse-cycle air conditioning and an EcoSmart Fire within your home you can have the ‘best of both worlds’ - effective heat and ambiance. |
How do I fill my ethanol fireplace?With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy. Step 1: Remove the bottle nozzle cap and carefully insert into the filling point Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full. Step 3: Replace the nozzle cap. |
