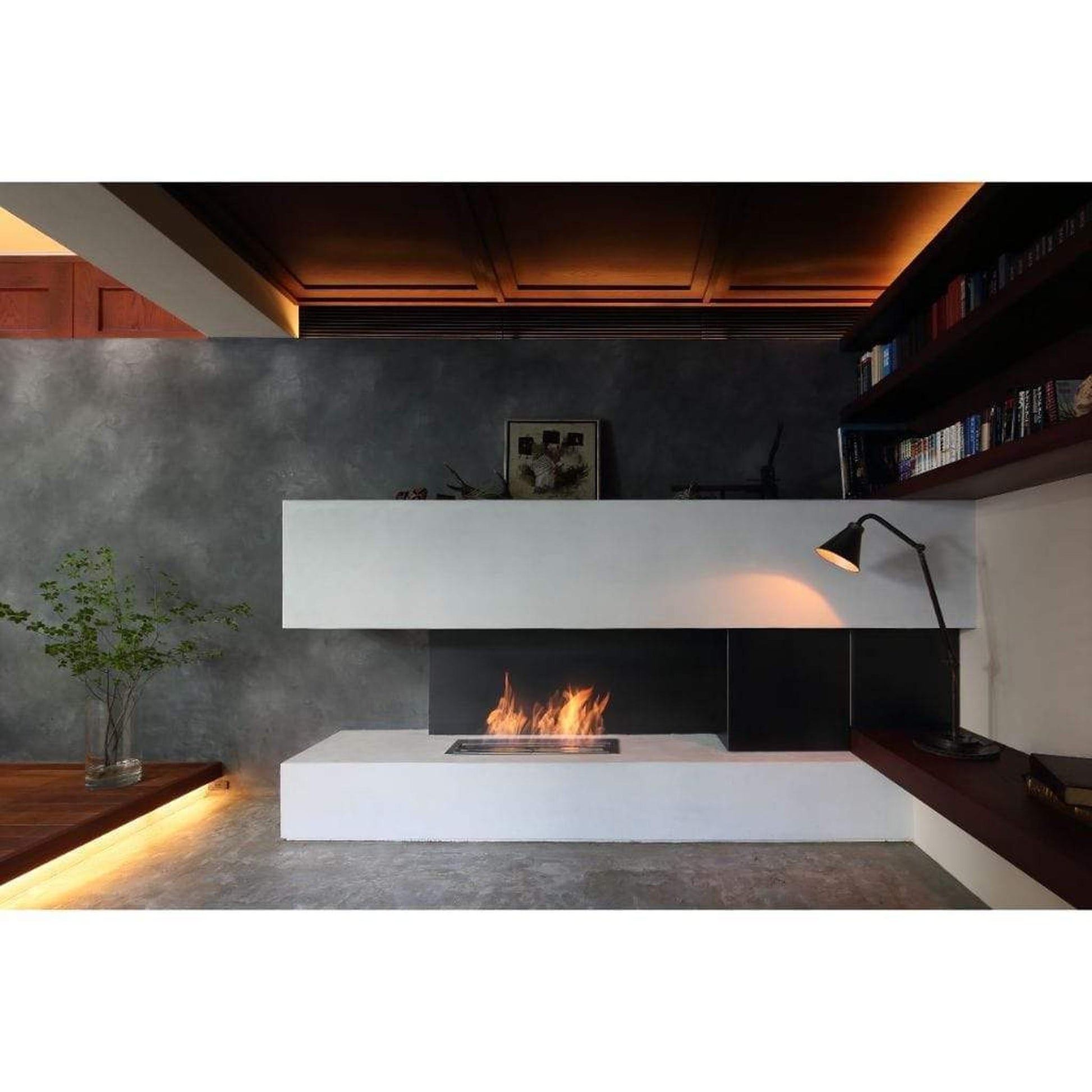

EcoSmart Fire XL700 28" Stainless Steel Ethanol Fireplace Burner by Mad Design Group
EcoSmart Fire XL700 28" Stainless Steel Ethanol Fireplace Burner by Mad Design Group
e-NRG Bioethanol Fuel
-- Please Select --
e-NRG Bioethanol Fuel-4 Gallons
e-NRG Bioethanol Fuel-8 Gallons
e-NRG Bioethanol Fuel-16 Gallons
e-NRG Bioethanol Fuel-20 Gallons
e-NRG Bioethanol Fuel-40 Gallons
e-NRG Bioethanol Fuel-80 Gallons
e-NRG Bioethanol Fuel-180 Gallons
No, Thank You
Plasma Fire Screen
-- Please Select --
Plasma Fire Screen
No, Thank You
Twin Feet Fixings
-- Please Select --
Twin Feet Fixings
No, Thank You
Black Glass Charcoal
-- Please Select --
Black Glass Charcoal
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

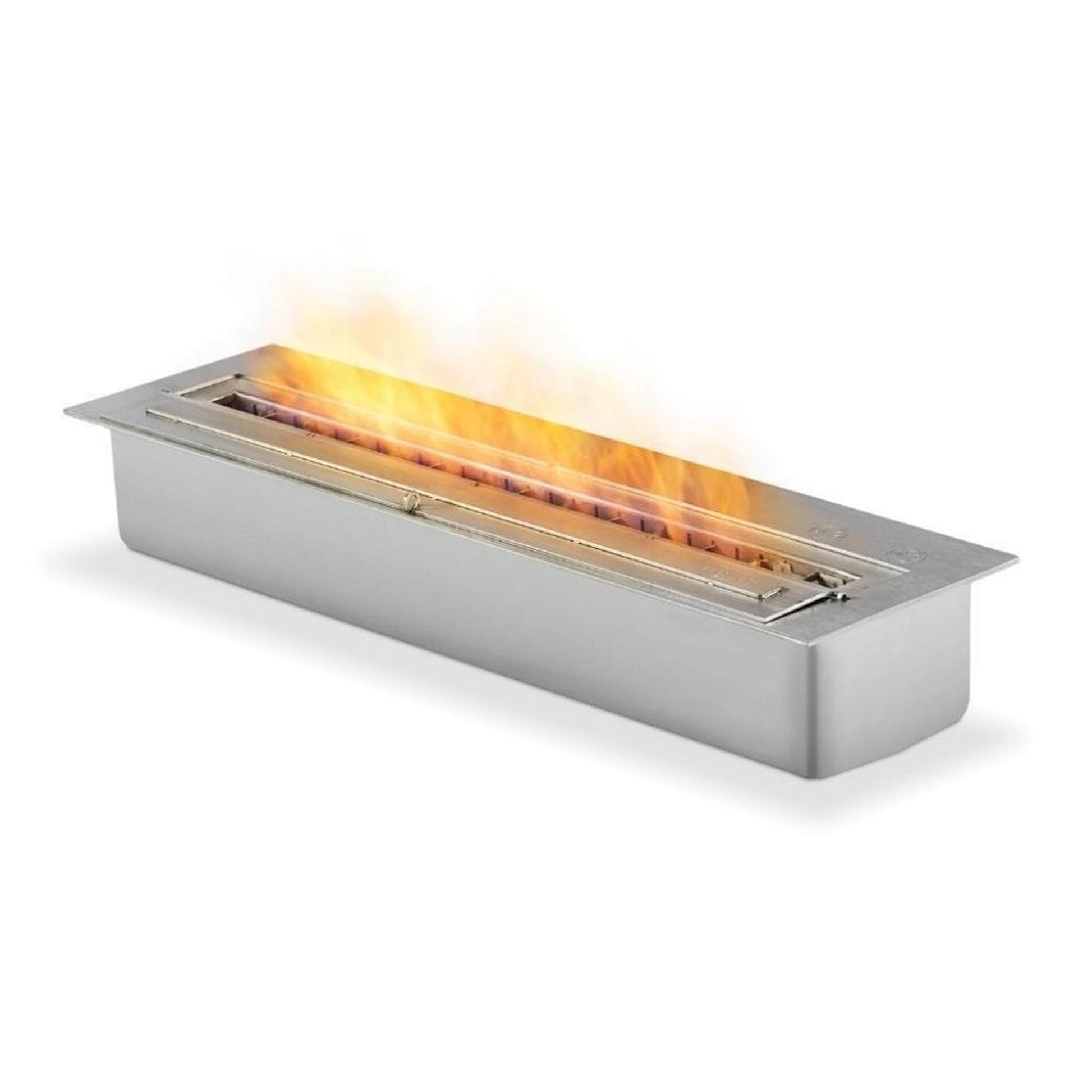

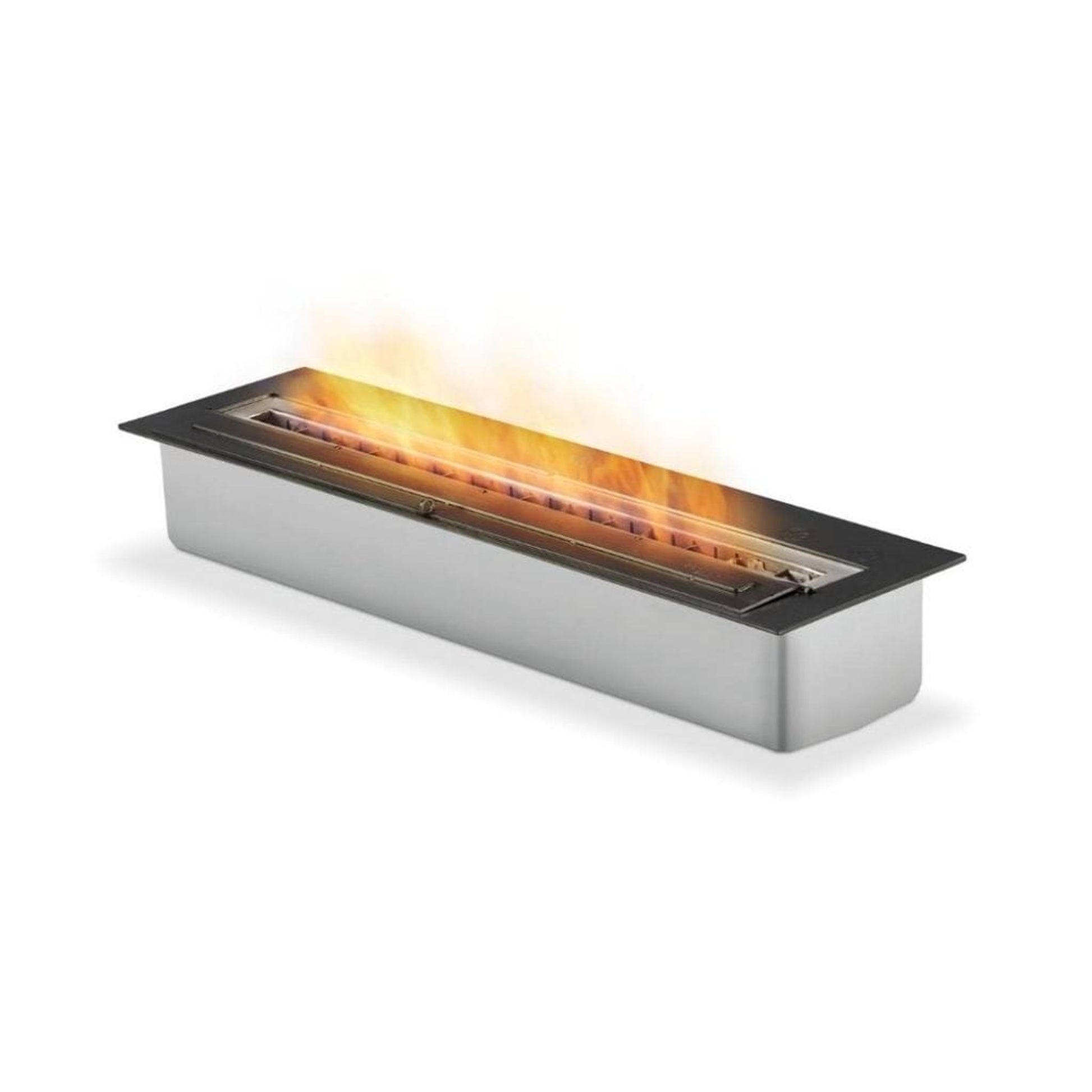

A captivating, elongated flame that's easily integrated into tailored settings
A key component of the Grate 36 and many of the Flex firebox inserts, the elongated, stainless steel XL700 ethanol burner has also provided design inspiration for a myriad of custom-made fires – both indoors and out.
Its sleek lines and minimal zero clearance creation ensure it’s a principal design tool, rather than an afterthought.
O-TL Listed in accordance with UL 1370.
What's Included
- Bioethanol Burner
- 1.25 Gallon Jerry Can
- Bottle Adapter
- Fire Lighter
- Lighting Rod
- Butane
- XL Baffles
Not Included (Sold Separately)
- Plasma Fire Screen
- Twin Feet Fixings
- Black Glass Charcoal
- e-NRG Bioethanol Fuel
Features
Design Versatility
Easily integrated into bespoke settings – from specially-made cabinetry, media units, walls, floating timber to stone benches and pillars.
Myriad Materials
Diverse range of materials can be used in your bespoke fire – think concrete and hard timber benches, marble recesses, stacked stone walls, stainless steel – even metal barrels cut in half!
Flame Regulation
Purpose-designed baffle inserts allow you to regulate and further stabilise the flame.
No Harmful By-products
e-NRG bioethanol produces a beautiful orange flame from start to finish without producing by-products such as smoke, soot or ash.
Award-winning
Awarded the 2009 Hearth & Home Vesta Award (USA).
Standalone or Integrated
Easily installed as a standalone ethanol burner in tailored setting or in conjunction with a zero-clearance Flex Fireplace Insert.
Tested World Wide
EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications
| Weight |
20.28lb [9.2kg] |
|---|---|
| Application | Indoor & Outdoor |
| Material | Stainless Steel Grade 304, Toughened Glass |
| Color | Stainless Steel |
Fuel Efficiency
|
|
1.8 Gal [7 L] |
|
Heats on Average |
538ft2 [50m2] |
|
Minimal Room |
3178ft3 [90m3] |
|
Thermal Output |
14.50 MJ/h - 13650 BTU/h - 4 kW |
|
Burn Time |
9-12h |
Volume Capacity
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions
| Width | 7.7in [195mm] |
| Height | 27.6in [700mm] |
| Depth | 4.4in [112mm] |
Technical Drawings
|
Front View |
 |
|---|---|
| Top View |
|
| Side View |  |
Warranty
 |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
 |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files
- Download Installation and Operation Manual
- Download Specs Sheet
- Download Technical Specification
- Download Ethanol Burners Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
Videos
Frequently Asked Questions
What maintenance is required for ethanol fireplaces?
Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel. |
How long does it take to assemble?There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you! The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth. |
How much does it cost to maintain an ethanol fireplace?EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed. |
Is Bioethanol easily obtainable?Yes, you can have fuel delivered to public and private premises in many countries. |
What are the benefits of using a bioethanol heater compared to heating your house with a reverse cycle air conditioner?It’s important to understand the difference between “foundation” heating and occasional heating. Quite often these are two completely different yet complementary systems that work hand in hand. Reverse cycle air conditioning doesn't give you a beautiful flame and lifestyle benefits of an EcoSmart Fire. However, By combining reverse-cycle air conditioning and an EcoSmart Fire within your home you can have the ‘best of both worlds’ - effective heat and ambiance. |
Where is the best place to install an ethanol fireplace?Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information. |
What is an ethanol fireplace?An ethanol fireplace is a ventless fireplace that is powered by bioethanol fuel. Plants like corn or sugarcane are fermented to make bioethanol fuel. Ethanol fireplaces produce a beautiful, warm and vibrant flame. Clean burning and eco-friendly, ethanol fires release heat, carbon dioxide (the same stuff we exhale) and steam. Ethanol fires do not require a chimney, vent, gas line, or electricity and can be installed virtually anywhere - indoors or outdoors. EcoSmart Fire offers a variety of ethanol fireplace options including ethanol burners for a custom fireplace design, freestanding and portable fireplaces, ready to install built-in wall ethanol fireplace inserts, and ethanol fire pits and fire tables. |
How long will my ethanol fireplace burn?Burn times for our ethanol fireplaces vay based on flame size and fuel capacity of the burner. EcoSmart Fire’s ethanol fireplaces will burn between 8-13 hours when full. |
