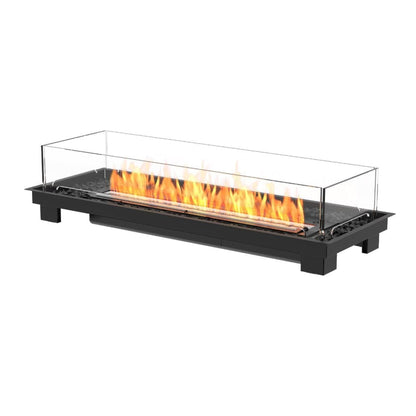

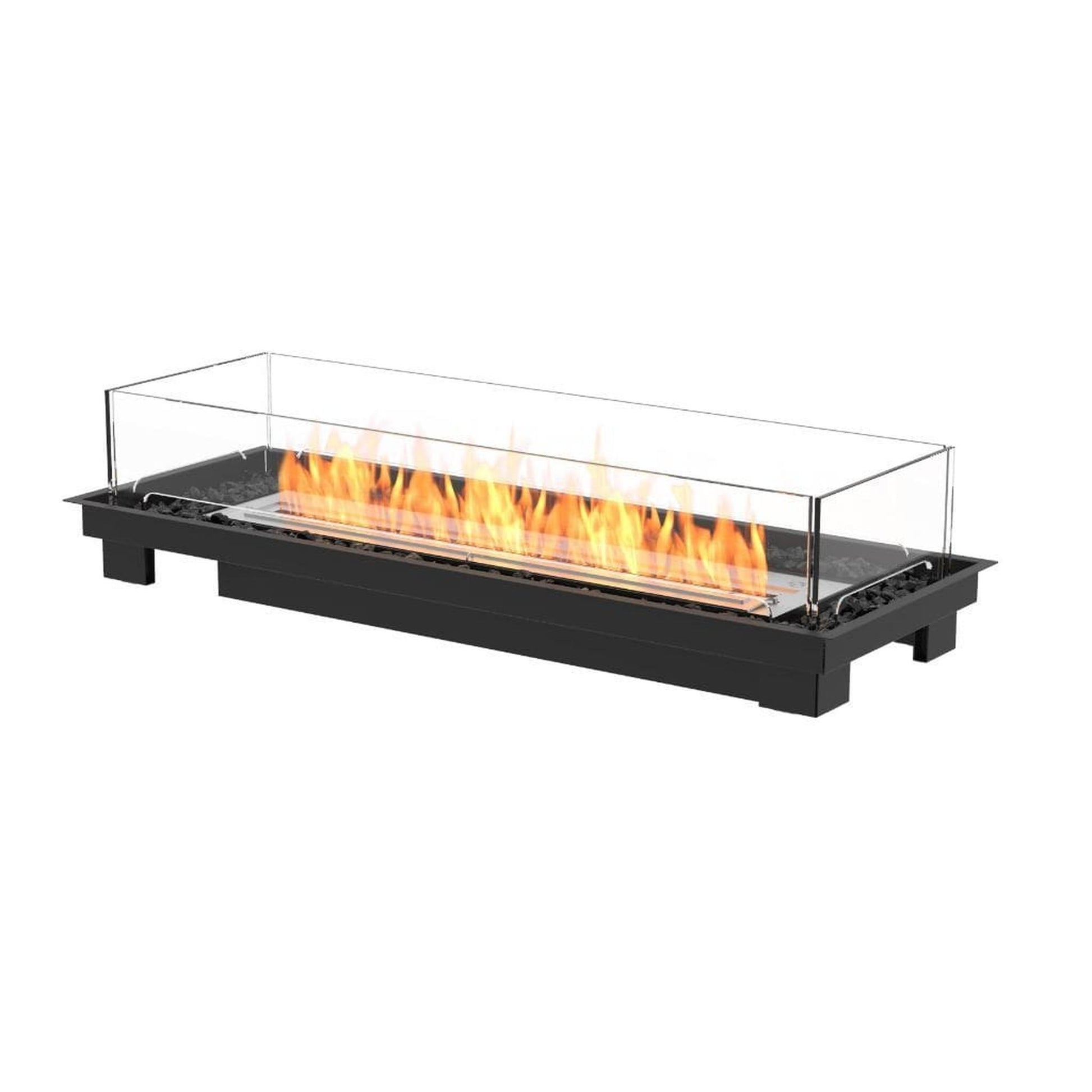

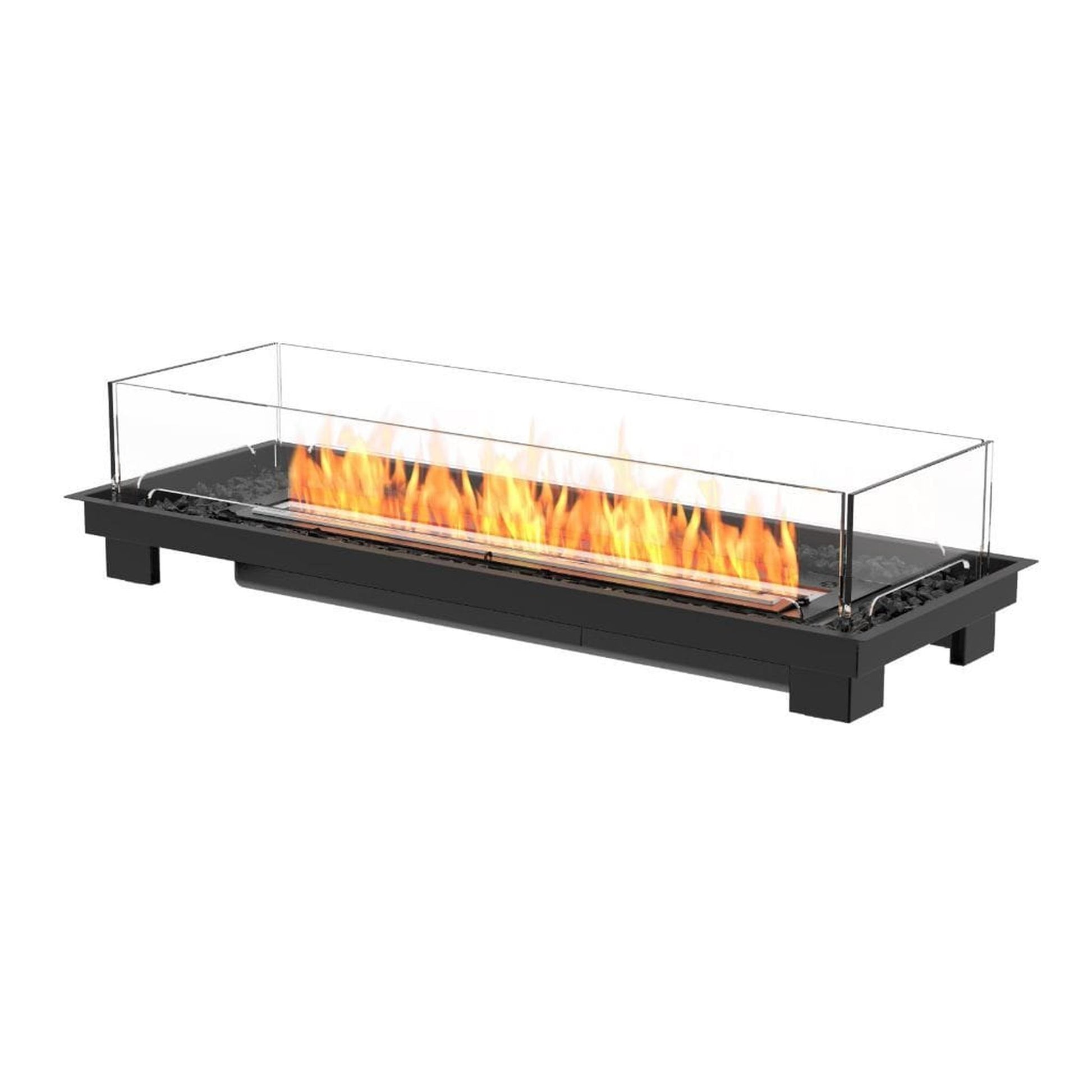

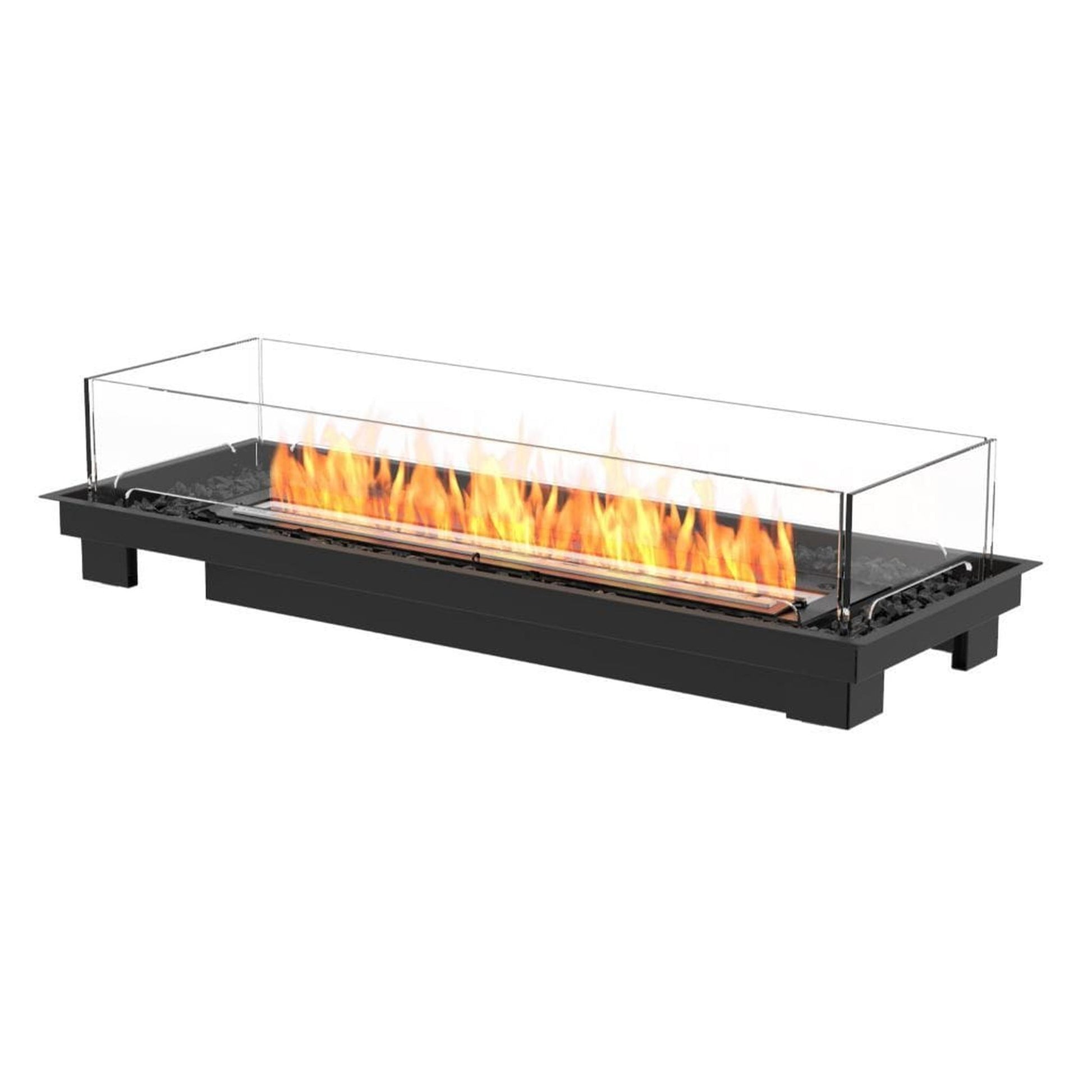

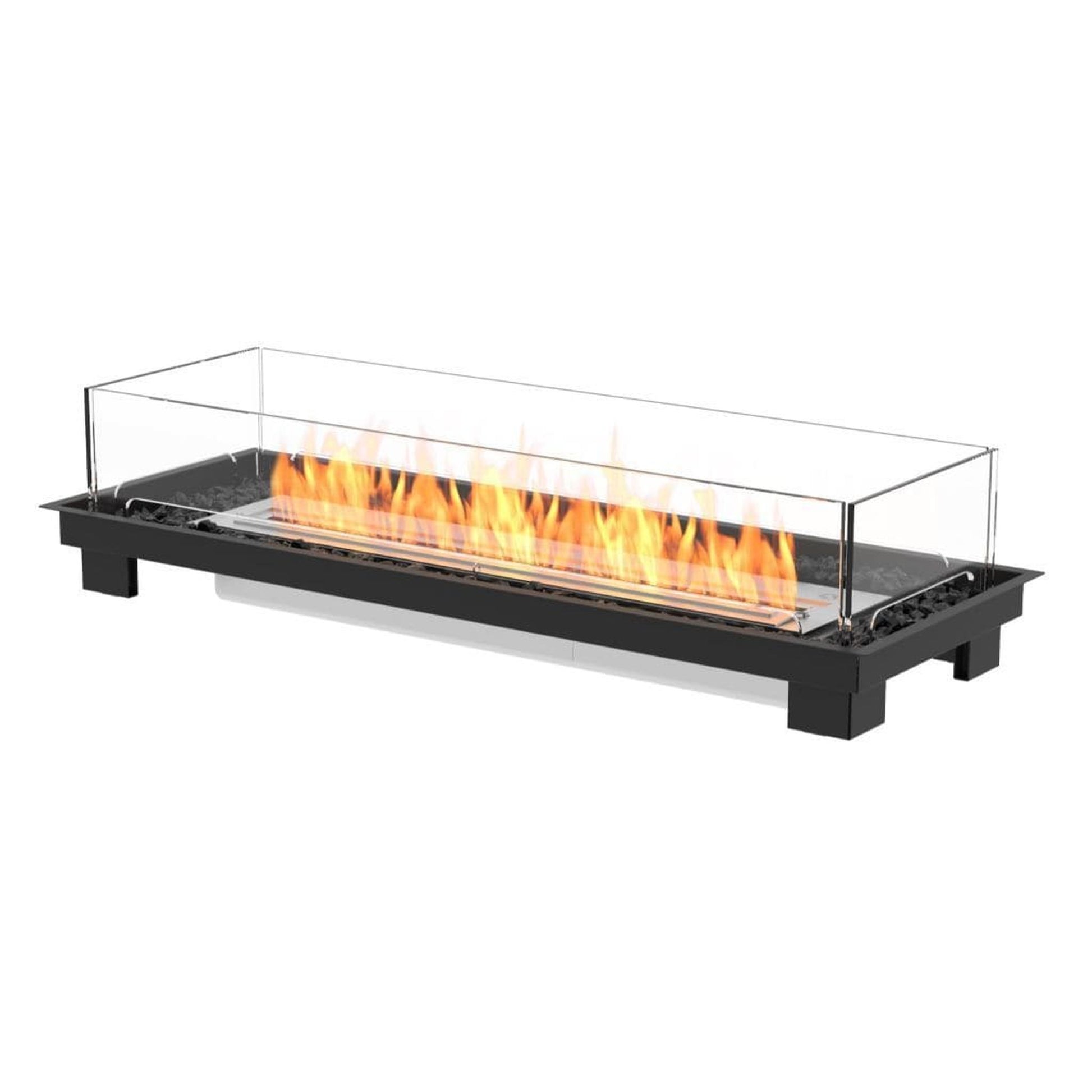

EcoSmart Fire 47" Linear 50 Fire Pit Kit with Ethanol Burner by Mad Design Group

Modern and versatile Fire Pit Kit, with its stylish design and ability to produce an elegant, elongated flame from a single ethanol, the Linear 50 Fire Pit Kit inspires fire designs for homes and intimate settings within commercial spaces.

Eco-friendly and plant-based, our ethanol fuel technology is suitable for indoor or outdoor installation. Our UL Listed ethanol fires are installed and operated in a matter of minutes. Completely self-contained, ethanol provides the freedom to relocate your fire as desired without any limitations.

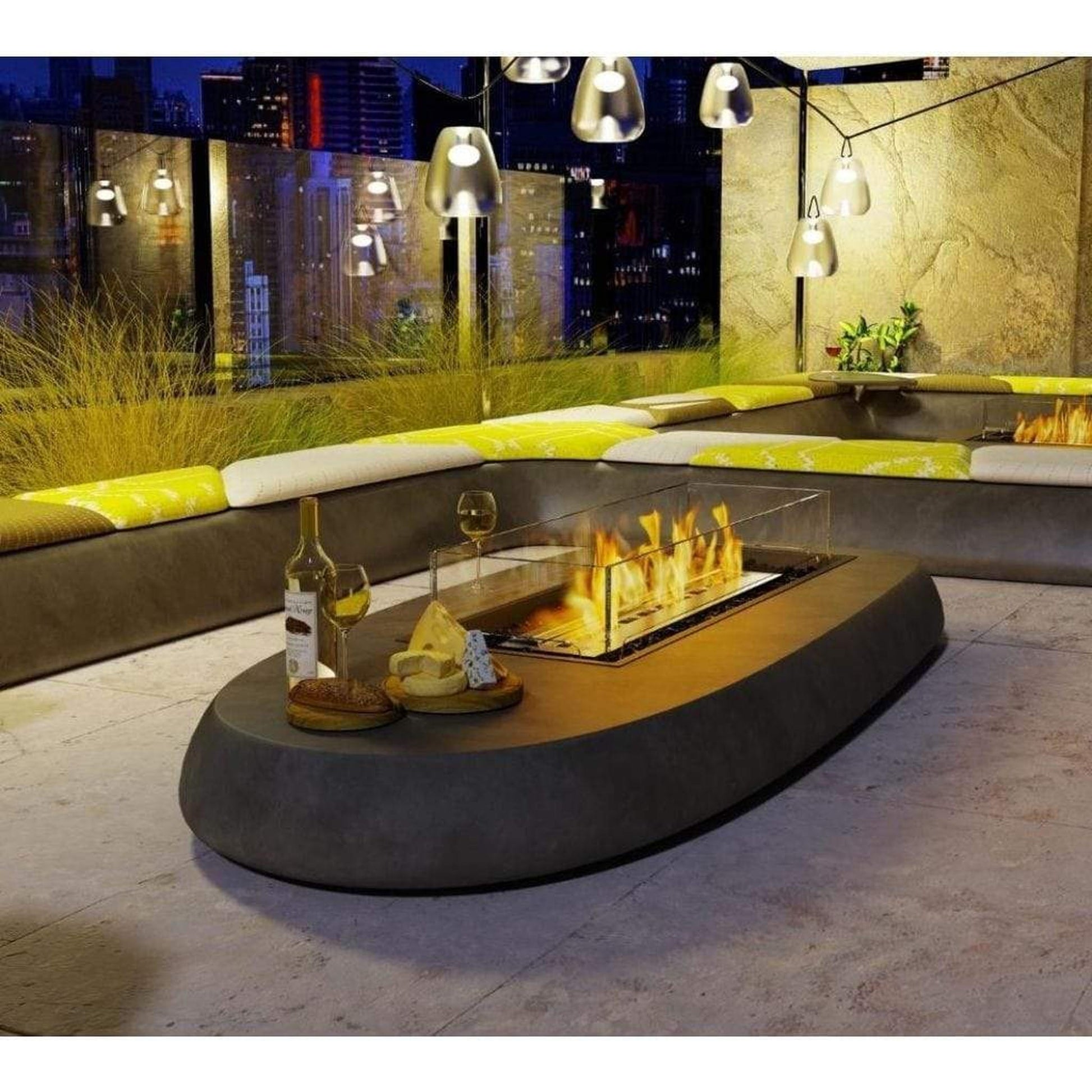

Create a social gathering point with an ethanol fire pit! A cosy and warm fireplace will perfectly complement your contemporary indoor or outdoor space.

Available in different shapes, sizes and finishes, you're guaranteed to make memories around our ethanol fires.

Manufacturer approved surround for the UL Listed XL900 burner.

FUEL EFFICIENCY:

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

This Fire Pit Kit is also available in another model with Gas LP/NG Burner:

• EcoSmart Fire 47" Linear 50 Fire Pit Kit with Gas LP/NG Burner by Mad Design Group

*Note: "For Indoor Use, additional parts are required. Your chosen application is the ONLY application the model can be used due to the modified configuration of the model."

What's Included: XL900 Ethanol Burner, Inset Metal Tray, Black Glass Charcoal, Indoor Safety Tray (Indoor model only), 1.25 Gallons Jerry Can, Lighting Rod, Fire Lighter, Butane, Bottle Adaptor

*Note: "The Fire Pit Kits come in black only. They include stainless steel burners and bags of Black Charcoal Glass."

*Also Note: "e-NRG Bioethanol Fuel for the fire pit kit is not included and sold separately."

Click to see Included Accessories

	LIGHTINING ROD This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.
	JERRY CAN 1.25 GAL Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system.
	BOTTLE ADAPTOR The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
	BUTANE Use this high quality butane gas to refill your EcoSmart Fire Lighter.
	FIRE LIGHTER This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.
	XL BAFFLES XL Baffles are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.
	BLACK GLASS CHARCOAL The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.
	XL900 INDOOR SAFETY TRAY This accessory is only for indoor use.

KEY FEATURES:

Sleek lines

A linear design and long flame makes it the epitome of style.

Trans-seasonal

Designed for year-round enjoyment, across the seasons, indoors and outside.

Easily integrated

Bring your firepit ideas to life with easy integration into non-combustible surfaces including stone countertops, concrete surfaces, brick and tiled tops.

Focal point

Black glass charcoal creates a dramatic and stylish stage for a single long flamed ethanol or gas fire pit that draws the eye.

Three Fuel Options

Choose ethanol for an eco-friendly fuel suitable for indoor or outdoor use, plumbed natural gas requiring no refueling - ever, or readily available liquid propane.

Built to last

Made from a combination of long-lasting materials, including stainless steel, ensuring durability for indoor or outdoor installation.

Tested World Wide

Our collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

STANDARD FEATURES:

• Ethanol Burner model for indoor/outdoor use
• Black High Temp Coated Stainless Steel base

• Grade 304 Stainless Steel burner
• Burner Colors: Stainless Steel, or Black
• Unit is ignited with the provided tools (ethanol)
• XL900 burner uses clean-burning bioethanol fuel
• Bioethanol Model Offers Up to 15,000 BTUs
• Uses clean-burning bioethanol fuel
• Match Lit Ignition

• UL Listed

SPECIFICATIONS:

Dimensions	47.1" D x 17" W x 12.1" H
Weight	91.05lb [41.30kg]
Warranty	Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

TECHNICAL DRAWINGS:

Front View
Top View
Side View

CA Residents: See Prop 65 WARNING.

DOWNLOADS:

• Download Installation and Operation Manual
• Download Burner Manual
• Download Specs Sheet
• Download Look Book

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
