EcoSmart Fire 47" Stainless Steel XL1200 Ethanol Fireplace Burner by Mad Design Group

EcoSmart Fire 47" Stainless Steel XL1200 Ethanol Fireplace Burner by Mad Design Group

Regular price $4,195.00
Regular price $4,195.00 Sale price $4,195.00
Sale Sold out
Color

e-NRG Bioethanol Fuel

-- Please Select --

e-NRG Bioethanol Fuel-4 Gallons

e-NRG Bioethanol Fuel-8 Gallons

e-NRG Bioethanol Fuel-16 Gallons

e-NRG Bioethanol Fuel-20 Gallons

e-NRG Bioethanol Fuel-40 Gallons

e-NRG Bioethanol Fuel-80 Gallons

e-NRG Bioethanol Fuel-180 Gallons

No, Thank You

Plasma Fire Screen

-- Please Select --

Plasma Fire Screen

No, Thank You

Twin Feet Fixings

-- Please Select --

Twin Feet Fixings

No, Thank You

Black Glass Charcoal

-- Please Select --

Black Glass Charcoal

No, Thank You

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Due to popular demand - our longest burner just got longer

Creating distinctive social settings that are welcoming and feel like ‘home’ is a vital trend across myriad architectural environments - from commercial to hospitality to residential.

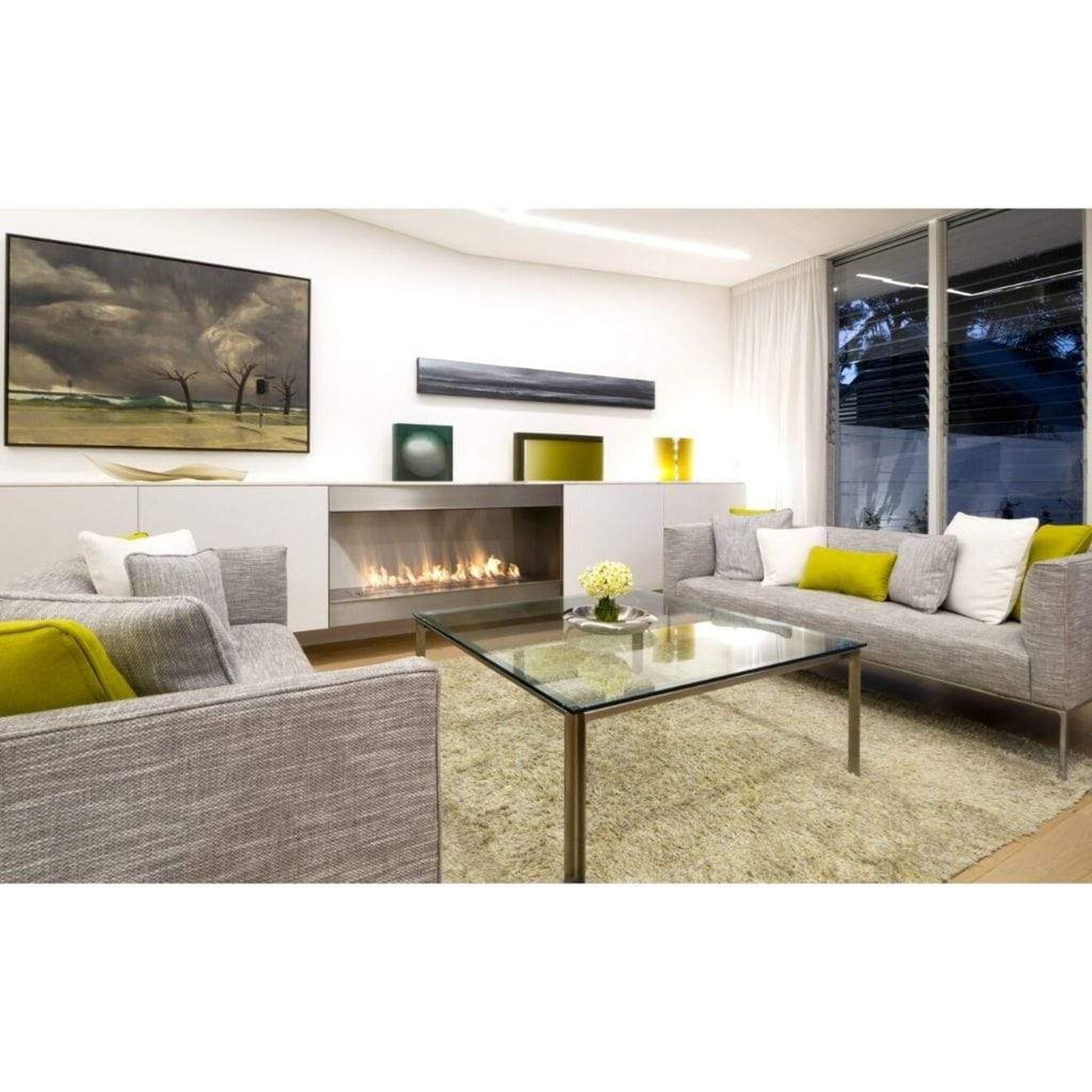

Because bioethanol is a clean-burning fuel source you don’t need a flue or chimney at all. This means that you can create a beautiful fireplace feature with ease. The linear features and absolute versatility of the XL1200 burner lends itself to the creation of stunning architectural masterpieces.

O-TL Listed in accordance with UL 1370.

What's Included

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • Butane
  • XL Baffles

Not Included (Sold Separately)

  • Plasma Fire Screen
  • Twin Feet Fixings
  • Black Glass Charcoal
  • e-NRG Bioethanol Fuel

Features

Design Versatility

Easily integrated into bespoke settings – from specially-made cabinetry, media units, walls, floating timber to stone benches and pillars.

Myriad Materials

Diverse range of materials can be used in your bespoke fire – think concrete and hard timber benches, marble recesses, stacked stone walls, stainless steel – even metal barrels cut in half!

Flame Regulation

Purpose-designed baffle inserts allow you to regulate and further stabilise the flame.

No Harmful By-products

e-NRG bioethanol produces a beautiful orange flame from start to finish without producing by-products such as smoke, soot or ash.

Award-winning

Awarded the 2009 Hearth & Home Vesta Award (USA).

Standalone or Integrated

Easily installed as a standalone ethanol burner in tailored setting or in conjunction with a zero-clearance Flex Fireplace Insert.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Specifications

Weight

34.61lb [15.70kg]

Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Stainless Steel

Fuel Efficiency

Volume Capacity

2.6 Gal [10 L]

Heats on Average

700ft2 [65m2]

Minimal Room

4061ft3 [115m3]

Thermal Output

17 MJ/h - 15290 BTU/h - 4.5 kW

Burn Time

9-14h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions

Width 7.7in [195mm]
Height 47.2in [1200mm]
Depth 4.4in [112mm]

Technical Drawings

Front View

Top View

Side View

Warranty

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

Videos

Frequently Asked Questions

What is an ethanol fireplace burner?

EcoSmart Fire’s ethanol fireplace burners allow you to bring your vision to life and create a truly unique and custom fireplace. Completely self-contained, our ethanol burners have no need for exterior tanks or utility lines and their stainless steel bodies make them suitable for both interior and exterior use. Easily integrate a round, square, or linear ethanol burner into media units, cabinetry, walls, pillars, stone benches and more to create your custom ethanol fireplace design. EcoSmart Fire’s ethanol fireplace burners are available in a range of sizes and can be placed side by side for a longer flame.
Do bioethanol fireplaces produce heat?

Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

How large of an area will my ethanol fireplace heat?

The heat output of our indoor and outdoor ethanol fireplaces vary based on the model selected. When used indoors, EcoSmart Fire’s ethanol fireplaces comfortably heat between 215 sq feet and 700 sq feet.

How much does it cost to maintain an ethanol fireplace?

EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed.

How do I fill my ethanol fireplace?

With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.

Step 1: Remove the bottle nozzle cap and carefully insert into the filling point

Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full.

Step 3: Replace the nozzle cap.

Where do I buy ethanol fuel for my ethanol fireplace?

e-NRG is the only bioethanol fuel recommended for your ethanol fireplace. e-NRG has been produced for the lowest odor, most vibrant flame, and longest burn time on the market. e-NRG has undergone rigorous third party testing with all EcoSmart Fire ethanol fireplaces. Use of any other fuel may damage your unit and void your warranty. You can purchase e-NRG ethanol fuel at e-nrg.com for fast and free shipping.

How long will my ethanol fireplace burn?

Burn times for our ethanol fireplaces vay based on flame size and fuel capacity of the burner. EcoSmart Fire’s ethanol fireplaces will burn between 8-13 hours when full.
