EcoSmart Fire 63" Flex 60BN Bench Ethanol Fireplace Insert with Decorative Box by Mad Design Group

EcoSmart Fire 63" Flex 60BN Bench Ethanol Fireplace Insert with Decorative Box by Mad Design Group

Regular price $7,695.00
Regular price $7,695.00 Sale price $7,695.00
Sale Sold out
Burner Color

e-NRG Bioethanol Fuel

-- Please Select --

e-NRG Bioethanol Fuel-4 Gallons

e-NRG Bioethanol Fuel-8 Gallons

e-NRG Bioethanol Fuel-16 Gallons

e-NRG Bioethanol Fuel-20 Gallons

e-NRG Bioethanol Fuel-40 Gallons

e-NRG Bioethanol Fuel-80 Gallons

e-NRG Bioethanol Fuel-180 Gallons

No, Thank You

Decorative Log Set

Copper Log Set
Brass Log Set
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Designed as a room divider or stunning centrepiece with all open sides, the mesmerising flame can be viewed from the top, front, back, left and right sides. With the Flex Bench fireplace insert, the entire viewing area is dedicated to the flame, creating a harmonious blend of the traditional fire pit and contemporary fire design.

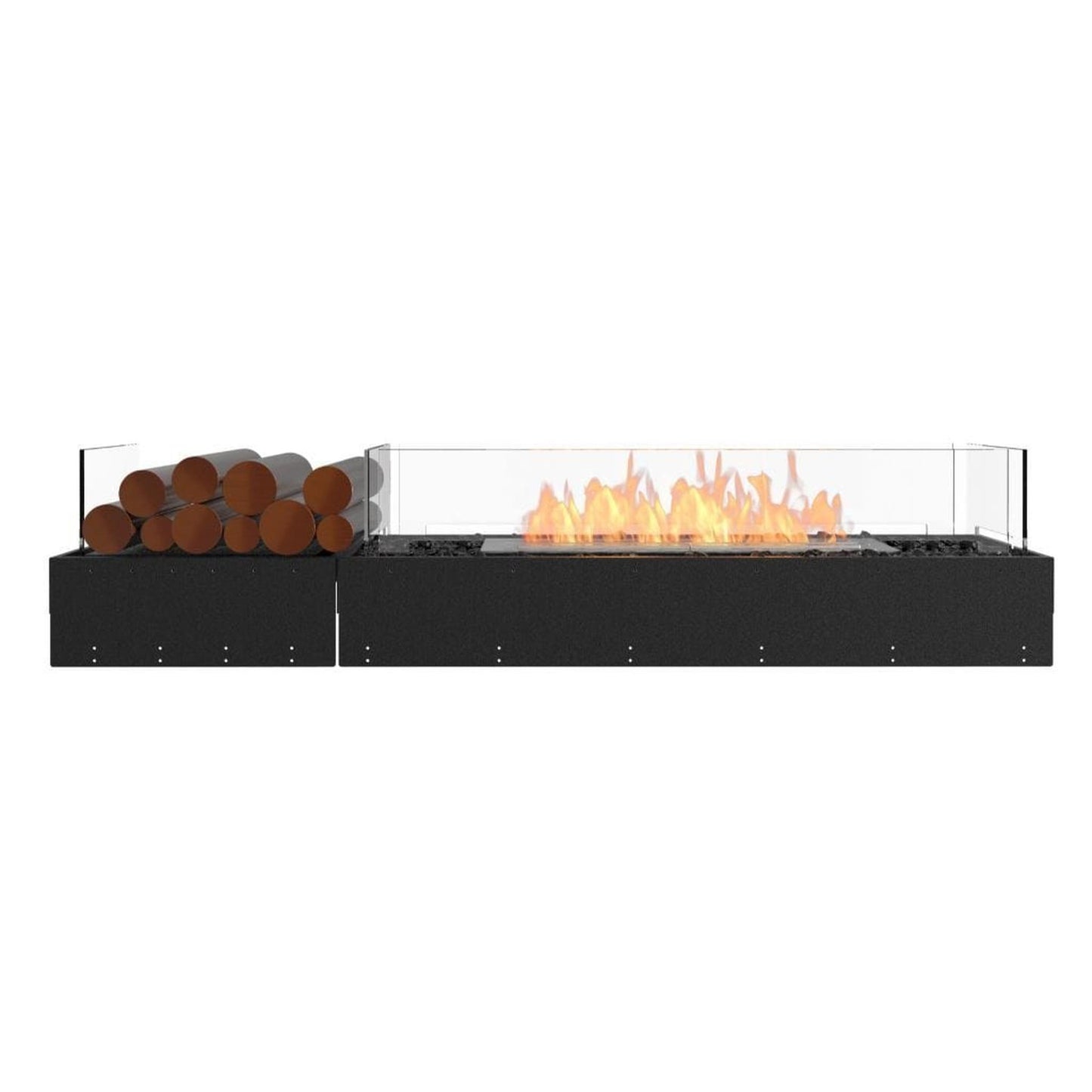

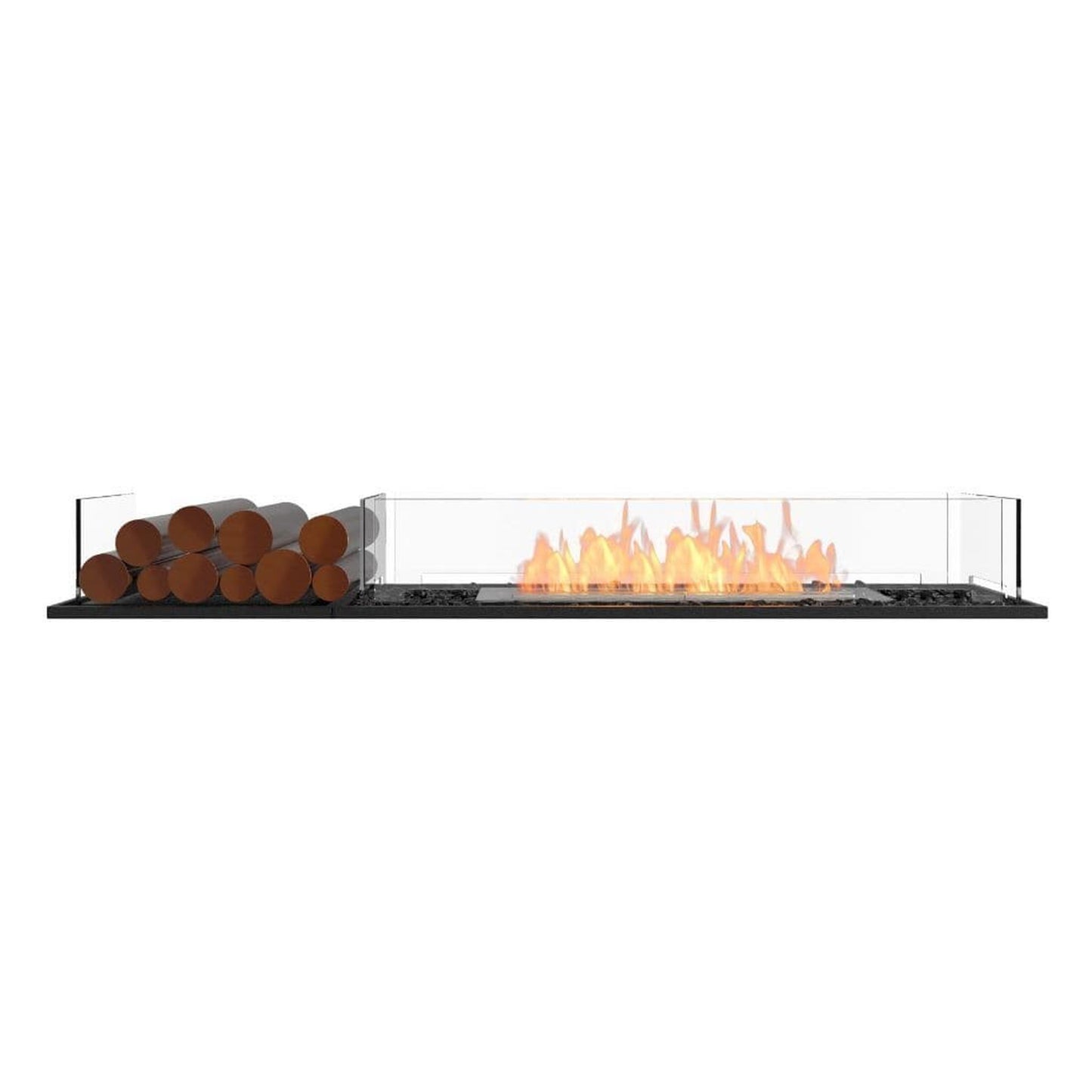

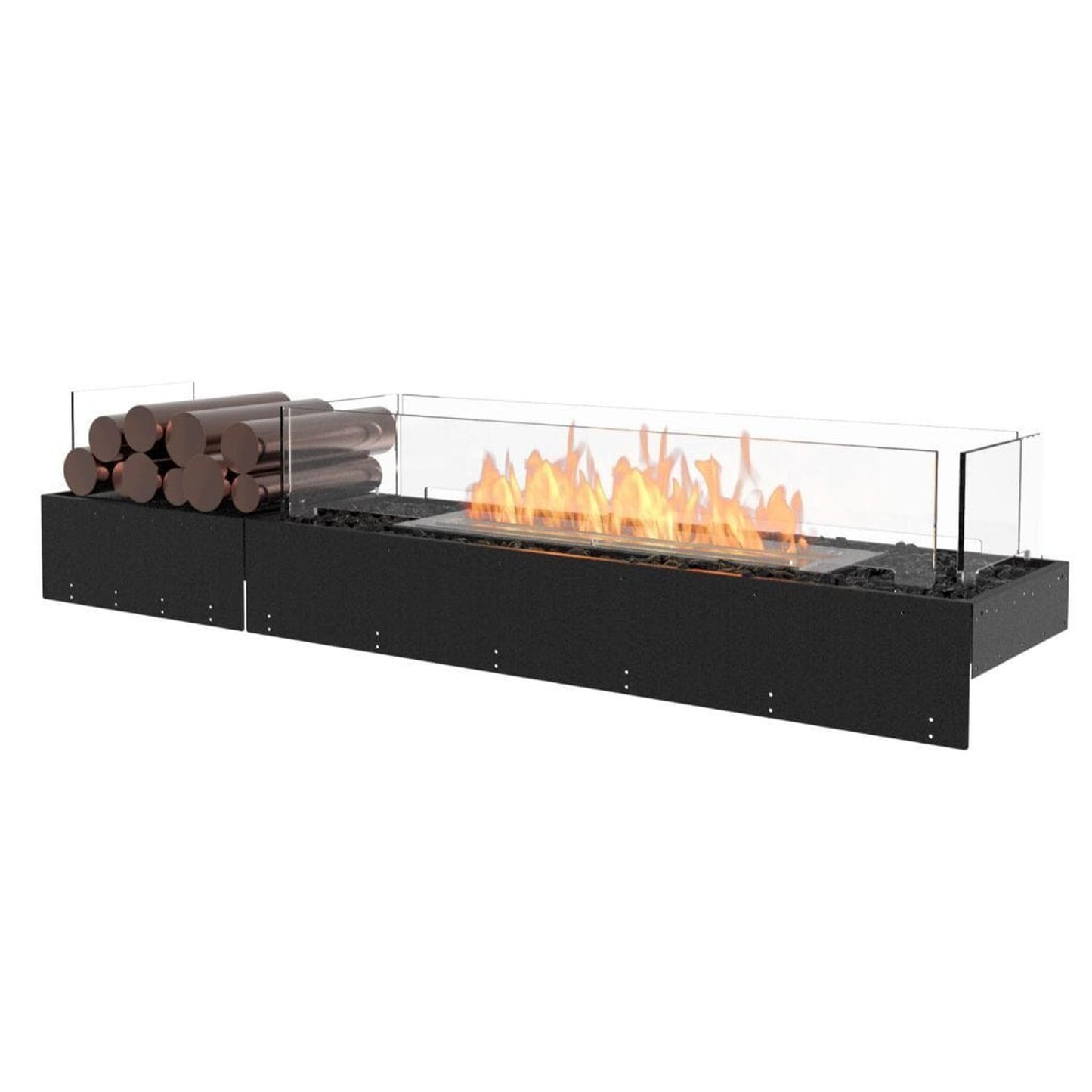

With an EcoSmart Flex 60BN.BX1, you have design freedom with the choice of a Decorative Box on the left or right-hand side. Both designs are fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

Providing endless design flexibility and installation freedom to interior designers, architects, builders, landscapers and homeowners, EcoSmart’s Flex Fireplace Series ensures your next commercial project or residential renovation includes a captivating fire feature.

The iconic zero clearance models – Bay, Single Sided, Left Corner, Right Corner, Peninsula, Double Sided, Island, Bench styles– are ventless, free of smoke and soot, and fueled by e-NRG Bioethanol, a renewable energy source.

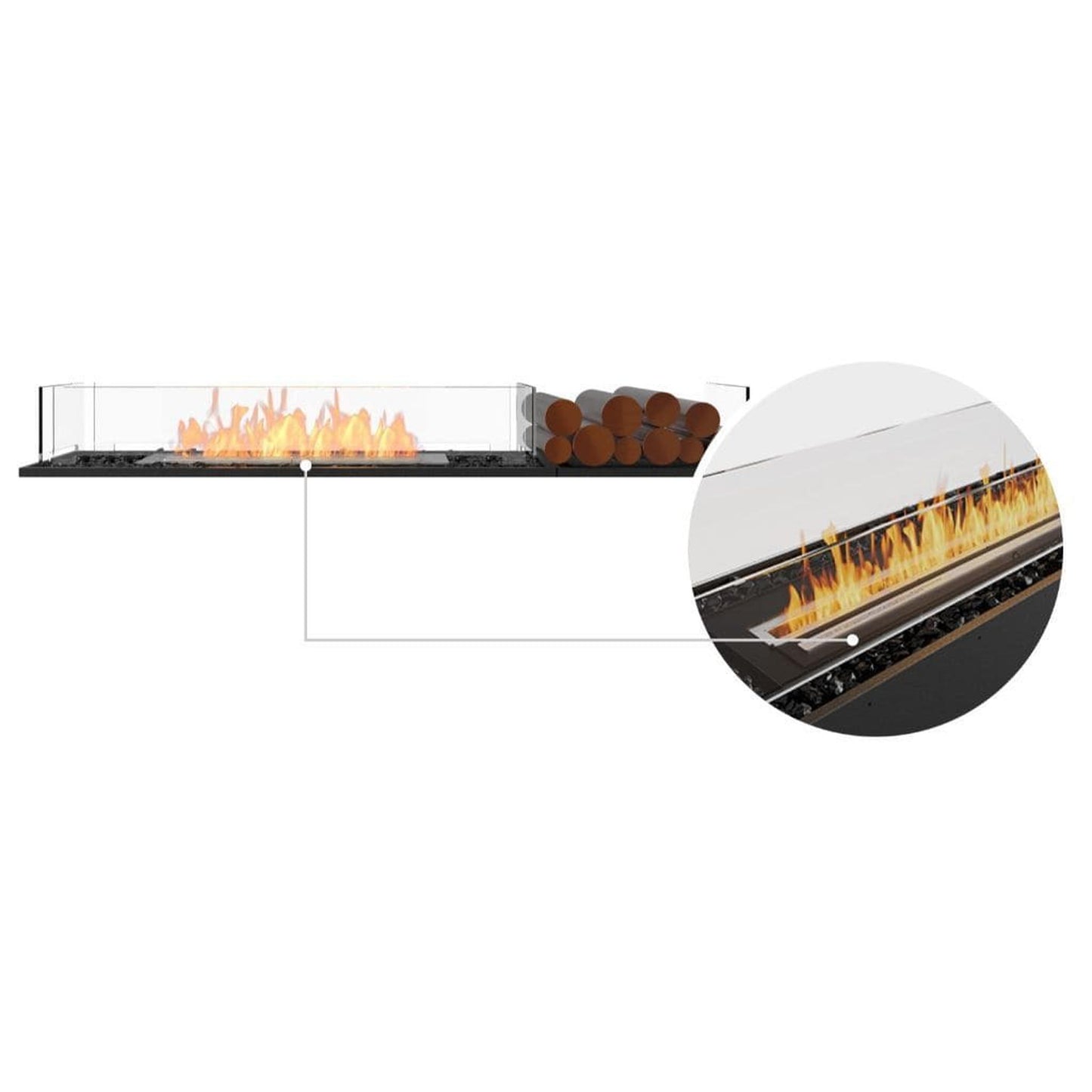

The XL700 burner delivers a captivating linear flame. With a 1.8 gallons capacity, this elongated ethanol burner has the power to heat up to 538ft2, making it ideal for residential and smaller commercial/hospitality spaces. Efficiency is a key feature of this burner, delivering up to 12 hours of heat generating flame from a single refill.

Manufacturer approved surround for the UL Listed XL700 burner.

Bench Ethanol Fireplace Inserts are available in other sizes and configuration i.e. 18BN, 32BN, 42BN, 50BN, 50BN with Decorative Box, 68BN, 68BN with Decorative Box, 78BN with Decorative Box, 86BN, 86BN with Decorative Box, 104BN, 104BN with Decorative Box, 122BN, 122BN with Decorative Box, 140BN with Decorative Box, 158BN, 158BN with Decorative Box

FUEL EFFICIENCY:

Volume Capacity

1.8 Gal [7 L]

Heats on Average

538ft2 [50m2]

Minimal Room

3178ft3 [90m3]

Thermal Output

14.50 MJ/h - 13650 BTU/h - 4 kW

Burn Time

9 - 12h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

What's Included: Fireplace Insert, Glass Windscreen, Black Glass Charcoal, Bioethanol Burner, 1.25 Gallon Jerry Can, Bottle Adapter, Lighting Rod, Refillable Butane Fire Lighter and XL Baffles

*Note: "e-NRG Bioethanol Fuel for the burner is sold separately. Glass windscreen included. Black Fireboxes come with Stainless Steel Burners. Model comes with Black Glass Charcoal."

Click to see Included Accessories


LIGHTINING ROD

This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

JERRY CAN 1.25 GAL

Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system.

BOTTLE ADAPTOR

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

FIRE LIGHTER

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

XL BAFFLES

XL Baffles are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

BLACK GLASS CHARCOAL

The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

KEY FEATURES:

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Wind Screen

Included integrated windscreen sits flush behind frame.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

STANDARD FEATURES:

  • Built-in See-Through Ethanol Firebox with Box on the Left or Right Sides
  • Indoor or Outdoor installation
  • Zero-Clearance Construction with Multi-Sided View
  • Easy or no Maintenance Required.
  • Made of Mild Steel and Toughened Glass
  • No Gas, Electricity, Chimney, or Venting Required
  • Adjustable Flame - allows you to control the flame intensity and heat output.
  • Safe Filling - safer than most other ethanol fireplaces.
  • ISO Certified
  • UL Listed

SPECIFICATIONS:

Dimensions

63.3" W x 13.9" D x 31.8" H
Weight

98.55lb [44.70kg]

Warranty
  • Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
  • Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

TECHNICAL DRAWINGS:

Front View

  • BX1

Side View

Top View
  • BX1

CA Residents: See Prop 65 WARNING.

DOWNLOADS:

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

OPTIONS & ACCESSORIES:

Click to see e-NRG Bioethanol

e-NRG is the highest quality bioethanol fuel available

Formulated for use in ventless bioethanol fireplaces, e-NRG is the cleanest, most efficient liquid ethanol fuel on the market and produces the best flame each and every time.

Click to see Log Set Copper

Great finishing with our stainless steel copper Log Set. Adding copper stainless steel log set to your side box fire installation is a great finishing touch.

* Important Note: "Decorative logs must NOT be placed directly over an open flame. They are designed to sit near heat but not over flames."

Click to see Log Set Brass

Great finishing with our stainless steel brass Log Set. Adding brass stainless steel log set to your side box fire installation is a great finishing touch.

* Important Note: "Decorative logs must NOT be placed directly over an open flame. They are designed to sit near heat but not over flames."
