SKU:ESF.G.GRA.18.GH

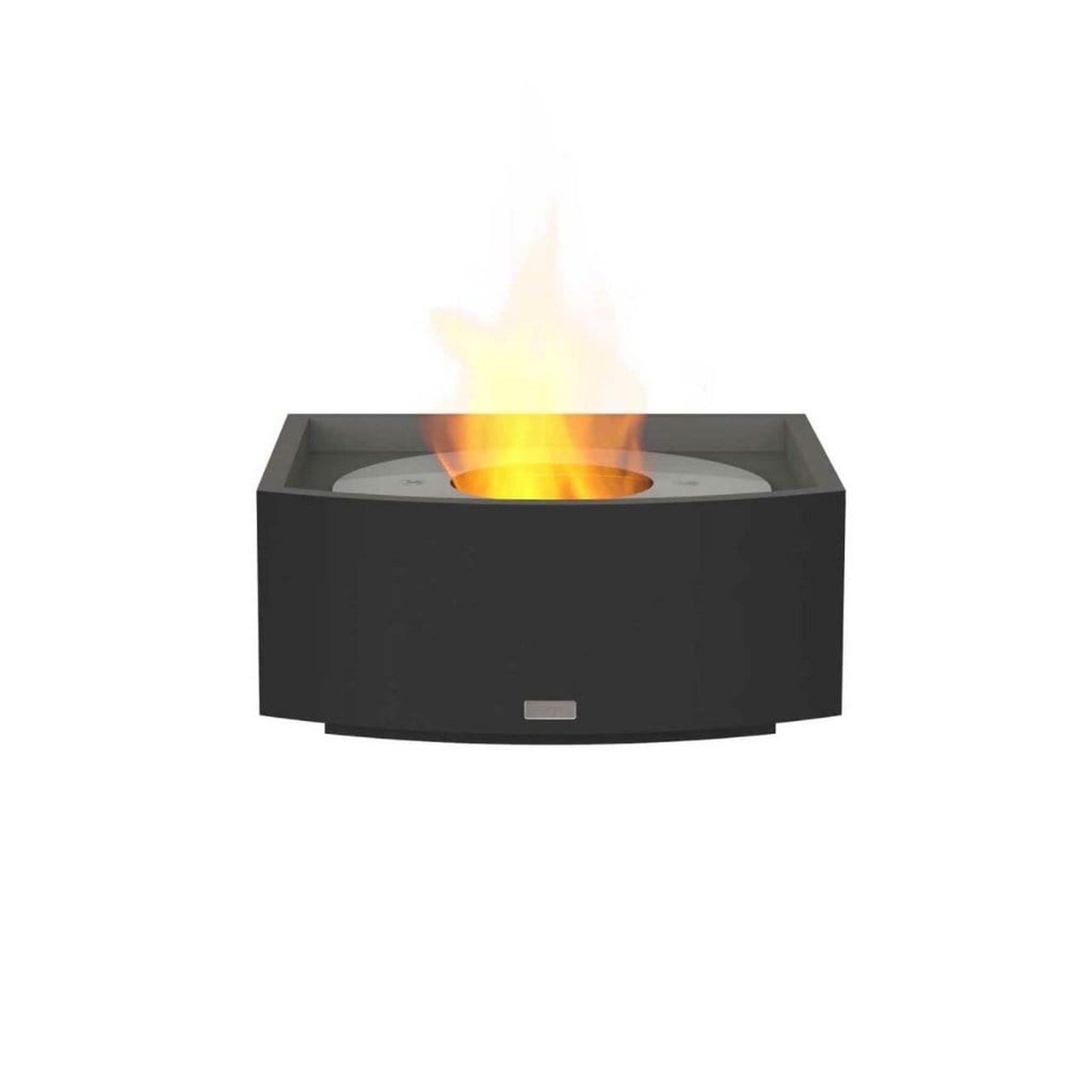

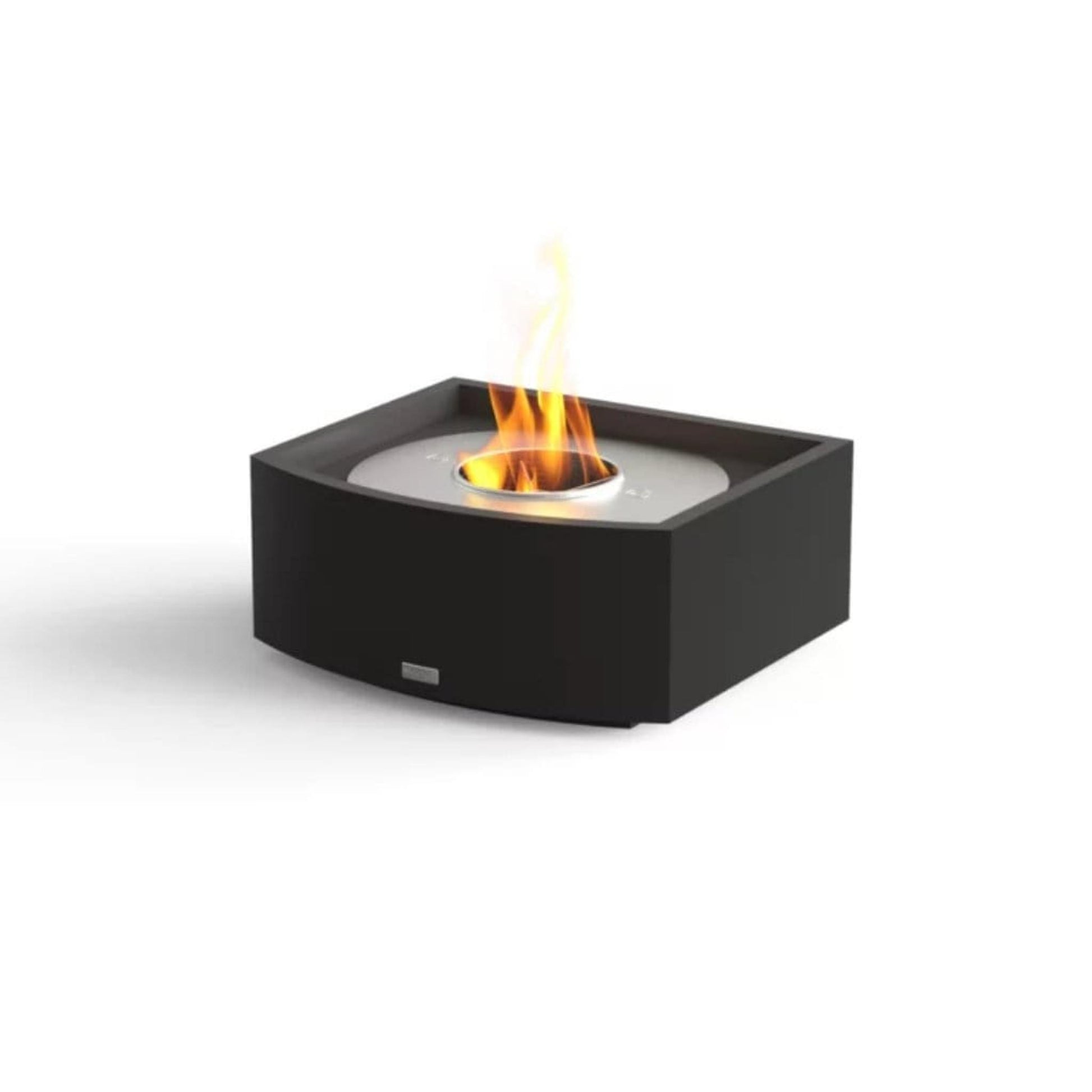

EcoSmart Fire Grate 18" Ethanol Fireplace Insert by Mad Design Group
EcoSmart Fire Grate 18" Ethanol Fireplace Insert by Mad Design Group
e-NRG Bioethanol Fuel
-- Please Select --
e-NRG Bioethanol Fuel-4 Gallons
e-NRG Bioethanol Fuel-8 Gallons
e-NRG Bioethanol Fuel-16 Gallons
e-NRG Bioethanol Fuel-20 Gallons
e-NRG Bioethanol Fuel-40 Gallons
e-NRG Bioethanol Fuel-80 Gallons
e-NRG Bioethanol Fuel-180 Gallons
No, Thank You
Plasma Fire Screen
-- Please Select --
Plasma Fire Screen
No, Thank You
Twin Feet Fixings
-- Please Select --
Twin Feet Fixings
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

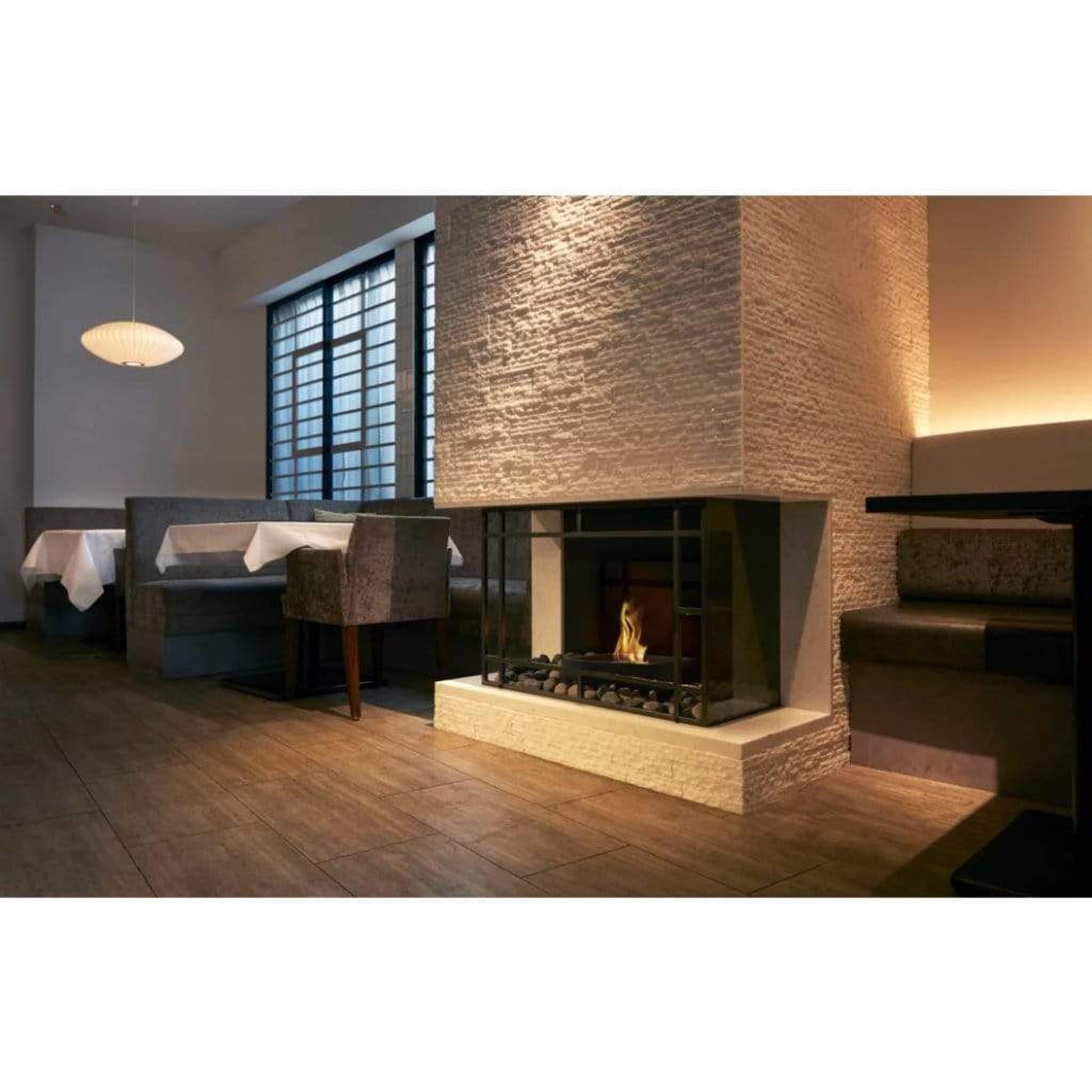

Fireplace Grate 18, a modern take on the traditional.
Versatile and durable, elegant and superbly styled, functional and fabulous – the EcoSmart Fire Grate 18 makes transforming a traditional wood fireplace into a contemporary, eco-friendly ethanol fireplace so simple.
Grate 18 has the smallest footprint in the series. At its centre is the powerful EcoSmart Fire round AB8 Burner delivering a mesmerising flame for up to 11 hours.
O-TL Listed in accordance with UL 1370.
What's Included
- Fire Lighter
- Lighting Rod
- Jerry Can 1.25 Gal
- Bottle Adapter
- Butane
Not Included (Sold Separately)
- Black Glass Charcoal
- e-NRG Bioethanol Fuel
- Twin Feet Fixing
Features
Minimum Fuss
Delivering the ambience of an open fire – but minus the mess, odour, sparks and soot due to the clean-burning, eco-friendly e-NRG bioethanol.
Fluid™ Concrete Technology
EcoSmart Fire proprietary technology offers a streamlined yet sophisticated system that delivers exceptionally robust, handcrafted products.
Convert an existing fireplace in minutes
Transforming an existing wood burning fire into a clean burning ethanol fireplace is easy. Simply attach the grate to a level platform with our easy fitting system and fill it with liquid bioethanol. Then sit back and relax.
Optional Sizes
The Grate Series is available in three sizes – the smallest, Grate 18 (with AB8 Burner), the Grate 30 (with XL500 Burner) and largest Grate 36 (XL700 Burner).
No Gas or Electricity
All the fuel is housed within the self-contained burner so you don’t have to run pipes or cables though your walls
Tested World Wide
EcoSmart Fire collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications
Weight |
36.16lb [16.40kg] |
---|---|
Application | Indoor |
Material |
Concrete Composite, Stainless Steel Grade 304 |
Color | Graphite |
Fuel Efficiency
|
2.1 Gal [8 L]
|
Heats on Average |
646ft2 [60m2] |
Minimal Room |
4097ft3 [116m3] |
Thermal Output |
20433 BTU/h [6 kW 21.56 MJ/h] |
Burn Time |
7 - 11h [2.1 Gallons] |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions
Width | 16in [406mm] |
Height | 7.9in [200mm] |
Depth | 18in [457mm] |
Technical Drawings
Front View |
![]() |
---|---|
Side View |
|
Top View | ![]() |
Warranty
![]() |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
![]() |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files
Videos
Frequently Asked Questions
How long will my ethanol fireplace burn?
Burn times for our ethanol fireplaces vay based on flame size and fuel capacity of the burner. EcoSmart Fire’s ethanol fireplaces will burn between 8-13 hours when full. |
Do I need to service my ethanol fireplace in any way?Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product. |
Do ethanol fireplaces give off heat?EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU - 20,000 BTU’s. |
How safe are bioethanol fireplaces?EcoSmart Fire’s operating tools, procedures, and proprietary technologies were developed with safety as our top priority. Made from 304-grade stainless steel, EcoSmart Fire’s ethanol fireplace burners go through a deep-draw fabrication process that eliminates the potential for dangerous leaks. Additionally, our patented filling point is separated from the ignition zone and engineered so that the jerry can spout is fully supported prior to releasing the fuel supply. This eliminates the usual splash and spills that would otherwise occur when fuel is decanted into the burner while simultaneously reinforcing the maximum fill line within the burner. EcoSmart Fire’s ethanol fireplaces release heat, carbon dioxide (the same stuff we exhale) and steam. Allowing you to enjoy a clean-burning flame without the soot, smoke, ash or other harmful substances emitted by traditional wood burning fireplaces. When selecting an installation location for your ethanol fireplace it is important to consider the required minimum room sizes and clearances. Please reference our installation manual for more information. |
How does an ethanol fireplace work?EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. |
Are ethanol fireplaces good for the environment?EcoSmart Fire’s ethanol fireplace burners and fireplace inserts, when paired with our e-NRG bioethanol fuel are clean burning with the only byproduct being heat, steam and carbon dioxide (the same stuff we exhale). Unlike gas fireplace inserts and wood burning fireplace inserts, EcoSmart Fire’s ethanol fireplaces do not produce messy pollutants like soot, smoke, and ash. |
What is a bioethanol fireplace?A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source. |
