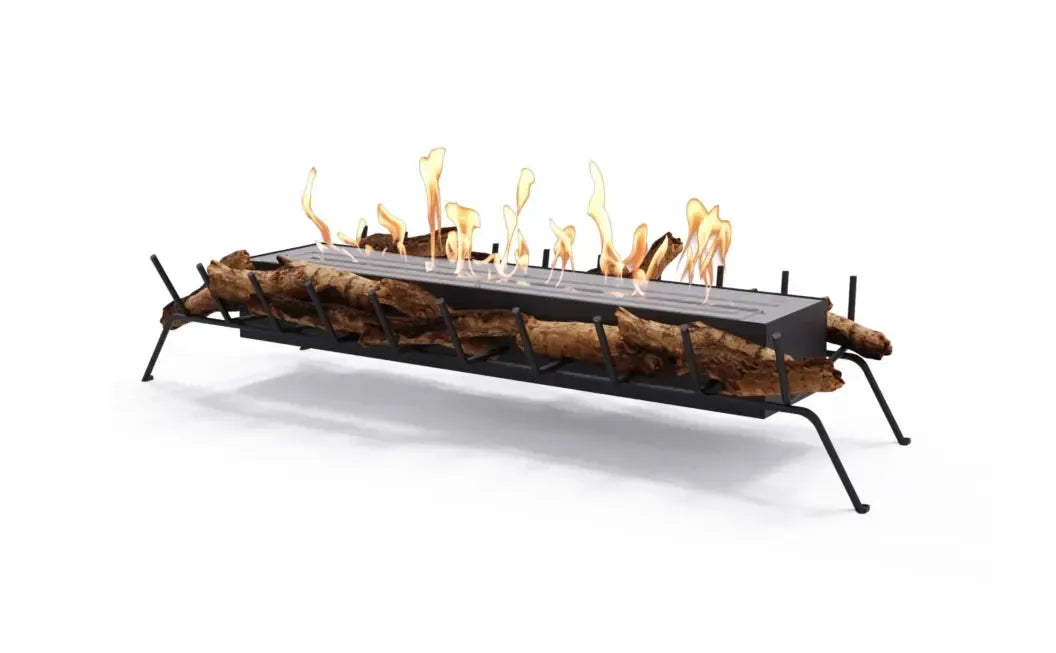

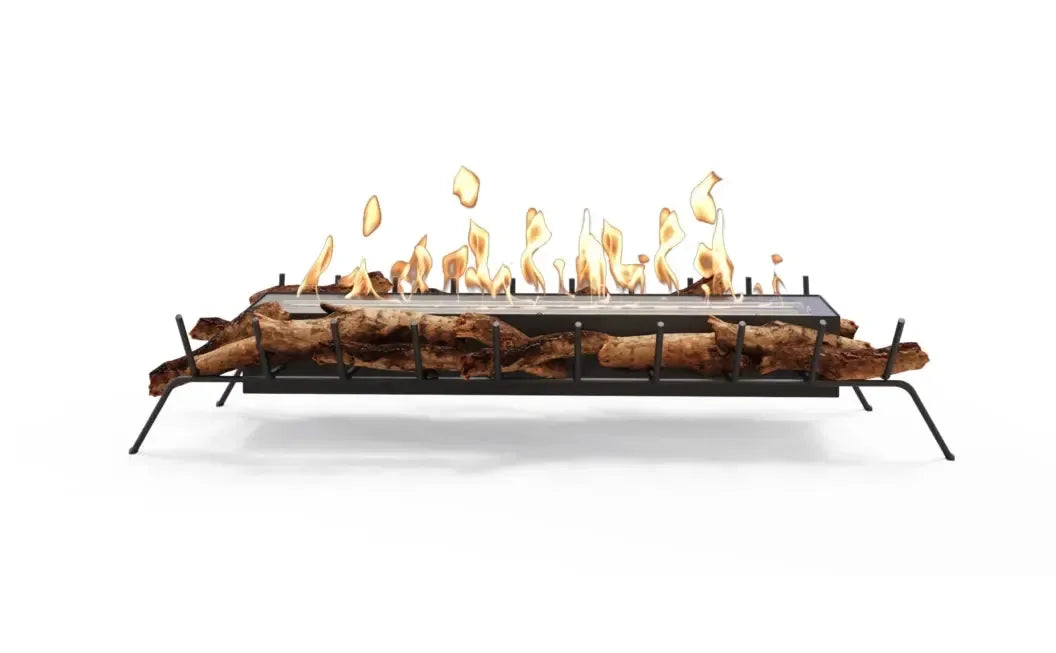

EcoSmart Fire Heritage Grate 49" Ethanol Fireplace Insert with Black Burner by Mad Design

EcoSmart Fire Heritage Grate 49" Ethanol Fireplace Insert with Black Burner by Mad Design

$4,995.00
$4,995.00 $4,995.00
Sale Sold out

e-NRG Bioethanol Fuel

-- Please Select --

e-NRG Bioethanol Fuel-4 Gallons

e-NRG Bioethanol Fuel-8 Gallons

e-NRG Bioethanol Fuel-16 Gallons

e-NRG Bioethanol Fuel-20 Gallons

e-NRG Bioethanol Fuel-40 Gallons

e-NRG Bioethanol Fuel-80 Gallons

e-NRG Bioethanol Fuel-180 Gallons

No, Thank You

Plasma Fire Screen

-- Please Select --

Plasma Fire Screen

No, Thank You

Twin Feet Fixings

-- Please Select --

Twin Feet Fixings

No, Thank You
  • Free Shipping on Orders Over $400
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Nostalgia meets modern innovation

The Heritage Grate Series was born from a desire to combine the warmth and charm of a traditional fireplace with the demands of modern living.

What's Included

  • Jerry Can with Safety Spout and e-NRG bottle adaptor
  • Lighting Rod & Lighter
  • XL Baffles
  • Decorative Ceramic Logs

Not Included (Sold Separately)

  • Plasma Fire Screen
  • e-NRG Bioethanol Fuel
  • Twin Feet Fixing

Features

Surround Colour

Heritage Grates are made from 1.2mm SECC steel with hi-temp black powder coating.

Burner Colours

Heritage Grate 25 comes with a stainless steel burner, Heritage Grate 50 offers the option of a black burner.

Traditional Aesthetic

Ceramic fire-rated wood logs and the iron grate design create a classic fireplace look.

Warm your Home, Not the Planet

Burning bioethanol fuel doesn’t produce any smoke, so you can use an EcoSmart smokeless fireplace grate with or without an operational chimney. As traditional wood burning fireplaces lose a lot of heat through the chimney, we recommend sealing off the chimney to increase efficiency. You can do this by closing the dampener or blocking off the chimney with a metal plate.

Convert an Existing Fireplace in Minutes

Transforming an existing wood burning fire into a clean burning bioethanol fireplace is easy. Simply install the grate on a level platform and fill it with liquid bioethanol. Then sit back and relax.

Ground Fixing Brackets

Single Sided fireplaces feature one open side - view the flame from the front.

Installation

Install only after all gas connections or pipe lines have been disconnected and made safe by an appropriately qualified and licensed professional.

Low Maintenance

Bioethanol Fireplaces don’t leave any carbon residue, so they are incredibly easy to keep clean. Just wipe them down with a damp cloth every now and then.

No Flue, No Chimney, No Vent

Fuelled by clean-burning e-NRG bioethanol, our burners produce a beautiful orange flame without any smoke, soot or ash.

Global Compliance

These models comply with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.

Specifications

Weight

55.34lb [25.10kg]
Application Indoor & Outdoor
Material Mild Steel (Zinc Sealed) Hi-temp
Powder Coat Surround, Grade 304
Stainless Steel Burner
Color Black

Fuel Efficiency

Volume Capacity
2.4 Gal [9 L]

Heats on Average

646ft2 [60m2]

Minimal Room

3885ft3 [110m3]

Thermal Output

16 MJ/h - 15000 BTU/h - 4.4 kW

Burn Time

8-13h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions

Width 19.2in [488mm]
Height 8.7in [220mm]
Depth 48.8in [1239mm]

Technical Drawings

Front View
Side View

Warranty

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files
