Empire Comfort Systems

ALS16CR1

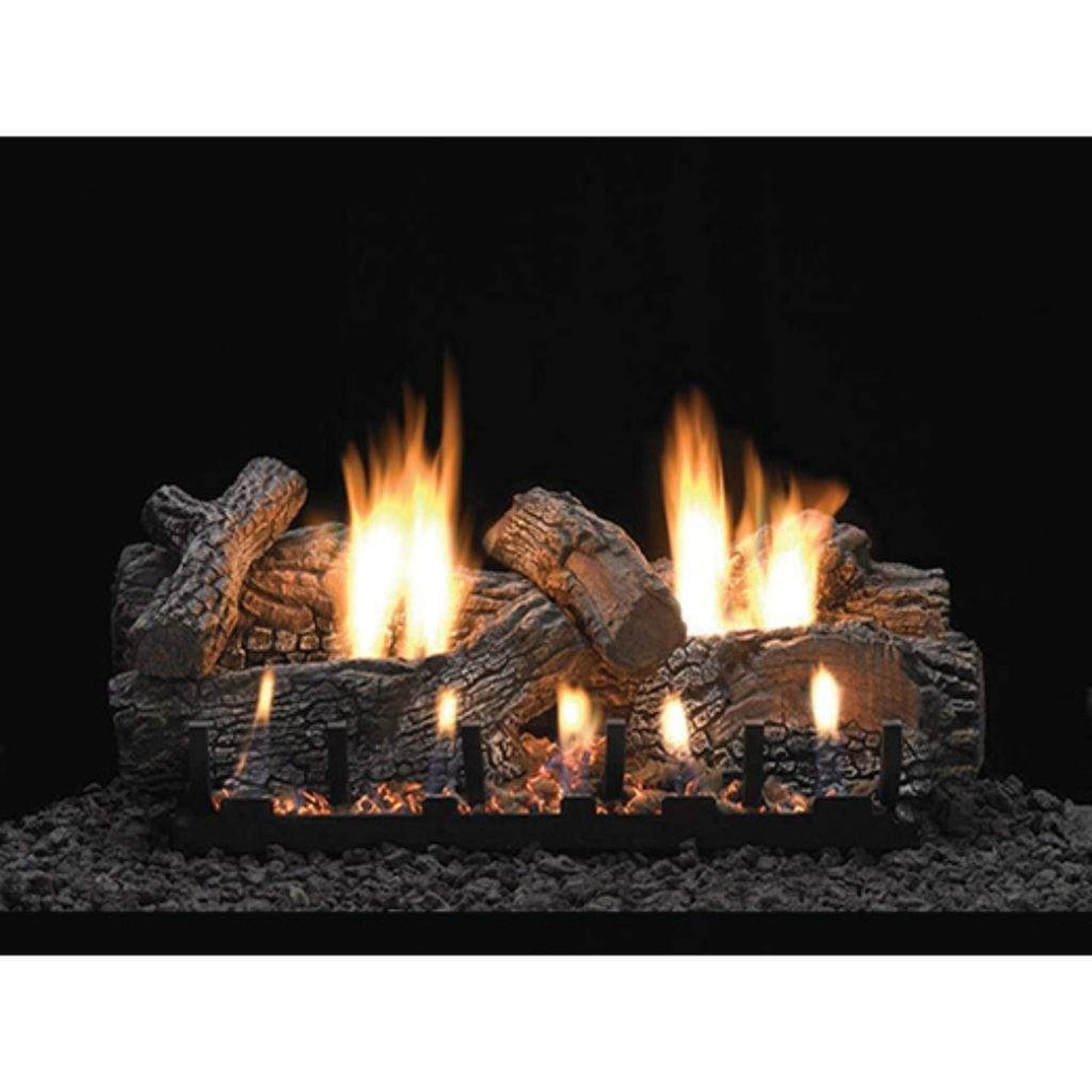

Empire 16" Charleston Refractory Log Set


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.


OVERVIEW

Empire manufactures log sets and burners to suit any application in sizes ranging from 16", 18", 24" and 30", in Natural Gas and Propane.

Empire offer both ceramic fiber and traditional refractory concrete logs. Each log is hand-painted to bring out the rich detail.

Empire Vent-Free Burners are approved for use in any certified vent-free firebox. They may be also installed in an existing wood-burning fireplace, with the damper closed, to operate as a vent-free heating system.

A vent-free Millivolt Loft Burner may also be installed as a decorative appliance in a vented fireplace to provide ambiance and light – but without the heat. In a vented installation, the burner cannot be operated by thermostat, and the flue damper must be blocked open.  A damper clamp is included with all Loft burners.

Traditional Vent-Free Log Sets

From the curve of each log to the height of the stack, Empire Log Set complements the burner pattern for a lifelike fire. Complete the illusion with one of our optional Ember Bed Kits and Platinum Glowing Embers.

Empire Vent-Free log set creates a consistent, controlled heat – without dangerous flare-ups or chilling die-downs. These gas logs warm your room quickly and efficiently while using about half the energy of a vented gas log.

Vent-Free Slope Glaze Burners

Empire popular Slope Glaze Burners raise the standard for dancing flames. Internal ceramic beads tumble the gas to create an exceptionally realistic flame movement.

FEATURES

  • Available in 16", 18", 24" and 30" sizes.
  • Available in Natural Gas or Propane.
  • 6-piece Refractory Log Set
  • For use with slope glaze burner system
  • Required: Must Choose Burner to Complete Log Set
  • Compatible Burners:
    • Vent-Free 16-inch Slope Glaze MV Remote Ready Standing Pilot/Piezo Burner(VFSR16LP) (VFSR16NAT)
    • Vent-Free 16-inch Slope Glaze Burner with Remote Variable Flame (VFSV16LP) (VFSV16NAT)



CA Residents: See Prop 65 WARNING.

      OPTIONS

      Vent-Free Slope Glaze Burners

      Vent-Free Millivolt 16" Slope Glaze Burner with Remote Ready and Standing Pilot/Piezo





      Special Ceramic Bead materials within the precisely ported burner swirl the flowing gas to produce naturally flickering flames. Glowing embers, included with the burner, add to the illusion of a real wood fire. Vent. All come with piezo ignition and standing pilot. The Variable Remote turns the burner off and on, and lets you vary the flame height to maintain a comfortable room temperature.

      • Model: VFSR16LP / VFSR16NAT
      • Fuel Type: LP or NG
      • Ignition Type: Millivolt Control
      • Vent-Free Systems convert to Vented Systems by opening the Flue Damper
      • VFSV Systems - Flame Height Controlled by Remote Supplied with unit
      • A Vent-Free Burner may be installed in a vented fireplace for use as a decorative appliance. A decorative appliance operates with an on/off switch or remote, and may not operate with a thermostat.
      • BURNER ONLY: Slope Glaze Burner
      • Overall Dimensions: 16" (L)
      • Minimum Dimensions for Solid Fuel Burning Fireplaces: 24" (Front Width) x 18" (Back Width) x 11.5" (Depth) x 18" (Height)
      • The dimensions shown are minimum clearances to maintain in installing this heater
      • Left and right clearances are determined when facing the front of the heater

      Vent-Free Variable Flame Height Control 16" Slope Glaze Burner





      Special Ceramic Bead materials within the precisely ported burner swirl the flowing gas to produce naturally flickering flames. Glowing embers, included with the burner, add to the illusion of a real wood fire. Vent. All come with piezo ignition and standing pilot. The Variable Remote turns the burner off and on, and lets you vary the flame height to maintain a comfortable room temperature. All vent - free burners include an Oxygen Depletion Sensor (ODS) to instantly shut off the system if oxygen in the room drops to unsafe levels.

      • Model:VFSV16LP / VFSV16NAT
      • Fuel Type: LP or NG
      • Ignition Type: Variable frame height
      • Vent-Free Systems convert to Vented Systems by opening the Flue Damper
      • VFSV Systems - Flame Height Controlled by Remote Supplied with unit
      • A Vent-Free Burner may be installed in a vented fireplace for use as a decorative appliance. A decorative appliance operates with an on/off switch or remote, and may not operate with a thermostat.
      • BURNER ONLY: Slope Glaze Burner
      • Overall Dimensions: 16" (L)
      • Minimum Dimensions for Solid Fuel Burning Fireplaces: 24" (Front Width) x 18" (Back Width) x 11.5" (Depth) x 18" (Height)
      • The dimensions shown are minimum clearances to maintain in installing this heater
      • Left and right clearances are determined when facing the front of the heater



      Accessories

      Click to see Accessories



      Traditional Log and Ember Bed Kit



    • Model: EK1
    • Includes: 6 Burnt log pieces, white ash and lava rock.
    • Type: Ember Bed Kit
    • Comes with Traditional Log
    • Burnt Log Pieces, White Ash and Lava Rock Included
    • *This kit is not for use atop a burner.
    • 24 Inch Flexible Stainless Steel Gas Line



    • Model: GF24
    • Stainless steel flexible gas line
    • 24" length
    • Ideal for the connection of a variety of gas appliances
    • Use to easily connect gas logs to existing fireplace gas connection
    • Platinum Glowing Fireplace Embers

    • Model: PE20
    • Platinum glowing fireplace embers
    • Can be placed directly on the burner
    • Includes approximately 1 gram of ember material
    • For use on burner - Serves 3 to 4 fireplace
    •





      Control Options (For Millivolt Only)

      Click to see Remote Control options

      FRBC Battery Operated On or Off Remote Control

      • Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve)
      • Does not require running wire to the fireplace
      • Requires batteries for the receiver and for the handheld remote
      • Operates during power outages

      Battery-Operated Remote with Thermostat Control - FRBTC

      • Battery-operated remote control for Empire remote-ready appliances
      • Turns the heater on and off and adjusts the thermostat

      FREC Electric On-Off Remote Control with Battery Transmitter

      • Millivolt Control Options Only
      • Remote control with Battery transmitter for Empire remote-ready appliances
      • Easy and convenient to use
      • The receiver must be plugged in.

      Programmable Battery-Operated Remote Control - FRBTP

      • Battery-operated remote control for Empire remote-ready appliances
      • Programmable and easy to use

      Fireplace On/Off Switch

      • On-Off wall switch for Empire remote-ready appliances
      • Mounts conveniently on wall

      TMV Wall Thermostat Reed Switch

      • Wall thermostat with reed switch for Empire remote-ready appliances
      • Mounts conveniently on wall

      TRW Wall Thermostat Wireless Remote

      • Wall thermostat with wireless remote for Empire remote-ready appliances
      • Thermostat mounts conveniently on wall

      WARRANTY

      • All vent-free products carry a five-year limited warranty with a five-year limited labor warranty.
      • All remote controls and lighting systems carry a one-year limited warranty.
      • Refer to Product Brochure for complete warranty info.
