Empire Comfort Systems

VFD30CC30FP

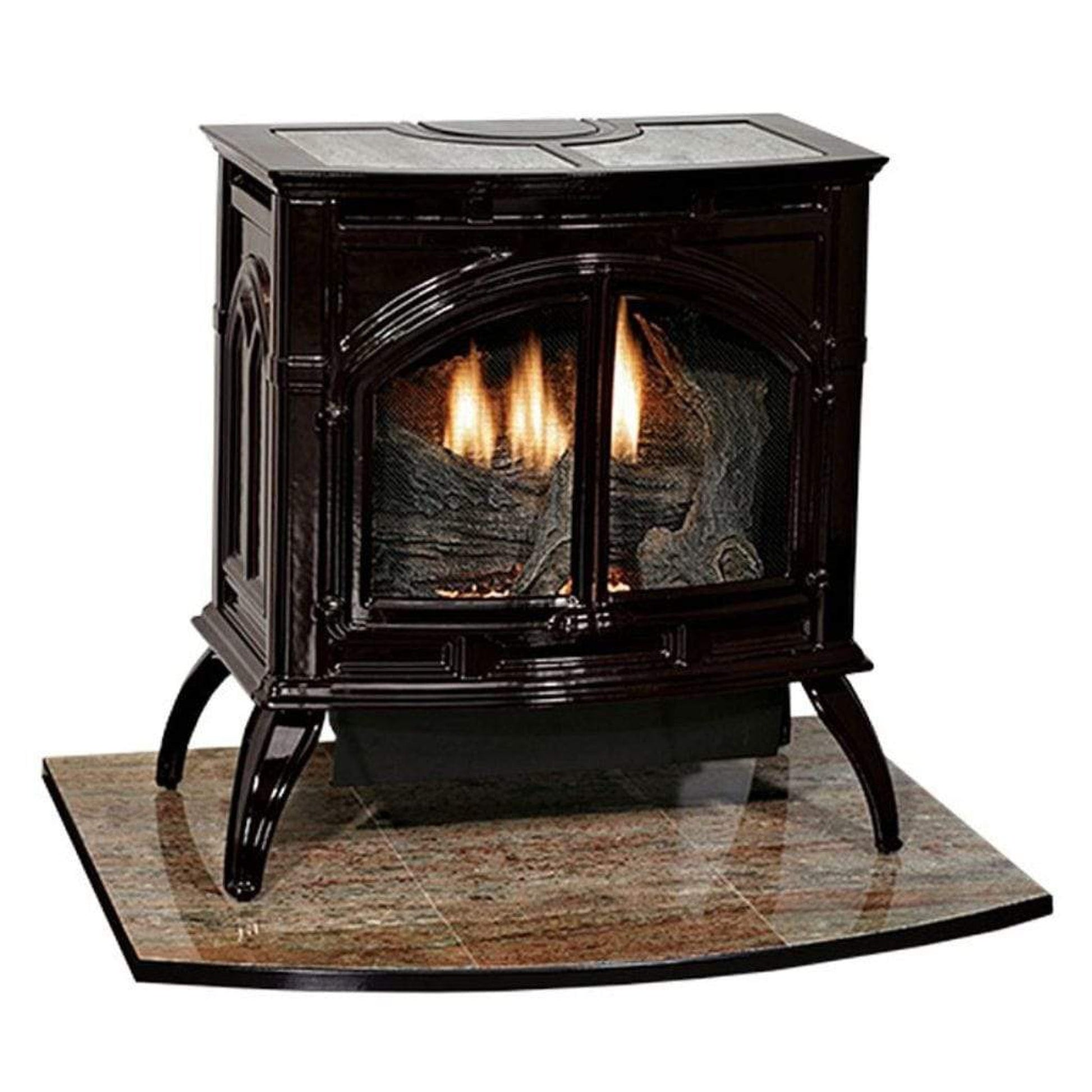

Empire 28" Medium Vent Free Cast Iron Gas Stove with 25,000 BTU Contour Burner

Ignition Type: Millivolt
Fuel Type: Propane
Finish: Matte Black


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

A Vent-Free system uses room air for combustion and delivers 99.9% of the available heat energy directly to the room. Vent-Free systems have an unmatched safety record, thanks in part to their clean-burning technology and their Oxygen Depletion Sensor, which instantly shuts off the valve if oxygen in the room drops to and unsafe level. Because no venting is required, Vent-Free systems offer more installation options.

Vent-Free systems are limited to 40,000 Btu and must be operated as supplemental heating sources in conjunction with a central furnace that circulates air.

Advantages:

  • Unmatched efficiency – 99.9%
  • Offers the most installation versatility
  • Usually less expensive to buy and to install
  • Can operate with a remote or thermostat
  • Most systems can provide live-saving heat during a winter power outage

EMPIRE CAST IRON STOVES

i) Millivolt (MV)

Empire Cast Iron Stoves are available in two types of ignition – Millivolt (MV) and Intermittent Pilot (IP). The Millivolt system lights a standing pilot with a pushbutton piezo ignitor. Once the standing pilot is lit, the MV system operates with an on/off switch concealed on the back of the stove or with one of Empire’s optional remote control systems.

ii) Intermittent Pilot (IP)

IP systems eliminate the standing pilot for even greater energy savings. Pressing the on/off switch ignites the pilot, which then ignites the main burner. IP systems can also operate with an optional remote control system.

VENT-FREE CAST IRON STOVES (VFD)

Vent-free Empire Cast Iron Stoves come standard with Empire’s Contour burner system. The Contour Burner features precision-port technology to produce vibrant flames. Topped off with the hand-painted ceramic fiber log set and glowing embers, the effect is as realistic as a gas-fired stove gets – guaranteed to keep you and your guests mesmerized for hours.

Vent-free technology eliminates the need for venting, which greatly simplifies installation.

Choose from three sizes (10,000 BTU/20,000 BTU and 25,000 BTU) and three colors – porcelain black, porcelain mahogany, and matte black.

A special 10,000-Btu model is ideal for bedroom applications – where allowed by code.


    FEATURES

    • Up to 25,000 BTUs Contour Burner
    • Richly detailed casting
    • Fully operable decorative cast iron doors
    • Available in three finishes: porcelain black, porcelain mahogany, and matte black
    • Optional side shelf sets available
    • Optional floor pads available
    • Traditional cast iron stove look
    • Your choice of finish and fuel type


    AVAILABLE MODELS


    REQUIRES

    • RCK30 replacement control cover required for RVKN or RVKP


    INCLUDED

    • 6-piece Log Set


    SPECIFICATIONS

    Model VFD30CC
    Dimensions 27 3/4" (H) x 28 1/16" (W) x 17 1/8"(D)
    Dimensions with Shelves 27 3/4" (H) x 37" (W) x 17 1/8" (D)
    Input BTU/HR (KW/H) Maximum
    (Propane)
    25,000
    Input BTU/HR (KW/H) Minimum (Propane) 21,000
    Input BTU/HR (KW/H) Maximum (Natural) 25,000
    Input BTU/HR (KW/H) Minimum (Natural) 17,500
    Gas Inlet 3/8" (9.5 mm)
    Air Shutter Setting (Natural) 1/16"
    Air Shutter Setting (Propane) 7/16"



    DOWNLOADS


    CLEARANCES

     Top of appliance (ceiling) 36 inches
    Rear Wall 2 inches
    Side Wall 6 inches
    Heater Corners (45° angle) to Wall 4 inches
    Floor 0 inches




    OPTIONS & ACCESSORIES











    Cast Iron Stove Left and Right Shelf Kit

    • Type: Stove Shelf Kit
    • Finish: Porcelain Black, Matte Black and Porcelain Mahogany
    • Material: Heritage cast iron
    • Set of traditional-style gas stove side shelves
    • Fit compact and medium stoves
    • Quick and straightforward installation




      *Cast Iron Stove Stone Inlays Replace Cast Iron Grids

      Click to see Stone Inlays

      Stone American Beauty Marble
      ( CSI12A)

      • Type: Inlays Kit
      • Color: American Beauty

      Stone Pearl Marble
      (CSI15P)

      • Type: Inlays Kit
      • Color: Pearl

      Stone Cappuccino Marble
      (CSI13N)

      • Type: Inlays Kit
      • Color: Cappuccino

      Stone Graphite Granite
      (CSI14H)

      • Type: Inlays Kit
      • Color: Graphite Granite


      Click to see Accessories



      Automatic Variable Blower for Cast Iron Stove

      • Type: Variable Blower
      • Automatic variable speed Blower for Empire heritage cast iron gas stoves
      • Improves efficiency and air distribution
      • Fits with Compact cast iron stove



      GF24 Flexible 24" Stainless Steel Gas Line

      • Flexible Fas Line
      • Finish: Stainless Steel


      Click to see Control Options

      FRBC Battery Operated On or Off Remote Control

      • Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve)
      • Does not require running wire to the fireplace
      • Requires batteries for the receiver and for the handheld remote
      • Operates during power outages

      FRBTC2 Battery Operated Thermostat Remote Control

      • Type: Remote Control
      • Millivolt Control Options Only
      • Turns heater adjusts Thermostat
      • Battery-operated remote control

      FREC Electric On-Off Remote Control with Battery Transmitter

      • Millivolt Control Options Only
      • Remote control with Battery transmitter for Empire remote-ready appliances
      • Easy and convenient to use
      • The receiver must be plugged in.

      FRBTPS Battery Operated Programmable Touch Screen Remote Control

      • Type: Remote Control
      • Millivolt Control Options Only
      • Programmable and easy to use
      • Battery-operated remote control

      FWS1 Wall Switch On/Off

      • On-Off wall switch for Empire remote-ready appliances

      • Mounts conveniently on wall

      TMV Wall Thermostat Reed Switch

      • Wall thermostat with reed switch for Empire remote-ready appliances
      • Mounts conveniently on wall

      TRW Wall Thermostat Wireless Remote

      • Wall thermostat with wireless remote for Empire remote-ready appliances
      • Thermostat mounts conveniently on wall


      Click to see Variable Remote Option



      Remote Kit for Natural Gas / Propane

      • Model: RVKN - Natural Gas
      • Model: RVKP - Propane
      • Type: Remote Kit
      • Variable Flame Height Kit



      RCK30 Replacement Control Cover

      • Model: RCK30
      • Type: Control Cover
      • Replacement Control Cover
      • For use with:
      • Remote Kit, Variable Flame Height, Natural Gas (RVKN)
      • Remote Kit, Variable Flame Height, Propane (RVKP)



      WARRANTY

      • All vent-free parts carry a five-year limited warranty with a five-year limited labor warranty.
      • All remote controls carry a one-year limited waranty.
