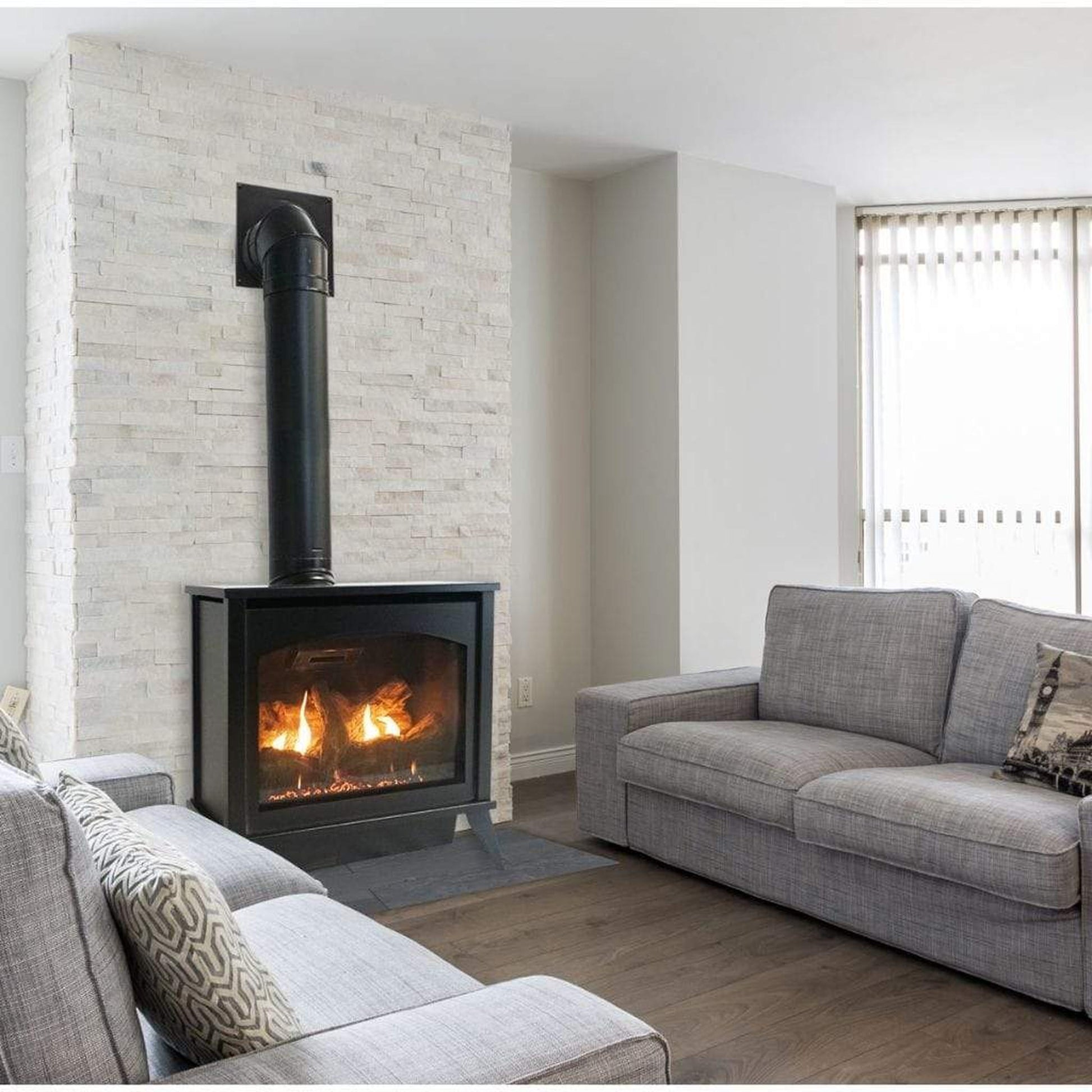

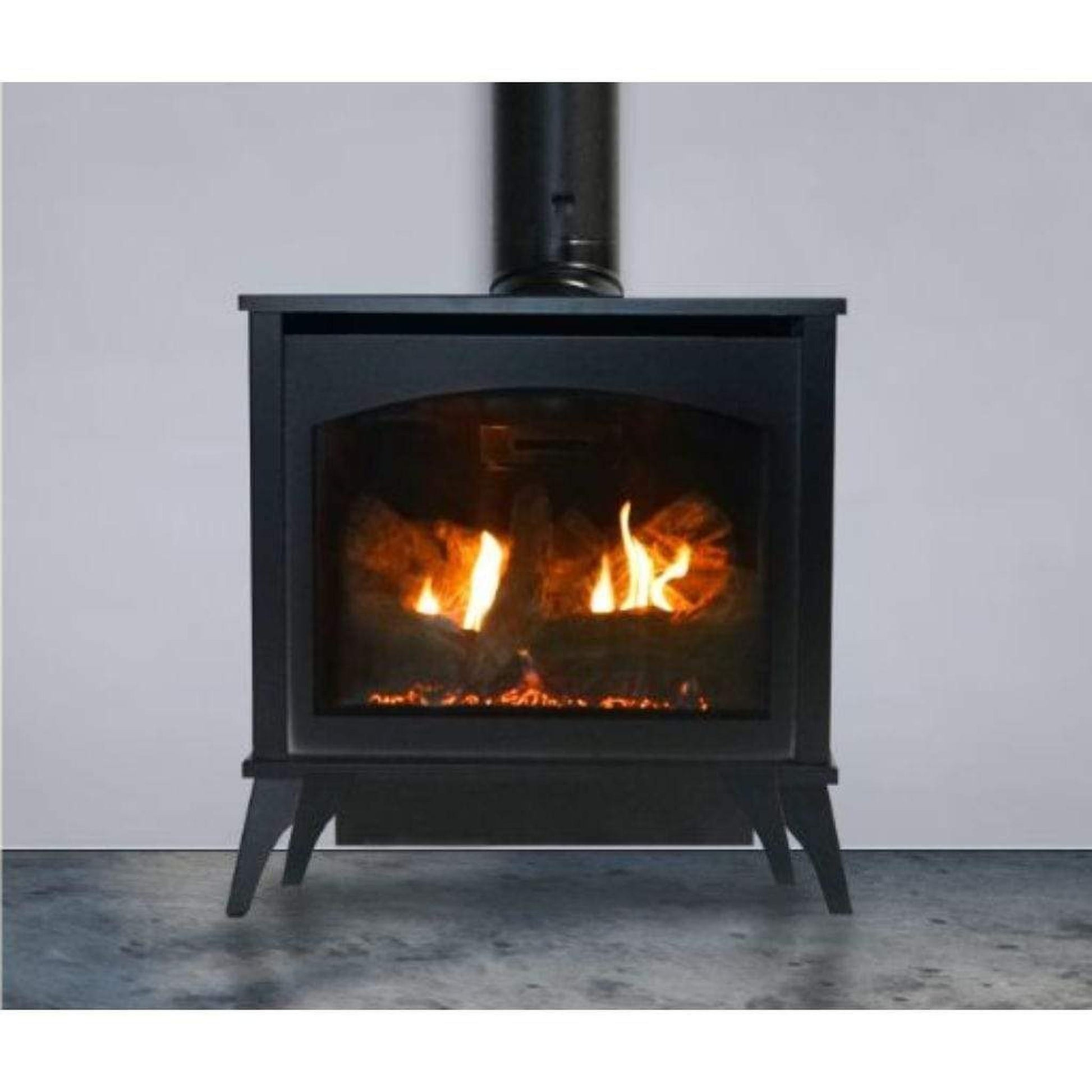

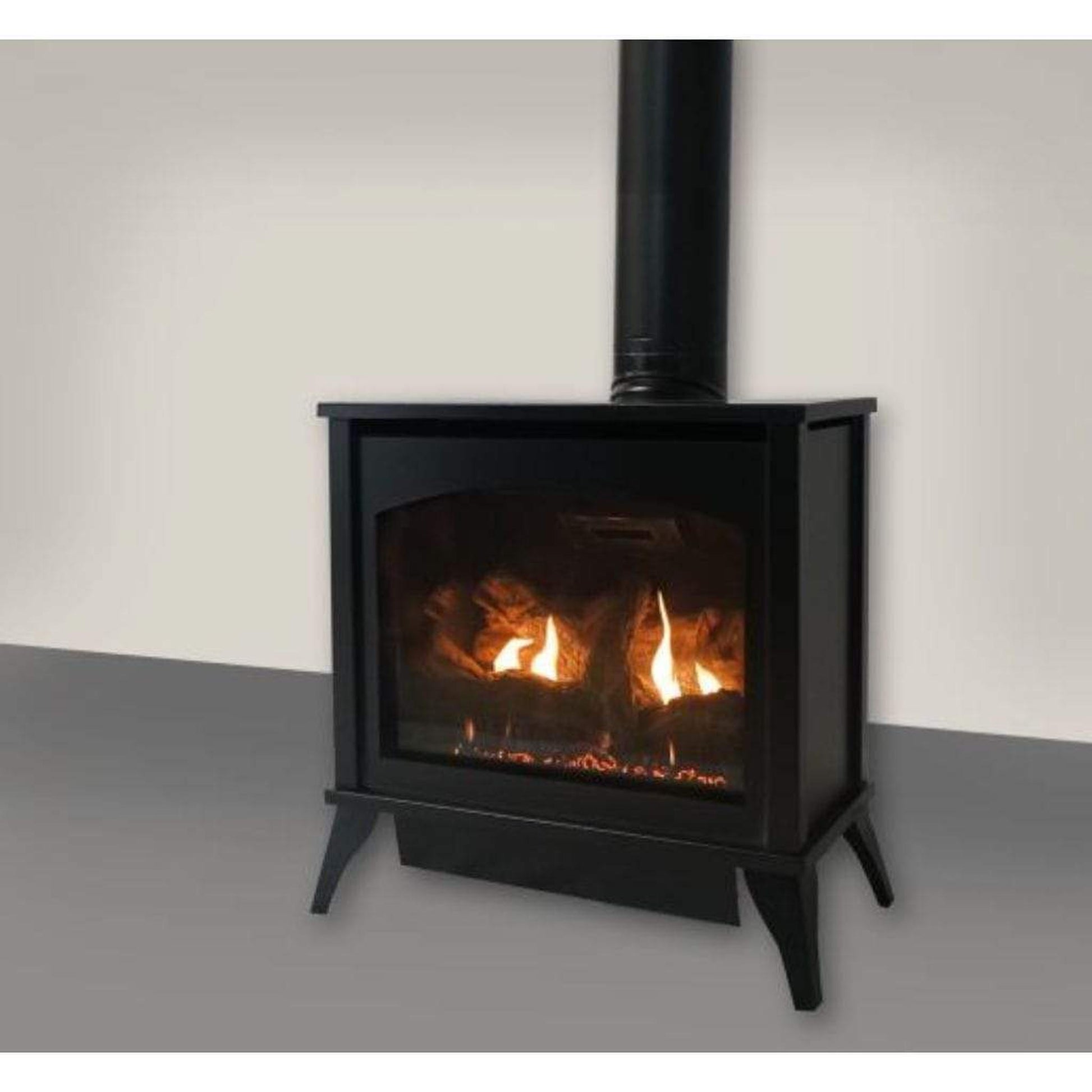

Empire 28" Medium Spirit Steel Direct Vent Gas Stove

DuraVent 45-Degree Elbow

• Finish: Galvanized & Black
• Use to offset obstructions as needed.
• Fully unitized, twist-lock construction.
• Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction.
• The angle will remain fixed at 45°.

DuraVent 90-Degree Elbow

• Finish: Galvanized & Black
• Use to offset obstructions as needed.
• Fully unitized, twist-lock construction.
• Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction.
• The angle will remain fixed at 90°.

DuraVent 17" Elbow Strap

• Use for supporting vent pipe between offsets.

DuraVent 6" to 60" Pipe Length

• Finish: Galvanized & Black
• Designed for appliances tested and listed for direct vent.
• Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes.
• Use of sealant is optional unless specified by the appliance manufacturer.
• Black pipe lengths feature exterior laser-welded seams.
• No beads or hems.
• To calculate install length, subtract 1 1⁄2” for each joint.

DuraVent 11" to 17" & 17" to 24" Adjustable Pipe Length

• Use of sealant is optional unless specified by the appliance manufacturer.
• Available in black or galvalume exterior (both feature laser-welded outer wall seams).

DuraVent Wall Strap

• Use to support vent pipe.
• Provides 1” clearance.
• Recommend installing Wall Straps at 4-foot intervals on vertical runs.

DuraVent Ceiling Firestop

• Required for multi-story vertical installations on the second floor and any subsequent floors.
• 4"x 6 5⁄8" style may vary.

DuraVent Decorative Cover

• Use as a decorative cover for horizontal (through-wall) installations Fits over the Wall Thimble faceplate.
• Also used to cover a Ceiling Support Box. Comes with an insulation ring to reduce air infiltration where the pipe slips through the thimble.
• Painted black.

DuraVent Attic Insulation Shield

• Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent.
• Provides 1” clearance to combustibles.
• Includes base w/tube, extension tube, and collar.

DuraVent Cathedral Ceiling Support Box

• Use to pass through ceiling and support pipe.
• May be used on vaulted or flat ceilings.
• Painted black.
• Trim and clamp included.

DuraVent Flat Roof Flashing

• Use to weatherproof the penetration of vent pipe through the roof.
• Use on flat roofs, chase enclosures, or masonry chimneys.
• Storm Collar required.
• Made of galvalume.

DuraVent Adjustable Roof Flashing

• Use to weatherproof the penetration of vent pipe through the roof.
• Select roof flashing based on pitch of the roof.
• For pitches of 0/12 - 6/12.
• Storm Collar required.
• Made of galvalume.

DuraVent Steep Roof Flashing

• Use to weatherproof the penetration of vent pipe through the roof.
• Storm Collar required.
• Made of galvalume.

DuraVent Dead Soft Aluminum Flashings

• Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 (shown) and 7/12-12/12 styles.
• Made of malleable dead soft aluminum.
• Use with metal or tile roofs.

DuraVent Storm Collar

• Use to maintain a weather-tight resistant seal between the pipe and the flashing.

DuraVent High-Wind Termination Cap

• Available in aluminum.
• Use for vertical terminations only.
• For vertical terminations only.
• Provides improved performance in high wind conditions.

DuraVent Low-Profile Termination Cap

• Available in aluminum and stainless steel (S).
• Use for vertical terminations only.
• Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance.

DuraVent Wall Thimble

• Use with Square Horizontal Cap only.
• Provides a complete wall-pass-through and firestop.
• Refer to the appliance manufacturer’s installation instructions for requirements.
• May be required in Canada.

DuraVent Square Horizontal Termination Cap

• Available in aluminum, stainless steel (S), and copper (C).
• Use for standard and high-wind through-the-wall termination.
• Check installation instructions for restrictions on horizontal cap terminations, such as minimum distance from windows and doors.

DuraVent Round Horizontal Termination Cap

• Available in aluminum only.
• Use for through-the-wall termination.
• Check installation instructions for restrictions on horizontal cap terminations, such as minimum distance from windows and doors.
• Check with the appliance manufacturer for approval.

DuraVent 14"/36" Snorkel Termination Cap

• Use for horizontal through-the-wall termination when a vertical rise is desired in the system to meet the appliance manufacturer's recommended minimum heights.
• Do not enclose in the wall or install below grade.

DuraVent Sconce Termination Cap

• Available in aluminum, stainless steel (S), and copper (C).
• Use for horizontal through-the-wall termination.
• Check installation instructions for restrictions on horizontal cap terminations, such as minimum distance from windows and doors.
• Check with the appliance manufacturer for approval.
• Patented.

DuraVent Square Horizontal H2 Termination Cap

• Available with aluminum shroud.
• Use for standard and high-wind through-the-wall termination.
• Provides improved performance in high wind conditions.
• Adjustable air intake and interchangeable shroud (shroud is included and required for all installations).

DuraVent High-Wind Sconce Termination Cap

• Available in aluminum, stainless steel (S), and copper (C).
• Use for horizontal through-the-wall termination.
• Provides improved performance in high wind conditions.
• Check installation instructions for restrictions on horizontal cap terminations, such as minimum distance from windows and doors.

DuraVent Snorkel H2 Termination Cap

• Use for horizontal through-the-wall termination when a vertical rise is desired in the system to meet the appliance manufacturer's recommended minimum heights.
• Features an adjustable air intake and interchangeable shroud (shroud is included and required for all installations).
