Empire Comfort Systems

DVCX36FP70N

Empire 36" Tahoe Clean Face Direct Vent Luxury Fireplace - IP Control

Fuel Type: Natural Gas


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

Advantages:

  • Good efficiency – 60 to 80%
  • Good heat output with thermal transfer through the glass and air circulation
  • Separates room air from the combustion air
  • May be used as the primary heat source
  • Can operate with a remote or thermostat
  • Most systems can provide live-saving heat during a winter power outage

Tahoe Direct-Vent Fireplaces

Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower. It features a large tempered glass window that provides an unobstructed view to the log set. Choose an optional liner to customize your fireplace.

Tahoe Clean-Face Deluxe models require 17-3/4, and use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

Designed for in-wall installation, your Tahoe Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.

The available lighting kit draws attention to the intricate details in the log set and brick liner – even when no fire is burning. You can enhance heat distribution with the optional variable-speed blower. Both the light and blower include dimmer controls.

Clean-Face Premium models are available in Millivolt and Intermittent Pilot.

Tahoe Clean Face Luxury

With its large ceramic glass window and clean-face design, this luxury direct-vent fireplace creates the illusion of a site-built fireplace, but offers the convenience and operating efficiency of a modern gas system.  The traditional luxury clean-face fireplace is available in 36-inch and 42-inch models.

Tahoe Clean-Face Luxury fireplaces are heater rated, so they will mesmerize your friends and family as well as warm your room.  Zone heating with a gas fireplace saves energy while warming the rooms you use most. The available blower helps circulate warm air more quickly.

Designed for in-wall installation, our Clean-Face Luxury models require just over 22 inches of depth. The venting connects to the top of the fireplace, but can run out the wall or up through the roof.  Tile or other noncombustible material may be used to conceal the outer edge of the fireplace to create a true built-in system.

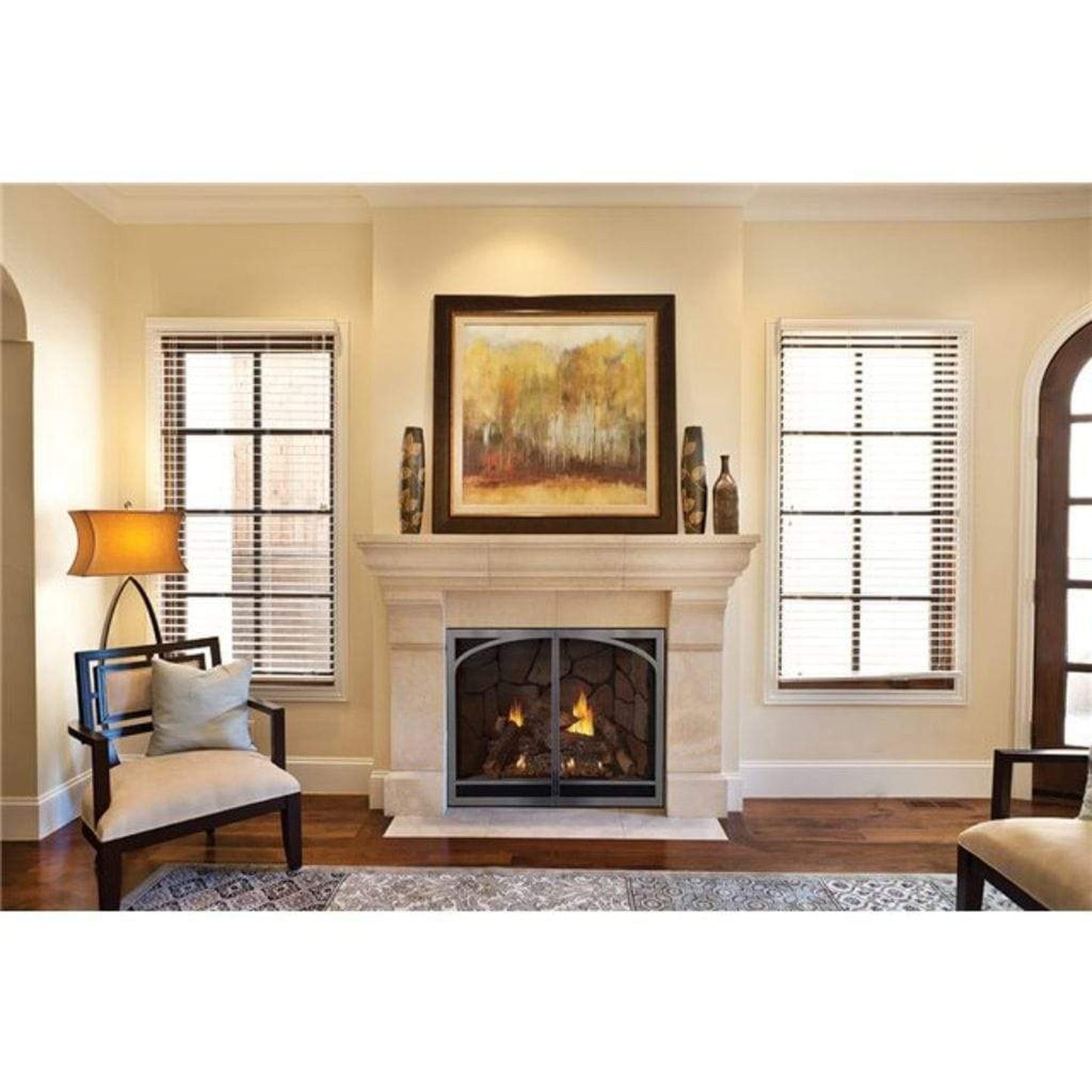

Mantel is shown in image, however not included in this product.

FEATURES

  • Available in 36" and 42" sizes.
  • Tempered Glass: 24 1/8 x 33
  • Venting5 x 8 Top Vent Only
  • Framing: 42 5/16 H x 42 3/8 W x 21 1/2 D
  • Available Liners
  • Includes:
    • Fireplace Barrier Screen
    • Burner with expanded Ember Bed
    • 9-piece Log Set
    • Rustic Brick Fireplace Brick Floor
  • Includes battery back-up and A/C adapter for IP
  • Optional remotes available
  • Manually Variable Valve
  • Optional Decorative Fronts

A fireplace barrier screen is included to help protect you and your family from inadvertently touching the hot glass.

These direct-vent fireplaces draw in fresh outside air to support combustion and exhaust combustion by-products to the outdoors.  The 5 x 8 vent-within-a-vent isolates the incoming fresh air from the exhaust, yet still requires just a single hole through the wall or roof.

CA Residents: See Prop 65 WARNING.

OPTIONS & ACCESSORIES

Liner Kits

Click to see Liner Kit options

Black Reflective Fireplace Floor Panel

  • Color: Reflective Black
  • Reflective quality amplifies the flame presentation
  • Designed to cover the fireplace floor and conceal the burner
  • Offers a thoroughly modern appearance
  • Designed for use with the DVP36XKR liner assembly

Black Reflective Fireplace Rear and Sides Liner

  • Color: Reflective Black
  • Reflective quality amplifies the flame presentation
  • Three-piece assembly lines the firebox walls
  • Offers a thoroughly modern appearance
  • Designed for use with the DVF36XKR floor liner

Rustic Brick Fireplace Rear and Sides Liner

  • Model #: DVP36XRB
  • Type: Liner
  • Dimension: 36"

Old World Stone Fireplace Floor, Rear, and Sides

  • Model #: DVP36XWS
  • Type: Liner and Floor
  • Finish: Old World Stone
  • Dimension: 36"


Decorative Doors with Frame



Accessories

Click to see Accessories

Traditional Log and Ember Bed Kit

  • Include: six (6) burnt log pieces, white ash, and lava rock

*This kit is not for use atop a burner.

Platinum Glowing Fireplace Embers

Platinum Glowing Embers (For use on burner - Serves 3 to 4 fireplaces)

Decorative Forged Andirons, Black (set of 2)

  • Color: Black
  • Durable and stately forged iron construction
  • Helps to provide the appearance of a real wood fire

 Variable Speed Blower

  • Included rheostat for variable speed control
  • A thermal switch allows on/off operation based on temperature
  • Increases overall thermal efficiency of the fireplace
  • Installation bracket and wiring harness included

Lighting Kit, 120V (includes Rheostat)

  • Interior accent lighting kit provides illumination of the log set
  • Ideal for accenting the fireplace when not in use
  • Rheostat type dimmer switch included
  • Simple 120-volt plugin system

Control Options

Click to see Control Options

FRBC Battery Operated On or Off Remote Control



  • Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve)
  • Does not require running wire to the fireplace
  • Requires batteries for the receiver and for the handheld remote
  • Operates during power outages



Battery-Operated Remote with Thermostat Control - FRBTC

  • Battery-operated remote control for Empire remote-ready appliances

  • Turns the heater on and off and adjusts the thermostat

FREC Electric On-Off Remote Control with Battery Transmitter

  • Millivolt Control Options Only

  • Remote control with Battery transmitter for Empire remote-ready appliances

  • Easy and convenient to use

  • The receiver must be plugged in.

Programmable Battery-Operated Remote Control - FRBTP

  • Battery-operated remote control for Empire remote-ready appliances

  • Programmable and easy to use

FWS1 Fireplace On/Off Switch

  • On-Off wall switch for Empire remote-ready appliances

  • Mounts conveniently on wall

TMV Wall Thermostat Reed Switch

  • Wall thermostat with reed switch for Empire remote-ready appliances

  • Mounts conveniently on wall

TRW Wall Thermostat Wireless Remote

  • Wall thermostat with wireless remote for Empire remote-ready appliances

  • Thermostat mounts conveniently on wall

Variable Flame Height, Natural Gas or Propane

  • Models:
    • RVKN (Nat)
    • RVKP (Lp)
  • Fireplace Type: Standard(RVKP, RVKN)
  • Vent Type: Vented(RVKP, RVKN)
  • Remote Control Variable Flame Height Kit
  • Available for Propane or Natural Gas Burner Systems
