SKU:DVCC36BP32N

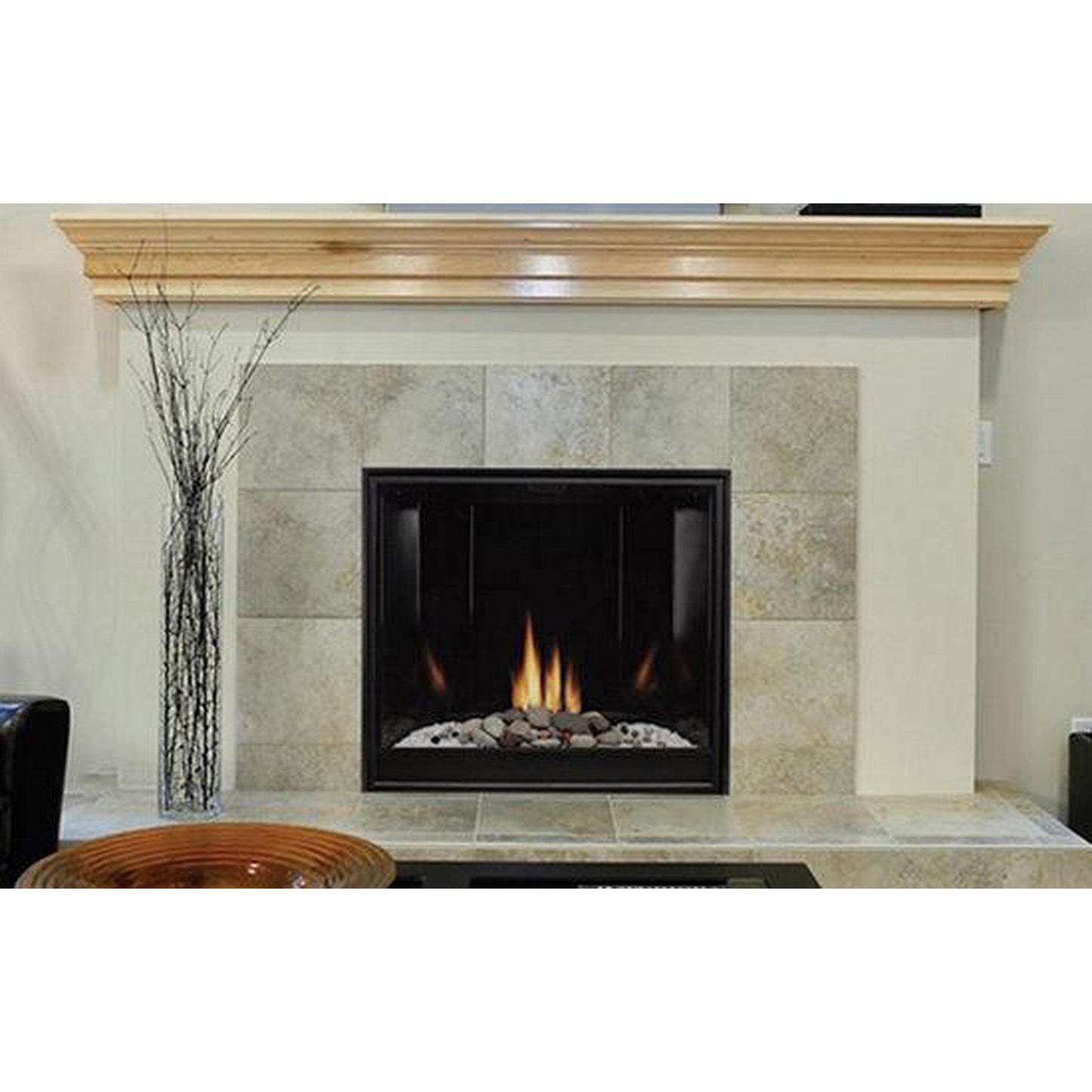

Empire Tahoe Clean Face 36" Millivolt Control With On/Off Switch, Natural Gas Direct Vent Premium Contemporary Fireplace
Empire Tahoe Clean Face 36" Millivolt Control With On/Off Switch, Natural Gas Direct Vent Premium Contemporary Fireplace
Rock Set (Required)
-- Please Select --
No, Thank You
Crushed Glass (1 sq. ft.) (Required)
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Accessories
Control Options
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room. A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.
Tahoe Clean-Face Premium Contemporary (DVCC)
Ceramic Fiber Liner options for Clean-Face Premium models include a traditional Aged Brick with smoky highlights, and an old-world Rustic Brick. Or choose the deep black polished porcelain-steel liner that reflects the flames for a luxurious effect.
The available lighting kit draws attention to the intricate details of the decorative rock kit and brick liner – even when no fire is burning. You can enhance heat distribution with the optional variable-speed blower. Both the light and blower include dimmer controls.
Clean-Face Premium models are available in Millivolt and Intermittent Pilot.
What's Included
- Tahoe Clean Face Contemporary Fireplace
- Black Porcelain Liner
- Tempered Glass
- Barrier Screen
Not Included (Sold Separately)
- Rock Set (Required)
- Crushed Glass 1 sq. ft. (Required)
- Blower
- Lighting Kit
- Flex Gas Line
- Control Options
- Gas Conversion Kit
Features
- Good efficiency – 60 to 80%
- May be used as primary heat source
- Separates room air from combustion air
- Can operate with a remote or thermostat
- Most systems can provide life-saving heat during a winter power outage
- Good heat output with thermal transfer through the glass and air circulation
- The Premium Clean-Face Tahoe includes a tempered glass view window and a unique burner that delivers a rich flame pattern
- The ceramic fiber rock set is required each rock piece is hand painted
- The contemporary fireplace includes a deep black polished porcelain-steel liner to enhance the reflected flames
- The available lighting kit draws attention to the intricate details of the decorative rock kit and brick liner – even when no fire is burning
- Clean-Face Premium models are available in Millivolt and Intermittent Pilot
Specifications
Model | DVCC36 |
Input BTU/Hr Maximum | 24,000 |
Input BTU/Hr Minimum | 18,000 |
KWH (Maximum) | 7.03 |
KWH (Minimum) | 5.28 |
Type of Gas | Natural Gas |
Ignition | Millivolt |
Vent Type | Direct Vent |
Venting | 4 x 6 5/8 |
Installation | Zero Clearance |
Orifice | 42 |
Air Shutter Opening | 1/4" |
Gas Inlet Shut-Off Valve (Pipe) | 1/2" NPT |
Gas Supply Pressures (inches water column) |
Maximum | 14 |
Minimum | 4.5 |
Manifold | 3.5 |
Dimensions
Tempered Glass Width | 31" |
Tempered Glass Height | 25" |
Framing Width | 38" |
Framing Height | 47" |
Framing Depth | 18" |
Warranty
- 10-year limited warranty on combustion chamber; limited lifetime on glass
- All Remote Controls carry a 1-year limited warranty
- All other parts carry a 3-year limited warranty
Documents & Files
- Download Brochure
- Home Owner’s Manual
- Installation Instructions
- Installation Instructions Burner Upgrade Kit
- Installation Instructions FBB10 Blower
- Installation Instructions Screen Kit
- Installation Instructions Rock Set
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
