Empire Comfort Systems

DVCX36FP91N

Empire 36" Tahoe Clean Face Direct Vent Multi-Function Luxury Fireplace

Fuel Type: Natural Gas


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

Advantages:

  • Good efficiency – 60 to 80%
  • Good heat output with thermal transfer through the glass and air circulation
  • Separates room air from the combustion air
  • May be used as the primary heat source
  • Can operate with a remote or thermostat
  • Most systems can provide live-saving heat during a winter power outage
  • Choose fireplace, insert, cast iron stove, or heater

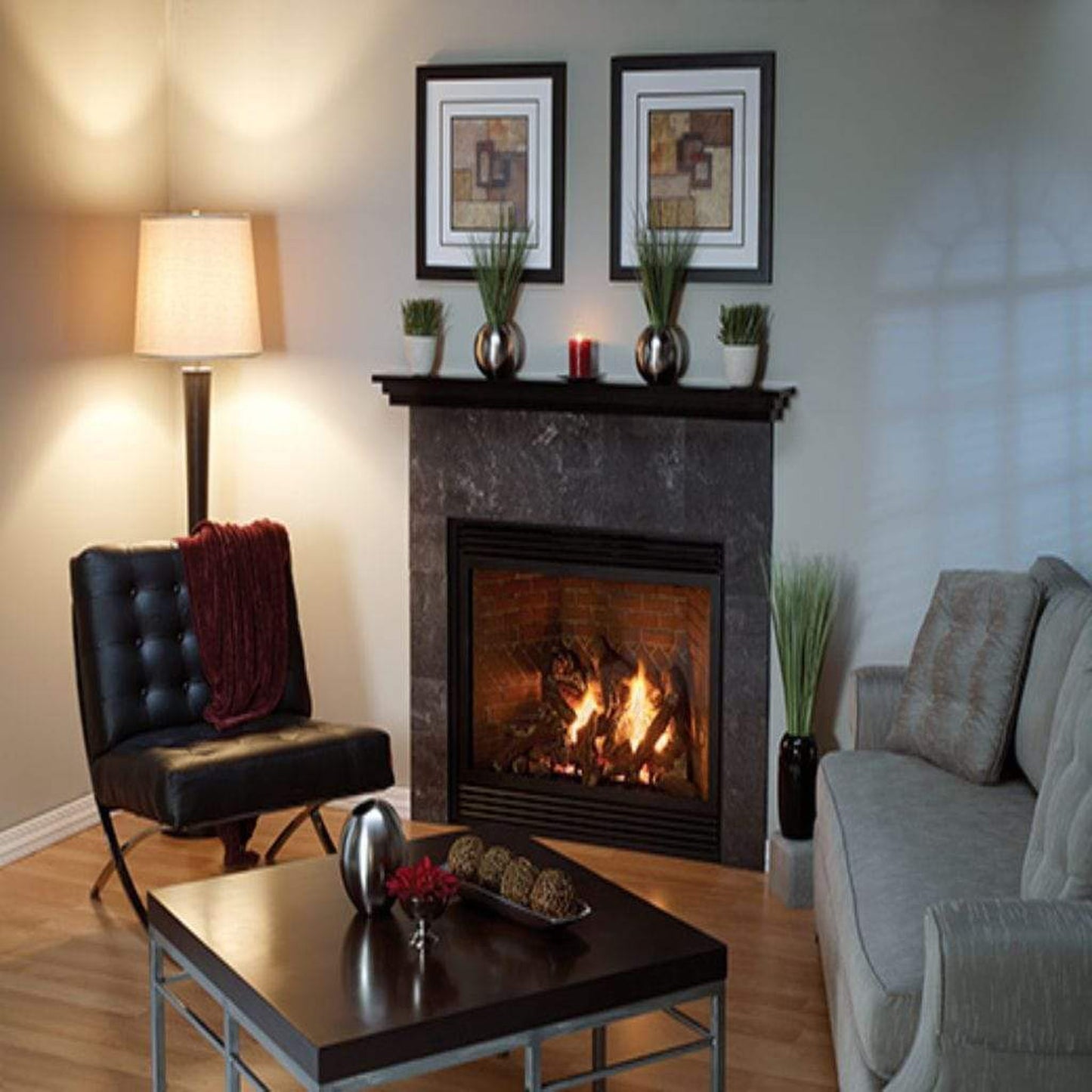

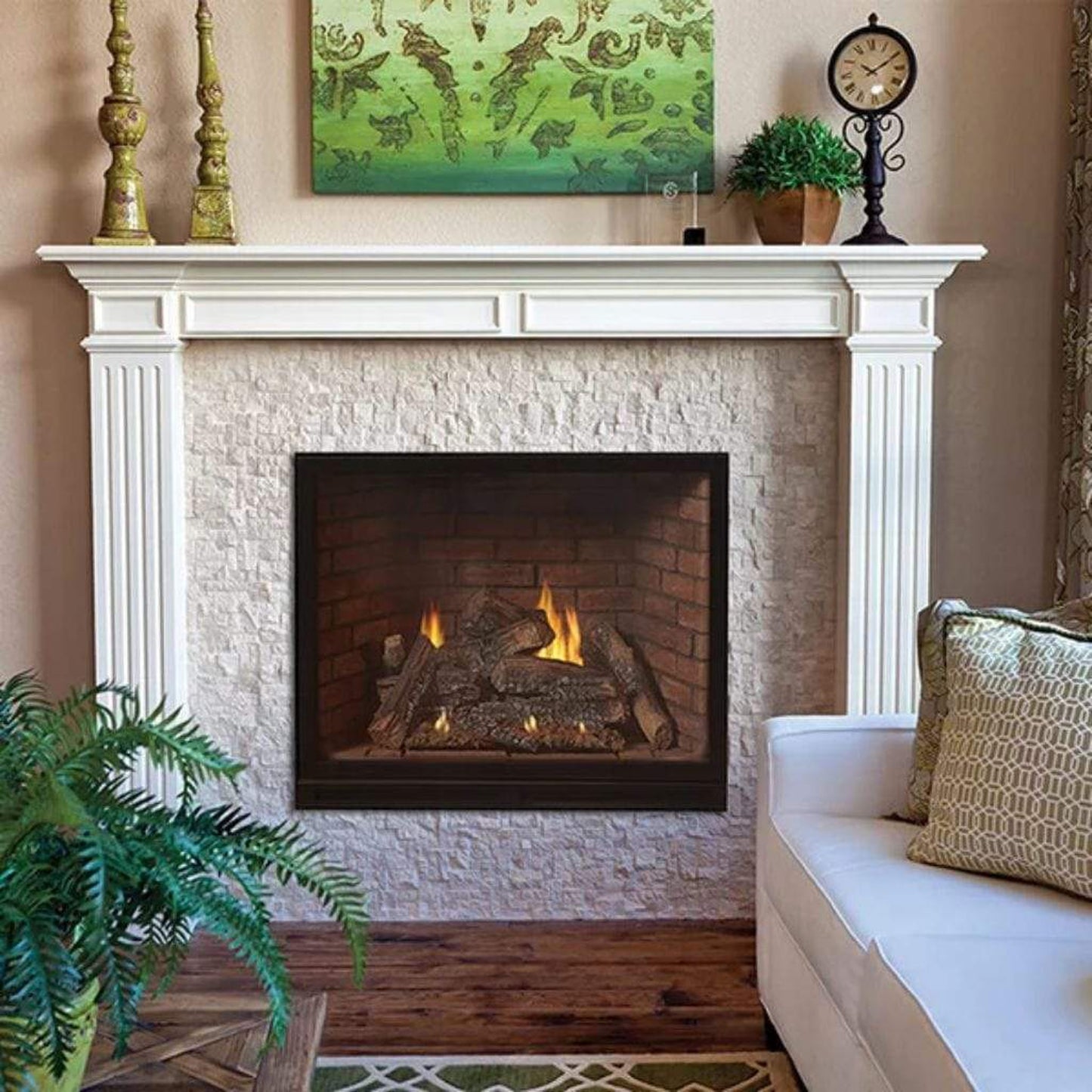

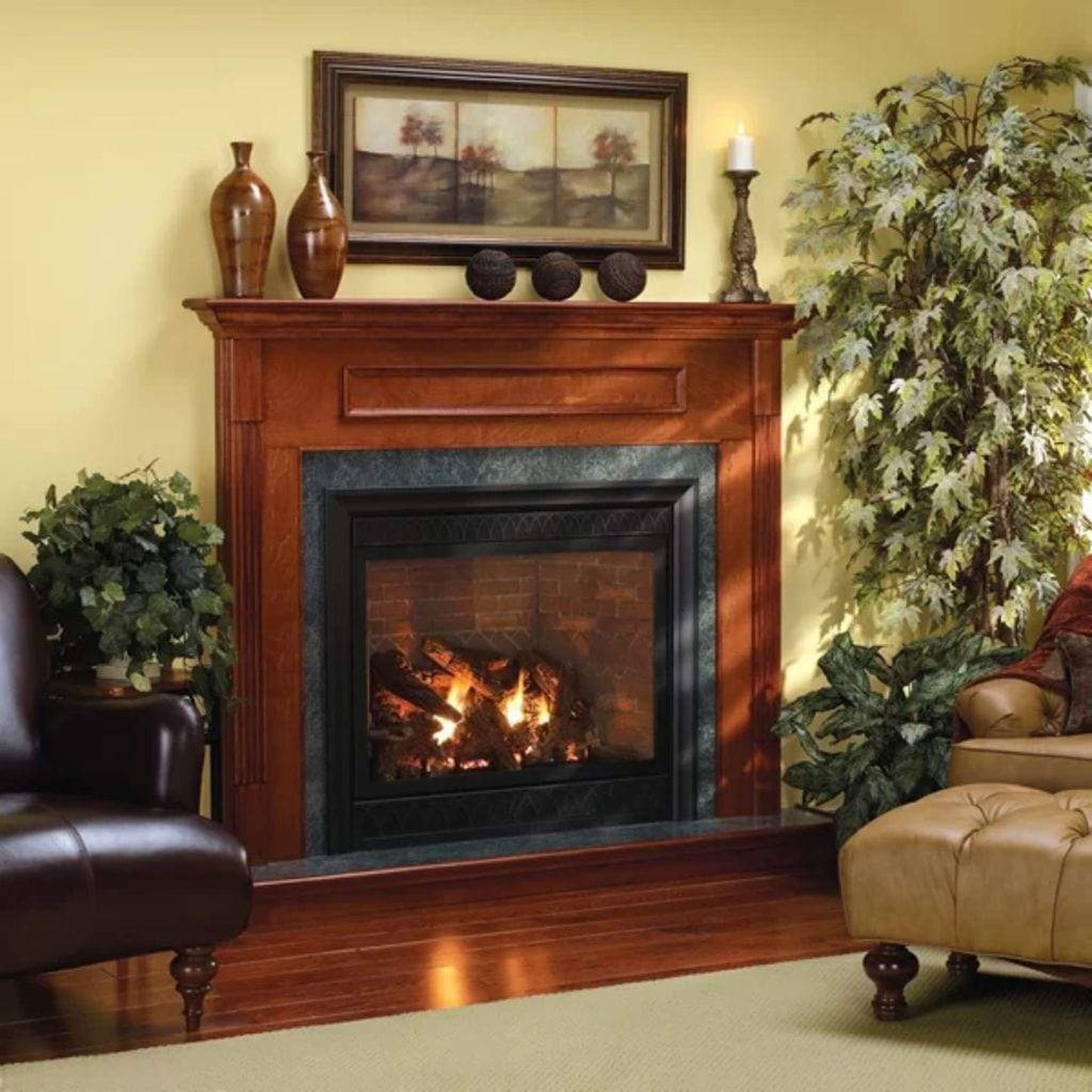

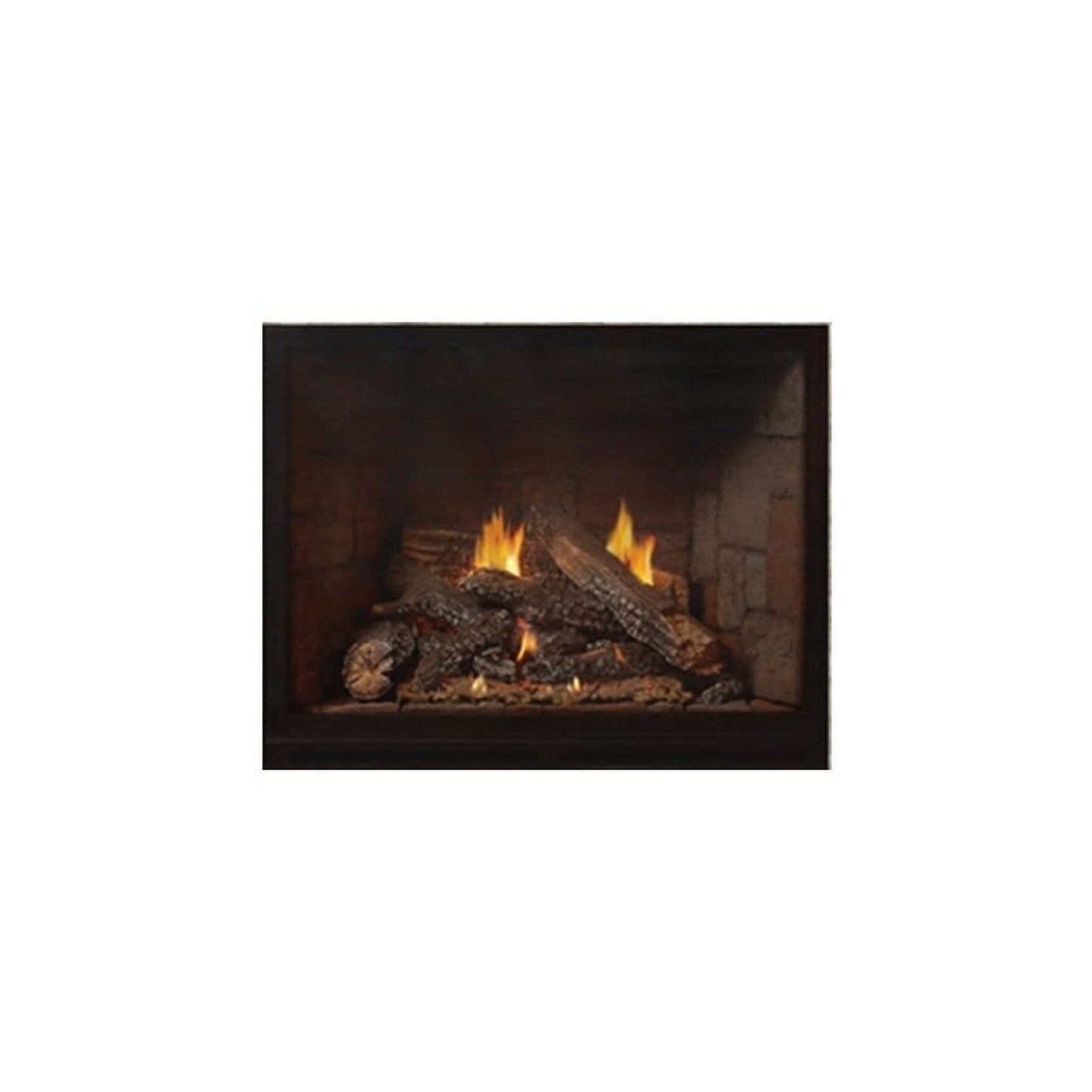

Tahoe Clean Face Direct Vent Luxury Fireplace

Tahoe Luxury models retain the same overall dimensions as Premium models but feature ceramic glass (for better heat transfer), a dimmer-controlled accent lamp inside the fireplace, automatic blower, and an intricately detailed 13-piece log set.

The larger Slope Glaze Excess Burner provides a fuller ember bed and generates more heat than a comparably sized Premium model.

Liner options for Luxury Models include: Banded Brick, Stacked Limestone, and Black Reflective.

Luxury models are offered in Millivolt, IP, and Multi-Function remote models.

Mantel is shown in image, however not included in this product.

A fireplace barrier screen is included to help protect you and your family from inadvertently touching the hot glass.

These direct-vent fireplaces draw in fresh outside air to support combustion and exhaust combustion by-products to the outdoors.  The 5 x 8 vent-within-a-vent isolates the incoming fresh air from the exhaust, yet still requires just a single hole through the wall or roof.

FEATURES

  • Tempered Glass: 24 1/8 x 33
  • Venting:5 x 8 Top Vent Only
  • Framing: 42 5/16 H x 42 3/8 W x 21 1/2 D
  • Available Liners
  • Includes:
    • Fireplace Barrier Screen
    • Burner with expanded Ember Bed
    • 9-piece Log Set
    • Rustic Brick Fireplace Brick Floor
  • Requires:
    • Log Set
  • Optional Decorative Fronts
  • Weight:174 lbs

CA Residents: See Prop 65 WARNING.



OPTIONS & ACCESSORIES

Click to see Liner Kits

Black Reflective Fireplace Floor Panel

  • Color: Reflective Black
  • Reflective quality amplifies the flame presentation
  • Designed to cover the fireplace floor and conceal the burner
  • Offers a thoroughly modern appearance
  • Designed for use with the DVP36XKR liner assembly

Black Reflective Fireplace Rear and Sides Liner

  • Color: Reflective Black
  • Reflective quality amplifies the flame presentation
  • Three-piece assembly lines the firebox walls
  • Offers a thoroughly modern appearance
  • Designed for use with the DVF36XKR floor liner

Rustic Brick Fireplace Rear and Sides Liner

  • Model #: DVP36XRB
  • Type: Liner
  • Dimension: 36"

Old World Stone Fireplace Floor, Rear, and Sides

  • Model #: DVP36XWS
  • Type: Liner and Floor
  • Finish: Old World Stone
  • Dimension: 36"


Click to see Blower & Lighting Kit



Variable Speed Blower

  • Included rheostat for variable speed control
  • A thermal switch allows on/off operation based on temperature
  • Increases overall thermal efficiency of the fireplace
  • Installation bracket and wiring harness included





Lighting Kit, 120V (includes Rheostat)

  • Interior accent lighting kit provides illumination of the log set
  • Ideal for accenting the fireplace when not in use
  • Rheostat type dimmer switch included
  • Simple 120-volt plugin system


Click to see Accessories

Traditional Log and Ember Bed Kit

  • Include: six (6) burnt log pieces, white ash, and lava rock

*This kit is not for use atop a burner.

Platinum Glowing Fireplace Embers

  • Platinum Glowing Embers (For use on burner - Serves 3 to 4 fireplaces)

Decorative Forged Andirons, Black (set of 2)

  • Color: Black
  • Durable and stately forged iron construction
  • Helps to provide the appearance of a real wood fire


Click to see Decorative Fronts

Door with Frame & Beveled Frame

  • Front/Doors fit over the Barrier Screen included with the DVCX fireplace
  • Beveled Frame available in Brushed Nickel & Oil-Rubbed Bronze finishes



Click to see Control Options

FRBC Battery Operated On or Off Remote Control

  • Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve)
  • Does not require running wire to the fireplace
  • Requires batteries for the receiver and for the handheld remote
  • Operates during power outages

FRBTC2 Battery Operated Thermostat Remote Control

  • Type: Remote Control
  • Millivolt Control Options Only
  • Turns heater adjusts Thermostat
  • Battery-operated remote control

FREC Electric On-Off Remote Control with Battery Transmitter

  • Millivolt Control Options Only
  • Remote control with Battery transmitter for Empire remote-ready appliances
  • Easy and convenient to use
  • The receiver must be plugged in

FRBTPS Battery Operated Programmable Touch Screen Remote Control

  • Type: Remote Control
  • Millivolt Control Options Only
  • Programmable and easy to use
  • Battery-operated remote control

FWS1 Fireplace On/Off Switch

  • On-Off wall switch for Empire remote-ready appliances
  • Mounts conveniently on wall

TMV Wall Thermostat Reed Switch

  • Wall thermostat with reed switch for Empire remote-ready appliances
  • Mounts conveniently on wall

TRW Wall Thermostat Wireless Remote

  • Wall thermostat with wireless remote for Empire remote-ready appliances
  • Thermostat mounts conveniently on wall


Conversion Kit

Fuel Conversion Kit

  • Natural Gas to Propane
  • Propane to Natural Gas
  • For use with Multi-Function Control
  • For Tahoe Clean Face Direct Vent Luxury Fireplace
