Empire 40" Loft Small Direct-Vent Gas Fireplace Insert (20,000 BTU)

Empire 40" Loft Small Direct-Vent Gas Fireplace Insert (20,000 BTU)

Regular price $2,469.00
Regular price Sale price $2,469.00
Sale Sold out
Ignition Type
Fuel Type
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the
case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

Advantages

  • Good efficiency – 60 to 80%
  • Good heat output with thermal transfer through the glass and air circulation
  • Separates room air from combustion air
  • May be used as primary heat source
  • Can operate with a remote or thermostat
  • Most systems can provide life-saving heat during a winter power outage

    Loft Direct-Vent Inserts

    A Direct-Vent Fireplace Insert turns your existing wood-burning fireplace into an efficient gas-fired heat source.  Direct-Vent Fireplace Inserts are classified as zone heating appliances. Zone heating is inherently more efficient than your existing wood-burning fireplace or your central furnace.

    Loft Direct-Vent Inserts (DVL)

    Awaken your inner artist with a Loft Series Contemporary Direct-Vent Insert – in small (20,000 Btu) or medium (27,000 Btu).  Choose Millivolt ignition or Intermittent Pilot.  The black porcelain lining inside the Loft insert reflects the mesmerizing flame from the contemporary linear burner to create depth and visual interest from any angle.

    Please Note: Surround with Barrier Screen or Decorative Front with Barrier Screen required to complete this unit.

    Also Note: For Decorative Front with Barrier Screen installation, 3-Sided, 1-piece metal frame requiredPlease Check Options & Accessories section for more details.

    Available Models

    FEATURES

    • Up to 20,000 BTUs
    • Venting: 3-inch Flex
    • Ceramic Glass: 10 7/16 x 20 1/4
    • Opening - 18 3/8 H x 27 1/2 W x 12 3/4 D
    • This unit installs as an insert inside an existing fireplace

    Includes:

    • Black Porcelain Liner
    • Blower

      Requires:

      • Surround with Barrier Screen or Decorative Front with Barrier Screen

      SPECIFICATION

      Model DVL25
      Actual Dimensions 22 1/2 H x 40 W x 15 D
      Fuel Type Natural Gas / Propane
      Vent Type Direct Vent
      Ignition Type Millivolt / Intermittent Pilot
      Installation Type Insert
      Style Contemporary
      Input BTU/HR (KW/H) Max/Min (Propane) 20,000/15,000
      Input BTU/HR (KW/H) Max/Min (Natural Gas) 20,000/15,000

      CA Residents:
      See Prop 65
      WARNING.




      DOWNLOADS

      OPTIONS & ACCESSORIES

      Click to see Surrounds & Fronts Options

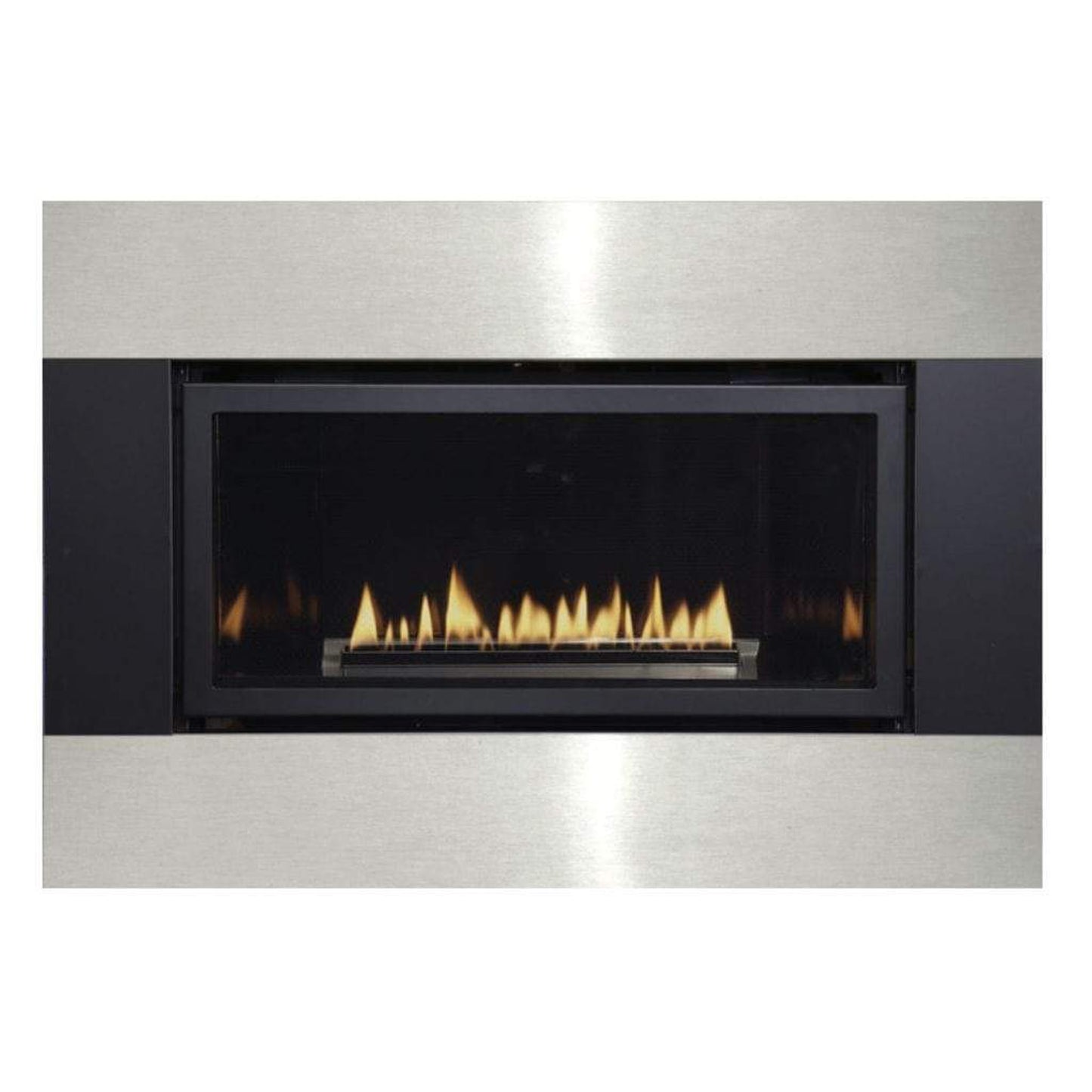

      4-Sided Metal Surround with Barrier

      • Type: 4-Sided Surround
      • Finish: Matte Black / Black and Stainless
      • Dimensions: 6" x 6" x 2"
      • For use with Loft Series Direct-Vent Fireplace Insert

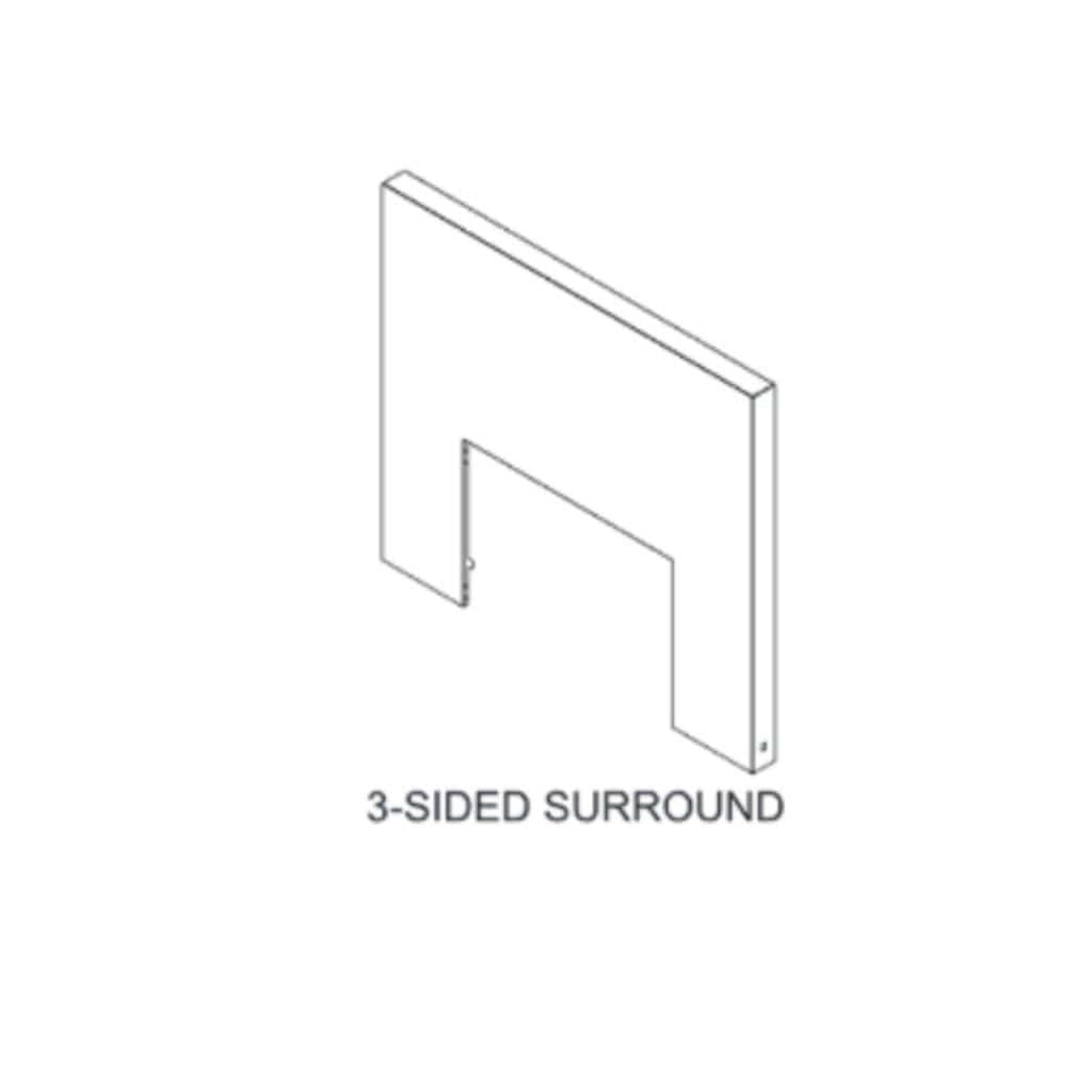

      3-Sided Metal Surround - 1 Piece

      • Type: 3-Sided Surround
      • Finish: Matte Black
      • Overall dimensions are 40" W, 25.5" H, and 1.25" D.
      • Please Note: This is required for installation of barrier screens and decorative fronts.
      • For use with Loft Series Direct-Vent Fireplace Insert

      Front with Barrier Screen (Eclipse)

      • Type: Front
      • Finish: Matte Black
      • Please Note: 3-Sided, 1-piece Metal Surround or Custom Surround required for installation.
      • For use with Loft Series Direct-Vent Fireplace Insert

        3-Sided Custom Surround

        • Type: 3-Sided Surround
        • Finish: Matte Black
        • Custom Built Surround for Various Empire Fireplaces and Fireplace Inserts

        4-Sided Custom Surround

        • Type: 4-Sided Surround
        • Finish: Matte Black
        • Custom Built Surround for Various Empire Fireplaces and Fireplace Inserts

        SH1BL Shroud

        • Helps cover large gaps between your fireplace and surround when installing fireplace inserts
        • Finish: Black
        • Dimension: (48-in W x 35 3/4-in H, plus 2-in Bottom panel.
        • Opening 36-in x 23 3/4-in)


        Click to see Decorative Media Crushed Glass


        Black Polished Crushed Glass

        • Approx. 1 sq. ft.
        • Covers burner ports and provides a unique appearance
        • Install only to manufacturer specifications
        • Reflective nature amplifies burner flames

        Blue Clear Crushed Glass

        • Approx. 1 sq. ft.
        • Covers burner ports and provides a unique appearance
        • Install only to manufacturer specifications
        • Reflective nature amplifies burner flames

        Clear Frost Crushed Glass

        • Approx. 1 sq. ft.
        • Covers burner ports and provides a unique appearance
        • Install only to manufacturer specifications
        • Reflective nature amplifies burner flame

          Copper Reflective Crushed Glass

          • Approx. 1 sq. ft.
          • Covers burner ports and provides a unique appearance
          • Install only to manufacturer specifications
          • Reflective nature amplifies burner flames

          Bronze Reflective Crushed Glass

          • Approx. 1 sq. ft.
          • Covers burner ports and provides a unique appearance
          • Install only to manufacturer specifications
          • Reflective nature amplifies burner flames


          Click to see Control Options

          FRBC Battery Operated On or Off Remote Control

          • Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve)
          • Does not require running wire to the fireplace
          • Requires batteries for the receiver and for the handheld remote
          • Operates during power outages

          FRBTC2 Battery Operated Thermostat Remote Control

          • Type: Remote Control
          • Millivolt Control Options Only
          • Turns heater adjusts Thermostat
          • Battery-operated remote control

          FREC Electric On-Off Remote Control with Battery Transmitter

          • Millivolt Control Options Only
          • Remote control with Battery transmitter for Empire remote-ready appliances
          • Easy and convenient to use
          • The receiver must be plugged in.

          FRBTPS Battery Operated Programmable Touch Screen Remote Control

          • Type: Remote Control
          • Millivolt Control Options Only
          • Programmable and easy to use
          • Battery-operated remote control

          FWS1 Wall Switch On/Off

          • On-Off wall switch for Empire remote-ready appliances

          • Mounts conveniently on wall

          TMV Wall Thermostat Reed Switch

          • Wall thermostat with reed switch for Empire remote-ready appliances
          • Mounts conveniently on wall

          TRW Wall Thermostat Wireless Remote

          • Wall thermostat with wireless remote for Empire remote-ready appliances
          • Thermostat mounts conveniently on wall

          Variable Remote for Intermittent Pilot

          • Remote Kit for Natural Gas / Propane
          • Model: RVKN - Natural Gas
          • Model: RVKP - Propane
          • Type: Remote Kit
          • Variable Flame Height Kit
          • Includes: Stepper Motor, Thermostat Remote, and Wiring.


          Fuel Conversion Kits

          • Natural Gas to Propane
          • Propane to Natural Gas
          • For use with Millivolt / Intermittent Pilot Control
          • For Loft Direct Vent Fireplace Insert


          WARRANTY

          • 10-year limited warranty on combustion chamber, limited lifetime on glass.
          • All other parts carry a three-year limited warranty.
          • All remote controls carry a one-year limited warranty.
