SKU:DVCT40CSP95N
Empire Rushmore 40" TruFlame Clean Face, Natural Gas Direct Vent See-Through Fireplace
Empire Rushmore 40" TruFlame Clean Face, Natural Gas Direct Vent See-Through Fireplace
Log Set (Required)
-- Please Select --
No, Thank You
Decorative Liner (Required)
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Exterior Frame
-- Please Select --
No, Thank You
Decorative Frames & Insets
Heat Management
Power Vent
Wire Harness (Required for Power Vent)
-- Please Select --
No, Thank You
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.
A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.
The Rushmore Series
With its massive log set, deep ember bed, dual burner and huge ceramic glass front, the Rushmore is one great-looking fireplace, but what you can’t see makes this fireplace even more impressive.
Empire’s TruFlame Technology ensures maximum flames and ember glow with minimum emissions. The system starts with independently controlled front and rear burners set in a large ember bed. The burners create a tall lively fire that dances and curls around the hand-painted ceramic fiber logs – generating a continuous tableau of flame shapes and light patterns.
Rushmore’s product line up is growing! Combining a see-through unit with Tru-Flame technology allows the most realistic flame to be enjoyed in two rooms of any home. The Rushmore 40 See-Through features a dual burner that creates a lively fire, InvisiMesh that provides a crystal clear 40-inch viewing area, and an optional stainless steel outdoor kit that can add comfort to any outdoor seating area.

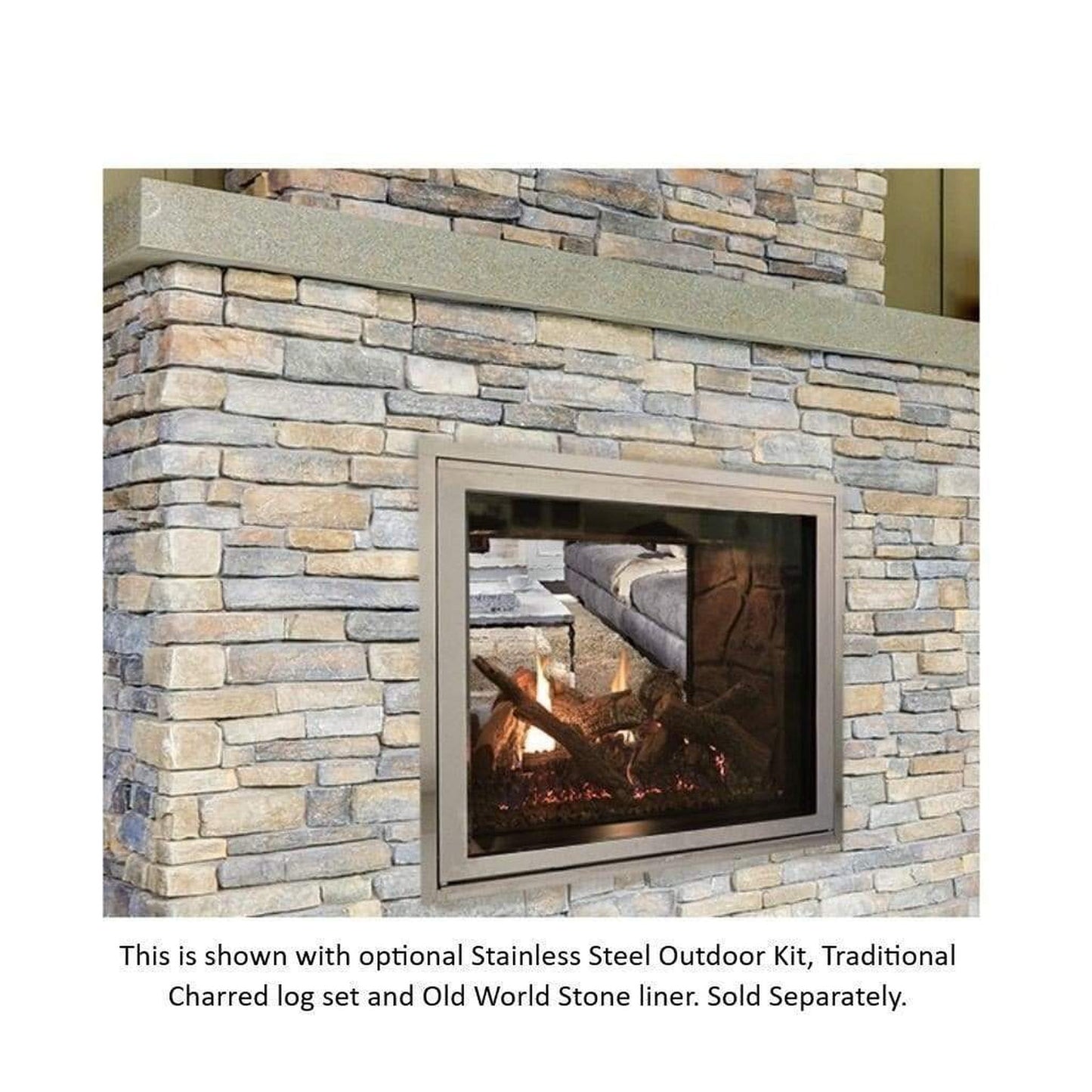

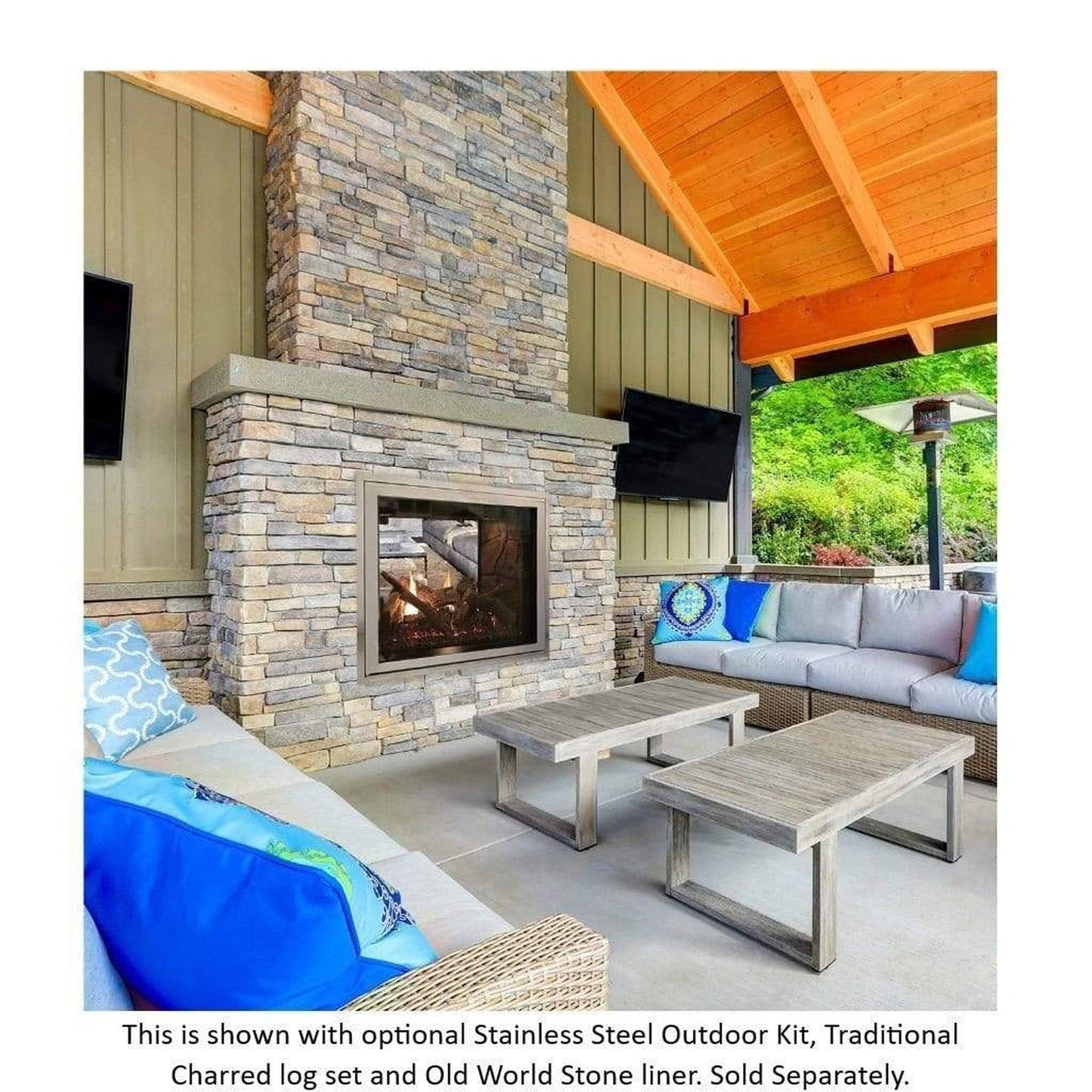

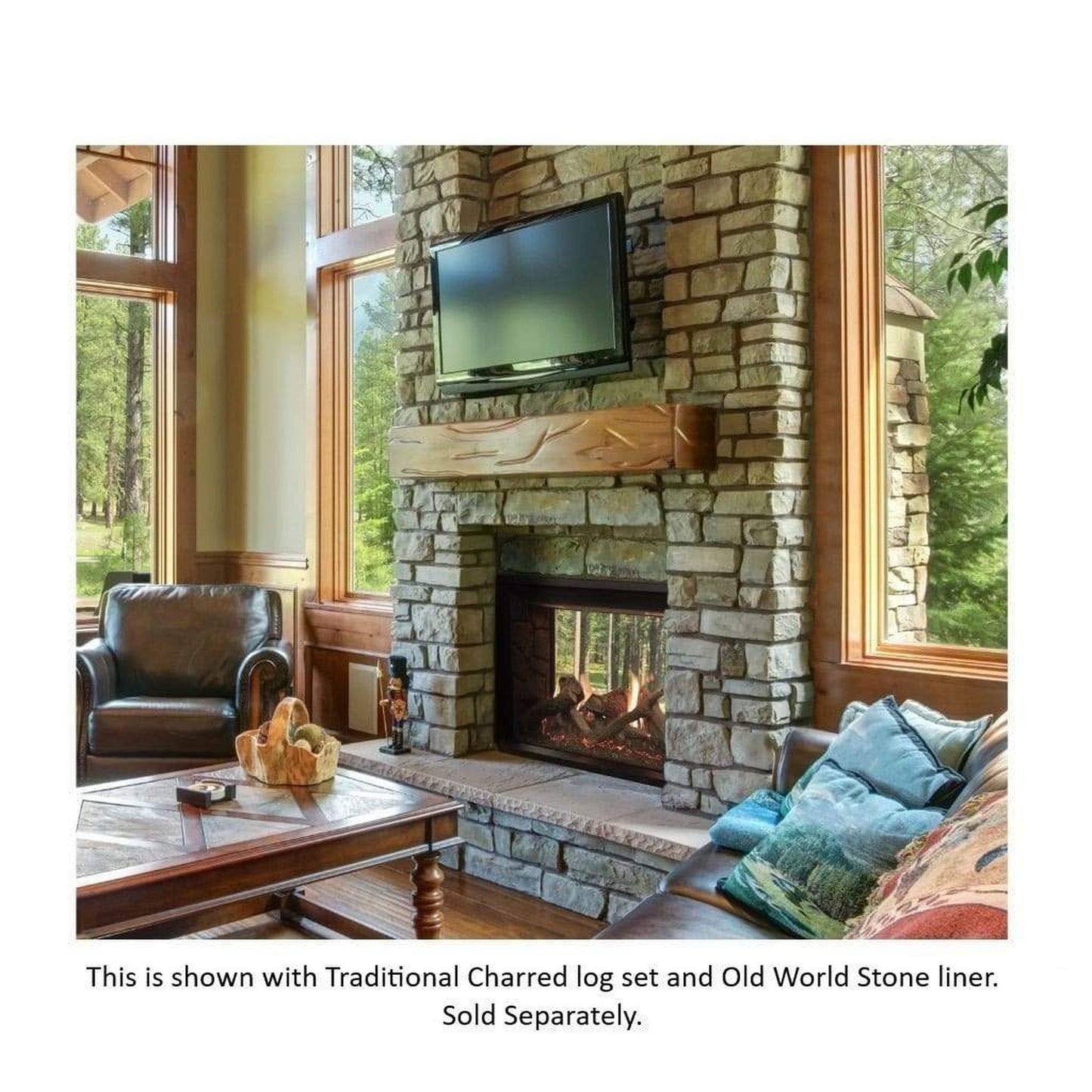

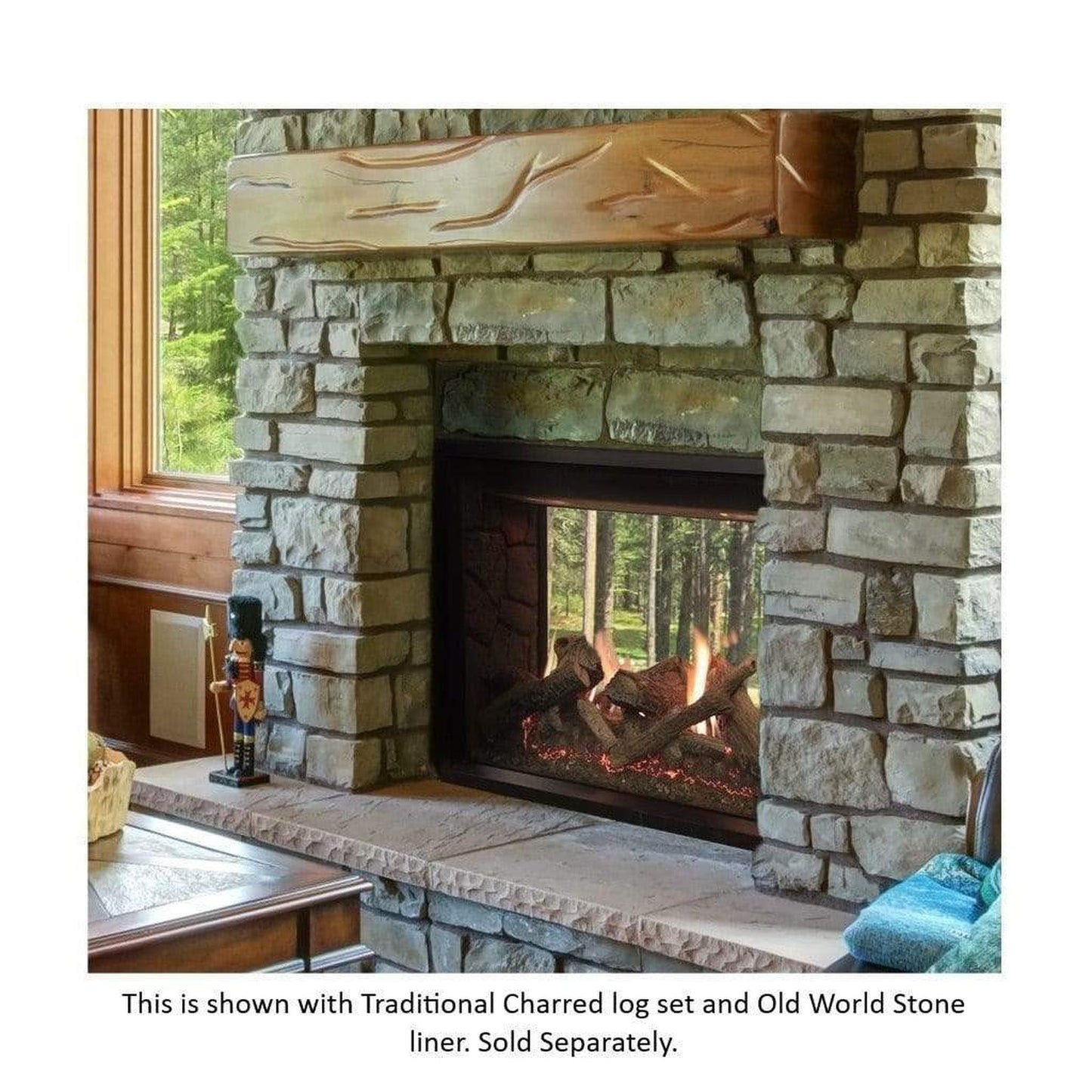

Please Note: Picture Shown Rushmore 40 direct-vent see-through fireplace with Traditional Charred log set and Old World Stone liner. Not Included (Sold Separately).
What's Included
- Fine Mesh Barrier
- Non-Combustible Board
- Multi-Function remote control
Not Included (Sold Separately)
- Liner (Required)
- Logs (Required)
- Exterior Frame
- Beveled Frame
- Heat Management
- Gas Conversion Kit
- Forged Iron Fronts and Insets
- Power Vent Accessories
Features
- Multi-Function remote to control
- Accent lighting on/off with 6-step dimming
- Independent Rear burner on/off (70% turn down)
- Front and rear burner 6-step variable flame height
- Realistic fire with two large glowing ember beds
- Rushmore see-through fireplace features a triple burner for a luxurious
- Traditional Charred log set gives you a unique look from both sides of this eye-catching centerpiece
- See-through fireplace can be enjoyed in two rooms of your home for indoor beauty and comfort
- Adding the stainless steel outdoor kit, the fireplace can be installed on an exterior wall, giving you indoor and outdoor viewing experiences
- TruFlame Technology - Catalyst allows large flame, extensive ember bed and clean burn
Specifications
Model | DVCT40CSP95N |
Max BTU (w/both burners) | 60,500 |
Min BTU (w/both burners) | 40,000 |
Min BTU (front burner only) | 16,500 |
Vent Type | Direct Vent |
Type of Gas | Natural Gas |
Venting | 5 x 8 Direct Vent System |
Installation | See-Through |
KWH (Maximum) | 17.73 |
KWH (Minimum) | 11.73 |
Orifice - Front | #35 |
Orifice - Rear | #37 |
Air Shutter Opening Front | Full Closed |
Air Shutter Opening Rear | Full Closed |
Gas Inlet Shutoff Valve (pipe) | 1/2 NPT |
Gas Supply Pressure (Inches Water Column) |
Maximum | 14 |
Minimum | 4.5 |
Manifold | 3.5 |
Dimensions
Width | 57" |
Depth | 24" |
Height without standoff | 47" |
Ceramic Glass Width | 37" |
Ceramic Glass Height | 31" |
Warranty
- 10-year limited warranty on combustion chamber, limited lifetime on glass
- All other parts carry a three-year limited warranty
- All remote controls carry a one-year limited warranty
Documents & Files
- Product Brochure
- Rushmore Series Catalog
- Home Owner's Manual
- Installation Instructions DVCT40CSP95
- Installation Instructions Log Set
- Installation Instructions Liner Kit
- Installation Instructions Decorative Inset
- Installation Instructions Decorative Frame
- Installation Instructions Conversion Kit (Nat to Propane)
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
