Empire Comfort Systems

DVCC42BP72N

Empire 42" Tahoe Clean Face Direct Vent Premium Contemporary Fireplace - IP Control Series

Fuel Type: Natural Gas


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.


OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

Advantages:

  • Good efficiency – 60 to 80%
  • Good heat output with thermal transfer through the glass and air circulation
  • Separates room air from the combustion air
  • May be used as the primary heat source
  • Can operate with a remote or thermostat
  • Most systems can provide live-saving heat during a winter power outage

Tahoe Direct-Vent Fireplaces

Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower. It features a large tempered glass window that provides an unobstructed view to the log set. Choose an optional liner to customize your fireplace.

Tahoe Clean-Face Deluxe models require 17-3/4, and use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

Designed for in-wall installation, your Tahoe Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.

Tahoe Clean Face Premium Contemporary

Ceramic Fiber Liner options for Clean-Face Premium models include a traditional Aged Brick with smoky highlights, and an old-world Rustic Brick. Or choose the deep black polished porcelain-steel liner that reflects the flames for a luxurious effect.

The available lighting kit draws attention to the intricate details of the decorative rock kit and brick liner – even when no fire is burning. You can enhance heat distribution with the optional variable-speed blower. Both the light and blower include dimmer controls.

Clean-Face Premium models are available in Millivolt and Intermittent Pilot

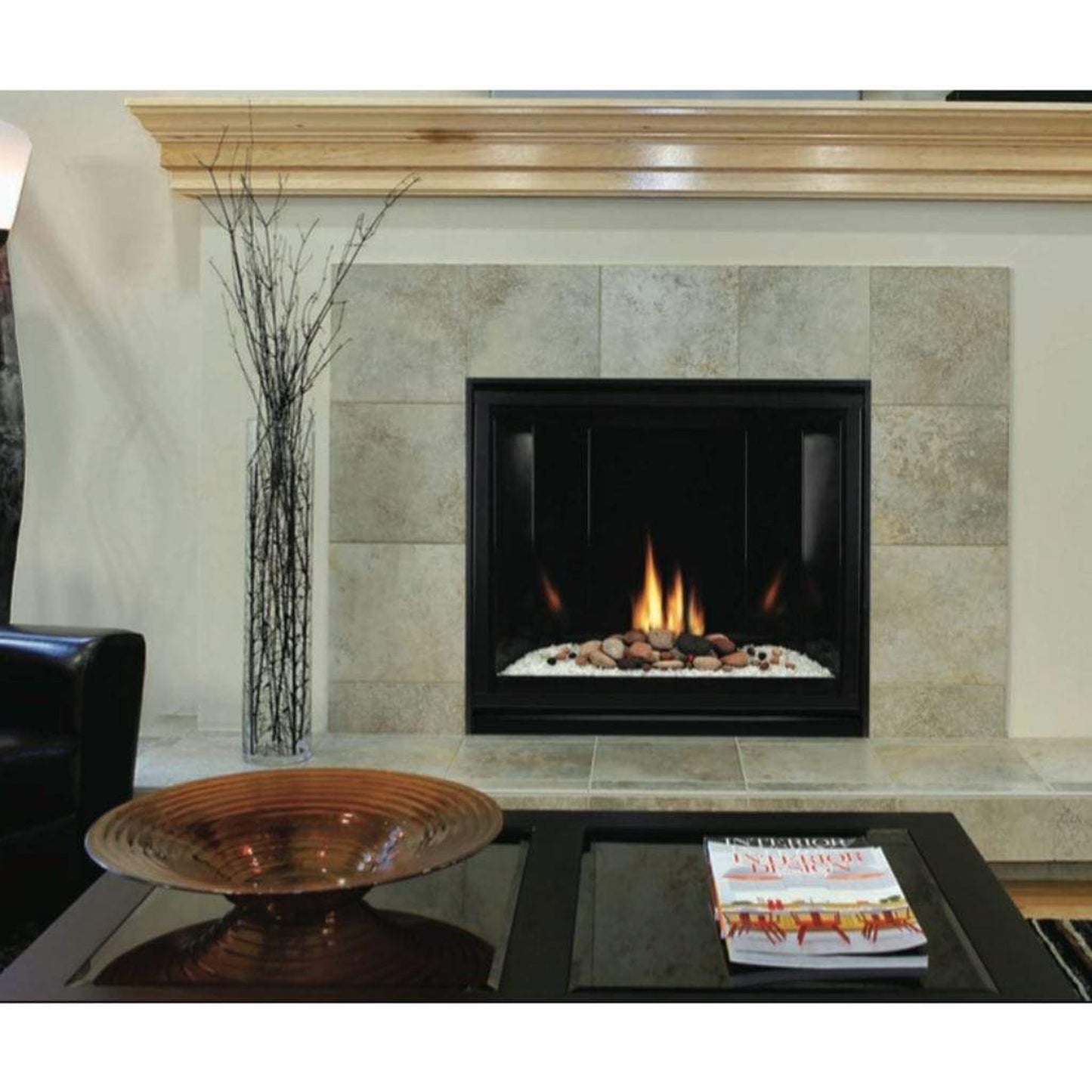

Please Note: Shown with crushed glass (not included) and rock set (not included).

FEATURES

  • Available in 32", 36" and 42" sizes.
  • Tempered Glass: 27 x 37
  • Venting: 4 x 6 5/8 Top Vent Only (Refer to manual for venting requirements)
  • Framing 49 1/4 H x 43 3/4 W x 17 5/8 D (see manual before framing)
  • Pallet Quantity: 6
Includes:
  • Black Porcelain Liner
  • Barrier
Requires:
  • Rock Set
  • Crushed Glass (1 sq. ft.)

CA Residents: See Prop 65 WARNING.

OPTIONS & ACCESSORIES

Rock Set (Required)

Click to see Rock Set options

Rock Base Media Kit

  • Includes one rock base, 17 rocks, and small sticks
  • Includes both rocks and sticks for a rustic appearance

Decorative Crushed Glass

Click to see Crushed Glass options


Black Polished Crushed Glass

  • Approx. 1 sq. ft.
  • Covers burner ports and provides a unique appearance
  • Install only to manufacturer specifications
  • Reflective nature amplifies burner flames

Blue Clear Crushed Glass

  • Approx. 1 sq. ft.
  • Covers burner ports and provides a unique appearance
  • Install only to manufacturer specifications
  • Reflective nature amplifies burner flames

Clear Frost Crushed Glass

  • Approx. 1 sq. ft.
  • Covers burner ports and provides a unique appearance
  • Install only to manufacturer specifications
  • Reflective nature amplifies burner flame

    Copper Reflective Crushed Glass

    • Approx. 1 sq. ft.
    • Covers burner ports and provides a unique appearance
    • Install only to manufacturer specifications
    • Reflective nature amplifies burner flames

    Bronze Reflective Crushed Glass

    • Approx. 1 sq. ft.
    • Covers burner ports and provides a unique appearance
    • Install only to manufacturer specifications
    • Reflective nature amplifies burner flames

    Accessories

    Click to see Accessories

    Flexible Stainless Steel Gas Line

    • Stainless steel flexible gas line
    • 24" length
    • Ideal for the connection of a variety of gas appliances

     Variable Speed Blower

    • Included rheostat for variable speed control
    • A thermal switch allows on/off operation based on temperature
    • Increases overall thermal efficiency of the fireplace
    • Installation bracket and wiring harness included

    Lighting Kit, 120V (includes Rheostat)

    • Interior accent lighting kit provides illumination of the log set
    • Ideal for accenting the fireplace when not in use
    • Rheostat type dimmer switch included
    • Simple 120-volt plugin system

    Control Options

    Click to see Control Options

    FRBC Battery Operated On or Off Remote Control



    • Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve)
    • Does not require running wire to the fireplace
    • Requires batteries for the receiver and for the handheld remote
    • Operates during power outages



    Battery-Operated Remote with Thermostat Control - FRBTC

    • Battery-operated remote control for Empire remote-ready appliances

    • Turns the heater on and off and adjusts the thermostat

    FREC Electric On-Off Remote Control with Battery Transmitter

    • Millivolt Control Options Only

    • Remote control with Battery transmitter for Empire remote-ready appliances

    • Easy and convenient to use

    • The receiver must be plugged in.

    Programmable Battery-Operated Remote Control - FRBTP

    • Battery-operated remote control for Empire remote-ready appliances

    • Programmable and easy to use

    FWS1 Fireplace On/Off Switch

    • On-Off wall switch for Empire remote-ready appliances

    • Mounts conveniently on wall

    TMV Wall Thermostat Reed Switch

    • Wall thermostat with reed switch for Empire remote-ready appliances

    • Mounts conveniently on wall

    TRW Wall Thermostat Wireless Remote

    • Wall thermostat with wireless remote for Empire remote-ready appliances

    • Thermostat mounts conveniently on wall

    Variable Flame Height, Natural Gas or Propane

    • Models:
      • RVKN (Nat)
      • RVKP (Lp)
    • Fireplace Type: Standard(RVKP, RVKN)
    • Vent Type: Vented(RVKP, RVKN)
    • Remote Control Variable Flame Height Kit
    • Available for Propane or Natural Gas Burner Systems
