SKU:DVL46BP30N
Empire Loft 46" Millivolt Control With On/Off Switch, Natural Gas Direct Vent Linear Fireplace
Empire Loft 46" Millivolt Control With On/Off Switch, Natural Gas Direct Vent Linear Fireplace
Log Set
-- Please Select --
No, Thank You
Optional Liner
-- Please Select --
No, Thank You
Beveled Trim
-- Please Select --
No, Thank You
Accent Light
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Crushed Glass
Heat Management
Control Options
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.
A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.
Linear Direct-Vent Fireplace
Large, deep, linear or just unique – our designer direct-vent fireplaces create the perfect look on scale that’s ideal for your perfect home. All of our designer models incorporate a clean-face design to allow you to finish right up to the fireplace opening creating the look of a site-built fireplace. Some also offer trim and decorative front accessories to tailor the fireplace to the room.
Sophisticated Convenience
The Loft adds a modern, linear style at an exceptional value to any home or office. The contemporary design is highlighted by a long, flickering flame rising through a bed of crushed glass media.
The Loft is available in 36" and 46" models to fit a variety of spaces and applications. Take control of your fireplace by choosing the controls that suit you best from simple millivolt to multifunction remote controlled electronic ignition.

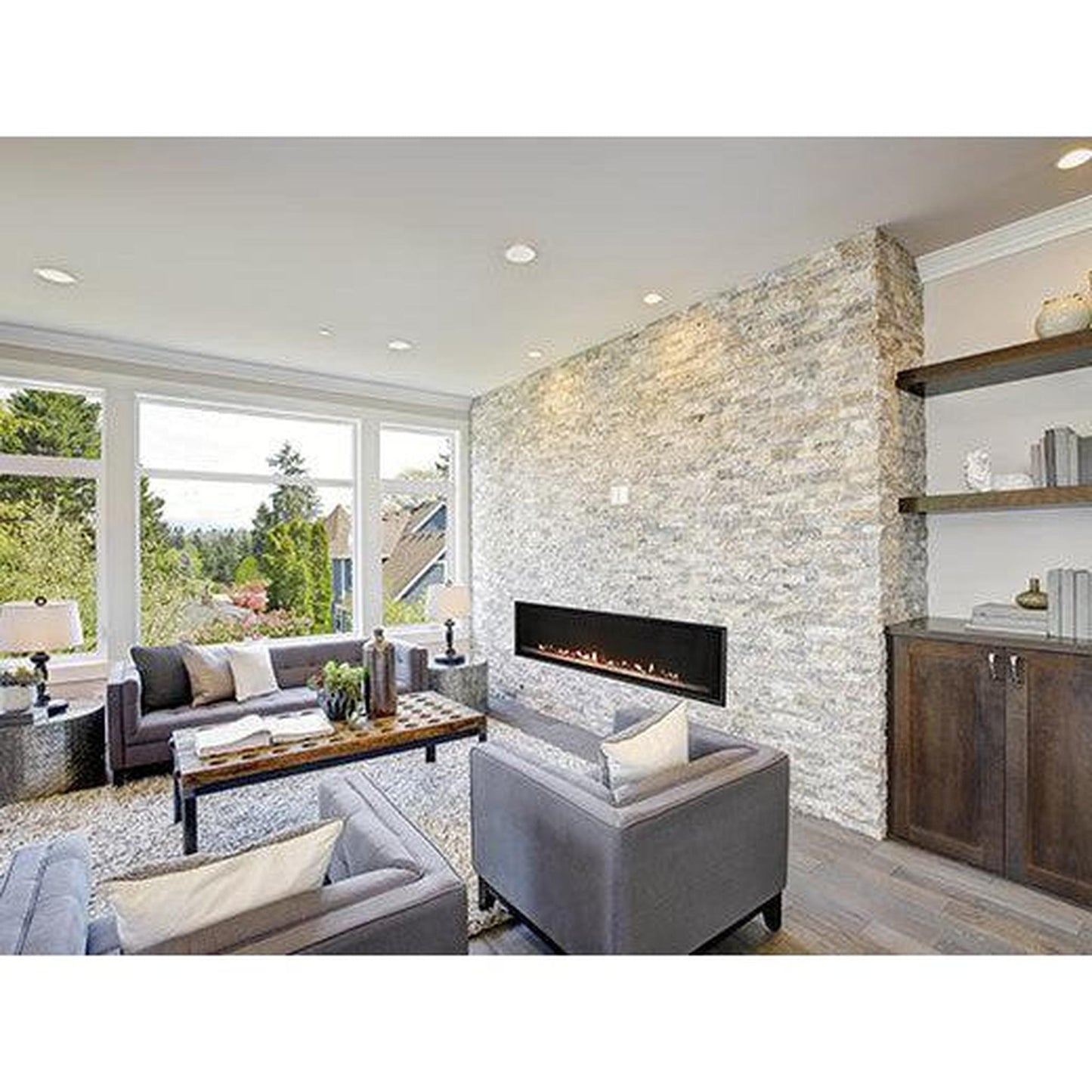

Please Note: Picture Shown Loft 46-inch Linear Direct-Vent Fireplace with Black Porcelain Liner, Clear Frost Crushed Glass, and Optional Light Kit. Not Included (Sold Separately).
What's Included
- Clear Crushed Glass
- On/off Switch w/10' wire
Not Included (Sold Separately)
- Log Set
- Lighting Kit
- Beveled Front
- Optional Liner
- Control Options
- Heat Management
- Gas Conversion Kit
Features
- Simple and sleek
- Available accessories include decorative glass, fronts, and more
- Loft contemporary fireplaces are a modern take on fireplace design
- Loft adds a modern, linear style at an exceptional value to any home or office
- Personalize the fireplace for any space by selecting from a variety of media options
- Loft fireplace will create an inviting environment while adding warmth to your home
- Contemporary design is highlighted by a long, flickering flame rising through a bed of crushed glass media
Specifications
Model | DVL46BP30N |
Input BTU/Hr Maximum | 30,000 |
Input BTU/Hr Minimum | 22,000 |
KWH (Maximum) | 8.79 |
KWH (Minimum) | 6.45 |
Type of Gas | Natural Gas |
Ignition | Millivolt |
Vent Type | Direct Vent |
Venting | 4 x 6 5/8 Top Vent Only, 12-in min. rise |
Installation | Linear |
Orifice | #37 (P213) |
Air Shutter Opening | 1/16" |
Gas Inlet Shut-Off Valve (Pipe) | 1/2" NPT |
Gas Supply Pressure (Inches Water Column) |
Maximum | 14 |
Minimum | 4.5 |
Manifold | 3.5 |
Dimensions
Tempered Glass Width | 42" |
Tempered Glass Height | 13" |
Framing Width | 58" |
Framing Height | 33" |
Framing Depth | 15" |
Warranty
- 10-year limited warranty on combustion chamber, limited lifetime on glass
- All remote controls and lighting systems carry a one-year limited warranty
- All other parts carry a three-year limited warranty
Documents & Files
- Download Product Brochure
- Download Installation Instructions Manual
-
Download Architect Drawing - DVL46BP
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
