SKU:FAW55IPXNAT

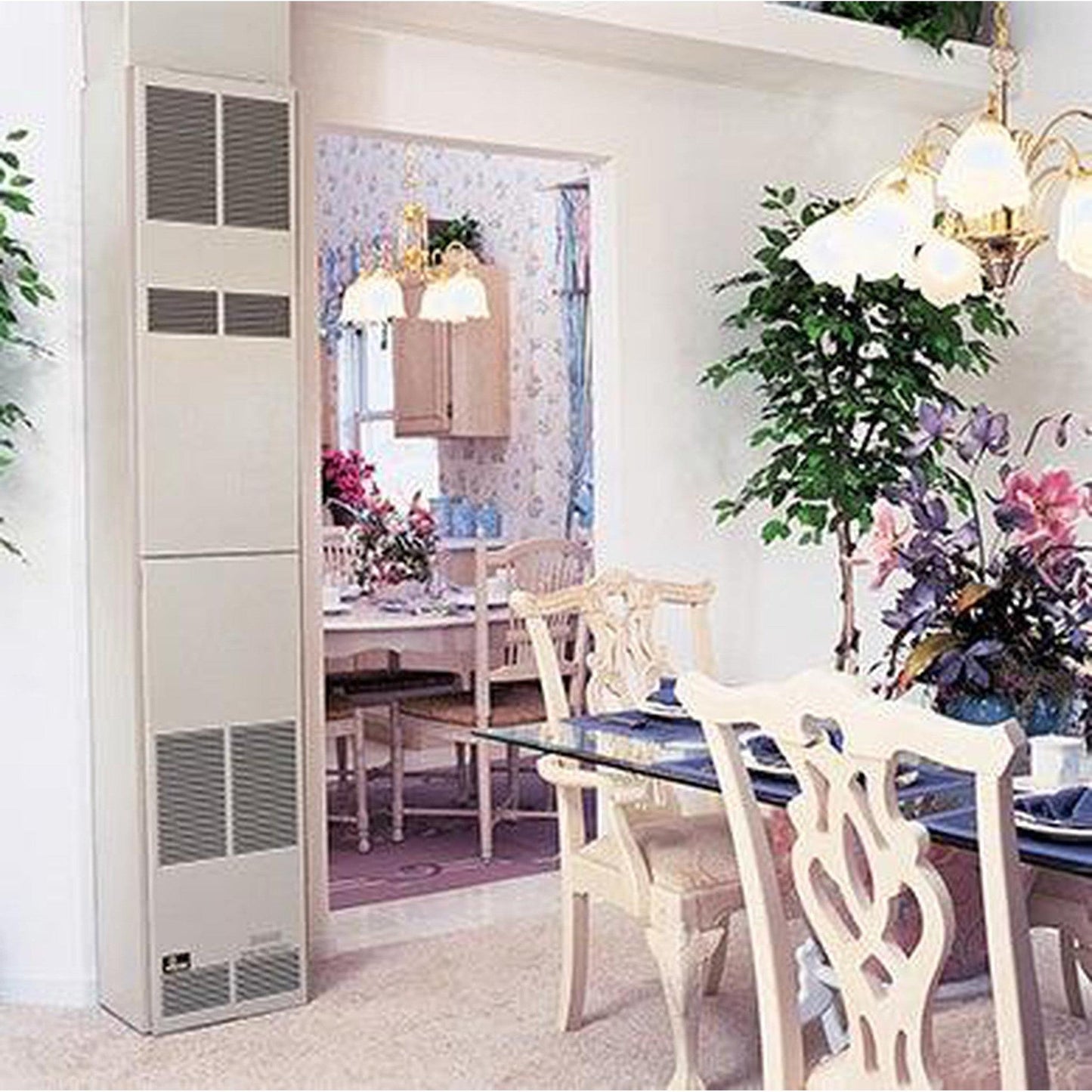

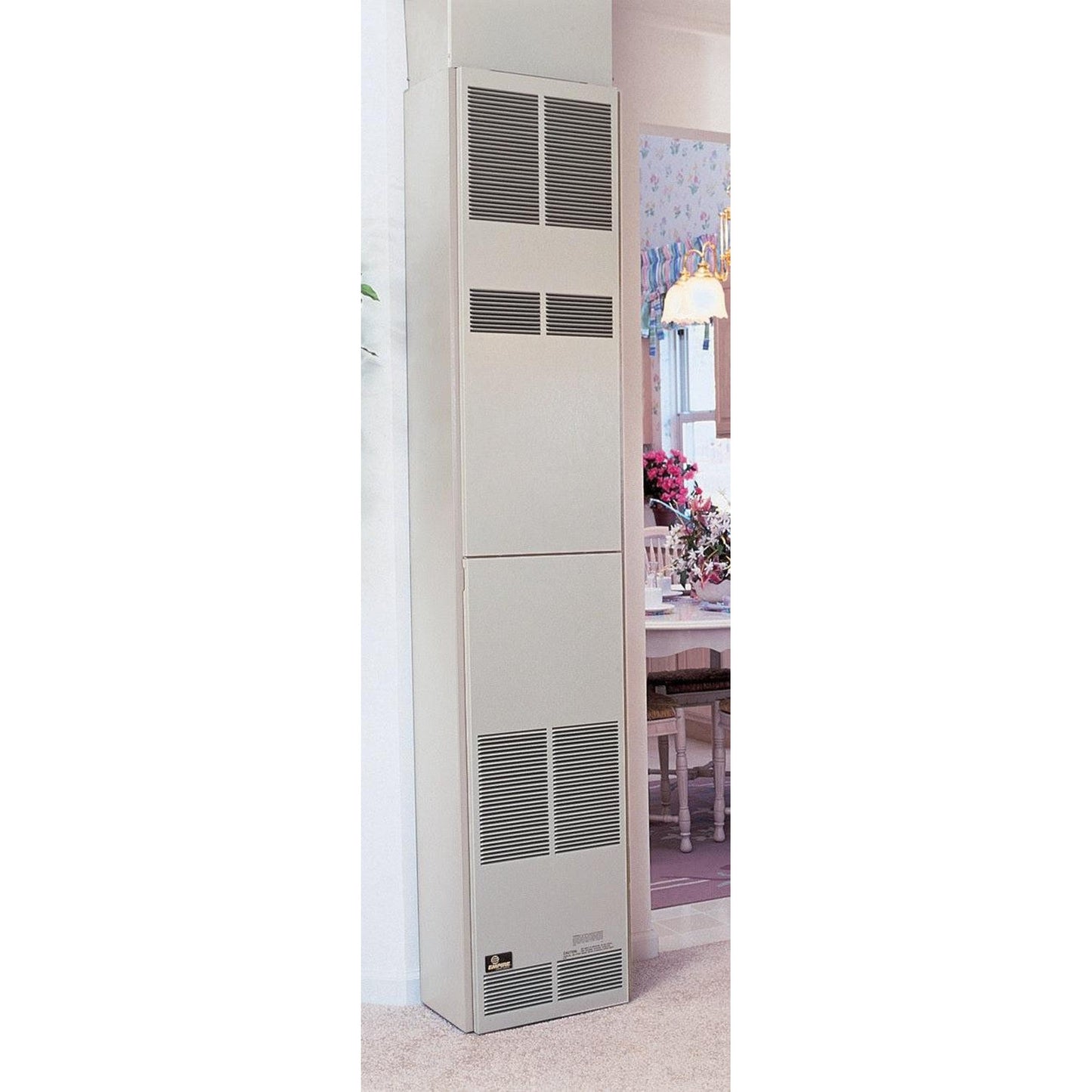

Empire 82" 55,000 BTU Beige Electronic Intermittent Pilot, Natural Gas Vented Counterflow Wall Furnace
Empire 82" 55,000 BTU Beige Electronic Intermittent Pilot, Natural Gas Vented Counterflow Wall Furnace
Conversion Kit
-- Please Select --
No, Thank You
Vent Enclosure
-- Please Select --
No, Thank You
Oval-to-Round Flue Adaptor Kit (Required for Vent Enclosure)
-- Please Select --
No, Thank You
Venting Kits
Control Options
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Vented zone heating systems use room air to support combustion and exhaust their flue products to the outdoors via a single pipe. Mounts anywhere you have access to an existing flue or where you can install a vent run through the roof. A vented zone heating system makes an excellent replacement for an inefficient oil or wood stove.
Counterflow wall furnaces circulate warmth at floor level to provide comfort at a fraction of the cost of electric heat. The front panels remove easily for cleaning and servicing. Available in standing pilot with matchless piezo ignition or state-of-the-art electronic ignition.
What's Included
- 82" 55,000 BTU Beige Electronic Intermittent Pilot, Vented Counterflow Wall Furnace
Not Included (Sold Separately)
- Wall Thermostats
- 10" Side Outlet Kit
- 10" Rear Outlet Kit
- Side Outlet Register
- Vent Enclosure
- Gas Conversion Kit
- Oval-to-Round Flue Adapter Kit
Features
- Made in USA
- Up to 76% A.F.U.E. efficient
- Matchless Pushbutton Piezo Ignition
- FAW55 Install on Inside or Outside Walls
- Front Panels Remove for Cleaning and Servicing
- Multi-Room Heating Capacity with Optional Outlet Kits
- Counterflow Blower Circulates Warm Air at Floor Level
- Total Comfort for a Fraction of the Cost of Electric Heat
- Electronic Intermittent Pilot (saves even more energy)
Specifications
| Model | FAW55IPXNAT |
| Cabinet and Front Panels Color | Beige |
| BTU Input | 55,000 |
| Blower Output, Cu. Ft./Min. | 400 CFM |
| Fuel Type |
Natural Gas |
| Control Options (Not Included) |
| Works with Manual; Toggle Switch, Thermostat; Wall Switch or Remote Control | Yes |
| Safety Controls |
| Pilot and Main Burners Include Automatic Shut-off | Yes |
| Gas Inlet |
| Iron Pipe Size (N.P.T.) | 1/2" |
| Wall to Valve Inlet | 6 1/2" |
| Center of Heater to Center of 1/2” Inlet Elbow | 3" |
| Floor Covering to Valve Inlet | 3 3/4" |
| Overall Dimensions |
| Width | 16" |
| Depth | 11" |
| Height | 82" |
| Shipping Weight, lb | 135 lbs |
| Minimum Clearances to Combustibles From |
| Top (To Ceiling) | 7 1/2" |
| Each Side (To Nearest Adjacent Sidewall) | 4" without Register 18" with (SOR1) |
| Bottom of Unit to Wood Floor | Zero |
| Center of Vent Connector Opening to Combustibles | 1 9/16" |
| Depth Unit May Be Recessed | 4" |
Warranty
| Combustion Chamber | 10-Year limited warranty |
| All Other Part Carry | 1-Year limited warranty |
Documents & Files
Frequently Asked Questions
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between, Millivolt and electronic ignition heaters?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
