OVERVIEW

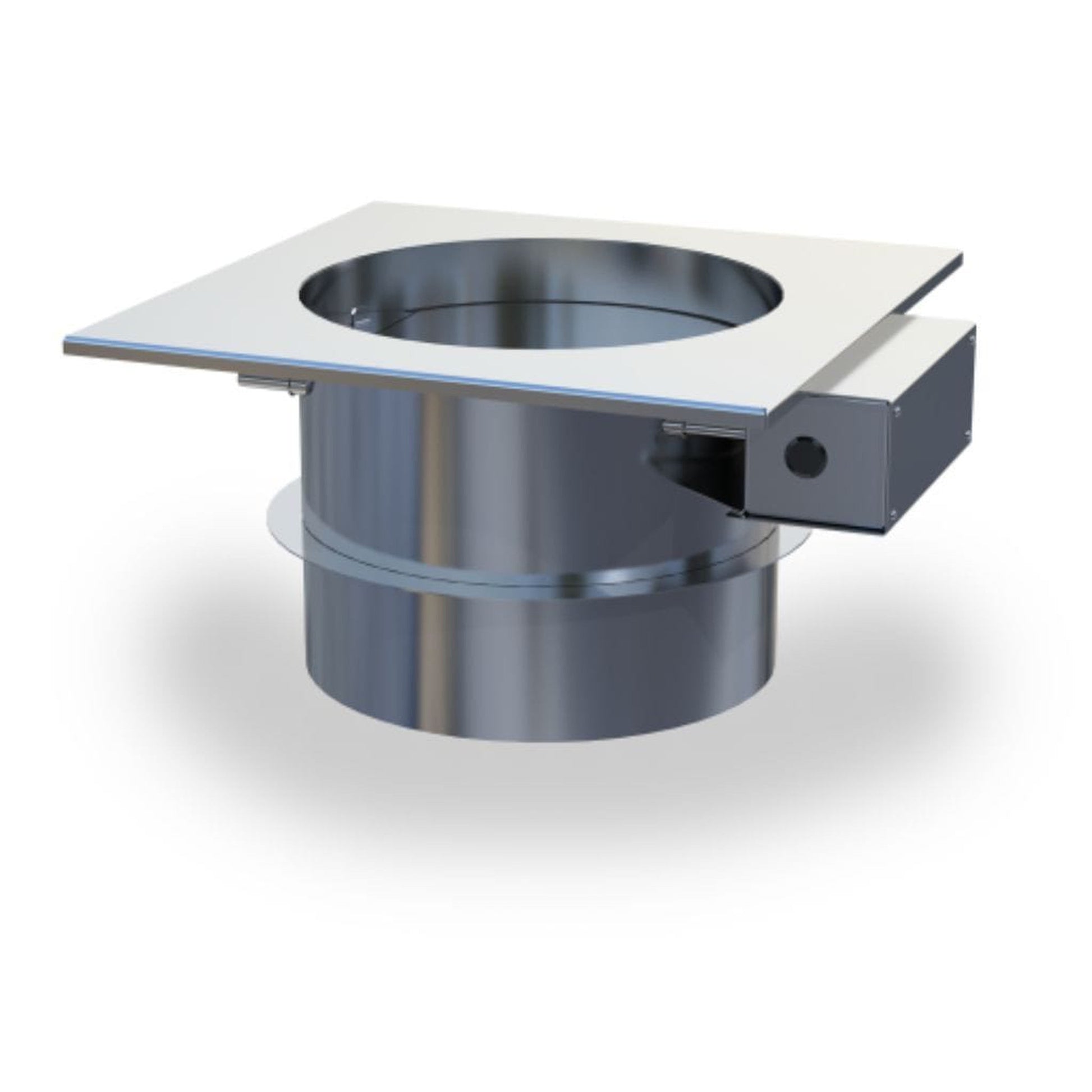

Mechanical Fireplace Dampers (used with ADC150 or ADC100). The MFD Mechanical Fireplace Damper prevents conditioned air from escaping up through the chimney when the fireplace is not in use and prevents backdraft down the chimney. It is designed for chimney top installations.

The MFD is used as a component in a combined fan and damper system. The damper actuator can be interlocked to a control (ADC100 or ADC150) so it only operates when the fireplace is in use and the fan is running. The MFD is powered by a 120 or 24 VAC actuator. The actuator is interlocked to the control so it only operates when the fireplace is in use and the fan is running. When there is a call for heat from the fireplace, the control begins its operational sequence to open the damper and start the chimney fan. Once the damper opens and there is sufficient draft in the chimney, the control releases the gas valve for fireplace operation. The actuator has two end switches to prove damper position (open or closed) and is equipped with the EDrive fail-safe system to open the damper in the event of an electrical or mechanical failure. The MFD is designed for chimney top installations and is for use with gas fireplaces only. The damper is rated for temperatures up to 1400oF (760oC).

Material. All metal components are 316L stainless steel. The top plate is constructed of 16GA and the other components are 18GA.

Standard Equipment

  • Damper with chimney adapter
  • 24VAC or 120VAC actuator
  • NEMA 3R Enclosure

    Common Companion Product

    • Chimney Fan
    • Fan and Damper Controller



    Features

    • Saves energy
    • Meets energy code requirements
    • Integrated fail safe system
    • Low profile



    Specification

    Available Sizes (ID) 6" to 16" (150mm to 400mm)
    Material Stainless Steel 316L
    Actuator Brushless DC Motor
    Power 120VAC or 24VAC/VDC Brushless Motor
    Torque 54 in-lbs (6 Nm)
    Speed 90° in 15 Sec.
    End Switches 2
    Temperature Rating 1400°F (760°C)
    Warranty 2-year Factory Warranty



    Downloads

    Product brochure

    Installation Manual
